Epiroc Boomer S2 Parts Catalogue 8999 3235 00 – Spare Parts Manual PDF

Description

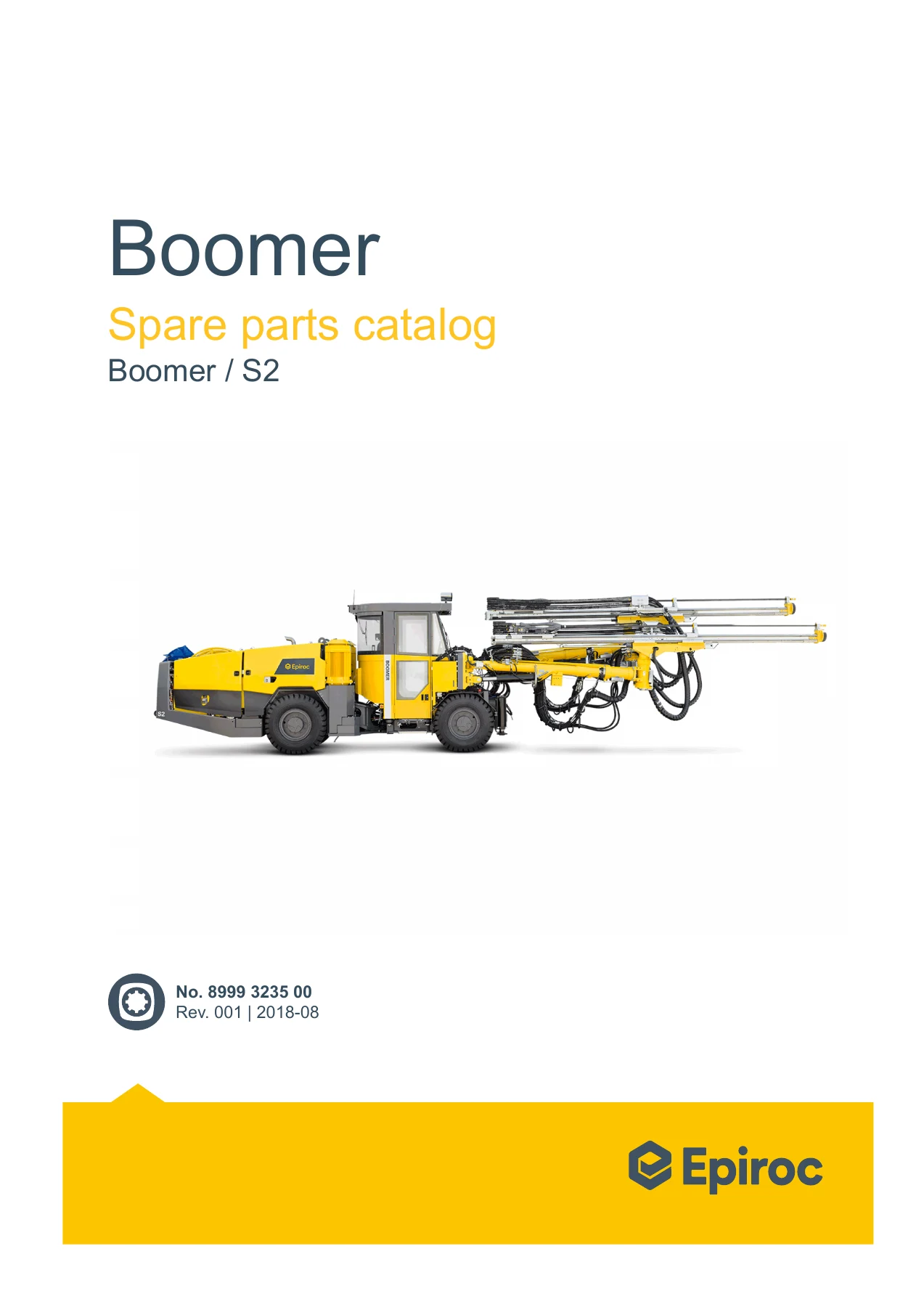

Epiroc Boomer S2 Spare Parts Catalogue – Document 8999 3235 00

This is the complete Epiroc Boomer S2 spare parts catalogue, published under document number 8999 3235 00 and copyright 2018 Epiroc Rock Drills AB, Sweden. The catalogue covers every major assembly of the Boomer S2 drilling rig, with exploded illustrations, reference numbers, part numbers, quantities, and bilingual descriptions in English and Spanish. Whether you are ordering a single seal kit, rebuilding a rock drill, or identifying a hydraulic hose, this parts catalogue gives you the exact part numbers and component breakdowns needed to keep the machine running.

File Details

• Manual Type: Spare Parts Catalogue
• Brand: Epiroc
• Model: Boomer S2
• Document Number: 8999 3235 00
• Publication Year: 2018
• Language: English (with Spanish translations for part descriptions)
• Page Count: 1464
• File Format: PDF

Chapters Covered

• PARTS & SERVICE / PARTS & SERVICE – Maintenance schedules, PM kits, service kits, tools, and air conditioning service items

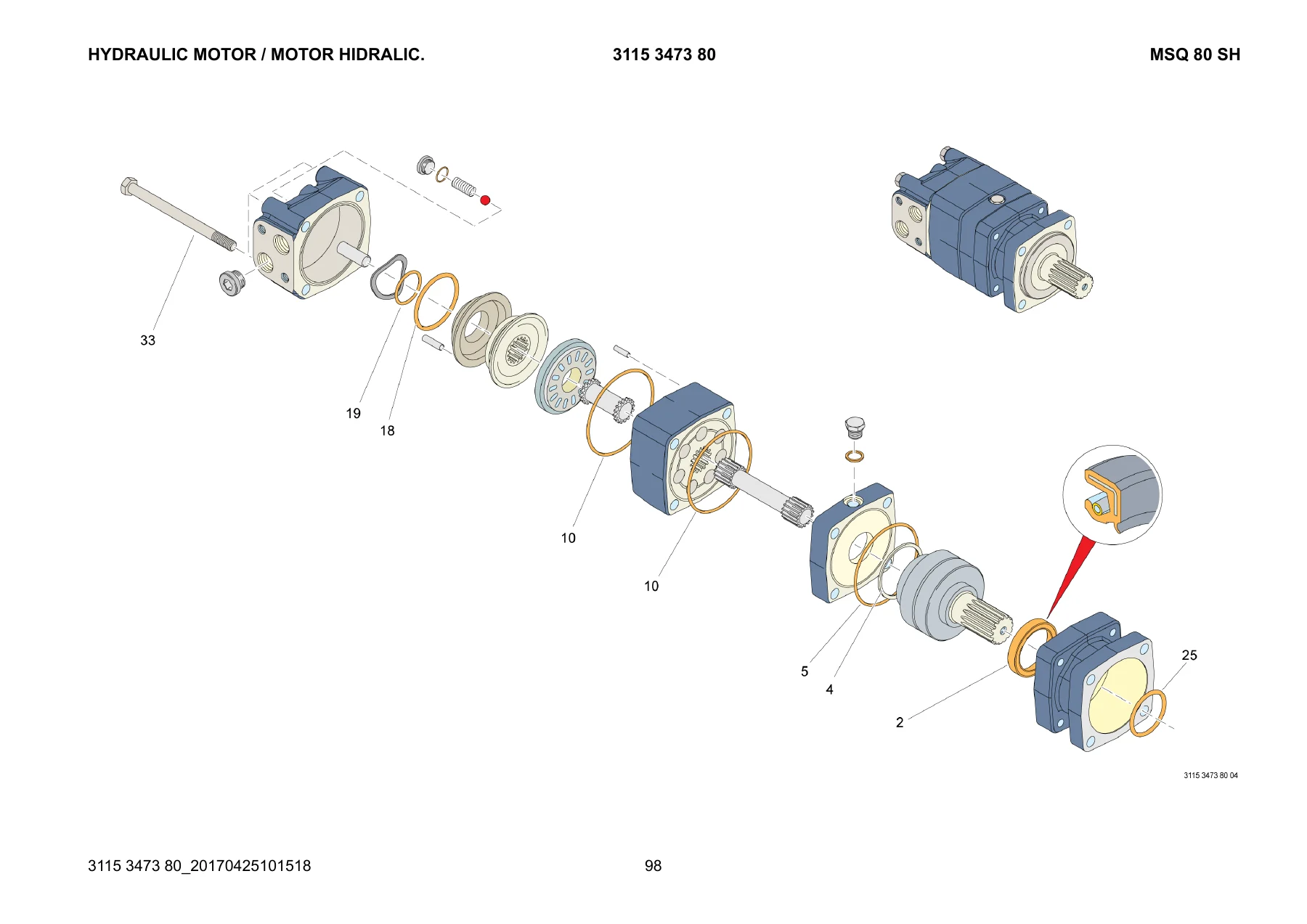

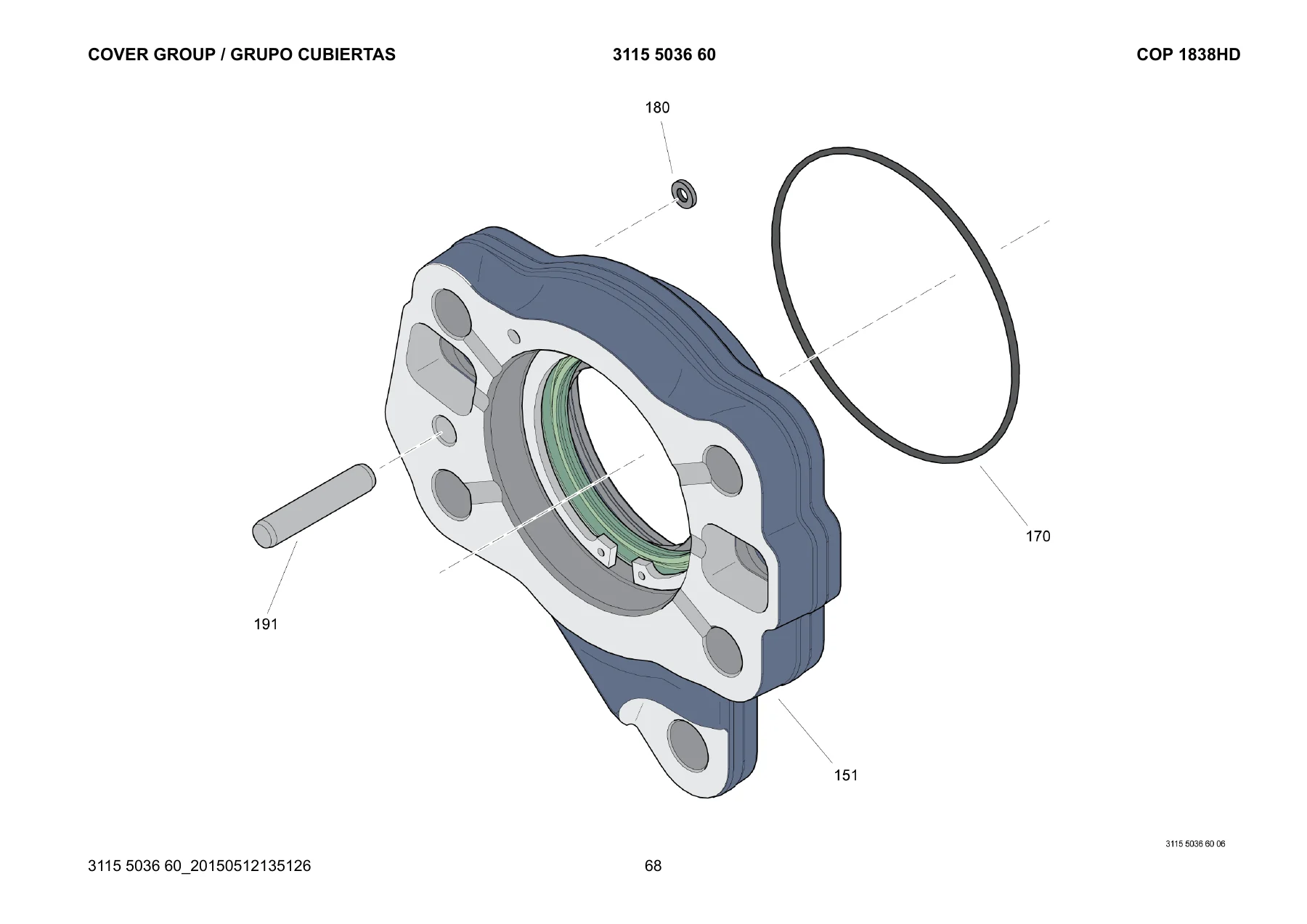

• ROCK DRILL / PERFORMADORA – Complete COP 1838HD+ rock drill assembly including front part, cover group, gear housing, intermediate part group, cylinder group, back head group, hydraulic motors, accumulators, return accumulator, label set, and optional set
• FEED / DESLIZADERA – Feed beam assemblies (BMH2X43, BMHT2X43/25), drill steel supports, hydraulic cylinders, cradle sets, holders, end pieces, pulley wheels, hose drums, hose fenders, hose guides, hose holders, sensors, limit switches, stops, spacers, and bushing sets
• BOOM / BRAZO – Basic boom, boom parts, boom attachment, boom link, cylinder link, shaft assemblies, expanding shafts, boom body, telescope set, turning devices, feed holder, cylinder sets, assembly sets, protection plates, hose frame sets, hydraulic sets, hose nipple sets, stops, and sensor sets including angle and linear sensors
• CARRIER / VEHICULO – Engine frame, boom frame, coupling set, cover plate, hoods, doors, mudguards, drill bit box, drive units, drive axles, drop box, cardan shafts, wheels, diesel engine, engine unit, cooling system, radiator, fuel system, exhaust system, air filter installation, coupling assembly, air guide, parting wall, cable steering, hydraulic set, and sign sets
• CABIN / CABINA – Cabin complete, door stops, drivers panel, locks, plastic panels, windows, windshield wipers, windscreen wash, doors, cab attachment, support, table, foot steps, accelerator pedal, monitor reverse camera attachment, display kit, air conditioner, condenser, filter, compressor set, chair swing, foot plate, radio, and windscreen wash reservoir
• CABLE REEL / CABRESTANTE – Cable reel kit, cable reel, cable gland kit, shaft set, commutator, earth ring kit, bushing set, pilot ring kit, brush/insulation kit, phase rings kit, cable drum, spare parts set, motor set, hydraulic motor, rollerchain kit, cable complete, cable lug set, reel control, and reel guide
• HOSE REEL / CARRETE-MANGUER – Hose guide, water reel, swing arm, hose reel, torque unit kit, gear, hydraulic motor, water inlet, flow control valve, pressure reducing valve, direction valve, and reel control
• HYDR SYSTEM / SISTEMA HIDR. – Hydraulic oil tank, flow regulator, valve block, hydraulic block, hose sets, direction valve, inlet section, valve sections, outlet section, return block, brake valve, pressure switches, hydraulic pumps, gear pumps, filter assemblies, return filter set, support leg kits, steering cylinder set, hydraulic set for air conditioning, drill valve units, flow meters, connection sets, coupling sets, cover sets, and pump sets
• ELECTR. SYSTEM / SISTEMA ELECTR. – Electrical cabinet, cabinet, fan set, main switch, limit switch, plinth modules, connection set, installation kit, electric motor, cable sets, control panels, panel plates, hour meter, mushroom push button, ignition lock, relay modules, push-button kits, push-button boxes, emergency sets, junction boxes, emergency push buttons, spotlight sets
• CONTROL SYSTEM / SISTEMA CONTROL – Cable sets RCS, system kits RCS, bulkheads, operator unit, covers, joysticks, bottom, fuse box, display attachment, converter, CAN converter, system kit for area guard, sensor, calibration sets, aim plates, spirit level, laser attachment, and cable sets for various modules
• AIR/WATERSYSTEM / SIST AIRE/AGUA – Air receiver set, bracket, hose set, hose nipple set for hole blow, air system with air dryer, water separator, air oil cooler, electric set, hose reel kit, rig washing kit, compressor set, gear motor, solenoid valve, hose nipple set, front module, lubricating pump, oil reservoir, solenoid valves, hose sets, power module, rear module, strainer, water pump unit, water pump, coupling, hydraulic set, cover set, and hose set
• LUBR. SYSTEM / SISTEMA DE LUB. – Lubrication system for carrier, lubrication valve, hose set, lubrication pump kit, lubrication pump, electric set, manual grease system, hose reel, and hose set
• FIRE SUPPR.SYST / SIST SUPR INCEN – Fire extinguisher set (ANSUL & CHECKFIRE), tank, hose list with fire suppression hoses
• HOSE CONNECTION / ACOPL.-MANGUERA – Complete nipple and coupling listing including UNF, UN, NPTF, G, M, and metric thread connections
• HOSES / MANGUERAS – Complete hose assembly listing with part numbers and dimensions
• CROSS REFERENCE LIST – Part number cross reference for quick lookup

The Epiroc Boomer S2 Parts Catalogue 8999 3235 00 is far more than a simple parts list. It is the complete component-level documentation for the Boomer S2 face drilling rig, structured so a technician or parts manager can trace any assembly from the top-level group down to individual seals, bearings, screws, and washers. Each section opens with an illustrated exploded view keyed to a reference-number table, followed by the part number, quantity, and description for every item. The catalogue covers the COP 1838HD+ rock drill in exhaustive detail, including hydraulic motors in MSQ 80, MSQ 100, MSQ 160, and MSYQ 250 configurations, accumulators, seal kits, and conversion kits. Feed, boom, and carrier sections break down the structural and hydraulic components that position and support the drill. The hydraulic and electrical sections document the machine’s power and control architecture, while the air/water and lubrication sections cover the support systems that keep drilling productive. Cross-referenced part numbers and bilingual descriptions reduce ordering errors, and the inclusion of service kits, PM kits, and overhaul kits helps plan maintenance intervals.

What This Parts Catalogue Enables

With the Epiroc Boomer S2 Parts Catalogue 8999 3235 00 on hand, you can identify and order the correct spare parts for any major assembly on the machine. The exploded views and reference tables let you pinpoint individual components without guesswork, so you avoid ordering the wrong seal, bearing, or hydraulic fitting. For workshops and maintenance teams, this means faster turnaround on repairs, accurate quotes for rebuilds, and the confidence that every part number matches the machine’s original specification.

Correct part identification matters because using the wrong component can cause premature failure, damage mating surfaces, or create safety hazards on a drilling rig. The catalogue’s detailed breakdowns of the rock drill, hydraulic motors, accumulators, boom, feed, and carrier systems give you the information needed to maintain the Boomer S2 to the standard its designers intended. The inclusion of PM kits and service kits at 250-hour, 500-hour, and 1000-hour intervals supports planned maintenance rather than reactive repairs.

IMAGES PREVIEW

This Epiroc Boomer S2 spare parts manual is delivered as an instant PDF download. There is no shipping, no waiting for a physical book, and no risk of a lost or damaged copy. You can open it on a laptop, tablet, or smartphone in the workshop, print the pages you need for a job, and keep the full catalogue on file for future reference. The PDF format makes it easy to search for part numbers, share relevant sections with colleagues, and archive alongside your other machine documentation.
