Epiroc COP 1838HD+ Rock Drill & Boomer 282 Drilling Rig Spare Parts Catalog
This spare parts catalog covers the Epiroc COP 1838HD+ rock drill and the Boomer 282 drilling rig. Document number 8999524700-001. It provides exploded-view diagrams, part numbers, descriptions, and quantities for every major assembly on the machine, from the rock drill itself through the feed, boom, carrier, hydraulic, and electrical systems.
File Details
- Manual Type: Spare Parts Catalog
- Brand: Epiroc
- Models: COP 1838HD+, COP 1838HD, Boomer 282
- Document Number: 8999524700-001 Boomer 282
- Language: English
- Page Count: 1334
- File Format: PDF
Chapters Covered
- Rock Drill COP 1838HD+ — complete assembly with front part, cover group, gear housing, intermediate part, cylinder group, and back head group
- Hydraulic Motors — MSQ 80 SH, MSQ 100 SH, MSQ 160 SH, and MSYQ 250 SH with correction kits
- Accumulators — right, left, and return accumulator assemblies with valves
- Seals and O-Rings — complete seal kits, O-ring sets, and individual sealing components
- Overhaul Kits — 600 impact hour and 1200 impact hour kits
- Conversion Kits — COP 1838HD to COP 1838HD+ and four-corner straight spline conversions
- Feed Systems — BMH 2843R-AC01, BMHT 2800-AC-BH, and BMHT 2000 series with detailed beam assemblies
- Booms — basic boom, boom parts, attachments, links, cylinder links, shafts, and expansion shafts
- Carriers — 15E 72KW Michelin carrier with hydraulic brake and steering systems
- Hydraulic Systems — rig system, oil cooler, return blocks, direction valves, and nipple sets
- Electrical Systems — electric cabinets, switch panels, junction boxes, cables, and sensors
- Fire Suppression — ANSUL fire suppression system for rear frame, motor ram, and boom ram
- Automatic and Manual Grease Systems — lubrication pumps, valves, and hose sets
- Tools and Fixtures — overhaul fixture, pressing tools, mandrels, and assembly tools
- Labels and Decals — label sets, warning signs, and product graphics
- Service and Maintenance — PM kits, service kits, fluids, oils, and greases
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “Epiroc COP 1838HD+ Rock Drill & Boomer 282 Drilling Rig Spare Parts Catalog – PDF” are as follows:
+ROCK DRILLp. 17
+ROCK DRILL – COP 1838HD+p. 17
ROCK DRILL – COP 1838HD+p. 17

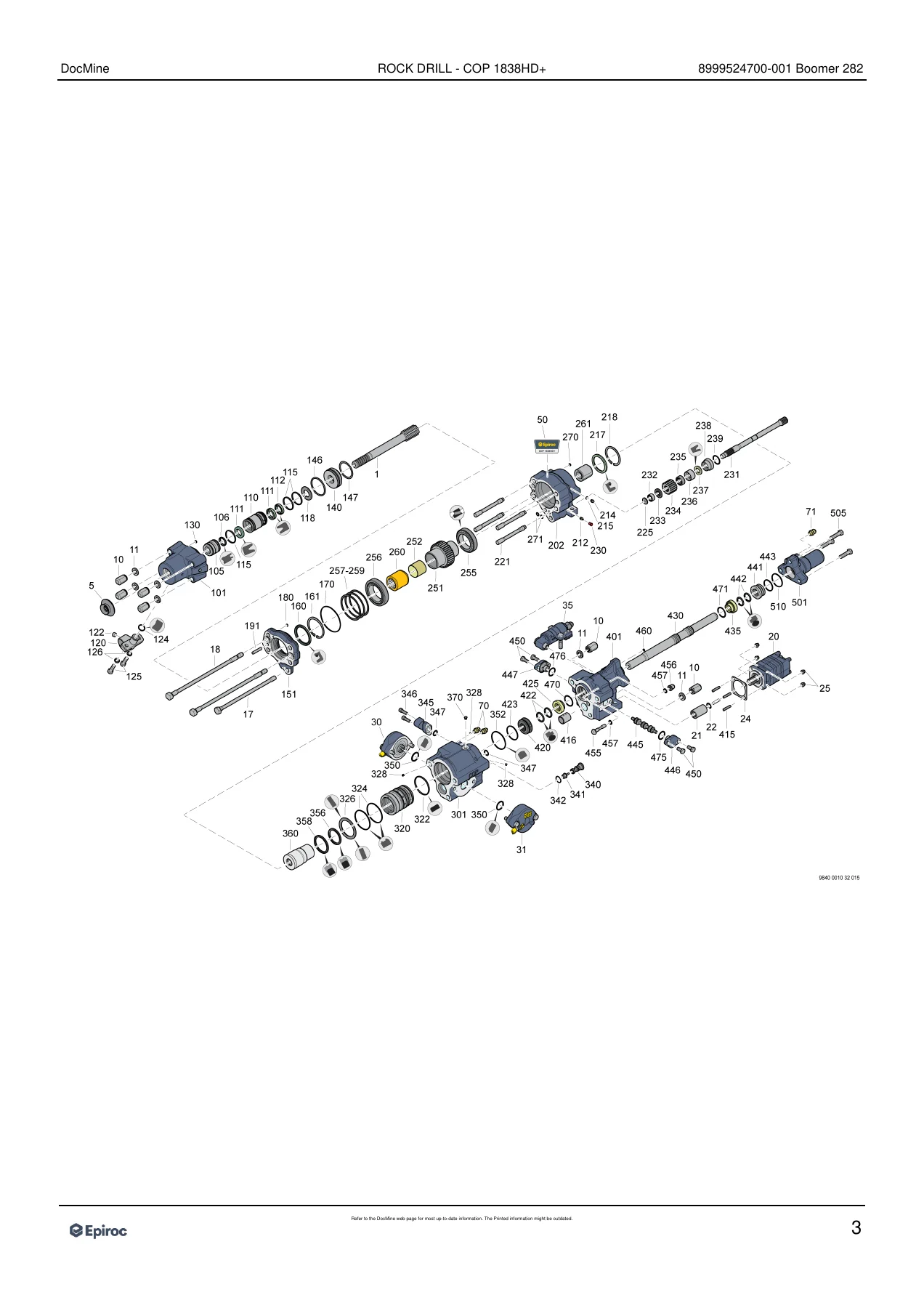

FRONT PART COMP – COP 1838HDp. 25
COVER GROUPp. 27
COVER COMPL. – COP 1838HDp. 29
GEAR HOUSING GRp. 31
GEAR HOUSING – COP 1838HDp. 33
GEAR HOUSING – COP 1838HDp. 35
ROT.CHUCK,COMPLp. 37
INTERM.PART GRPp. 39
INTERM. COMPL. – UNDERGROUNDp. 41
INTERMED. PARTp. 43
CYLINDER GROUPp. 45
CYLINDER – COMPLETEp. 47
CYLINDERp. 49
SEAL HOUSE COMP – FRONTp. 51
SEAL HOUSE COMP – REARp. 53
BACK HEAD GROUPp. 55
HYDRAULIC MOTOR – MSQ 80 SH (02)p. 57
KIT – CORRECTION KITp. 59
HYDRAULIC MOTOR – MSQ 100 SHp. 61
HYDRAULIC MOTOR – MSQ 160 SH (07)p. 63
HYDRAULIC MOTOR – MSYQ 250 SHp. 65
ACCUMULATOR – RIGHTp. 67
VALVEp. 69
ACCUMULATOR – LEFTp. 71
RETURN ACCUM.p. 73
LABEL SET – COP 1838HD+p. 75
PROTECT CAP SETp. 77
OPTIONAL SETp. 79
TOOLS SETp. 81
PRES. GAUGE SETp. 84
FIXTURE – OVERHAUL FIXTURE ATTACHMENT/MOUNTING TABLEp. 87
CHARGIN DEVICEp. 89
CONNECT. PLATE – FOR HYDRAULIC MOTOR (O)MS(Q)p. 91
O-RING SETp. 93
SEAL KIT – COP 1838HD+p. 97
SEAL KIT – FOR DAMPING PISTONp. 99
OVERHAUL KIT – COP 1838HD+ / 600 IMPACT HOURSp. 101
OVERHAUL KIT – COP 1838HD+ / 1200 IMPACT HOURSp. 104
CONVERSION KIT – COP 1838HD TO COP 1838HD+p. 107
CONVERSION KIT – TO FOUR CORNERS, STRAIGHT SPLINESp. 109
+FRONT PART COMP – COP 1838HDp. 111
FRONT PART COMP – COP 1838HDp. 25
+COVER GROUPp. 112
COVER GROUPp. 27
COVER COMPL. – COP 1838HDp. 29
+GEAR HOUSING GRp. 113
GEAR HOUSING GRp. 31
GEAR HOUSING – COP 1838HDp. 33
GEAR HOUSING – COP 1838HDp. 33
ROT.CHUCK,COMPLp. 37
+INTERM.PART GRPp. 114
INTERM.PART GRPp. 39
INTERM. COMPL. – UNDERGROUNDp. 41
INTERMED. PARTp. 43
+CYLINDER GROUPp. 115
CYLINDER GROUPp. 45
CYLINDER – COMPLETEp. 47
CYLINDERp. 49
SEAL HOUSE COMP – FRONTp. 51
SEAL HOUSE COMP – REARp. 53
+BACK HEAD GROUPp. 116
+HYDRAULIC MOTOR – MSQ 80 SH (02)p. 117
HYDRAULIC MOTOR – MSQ 80 SH (02)p. 57
KIT – CORRECTION KITp. 59
+HYDRAULIC MOTOR – MSQ 100 SHp. 118
HYDRAULIC MOTOR – MSQ 100 SHp. 61
KIT – CORRECTION KITp. 59
+HYDRAULIC MOTOR – MSQ 160 SH (07)p. 119
HYDRAULIC MOTOR – MSQ 160 SH (07)p. 63
KIT – CORRECTION KITp. 59
+HYDRAULIC MOTOR – MSYQ 250 SHp. 120
HYDRAULIC MOTOR – MSYQ 250 SHp. 65
KIT – CORRECTION KITp. 59
+ACCUMULATOR – RIGHTp. 121
ACCUMULATOR – RIGHTp. 67
VALVEp. 69
+ACCUMULATOR – LEFTp. 122
ACCUMULATOR – LEFTp. 71
VALVEp. 69
+RETURN ACCUM.p. 123
+LABEL SET – COP 1838HD+p. 124
LABEL SET – COP 1838HD+p. 75
+PROTECT CAP SETp. 125
+OPTIONAL SETp. 126
OPTIONAL SETp. 79
TOOLS SETp. 81
PRES. GAUGE SETp. 84
FIXTURE – OVERHAUL FIXTURE ATTACHMENT/MOUNTING TABLEp. 87
CHARGIN DEVICEp. 89
CONNECT. PLATE – FOR HYDRAULIC MOTOR (O)MS(Q)p. 91
O-RING SETp. 93
SEAL KIT – COP 1838HD+p. 97
SEAL KIT – FOR DAMPING PISTONp. 99
OVERHAUL KIT – COP 1838HD+ / 600 IMPACT HOURSp. 101
LABEL SET – COP 1838HD+p. 75
OVERHAUL KIT – COP 1838HD+ / 1200 IMPACT HOURSp. 104
VALVEp. 69
CONVERSION KIT – COP 1838HD TO COP 1838HD+p. 107
CONVERSION KIT – TO FOUR CORNERS, STRAIGHT SPLINESp. 109
ROT.CHUCK,COMPLp. 37
INTERM. COMPL. – UNDERGROUNDp. 41
INTERMED. PARTp. 43
SEAL HOUSE COMP – FRONTp. 51
+FEEDp. 127
+FEED – AUST.CENTRALIZERS,BULKHEADp. 127
FEED – AUST.CENTRALIZERS,BULKHEADp. 127
BASIC PART SET – BMHT 2800-AC-BHp. 129

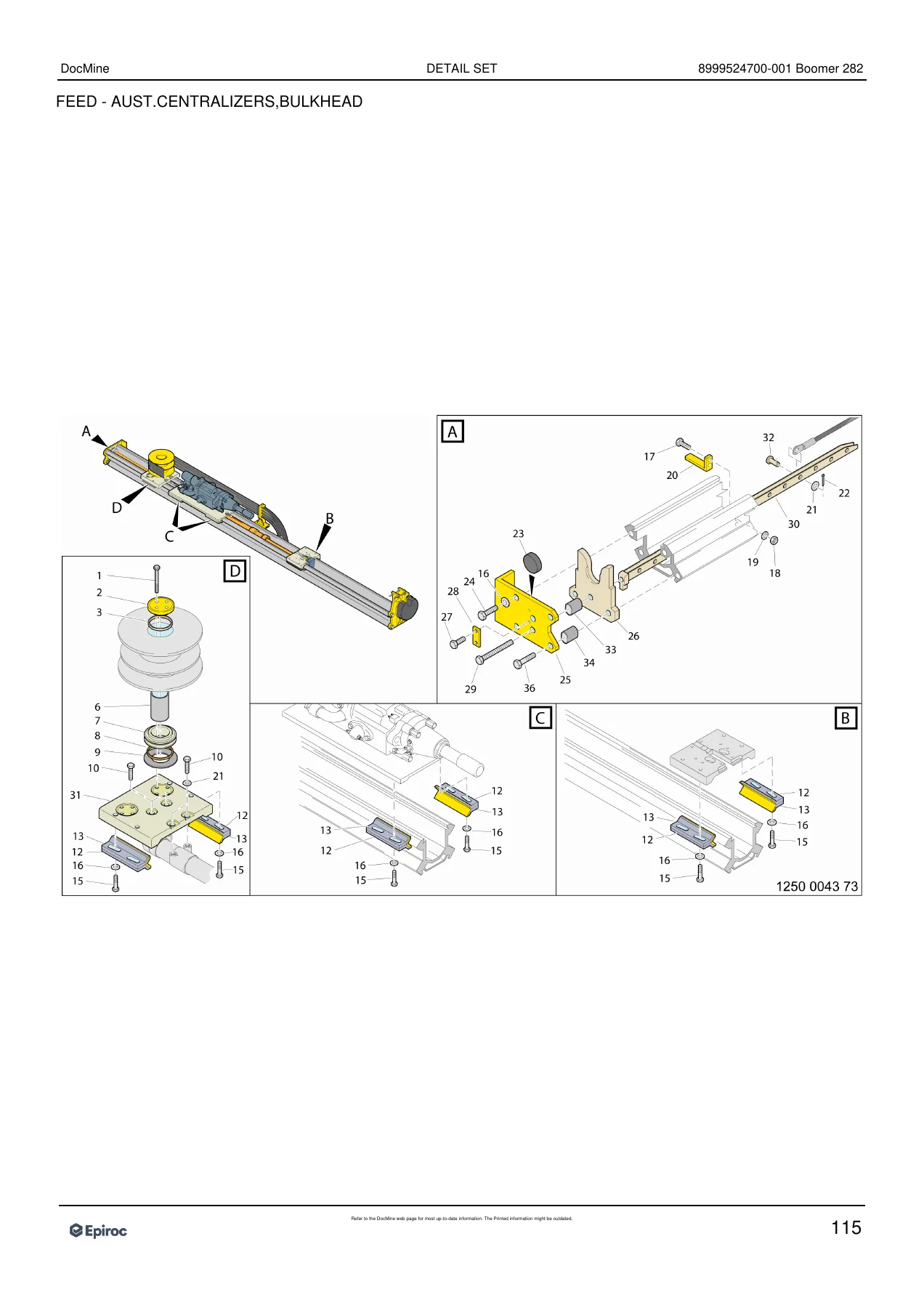

DETAIL SETp. 131
PULLEY WHEELp. 133
HOLDER SETp. 135
HOLDER SETp. 137
DETAIL SET – BMHT 2000p. 139
DETAIL SET – BMHT 2000 ACp. 142
CYLINDER SET – LOWERp. 146
HOSE SET – F21, F22p. 149
HYDR. CYLINDER – BMHT 1000/2000p. 151
LIMIT SWITCHp. 153
HOLDER SETp. 155
HOLDER SETp. 157
DETAIL SETp. 159
HOSE SET – L=1500 AR1LS1 L=1600 AR2LS2p. 161
ROCK DRILL KITp. 163
HOSE DRUM – COMPLETE WITH BUSHINGSp. 165
FEED BEAM – ÖVREp. 167
FEED BEAM – UNDREp. 169
CYLINDER SET – 3128 2594 01p. 171
HOSE SET – F1, F2p. 173
HYDR. CYLINDER – DIM 63/40X1195p. 175
+FEED – BMH 2843R-AC01p. 177
FEED – BMH 2843R-AC01p. 177
FEED BEAMp. 179
END PIECE SET – STANDARDp. 181
CRADLE SET – HOSE DRUMp. 183
PULLEY WHEELp. 133
HOSE DRUM – COMPLETE WITH BUSHINGSp. 165
HOLDER SETp. 135
HOLDER SETp. 135
CRADLE SET – COP 1838p. 185
CRADLE SET – INTERMEDIATEp. 187
CYLINDER SET – 3128 2594 04p. 189
HOSE SET – F1, F2p. 191
HYDR. CYLINDER – DIM 63/40X2410p. 193
SPACER SET – L=216.5p. 195
HOSE HOLDER SET – SKOTT+ÖGLAp. 197
HOSE GUIDE SETp. 199
HOSE FENDER SET – L=1000p. 201
DRILL STEEL SUPp. 203
DRILL STEEL SUPp. 205
HOSE HOLDER SET – FEED-CYL. HOSESp. 207
STOP SET – LIMIT SWITCHp. 209
SENSOR SET – BLACK JACKp. 211
LIMIT SWITCHp. 213
STOP RING SET – AUSTRALIA CENTp. 215
HOSE NIPPLE SET – BMH(T),1838,>=31 BHp. 217
CONNECT. PLATE – FOR HYD MOTOR (O) MS (Q)p. 219
+GABLE PLATE – BMHT 2000-BUT 28p. 222
GABLE PLATE – BMHT 2000-BUT 28p. 222
+HOSE NIPPLE SET –p. 225
HOSE NIPPLE SET –p. 225
HOSE SET – R2ATp. 227
NIPPLE SETp. 229
CONNECT. PLATE – FÖR HYDMOTOR (O)MS(Q)p. 231
+BOOMp. 233
+BASIC BOOM – 3128 3600 01p. 233
BASIC BOOM – 3128 3600 01p. 233
BASIC BOOM – VÄNSTERp. 235
BOOM PARTp. 237
BOOM ATTACHMENTp. 239
BOOM LINKp. 241
CYLINDER LINKp. 243
SHAFT COMPL.p. 245
EXPANDING SHAFTp. 247
EXPANDING SHAFTp. 249
EXPANDING SHAFTp. 251
BOOMp. 253
DOUBLE CH.VALVEp. 255
DOUBLE CH.VALVEp. 257
HYDR. CYLINDER – BOOM CYL. REAR HC09 125/85/536p. 259
CHECK VALVEp. 261
EXPANDING SHAFTp. 263
TELESCOPE SETp. 265
HYDR. CYLINDERp. 267
BEARING HOUSINGp. 269
BOOM PARTp. 271
BOOM ATTACHMENTp. 273
LINKp. 275
EXPANDING SHAFTp. 277
EXPANDING SHAFTp. 279
EXPANDING SHAFTp. 281
CYLIND.BRACKET – FRONTp. 283
HYDR. CYLINDERp. 285
OVERCENT.VALVEp. 287
BOOM PART – VÄNSTERp. 289
TURNING DEVICEp. 291
BEARING HOUSINGp. 294
HYDR. CYLINDER – DIM.50/32/1250p. 297
DOUBLE CH.VALVEp. 299
HYDR. CYLINDERp. 301
EXPANDING SHAFTp. 303
HOSE HOLDERp. 305
HOSE HOLDERp. 307
HOSE NIPPLE SET – POS./SKOTTG.GÅNG BOMp. 309
HOSE SET – POS./ SKOTTG.GÅNGp. 311
HOSE FRAME SETp. 313
HOSE HOLDERp. 315
+BASIC BOOM – 3128 3600 00p. 317
BASIC BOOM – 3128 3600 00p. 317
BASIC BOOM – HÖGERp. 319
BOOM PARTp. 237
BOOM ATTACHMENTp. 239
BOOM LINKp. 241
CYLINDER LINKp. 243
SHAFT COMPL.p. 245
EXPANDING SHAFTp. 247
EXPANDING SHAFTp. 247
EXPANDING SHAFTp. 247
BOOMp. 253
DOUBLE CH.VALVEp. 255
DOUBLE CH.VALVEp. 255
HYDR. CYLINDER – BOOM CYL. REAR HC09 125/85/536p. 259
CHECK VALVEp. 261
EXPANDING SHAFTp. 247
TELESCOPE SETp. 265
HYDR. CYLINDERp. 267
BEARING HOUSINGp. 269
BOOM PARTp. 237
BOOM ATTACHMENTp. 239
LINKp. 275
EXPANDING SHAFTp. 247
EXPANDING SHAFTp. 247
EXPANDING SHAFTp. 247
CYLIND.BRACKET – FRONTp. 283
HYDR. CYLINDERp. 267
OVERCENT.VALVEp. 287
BOOM PART – HÖGERp. 321
TURNING DEVICEp. 291
BEARING HOUSING – RIGHTp. 323
HYDR. CYLINDER – DIM.50/32/1250p. 297
DOUBLE CH.VALVEp. 255
HYDR. CYLINDERp. 267
EXPANDING SHAFTp. 247
HOSE HOLDERp. 305
HOSE HOLDERp. 305
HOSE NIPPLE SET – POS./SKOTTG.GÅNG BOMp. 309
HOSE SET – POS./ SKOTTG.GÅNGp. 311
HOSE FRAME SETp. 313
HOSE HOLDERp. 305
+HOSE SET COMPL. – P.ROOF LEFTp. 326
HOSE SET COMPL. – P.ROOF LEFTp. 326
HOSE SET – MELLAN SKOTT O RIGG BOMM1p. 329
+HOSE SET COMPL. – P.ROOF RIGHTp. 331
HOSE SET COMPL. – P.ROOF RIGHTp. 331
HOSE SET – MELLAN SKOTT O RIGG BOMM2p. 333
+ASSEMBLY SET – BUT 28/BMHT 2000p. 335
ASSEMBLY SET – BUT 28/BMHT 2000p. 335
HOLDERp. 337
HOLDERp. 339
+ASSEMBLY SET – BUT 25/28-BMH 2000p. 341
ASSEMBLY SET – BUT 25/28-BMH 2000p. 341
HOLDERp. 337
HOLDERp. 337
+STOP – KOMPLp. 344
+HOSE NIPPLE SETp. 347
+HOSE NIPPLE SET – 1838 SKOTT(B&M)p. 350
HOSE NIPPLE SET – 1838 SKOTT(B&M)p. 350
+CARRIERp. 353
+CARRIER – 15E 72KW MICHELINp. 353
CARRIER – 15E 72KW MICHELINp. 353
HYDR. SYSTEM – BRAKE AND STEERING SYSTEMp. 355
HOSE SET – CARRIERp. 359
HYDRAULIC PUMPp. 361
DIRECTION VALVE – 3/2" ELVENTIL,24Vp. 363
PRESS.RED.VALVE – 1/4", 20-75BARp. 365
BRAKE VALVEp. 367
HYDR. CYLINDERp. 369
FRAME MOTOR P.p. 371
FUEL TANKp. 373
FUEL TANKp. 375
DRIVE AXLE – PENDEL 1660p. 377
PLANET GEAR KITp. 379
CROWN WHEEL KITp. 381
DIFF.KITp. 383
TRUNNIONp. 385
FRAME MOTOR P.p. 387
HYDR. RESERVOIR – 215 Lp. 390
LEVEL-TEMP.IND.p. 393
RETURN FILTERp. 395
HYDR.OIL TANKp. 397
BATTERY BOXp. 399
EL.EQUIPMENT – CARRIERp. 401
JUNCTION BOX – X2p. 403
JUNCTION BOXp. 405
CABLE SETp. 407
CABLE SETp. 409
SWITCH PANEL – DC15D/DC16Dp. 411
INDICATION LAMP – REDp. 417
RELAY – START BLOCKINGp. 419
HOUR METERp. 421
MUSHROOM PUSHB.p. 423
IGNITION LOCKp. 425
IGNITION LOCKp. 427
PUSH BUTTONp. 429
PUSH BUTTONp. 431
RELAYp. 433
JUNCTION BOXp. 435
JUNCTION BOXp. 437
EL EQUIPM.MOTORp. 439
DRIVING LIGHT.p. 442
WIRINGp. 445
REVERSE ALARMp. 447
BRAKE LIGHTp. 449
DIESEL ENG.UNIT – DEUTZ BF4L914p. 451
DIESEL ENG.UNIT – DEUTZ BF4L914p. 453
DIESEL ENGINE – DEUTZ BF4L914p. 455
AIR FILTER SETp. 457
AIR FILTERp. 459
AIR INLETp. 461
THROTTLE CONTR.p. 463
THROTTLE CONTR.p. 465
CABLE HOLDERp. 467
DRAINAGEp. 469
CARDAN SHAFTp. 471
HYDR.TRANSMISS.p. 473
CONVERTERp. 475
CASE ASSYp. 477
TORQUE CONVERTEp. 480
GEARp. 483
PUMP DRIVEp. 485
GEARp. 487
CHARGE PUMPp. 489
SHAFTp. 491
SHAFTp. 493
SHAFTp. 495
SHAFTp. 498
CONTROLERp. 501
VALVEp. 503
DRIVE PLATEp. 505
CARDAN SHAFTp. 507
FILLER SET – CLARK 12000p. 509
LEVEL GLASSp. 511
FUEL SYSTEM – MED AVSTÄNGN.KRANp. 513
PLATFORM COMPL.p. 515
LUBR. SYSTEMp. 517
LUBR. VALVE – 1250 0011 44p. 519
FRAME BOOM PARTp. 521
CARDAN SHAFTp. 524
DRIVE AXLE – KA CONTROLLED-Cp. 527
PLANET GEAR KITp. 529
CROWN WHEEL KITp. 531
DIFF.KITp. 533
HYDR. CYLINDER – HC09-K63-32K-400-A37p. 535
DRIVERS PLATF. – 5724000030 LOCAL TUBEp. 537
CHAIR COMPL. – SOM 5112 3025 15 FAST M BÄLTEp. 539
CHAIR COMPL. – STOL+ BÄLTEp. 541
HYDR. SYSTEM – FÖR OLJEKYLAREp. 543
HOSE SETp. 545
EXHAUST SYSTEM – B282DC15Ep. 547
EXHAUST SYSTEM – DEUTZ DF4L914p. 549
EXHAUST PIPE – INLET ASSEMBLYp. 551
TUBE BEND – DC15E/16Ep. 553
WHEEL COMPL. – INCL ASSEMBLY SEETp. 555
WHEEL COMPL.p. 557
RIM – B282 DC15E RIMp. 559
ASSEMBLY SET – BRICKA + M22X1.5 FLAT MUTTERp. 561
GUIDE UNIT – KÖRSTÄLLp. 563
CONTROL PANEL – KOMPLETT.p. 565
STEERING SYSTEMp. 567
ANGLE POINTERp. 569
+REAR FRAME – KOMPLETTp. 571
REAR FRAME – KOMPLETTp. 571
+BOOMBRACKET CPLp. 573
BOOMBRACKET CPLp. 573
FIRE EXTING.SETp. 575
BRACKETp. 577
+SUPPORT LEG KIT – REPLACE 9110855100p. 579
SUPPORT LEG KIT – REPLACE 9110855100p. 579
HYDR. CYLINDERp. 581
CHECK VALVEp. 583
+PROTECTION ROOFp. 585
PROTECTION ROOFp. 585
HYDR. CYLINDERp. 587
+ROOF EXTENSION – DROPPSKYDOp. 589
ROOF EXTENSION – DROPPSKYDOp. 589
+WARNING SIGNS – STDp. 591
WARNING SIGNS – STDp. 591
+BINDER BOX – BINDERS CASEp. 595
BINDER BOX – BINDERS CASEp. 595
+LABEL LIST – B282p. 597
+FIRE SUPPR.SYST – ANSULp. 599
FIRE SUPPR.SYST – ANSULp. 599
FIRE SUPPR.SYST – REAR FRAMEp. 601
CONNECTION SET – REAR FRAMEp. 603
HOSE SET – REAR FRAMEp. 605
FIRE SUPPR.SYST – MOTORRAMp. 607
FIRE EXTING.SET – MOTORRAMp. 609
NOZZLE – TYP F, INKL HUV, ANSUL 16449p. 611
CONNECTION SET – MOTORRAMp. 613
HOSE SET – MOTORRAMp. 615
FIRE SUPPR.SYST – HYTT/PLATTFORMp. 617
CONNECTION SET – PLATTFORMp. 619
FIRE SUPPR.SYST – BOMRAMp. 621
FIRE EXTING.SET – BOMRAMp. 623
NOZZLE – TYP F, INKL HUV, ANSUL 16449p. 625
CONNECTION SET – BOMRAMp. 627
FIRE SUPPR.SYSTp. 629
TANK – INCL. ATTACHMENTp. 631
SEAL – SEALp. 633
ASSEMBLY SET – (R)B282(S) W-REEL/DCTp. 635
+MOTOR CAP CATCH – SPÄRRPINNE+SKYDDp. 637
MOTOR CAP CATCH – SPÄRRPINNE+SKYDDp. 637
PAWL PIN – MOTORHUVp. 639
+AUT.GREASE SYST – B.BOMDEL/TELESKOPp. 641
AUT.GREASE SYST – B.BOMDEL/TELESKOPp. 641
LUBR. PUMP KIT – BAKRE BOMKROPP/TELESKOPRÖRp. 642
LUBRICAT.PUMP – P203-2XN-1K6-24-1A1.10-V10p. 645
LUBR. VALVEp. 647
LUBRICATION SET – BAKRE BOMDEL/TELESKOPp. 649
LUBR. VALVEp. 651
LUBR. VALVEp. 653
+MAN.GREASE SYST – B/RB282p. 655
MAN.GREASE SYST – B/RB282p. 655
MAN.GREASE SYST – PUMP + SLANGVINDAp. 657
DRUM PUMP – FÖR FETTp. 659
HOSE REEL – 400 BAR 15M 1/4"p. 663
HOSE SET – MAN.FETTSMÖRJN. VID LUFTBLÅSN.p. 665
+AUT. SETp. 667
AUT. SETp. 667
AUT. SETp. 669
FIRE EXTING.SETp. 671
CONNECTION SETp. 673
AUT. SETp. 675
FIRE EXTING.SETp. 677
CONNECTION SETp. 679
AUT. SETp. 681
HOSE SETp. 683
FIRE EXTING.SETp. 685
+CABLE REELp. 687
+CABLE REELp. 687
CABLE REELp. 687
CABLE REEL – EJ KOLLEKTOR COM. HYDMOTORp. 689
DRUM – SPECIMASp. 691
HYDRAULIC UNIT – HYDRAULMOTOR SATSp. 693
HYDRAULIC MOTOR – VINDAp. 695
GEAR HOUSING – 20.0 KOMPLETT VÄXELp. 697
ASSEMBLY SETp. 700
+COLLECTOR KITp. 703
COLLECTOR KITp. 703
MICRO SWITCHp. 705
COMMUTATORp. 707
+BRAKING CHOPPERp. 710
BRAKING CHOPPERp. 710
APPARATUS PANELp. 713
+CABLE, 3-COREp. 715
+CABLE LUG SET – INCL. SCHACKLE+WIRE MESH HOSEp. 717
CABLE LUG SET – INCL. SCHACKLE+WIRE MESH HOSEp. 717
+SWING ARM – FÖR ELSKÅPp. 719
SWING ARM – FÖR ELSKÅPp. 719
LOCKINGp. 721
HASP – F.1ST SV.ARMp. 723
HASPp. 725
+SWING ARM – LEFT,CABLE VX2p. 727
SWING ARM – LEFT,CABLE VX2p. 727
LOCKINGp. 721
HASP – F.1ST SV.ARMp. 723
HASPp. 725
CABLE STEERING – KOMPLETTp. 729
+HYDR. SYSTEMp. 732
+HYDR. SYSTEMp. 732
HYDR. SYSTEMp. 732
ATTACHMENT SET – HYDRAULSYSTEMp. 735
COOLER ASSY – KYLARE: GL240p. 737
HYDR. SYSTEM – RIGGSYSTEM-TUBKYLAREp. 739
RETURN BLOCK – INBYGGD,BACKVENTILp. 741
DIRECTION VALVEp. 743
INLET SECTIONp. 745
SPOOL VALVEp. 747
OUTLET SECTIONp. 749
SUCT.CONNECTIONp. 751
SUCT.CONNECTION – SAE1.5U-2S90p. 753
DIRECTION VALVEp. 755
SUCT.CONNECTION – SAE2.5U-2.5S45p. 757
SUCT.CONNECTION – SAE2M-2S45p. 759
CONNECTION SET – RIGG+BORR+DK.2VINDORp. 761
NIPPLE SET – PUMPSTYRVENTILp. 763
VALVE BLOCK – PUMPSTYRVENTILER DCS18p. 765
NIPPLE SET – VÄXELVENTILERp. 767
NIPPLE SET – RETURSAMLINGSBLOCKp. 769
RETURN BLOCK – INBYGGD,BACKVENTILp. 771
NIPPLE SET – DRÄNERINGSBLOCKp. 773
NIPPLE SET – HYD.DOMKRAFTERp. 775
DIRECTION VALVE – LIKA FUNKTION SOM 8234 0200 45p. 777
INLET SECTIONp. 779
SPOOL VALVEp. 781
OUTLET SECTIONp. 783
NIPPLE SET – HYDRAULOLJETANKp. 785
NIPPLE SET – OIL COOLERp. 788
NIPPLE SET – SKYDDSTAK.p. 791
DOUBLE CH.VALVE – ERSÄTR HLD 10R,8231120110p. 793
DIRECTION VALVE – LIKA FUNKTION SOM 8234 0200 43p. 795
INLET SECTIONp. 797
VALVE SECTIONp. 799
OUTLET SECTIONp. 801
NIPPLE SET – DIESELPOS-AVLASTNINGp. 803
DIRECTION VALVE – ERSÄTTER 3177 3092 48p. 805
NIPPLE SET – DUBBELKOMM.2 ST VINDORp. 807
DIRECTION VALVE – D-POS + 2 VINDOR DC15/16p. 809
ASSEMBLY SETp. 811
INLET SECTIONp. 813
VALVE SECTIONp. 815
VALVE SECTIONp. 817
OUTLET SECTIONp. 819
NIPPLE SET – DUBBELKOMM.2 ST VINDORp. 821
DIRECTION VALVE – 2-SECT/M-SPOOLS/LMB/DETENTp. 825
INLET SECTIONp. 827
VALVE SECTION – SPOLSEKTIONp. 829
OUTLET SECTIONp. 831
HYDRAULIC SET – SKYDDSTAK, 2 CYLINDRARp. 833
DOUBLE CH.VALVE – ERSÄTR HLD 10R,8231120110p. 835
DIRECTION VALVE – LIKA FUNKTION SOM 8234 0200 43p. 837
INLET SECTIONp. 839
VALVE SECTIONp. 841
OUTLET SECTIONp. 843
REEL CONTROL – DK 1V -HYTTRIGGp. 845
HYDRAULIC SET – DIESEL POS, D.C 1 REELp. 847
DIRECTION VALVEp. 849
INLET SECTIONp. 851
VALVE SECTIONp. 853
OUTLET SECTIONp. 855
DIRECTION VALVEp. 857
INLET SECTIONp. 859
VALVE SECTIONp. 861
OUTLET SECTIONp. 863
HOSE SET – KABELV.DUBBELK.p. 865
ATTACHMENT SETp. 867
HYDR. SYSTEM – BORRN.,AUT. AVSTÄNGN. AV CATP.p. 869
HYDRAULIC PUMP – DEPL.100+50+11 CM3/Rp. 873
HYDRAULIC PUMP – DEPL.100 CM3/REVp. 875
PUMP – A10V 0100 0V/31Rp. 877
PUMP UNITp. 879
HYDRAULIC PUMP – 50+11CC/REV(CW) MAX 210/250BARp. 881
FLOW REGULATOR – MAX INLET 150L/M MAX REG 75L/Mp. 884
VALVE BLOCK – DCS/ECS18 PÅ A10V-PUMPp. 887
VALVE BLOCK – PUMPSTYRVENTILER DCS18p. 889
VALVE BLOCK – SMÖRJLUFTVAKTp. 891
VALVE BLOCK – VÄXELVENTILERp. 893
DIRECTION VALVE – HYD-LUFTp. 895
DIRECTION VALVE – R 1/8",10 BARp. 897
DIRECTION VALVE – LUFTSTYRDp. 899
HYDRAULIC SET – FÖR WATERMIST(LUFTPILOT)p. 901
DIRECTION VALVE – LUFTSTYRDp. 903
PRESS.RED.VALVE – REXROTHp. 905
HOSE FRAME SET – MELLAN SKOTT O RIGGp. 907
HOSE SETp. 909
+COUPLING SET – EL. MOTOR -> PUMP DCS12/14/18p. 914
COUPLING SET – EL. MOTOR -> PUMP DCS12/14/18p. 914
SHAFT COUPLINGp. 917
COVER SETp. 919
+CONTROL PANEL – DRILLING PANELp. 921
CONTROL PANEL – DRILLING PANELp. 921
DIRECTION VALVE – DRILLINGp. 926
CONTROL SETp. 929
LEVER HOLDERp. 931
SEAL KITp. 933
INTERMED. PARTp. 935
CONTROL SET – DRILLINGp. 937
LEVER HOLDERp. 939
SEAL KITp. 941
CONTROL SETp. 943
LEVER HOLDERp. 945
SEAL KITp. 947
COVERp. 949
VALVE BLOCK – MATNINGp. 951
VALVE BLOCK – PRESSURE REG. VALVEp. 953
VALVE UNIT – FASTBORRNINGp. 955
THROTTLE VALVEp. 957
PANEL FRAMEp. 959
HOSE SET – BORRPANEL/GROVHÅLp. 961
SEQUENCE VALVE – 3217 8014 00 (4X G1/4" PORTS)p. 963
ATTACHMENT – DCS-18 PANELp. 965
REAMER SET – ROCKET BOOMER 282p. 967
HYDRAULIC SET – GROVHÅLp. 969
DIRECTION VALVE – SE BL.2p. 971
PRESS.REL.VALVEp. 973
SEQUENCE VALVE – 3217 8014 00 (4X G1/4" PORTS)p. 975
DIRECTION VALVEp. 977
HOSE SET – GROVHÅLp. 979
+HOSE SET – GROVHÅLp. 981
+COVER SET – EJ FAM.p. 983
COVER SET – EJ FAM.p. 983
+BOOM HYD. KIT – P70p. 985
BOOM HYD. KIT – P70p. 985
DIRECTION VALVE – BOMPOS, BUT28p. 989
ASSEMBLY SETp. 991
INLET SECTIONp. 993
VALVE SECTIONp. 995
VALVE SECTIONp. 997
VALVE SECTIONp. 998
OUTLET SECTIONp. 1001
PR.CONTR.VALVEp. 1003
LEVER JOINT – PCL 401p. 1005
LEVER SET – H 1 PCL 401p. 1007
VALVE – LOGIKp. 1009
PRESS.RED.VALVE – 1/4", 20-75BARp. 365
HOSE SET – P70p. 1011
+EL.OIL FILLERp. 1014
EL.OIL FILLERp. 1014
CONNECTION SETp. 1017
HOSE SETp. 1019
ELECTRIC SET – EL.OLJEPÅFYLLNINGp. 1021
PUSH-BUTTON-BOX – A81p. 1023
+HYDRAULIC SET – TELESKOP,BOM1p. 1025
HYDRAULIC SET – TELESKOP,BOM1p. 1025
HYDRAULIC SET – DCS14/18-BMHT2000p. 1027
VALVE BLOCK – PRESSURE REG. VALVEp. 1029
HOSE SET – TELESKOP,BOMp. 1031
+THERMOSTAT – HYDRAULOLJESATSp. 1033
THERMOSTAT – HYDRAULOLJESATSp. 1033
HOSE SET – TERMOSTATp. 1035
+ELECTR. SYSTEMp. 1037
+EMC-SETp. 1037
EMC-SETp. 1037
EMC-SET – EMC-CORDSp. 1039
EMC-SET – JORDFLÄTOR, CE-KRAVp. 1041
+FLASHING BEACON – KOMPL.SATSp. 1043
FLASHING BEACON – KOMPL.SATSp. 1043
+ELECTRIC SET – Y/D-DCS18-63-2 BUFLEX 95 MMKVp. 1045
ELECTRIC SET – Y/D-DCS18-63-2 BUFLEX 95 MMKVp. 1045
CABLE SET – Y/D-STARTp. 1048
CABLE CONNEC – KABELVINDAp. 1051
+ELCABINET SETp. 1053
ELCABINET SETp. 1053
ELECTR.CABINETp. 1055
MOTORPROTECTOR – STROMBEGR.INKL.SOKEL.GV2-G05p. 1064
MAIN SWITCHp. 1067
ELECTR.CABINETp. 1069
DOORp. 1071
DOORp. 1073
ELECTRIC SETp. 1075
+VOLT KIT – 75KWp. 1077
VOLT KIT – 75KWp. 1077
THERMAL RELAYS – 2X75KW 7.5KW +7.5KWp. 1079
WATER PUMP – UTAN ELMOTOR, 7,5KW 60HZp. 1081
+HEADLIGHT SET – LED+HAp. 1084
HEADLIGHT SET – LED+HAp. 1084
TRANSFORMER – 1,5KVAp. 1087
+SYSTEM COMPL.p. 1089
SYSTEM COMPL.p. 1089
SYSTEM KIT RCSp. 1091
CABLE SETp. 1093
+AIR/WATERSYSTEMp. 1095
+WATERFLOW GUARD – SATSp. 1095
WATERFLOW GUARD – SATSp. 1095
HOSE SET – SPOLVATTENVAKT.p. 1097
WATERFLOW GUARDp. 1099
DIRECTION VALVE – ERSÄTTER 8231 1127 86p. 1101
ELECTRIC SET – FLÖDESVAKT 2-BOMSp. 1103
+ECL-SET – LUBRICATION WARNING KITp. 1105
ECL-SET – LUBRICATION WARNING KITp. 1105
JUNCTION BOX – LUBRICATION WARNING-KIT DCSp. 1107
RELAY SETp. 1109
CABLE SET – B380p. 1111
+WATER MIST SYST – KOMPLETT (TERMOSTAT KR?VS)p. 1113
WATER MIST SYST – KOMPLETT (TERMOSTAT KR?VS)p. 1113
ATTACHMENT SET – L/V+EXT. W-MIST/LUFTOLJEKYLAREp. 1115
ASSEMBLY SET – PÅ DCS12/18 PANELp. 1117
ASSEMBLY SETp. 1119
WATER MIST SYST – KOMPLETT(LE10/CATPUMP/ECL)p. 1121
STRAINER – SARCO, R 1 1/2"p. 1124
BALL VALVE – R 3/4"-16 BARp. 1127
PRES. GAUGE SET – 0-16 BARp. 1129
LUBRICAT.PUMP – ECL-PUMPp. 1131
OIL RESERVOIRp. 1133
RESERVOIR – 5Lp. 1135
PRES. GAUGE SET – 0-60 BARp. 1137
CONTROL VALVE – AVLASTNINGp. 1139
SHUT OFF VALVEp. 1141
DIRECTION VALVE – R 1/8",KNOPPp. 1143
DIRECTION VALVE – HYD-LUFTp. 895
DIRECTION VALVE – R 1/8",10 BARp. 897
DIRECTION VALVE – LUFTSTYRDp. 899
TEE – WATERMISTp. 1144
WATER PUMPp. 1147
WATER PUMPp. 1149
ROTATION UNITp. 1151
ADAPTER KITp. 1153
HYDRAULIC MOTORp. 1155
STRAINER – ROSTFRI,2",BOTTENPLUGG 1/2"p. 1157
HOSE SET – L/V-LUFTOLJEKYLp. 1159
HOSE SET – EXTERN WATERMIST.p. 1161
HOSE SETp. 1164
+ATTACHMENTp. 1168
+PARTS & SERVICEp. 1171
+PARTS & SERVICEp. 1171
PARTS & SERVICEp. 1171
FLUIDSp. 1173
COMPRESSOR OILp. 1175
OILp. 1177
GREASE – ROCK DRILL GREASEp. 1179
PM-KITSp. 1181
SERVICE KIT – 500 ENGINE HRS,DEUTZ D914L04p. 1183
AIR FILTERp. 1185
PM-KITSp. 1187
SERVICE KIT – 1000 PERCUSSION HRS B282/BOLTEC235/SIMBA1254/1354p. 1189
PM-KITS – DEUTZ BF4L914p. 1191
PM-KITS – 500 PERCUSSION HRSp. 1193
SERVICE KIT – 1000 PERCUSSION HRS B282/BOLTEC235/SIMBA1254/1354p. 1195
SERVICE KIT – 500 ENGINE HRSp. 1197
CHARGIN DEVICEp. 89
BOOM SET – BUT 28 F&Gp. 1199
BOOM SET – FRONT BOOM PARTp. 1201
EXPANDING SHAFTp. 1203
EXPANDING SHAFTp. 1205
LINK – PROTOTYP BUX 35p. 1207
BOOM SET – REAR BOOM PARTp. 1209
EXPANDING SHAFTp. 1211
EXPANDING SHAFTp. 1213
CYLINDER LINK – MED STÅLBUSSNINGARp. 1215
BOOM SET – TELESCOPIC KEYp. 1217
BOOM SET – BOOM LINKp. 1219
BOOM LINKp. 1221
SHAFT COMPL. – KOMPLETTp. 1223
BOOM SET – BUSHINGSp. 1225
BOOM SET – BUSHINGSp. 1227
FEED SET – BMH 2000-SERIESp. 1229
FEED SET – 500 H SERVICE, 43 DMp. 1231
FEED SET – 500 H SERVICE, 25 DMp. 1233
FEED SET – 500 H SERVICE, 49 DMp. 1235
FEED SET – 500 H SERVICE, 31 DMp. 1237
FEED SET – 500 H SERVICE, 37 DMp. 1239
FEED SET – 500 H SERVICE, 40 DMp. 1241
FEED SET – SERVICE, 31 DM, ACp. 1243
FEED SET – SERVICE, 37 DM, ACp. 1245
FEED SET – SERVICE, 43 DM, ACp. 1247
FEED SET – BMHT 2X31/19p. 1249
FEED SET – BMHT 2X37/22,2X37/25,2X43/25p. 1251
FEED SET – BMHT 2X31/19-AC,2X37/22-ACp. 1253
FEED SET – BMHT 2X37/25-ACp. 1255
TOOLS SETp. 1257
EL.SERVICE KIT – ELECTRICAL SERVICE KIT, FOR REPAIRS ON DEUTSCH CONTACTSp. 1259
TOOL SETS – MECHANICAL TOOL KITp. 1261
TOOL SETS – SHOP MECHANICAL KITp. 1263
KIT – GENERAL SHOP MECHANICAL KITp. 1265
KIT – INCH SHOP MECHANICAL KITp. 1267
KIT – METRIC SHOP MECHANICAL KITp. 1269
TOOL SETS – SOCKET SETS – HIGH TORQUE KITp. 1272
SOCKET WR.SET – HEXAGON SOCKET SETp. 1275
SOCKET WR.SET – METRIC SOCKET SETp. 1277
SOCKET WR.SET – IMPERIAL SOCKET SETp. 1279
TOOLS SETp. 1281
KIT – AIRCONDITION TOOL KITp. 1283
DRAINAGE – DRAINAGE STATION KITp. 1285
KIT – ACCESSORY KITp. 1287
OIL/LUBRICANTSp. 1289
PM-KITS – SWEDEN CONFIGURATIONp. 1291
SERVICE KIT – 500 ENGINE HRS,DEUTZ F5L912W B282/SIMBA 1254p. 1293
AIR FILTERp. 1295
PM-KITS – 500 PERCUSSION HRSp. 1297
SERVICE KIT – 1000 PERCUSSION HRS B282/BOLTEC235/SIMBA1254/1354p. 1299
UPGRADE KIT – B281/B282p. 1301
DRIVING LIGHT.p. 442
WIRINGp. 445
HEADLIGHT SETp. 1303
POWER SUPPL.SET – 24VDC 20Ap. 1305
PM-KITS – DEUTZ TCD3.6p. 1307
SERVICE KITp. 1309
PM-KITS – 500 PERCUSSION HRSp. 1311
SERVICE KIT – 1000 PERCUSSION HRS B282/BOLTEC235/SIMBA1254/1354p. 1313
+HOSE CONNECTIONp. 1316
This Epiroc COP 1838HD+ rock drill and Boomer 282 spare parts catalog is the definitive illustrated guide for anyone ordering replacement components for these machines. Every major assembly is presented as an exploded-view diagram with numbered callouts that correspond directly to a parts table listing the item number, part number, name, quantity, and remarks. Whether you are rebuilding a hydraulic motor, replacing a worn seal house, or sourcing a complete feed beam, the catalog puts the exact part number in front of you without guesswork.
The catalog covers the full scope of the Boomer 282 drilling rig. Starting with the rock drill, it breaks down the front part, cover group, gear housing, intermediate part, cylinder group, and back head group into their individual components. Separate sections cover the MSQ 80 SH, MSQ 100 SH, MSQ 160 SH, and MSYQ 250 SH hydraulic motors, each with its own correction kit. The accumulator assemblies, including right, left, and return configurations, are fully detailed with valves and diaphragm components. For maintenance planning, the catalog includes complete seal kits, O-ring sets, and two overhaul kit tiers — 600 impact hours and 1200 impact hours — so you can order exactly what is needed for a scheduled rebuild.
Beyond the rock drill, the catalog documents the entire rig. The feed section covers the BMH 2843R-AC01 and BMHT 2800-AC-BH feed beams with end pieces, cradles, hose drums, pulley wheels, and holder sets. The boom section details the basic boom, boom parts, attachments, links, cylinder links, shaft assemblies, and expansion shafts. The carrier section for the 15E 72KW Michelin configuration includes the hydraulic brake and steering system, hydraulic pump, brake valve, and direction valve. Hydraulic system coverage spans the rig system, oil cooler, return blocks, inlet sections, spool valves, outlet sections, and suction connections. Electrical coverage includes the electric cabinet, switch panel, junction boxes, cables, sensors, and headlight set. The ANSUL fire suppression system is documented for the rear frame, motor ram, and boom ram, with nozzles, tanks, and connection sets.
Also included are the automatic and manual grease systems, with lubrication pumps, valves, hose sets, and drum pumps. The tools and fixtures section lists the overhaul fixture, torque keys, pressing tools, mandrels, and assembly tools needed to properly service the rock drill. Labels, warning signs, and product graphics are cataloged for restoration or compliance purposes. The PARTS & SERVICE section rounds out the catalog with PM kits, service kits for 500 and 1000 percussion hours, fluids, compressor oil, rock drill grease, and a comprehensive hose connection reference that maps every nipple, coupling, and adapter used across the machine.
Who This Catalog Is For
This Epiroc COP 1838HD+ and Boomer 282 spare parts catalog is compiled for mechanics, maintenance planners, parts managers, and workshop supervisors who need to identify and order exact replacement components. The exploded-view diagrams and structured parts tables eliminate the ambiguity that comes with trying to match a broken part by description alone. Whether you are placing a single seal kit order or planning a full 1200-hour overhaul, the document gives you the part numbers, quantities, and assembly context to get it right the first time.
Why This Spare Parts Catalog Matters
Using the wrong part number on a rock drill can lead to premature failure, damaged mating components, or unplanned downtime. This catalog removes that risk by showing every part in its assembly context with the exact Epiroc part number. The exploded views make it clear where each component fits, how many are required, and what related parts may need replacement at the same time. For operations running a Boomer 282, having this catalog on hand means faster parts sourcing, fewer ordering errors, and more accurate maintenance planning.
Instant PDF Delivery
This Epiroc COP 1838HD+ rock drill and Boomer 282 drilling rig spare parts catalog is delivered as an instant PDF download. No shipping, no waiting. The file works on any device — desktop, laptop, tablet, or smartphone — and can be printed for workshop use. Keep it on a shop computer for quick reference during repairs, or print the sections you need for the job at hand. With 1334 pages of exploded views, parts tables, and assembly breakdowns, this catalog is a complete parts reference for the COP 1838HD+ and Boomer 282.
Reviews
There are no reviews yet.
