Epiroc DM45 HP Pit Viper PV271E RCS Spare Parts Catalog PDF – Serial US004905

Description

Epiroc DM45 HP Pit Viper PV271E RCS Spare Parts Catalog – Serial US004905

This is the illustrated spare parts catalog published for the Epiroc DM45 HP drill rig in its Pit Viper PV271E RCS configuration, issued against machine serial number US004905 under document number 0000004905-001. It is a working parts list rather than a repair guide: every assembly on the machine is broken into illustrated breakdowns, and each position on the drawing is matched to a part number, a description and a quantity. If you are ordering a replacement cylinder, chasing a hose fitting, identifying a bearing in the powerhead or confirming which sprocket belongs to the track group, this is the document that answers the question.

The catalog spans 623 pages and is bilingual, with part names given in English and Spanish throughout. Roughly every third page carries an exploded or isometric illustration keyed to the parts table that follows it, so parts can be identified visually as well as by number.

File Details

• Manual type: Illustrated spare parts catalog / parts list
• Brand: Epiroc
• Machine: DM45 HP, Pit Viper PV271E RCS
• Document number: 0000004905-001
• Machine serial covered: US004905
• Language: English and Spanish
• Page count: 623 pages
• File format: PDF

What This Epiroc DM45 HP Parts Catalog Gives You

Drill rigs of this class are built from a small number of very large fabrications surrounded by an enormous number of small, easily lost components – pins, cotter pins, clevis plates, spacers, O-rings, seal kits, fittings, clamps and fasteners. The value of a factory parts breakdown is that it resolves all of that into ordered positions. Each table in this Pit Viper PV271E RCS parts list follows the same format: an item number that corresponds to a numbered balloon on the facing illustration, the part number, the part name, the quantity required, and where relevant a remark such as a colour code or a note that the position includes a sub-assembly.

That structure means a single page can take you from a leaking hydraulic cylinder all the way down to the individual seal kit inside it, and back up to the mounting hardware that holds the cylinder to the frame. Sub-assemblies are nested, so positions such as the seal kit, rod assembly, head, piston or counterbalance valve inside a tower-raise cylinder are listed individually rather than as one lump.

Chapters Covered

The catalog is divided into assembly groups that follow the machine from the ground up. The main groups and their principal sub-sections are:

• Main frame weldment
• Tower support assembly and tower support installation, including shim packs, chains, safety snap hooks and pivot hardware
• Decking installation – rear decking and rails, cab access decking, cab jack decking, DC jack and DCS decking, gates, ladders, handrails and corner rails
• Tower decking, fibreglass decking sections, saddle clips, spacers and grating
• Deck infill and tower support fill
• Dust skirt installation – front, rear and side skirts, skirt mounts, hydraulic cylinders, clevis pins and covers
• Handrail assemblies, stair installations and entry/exit ladder assemblies
• Tracks, CAT345XL – oscillation yoke assembly, yoke end pins, undercarriage, wear pads, retainers and hose assemblies
• Undercarriage, CAT345XL – final drive groups, sprocket groups, track groups, roller groups, guard groups, front idler groups and frame assemblies
• Drive group, final drive and propel motor
• Track group – track shoes, links, bushings, seals, thrust rings and master pin
• Roller groups – upper roller group, single-flange roller group, double-flange roller group, shafts, collars and duo-cone seal groups
• Guard group and track motor guard
• Idler group, front idler, adjustment group, recoil spring group and recoil spring components
• Tram speed sensor installation

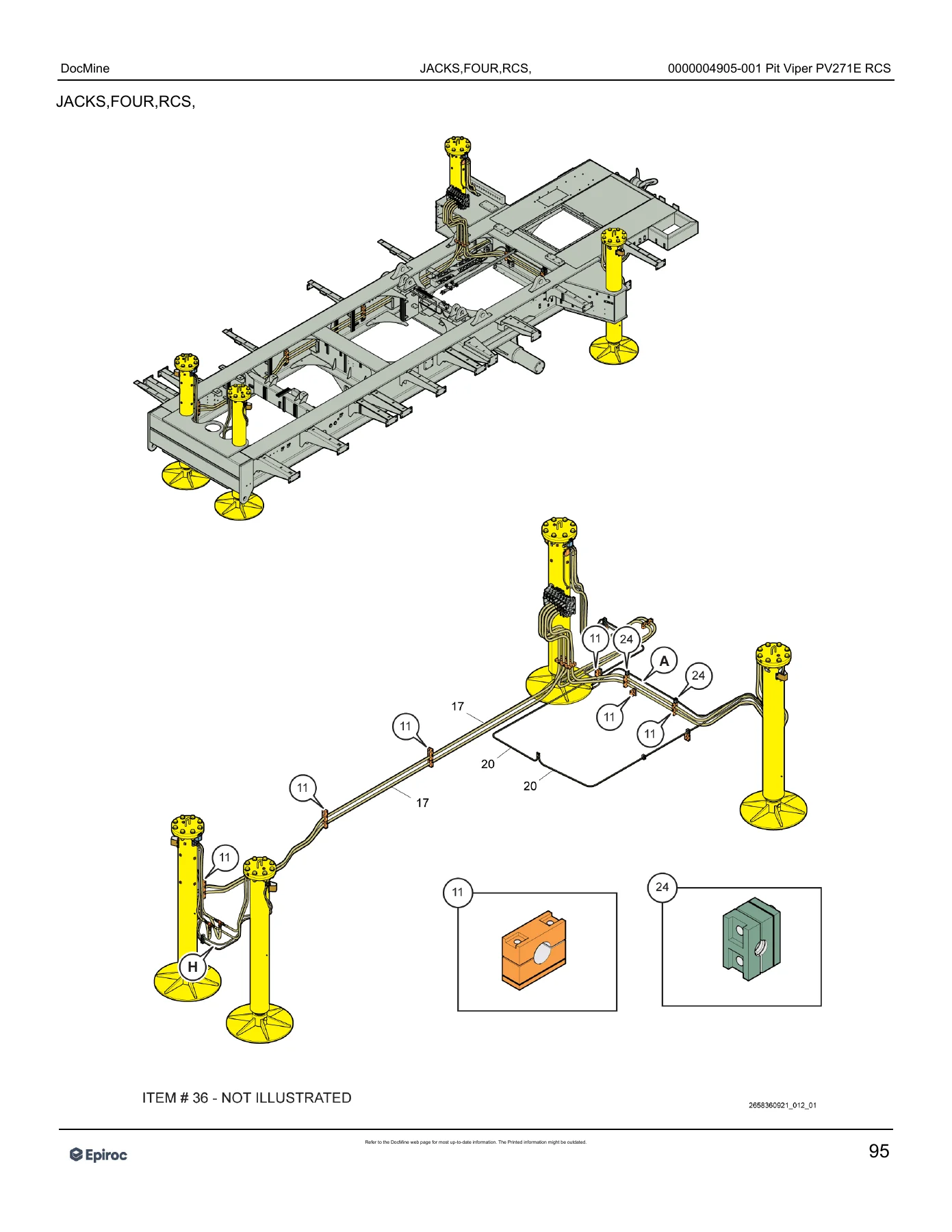

• Jacks – four-jack RCS installation, jack assembly, jack pad and crosshead, hydraulic jack cylinders with seal kits, counterbalance valves, piston, head cap and rod-tube assemblies

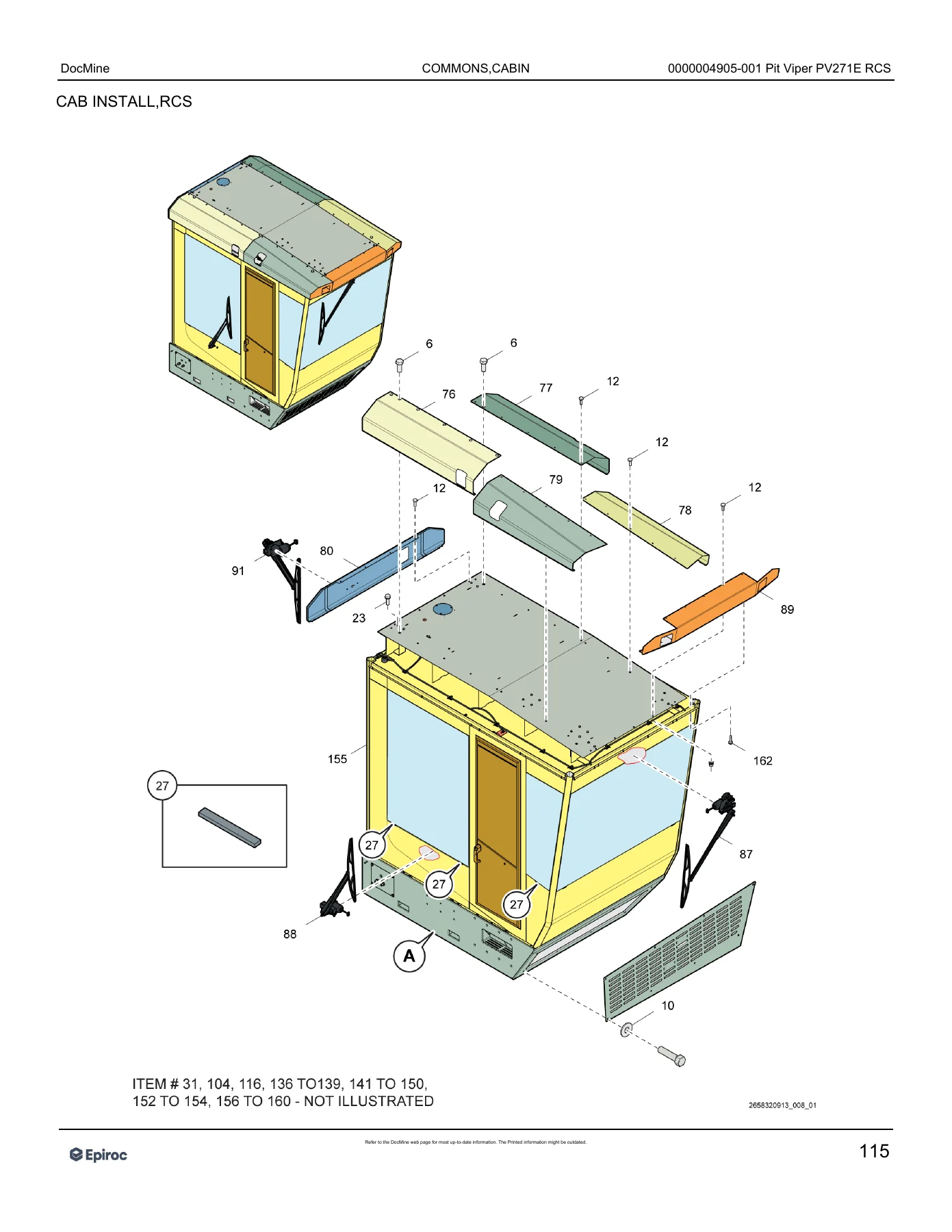

• Cab installation RCS, cab structure, RCS control assembly, common cabin hardware, door assemblies (rear and side), base assembly, A/C heat unit PV235, compressor motor assembly, control panel assembly, switch panel, console assembly, wiper assemblies, headliner assemblies (front and rear), access door assembly
• Seat assembly PV230, RCS4 chair, suspension seat, seat riser and seat slide
• Control assembly, RCS bulkhead, operator units, RCS display mount and cab cable kit
• Cab pressurizer and fresh air filter assembly
• A/C installation electrical, regulating valve group
• Cab shades PV235
• Bit viewer assembly and bit viewer tray assembly
• Dual sequence valve
• Cab strobe, amber
• Seat interlock
• Mirror assembly
• Buddy / trainee seat
• Tower weldment, pivot blocks, clevis plates and hose trays
• Rod changer / carousel – rod changer weldment, carousel rod weldment, adjustable cylinders, rollers, bearings, seals and thrust washers
• Breakout base A
• Rod catcher installation
• Rod support assembly – support bar, pivot arm, hydraulic cylinders and seal kits
• Feed system installation – sheave assemblies, sheave hub and rings, carriage assembly, jack screw cable tensioners, pulldown and pullback cables, cable tension cylinders, feed cylinders, guide blocks, hydraulic motors and chain couplings
• Main hydraulic piping – diverter valve assembly, DR/PR control valve, return manifold assembly, pressure control and pressure reducing valves, suction tubes, hoses, tube assemblies and Stauff clamps
• Diverter manifold, DR/PR control manifold, return manifold and supercharge manifold
• Tower cylinders and tower raise cylinder with seal kits, check valves and counterbalance valves
• Fan variable control
• Tower locking
• Tower piping PV-271 – tube assemblies, hose assemblies, tension cable valve assembly, dual sequence valves, clamps and bridas
• Cable installation and power cable assembly
• Powerhead mount
• Powerhead PV271 – spindle, machine head housing, output gear, spindle clamp, bearings, intermediate shafts and gears, input pinion, motor M6 spline, lubrication pump, lube oil filter assembly, flow control valve and motor control valve
• Machine housing
• Carousel 7.63 x 5, guide assembly 7-5/8 inch rod, wrench assembly 7-7 5/8, hydraulic cylinder for the wrench, spindle 7.63 x 5
• Vertical rod seal assembly and wiper rod assembly
• Main winch (Arctic) and 8,000 lb winch with brake valve assembly
• Power pack mounting base
• Power and control wiring
• Air cleaner installation and air filter 08 (yellow)
• Pneumatic system
• Compressor 1900, airend 285 mm with gear case, rotor set, bearings and gaskets, oil pump and receiver tank installation
• Upper and lower receiver manifolds, compressor-to-receiver piping and hose clamps
• EARS assembly, actuator, EARS/clutch electrical box and light assembly
• Piping assembly air system
• Piping COC XL19 – hoses, split flange kits, oil filter assembly and manifold COC
• Filter kit 285 and hydraulic filter elements
• Hydraulic tank and reservoir assembly, SAE filter, breather/relief
• Valve installation – stacking valves, check valves, counterbalance valves and crossover relief
• Valve stacking 11-spool sections, relief valve kits and Pulsar coils
• Regen LP valve and its manifold with sequence, check and counterbalance cartridges
• Pump drive TRP, triple pump, gearbox and split flange kits
• Pump P7, 9A and its seal kits, servo control cover and proportional pressure control valve
• Torque control rotation
• Piping HOC AK and cooling control valve
• Cooler installation PV270E and cooler assembly with motor M7, fan and taper bushing
• Electric mainframe – inclinometer, I/O modules, temperature and pressure sensors, power pack box, mainframe and power pack cable kits, hoist box assembly, remote hoist control
• Starter panel installation, soft starter AC3 6900 V, transformer installation, ACCB box and its breakers, contactors and fuses
• Electric tower 55F – proximity switches, cable tray, encoder and encoder mount assembly, tower electrical box and tower cable kit
• E-stop options – rear exit, side exit and internal e-stop assemblies
• RRC RCS4 PV270 remote control
• Non-J4 lighting installation
• Cab cover installation
• Certiq installation and electronic unit
• Hydraulic shut-offs (yellow)
• Cab heater installation
• Tower lubrication system, mechanical grease shut-off, Graco auto fill and grease piping groups
• Water tank 750 gallon, fuel tank 350 gallon, water tank 400 gallon
• Water injector 8 GPM, pump and motor, power end assembly
• Fast service 2 W box
• Level indicator and auto level box assembly
• Auto drill assembly
• Water flow installation
• Remote desktop viewer
• Washdown installation
• Video camera system
• Cable reel installation
• Shipping kit
• Logo decals, Spanish decals, safety decal kit and Spanish nameplates

How the Assembly Groups Are Laid Out

The Epiroc DM45 HP Pit Viper PV271E RCS parts catalog is arranged so that related hardware stays together. Undercarriage components sit next to the track and roller groups they serve. Everything that makes up the cab – structure, doors, glass, seats, controls, A/C, wipers, headliners and shades – is grouped in one continuous run so you are not jumping between unrelated sections to finish one job. The same logic carries into the hydraulic side, where main piping, the diverter and control manifolds, the tower piping and the cooling circuit are covered in sequence, and into the electrical side, where the mainframe harnesses, power pack box, tower electrics and operator interface each have their own breakdown.

Fasteners, fittings, clamps and small hardware are listed explicitly rather than being left to guesswork. Cap screws, hex nuts, lock washers, flat washers, cotter pins, retaining rings, Stauff clamps, bulkhead fittings, elbows, tees and adapters all appear with their own part numbers and quantities, which matters on a machine where a single missing O-ring can sideline a shift.

What You Can Do With This Parts List

This catalog supports the full range of parts work on a DM45 HP in PV271E RCS configuration. You can identify a component from the illustration and order it by part number. You can break a failed assembly down into its constituent seals, bearings, pins and retainers instead of replacing the whole unit. You can confirm quantities when a job needs more than one of something – eight cap screws, four O-rings, two shim packs. You can check whether a position includes a sub-assembly such as a seal kit before you order it separately. And you can verify that the part you are about to fit actually belongs to machine serial US004905 rather than to a different build.

Getting this right matters. A wrong seal, an undersized fitting or a substituted fastener on a hydraulic or structural assembly is not a minor inconvenience – it is a failure waiting to happen, and on a drill rig that failure can take out a cylinder, a pump or a structural weld. Working from the illustrated breakdown removes the guesswork and the back-and-forth with a parts counter.

The Epiroc DM45 HP Pit Viper PV271E RCS spare parts catalog for serial US004905 is delivered as a PDF immediately after payment, with no shipping and no waiting on a physical book. It opens on any computer, laptop, tablet or smartphone, and any page can be printed and taken out to the machine – which is exactly where a parts breakdown is most useful.
