Epiroc Drill Master DML-LP Spare Parts Catalog PDF – Doc 0000070113-001

Description

Epiroc Drill Master DML-LP Spare Parts Catalog – Document 0000070113-001

This is the full illustrated spare parts catalog for the Epiroc Drill Master DML-LP drilling rig, published under document number 0000070113-001. It is the parts lookup reference used to identify, order and replace components across every major assembly on the machine – from the C15 Tier 3 power pack through the undercarriage, tower, rotary head and hydraulic set. Each section presents an exploded illustration keyed to an itemised parts table listing part number, description, quantity, remarks and, where applicable, remanufactured part numbers.

Because the Drill Master DML-LP shares many components with the wider DML family but uses its own LP-specific assemblies, having the correct document number matters. This catalog is organised exactly as Epiroc built it, so the part you look up is the part that fits the DML-LP as configured.

File Details

• Manual type: Illustrated spare parts catalog
• Brand: Epiroc
• Model: Drill Master DML-LP
• Document number: 0000070113-001
• Language: English
• File format: PDF
• Page count: 619 pages

Chapters Covered

The catalog runs through the machine system by system. The main groups and their key sub-assemblies are:

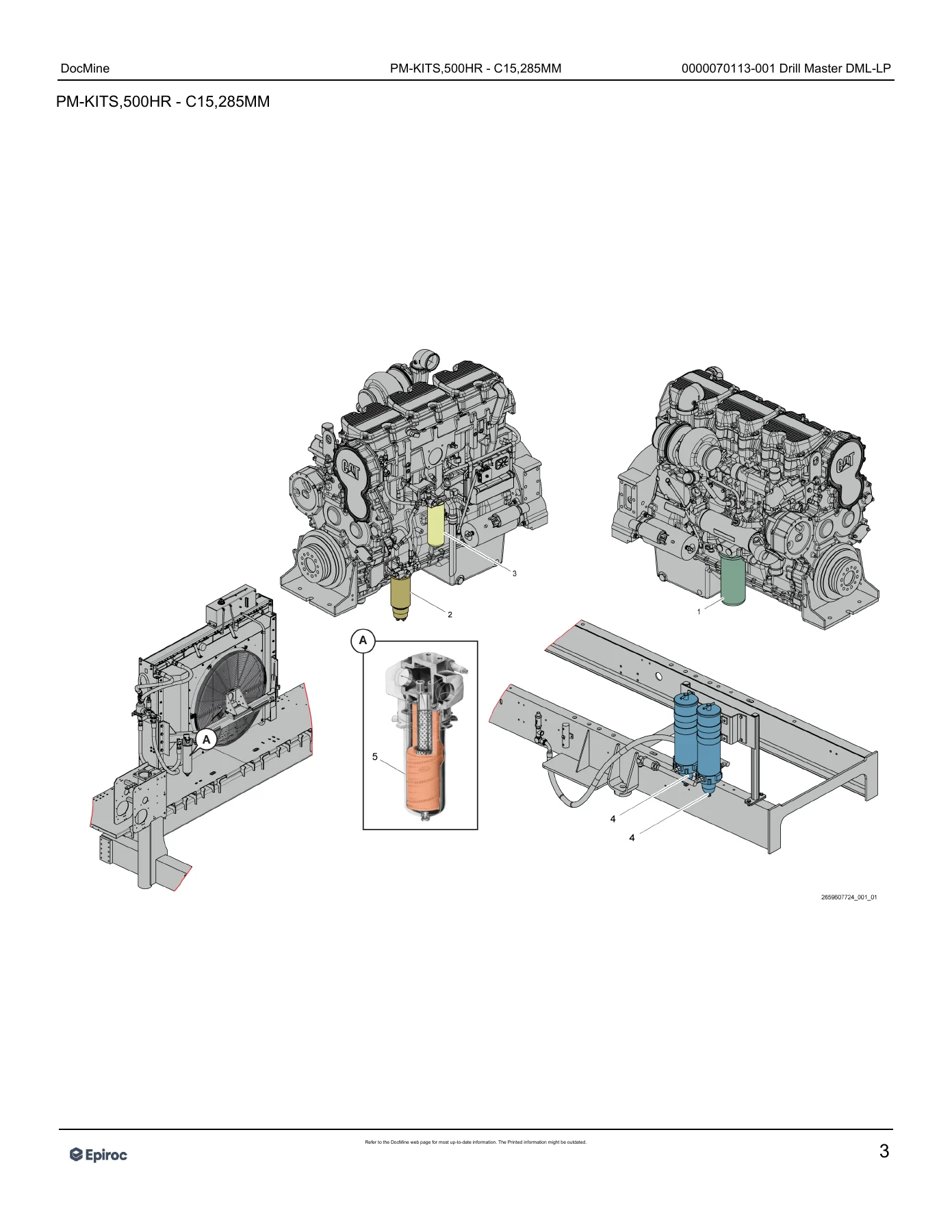

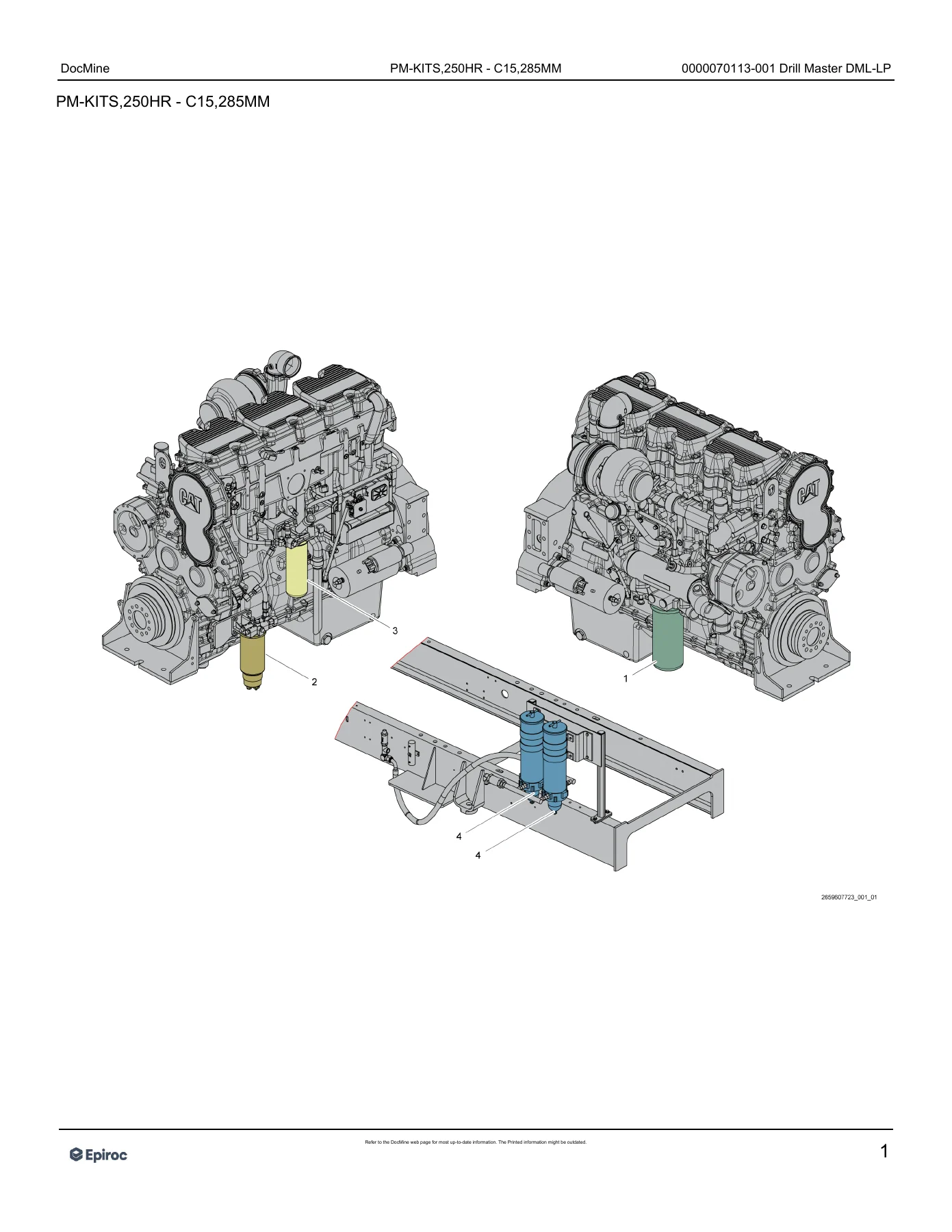

• PM Kits – 250HR, 500HR, 1000HR and 2000HR service kits for the C15 285MM configuration, including oil, fuel secondary, air, safety and hydraulic element kits
• Main Frame – frame weldment, main frame, vertical deck assembly, tower support, axle shaft, lifting hook installation
• Deck Assembly – front and rear decking, DCS and CS variants, decking plates
• Frame Rework for Shipping – shipping angles and support tubes
• Cable Tray and Rail Installation – pump drive cable tray, cooler side rail, hand rails, ladders
• Decking and Platforms – rear platform decking, handrails, bulk chain, safety hooks, gate weldments
• Hook Installation – tow hook brackets, shackles, lifting hardware
• Ladder Installations – NDE spring ladder, spring-loaded ladder sections, mounting plates, pivot frames
• Deck – Water Injection, No Enclosure – 1000 water deck, handrails, floor extensions, grates
• Track and Undercarriage – CAT 330S with Y front idler, oscillation yoke, bushings, pivot components
• Track Assembly – track groups, track shoes, bolts and nuts, IRGT3000S chain assemblies, master links
• Undercarriage 330S – front idler group, track group, final drive, track guide guards, sprocket group, upgrade kits
• Track Group Adjustment – recoil spring group, support assembly, spring, rod, yoke end
• Front Idler Group – idler, shaft, Duo Cone seal groups, bearings, pin and plug
• Roller Groups – carrier roller group, track roller, seals and thrust washers
• Final Drive – drive group, propel motor, planetary assemblies, brake discs and seals

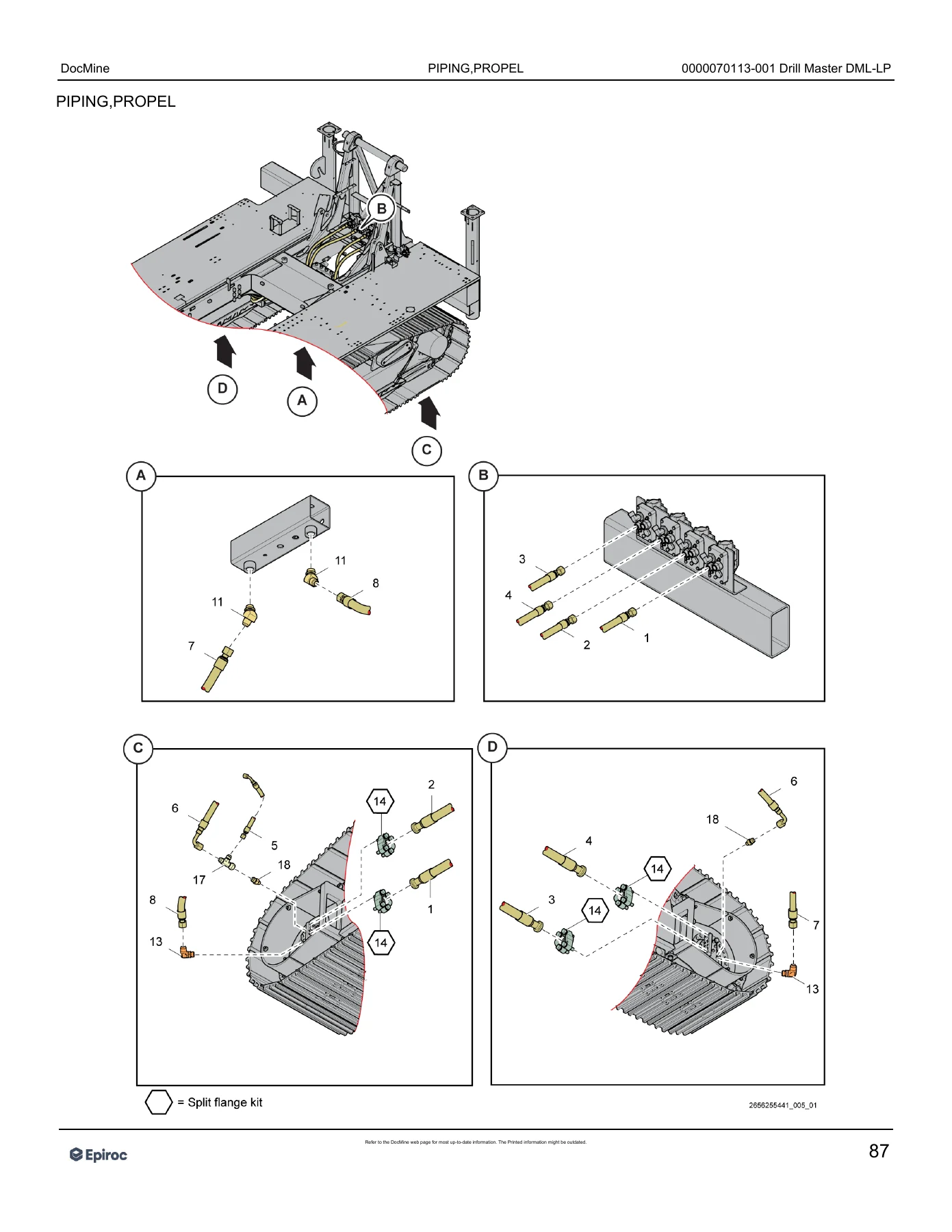

• Piping, Propel – hose assemblies, elbows, metric split flange kits and fittings
• Jacks – rear and front jack assemblies, hydraulic jack cylinders, slide, tower rest, counterbalance valves and seal kits
• Cab Kit and Cab Installation – bare cab PV270, wiper kit, doors, glass, foam seals, floor mats, seat, armrest kit, pedestal
• Cab Door Assemblies – curbside two-latch door, tower side door, latching and linkage
• Heater / Cool / Evaporator – package kit 805 IR, housing, blower, heater coil, evaporator coil, thermostat and switch assembly
• Heater Assembly – heater coil assembly, water valve cable, bulkhead fittings and hose clamps
• Air Conditioner – condenser coil, compressor with clutch, drier receiver, hose assemblies and circuit breaker
• Air Cleaner / Filter – air cleaner assembly, restriction indicator, mounting bands, air filter-08 with element and safety element
• Seat, Buddy with Belt – seat mount, retractor belt, fold-down seat, hardware
• Light – Strobe Amber – strobe light assembly, brackets, wire and fasteners
• Gauges and Controls – pressure gauges, air pressure gauges, throttle, PowerView display, tachometer, oil pressure and water temperature gauges, controllers and switches
• Tower 30FT – tower assembly, feed cylinder, cable assembly, chain roller, upper and lower arms, carousel indicator, shaft and link assemblies
• Carriage – Sheave Assembly – sheave with bush, locking plate, chain anchor, bushings, clevis and cotter pins
• Guide, Sheave – Sprocket – guide plates, round bars, pins and locking plates
• Rod Holder – rod holder, hydraulic cylinders, counterbalance valves, motor unit and shim packs
• Motor Unit / Hydraulic Motor – gear housing, cover, shaft, worm gear, bearings, hydraulic motor modification and seal kits
• Rotary Head, Lube – spindle, housing, bearings, intermediate shaft and gear, input pinion, motor M6 spline, lube pump and filter assembly
• Spindle Clamp – clamp and socket head hardware
• Motor – M6, Spline – motor assembly, retaining ring kits, shaft seal and controller seal kits
• Valve – Motor Control – reducing/relieving valve, shuttle valve and seal kit
• Angle Drill 0-30 Deg, Electric – angle drill, tie bar, rod support, hinge and pivot pins
• Rod Support – Electric – rod support assembly, arm, cylinder, roller guide, hoses and adapters
• Rod Catcher Assembly – tubing, cable assembly, spacers and hardware
• Breakout Base – Sliding Assembly – hydraulic cylinder, fabricated base, check valve, hose assemblies and split flange kits
• Stopper Installation – Tower – stoppers, shims and fasteners
• Spindle – SUB7X4.5BECO 29L – spindle and adapter
• Light – Amber Strobe, Tower / Inclinometer Assembly / Counter – RPM Powerhead
• Engine Installation – C15, Tier 3 – engine assembly 540HP, front and rear mounts, drive shaft, guards, filters and adapters
• Base Mounting, Powerpack – mounting base, bolts, slotted nuts and cotter pins
• Piping, Radiator – radiator pipes, cooler inlet, hose humps, clamps and supports
• Exhaust Installation – Silver, Hi-Temperature – silencer, flex elbow, gaskets, bands, exhaust elbow and blanket
• Piping, CAC – charge air pipes, engine inlet elbow, constant torque clamps and anti-vibration pads
• Battery Installation – Insulated – insulated battery box, battery cables, battery selector switch, receptacle and cover
• Cooler Installation – Arctic – arctic cooler assembly, cooler support, fan blade, taper bushing and anti-vibration pads
• Cooler Assembly – Arctic – cooler, COC core, heat exchanger separator, retainer brackets
• Cooler, Arctic – CAC, radiator and HOC heat exchangers, motor bracket
• Motor, M7, Keyed – motor, seal kits, shaft kit, rotating group minor and major, cam, piston and shoe
• Rotating Group – Major – barrel bearing, creep plate, barrel/sleeve, faceplate and pins
• Piping, Fan/HOC – relief valve, check valve, hose assemblies and fittings
• Equalizer, Battery – battery equalizer 20A, wire and terminals
• Airend Assembly – airend 285MM, butterfly valve, coupling, vacuum bayonet sensor, actuator, shims and fittings
• Airend – 285MM – cover, gaskets, manifold, orifice, tubes, elbows, gear set drive, pump, seals and bearings
• Kit – Airend Repair – seal and bearing repair kit contents
• Pump – end covers, gear housing, gear shaft set, bearings, thrust plates and O-rings
• Actuator – actuator, set screws, washers, hex nuts and indicator cap
• Receiver Assembly – Vertical, Ears – tank separator, mount, flange block, separator element, minimum pressure valve, relief valves, manifold upper and lower
• Manifold – Upper Ears / Manifold Lower – fittings, elbows, manual shutoff valve, quick disconnect
• Receiver Tank – Relief Valves – relief valve, elbow, hose assembly
• Piping – Receiver to Compressor – discharge pipe, gaskets, wafer check valve, hose and restraints
• Compressor Controls – Ears, LP – cables, harness, DIN rail, light assembly, potentiometer, switch assembly, controller and temp sensor
• Light Assembly / Potentiometer / Switch Assembly – indicator, receptacle, wedge and wire markers
• Piping, Receiver to Tower – hose bulk, clamps and hose restraint cables
• Piping, COC – oil filter, strainers, temperature bypass valve, hose assemblies and brackets
• Filter, Oil – head assembly, windows, bypass valve, service element kit, housing and spring
• Kit, Filter, Field, 285 A/E – main hydraulic filter elements and hydraulic filter kit
• Hydraulic Set – main hydraulic drive, pump P7,9A, stroker 9A double seal, control arm, pump drive 3-hole
• Valve, Regen-LP – installation and valve, manifold feed control, sequence, check and counterbalance valves
• Piping, Tower Raise / Tower Unique 30FT / Tower Commons / Rod Changer 30′ Tower
• Installation – Wrench Cylinder – wrench cylinder, check valve, hoses and controller
• Piping, Hydraulic Tank – reservoir weldment, cleanout cover, hydraulic filter assembly, manifold, check valves, breather and sight gauge
• Piping – main piping group, return manifold, pump relief valve, diverter valve assembly, SAE filter
• Valve Assembly – Drill/Propel Control – manifold assembly, relief valve, reducing cartridge, two-way cartridge and seal kits
• Relay Assembly – Time Delay – box, timer, terminal blocks and labels
• Pulldown, Installation – Electrical – pressure control valve, hoses and fittings
• Jacks, Piping – jack adapters, hose assemblies and O-rings
• Valve Installation – 6 Spool / Valve Assembly – 6 Spool / Valve Assembly – VPL6 – sections, relief valve kits, pulsar seals, spool and compensator kits
• Valve Installation – 9 Spool, Electrical / Valve, 9 Spool – 24V Coils – sections, inlet section, tie bolt kit, pulsar seals
• Assembly, Hydraulic – hydraulic tank assembly
• Controls, Over Press – Electrical – two-way valves, hoses and fittings
• Rod Index Piping – Electrical – check valve, hose assemblies, connectors and elbows
• Pinning – Tower-DMC/Electric – hydraulic cylinder, tower locking pin, limit switch, check valve
• Cylinder – Hydraulic – seal kit, clip pin, locknut, rod, clevis, piston and head
• Winch – winch assembly 4000#, safety hook, wire rope, sheave, jib arm pin
• Winch Assembly – 4000# – hydraulic motor, motor control valve, winch brake kit, seals and bearings kit
• Kit, Winch Brake / Kit – Seals and Bearings
• Kit, K Port, Feed Pump – adapter, check valve, hose and connector
• Torque Limit – Electric/Hydraulic – pressure control valve, rotary prop controller, hoses and conduit
• Fuel System – fuel tank installation 380 GAL, fuel piping installation, fuel cooler, fuel pump and sender
• Ether Installation / Ether Kit – ether kit C15, cylinder, tubing and atomizer
• Electric Set – wiring standard electric rig, wiring engine panel, wiring engine, wiring basic engine, electric boxes
• Lights, Night-9, LED – LED lights, conduit, cord grips and connectors
• Shutdown – Ground Level – pushbuttons, E-stop decals, boxes, conduit and wire
• Indicator – Jack Up-Electrical – limit switch, operating lever, shims and wire
• Switch-Head Decel – low temp limit switch, adjustable arm and fittings
• Propel Remote System – remote propel cable, control box, relays, diodes and connectors
• Receptacle Assembly – 240VAC receptacle box, high voltage decal, outlet body and conduit
• Options – dust curtain angle, dust curtain, dust curtain hydraulic cylinder, powerpack enclosure, no-bump installation, warning horn, push button switch, quickfill nameplate Russian, fuel heater Racor 24V, fuel filter, auto lube hydraulic pump installation, Graco auto fill/shutoff, grease pump manifold, 30FT tower lube installation, timing shaft auto lube, MF injector lube installation, hand pump, diesel heater, Certiq ready installation, Teliq RMS mount, dust collector
• Breaker Box Installation / Panel – Breaker Box Assembly – circuit breakers, fuse holders, relays and DIN rail
• Heater Installations – oil pan heater, battery heater CSA, coolant heater engine, fuel tank heater, hydraulic tank heater, vertical LP heater and receiver pad
• Tram Interlock – relay DPDT 24V
• Tools and Accessories – drill tool rodtools 7.00″ pipe BECO 4 rod, chain wrench 6.25-7.50, tong assembly with flat inserts, chain assembly, blow gun with 35 hose, rod seal assembly 7 pipe, dust seal 7 pipe
• Decals – safety SHC525 Russian, manual set Russian, inclinometer installation, name plate Russian, EAC installation, misc Russian, compressor ears assembly, F.R rig-DML
• Export Package, Paint and Supplies, Kit Disassembly Russian NoHazMat, Accessories

Altogether this is a full parts breakdown of the Drill Master DML-LP across the frame, undercarriage, tower, powerhead, power pack, air and hydraulic systems, cab, electrical set and every factory option that appears in the document. Each assembly is drawn in exploded view so a technician can see how the parts stack together, while the accompanying table gives the exact part number, the quantity required and any notes about alternative or remanufactured numbers.
