Epiroc Explorac 235 Spare Parts List PDF – 8993063060-001 Illustrated Parts Catalogue

Description

This Epiroc Explorac 235 Spare Parts List is the full illustrated parts catalogue for the Explorac 235 exploration drill rig, issued under document number 8993063060-001. Each assembly is exploded into item numbers carrying the part number, component name, quantity and any fitting remark printed alongside it, so a part can be identified with certainty before it is ordered, replaced or rebuilt.

File Details

• Manual type: Illustrated spare parts list / parts catalogue
• Brand: Epiroc
• Model: Explorac 235
• Document number: 8993063060-001
• Language: English
• Page count: 852 pages
• File format: PDF
• Revision date shown in the document: Wed Jun 26 2019

Chapters and Assemblies Covered

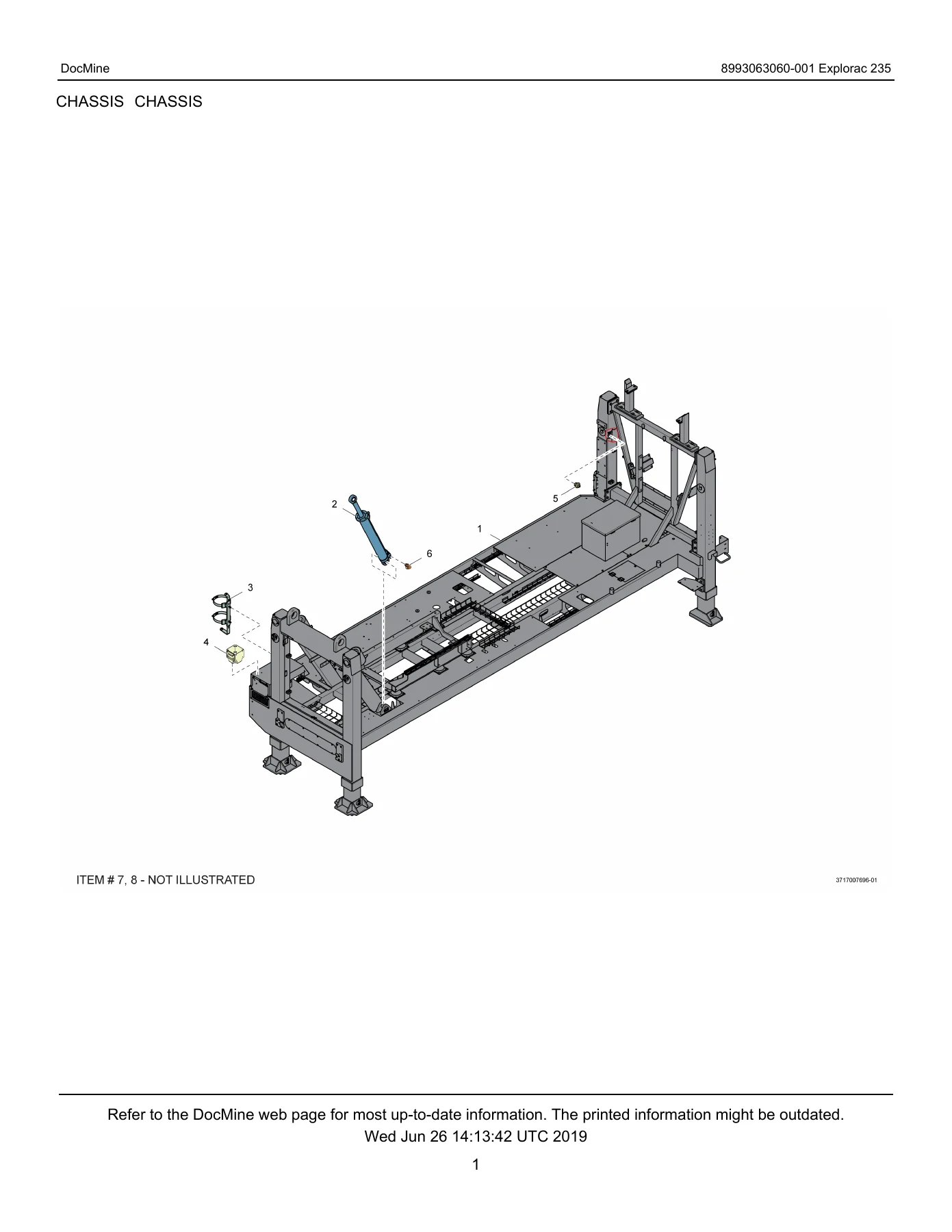

• Chassis – complete assembly, jacks, legs, ROPS, deck plates, covers, mounting hardware
• Chassis cylinders – mast tilt cylinder, jack cylinders, seal kits, bearings, counterbalance valves
• Attachment kit and fire extinguisher mounting
• Level indicator
• Hose sets and hose routing for the chassis
• Platforms, deck access handrails, ladders and rail assemblies

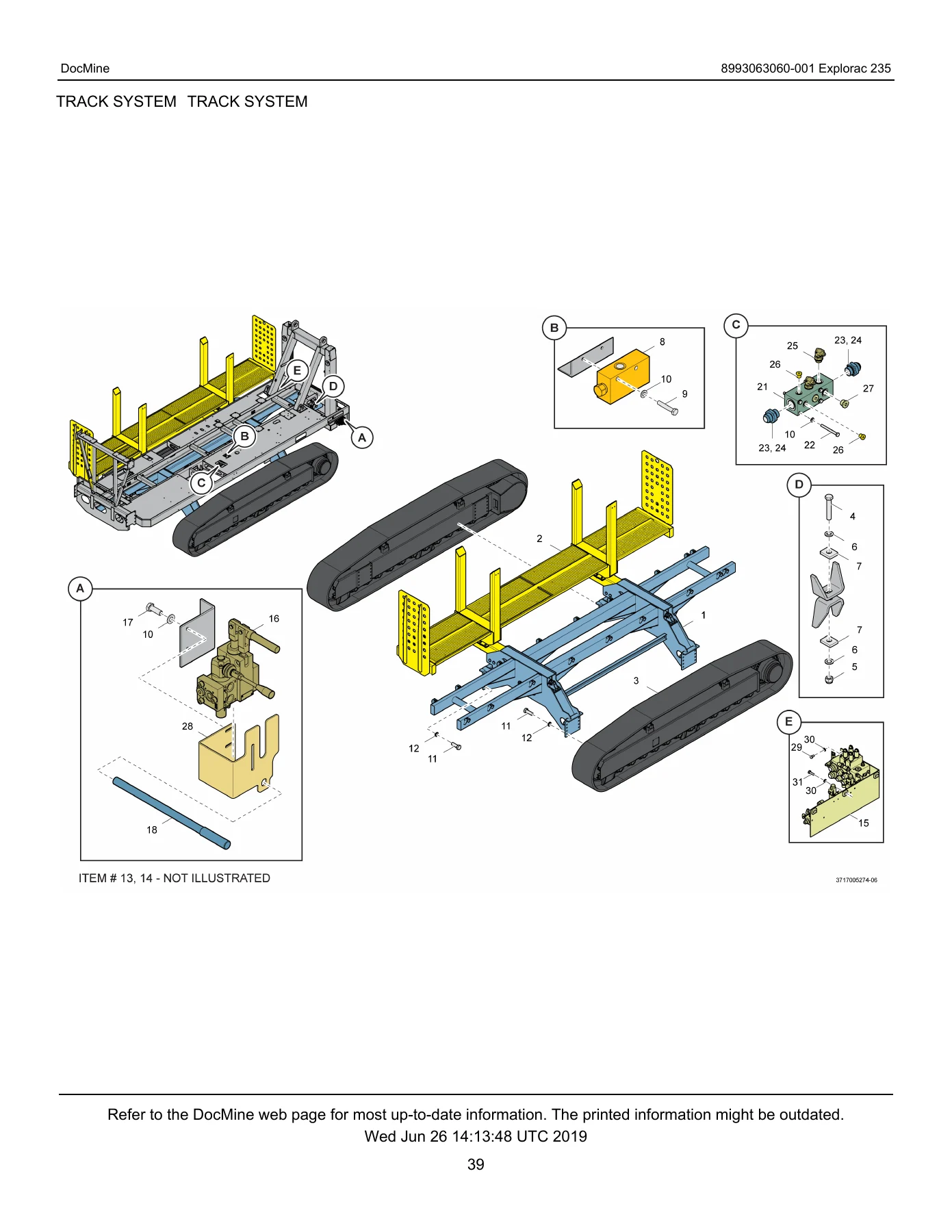

• Track system – track portal assembly, support beams, pivot pins, lock plates
• Rod rack, wear strips, rod rack brackets and hydraulic cylinder 80/40-600
• Bearings, supports and wear pads
• Crawler tracks R&L – track shoes, rollers, tensioners, sprocket wheels, track chain
• Flow divider FSCS-XAN-MMU and seal kit
• Rod rack fitting kit and rod rack hose kit
• Tramming valve blocks, direction control valves and drainage manifold
• Canopy – panels, doors, roof, insulation, engine frame and sound absorbing material
• Cooler – radiator, cooling fans, hydraulic motors, cooler pipes, expansion tank and fittings
• Fuel tank, filler set, breather filter and fuel line components
• Mast – mast structure, mast foot, sliding table, slips, timing shaft, chain guards and feed extension
• Mast cylinders – mast slips table cylinder, mast foot raise, rod rest, feed cylinder, break out up/down, break out position
• Mast valves, spanners, hydraulic sets and hose kits
• Winch, brake kit, winch motor and seal kits
• Rotation unit, hydraulic motor 630CC, blow down valve and service/park valve group
• Rod handler – feed, tilt arm, actuators, housings, seal rings, pistons, bases, gripper arms
• Rod handler section valve, bearing sets and hose set
• Dimension kits and spanner assemblies
• Sampler RC – cyclone, cone, drop box, air kit, turning device with hydraulic motor, discharge, wear guard, blow down valve, crank, valve block and support
• Sample splitter – fixed cone splitter, riffle splitter and spreader
• Sign set and safety decals
• Hydraulic system – tank, return filter, hydraulic pump with electric motor 0,2 kW/24 V, valve blocks, inlet plate and direction valves
• Air system – regulating system, high pressure air piping, actuators, lubricator oil tank and hose kit
• Electrical system – control cabinets, main electrical cabinet, fuse boxes, emergency stop boxes, battery box, cable sets, light set and wiring
• Control system – RCS control panels, radio pendant, operator unit, power supply and electronic unit
• Water system – flush pump, winch equipment, wire assembly, winch, strainer, hose reel and cleaning unit
• Fire suppression system
• Service case tool box for RCS4 and RCS5
• Hose connections and adapter nipple index

Because the catalogue is written assembly by assembly rather than as a single flat list, it follows the way the rig is actually built. Each drawing is keyed to a numbered table, so a callout on the exploded view leads straight to the part number, the quantity required and the remark describing the fitting, thread size or variant. That makes the catalogue as usable for a workshop rebuilding a single mast cylinder as it is for a store ordering a full track chain.

How the Parts Tables Are Built

Every table in the Epiroc Explorac 235 Spare Parts List uses the same columns: item number, part number, name, quantity and remarks. Remarks carry the detail that matters when two similar parts sit side by side – thread designations such as UNF 9/16, JIC and BSPP sizes, degree angles on elbow nipples, seal kit contents, hardness and plating callouts on washers and screws, and notes marking components that are not sold separately.

Consumable and hardware lines are listed in full rather than abbreviated, so plain washers, lock nuts, hex head screws, cap screws, circlips, grease nipples, O-rings, back-up rings, guide rings and wiper seals each carry their own part number and quantity. Kits are broken open too, with the included position numbers listed in the remarks so the contents of a seal kit or repair set can be checked before it is fitted.

Why This Parts Catalogue Matters

Ordering the wrong seal or nipple on a machine of this size costs time on site. The Epiroc Explorac 235 parts list removes that guesswork by tying each part number to a specific position on a specific assembly. Cylinder groups show the head, piston, rod, barrel, spacer and every seal in order. Hydraulic blocks show which nipple, plug, elbow or test point goes into which port. Track assemblies list shoes, bolts, nuts, rollers, chains and tensioners with their quantities, so a track overhaul can be planned in one pass.

Get the Epiroc Explorac 235 Parts List Delivered Instantly

With this Explorac 235 spare parts catalogue on hand you can identify components across the chassis, mast, rod handler, power unit, RC sampler, hydraulic, air, water, electrical and control systems without waiting on a parts counter. It supports ordering, rebuilding cylinders, replacing hydraulic fittings, tracking down hardware, and confirming the contents of seal and repair kits before work starts.

IMAGES PREVIEW

Correct part numbers and correct quantities are what keep an exploration rig productive, and having the illustrated breakdown in front of you is the fastest way to get both. The document is supplied as an instant PDF download after payment – no shipping, no waiting on a disc, readable on a laptop, tablet or phone in the workshop, and printable page by page when you need a paper copy on the bench.
