HYVA HB150 Articulated Boom Spare Parts Catalogue 7880503_H.1 Edition 03/2023 PDF
Original price was: $26.95.$16.95Current price is: $16.95.
Complete HYVA HB150 articulated boom spare parts catalogue with exploded views, position numbers and variant codes for every assembly – logbook code 7880503_H.1, Edition 03/2023.
Description

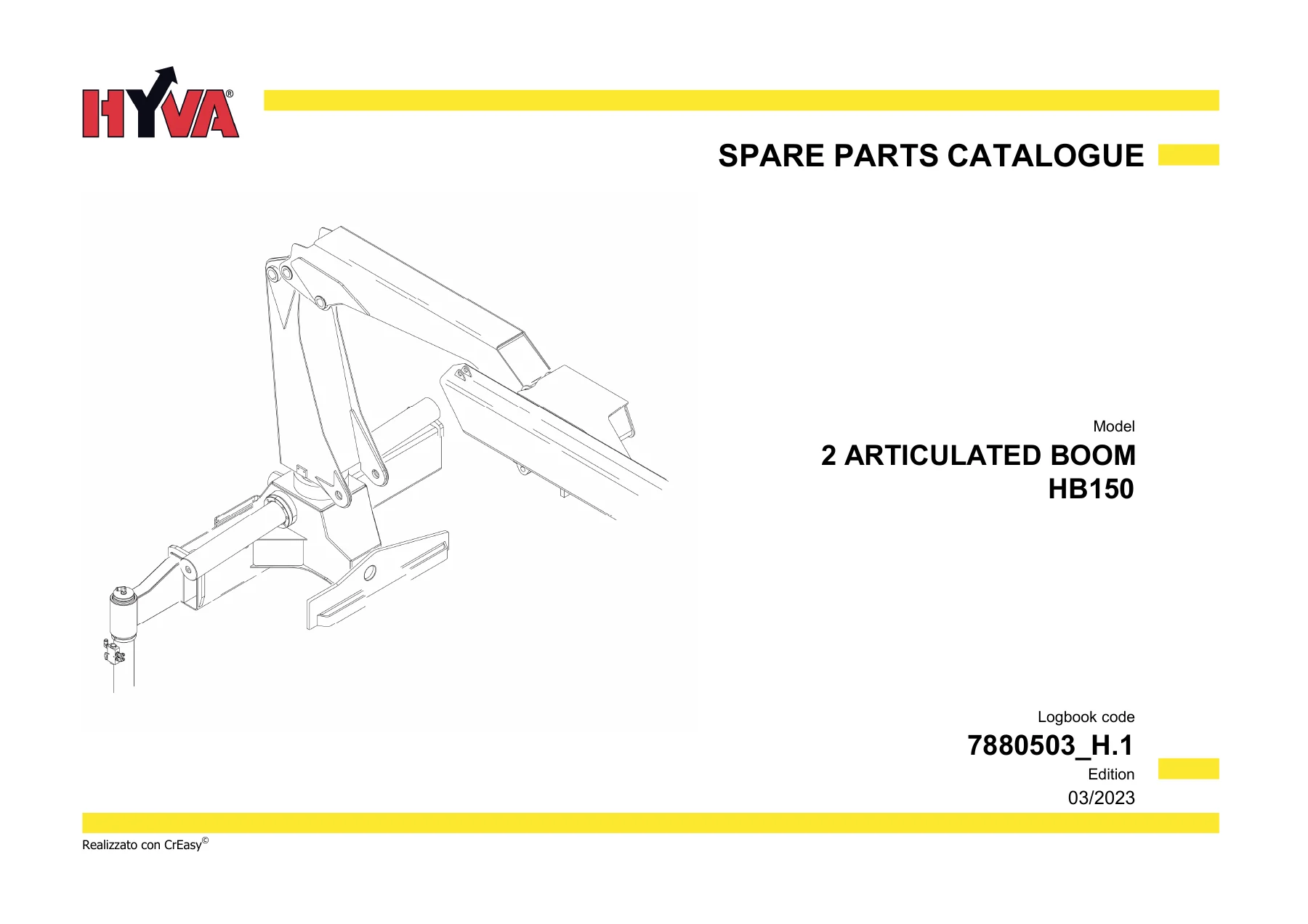

HYVA HB150 Articulated Boom Spare Parts Catalogue
This is the full HYVA HB150 articulated boom spare parts catalogue issued under logbook code 7880503_H.1, Edition 03/2023. It covers the HB150 boom family across its F, M, E3J, C, X TCU, TCU EN12999-A3 and CIA configurations, listing every orderable component with its variant code, position number, quantity and description. Each assembly is presented as an exploded illustration with numbered callouts that map directly to the parts table on the same page, so a part can be identified visually and confirmed by code before ordering.
File Details
- Manual type: Spare Parts Catalogue
- Brand: HYVA
- Machine: HB150 Articulated Boom
- Logbook code: 7880503_H.1
- Edition: 03/2023
- Language: English
- Page count: 272 pages
- File format: PDF
Parts Groups Covered
The catalogue is organised by table code, and the table index at the front routes you to the correct page for each assembly. The main groups documented include:
- Base, column and slewing assemblies
- Slewing hydraulic jack and double flange slewing versions
- Hydraulic plan outriggers – manual pull-out and hydraulic pull-out
- Stabilizer connecting rods, rotating and revolving versions, plus stabilizer hydraulic jacks including the long/extra versions
- Lifting hydraulic cylinder and articulation hydraulic jack (standard, special, marine and double-flange variants)
- 1st boom and 2nd boom, including the short and special 2nd boom
- 1st, 2nd, 3rd, 4th and 5th extensions with their hydraulic jacks and rod units
- JIB arm, 1st extension (JIB), kit connecting rod and plates tooling
- Control stations, double controls and controls with thermoformable housings
- Control valve assemblies – CE, not CE and EN12999-A3 versions, plus individual valve elements, sliders, anti-shock valves, non-return valves and seal kits
- Manifolds, solenoid valves, stabilizer control valves and flow diverters
- Hydraulic systems for moment limiting device, CE and not CE configurations
- Hydraulic oil tanks, high pressure filters, oil filters and filtering cartridges
- Heat exchange unit and electric fan
- Wireless control kits – EU 24V, USA 12V and CAN BUS
- Load indication system, pilot lamp, rotation control, stability control and signal columns
- Electric components, wiring assemblies, sensors, encoders and proximity switches
- Four-way hose winder kit, hose reels and hose supports
- Console, seat support, control unit (CIA) and column (CIA)
- Plate kit (Generic Gru) with standard instruction stickers
- Recommended spare parts list at the back of the catalogue
How the Catalogue Is Structured
Every spread follows the same working logic. A table code such as 5402956-3.0, 6240056-1.0 or 5430012-1.1 sits above the drawing and identifies the sheet within the manual, alongside a sheet reference like 1/1 or 2/2. Below it, the parts table gives the reference position, the variant code, the quantity and the description – including thread sizes, material specs and standards such as UNI 5737, UNI 5931 or UNI 5588 where they apply. Hydraulic sheets list fittings by size and type, for example straight pipe fittings, 90 degree connections, tee fittings, reducing fittings and quick couplings, so a hose or adapter can be matched without guesswork. Cylinder sheets break the unit down into cylinder, rod unit, piston, close nipple, seals, O-ring joints, anti-extrusion rings, W-rings and the corresponding seal kit.
Because variants are listed side by side – fixed and marine rod units, cylinder variants A and B, 12V and 24V solenoids, CE and not CE control configurations – the catalogue makes it possible to confirm exactly which version of a component belongs to a given machine rather than ordering a near-match.
Who This Catalogue Is For
This HYVA HB150 spare parts catalogue is aimed at workshops, fleet maintenance teams, parts departments and owners who need to identify and order replacement components for an HB150 articulated boom. It is a parts identification document – it shows what each component is, where it sits in the assembly and what code to order. It is not a repair or service procedure manual, and it does not contain step-by-step dismantling instructions or torque sequences.
Why It Matters
On a hydraulic boom, a wrong seal kit, a mismatched rod unit or an incorrect fitting size can mean a wasted order, a leaking joint or a machine standing idle. Working from the exploded views and variant codes in this catalogue means the part is identified against the actual assembly it belongs to, with the quantity and description confirmed before the order is placed. The recommended spare parts page at the end gives a quick reference for the consumable and wear items worth keeping on the shelf.

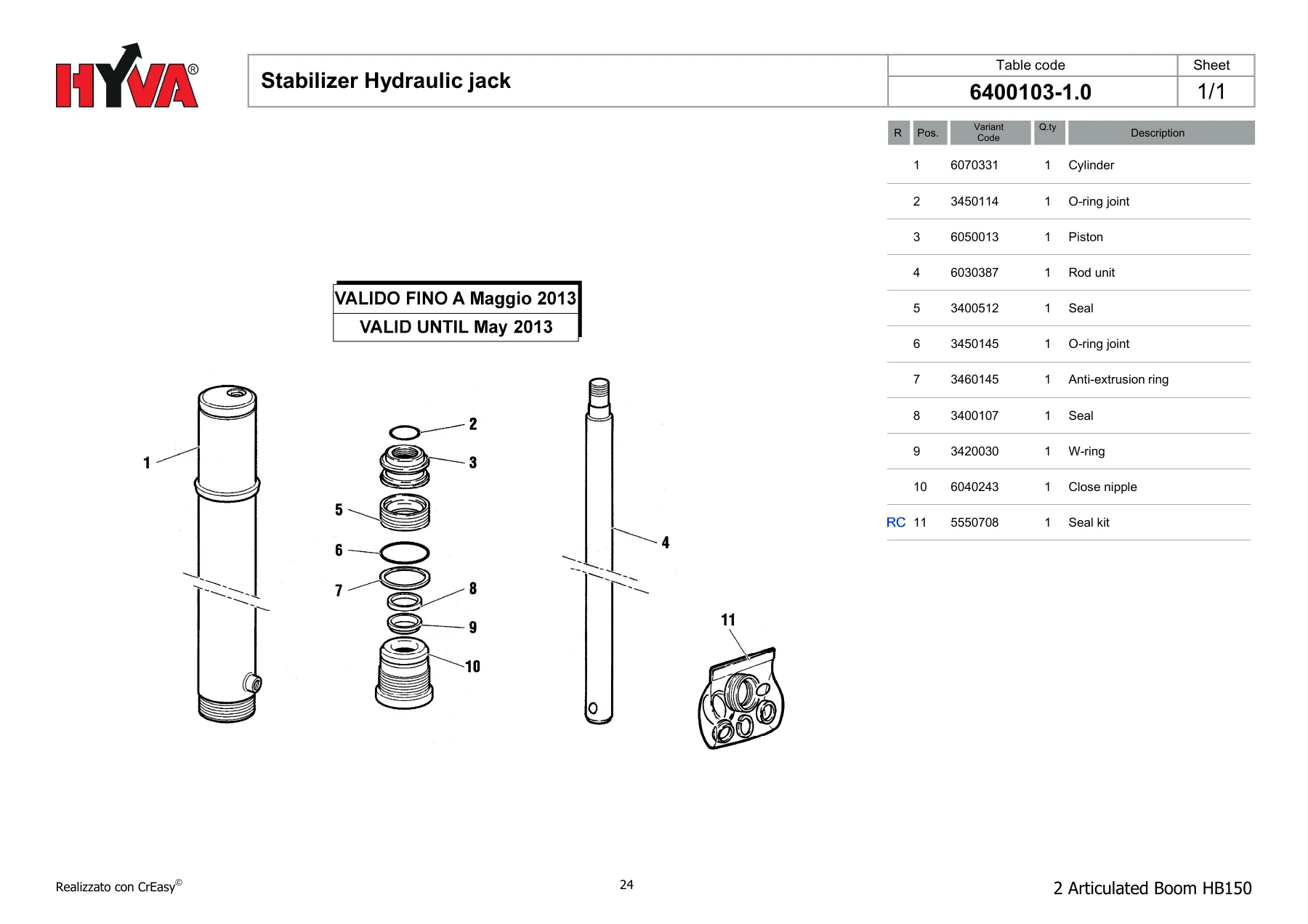

IMAGES PREVIEW
Instant PDF Delivery
The catalogue is supplied as a PDF download, available immediately after payment with no shipping and no waiting. It opens on a laptop, tablet or phone in the workshop, and any page – an exploded view, a parts table or the recommended spares list – can be printed and taken to the machine or handed to the parts counter.
