Epiroc Scooptram ST2D Spare Parts Catalog 8997784300-001 – Complete PDF Parts Manual Download

Description

Epiroc Scooptram ST2D Spare Parts Catalog – Complete Parts Lookup Reference

Every nut, filter, seal, hose assembly and assembly group on the Scooptram ST2D_CE loader is documented in this single PDF parts catalog. Instead of guessing which filter kit goes with the 250-hour service, which multi-disc brake part number sits inside the 14D front axle, or which hose assembly runs between the charging valve and the accumulator, you open the relevant section and read the item number straight off the exploded illustration. The document is the reference that keeps a ST2D underground loader on the ramp instead of parked waiting on a wrong part.

File Details

• Manual type: Spare parts catalog
• Brand: Epiroc
• Machine: Scooptram ST2D_CE
• Document number: 8997784300-001
• Language: English
• File format: PDF
• Pages: 513

Chapters Covered

• PM-Kits – ST2D_CE
• Fluids
• Loadframe – LF and Canopy Assembly
• Box – Box Inst – Oper Manual
• Boom System – Boom Installation
• Boom Support – Boom Up-Lock Support Inst – ST2G
• Bucket – Bucket Installation 1.9M3
• Powerframe
• Swivel – Swivel Inst – Midship Hinge
• Installation – Seat Installation
• Lubr. System – Lincoln Lube Inst W/SAHR Canopy
• Fire Extinguis. – 6KG / AnsuL System
• Driveline Guard
• Engine Assy
• Air System
• Cooling System
• Fuel System

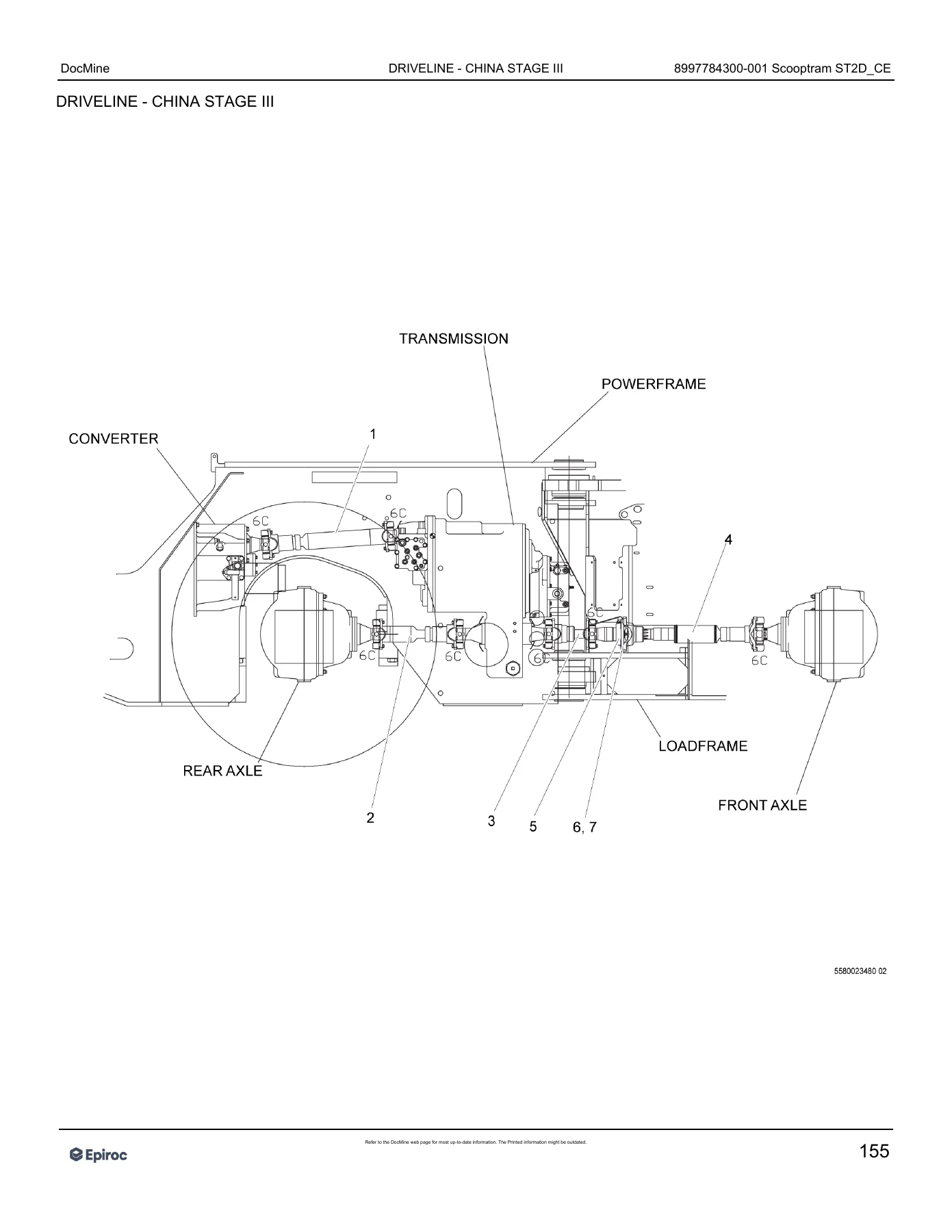

• Powertrain – Front Axle / Rear Axle / Wheel Inst. / Transmission / Converter
• Hydraulic System – Steering Sys. / Hydr. Transmiss. / Dump & Hoist Sys.
• Brake System
• El. Equipment – Electr. System
• Battery Box
• Light Set – LED Light
• Electric Set – Water Mist
• Emergency Contr
• Label Set

PM Kits and Fluids

The opening of the catalog lists the complete PM-kit family in one place: the 125 HRS PM kit (060101255), 250 HRS PM kit (060101256), 500 HRS PM kit (060101257), 1000 HRS PM kit (060101258), and the total 1000 HRS PM kit (060101259). Individual service components – engine oil filter 5112303505, branded fuel pre-filter 6060009318, main fuel filter 6060009317, primary and secondary air filter elements 6060100411 / 6060100412, DEF fluid filter 6060008285, V-belt 5750532706 (8PK 1300 EQ71), element 5535271600 – are broken out so you can order a single filter or the whole kit. The fluids page lists the specified fuel, engine oil, antifreeze, DEF, lubricating oil (Spirax AX 85W-140) and grease quantities.

Loadframe, Canopy and Bucket

Loadframe and canopy installation coverage begins with the loadframe assembly 5728000789 and works through every mount, plate, tube, bushing, weld stud and fastening item, including ring pins, M24 screws, lock nuts and washers. The canopy instruction set gives the cover, guard, ring pin and hardware list. Bucket installation for the 1.9M3 configuration uses bucket 5580015933 / 5728201604, plus the pin, bearing and bushing items shown on the exploded view.

Boom, Boom Support and Bucket Linkage

Boom system and tubular boom installation sections show every pivot pin, bearing, bushing, weld stud and hose holder on the boom installation. The boom up-lock support section covers the ST2G boom lock. Hydraulic tilt and lift cylinder items on the boom are cross-referenced into the Dump & Hoist chapter.

Powerframe, Hoods and Heat Protection

Powerframe coverage runs the full assembly: hydr. oil tank, fuel tank, swivel lock, fender, doors, brackets, engine hoods and heat protection. Weldment pages identify each fabricated plate and mount (fender plate 5728001060, side plate 5728000864, door 5728000857, door plate 5728000861, mount plates, steps and welded hinge 8440300268). Axle support pages document the rear oscillation axle mount and front oscillation axle support assembly with cap screws, washers and lock nuts.

Lubrication System – Lincoln Lube

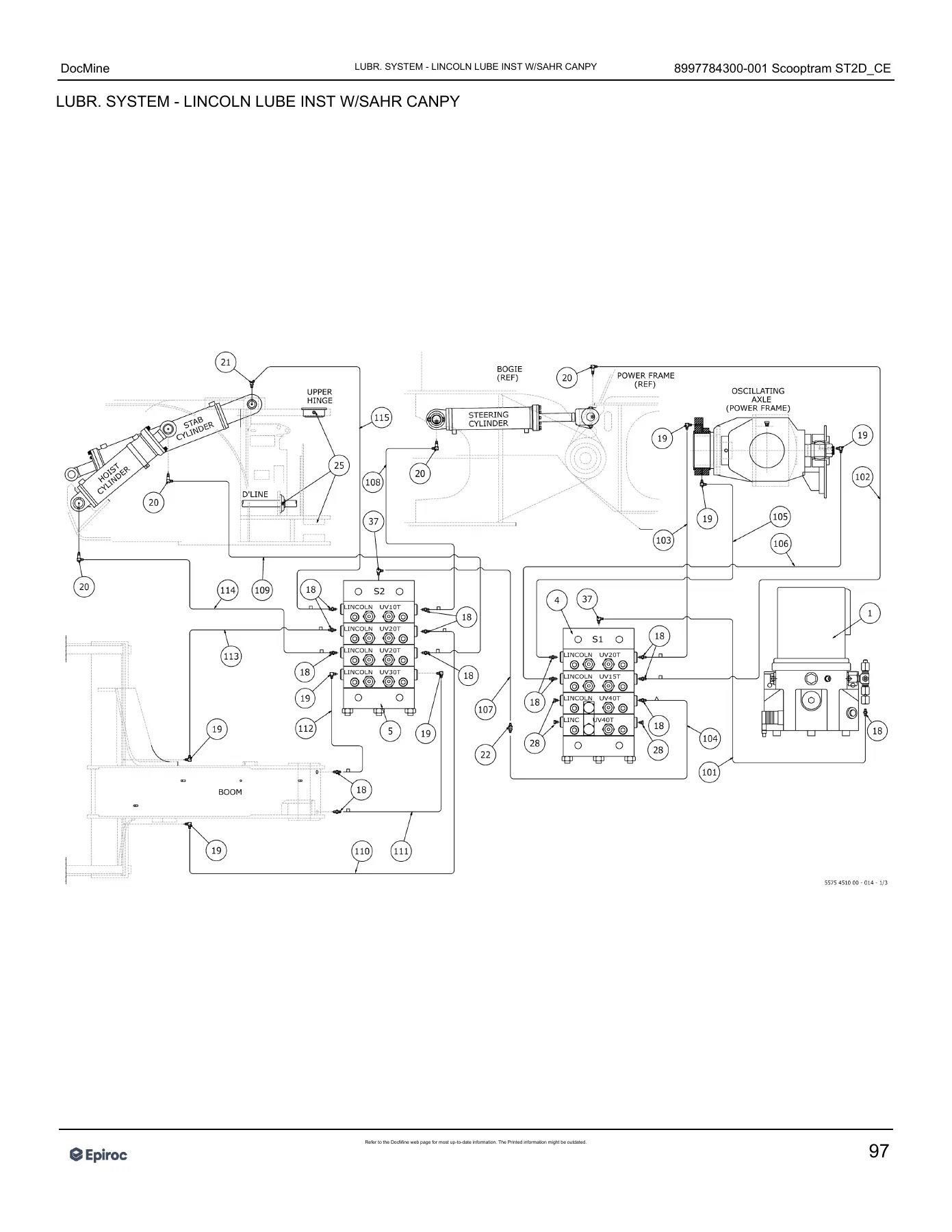

The Lincoln lube installation with SAHR canopy is fully covered: hose assembly list (items 101 through 115), grease pump 24VDC, valve sets and ventilsats smörjblock items, plus the lubrication distribution schematic on the lube diagram page. Every hose assembly number, hose length code and end-fitting designation shown on the drawing is listed with its part number.

Fire Extinguisher and AnsuL System

Two fire suppression chapters are included: the 6KG portable extinguisher with bracket, and the full AnsuL system – extinguisher and bracket LTA101-30, tank with attachment, hose set, component set, nozzles (V 1/2 and AnsuL), pressure switch (1400 PSI), cable complete, hood nozzles, coupler bracket and the labeling. Trigger, valve, check valve and cartridge part numbers are all listed.

Driveline Guard and Engine Assembly

Driveline guard sections D-D, E-E and F-F show the plate, stud, spacer and fastening arrangement around the drive shafts. The engine assembly chapter opens with diesel engine 5728000785 and lists the oil filter, fuel filters, tensioner, V-belt and DEF filter items, with referenced pages pointing into radiator, gear motor and powerframe.

Air, Cooling and Fuel Systems

Air filter 5728202895, rain protection 5728202893, primary element 6060100411 and secondary element 6060100412. The cooling system covers radiator 5728000901, mounts, gaskets, water pipe, charge air pipe, elbow pipe, elbows, hose clips and clamps, plus fan valve block and hydraulic fan drive. Fuel system covers fuel hoses, solenoid valve, water separator 5728001316, fuel pump 5728001317 and the fuel tank contents (access cover, tank cover, O-ring, fuel gauge, strainer).

Powertrain – Front Axle, Rear Axle, Wheels

The front axle chapter covers the AXLE INST-FRT,14D,N/S,POSISTOP assembly with AXLE SPEC-FRONT W/SAHR BRAKES 5575271500 – hub, bearing cone and cup, planet carrier, sun gear, brake multi-disc 5580013100, diff & carrier assembly 5541529000 and pinion. The rear axle chapter covers the REAR AXLE,14D,STD,POSISTP with oscillating hanger weldment 5573379000, rear SAHR brake axle 5575271600, brake multi-disc and diff & carrier. The wheel installation chapter lists MICHELIN XMD2+ 12R24 TT wheels (5728201646 complete, 5728201653 rim), wheel nuts UNF 3/4 and washers.

Transmission and Converter

Transmission coverage is complete: transmission case and cover, forward and reverse shaft, reverse and 3rd clutch shaft group, forward and 2nd clutch shaft group, low shaft (USSP), idler shaft and 4th clutch, output shaft group, hydraulic brake 5590008197, control valve, companion flange 6C, input flange group and modulator valve 5537678400. The converter chapter covers KA CONTROLLED-C converter 5580013189, drive plate, wheel, ring, stator, drive ring 5580018674, shaft group, charge pump, pump drive and cover, plus a repair kit 6060100449.

Hydraulic System, Steering, Dump and Hoist

Steering system coverage includes the main pump, steer cylinder 5728202237, priority valve, steering valve, pilot valve, reducing valve, filter set, plus the full hose set list (items 102 through 142) with hose codes. Hydr. transmission chapter lists the hydraulic transmission items, hose set (items 301 through 310) and spin-on hydraulic filter 5540894600 with element 6060008040. Dump & Hoist system covers tank fittings, main valve 5728000988, charging valve 5537132100, accumulator charging valve, hoist cylinder 5728202220 (180/80-469), stab cylinder 5728202225 (180/80-816) and hose set items 101 through 136. The brake system covers brake valve set, valve-brake 1800PSI, hand pump, accumulator KA CONTROLLED-D 5728202858, brake override 5580020924 and the brake hose sets.

Electrical System

Electrical coverage is detailed: control panel with control module, fuses, terminals, relays and connectors; mushroom push button with contact block; switch box with handle 5728000942 (7DK-Z11+Z11-B-E3091); push button 5540737200; component box; display panel with REXROTH screen 5728000838 and display 5728000837; junction box with terminal blocks, cable glands, relays and harnesses 5728001363 / 5728001365 / 5728001368 / 5728001370 / 5728001374; harness pages; components list including temperature sensors, pressure sensors, speed sensor, level switch, solenoid valve 5573249300, horn 5541570800, reverse alarm 5573354400 and flash light; battery box with battery 5537308700 (31AH 12V); LED light set with headlight 3176003741 and lamp set 5728000965; water mist electric set with pressure switch 5500560400 (1400 PSI); emergency control with hydraulic power unit 5728153005; and the label sets.

Why This Epiroc ST2D Parts Catalog Belongs in Your Workshop

Underground loaders do not wait. A missing filter number or a misread O-ring size can mean a shift lost. This Epiroc ST2D spare parts catalog gives you the full item-number map for the machine in one document: exploded views you can zoom into, tables of item numbers matched to part numbers, quantities, remarks and reassembly notes. Whether you are servicing a 125-hour PM, rebuilding a 14D front axle, replacing a Lincoln lube hose assembly, troubleshooting a brake valve or stocking the right fire suppression cartridge, the correct number is right there in the page.

IMAGES PREVIEW

Because it is delivered as an instant PDF download, there is no shipping delay and no waiting for a paper catalog to arrive at site. Open it on a laptop, tablet or phone in the workshop or on the ramp; print the section you need and take it to the machine. Cross-reference the same document across multiple ST2D loaders in a fleet so every tech works from the same part numbers. That consistency is what reduces mis-ordered parts, wrong-fit seals and repeat jobs.
