📘 DOCUMENT OVERVIEW

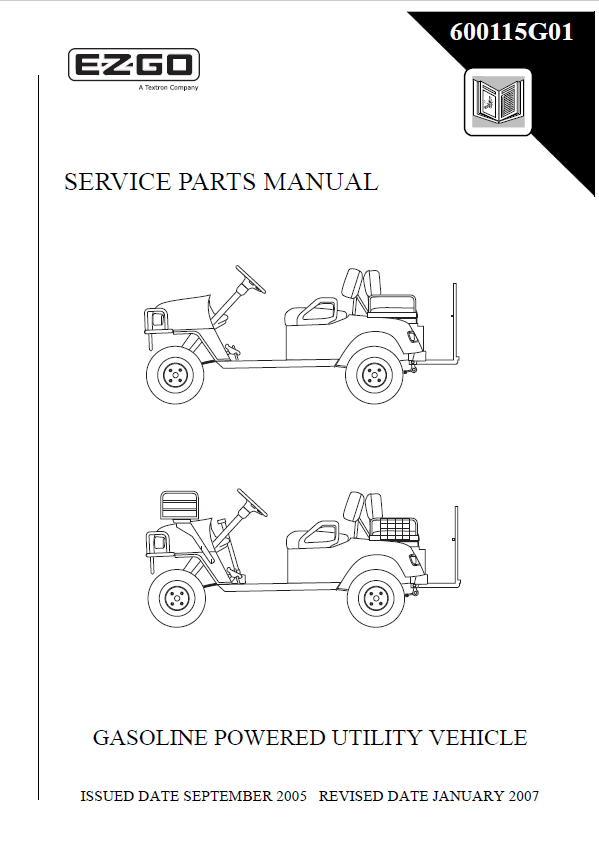

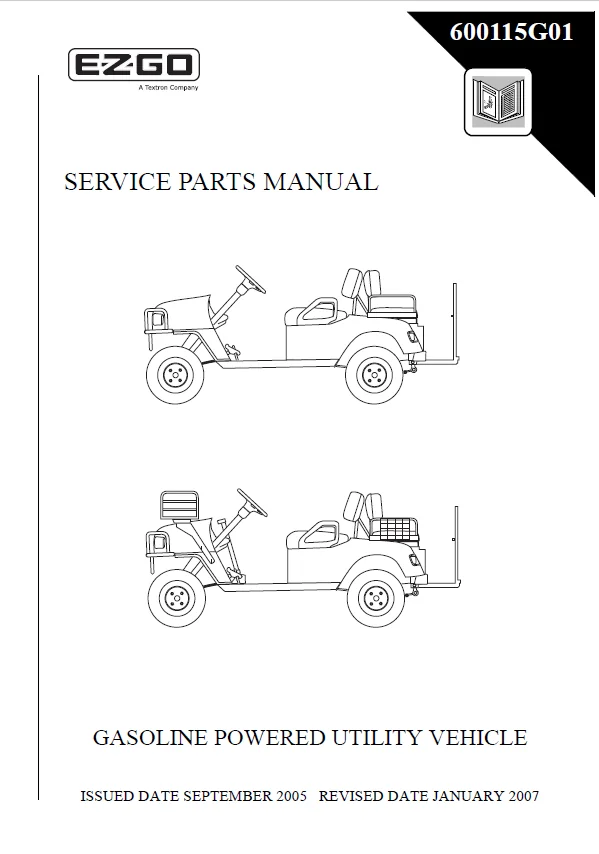

This comprehensive EZ-GO Service Parts Manual (600115G01) is your ultimate guide to maintaining and repairing a range of gasoline-powered utility vehicles. Released in September 2005 and revised in January 2007, this manual provides detailed information for specific models, ensuring you have the precise parts information you need. Forget tedious guesswork – this manual streamlines the process, saving you valuable time and resources. 🚜

Manual Type & Coverage

This document functions as a detailed Service Parts Manual. It covers the following EZ-GO gasoline-powered utility vehicle models: Clays Car, Clays Car Carb, ST Sport 2+2, and ST Sport 2+2 Carb. The manual specifically focuses on models starting from the year 2005.

Major Sections & Procedures

The manual is meticulously organized into sections, each dedicated to a specific system or component of the vehicle. This logical structure ensures quick and easy navigation. Key sections include:

• Accelerator: Exploded diagrams and detailed parts lists for the accelerator system, ensuring accurate part identification and ordering. 🔧

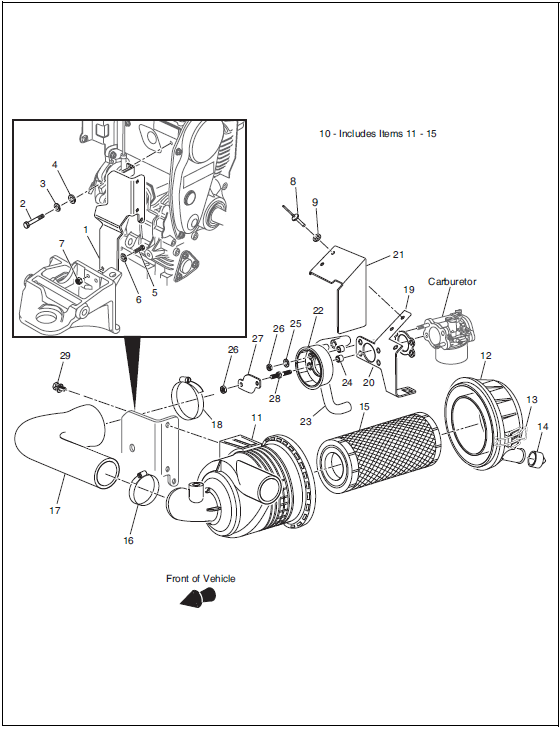

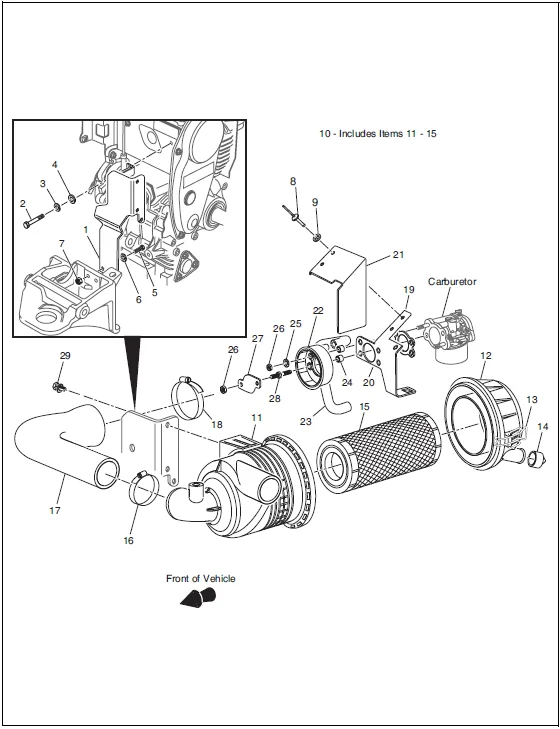

• Air Filter: Clear illustrations and parts breakdowns for the air filter system, facilitating maintenance and replacements. 💨
• Body: Comprehensive coverage of body parts, including detailed diagrams and parts lists for all components. This makes identifying and ordering replacement body parts simple and effective. 🧰

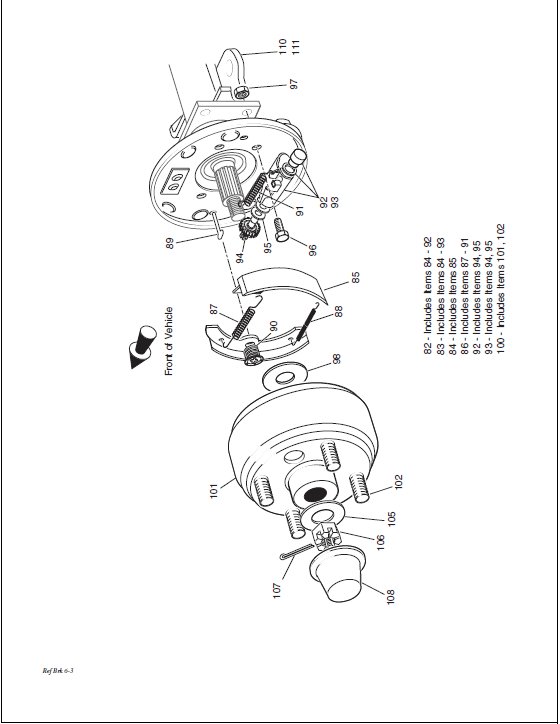

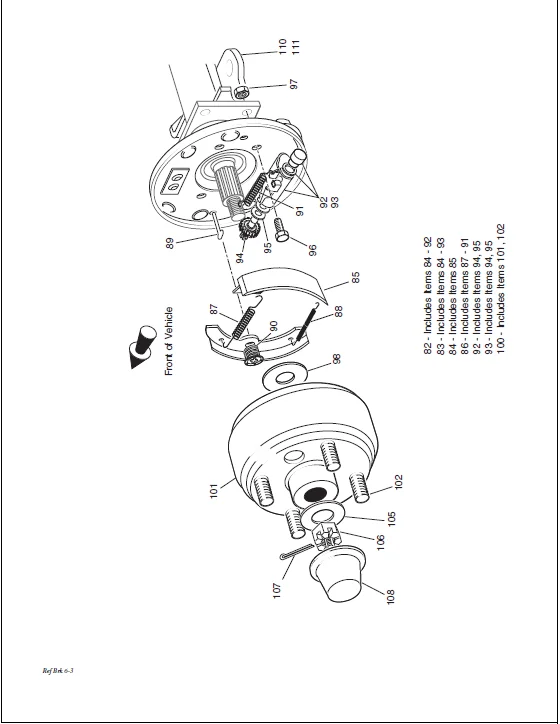

• Brakes: Essential information on brake system components, assisting with repairs and maintenance.
• Carburetor and Choke: Detailed diagrams and parts lists covering carburetor and choke system components. ⚙️
• Clutch: Exploded views and parts lists for easy clutch component identification and ordering.
• Direction Selector: Step-by-step instructions and illustrations for the direction selector system. This section will help mechanics better understand and maintain this essential part of the vehicle.
• Electrical System: In-depth coverage of the vehicle’s electrical system, including detailed diagrams and part information for all electrical components. This detailed section ensures fast and accurate parts identification for repairs and replacements.
• Engine and Muffler: This section offers crucial information for engine and muffler maintenance and repair, including diagrams, parts lists, and specifications.
• Engine Mounting: Clear diagrams and component breakdowns for the engine mounting system. This section helps in understanding engine mounting procedures and in the correct identification of replacement parts.
• Fuel System: Detailed parts breakdowns for the fuel system, to assist with efficient maintenance and repairs.
• Front and Rear Suspension: Detailed diagrams and parts lists for the front and rear suspension systems, facilitating accurate part identification and repairs.
• Seating: Parts lists for various seat components.
• Starter/Generator: Illustrations and lists for the starter and generator systems.
• Steering: Comprehensive diagrams and parts lists for all steering components.
• Weather Protection: Parts lists for weather protection features like the sun top.
• Wheels and Tires: Parts lists focusing on wheels and tires.

Key Technical Information

Beyond the parts breakdowns, the manual includes vital information like:

• Warranty Information: Learn about the limited warranty available for your vehicle.
• Notes on Battery Prolonged Storage: Essential tips for maintaining your batteries.
• Warnings on Non-OEM Parts: Using non-original parts may void your warranty. ⚠️

❌ WHAT’S NOT INCLUDED

• Detailed repair procedures.
• Wiring diagrams beyond basic illustrations.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

Q: What models does this manual cover?

This manual covers EZ-GO Clays Car, Clays Car Carb, ST Sport 2+2, and ST Sport 2+2 Carb models from model year 2005 onwards.

Q: What type of procedures are included?

This is a parts manual, so it doesn’t include repair procedures. It offers detailed parts breakdowns and illustrations for all major vehicle systems, facilitating accurate part identification and ordering for maintenance and repair.

Q: Is this suitable for DIY mechanics?

While experienced DIYers with mechanical aptitude might find this manual helpful, it’s geared more toward professional mechanics due to its technical detail and lack of step-by-step repair instructions. A separate repair manual is recommended for DIYers.

Q: What format is this manual in?

This manual is available in digital PDF format, downloadable instantly after purchase.

Q: Are there any language requirements?

The manual is written in English.

Q: What if I need a repair manual?

A separate Technician’s Repair and Service Manual is available from the EZ-GO Service Parts Department.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent; comprehensive parts information for the specified models.
• Content Type: Service Parts Manual
• Language: English
• Technical Level: Professional
• Recommended For: Professional mechanics and experienced DIY users with a good understanding of vehicle mechanics.
• Page Count: Approximately 104 pages.
• Image Quality: Good; clear exploded diagrams and illustrations.

📋 Original Product Description:

EZ GO Utility Service Manual Clays ST 2×2 2

TABLE OF CONTENTS:

HOW TO USE THE SERVICE PARTS MANUAL v
ILLUSTRATED PARTS BREAKDOWN vii
ACCELERATOR A-1
AIR FILTER B-1
BODY C-1
BRAKES D-1
CARBURETOR AND CHOKE E-1
CLUTCH F-1
DIRECTION SELECTOR G-1
ELECTRICAL SYSTEM H-1
ENGINE AND MUFFLER J-1
ENGINE MOUNTING K-1
FRONT SUSPENSION L-1
FUEL SYSTEM M-1
REAR AXLE N-1
REAR SUSPENSION P-1
SEATING Q-1
STARTER / GENERATOR R-1
STEERING S-1
WEATHER PROTECTION T-1
WHEELS AND TIRES U-1
SPECIALTY PRODUCTS APPENDIX A-1
OPTIONS AND ACCESSORIES APPENDIX B-1
