Fantuzzi Reggiane FDC 500 G5 – Operator and Maintenance Manual

This Fantuzzi Reggiane FDC 500 G5 Forklift Operator and Maintenance Manual is the complete two-part service library for the FDC 500 G5 front fork-lift truck built by Fantuzzi Reggiane Division Forklifts. It bundles the Operator’s Manual (document 21.0003.E1, dated 08/2002) with the full Maintenance Manual (document 22.0001.E0, dated 03/2002) and the illustrated Spare Parts Catalogue, source reference 801560728. Everything a workshop, fleet technician or owner-operator needs to run, service, diagnose and repair this heavy container-handling machine is contained in one searchable, printable PDF.

File Details

• Manual type: Operator and Maintenance Manual with Spare Parts Catalogue
• Brand: Fantuzzi Reggiane Division Forklifts
• Primary model: FDC 500 G5
• Language: English
• File format: PDF
• Page count: 718 pages
• Operator manual number: 21.0003.E1 – 08/2002
• Maintenance manual number: 22.0001.E0 – 03/2002
• Source document: 801560728

Chapters Covered – Operator’s Manual

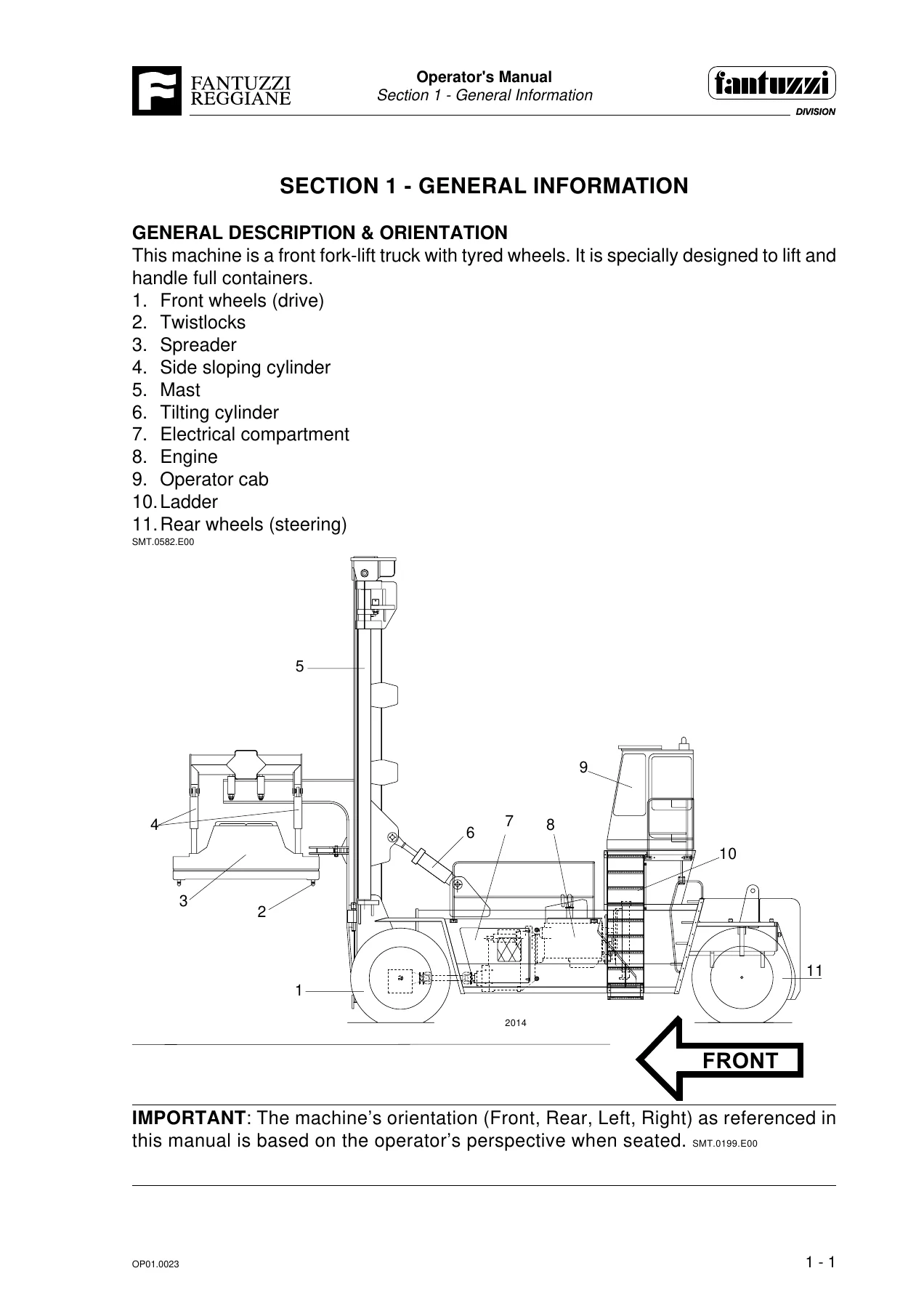

• Section 1 – General Information (machine description, orientation, dimensions, lifting capacity)
• Section 2 – General Safety (operating guidelines, electrical line clearances, personal protection)
• Section 3 – Groundcrew Safety Guidelines (operator and groundcrew communication, signals)
• Section 4 – Operator’s Controls (instrument panel, pedals, switches, keys, joystick, diagnostics)
• Section 5 – Operating Procedures (pre-operational inspection, start-up, warm-up, driving, load handling, parking)
• Section 6 – Warranty

Chapters Covered – Maintenance Manual

• Section 1 – General Information (check register, system maintenance principles, safety symbols)
• Section 2 – Scheduled Maintenance (service intervals, filling tables, lubrication charts)
• Section 3 – Main Structure (main frame, high-resistance couplings, pins)
• Section 4 – Diesel Engine (radiator, fume exhaust, fuel system)
• Section 5 – Transmission (torque converter, automatic transmission control unit)
• Section 6 – Drive Axle (differential axle, cardan shafts)
• Section 7 – Steering Axle (axle structure, disc brakes, knuckle)
• Section 8 – Wheels (tyre fitting, rims, tyre removal, periodic maintenance)
• Section 9 – Lifting Unit (thrust shoes, lifting chain, wear checks)
• Section 10 – Equipment (spreader SF45GS, technical specifications, twistlock replacement)
• Section 11 – Hydraulic System (sump, pumps, motors, cylinders, accumulators, distributors, fluid cooling)
• Section 12 – Electrical System (batteries, limit switches, electrical controls)
• Section 13 – Air Conditioning System (refrigeration cycle, compressor, evaporator, condenser, expansion valve, diagnostics)
• Section 14 – Paintwork (paint cycles, touch-up procedure)
• Section 15 – Troubleshooting (fault diagnosis for engine, hydraulic motors, pumps, valves, gearbox, steering, brakes, inching)
• Section 16 – Technical Details (torque wrench settings, conversion charts and formulas)
• Section 17 – Hydraulic and Electrical Graphic Symbols

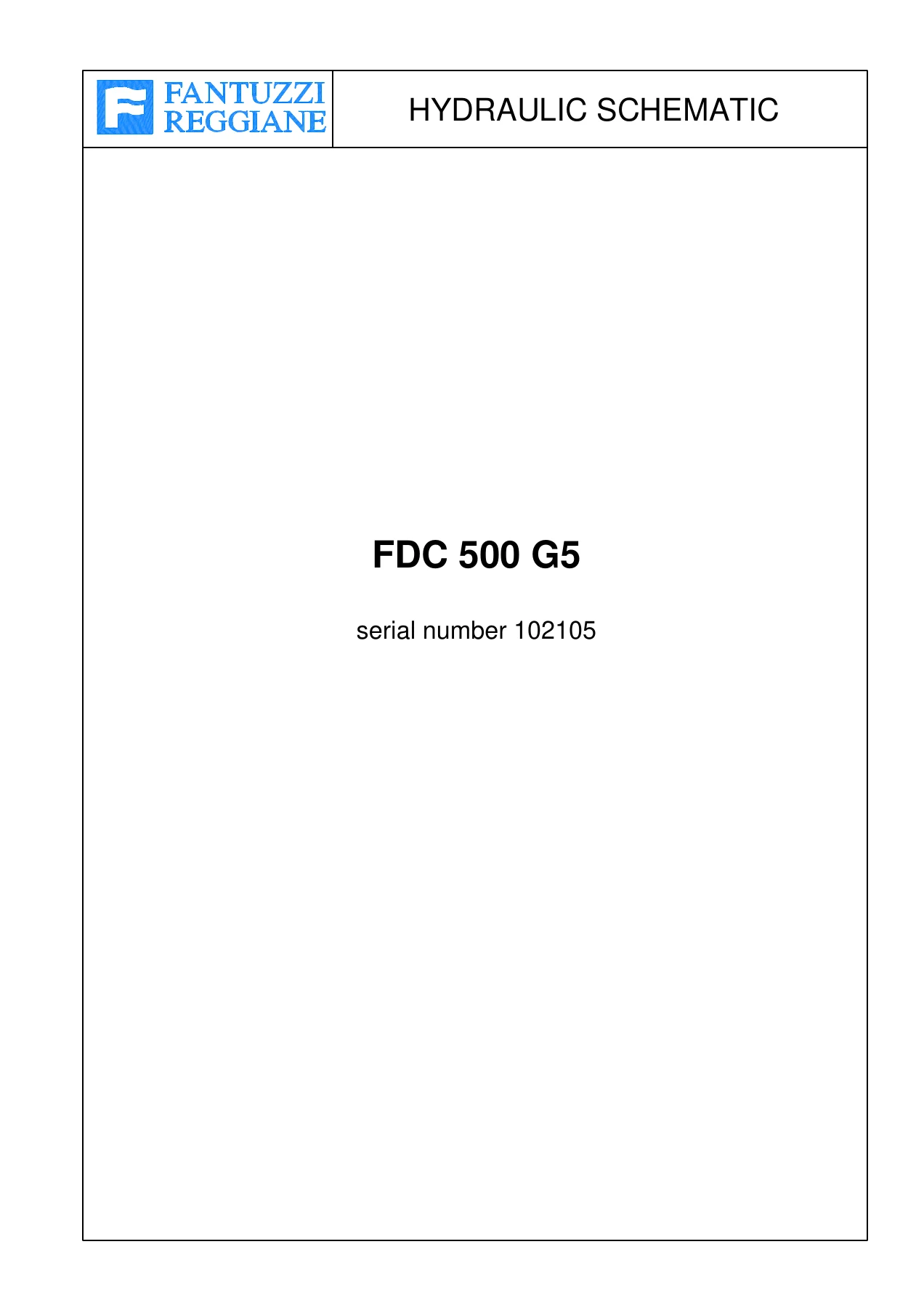

• Section 18 – Hydraulic Schematic and Electrical Diagram

What This Fantuzzi Reggiane FDC 500 G5 Manual Gives a Technician

Across its 718 pages this Fantuzzi Reggiane FDC 500 G5 forklift manual walks through every system of the machine from the driver’s seat outward. The operator portion covers the entire daily routine – pre-operational checks of engine oil, coolant, hydraulic oil, transmission oil, fuel, tyres, lights, warning devices and fire extinguisher; normal and cold-weather starting; warm-up targets for coolant and transmission oil; driving, gradient and load handling procedures; and the correct twistlock sequence for picking up, stacking and releasing ISO containers. The maintenance portion moves into the shop-side work: scheduled service tables with 250h / 500h / 1500h / 3000h intervals and 6000h / 12000h / 24000h preventive special schedules, together with a full filling table listing quantities and lubricant qualities for the engine, transmission, differential hubs, 800-litre hydraulic system, brake cooling circuit, fuel tank and anti-freeze mix.

The FDC 500 G5 is built as a front fork-lift truck on tyred wheels with a telescopic 20′-40′ gantry spreader, +/-3 degree rotation, +/-270 mm side shift and +/-1.5 degree lateral oscillation. This Fantuzzi Reggiane service manual reflects that hardware exactly – the lifting unit section alone covers the fixed mast, telescopic mast, lifting cylinders, hoist chains and equipment plate, with chain elongation limits (2% on most worn segment), side wear limits, thrust shoe clearance, lubrication points and the chain adjusting procedure. The hydraulic section documents the sump, pumps, motors, cylinders, accumulators, distributors, heat exchangers and fluid testing; the electrical section covers batteries, limit switches, wiring, connectors and the diagnostic layout; and the transmission chapter explains the programmable automatic transmission control unit in both automatic and manual modes, complete with connector pinouts for P1, P2 and P3.

Because the FDC 500 G5 shares its documentation platform with the FDC 450 G4 and FDC 420 G3, this book is also useful to anyone maintaining those closely related machines – the dimensional, lifting capacity and spreader tables cover all three models side by side.

Troubleshooting and Diagnostics

Section 15 of the maintenance manual is a substantial fault-finding guide that runs through the diesel engine, hydraulic motors, pumps, maximum pressure valves, check valves, direction adjustment valves, pressure adjustment valves, filters, pressure gauges, gearbox and torque converter, steering, overload control system, braking system and inching circuit. Each entry pairs a problem with its probable fault and the remedy – a format that makes it easy to trace a symptom back to the component before opening the machine.

Spare Parts Catalogue

The attached spare parts section is organised by group, with an illustrated table system: the illustration shows numbered callouts and the corresponding nomenclature table lists part code, quantity and description. Groups include name plates, counterweight, fairing, mobile and fixed lift units, gantry plate, telescopic arms, fixed frame, twistlock, flipper, extension cylinder, twist-lock cylinder, translation cylinder, spreader translation cylinder, equaliser cylinder, lock cylinder, solenoid units, hydraulic piping runs, rear and front axles, steering axle components, wheels, rims, tyres, lifting cylinders, tilt cylinder, steering cylinder, suspension cylinders, cabin inclination cylinder, distributors, solenoid valves, flow control valves, engine-driven pumps, oil filters, cooler, breather, hydraulic oil tank, hydraulic hose assemblies for every circuit, brake pedal, brake valve, batteries, lights, load limiting device, gear control, electronic control unit, cabin, air conditioning, heating, engine mounts, air cleaner, exhaust silencer, cooling system, intercooler, accelerator, fuel feed system, fuel tank, gearbox internals and cardan shaft.

Who This Manual Suits

Whether you are an operator running an FDC 500 G5 on a container terminal, a workshop technician planning a hydraulic overhaul, a fleet manager building a preventive maintenance schedule, or a service engineer chasing a fault in the brake or steering circuit, this Fantuzzi Reggiane FDC 500 G5 operator and maintenance manual is written for you. The operator’s section is set up for daily use by the person in the cab, while the maintenance and spare parts sections are deep enough for a full rebuild.

Why Correct Procedures Matter on This Machine

The FDC 500 G5 is a 67,000 kg empty-weight machine designed to lift full ISO containers at 20′ and 40′. The manual makes it clear that working around industrial equipment of this size carries hazards that cannot be met by mechanical means alone – they require the intelligence, care and common sense of trained personnel. The safety sections on electrical line clearance (5 m minimum in Italy under DPR 164 art. 11, with a wider OSHA chart for higher voltages), suspended load prohibitions, tyre inflation with a safety cage, and the grounded-machine escape procedure are all there because these are real risks on this class of truck. Following the documented torques, clearances, chain elongation limits and hydraulic pressures is what keeps the machine stable, safe and productive.
