Hangcha XC Series CPD15/18/20/25/30/35/40/45/50 Electric Forklift Maintenance Manual – PDF

Description

Hangcha XC Series Electric Forklift Maintenance Manual

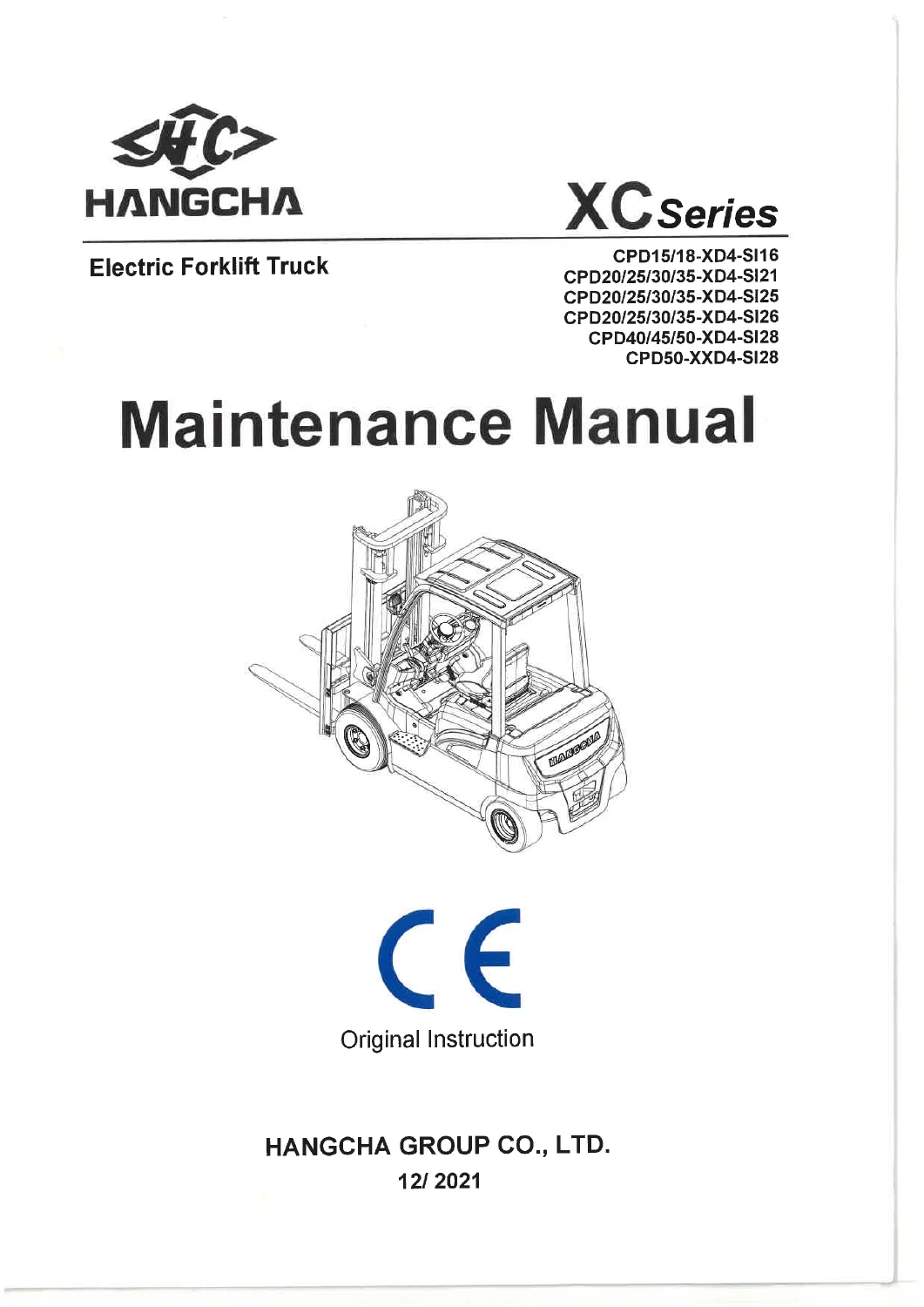

The Hangcha XC Series CPD15/18/20/25/30/35/40/45/50 Electric Forklift Maintenance Manual – PDF is a detailed workshop reference for the XC Series electric counterbalanced forklift models identified on the manual cover. Published by Hangcha Group Co., Ltd. and dated 12/2021, this 93-page manual concentrates on maintenance, disassembly, installation, adjustment, troubleshooting and system-level technical information rather than normal operator instruction.

Coverage extends from the drive axle and traction motors through steering, brakes, hydraulics, mast components and the electrical system. The manual includes exploded assembly illustrations, troubleshooting tables, tightening data, hydraulic and brake schematics, controller information and full electrical system principle diagrams, making it particularly useful for technicians working on mechanical, hydraulic and electrical faults in supported Hangcha XC Series forklifts.

Exact XC Series Models Covered

• CPD15/18-XD4-SI16
• CPD20/25/30/35-XD4-SI21
• CPD20/25/30/35-XD4-SI25
• CPD20/25/30/35-XD4-SI26
• CPD40/45/50-XD4-SI28
• CPD50-XXD4-SI28

Drive System, Motors and Gearbox

The drive-system chapter begins with removal and installation of the complete drive system and identifies the drive axle assembly, reduction gearbox and traction motor arrangement. Detailed illustrations show the component layout and disassembly sequence, while tightening information is provided for key frame, gearbox and motor connections.

Traction-motor information includes motor types and model-dependent rated power, voltage, current, speed, insulation and protection data for the covered forklift groups. The gearbox section provides an exploded view with individual components identified, followed by fault diagnosis for conditions such as excessive travel noise, incorrect gear clearance and insufficient lubrication. Driving-axle information includes axle configuration, tyre pressure, wheel-hub starting torque, wheel-bearing axial play and vehicle-weight data, together with a troubleshooting chart for abnormal noise, unstable driving and oil leakage.

Steering and Brake Service

The steering chapter covers the structure of the steering system and steering device, steering axle construction, installation precautions, steering-axle removal and adjustment, and troubleshooting with corrective actions. This allows the technician to follow both mechanical assembly information and symptom-based diagnosis when dealing with steering faults.

The brake-system section covers the foot-brake piping system and brake master cylinder, hand-brake device and foot-brake components. A dedicated brake system schematic illustrates the relationship between the brake pedal, brake master cylinder, brake oil reservoir and wheel brake cylinders, providing a useful system-level reference during brake diagnosis and repair.

Hydraulic System Diagnosis and Repair

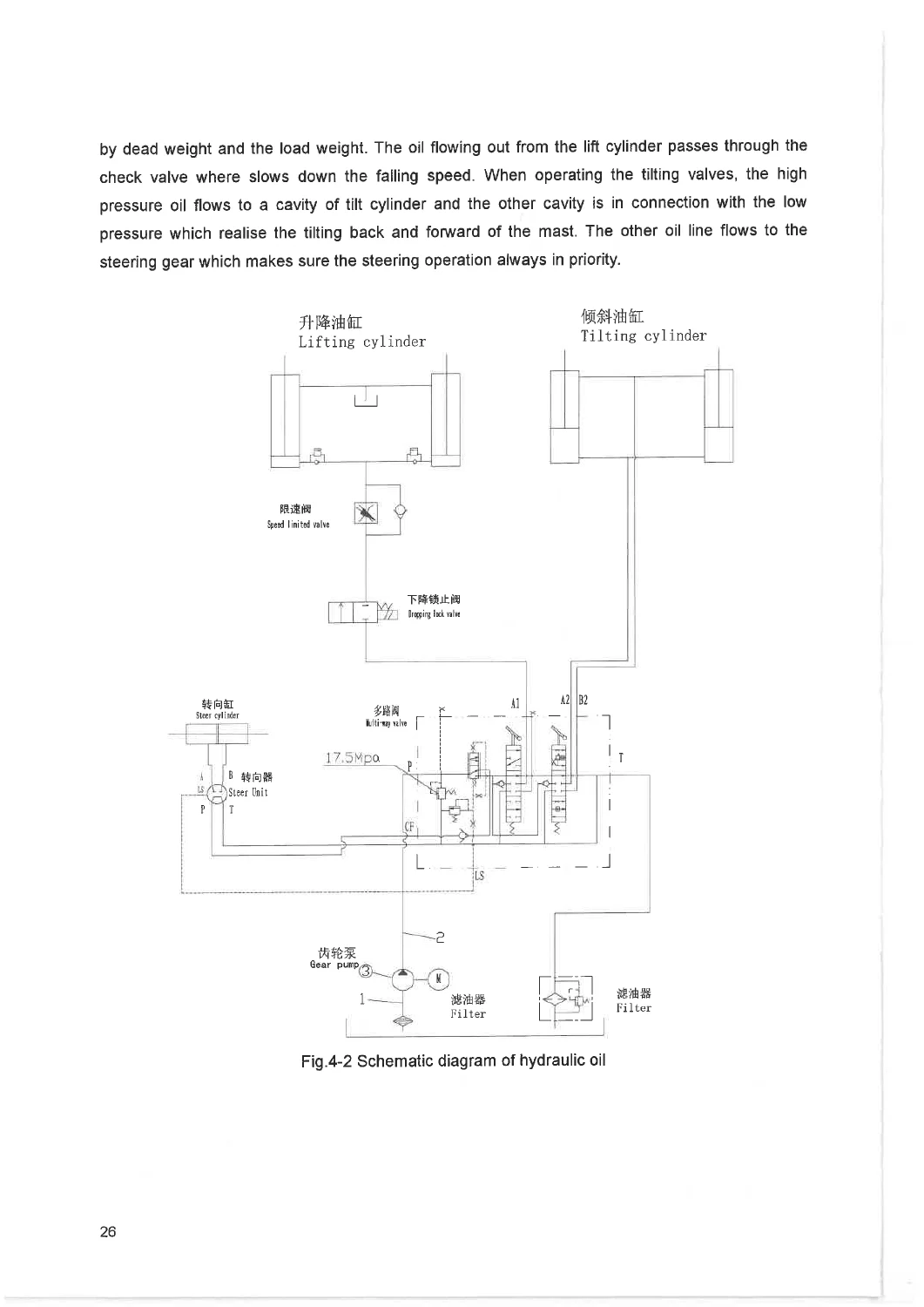

Hydraulic coverage is one of the strongest parts of this Hangcha XC Series maintenance manual. It explains the hydraulic-system structure and working principle before moving into fault diagnosis and individual component service. The hydraulic circuit drawing shows the pump, filter, steering gear, multi-way valve, lifting cylinder, tilting cylinder and associated oil paths.

Individual sections cover the oil-pump device, multi-way valve, hydraulic steering gear, steering cylinder, tilting cylinder and lifting cylinder. The manual also includes hydraulic fault-and-elimination guidance so a technician can work from system symptoms toward likely causes before dismantling components.

Lifting System and Mast

The lifting-system chapter gives a general description of the mast assembly and includes data for assembly and debugging. Troubleshooting and corrective-action information is followed by mast disassembly and installation procedures. This section supports work involving the mast and lifting mechanism rather than limiting the manual to drive and chassis repairs.

Electrical System and Inmotion Controller

The electrical chapter covers the motor, meter, Inmotion controller, lithium battery, fuse-box assembly, lighting system, switches, DC fan and other electrical components. The controller section explains control-system functions and protection features, including battery-polarity protection, circuit-connection protection, input protection, current-overload protection, temperature protection, battery over-discharge protection and starting-order protection.

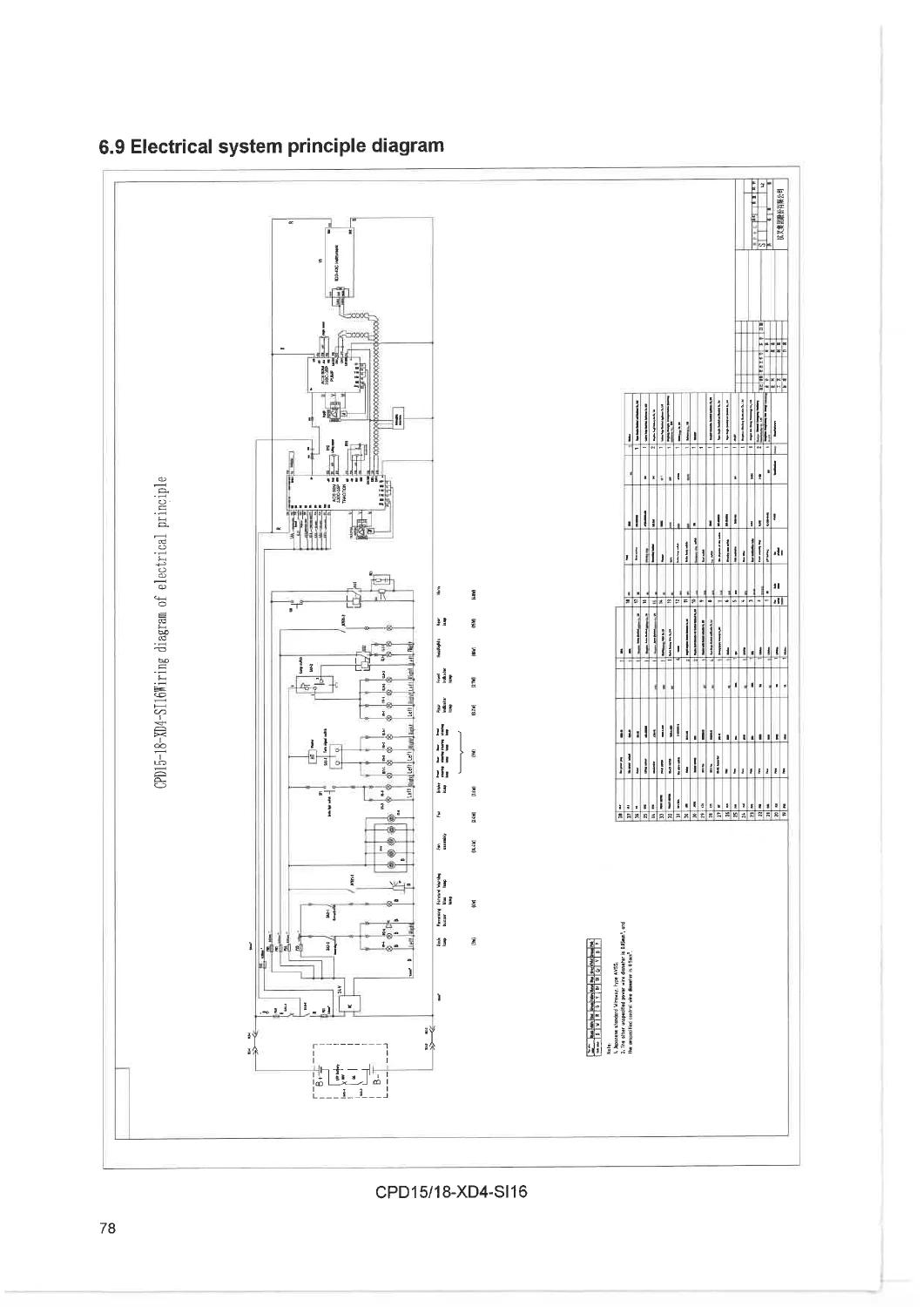

A major workshop feature is the electrical system principle diagram section. These circuit drawings provide system-level electrical references for the covered configurations and complement the component descriptions, controller information and fuse-system coverage elsewhere in the chapter.

File Details

• Manual type: Maintenance Manual
• Brand: Hangcha
• Series: XC Series
• Equipment: Electric Forklift Truck
• Language: English
• Pages: 93
• File format: PDF
• Publisher: Hangcha Group Co., Ltd.
• Date: 12/2021

Chapters Covered

• Drive system
  • Drive system disassembly and installation
  • Traction motor
  • Gear box
  • Driving axle
• Steering system
  • Structure of steering system
  • Structure of steering device
  • Steering axle
  • Steering system installation attention
  • Dismounting and adjustment of steering axle
  • Troubleshooting and corrections on the steering system
• Brake system
  • Foot brake piping system and brake master cylinder
  • Hand brake device
  • Foot brake
  • Brake system schematic
• Hydraulic system
  • Structure of hydraulic system
  • Working principle of hydraulic system
  • Fault and elimination
  • Oil pump device
  • Multi-way valve
  • Hydraulic steering gear
  • Steering cylinder
  • Tilting cylinder
  • Lifting cylinder
• Lifting system
  • General description
  • Data of assembly and debugging
  • Troubleshooting and corrective action
  • Mast disassembly and installation
• Electrical system
  • Motor
  • Meter
  • Inmotion controller
  • Lithium battery
  • Fuse box assembly
  • Lighting system
  • Switch
  • DC fan and others
  • Electrical system principle diagram

Across these six main systems, the Hangcha XC Series CPD15/18/20/25/30/35/40/45/50 Electric Forklift Maintenance Manual provides the information needed to approach disassembly, component inspection, adjustment and fault diagnosis with model-specific technical guidance. Mechanical exploded views are combined with hydraulic and electrical diagrams, troubleshooting information and component data, giving technicians a much broader reference than an operator handbook.

Download the Hangcha XC Series Maintenance Manual

Image Preview

This manual supports workshop jobs involving the drive system, gearbox, axle, steering, brakes, hydraulic components, mast, motors, controller and electrical circuits on the listed Hangcha XC Series forklifts. Correct diagrams, assembly information, troubleshooting sequences and technical values can reduce guesswork when diagnosing faults or carrying out repairs. The manual is supplied as an instant PDF download after purchase, with no shipping required, and can be viewed on compatible computers, tablets and phones or printed for workshop use.
