Feraboli Extreme 280 HTC Vario Tronic Spare Parts Catalogue 2003 – PDF Parts Manual

Description

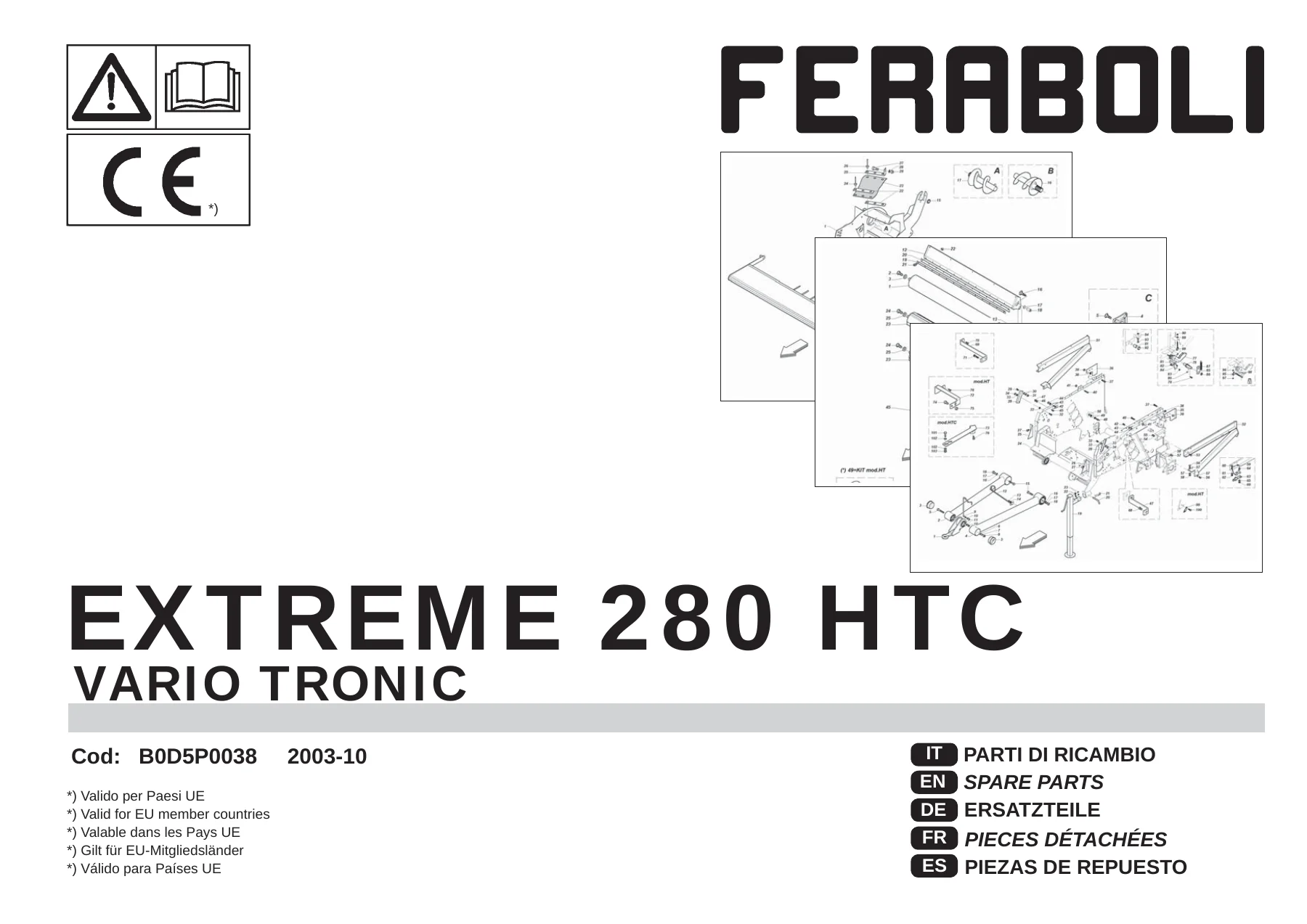

Feraboli Extreme 280 HTC Vario Tronic Spare Parts Catalogue

This is the illustrated spare parts catalogue for the Feraboli Extreme 280 HTC Vario Tronic, issued under document code B0D5P0038 with the edition date 2003-10. It is the parts reference used to identify, order and replace components on the machine, built around exploded assembly drawings with numbered callouts and matching parts lists. Every table number, item number, part number and description is reproduced exactly as it appears in the original catalogue, so a number read off a drawing can be matched straight to a part.

Because the catalogue covers a number of Extreme configurations, tables and item sets are marked mod.HT, mod.HTC or mod.HTU where the assemblies differ, and the tables themselves carry suffixes such as -280, -M, -L, -1 or -2 that identify the variant they belong to. The parts index lists each table with its own descriptive title, so you can go directly to the assembly you need rather than working through the whole file.

File Details

• Manual type: Illustrated spare parts catalogue
• Brand: Feraboli (Off. Mecc. Ing. A. Feraboli S.p.A.)
• Model: Extreme 280 HTC Vario Tronic
• Document code: B0D5P0038
• Edition / date: 2003-10
• Language: Multilingual – Italian, English, German, French, Spanish
• File format: PDF
• Page count: 128 pages

The front matter explains the ordering procedure and the information required with every spare parts order: the type, model and serial number stamped on the machine data plate, the code number of the required part taken from the catalogue, the description and quantity, the table number, and the means of dispatch. It also fixes the convention used throughout the drawings – (Dx) right and (Sx) left are read looking at the machine from the rear, and any exceptions are indicated.

Chapters Covered

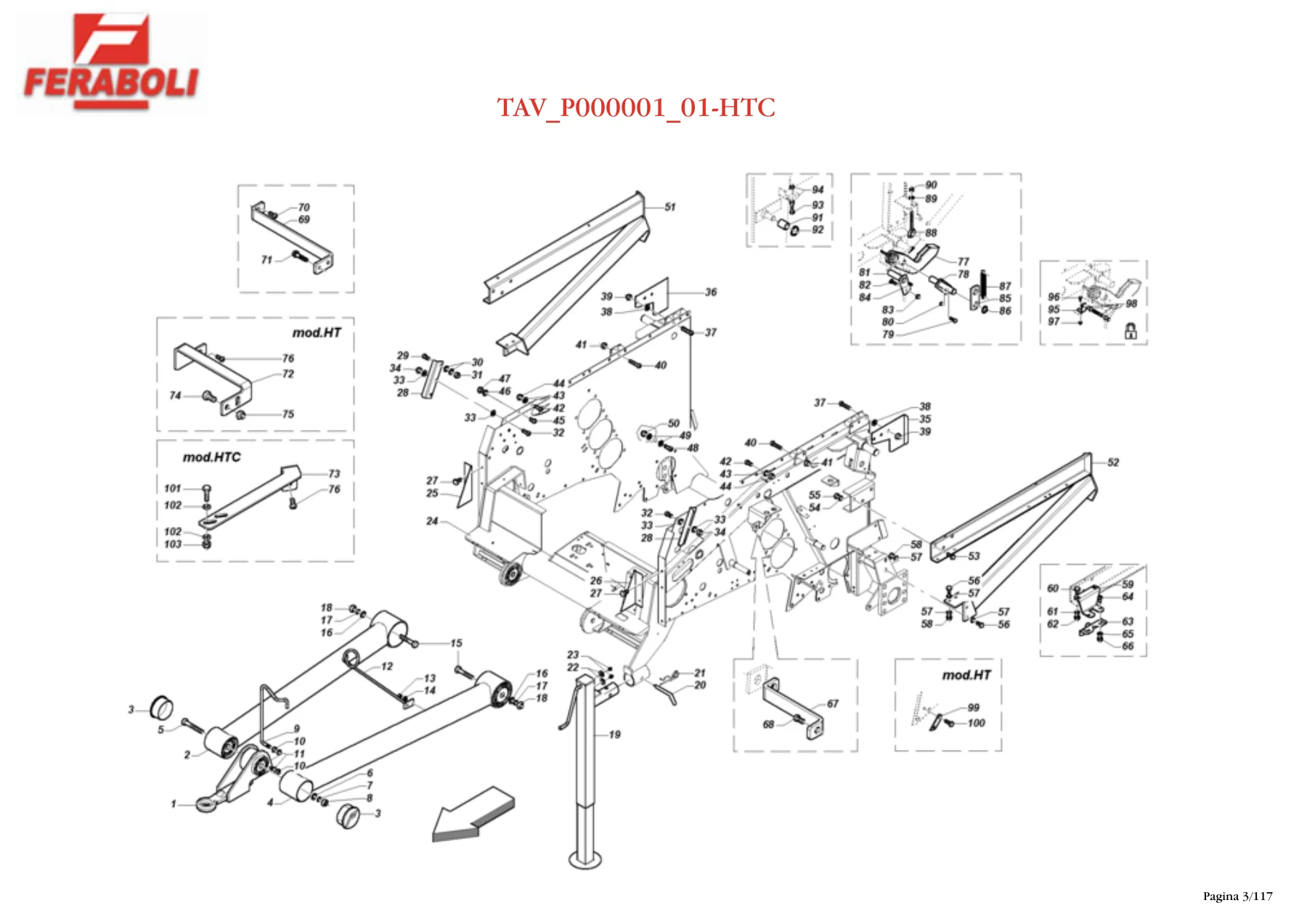

• TAV_P000001_01-HTC – Lower frame + drawbar + rollbar + hooks Extreme 265-280 HTC
• TAV_P000002_01-280 – Upper frame Extreme 280
• TAV_P000004_01-280 – Tailgate + 2nd rocker Extreme 280
• TAV_P000045_00 – Loading indicators Extreme 265-280
• TAV_P000006_01 – Wheels Extreme
• TAV_P000009_00-1 – Gearbox Extreme HTC

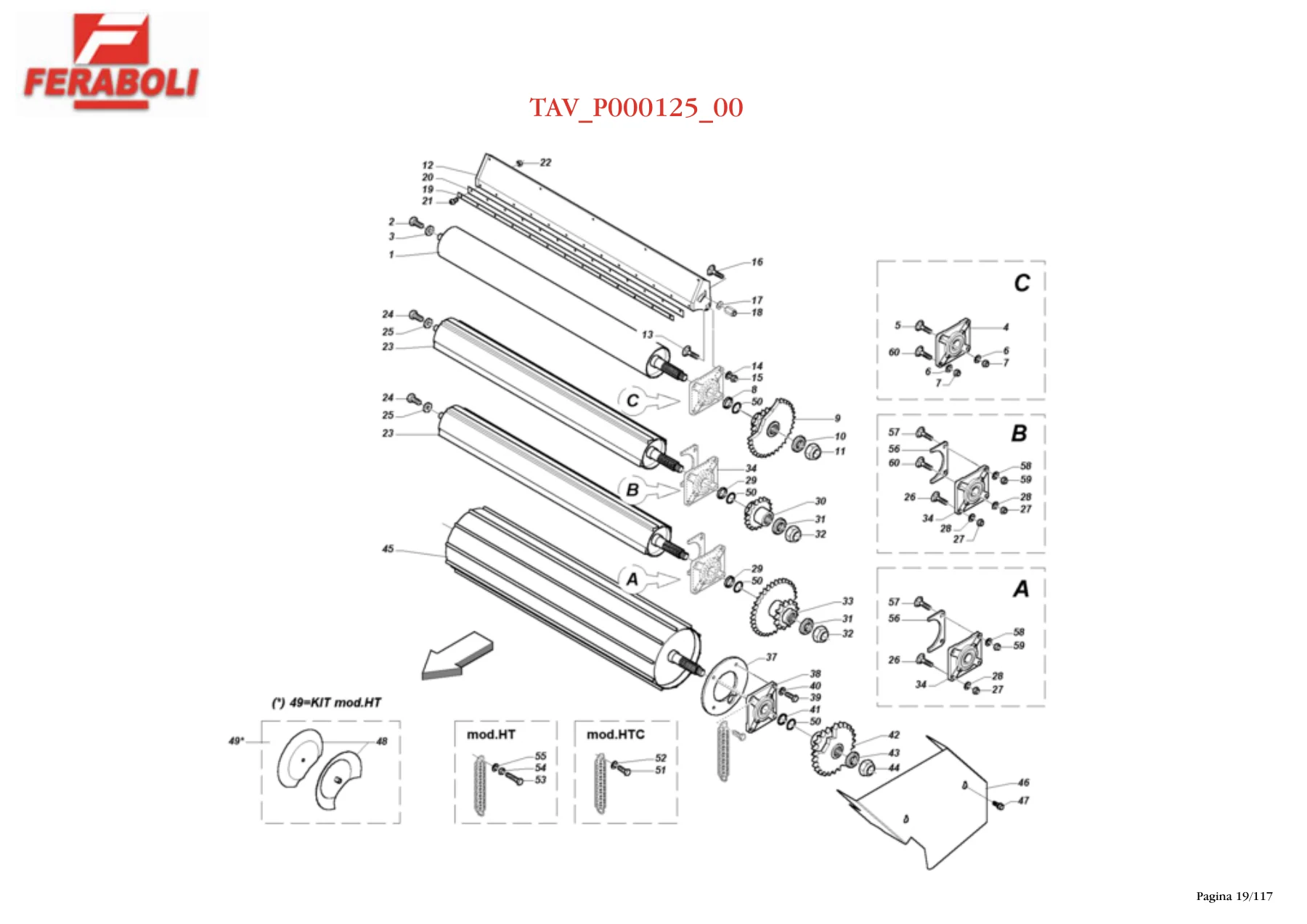

• TAV_P000125_00 – Rollers (net-tying 2-roller only) Extreme HT-HTC
• TAV_P000007_02 – Rollers Extreme HT/HTC
• TAV_P000010_01-280 – Transmission: chains + tensioners + guide Extreme 280 HT-HTC
• TAV_P000011_01-280 – Rocker Extreme 280
• TAV_P000014_02-3 – Cut 13: frame + rotor Extreme HTC-LTC
• TAV_P000015_01 – Cut 13: knife crossbar Extreme HTC
• TAV_P000016_02 – Cut 25: frame + rotor Extreme HTU
• TAV_P000017_01 – Cut 25: knife crossbar Extreme HTU
• TAV_P000026_01 – Transmission safety, bolt-mechanical Extreme HTC-LTC
• TAV_P000027_01 – “AFC” automatic transmission safety Extreme 265-280 HTC
• TAV_P000019_01 – Pick-up frame M/L + plate Extreme HTC
• TAV_P000020_00-1-M – Pick-up reel M Extreme
• TAV_P000020_00-1-L – Pick-up reel L Extreme
• TAV_P000022_01-M – HTC transmission – pick-up M Extreme HTC
• TAV_P000022_01-L – HTC transmission – pick-up L Extreme HTC
• TAV_P000024_00 – Pick-up hydraulic system Extreme HTC-LTC
• TAV_P000025_00-M – Swivelling pick-up wheels M Extreme
• TAV_P000025_00-L – Swivelling pick-up wheels L Extreme
• TAV_P000028_01-280 – Machine hydraulic system Extreme HT-HTC 280
• TAV_P000031_01 – Geometry/pressure valve Extreme
• TAV_P000109_00 – Control unit / wiring Extreme HT-HTC
• TAV_P000057_01 – Twine tying unit Extreme
• TAV_P000123_00 – Twine box Extreme 265-280
• TAV_P000032_00-2 – Twine-only cover Extreme
• TAV_P000033_00 – 2-roller net tying kit Extreme
• TAV_P000034_00 – 2-roller net tying: release + connections Extreme
• TAV_P000036_00 – 1-roller net tying: net arm + blade arm
• TAV_P000038_01 – Net tying: release + connections (EX)
• TAV_P000041_01 – Net tying: box + twine Extreme
• TAV_P000043_00 – Automatic oiling Extreme HTC
• TAV_P000049_02 – Front covers Extreme 280 HT-HTC
• TAV_P000050_00-HT – Side covers Extreme 280 HT-HTC
• TAV_P000051_01 – Lighting system Extreme
• TAV_P000052_00 – Bale ejector kit Extreme
• TAV_P000053_00 – Stapling Extreme HT
• TAV_P000054_00 – Additional twine spool box kit Extreme 265-280
• TAV_P000055_00 – Additional net roll holder bracket kit Extreme
• TAV_P000056_00 – Blank knife kit Extreme HTC
• TAV_P000136_00 – Plastic film kit Extreme
• TAV_P000138_00 – Mechanical safety device Extreme
• TAV_P000139_00 – Hydraulic safety device Extreme
• Decal “logo” Extreme 280-HT-HTC
• Decal “CE” Extreme
• Decal “instructions” Extreme

Read as a whole, the catalogue gives a complete part-by-part breakdown of the machine rather than a repair guide. It tells you what each component is called, what it bolts to, how many of each fastener, washer, bush or seal a joint takes, and which variant a given assembly belongs to. That is exactly what you need when a part has to be replaced rather than simply adjusted: the drawing shows the order of assembly and the parts list confirms the exact number to quote.

What the Parts Lists Give You

Each table is laid out as a two-column list pairing the item number on the drawing with the Feraboli part number and its description. Typical entries run from structural items such as the right and left roll frames, the rear gate hook and the tailgate cylinder pin, through wearing parts like bearings, fifth wheels, spacers, shims and grease nipples, to complete sub-assemblies such as the gearbox, PTO shafts, bevel gear sets, double gears, sprockets, roller chains and spring joints. Fasteners are itemised in full – screws, washers, nuts, self-locking nuts, Seeger rings and lock washers each carry their own number, so nothing has to be guessed at the counter.

The net and twine tying sections are unusually detailed for a parts catalogue. They break down the tying unit into its release spring connection, blade unlock lever, blade connection, blade pin, bushes, threaded pins, knives stop, twine brake, wrapping arm, cutting fulcrum and blade fastener, and the net-tying tables separate the net clamp, net holder arm, idle roller, net counter roller, net sensor coupling, eccentric pin and actuator. The hydraulic and electrical tables list hoses, fittings, quick clutches, valves, pressure and rear door jacks, seal kits, the geometry/pressure circuit board, baler wiring, display, printed circuit board and data transfer cable.

Who This Catalogue Is For

Owners running an Extreme 280 HTC Vario Tronic who want to keep the machine working through the season, mechanics rebuilding a rotor, gearbox or tying unit, and parts desks that need to confirm a number before ordering will all find the drawings and lists useful. The exploded views make it possible to identify a component visually when the part number on the machine is no longer legible, and the variant markers mean you can check whether the part in front of you belongs to the HT, HTC or HTU build before committing to an order.

Having the correct number matters on a machine like this. An incorrect sprocket, bearing, chain link or seal is not just a wasted order – it can put a gearbox or a tying unit out of service at the worst possible moment. Working from the manufacturer’s own parts breakdown removes that risk and keeps the machine in the field.

IMAGES PREVIEW

Instant PDF Delivery

The Feraboli Extreme 280 HTC Vario Tronic spare parts catalogue is supplied as a PDF file, available to download immediately after payment. There is no shipping and no waiting for a physical book. It opens on a workshop PC, a laptop, a tablet or a phone, pages can be printed for use at the machine, and the file can be kept on a workshop drive for the next time a part number is needed.
