Kalmar Ottawa T2 Terminal Tractor Spare Parts Catalogue SN 353147 2019 PDF

Description

Kalmar Ottawa T2 Terminal Tractor Spare Parts Catalogue SN 353147 2019 PDF

This download is the Kalmar Ottawa T2 Terminal Tractor Spare Parts Catalogue SN 353147 2019 PDF built around one machine: Ottawa T2 serial number 353147. Pages are dated 29.10.2019 and carry English part descriptions. The catalogue is arranged so a parts counter or workshop can match an illustration callout to a Kalmar / CTT part number, quantity, and note before placing an order with a Kalmar USA dealer.

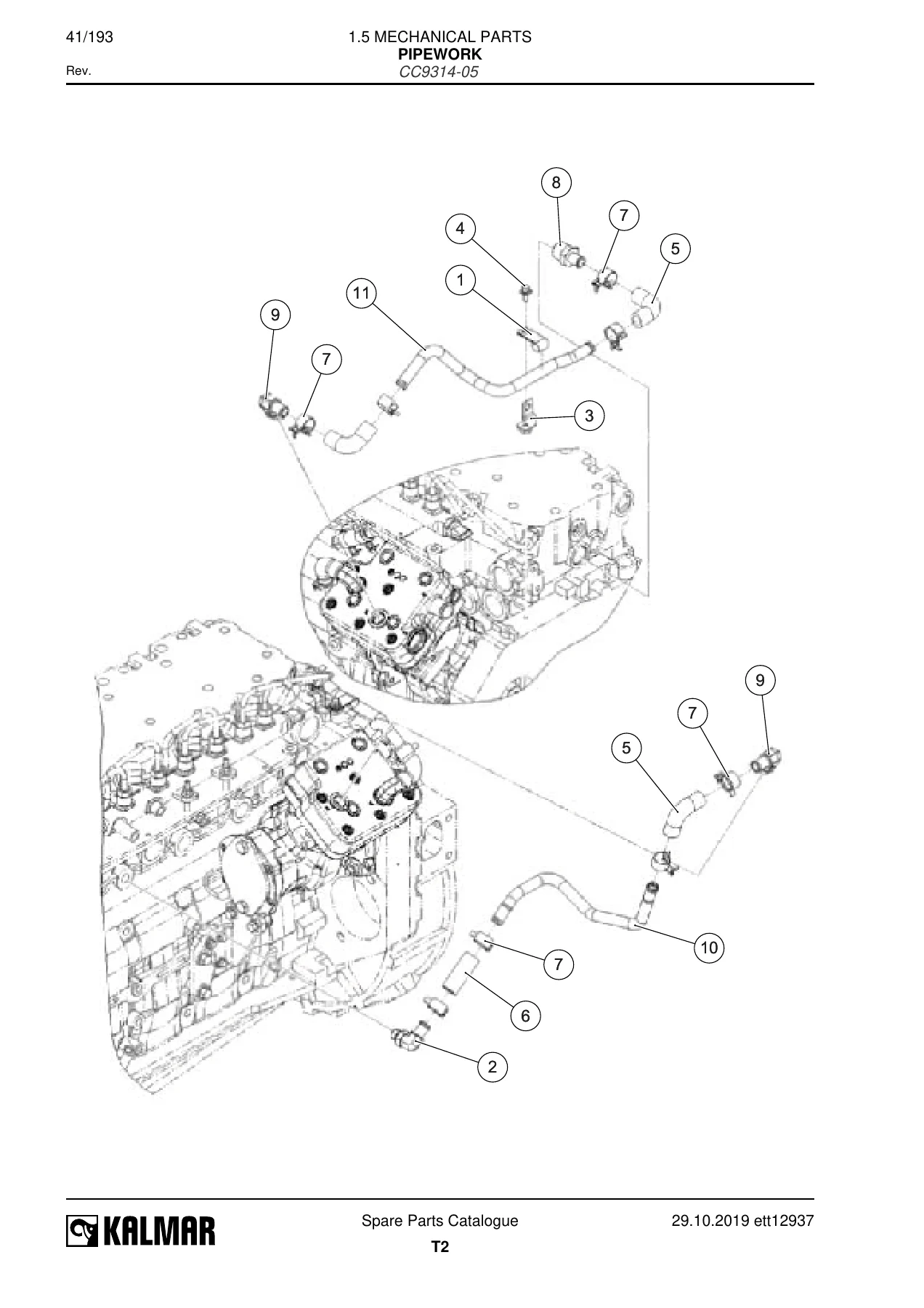

It is a spare-part identification book, not a repair procedure manual. Drawings are exploded or plan views; facing text pages list reference number, part number, English description, quantity, and notes such as thread, standard, or application. Assemblies marked as sold complete versus not sold as a spare part are explained in the front matter so you do not order a housing that is only serviced as piece parts.

File Details

• Manual type: Spare part catalogue
• Brand / model: Kalmar Ottawa T2 terminal tractor
• Machine serial number: 353147
• Language: English
• Page count: 900
• File format: PDF
• Document date shown: 29.10.2019
• Filter-kit family shown: QSB 6.7 T3 (QSB67)

How the Lists Are Meant to Be Used

The opening chapter tells the reader how to read a typical parts spread. Each illustration page has balloon numbers and a heading that points to the matching text page. The text page repeats the unit name and manufacturing reference, then lists every line with quantity and notes (ISO fastener callouts, filter duty, left-hand-drive application, and similar). Orders are expected to include the machine serial, model, engine and transmission serials, plus section, page, part number, and exact quantity. Feedback contact printed in the book is Kalmar USA, Inc., Industrial & Terminal, AMER, 415 E. Dundee Street, Ottawa, KS 66067.

Because the structure is generated from the machine configuration, some numbered chapters that appear on the section map may be skipped when this tractor was not built with that option. What is present is the as-built breakdown for S/N 353147 rather than a generic multi-model parts book.

Chapters Covered

• A Catalogue instructions — reading the lists, sold-as-assembly notes, ordering data, feedback form
• C Filter kit — FILTER KIT, QSB 6.7 T3 (QSB67), cabin HVAC, hydraulic, transmission, air, fuel, and engine oil elements; 500 h and 1000 h kit numbers
• 01 Engine — 1.1 controls and instruments (12 V engine display, electronic throttle, diagnostics); 1.2 fuel system (fuel pipes, LH 50 gallon step tank); 1.5 mechanical parts (engine installation, QSB6.7 T3/3A 173 HP 12 V export engine breakdown through block, crankshaft, fuel equipment, turbocharger, cylinder head, water pump, wiring harness, chassis fit-up, dipstick); 1.6 air intake and exhaust (air cleaner piping without precleaner, restriction indicator, muffler, engine-side exhaust piping); 1.7 cooling (overflow container, tubing, baffles, expansion tank LHD, charge-air cooler piping, radiator, fan shroud, 24 in fan)
• 02 Transmission — 2.3 mechanical transmission (3000RDS automatic case, shafts, oil pump, planetary sets, valve/filter, oil cooler, torque converter, clutch, Gen-5 LHD push-button shifter, tail support, adaptation kit); 2.6 lubrication (flex LHD dipstick); 2.7 cooling piping; 2.8 control (chassis ECU, 3000 RDS 6SP / 2200 FS2.0+ notes, Allison Gen-5 wiring diagram)
• 03 Driveline / axle — 3.2 propeller / drive shaft; 3.3 rear axle chassis, 12.2 ASA 335 mm differential lock with dust shield, axle housing, planetary, wheel hub brake chamber 30/30 without ABS
• 04 Brakes — cab dash valves 12 V, treadle, rear split off-highway service and spring-brake valves, front lines on Kalmar axle, tractor protection, gladhands, trailer hoses and holders, off-highway brake diagram, ABS/ATC wiring
• 05 Steering — bolt-on column/support, Kalmar front axle 410 x 160 / 480 x 160 ASA 335 mm dust shield LHD, steering arm and draglink, fixed steering with horn terminal and 16 in wheel
• 06 Suspension — front parabolic springs, solid-mount rear MOR32, wheels and rims
• 07 Load handling — fifth-wheel unlatch switch and control handle, mechanical HD boom directional valve, boom-cylinder hosing (116 in wheelbase HD boom), FW35TT fifth wheel 17 in lift with 5 in cylinder, 2 in king pin, hydraulic cylinder 5 in bore / 14.58 in stroke
• 09 Frame, body, cab and accessories — cabin tilt switch and consoles; horn and safety/logo decals; backup alarm; LHD 2-point belt and National 2000 mid-back vinyl seat; heater plumbing and HVAC with AC, condenser, receiver-drier, compressor; 12 V wet wiper and 80° LHD motor; lighting; glass, roll-up window, 8 in and OT2 non-heated black mirrors; FOPS plates, rear door, 3-point ROPS air-ride cab suspension, 40° tilt cylinder and 12 V solenoid, cab pivot; interior panels and dashboards; frame crossmembers, boom-pivot rail, skid ramps, bumper, hood, skirts, rear fenders, platforms
• 10 Common hydraulics — 20 gal RH 12 V tank with tilt pump, 10 GPM pump and 103% PTO gear steering, hydraulic hoses, platform hydraulic diagram
• 11 Common electrics — trailer breakers, cab electrical, battery box and pads, Delco 24SI 130 A alternator, chassis power board, 12 V 200 A solenoids, battery disconnect, master and option wiring diagrams
• 12 Common pneumatics — two air tanks, fifth-wheel unlatch on 116 in WB, compressor discharge to tank, spitter drains, compressor plumbing
• G Index list — part-number index for S/N 353147 running through the closing pages

Taken together, the book gives a technician a configuration-true map of every illustrated assembly on this T2: engine and cooling hardware around the QSB 6.7 T3 173 HP 12 V installation, Allison 3000RDS Gen-5 shift and lube parts, Kalmar steer and 12.2 ratio drive axle pieces, air-brake and gladhand hardware, HD boom fifth-wheel hydraulics, cab HVAC and tilt, 20 gal hydraulic tank and PTO pump, and the 12 V power distribution. Wiring and hydraulic diagram sheets called out in the contents (block heater, ignition/APO, lube, axle options, ABS/ATC, fifth wheel, trailer power, HVAC, lighting, tilt, master schematic, and others) sit with the groups they serve.

Filter Kit and Service-Interval Parts Printed for This Tractor

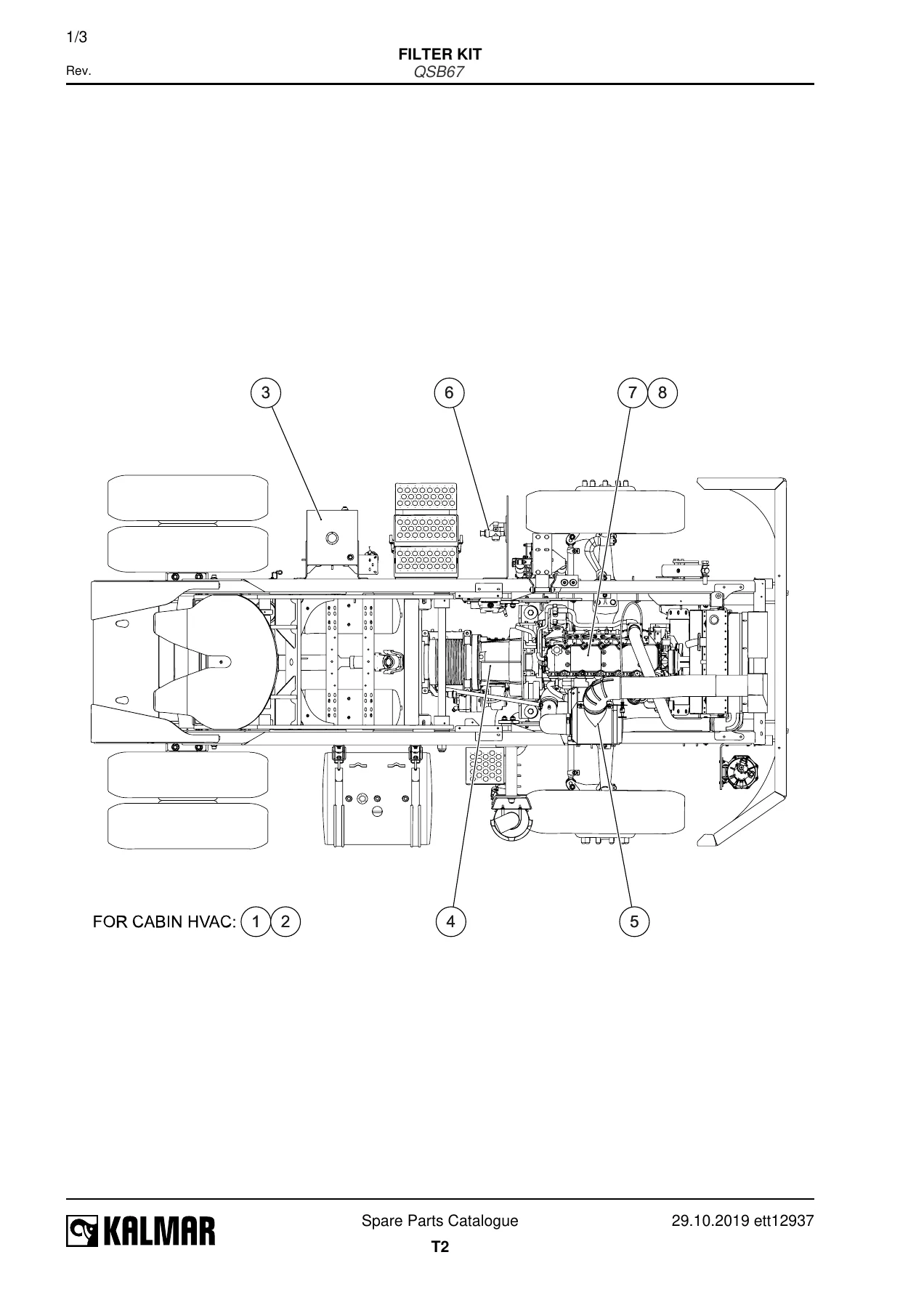

Section C opens with a top-view of the machine and the filter locations. Cabin HVAC uses recirculation filter 90036439 and fresh-air filter 90036438. The hydraulic in-tank element is CTT000001818. Gearbox service is listed as oil-filter set 90031386 (two filters plus gasket, main and lube) with element J023527 shown quantity 2. Engine air cleaner 90023953, fuel elements 923829.0700 and 90031422, and engine oil filter 90031133 complete the individual lines. Bundle numbers printed on the same page are 90035810 for 500 hour maintenance and 90035807 for 1000 hour maintenance (parts 1–4 and 5–8).

Powertrain, Axle, and Fifth-Wheel Identity on S/N 353147

Engine pages identify a 12 V QSB6.7 T3/3A 173 HP export installation with chassis fit-up parts TTEG0176, left-hand 50 gallon step fuel tank, 24 in fan, and charge-air / radiator plumbing. Transmission coverage is the 3000RDS automatic with Gen-5 LHD push-button shifter (no terminating resistor on this build) and flex dipstick. Drive axle content is the 12.2 (3.083) ratio housing with differential lock and 335 mm dust shield; wheel hubs are chamber 30/30 without ABS. Front axle illustrations are the Kalmar 410 x 160 / 480 x 160 ASA 335 mm LHD assembly with steering arm and draglink. Load handling is the HD boom FW35TT fifth wheel, 17 in lift, 5 in cylinder, 2 in king pin, on a 116 in wheelbase hose routing.

IMAGES PREVIEW

Cab, Electrics, and Air System Breakdown

Cab groups cover the LHD operator station: National 2000 grey vinyl mid-back seat, 2-point belt, HVAC unit and control panel with AC, condenser and drier, 12 V wet wipers, FOPS plates, aluminum rear door, 3-point ROPS air-ride kit, 40° tilt cylinder 90037310 and 12 V 200 A intermittent solenoid, plus molded grey skirts and rear fenders with mudflaps. Electrical lists include the Delco 24SI 130 A alternator, wooden battery pads, chassis power board, continuous and intermittent 200 A solenoids, and battery disconnect. Pneumatic pages show the two-tank off-highway chassis arrangement, compressor-to-tank discharge for the ISB/QSB6.7 installation, and fifth-wheel unlatch piping for the 116 in wheelbase.

What You Can Order From the Drawings

Use the Kalmar Ottawa T2 Terminal Tractor Spare Parts Catalogue SN 353147 2019 PDF to pull the correct filter kit, engine dress items, transmission cooler and clutch-related parts, drive-shaft and hub hardware, brake valves and gladhands, steering arm and axle pieces, fifth-wheel and boom hoses, cab tilt and HVAC components, hydraulic tank and PTO pump, or a chassis harness without guessing across other T2 option codes. The closing index list keyed to S/N 353147 lets you look up a part number and jump back to its section and page.

Get the Parts Book for This Serial Number

With this catalogue a parts buyer or technician can identify the line items that belong on Ottawa T2 serial 353147, quote quantities from the illustrated unit, and hand a dealer the section, page, and part number the front matter asks for. Using the numbers and notes printed for this build avoids mixing 500 hour and 1000 hour kits, LHD-only cab pieces, or axle and fifth-wheel options that belong on a different T2. After purchase the file is delivered as an instant PDF—no shipping—so you can open it on a workshop computer, tablet, or phone and print the exploded page you need at the bench.
