Hyva HV47 Articulated Boom Spare Parts Catalogue – Model 2 Edition 07/2022 PDF

Description

Hyva HV47 Articulated Boom Spare Parts Catalogue – Model 2, Edition 07/2022

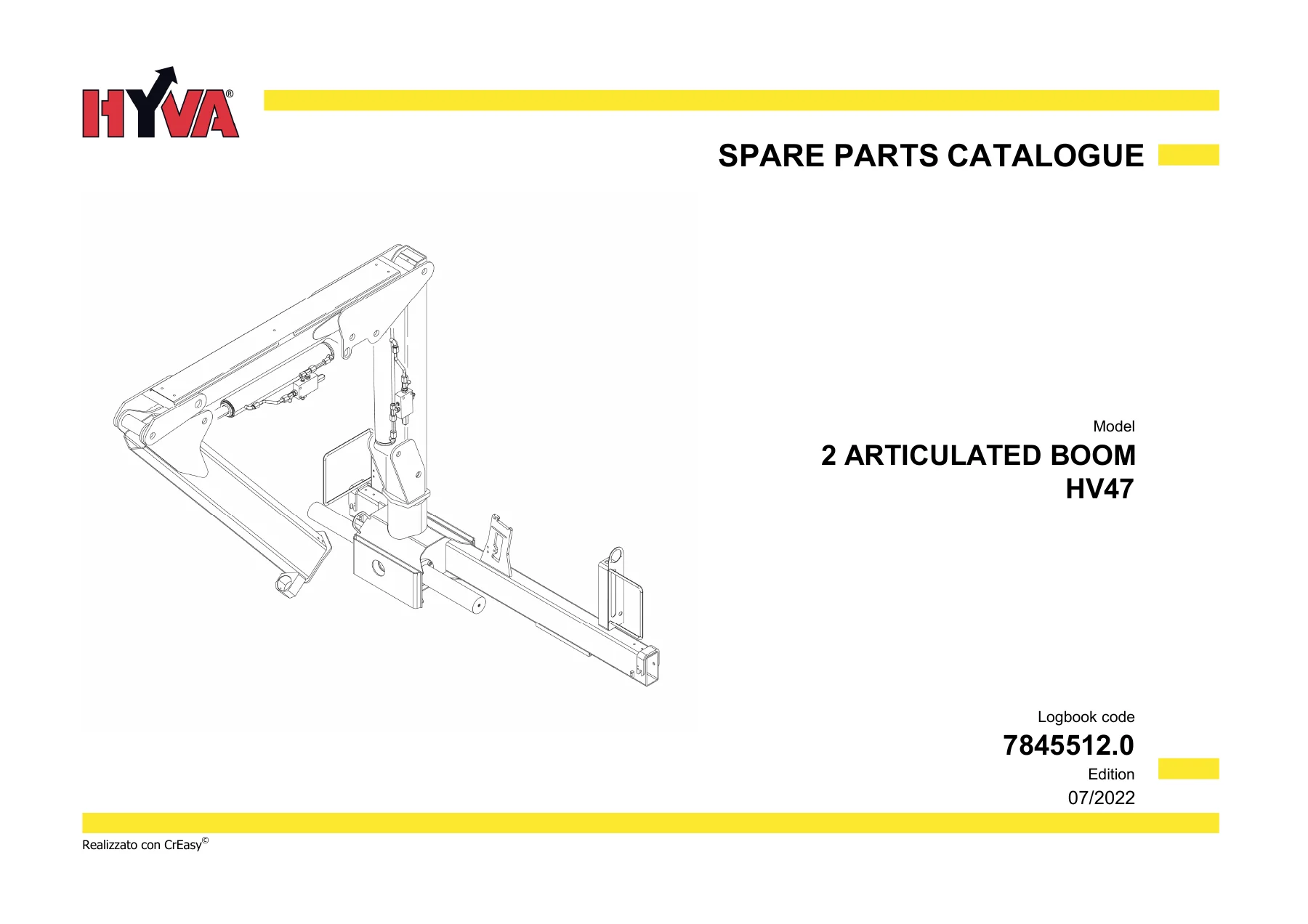

This is the full Hyva HV47 Articulated Boom Spare Parts Catalogue for Model 2, carrying logbook code 7845512.0 and dated Edition 07/2022. It is a working parts reference built around exploded assembly drawings and variant-coded parts lists, covering the complete HV47 boom structure from the base column through every boom section, hydraulic cylinder, and actuation kit. Every illustrated plate carries its own table code and sheet number, and each part row includes position reference, variant code, quantity, and a description with fastener grades, fitting sizes, and seal specifications where applicable.

File Details

• Manual type: Spare Parts Catalogue
• Brand: Hyva
• Model: Articulated Boom HV47 – Model 2
• Logbook code: 7845512.0
• Edition: 07/2022
• Language: English (with Italian validity notes on certain plates)
• Page count: 104
• File format: PDF

Chapters and Assemblies Covered

• Extra Function Kits – Open Centre Spool (EN12999-A3)
• Extra Function Kits – Closed Centre Spool (standard and EN12999-A3)
• Oil tank and oil tank (LI – LIG)
• Oil filter
• Column
• Hydraulic system – Lifting hydraulic cylinder
• Lifting hydraulic cylinder (EN12999-A3) and standard lifting cylinder
• 1st Boom
• Hydraulic system – Articulation hydraulic jack
• Articulation hydraulic jack
• 2nd Boom
• 1st Extension and 1st Extension hydraulic
• 2nd Extension and 2nd Extension hydraulic jack
• 3rd Extension and 3rd extension hydraulic jack
• Actuations for 1S, 2S, and 3S
• 2nd Activation for 1S
• 2nd Additional Actuation
• Kit Quick Coupling
• Hook Kit
• Attachment for Basket
• 1st Manual Extension (1S and 3S versions)
• Load Indication System (LIS/RLC)
• Rod – Stabiliser Ram
• Control valves (multiple variants)
• Safety valve and manifold
• Limiting device – Holding valve
• Plate kits, labels, and instruction stickers
• Electric wiring, proximity switches, and microswitch assemblies

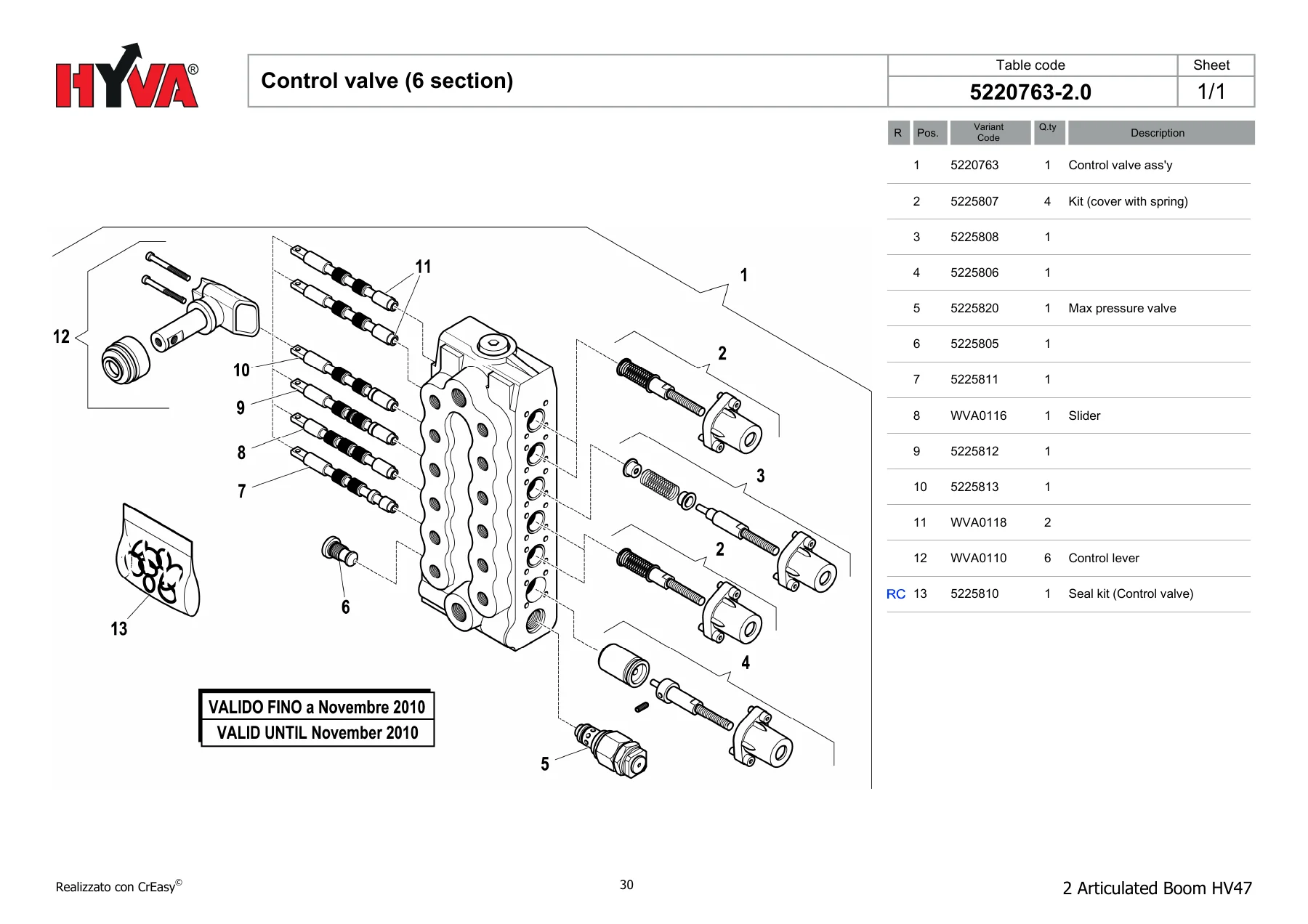

Each assembly in this HV47 catalogue is presented as a numbered exploded drawing linked to a parts table, so a part is identified by position number, variant code, and description rather than by name alone. Variant codes matter here — several plates list multiple part numbers against the same position, and the correct code depends on the machine configuration (1S, 2S, or 3S extension arrangement, EN12999-A3 compliance, or serial-number-dependent changes). Cylinder plates list internal components down to seals, O-rings, anti-extrusion rings, W-rings, pistons, close nipples, and seal kits, making it possible to rebuild a cylinder rather than replace it whole. The valve sections similarly break down cover kits, springs, sliders, max-pressure valves, seal kits, and microswitch contacts. Actuation plates list flexible hoses, quick couplings, male and female plugs, sheath lengths, and the pipe fittings that connect them. Several plates carry dated validity notes (for example, November 2010, December 2010, March 2010, April 2010, September 2013, October 2013, May 2016, January 2020) so that changes introduced at a known point in production can be matched to the correct parts breakdown. Serial-number thresholds (28578, 28579, 201176, 201177) also appear on certain hydraulic plates, indicating which table applies before or after a given machine number.

Why This Parts Catalogue Matters

Ordering the wrong hydraulic fitting or seal on a boom is expensive in downtime, not in part cost. Because this catalogue ties every fitting, hose, valve, and seal to a specific table code and position, it removes the guesswork from the ordering process. The exploded illustrations also serve as a reference when a machine arrives partially disassembled or when a previous repair has left incorrect fasteners or fittings in place — the assembly view shows what should be there.

What You Can Do With This Catalogue

• Identify and order replacement parts for any HV47 Model 2 assembly using position and variant codes
• Rebuild lifting, articulation, and extension hydraulic cylinders using the internal component breakdowns and seal kit references
• Trace the hydraulic circuit through control valve, safety valve, limiting device, and stabiliser ram sections
• Source correct fittings, hoses, and couplings for 1S, 2S, and 3S actuation configurations
• Match the correct parts variant against machine configuration and serial number thresholds
• Reference exploded views during teardown and reassembly of boom and extension sections
• Order replacement labels, warning stickers, and plate kits from the generic Gru plate listing
• Identify electrical components including proximity switches, microswitches, wiring assemblies, and connectors

Delivery

IMAGES PREVIEW

The Hyva HV47 Articulated Boom Spare Parts Catalogue is delivered as an instant PDF download after payment — no shipping, no waiting. Open it on any device, print the exploded views for the workshop, and keep it on hand at the machine or in the office. For anyone maintaining, repairing, or rebuilding an HV47 Model 2 articulated boom, this is the reference document that turns a parts enquiry into a part number.
