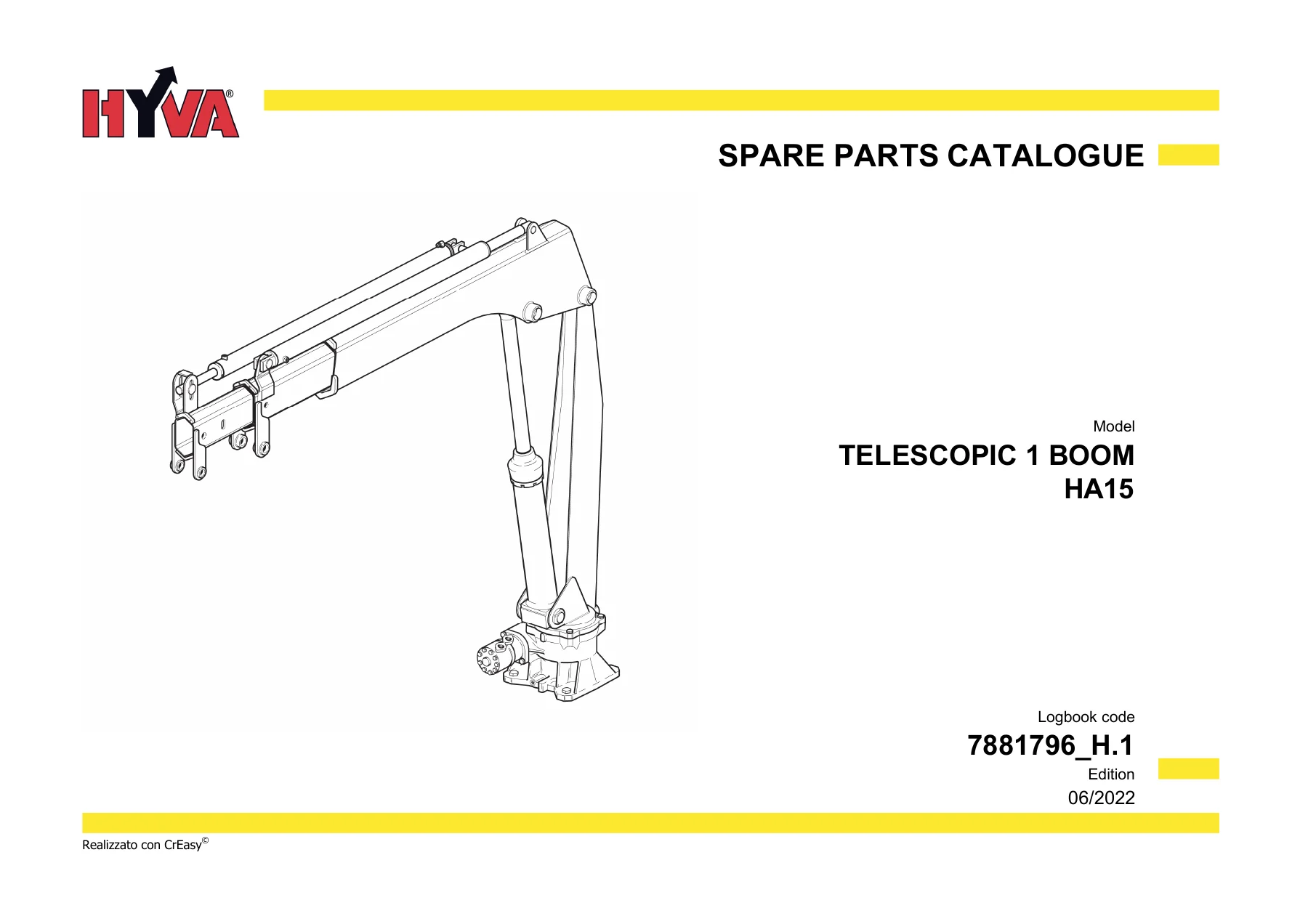

HYVA HA15 Telescopic 1 Boom Spare Parts Catalogue PDF – 7881796_H.1 Edition 06/2022

Description

HYVA HA15 Telescopic 1 Boom Spare Parts Catalogue

This HYVA HA15 spare parts catalogue is the complete illustrated parts reference for the Telescopic 1 Boom HA15, published under logbook code 7881796_H.1, Edition 06/2022. Every table in the catalogue identifies the part position, variant code, quantity and description for each assembly of the machine, with exploded-view drawings showing how the components fit together. The catalogue is organised into functional groups so a technician or parts manager can locate a specific component without working through the entire document.

File Details

• Manual Type: Spare Parts Catalogue
• Brand: HYVA
• Model: Telescopic 1 Boom HA15
• Logbook Code: 7881796_H.1
• Edition: 06/2022
• Language: English (with Italian and Spanish validation notes on specific tables)
• Pages: 128
• Format: PDF

Chapters Covered

The HYVA HA15 spare parts catalogue is divided into functional groups, each with its own table code, parts list and exploded-view illustration:

• Plate Kit (Generic Gru) — 5502000-3.01
• Base — W520151200-1.1
• Base (“BST”) — W520151200-2.0
• Base — W520151300-1.1
• Base (“BSC”) — W520151300-2.0
• Slewing Assembly — W052101-1.0
• Stabilizer Rod — W520152000-1.0
• Base with 1 Crossbar (“BPS”) — W5201019-1.0
• Stabilizers Rods (Fixed-Mechanic) — W520451200-1.0
• Stabilizers Rods (Fixed) — W520451100-1.0
• Control Devices Locking for Outriggers Legs — 5411029-3.0
• Kit CE (Stability Control) — 5405041-1.0 / 5405040-2.0
• Stabilizer Hydraulic Jack — W520450100-1.0 / -1.1
• Stabilizers Rods (Revolving) — W520451000-1.0 / -2.0
• Stabilizer Hydraulic Jack (Hydraulic System) — W360450200-1.1 / -1.2
• Stabilizer Hydraulic Jack — W360450100-1.5 / -1.6
• Stabilizer Connecting Rods Extra-Extensible Revolving — W5204510LU-1.0
• Stabilizer Hydraulic Jack — 6200273-1.0 / 6400273-1.0
• Moment Limiting Device — W520554600-1.0 / 5405038-1.0 / -2.0
• Control Valve — W338000-1.0 / W338034-3.0 / W338035-1.0
• Kit CE (no LLD) — W510551200-1.0
• Motor Pump (Electrical Equipment) — W520552300-1.0 / W520555300-1.0
• Hydraulic Oil Tank — W530551000-1.1 / -2.1 / -1.0 / -2.0
• Oil Filter — W350017-1.0
• Set of Hoses — W444205-1.0
• Column — W052201-1.2
• Lifting Hydraulic Cylinder — W520250400-1.0 / W520250300-1.0
• 1st Boom — W052204-1.0
• 1st Extension — W520251400-1.1
• 2nd Extension — W520251500-1.1
• 1st and 2nd Extension Hydraulic Cylinder — W520250500-1.1
• Manual Extension (“A”) — W520251600-1.0
• Manual Extension (“B”) — W520251700-1.0
• Load Indication System (LIS/RLC) — 7881824-1.0
• Completion Parts — W052001-1.2
• Controls — HA15 X 65400483-1.0
• Control Unit (RDC/NOCE) — 5402246-1.0 / -1.1
• Control Valve (4 Section) — 5220416-1.0
• High Pressure Filter — 5400814-1.0
• Complete Wireless Control — 7892099-2.0 / 7892500-1.0
• Electrics Controls — 5400482-1.0
• Electrics Controls (ETR) — 5402259-1.0
• Hydraulic System Gauge — 7920056-1.0
• Moment Limiting Device — 5405017-2.0
• Kit (Wireless Control) — 3310183-1.0
• Complete Wireless Control (ETR) — 7892500-4.0
• Auxiliary Wiring — 5405017-1.0
• Light Column — 3310822-1.0
• Auxiliary Wiring (Limiting Device) — 5405017-3.0
• Load Indication System (RDC) — 7881784-1.0
• Winch Kit — 7834068-1.0 / -2.0 / -3.0
• Control Unit (RDC/CE) — 5402252-1.0 / -1.1
• Kit (Wireless Control) — 7892099-3.0 / -5.0
• Complete Wireless Control (PTO) — 7892500-2.0
• Complete Wireless Control (EN12999-A3) — 7892500-3.0
• Electrics Controls (EN12999-A3) — 5401528-1.0 / 5402262-1.0
• Kit CE (Stability Control) — 5405050-4.0
• Stability Control (EN12999-A3) — 5405050-6.0
• Moment Limiting Device (CE) — 5405046-2.0
• Moment Limiting Device (EN12999-A3) — 5405046-4.0
• Recommended Spare Parts List

The HYVA HA15 spare parts catalogue gives you the exact part number, variant code, quantity and description for every serviceable component on the Telescopic 1 Boom HA15. Each functional group is presented as a dedicated table with an accompanying exploded-view drawing, so you can see precisely where a part sits in the assembly before ordering. The catalogue covers the complete machine: from the base and stabilizer legs through the slewing assembly, column, boom sections, extension cylinders and hydraulic system, right up to the control valves, wireless control kits, load indication systems and winch kit. Whether you are replacing a worn hydraulic jack seal kit, ordering a new proximity switch, sourcing a slide shoe for the boom extension or renewing the complete set of hoses, this catalogue is the reference HYVA provides for identifying the correct component. The recommended spare parts list at the end gives a quick reference to the most commonly ordered items.

Why This Catalogue Matters for Parts Ordering

Ordering the wrong part for a telescopic boom is expensive and time-consuming. The HYVA HA15 spare parts catalogue removes that risk by tying every part number to a specific position on a specific assembly. The variant codes shown for each item let you distinguish between similar components that differ by production period or market specification, and the quantity column tells you exactly how many of each part the assembly requires. The exploded-view drawings are detailed enough to identify individual seals, O-rings, fittings, pins, bushes and fasteners that are not visible on the machine without disassembly.

For workshops maintaining a fleet of HYVA HA15 cranes, this catalogue is the difference between a first-time-correct parts order and a round of returns. For owners carrying out their own maintenance, it is the document that makes it possible to look up a part and hand the correct number to a supplier.

Get Instant Access

This HYVA HA15 Telescopic 1 Boom spare parts catalogue is delivered as a PDF download immediately after purchase. No shipping, no waiting for a physical book. Open it on a laptop in the workshop, on a tablet next to the machine, or print the pages you need for the job at hand. The PDF format keeps every exploded view and parts table legible at any zoom level, so you can read the smallest part number on the most detailed drawing. Whether you are a fleet maintenance manager, an independent hydraulic technician or an owner-operator keeping a HYVA HA15 running, this catalogue belongs in your reference library.

IMAGES PREVIEW
