HYVA HA22 Telescopic 1 Boom Spare Parts Catalogue PDF – Edition 06/2022

Description

HYVA HA22 Telescopic 1 Boom Spare Parts Catalogue – Logbook Code 7880551_H.1

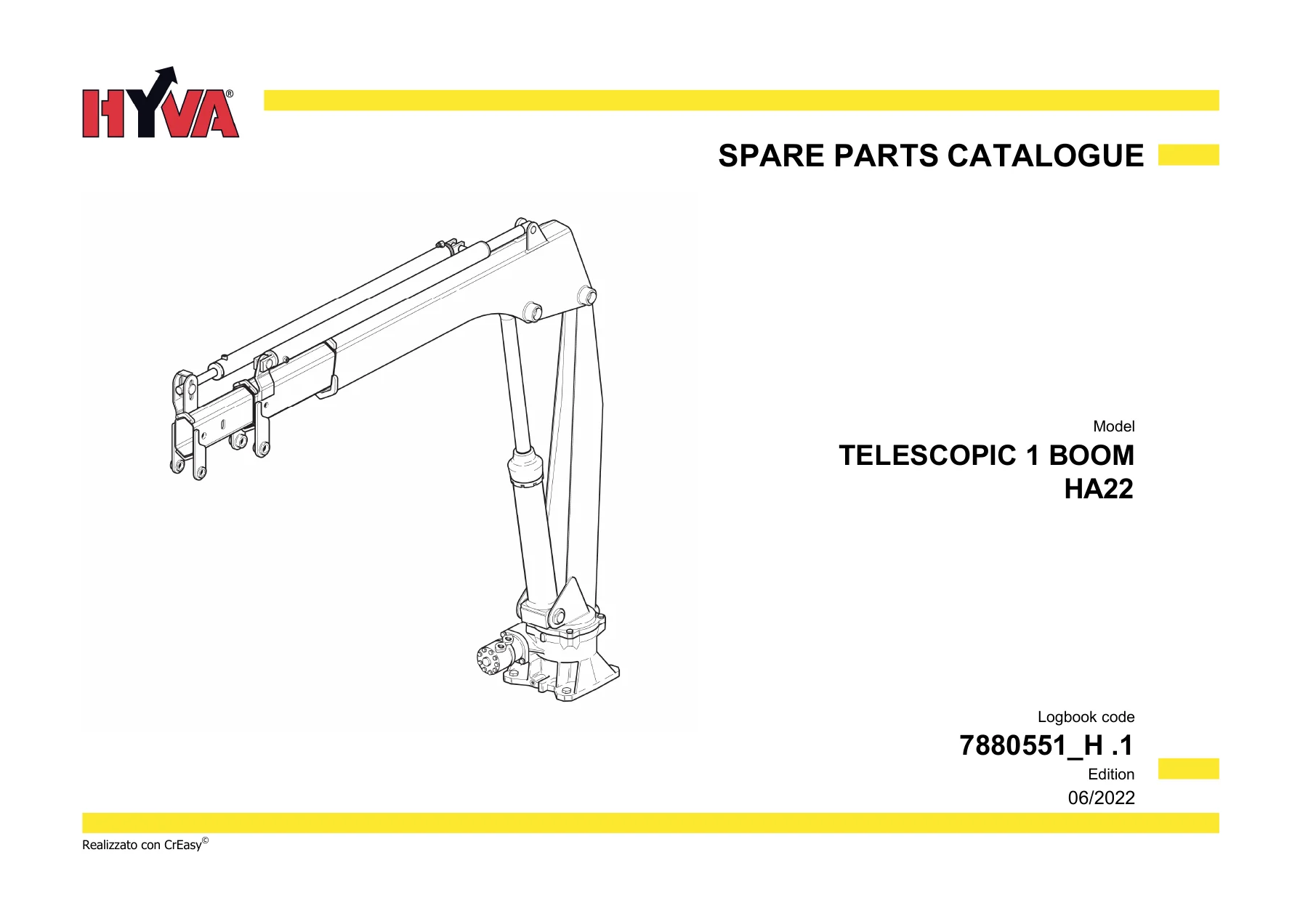

This is the illustrated spare parts catalogue for the HYVA Telescopic 1 Boom HA22, published under logbook code 7880551_H.1, edition 06/2022. It is a parts identification document rather than a repair manual: every assembly on the crane is drawn as an exploded view, each component is tagged with a position number, and each position number is tied to a part code and quantity in the matching table. If you need to find the correct part code for a boom slide shoe, a seal kit, a hydraulic fitting, a proximity switch or a control lever knob, this is where the answer sits. The catalogue is divided into functional groups so you can go straight to the section that matches the job in front of you instead of paging through the whole crane.

File Details

• Manual type: Spare parts catalogue
• Brand: HYVA
• Model: Telescopic 1 Boom HA22
• Logbook code: 7880551_H.1
• Edition: 06/2022
• Language: English
• Page count: 136 pages
• File format: PDF

Chapters Covered

• Base, Base (“BSC”) and Base with 1 crossbar (“BPS”)
• Plate kit (Generic Gru)
• Lifting hydraulic cylinder
• 1st Boom
• 1st Extension and 1st Extension hydraulic cylinder
• Extension jacks (assembly)
• 2nd Extension and 2nd Extension hydraulic jack
• 3rd Extension and 3rd Extension hydraulic jack
• 1st Activation for 2S
• Manual extension (“A”), Manual extension (“B”), Manual extension (“C”)
• Stabiliser hydraulic jacks – standard and long version
• Load indication system (LIS / RLC / RDC)
• Controls and control units (RDC / NOCE / CE)

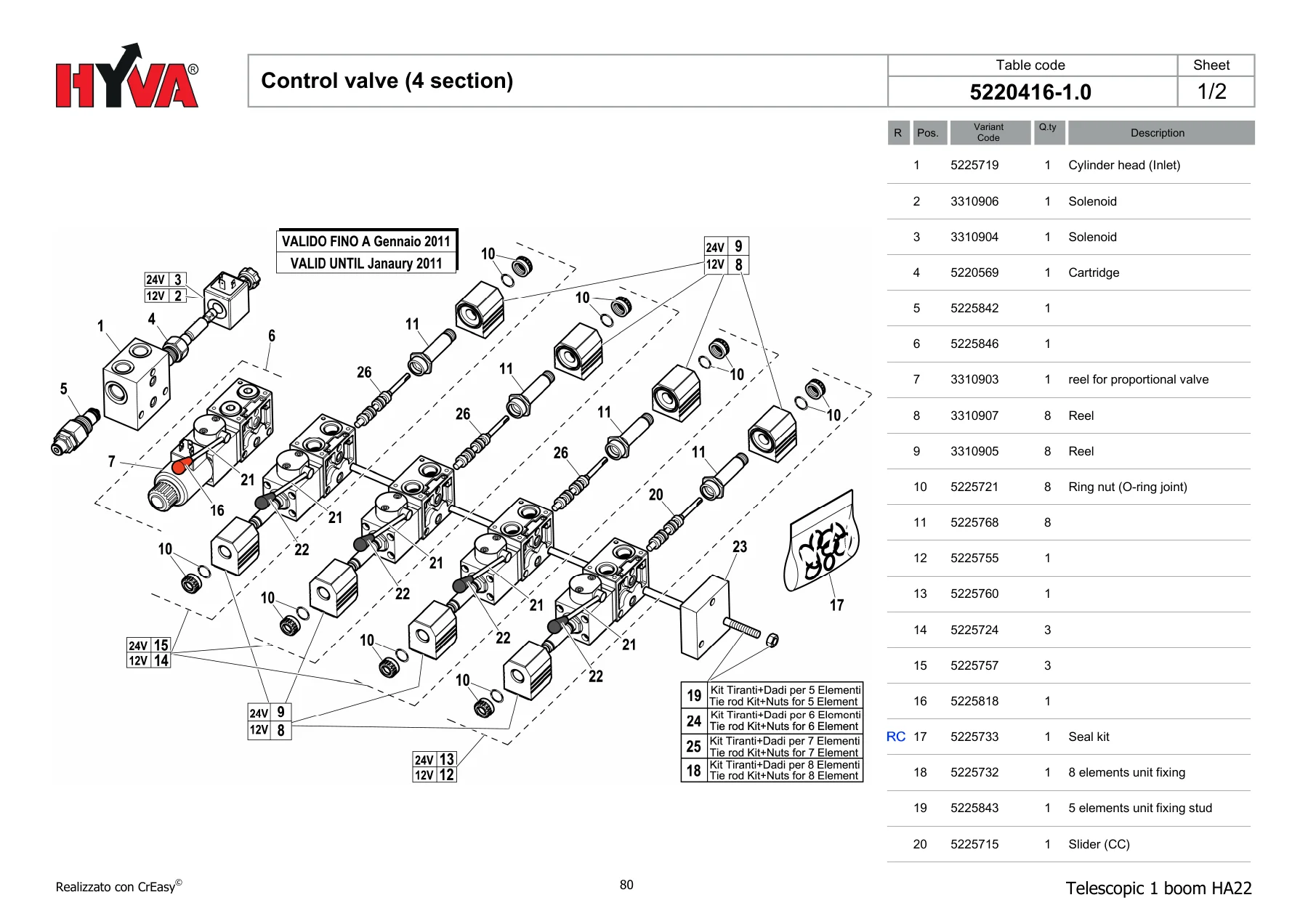

• Control valve – 4 section, modular directional valves
• High pressure filter
• Complete wireless control (not CE, PTO, ETR, EU/USA/AUS frequencies)
• Electric controls and electric controls (ETR)
• Hydraulic system gauge
• Moment limiting device and Moment limiting device (CE)
• Auxiliary wiring and light column
• Winch kit, actuation for winch, winch kit (electrical equipment)
• Stability control (EN12999-A3) and Kit CE (stability control)
• Oil tank, oil filter (return line) and filter cartridge
• Column assembly
• Recommended spare parts

Read as a whole, the catalogue gives a technician a full breakdown of the HA22 telescopic boom by assembly group. Each functional group opens with a table code and sheet number, followed by an exploded drawing, and then a table listing the reference number, position, variant code, quantity and description for every item on that drawing. That structure repeats from the base frame right through to the light column on top, which means you can trace a part from the drawing straight to its code without cross-referencing anything outside the file.

How the Part Tables Are Built

Every table follows the same layout: a reference number matching the circled number on the drawing, a position field, the variant/part code you need for identification, the quantity required, and a description that often carries the thread size, material grade or standard behind the part – for example socket head cap screws with their UNI reference, flat washers with their DIN dimension, straight pipe fittings with their JIC thread and tube diameter, or seal kits identified by their kit code. Hydraulic cylinders are broken down further into cylinder barrel, rod unit, piston, close nipple, seals, oil seal and a seal kit line, so a reseal job can be planned from the same page as the cylinder itself.

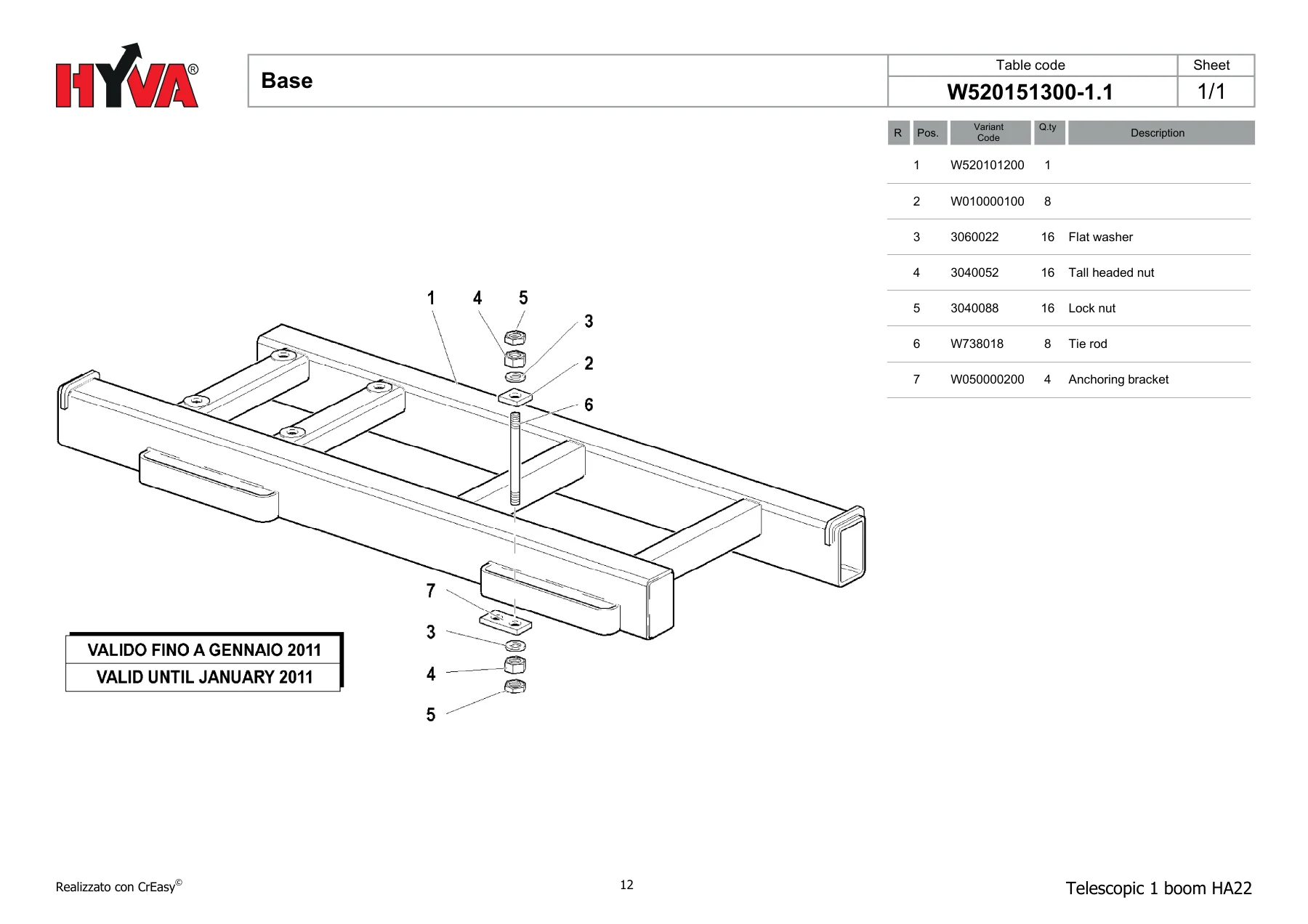

Several groups carry validity notes printed directly on the drawing. Base frames are split between the version valid until January 2011 and the version valid from February 2011, the stabiliser jack section separates the version valid until June 2010 from the version valid from July 2010, and other sheets mark changes from October 2013, from January 2013 or from a given serial number. Check the note on the sheet before you commit to a part code – it tells you which build of the machine that page was drawn for.

Where This Catalogue Earns Its Keep

Parts catalogues like this one solve a specific and expensive problem: ordering the wrong component. A crane that has been through several production revisions will often carry two or three different variants of the same bracket, pin, valve block or hydraulic fitting, and the difference between them is a code, not a shape. With the exploded views and matching tables in front of you, the part can be confirmed against the drawing before the order goes out – the correct slide shoe for a boom section, the right seal kit for a specific cylinder, the matching sequence valve or tee fitting on a 2nd or 3rd extension circuit, the correct pressure sensor for a moment limiting device built after January 2011.

The catalogue also covers the electrical and control side of the machine in the same way. Proximity switches, microswitch supports, wiring looms, dashboards, solenoid valves, pressure sensors and manifold pick-ups all appear with their own codes and quantities, alongside the hydraulic power unit, oil tank, oil level indicator and return-line filter. The final pages collect the parts most likely to be ordered repeatedly into a recommended spare parts list, which is a practical shortlist to keep on the shelf.

IMAGES PREVIEW

Instant Download, No Waiting on the Post

The file is delivered as a PDF the moment payment clears – no shipping, no customs, no waiting for a printed copy to arrive from a distributor. Open it on a laptop in the workshop office, on a tablet next to the machine, or on a phone out at the job site, and print whichever exploded views you need to take under the crane with you. Every part code in this HYVA HA22 spare parts catalogue stays searchable and legible on screen, so identifying a component is a matter of minutes rather than a phone call.
