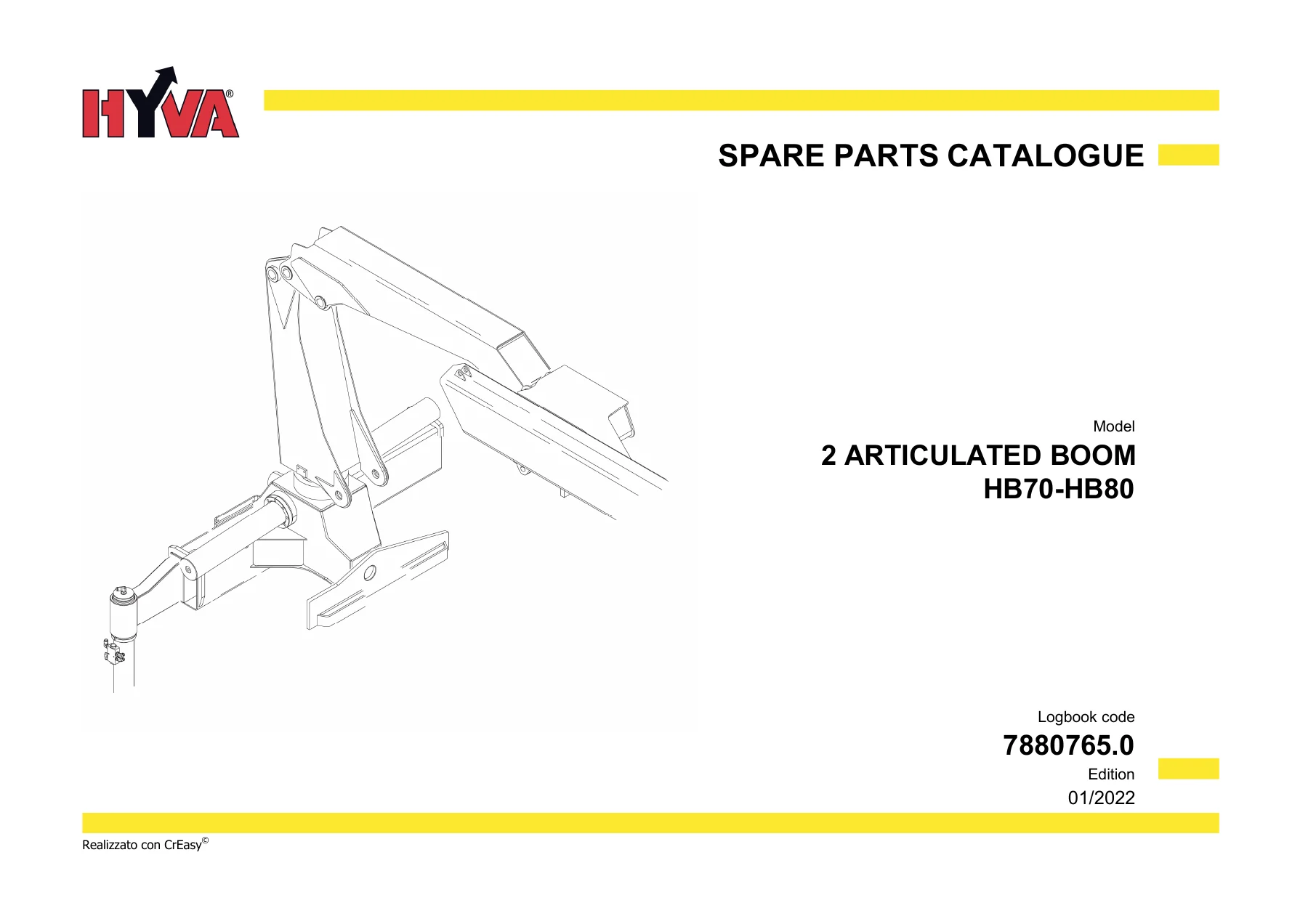

HYVA HB70-HB80 Articulated Boom Crane Spare Parts Catalogue 7880765.0 PDF

Description

File Details

• Manual type: Illustrated Spare Parts Catalogue
• Brand: HYVA
• Model series: HB70 / HB80 Articulated Boom Cranes
• Logbook code: 7880765.0
• Edition: 01/2022
• Language: English
• File format: PDF
• Page count: 312 pages

Chapters Covered

• Plate Kit (Generic Gru) and Plate Kit Versions for HB70 and HB80

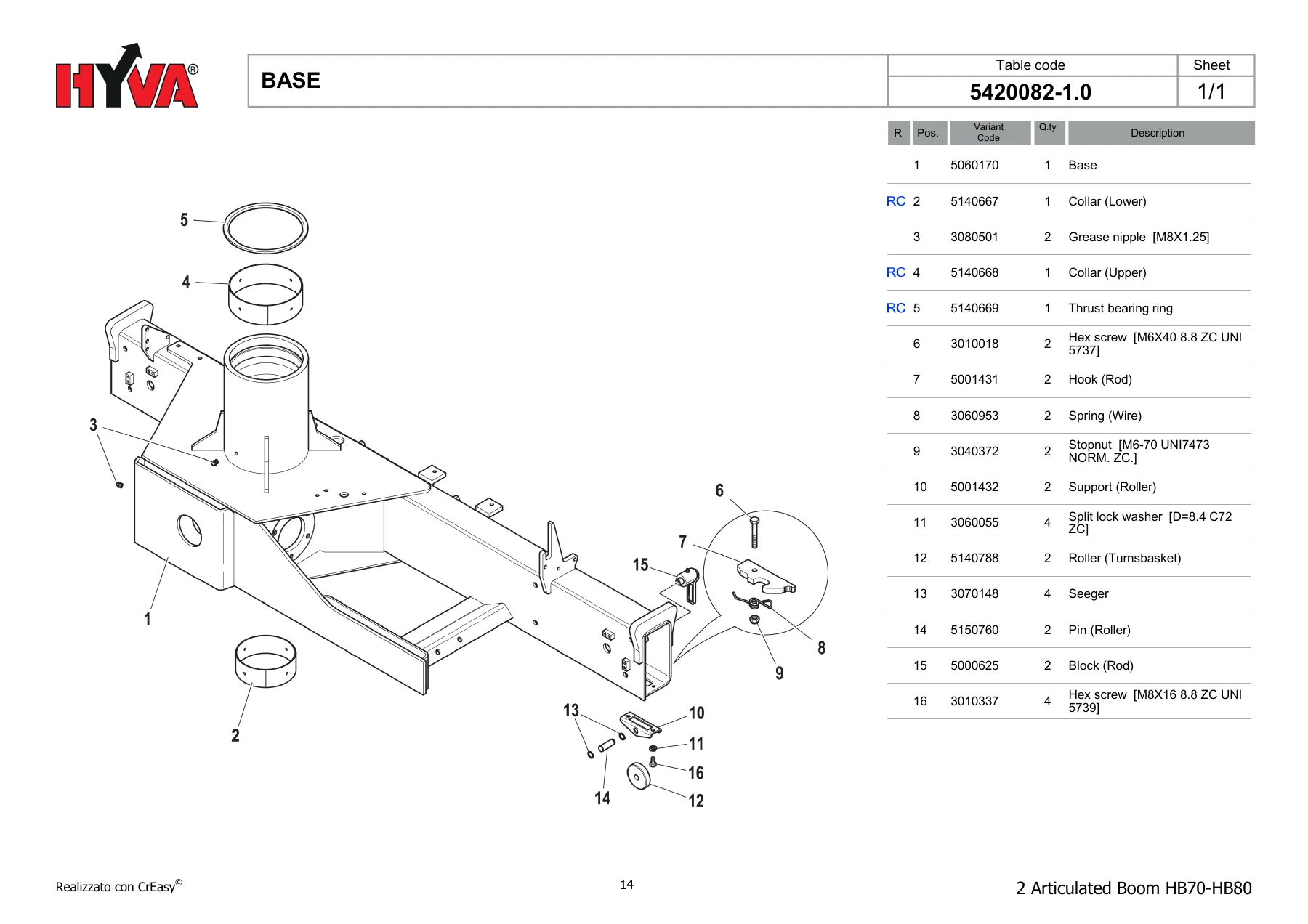

• Base, Slewing and Column Assemblies
• Hydraulic Systems (not CE / CE) and Rod Extension Hydraulic Cylinders
• Double Controls and Control Valves (5 section, 6 section)
• Extra Function Kits (Open Centre Spool, Closed Centre Spool)
• Electrics Controls and Auxiliary Wiring
• Hydraulic Oil Tank, Oil Tank, Oil Filter and Heat Exchange Unit
• Lifting Hydraulic Cylinders and Hydraulic Systems
• 1st Boom, 2nd Boom, 1st through 4th Extensions
• Articulation Hydraulic Jack and Extension Hydraulic Jacks
• Manual Extensions (1st through 4th)
• Hook Kit and Load Indication System (LIS / RLC)
• Activations for 1S, 2S, 3S, 4S and Additional Actuation
• Kit Quick Coupling and Support for Winch’s Pulley Kit
• Base and Stabilizer Rods Super Extra-Extensible (including Revolving)
• Rod Extension Hydraulic Cylinders and Hydraulic Systems
• Winch Actuation and Complete Wireless Controls
• Moment Limiting Devices (standard, CE, EN12999-A3) and Stability Control
• Rotation Control, Control Units (RDC), Controls (RDC-EBB), Pilot Lamp and Light Column
• High Pressure Filter, Sensors, Encoders and Pressure Monitors

What This HYVA HB70-HB80 Spare Parts Catalogue Gives You

This is the illustrated parts catalogue used to identify and order every component of the HYVA HB70 and HB80 articulated boom cranes. Each section presents an exploded isometric drawing of a sub-assembly with numbered call-outs, followed by a parts table that lists the item reference, variant code, quantity and full description, including thread sizes, DIN/UNI standards, material codes and mounting hardware. Rather than hunting through generic fastener bins or guessing at a matching part, you open the drawing, find the number on the component, and read the exact code from the corresponding table row.

Why Technicians and Workshops Keep This Catalogue on Hand

Articulated boom cranes are built from hundreds of precision-matched parts, and the wrong seal kit, bushing, pin or hydraulic fitting can stop a machine for days. The HYVA HB70-HB80 spare parts catalogue solves that problem by tying every visible part back to a unique code that a parts desk or HYVA dealer can recognise immediately. The document is organised so that a workshop can move quickly from symptom to component: hydraulics first (holding valves, overcenter valves, flow restrictors, bonderized tubes, flexible hoses, tees, 90-degree connections and female plugs), then the structural and articulation hardware (pins, seeger rings, threaded pins, self-locking ringnuts, slide shoes, thickness rollers, bushings and grease nipples).

Hydraulic and cylinder coverage

The HB70-HB80 parts manual PDF dedicates large sections to the hydraulic side of the machine. You will find complete assemblies for the lifting hydraulic cylinder, the articulation hydraulic jack, the slewing cylinder, the 1st through 4th extension hydraulic jacks, the rod extension hydraulic cylinder, the stabilizer hydraulic jack, the double controls, the 5-section and 6-section control valves, extra function kits in both open-centre and closed-centre spool versions, the oil tank, the oil filter, the heat exchange unit and the high pressure filter. Seal kits, pistons, rods, W-rings, O-ring joints, anti-extrusion rings, close nipples and self-locking ringnuts are all catalogued with their code and quantity.

Boom, extension and stabilizer coverage

The structural sections map out the 1st boom, 2nd boom, 1st extension, 2nd extension, 3rd extension, 4th extension, manual extensions, hook kit, quick coupling kit and the super extra-extensible stabilizer rods (including the revolving version). Every pin, plate, slide shoe, backlash button, tooth lock washer, TSEI screw and cap appears with its code, so rebuilding a worn pivot or replacing a damaged guide block is a matter of reading the drawing and ordering the exact line item.

Controls, electronics and safety devices

The HYVA HB70-HB80 articulated boom crane parts catalogue also covers the operator-facing and safety hardware: control levers, knobs, forks and fork clips, distributor supports, control units (RDC), controls (RDC-EBB), complete wireless control kits (not CE, PTO, EU 24V, 24V, USA 12V, CAN BUS), the moment limiting device in standard, CE and EN12999-A3 versions, stability control, rotation control with encoder, load indication system (LIS/RLC), light column, pilot lamp, proximity switches, tiltmeter, pressure sensors and the auxiliary wiring looms.

How to Use This Catalogue

Work from the top-level table index, jump to the page for the assembly you are repairing, and match the call-out number on the exploded view to the row in the parts table beside it. The variant code column tells you which machine variant each line applies to, so you can filter out parts that do not fit your exact boom. Quantities are printed per assembly, which makes it straightforward to calculate how many fasteners, washers and seals you need for a single job.

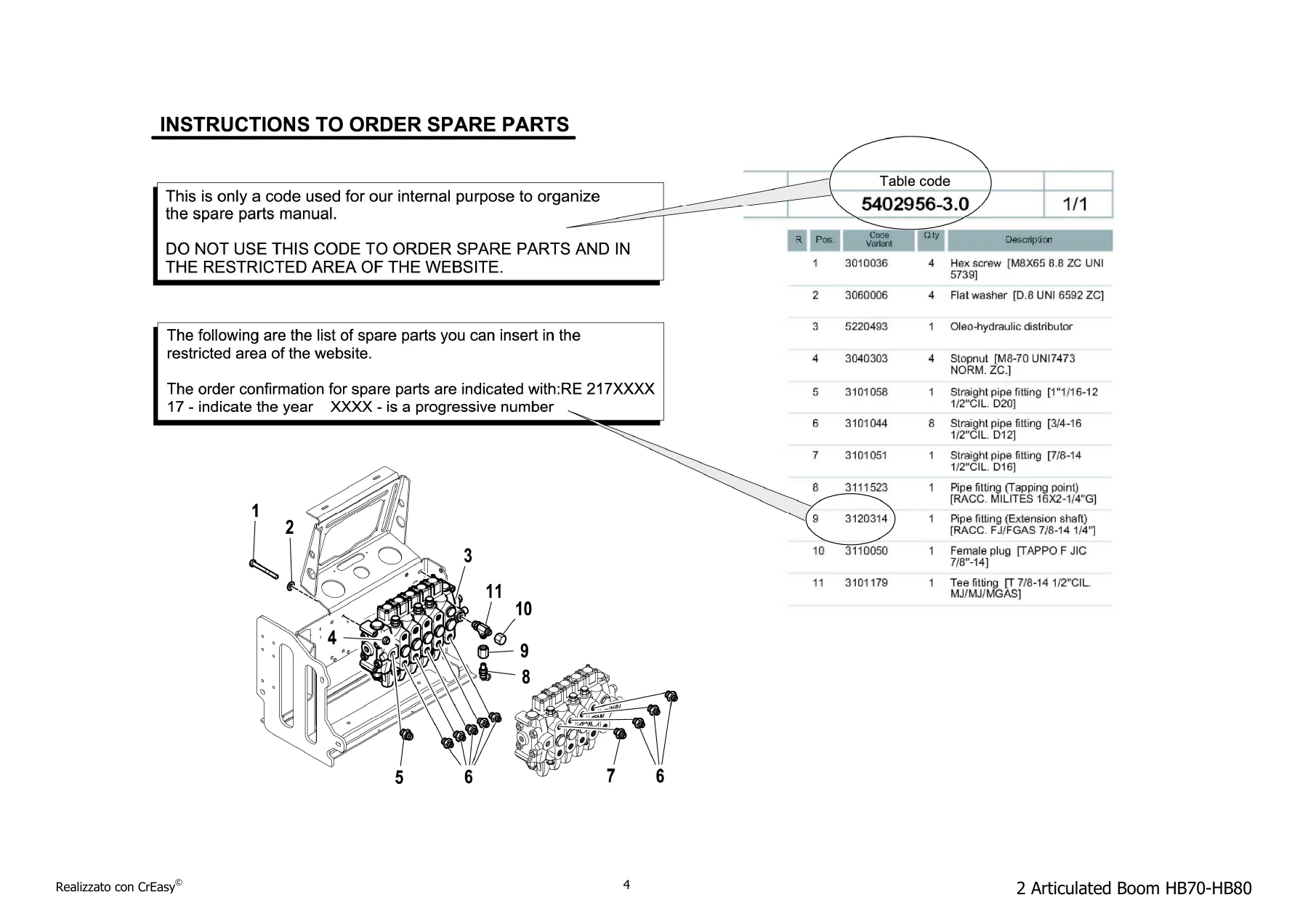

IMAGES PREVIEW

Instant PDF Delivery

The HYVA HB70 HB80 spare parts catalogue 7880765.0 is delivered as an instant PDF download. There is no shipping, no waiting for a disc, and no licence server to negotiate. Open it on a laptop in the workshop, on a tablet at the machine, or print the pages you need for the job at hand. Because it is a searchable-style digital document you can keep the whole 312-page catalogue on a single device, which is far more practical than carrying a paper copy out to a crane on site.

Who This Is For

This catalogue is written for mechanics, hydraulic technicians, fleet maintenance managers, spare parts desks and owners of HYVA HB70 and HB80 articulated boom cranes who need to identify a component quickly and order the correct part the first time. If you maintain, repair or rebuild any variant covered in this document, this is the reference you will keep coming back to.
