HYVA HB120 Articulated Boom Spare Parts Catalogue PDF – Logbook 7880698_H.1 Edition 03/2023

Description

HYVA HB120 Articulated Boom Spare Parts Catalogue

This is the full spare parts catalogue for the HYVA HB120 articulated boom, published under logbook code 7880698_H.1 (edition 03/2023). It is the reference used when ordering replacements for the HB120 across its F, M, X TCU, X TCU EN12999-A3 and CIA configurations. Every table lists the position number, variant code (where applicable), required quantity, and the part description exactly as printed by the manufacturer.

Whether you are rebuilding a stabilizer leg, sourcing a seal kit for the slewing cylinder, or replacing a single hydraulic fitting on the 3rd extension, the HYVA HB120 spare parts catalogue PDF puts the exact component number in front of you without guesswork. Ordering the wrong part number on an articulated boom is expensive in both time and downtime — this catalogue removes that risk by mapping every item to its assembly position.

File Details

• Manual type: Spare Parts Catalogue
• Brand: HYVA
• Model: HB120 Articulated Boom
• Logbook code: 7880698_H.1
• Edition: 03/2023
• Language: English
• Page count: 264
• File format: PDF

Chapters Covered

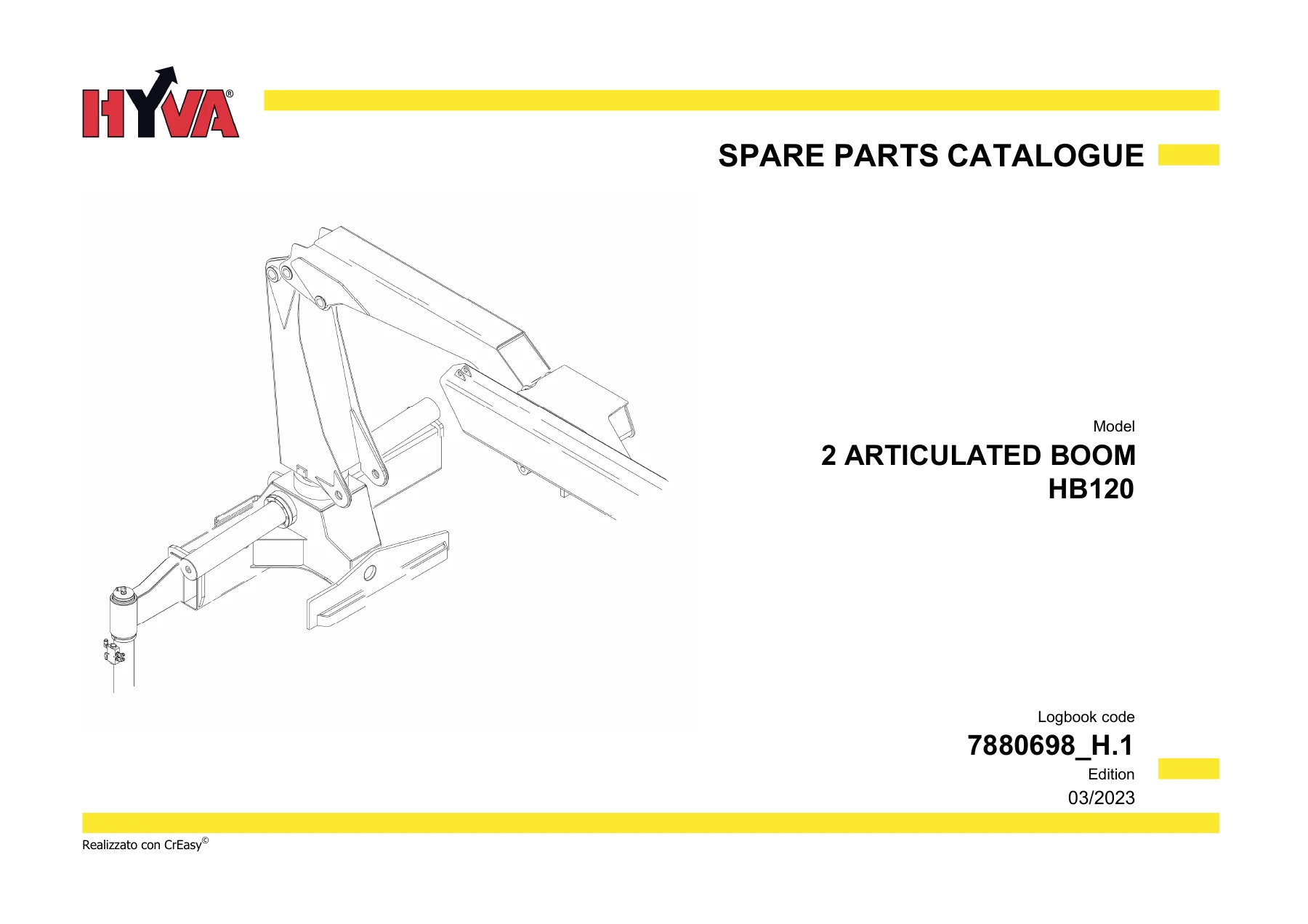

The catalogue opens with an overview illustration of the HB120 articulated boom, then a full table index, before breaking down every assembly into its individual parts. The main coverage is:

• Articulated Boom HB120 — general views and plate kit (generic gru)
• Base, column and slewing assembly
• Hydraulic plan outriggers with manual pull-out
• Hydraulic plan outriggers with hydraulic pull-out
• Stabilizer Hydraulic jack (multiple variants by serial number)
• Stabilizer connecting rods (fixed, rotating, revolving)
• Rod extension hydraulic cylinder
• 1st Boom, 2nd Boom and 2nd Boom (Special)
• 1st, 2nd, 3rd, 4th and 5th extensions — structural and hydraulic
• Extension hydraulic jacks (all stages, including 5th and 6th cylinder)
• JIB arm, 1st and 2nd extension (JIB), connecting rod kit
• Articulation Hydraulic jack
• Lifting hydraulic cylinder
• Manual extensions (1st, 2nd, 3rd, 4th position versions)
• Hydraulic system (Moment limiting device) — CE and non-CE
• Manifold (CE, LIG NO CE)
• Solenoid valve and stabilizer control valve
• Control valve assemblies (CE, not CE, EN12999-A3)
• Controls (4 section), Double controls (EN12999-A3), Controles (RDC EBB-X TCU-ECM4)
• Control unit (CIA) and console
• Hydraulic oil tank and Hydraulic oil tank (CE)
• High pressure filter, oil filter
• Heat exchange unit (24V)
• Electrics controls and pilot lamp
• Load indication system (RDC-EBB)
• Wireless control kits (EU 24V, USA 12V, CAN BUS)
• Extra function kits — 5th and 6th (closed centre and open centre spools)
• Additional actuations (1st, 2nd, 1S versions)
• Attachement for winch and assembly kit
• Four-way hose winder kit
• Recommended spare parts list

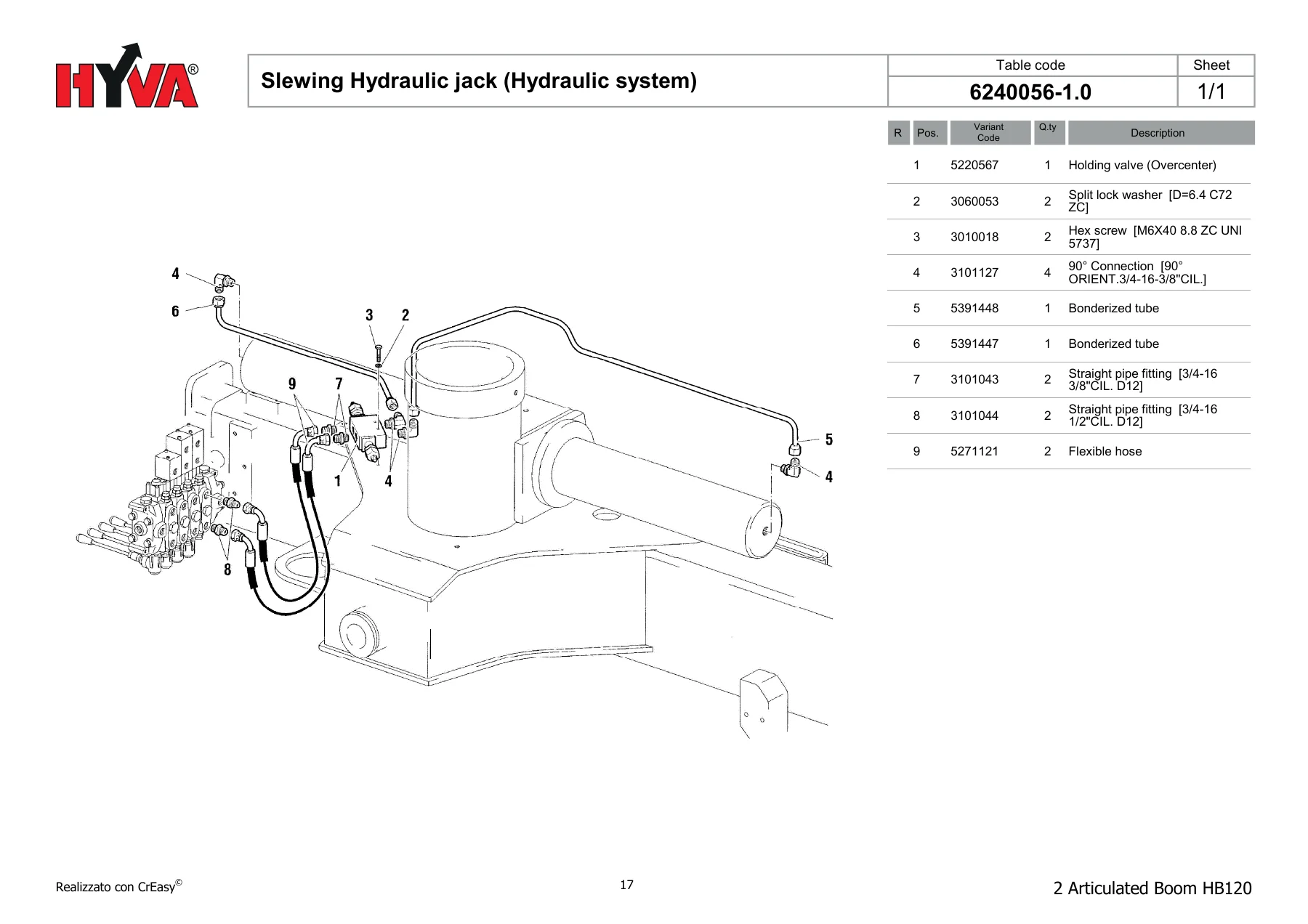

Each section is built as a parts table keyed to a numbered illustration on the facing page — a format that lets you visually locate a component and then read off its exact position number, part code and quantity in one step. Seal kits, bushings, pins, grease nipples, fittings, hoses, bonderized tubes, solenoid valves, sliders, control levers and the full range of hydraulic hardware are all itemised individually. The catalogue also distinguishes between Fixed and Marine rod units and between 12V and 24V solenoid variants where the HB120 was offered in both.

What This Spare Parts Catalogue Enables You To Do

With the HYVA HB120 spare parts catalogue in PDF form you can:

• Identify the correct part number for any component on the HB120 articulated boom before placing an order
• Cross-check variant codes so the part matches your exact machine build
• Rebuild hydraulic cylinders using the correct seal kit reference instead of matching seals by eye
• Confirm quantities needed for a job — from a single O-ring to a complete slewing cylinder assembly
• Trace parts through the hydraulic circuit diagrams for controls, manifolds and outriggers
• Distinguish between serial-number-specific stabilizer assemblies (e.g. S/N 207016 – 207263 range) so the version shown in the field matches the version in the catalogue
• Locate replacement electrics — proximity switches, sensors, encoders, wireless control kits, pilot lamps and wiring assemblies

Correct part identification is the difference between a single afternoon of work and a week of returns. Every part number, quantity and variant reference in this HYVA HB120 parts catalogue comes straight from the manufacturer’s own logbook 7880698_H.1, so what you see on the page is what the supplier expects to receive when you order.

IMAGES PREVIEW

Instant PDF Delivery

The HYVA HB120 articulated boom spare parts catalogue is delivered as an instant PDF download immediately after payment. There is no shipping, no waiting for a physical book and no risk of a lost parcel. The file opens on any device — desktop, tablet or phone — so you can carry the entire catalogue to the machine and zoom into any exploded view while you work. Print the pages you need for the workshop and keep the full document on file for the next job. This is the same document used for parts organisation on the HB120, now available as a straight-to-device PDF.
