Ford 5000-Series Tractor Parts Catalog 1965-1975 – Full Illustrated PDF Parts Manual

Description

File Details

• Manual Type: Illustrated Parts Catalog
• Brand: Ford
• Model Range: 5000-Series 4 Cylinder Tractor (1/65-1/75)
• Covered Models: 5000, 5100, 5190, 5200, 7000, 7100, 7200, 4000, 4100, 4110, 4140, 4200, 4400, 4410, 4500, 3400, 3500, 3550, 3055, 2100, 2110, 2120, 2300, 2310, 3100, 3120, 3300, 3310, 3150
• Language: English
• Page Count: 708
• File Format: PDF
• Coverage Period: January 1965 through January 1975

Chapters Covered

• Front Wheel Assembly & Front Wheel, 2-Piece Rim
• Brakes & Brake Controls
• Front Axle, Manual & Power Steering
• Rear Axle, Differential & Center Housing
• Hydraulic Lift Cover, Cylinder & Linkage
• Hydraulic Remote Controls & Load Monitor
• Engine — Gasoline (Petrol), LPG & 4-Cylinder Diesel
• Transmission, Dual Power, Select-O-Speed & PTO
• Radiator, Water Pump & Cooling System
• Fuel System — Gasoline, CAV & Simms Diesel Injection
• Hydraulic Pump Assembly
• Electrical System
• Instrument Cluster & Related Parts
• Seats — Standard & Deluxe
• Hood, Fenders, Platform, Grille & Tool Box
• Tractor Cabs & Safety Frames
• Transmission Shift Pattern, Instruction & Identification Decals
• Accessories, Tow Hooks, Oils, Tools & Paints

Front Wheels, Front Axle & Steering

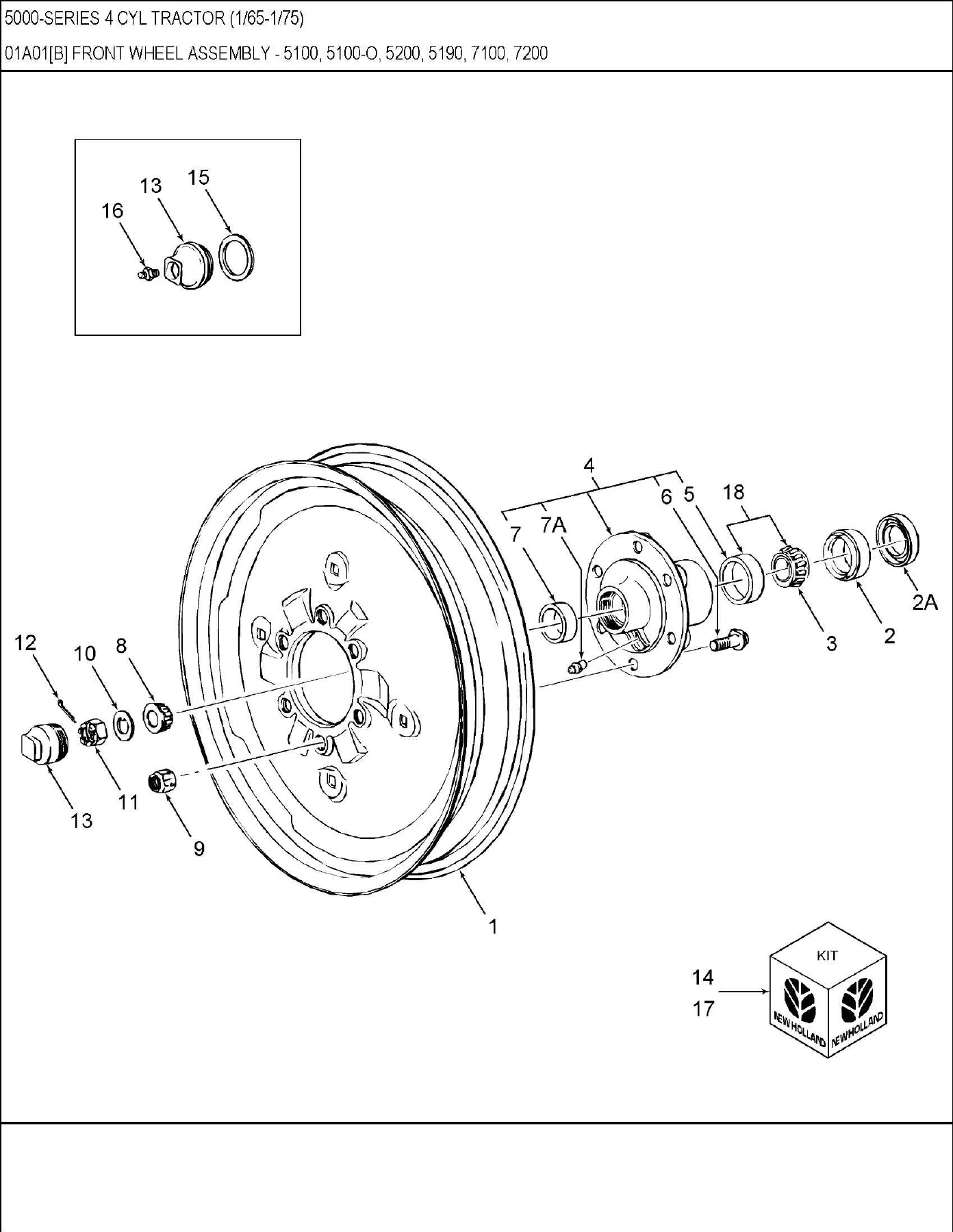

The opening sections map every front wheel assembly, hub, bearing, seal, bolt, nut and rim for the 5100, 7100, 5200, 5190 and 7200, with dedicated coverage of 16-inch wheels and the 2-piece rim used on 2110, 4110, 4100-O and 5100-O. Front axle coverage splits into manual steering and power steering variants, listing spindles, bushings, radius rods, drag links and the power steering gear, pump, reservoir and cylinder assemblies.

Brakes & Brake Controls

Complete exploded views for the brake housings, discs, actuating plates, pedals, cross shafts, springs and linkages used across the 5100, 7100, 5200 and 7200. Separate sub-sections cover the transmission handbrake, the NH-E handbrake for 3055, 4100, 5100 and 7100, power trailer brake kits and hydraulic trailer brake components.

Rear Axle, Differential & Center Housing

Planet gears, planet carriers, axle shafts, differential cases, matched gear sets, pinions, thrust washers and bearings are all catalogued by reference number. Differential lock controls, the center housing, cover gaskets, bearings and PTO shaft components round out this section, with notes on 5000 and 7000 variants.

Hydraulic Lift & Remote Controls

One of the most detailed sections of the catalog. It covers the hydraulic lift cover and its internal control linkage, the 3.750-inch and 4.125-inch bore lift cylinders, unload valves, flow control valves, load monitor assemblies, oil filter manifolds and the full external lift linkage. Remote control coverage includes single and double spool valves, selector valves, coupling kits, load monitor cylinder hoses and the automatic pick-up hitch.

Engine — Gasoline, LPG & 4-Cylinder Diesel

Cylinder heads, blocks, crankshafts, flywheels, camshafts, rocker arms, valves, pistons, connecting rods, oil pumps, oil pans, oil filters, manifolds, mufflers and gasket kits are all listed. The diesel sections add fuel injection pumps (CAV and Simms), injectors, high-pressure pipes, leak-off tubes, cold start equipment and injector holder assemblies.

Transmission, PTO & Dual Power

The transmission chapters break out the case, shift levers, forks, rails, gears, shafts, bearings, seals and synchroniser components for the Dual Range 7-Speed (Germany), 8-Speed, 10-Speed and Select-O-Speed transmissions. Power Take-Off coverage spans single-speed and 2-speed PTO assemblies, the independent PTO clutch linkage, PTO drive gears, hydraulic control valves and the PTO guard kits.

Cooling, Fuel & Hydraulic Systems

Radiators, shrouds, hoses, thermostats, water pumps, belts and fans sit alongside the gasoline and diesel fuel systems, carburetors (Holley and Zenith), air cleaners, throttle controls and the gear-type hydraulic pump assembly used on 5000 and 7000 tractors.

Electrical System

Starter motors, generators, alternators, voltage regulators, ignition coils, wiring harnesses, lighting switches, headlamps, rear lamps, flashers, trailer sockets, hazard warning parts and instrument cluster components are all catalogued by part number, with US, UK, European, Mexico and NH-E variants listed separately.

Seats, Cabs & Safety Frames

Standard, deluxe and Grammer-style seat assemblies, suspension components, seat belts, rollbars, rollbar canopies, all-season cab assemblies, standard and deluxe safety-frame cabs and the associated electrical systems are all covered in detail.

Bodywork, Decals & Accessories

Engine hood panels, grilles, radiator shells, fenders, platforms, tool boxes, reflectors, mirrors and license plate brackets appear alongside the full decal library — transmission shift patterns, instruction and safety decals, and model identification decals. Accessory listings include hydraulic remote control cylinders, tow hooks, drawbar towing pins, engine coolant heaters, tire pumps, paints, lubrication equipment, fire extinguisher kits and PTO-driven air compressors.

How This Parts Catalog Is Organised

Every section follows the same layout: a reference number keyed to an exploded illustration, the Ford part number, the quantity required, and a description that includes the models the part fits, the start year and, where relevant, notes about superseded or no-longer-serviced components. Where US and UK/Antwerp markets share a part it is listed once; where they diverge, NHNA (North America) and NH-E (Europe) parts are broken out separately, so you can pick the correct number for your tractor’s build and market.

Who This Ford 5000-Series Parts Catalog Is For

If you are rebuilding, restoring or maintaining a Ford 5000-Series 4-cylinder tractor built between January 1965 and January 1975, this is the reference you need to order the correct part the first time. It is equally useful for independent workshops sourcing replacement components, for parts counter staff verifying a number before ordering, and for collectors who want the correct factory-style illustrations and part descriptions for their machine.

IMAGES PREVIEW

Instant PDF Delivery

Order the Ford 5000-Series Tractor Parts Catalog 1965-1975 and the complete 708-page PDF arrives immediately after payment — no shipping, no waiting, no customs. Open it on a workshop laptop, a tablet on the bench, or print the sections you need and take them straight to the job. With every assembly illustrated and every part number indexed, you can identify what you need, confirm it fits your tractor, and get it ordered without guesswork.
