Fiat 1180 & 1180 DT Tractor Spare Parts Catalogue

This is the illustrated spare parts catalogue for the Fiat 1180 and Fiat 1180 DT tractors, published by Fiat Trattori Modena. It is a parts identification document built around exploded plates and ordered part-number lists, covering the complete tractor from engine and injection equipment through to bodywork and interior trim. Every part is listed by its Fiat order number, alongside the subgroup, quantity and description in five languages – Italian, French, German, English and Spanish.

If you are rebuilding, servicing or restoring a Fiat 1180 or 1180 DT, this Fiat 1180 & 1180 DT tractor spare parts catalogue is the reference that tells you which numbered component belongs on your machine, which variant your tractor was built to, and which part numbers were superseded during production.

File Details

• Manual type: Spare parts catalogue (illustrated parts manual)
• Brand: Fiat Trattori
• Models covered: Fiat 1180, Fiat 1180 DT
• Language: Multilingual – Italian, French, German, English, Spanish
• Edition: Fiat 1180 – 1180 DT (1 Ed.)
• Publication number: 603.14.236/01 – VI – 1980
• Publisher: Soc. p. Az. Fiat Trattori Modena (printed in Italy)
• Format: PDF
• Page count: Approximately 200

Chapters Covered

The catalogue is organised into lettered groups and numbered subgroups, each with its own exploded plate and a matching parts list. The main divisions include:

• A – Engine: A0.00 Engine; A1.01 Crankcase and cylinder head; A1.02 Oil sump and crankcase covers; A1.03 Crankshaft and flywheel; A1.04 Damper; A1.06 Camshaft drive; A1.07 Valve gear; A1.08 Multimeter drive; A1.15 Auxiliary drives; A1.16 Injection pump drive
• A2 – Fuel and injection: A2.01 Fuel tank and lines; A2.21 Accelerator control linkage; A2.22 Air cleaner and ducts; A2.23 Air cleaner; A2.24 Fuel injection system; A2.25 Fuel pump; A2.26 Fuel filter; A2.27 Injection pump; A2.35 Nozzle holder; A2.43 Low temperature starting aids; A2.54 Intake and exhaust manifolds; A2.56 Exhaust pipe
• A3 / A4 – Lubrication and cooling: A3.01 Lubrication system; A3.02 Oil pump; A4.01 Radiator; A4.02 Water pump and lines; A4.03 Water pump; A4.04 Heat exchanger; A4.09 Fan

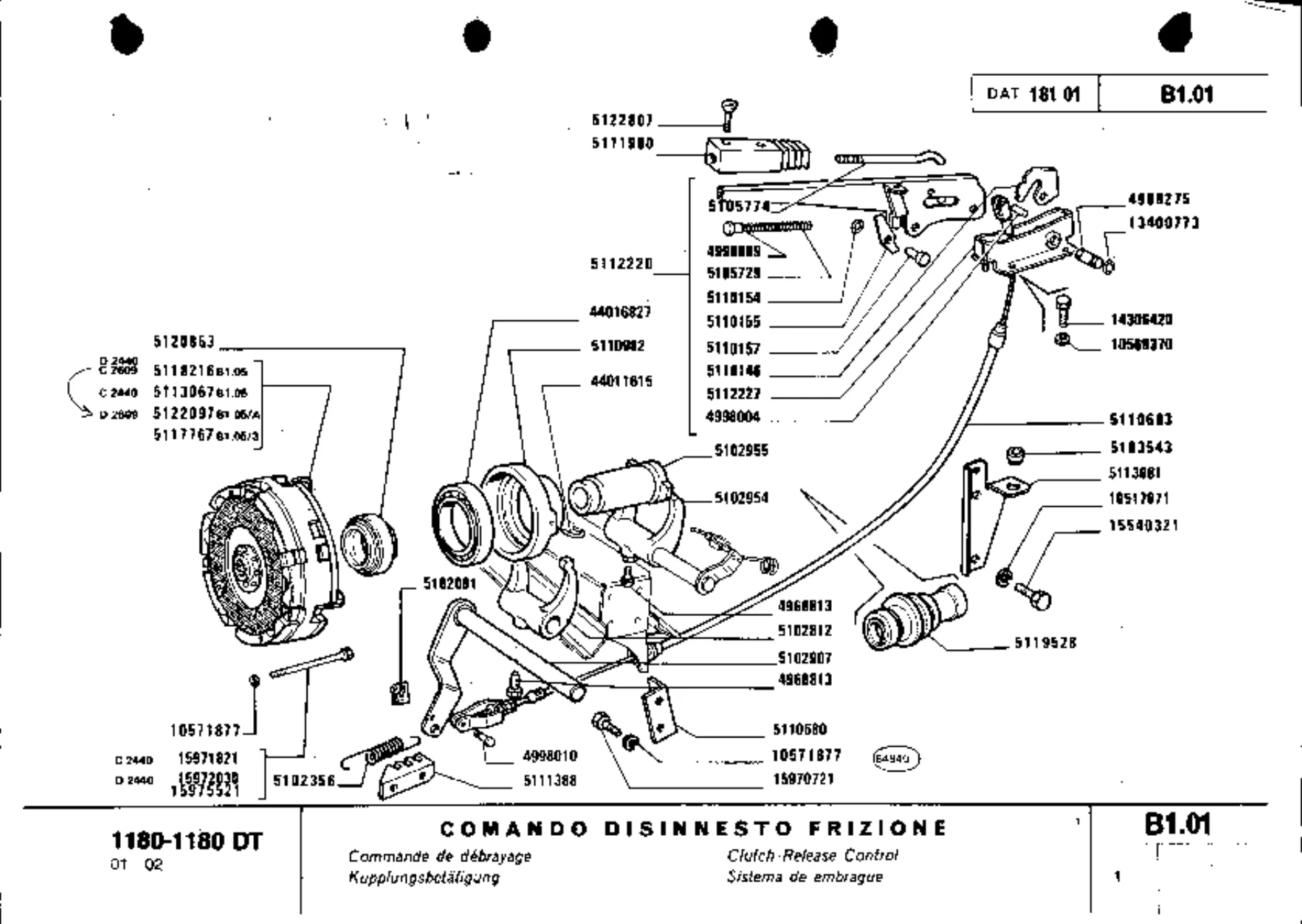

• B – Clutch and transmission: B1.01 Clutch release control; B1.04 Operating cylinder; B1.05 Clutch; B1.11 Clutch pump; B2.01 Tractor body, casings and covers; B3.09 Idler unit to front axle propeller shaft; B4 – Axles; B4.01 Axle shafts; B4.04 Front axle final drive and differential gears; B4.06 Rear final drive and differential gears; B4.10 Differential lock system; B4.11 Rear side final drive cases; B4.12 Rear side final drive gears; B4.13 Distributor valve; B4.14 Valve; B4.15 Shaft with joint; B4.16 Clutch-differential lock
• C – Brakes: C1.01 Brake foot control; C1.02 Brake hydraulic system; C1.05 Axle and axle shafts; C1.35 Brake hand control; C2.09 Trailer brake control
• D – Frame and steering: D1.02 Rear tow hook; D1.03 Towing device; D2 – Steering; D2.01 Steering gear; D2.02 Steering box; D2.10 Steering linkage; D2.11 Servo-assisted steering hydraulic system; D2.12 Servo-assisted steering cylinder; D2.14 Tank; D3 – Suspensions and wheels; D3.14 Front axle; D3.14/1 Steering knuckle; D3.16 Front wheels; D3.22 Rear wheels
• E – Power take-off and hydraulics: E2.15 PTO control; E2.16 Power take-off; E2.18 Oil pump; E2.31 Additional power outlet unit; E2.35 Implement carrier; E2.36 Adjustable tie rod; E2.37 Hydraulic tie rod
• F – Electrical: F2.01 Engine starting equipment; F3.01 Current generating system; F4.01 Lighting system; F5.01 Signalling devices; F5.03 Operation indicators; F6.01 Headlamp; F6.32 Front lamp; F6.34 Tail lamp
• L – Bodywork: L1.01 Hood; L1.01/1 Safety frame; L1.30 Auxiliary arrangements; L3.03 Front mudguards; L3.04 Mudguards and footboards; L4.01 Number plate arrangement; L4.03 Boxes and receptacles
• M – Interior: M1 – Interior trimming

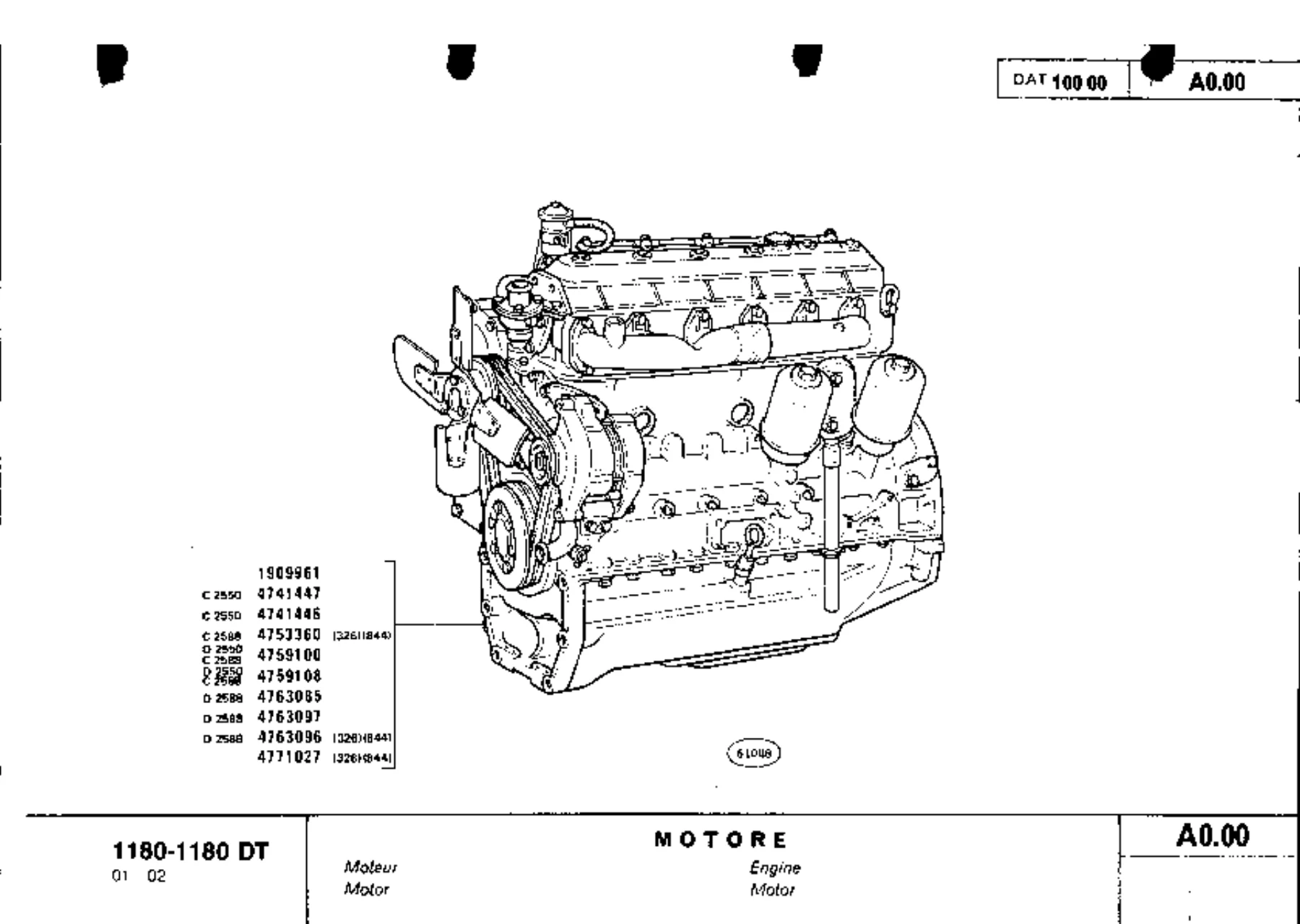

Beyond the plate-and-list sections, the catalogue carries a model list, a variants list, a subgroup index and a full spare parts index that lets you jump straight from a part number to the plate that illustrates it. There are also modification tables recording the changes introduced during production, a bearing table, and reference tables for electrical cables, cable terminals and insulating caps, plus electrical cable installation tubes.

Variant Coverage

The variants list identifies the build codes that change what is fitted to a given 1180 or 1180 DT – French, German and Hessston equipment packages, auxiliary fuel tanks, mechanical reverser, additional reducer, fuel filter, dry-type air cleaner with high air stack, single and double acting valves, control valve configurations with automatic release and FLOAT, adjustable rear track settings for single and twin wheels, reinforced side reducer, rear ballast sets by number of discs, Push-Pull rapid couplings, drawbars and hitches, semi-trailer hooks, trailer brake connections, C.B.M. and WALTERSCHIED implement carriers, and front and rear wheel and tyre combinations. Cross-referencing the variant code against the plates is what prevents ordering a part that physically will not fit your tractor.

What This Parts Catalogue Lets You Do

With this catalogue on hand you can identify and order the correct component for a Fiat 1180 or 1180 DT without guesswork. The exploded plates show how assemblies go together and in what order, the ordered lists give the exact part number and quantity, and the modification tables flag the point in the production run where a part changed – so you know whether your chassis number takes the earlier or the later item. For a machine of this age, that distinction is often the difference between a part that bolts straight on and one that comes back in the post.

Correct part numbers and correct assemblies matter on any rebuild. A wrong seal, a mismatched hydraulic valve or an incorrect clutch release component can cost far more in downtime than the manual ever will. This is the reference the workshop and the parts counter both work from.
