New Holland T4040F Tractor Parts Catalogue (6/08-On) – PDF Parts Manual

Description

New Holland T4040F Tractor Parts Catalogue (6/08-On)

This New Holland T4040F Tractor Parts Catalogue is a complete, illustrated parts reference built specifically for the T4040F model produced from June 2008 onward. It is organized exactly the way New Holland’s own parts counters work: numbered exploded-view diagrams paired with matching reference tables that list every part number, quantity, and description needed to identify and order components correctly.

• Manual type: Illustrated Parts Catalogue
• Brand / Model: New Holland T4040F Tractor (6/08- )
• Language: English
• Page count: 1199 pages
• File format: PDF (digital download)

Chapters Covered

The New Holland T4040F Tractor Parts Catalogue is arranged into the following main sections, each broken into dozens of detailed sub-assembly diagrams:

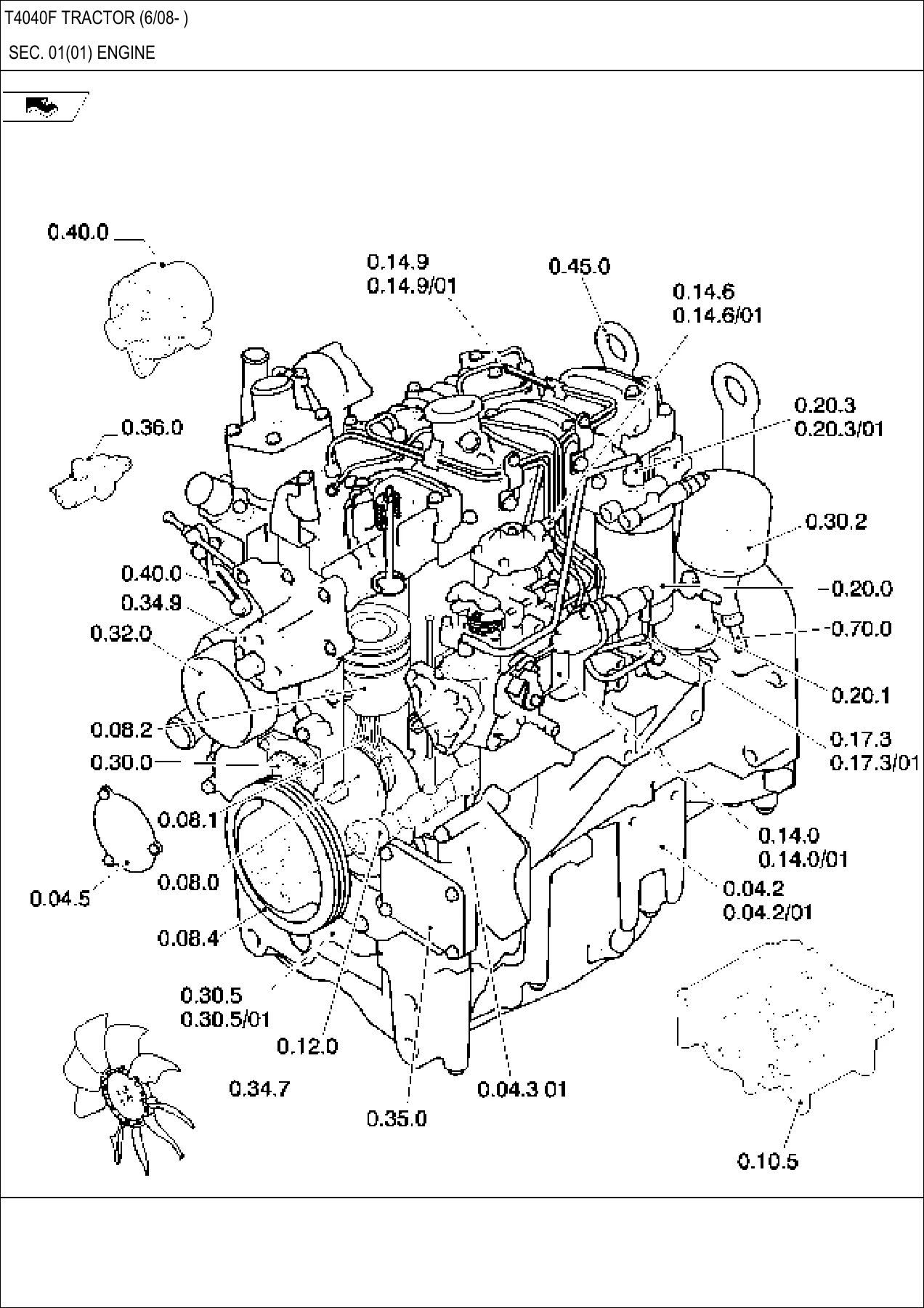

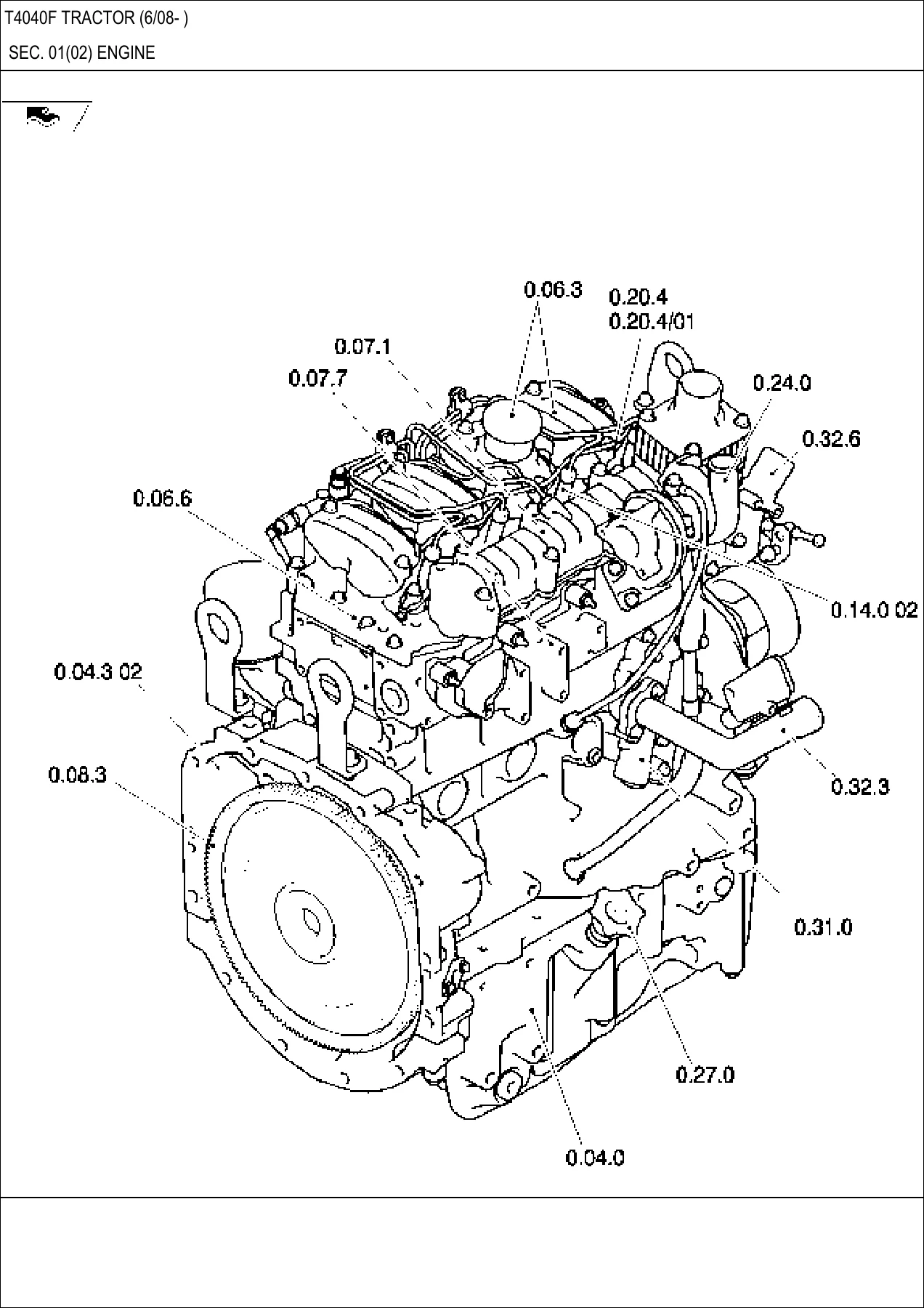

• Sec. 01 Engine (cylinder block, cylinder head, crankshaft, connecting rods, pistons, camshaft, timing control, injection equipment, fuel filter and pump, turbocharger, oil pump and filter, water pump, cooling piping, thermostat, fan and belt drive, PTO, starter motor, alternator)
• Sec. 02 Engine Equipment (fuel tanks and piping, exhaust systems, cooling tank and radiator, air conditioning unit, intercooler, dry air cleaner)
• Sec. 03 Transmission (clutch box, SuperSteer front axle linkage, clutch, clutch controls, 16×16 and 32×16 gearboxes, Hi-Lo and Power Shuttle transmissions, splitter and creeper options, gearbox controls, central reduction gears, differential and differential lock, 4WD idler case and drive shafts)
• Sec. 04 Front Axle (SuperSteer and standard 2WD/4WD front axles, bevel gear pairs for multiple speed/brake configurations, steering knuckles, hubs, differentials, hydraulic steering cylinders, front axle shafts)
• Sec. 05 Rear Axle (final drive gears and shafts, driving wheel shaft, rear ballast options)
• Sec. 06 Electrical (battery mounting and cables, electronic control modules, wiring harnesses for engine/transmission/cab, headlamps, worklamps, instrument cluster, digital instrument cables)
• Sec. 07 Hydraulics (hydraulic pump, lifter housing and distributor valves, remote valve banks (2 and 3 remotes), flow-rate regulators, mid-mount and front HPL valves, hydraulic lift arms and cylinders, trailer brake valve assemblies)
• Sec. 08 Sheet Metal (hood, hood covers and brackets, front fenders for multiple tyre sizes, mudguards and footboards)
• Sec. 09 Linkage (tow bars and hooks in multiple categories, draft control rod and lever, three-point hitch with quick-attach ends, lateral stabilizers, hydraulic right lifting rod)
• Sec. 10 Driver’s Compartment (accelerator pedal and controls, clutch pedal, brake pedals and piping, steering wheel and column, seats (fabric and vinyl variants), cab frame, doors, windows, wipers, cab heating and air conditioning, cab matting, mirrors)
• Sec. 11 Traction (drive wheel rims and complete drive wheel assemblies for 2WD and 4WD in multiple sizes)
• Sec. 13 Decals (left/right/front/rear decal sets, dashboard and cab decals, model identification decals)

Together these sections give a technician a single, page-by-page reference to identify and source the correct part number for virtually any component on the T4040F, from a cylinder head gasket to a hydraulic remote valve to a cab door seal.

IMAGES PREVIEW

Built for Real Parts Work

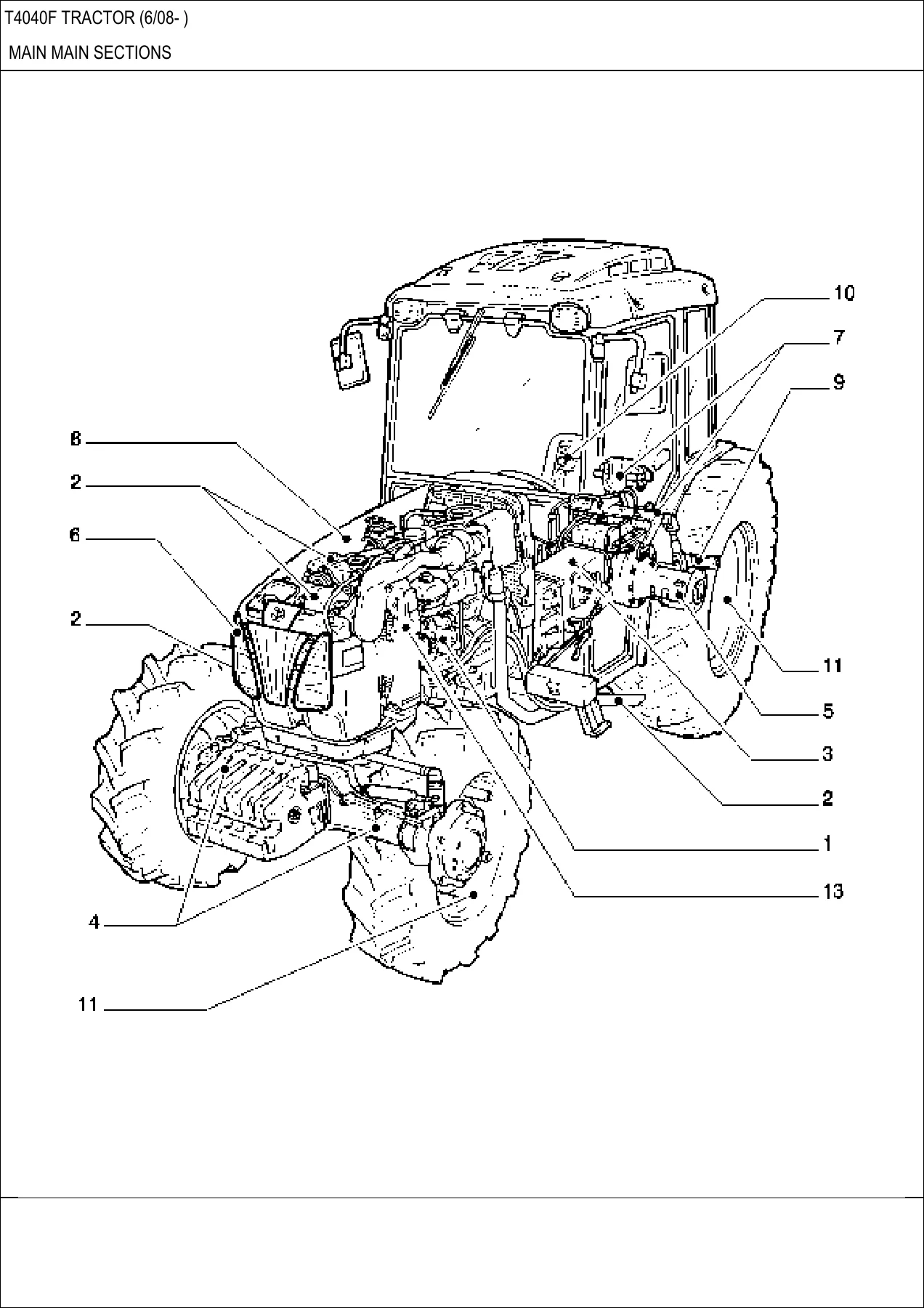

Every diagram in this New Holland T4040F Tractor Parts Catalogue is numbered with reference callouts that key directly into the facing table of Ref, Part Number, Qty, and Description — the same format used at OEM parts counters. Many sections cover multiple build variants side by side (2WD vs 4WD axles, L/CAB vs W/CAB configurations, 16×16 vs 32×16 vs 44×16 transmissions, Hi-Lo, Power Shuttle, and creeper options), so you can match the exact variant fitted to your tractor using the VAR. codes printed on each applicable diagram before ordering a part.

Having accurate part numbers in hand prevents costly ordering mistakes — mismatched bolts, wrong seal kits, or incompatible axle components — and saves repeat trips to a dealer parts counter. This New Holland T4040F Tractor Parts Catalogue puts that same reference in your hands as an instant PDF download: no shipping, no waiting. Open it on a laptop, tablet, or phone in the shop, zoom into any exploded diagram, and print individual pages as needed while you work on your T4040F.
