New Holland T7030, T7040, T7050, T7060 Tractors Service Parts Catalog Manual – 87635889

Description

Complete OEM Parts Identification for New Holland T7000 Series Tractors

The New Holland T7030, T7040, T7050, T7060 Tractors Service Parts Catalog Manual – 87635889 is the definitive master parts reference published by CNH America LLC for high-horsepower T7000 series agricultural tractors. Spanning 351 comprehensive pages, this official publication provides an exhaustive visual breakdown and itemized registry of every assembly, subassembly, casting, internal gear, hydraulic circuit, seal kit, and fastening hardware utilized across the New Holland T7030, T7040, T7050, and T7060 tractor lineup. Whether executing scheduled maintenance, diagnosing mechanical malfunctions, or completely overhauling heavy-duty assemblies, having exact original equipment manufacturer (OEM) part numbers and exploded schematic illustrations eliminates guesswork, prevents incorrect part orders, and ensures factory-standard reassembly tolerances.

File Details

• Manual Type: Service Parts Catalog
• Brand: New Holland
• Equipment Classification: Agricultural Tractors
• Applicable Models: T7030, T7040, T7050, T7060
• Publication Number: 87635889
• Printing Edition: 1st Printing
• Publication Date: January 2007 (1/07)
• Page Count: 1130 pages
• Language: English
• File Format: PDF format

Detailed Machine Section & Technical System Coverage

This New Holland T7030, T7040, T7050, T7060 Tractors Service Parts Catalog is systematically organized into standard CNH industrial sections, allowing mechanics, fleet technicians, and parts specialists to immediately pinpoint specific machine groupings:

• Section 01 — Engine: Full internal and external breakdowns covering the 6-cylinder powerplant, featuring the cylinder block/crankcase, oil sump, timing gear front and rear covers, cylinder head assembly with intake and exhaust valves, rocker arms and pushrods, camshaft, counterweighted crankshaft, connecting rods with standard and undersized bearings, pistons and rings, flywheel and ring gear, fuel injection pump with internal component breakdown, high-pressure common rail manifold and fuel feed piping, injectors, fuel pre-filter and filter head, exhaust manifold and turbocharger assembly, engine oil pump and cooler heat exchanger, thermostat, coolant pump, front serpentine belt drives, Visctronic fan hub drive, starter motor, alternator mounting, and electronic injection engine control harness.
• Section 02 — Engine Equipment: Complete fuel storage and thermal cooling infrastructure, including the 330-liter main fuel tank, 110-liter auxiliary fuel tank, steel tank support straps, heavy-duty fuel tank underguards (Option Variant 131), exhaust silencer and upright stack with heat shielding, 5-row and 6-row radiator cores, coolant expansion tank, radiator shrouding and ducting seals, air-to-air intercooler heat exchanger, dual-element dry air cleaner canister with air intake routing, and engine side protection shields.
• Section 03 — Transmission & Central Reduction: Comprehensive schematics for the Full PowerShift (FPS) transmission architectures (19×6 40 km/h and 19×6 50 km/h with AutoShift and clutchless power shuttle), clutch box assembly, central transmission housing, spacer plates, forward and reverse clutch packs, internal reduction gears, shift control valve bodies with proportional solenoids, supplementary creeper reduction gear unit (Option Variant 146), differential assembly, bevel drive pinion and ring gear sets, differential lock mechanisms, and internal lubrication piping.
• Section 04 — Front Axle & Steering: Extensive coverage of standard 2WD beam axles and multiple heavy-duty 4WD axle configurations, including Class 4 axles with Terralock, SuperSteer articulated axles (Option Variant 217), and active front axle hydropneumatic suspension assemblies (Option Variants 212 and 463). Covers steering knuckles, planetary wheel end hub reductions, articulated drive shafts, steering cylinders, Fast Steer directional control valves, and front hydraulic clutch assemblies.
• Section 05 — Rear Axle & Braking Infrastructure: Heavy-duty rear axle trumpets, final drive planetary carriers, standard flanged wheel shafts, 98-inch, 112-inch, and 119-inch bar axles for steel and cast wheel centers, dual wheel external spacer hubs, wet multi-disc service brakes, oil brake reservoirs, manual parking brake linkages, shuttle-lever operated mechanical transmission park locks (Option Variant 127), and factory pneumatic trailer air brake compressor and piping kits (UK and European configurations).
• Section 06 — Electrical Systems: Main front, rear, and cab wiring harness architecture, single and dual 12V battery carrier trays, mechanically and electrically controlled battery disconnect master isolator switches, hood-mounted driving headlamps, C-pillar halogen field working lights, cab roof perimeter lighting, grabrail work lamps, rotating safety beacons, extremity transport lighting kits, and instrument cluster connections.
• Section 07 — Hydraulics & Power Take-Off (PTO): Hydraulic power lift (HPL) systems with 90 mm and 100 mm external assist lift rams, rear PTO modules supporting 540, 540E, 750, and 1000 RPM operation with interchangeable reversible shafts, closed-center load-sensing (CCLS) hydraulic pumps delivering standard and high-flow 150 L/min displacement with Electronic Draft Control (EDC), remote control valve stacks covering 3-spool, 4-spool, and 5-spool mechanical and electronic rear remotes (EHR), electronic mid-mount valves, and front hitch lift systems.
• Section 08 — Sheet Metal: Tiltable one-piece composite engine hood assembly, front honeycomb radiator grilles, lower side service panels, latching mechanisms, gas-assist lift struts, and 4WD dynamic pivoting front fenders.
• Section 09 — Three-Point Linkage & Hitches: Rear 3-point Category 2/3 linkage, telescopic lower draft links, Walterscheid and CBM lift rods, manual and automatic sway stabilizers, hydraulic top links, automatic pickup hitches, swinging drawbars with clevis, and German/French slider tow hooks.
• Section 10 — Operator Cab & Controls: Deluxe air-conditioned cab structure, structural ROPS cab frame, curved glass doors, windshield and rear hinged window, cab air suspension dampers, high-profile roof shell with HVAC blower ventilation evaporator, floor insulation mats, deluxe air suspension operator seat, instructional passenger seat, multi-function armrest control console, steering console, and electronic transmission control modules.
• Section 11 & 13 — Traction & Decals: Detailed tire and wheel rim combination specifications for 2WD and 4WD agronomic field applications, ballast weight configurations, safety warning labels, and model identification decals.

Chapters Covered

• SEC 01 — ENGINE (Engine Models, Crankcase, Oil Sump, Covers, Cylinder Head, Rocker Shaft, Manifolds, Crankshaft, Pistons, Camshaft, Fuel Injection, Turbocharger, Lubrication, Cooling, Visctronic Fan, Starter, Alternator, Electrical)
• SEC 02 — ENGINE EQUIP. (Fuel Tanks, Lines, Silencer, Radiators, Intercooler, Air Cleaner, Engine Guards)
• SEC 03 — TRANSMISSION (Clutch Housing, Full Power Shift 19×6, Axle Supports, Active Suspension, Clutch Engagement, Hydraulic Control Valve, Reduction Gears, Differentials, Hydraulic Pumps)
• SEC 04 — FRONT AXLE (4WD Hydraulic Clutch, Propeller Shafts, SuperSteer Axles, Active Suspension Axles, Steering Knuckles, Hubs, Differential Locks, 2WD Front Axle, Fast Steer)
• SEC 05 — REAR AXLE (Final Drive Housings, Planetary Gears, Bar Axles 98/112/119 Inch, Transmission Brakes, Park Lock, Trailer Air Brakes)
• SEC 06 — ELECTRICAL (Battery Mountings, Disconnect Switches, Headlamps, Worklights, Cab Lighting, Rotary Beacons, Extremity Lights)
• SEC 07 — HYDRAULICS (PTO 540/540E/750/1000 RPM, PTO Clutch, Front Linkage, Lift Rams, CCLS Hydraulic Pumps, Mechanical & Electronic Remote Control Valves, Trailer Brakes)
• SEC 08 — SHEET METAL (Hood, Grilles, Panels, Dynamic Fenders)
• SEC 09 — LINKAGE (Drawbars, Pickup Hitches, Category 2/3 Linkage, Top Links, Stabilizers)
• SEC 10 — DRIVER’S COMPARTMENT (Cab Frame, Doors, Glass, Roof, Air Conditioning, Seat, Steering Column, Console, Electronic Controllers)
• SEC 11 — TRACTION (2WD & 4WD Wheels, Rim and Tire Combinations)
• SEC 13 — DECALS (Safety Warnings, Model Identifiers, Regional Configurations)
• 0.0040 — OPTIONAL EQUIPMENT (Comprehensive Variant Code Master Registry)

Together, these catalog divisions furnish agricultural service departments, independent repair shops, and machinery owners with the exact factory parts intelligence required to keep New Holland T7000 series tractors running at peak operational capability. Every page cross-references schematic callouts directly with production part numbers, ensuring fast, unambiguous parts identification.

Mastering Parts Breakdowns & Hardware Substitution

Every diagram in this New Holland T7030, T7040, T7050, T7060 Tractors Service Parts Catalog Manual – 87635889 follows a standardized indexing format. Key components are highlighted with numerical reference pointers indicating exact placement, orientation arrows denoting the tractor front direction, and bracketed sub-assemblies showing included hardware. Non-serviced internal parts (marked NSS) are clarified so technicians recognize when complete replacement assemblies are required. Furthermore, this publication incorporates standard metric-to-inch hardware equivalence charts and specific dimensional listings (e.g., bolt thread pitches, hex flange bolt diameters, O-ring cross-sections, and washer dimensions) throughout the parts descriptions, allowing common mounting hardware to be accurately replaced without delay.

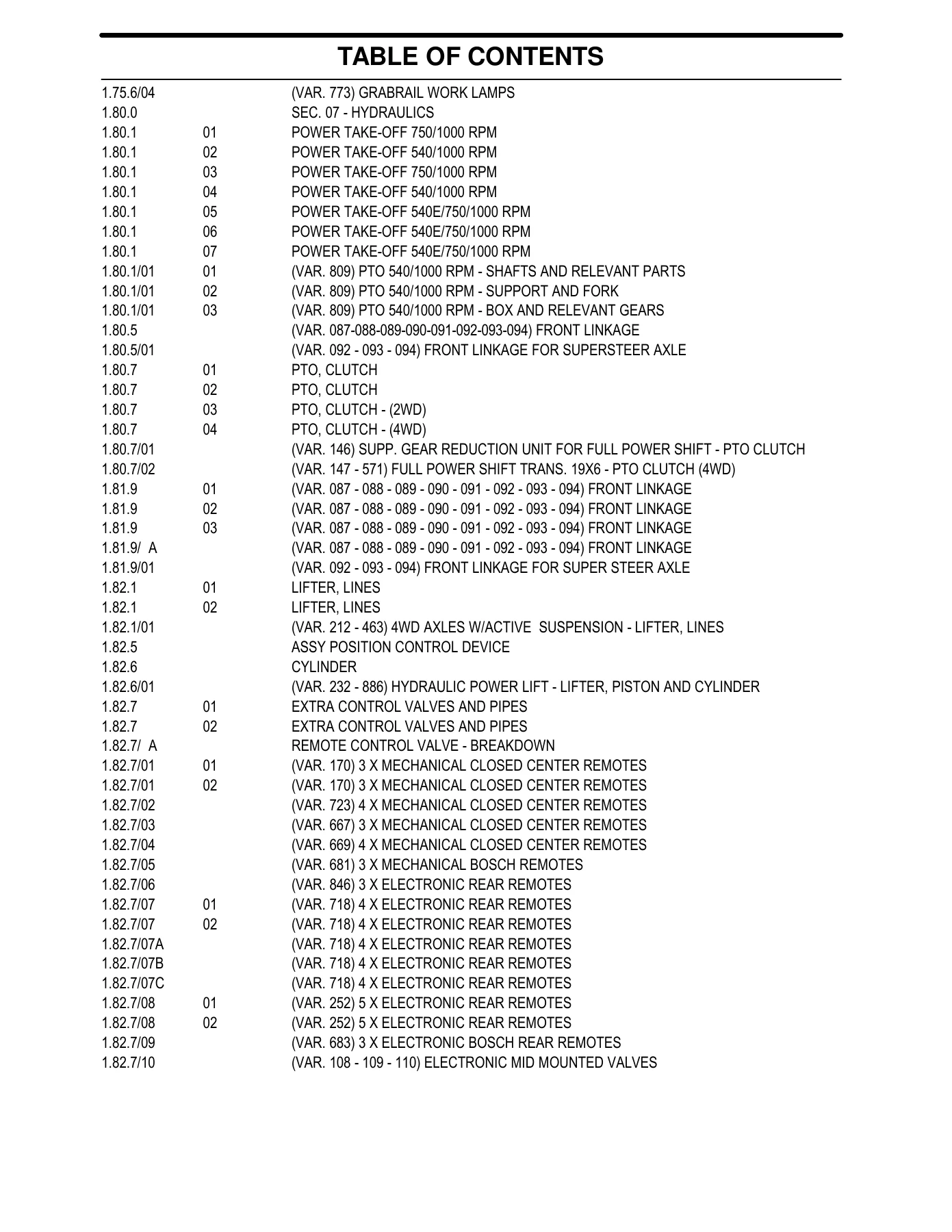

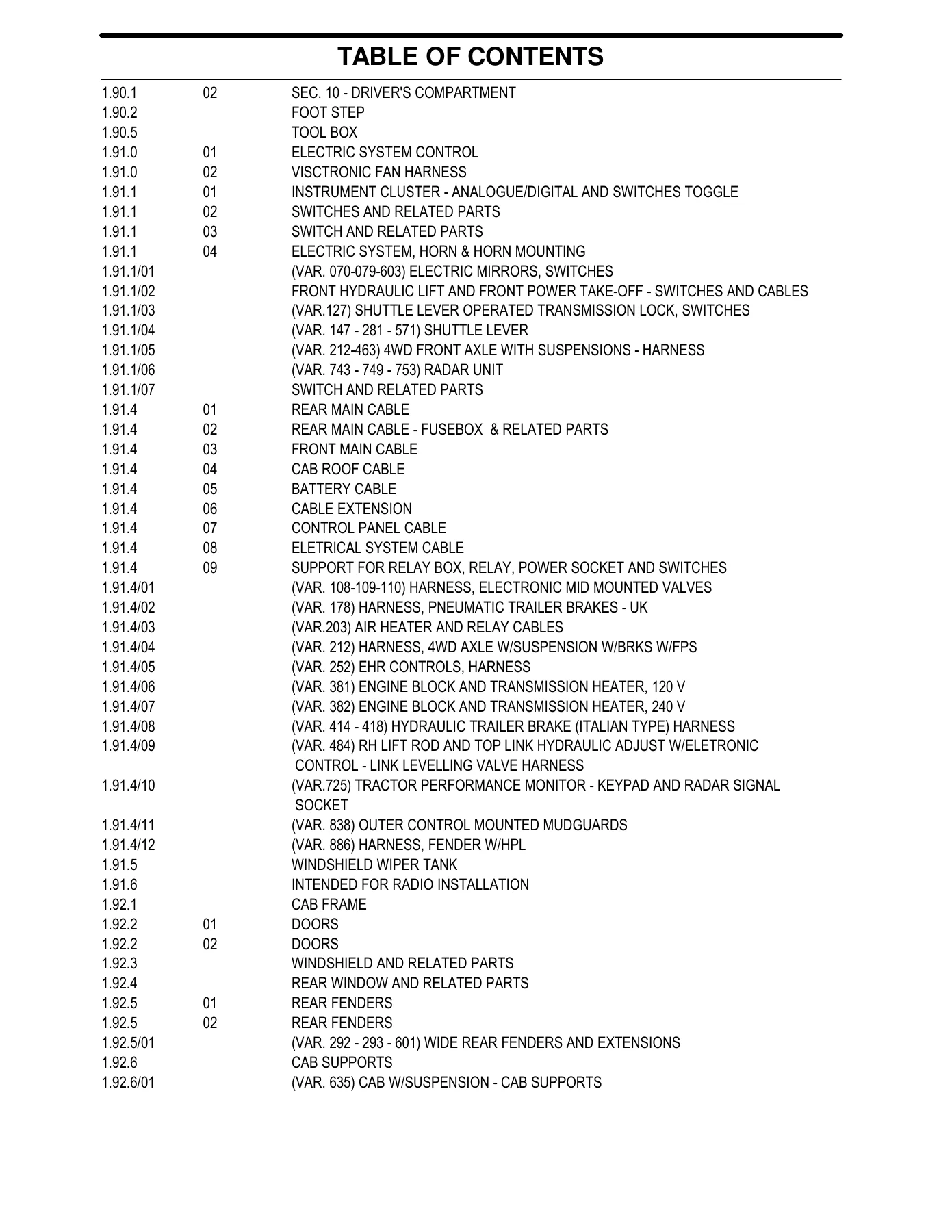

IMAGES PREVIEW

Extensive Option Variant & Configuration Coverage

Because New Holland T7000 tractors were manufactured with an array of regional configurations and high-performance options, this manual integrates detailed variant cross-reference listings. Crucial option variations indexed within the catalog include:

• Variant 147 & 571: 19×6 Full PowerShift transmissions configured for 50 km/h or 40 km/h road travel speeds with automated shifting.
• Variant 217: Class 4 SuperSteer front axle system complete with Terralock automatic differential lock and axle-mounted hitch geometry.
• Variant 212 & 463: Class 4 4WD front axle featuring active hydropneumatic suspension, integrated front hub brakes, and position transducers.
• Variant 004 & 481: High-flow 150 L/min pressure-flow compensating (PFC/CCLS) hydraulic pumps configured for electronic or mechanical rear remote valves.
• Variant 127: Shuttle lever operated mechanical transmission park lock integrated into the central brake reservoir housing.
• Variant 484: Hydraulic top link and right-hand lift rod leveling adjustment with dedicated in-cab electronic controls.
• Variant 181, 431 & 437: Adjustable rear bar axles in 98-inch, 112-inch, and 119-inch widths engineered for dual wheel spacing and row-crop flexibility.
• Variant 718 & 252: 4-spool and 5-spool electronic rear remotes (EHR) featuring electro-hydraulic valve slices and in-cab fingertip control pods.

Professional Workshop Utility, Precision Ordering & Instant Access

Working on modern, computer-managed high-horsepower agricultural machinery demands pinpoint accuracy. Guessing part dimensions, ordering mismatched replacement gears, or omitting internal O-rings during hydraulic valve rebuilds leads to costly downtime and catastrophic component failures. By referencing the New Holland T7030, T7040, T7050, T7060 Tractors Service Parts Catalog Manual – 87635889, technicians gain instant access to factory assembly sequences, exact component part numbers, and comprehensive exploded schematics. Delivered as an instant, downloadable PDF document, this catalog is fully accessible across desktops, shop tablets, and mobile smartphones without shipping delays, and individual chapters or diagram pages can be printed directly for benchtop use during teardown and repair.
