Fordson Dexta & Super Dexta 1957-1964 Parts List – Illustrated Ford Tractor Parts Catalog PDF

Description

Fordson Dexta & Super Dexta Parts List 1957/64

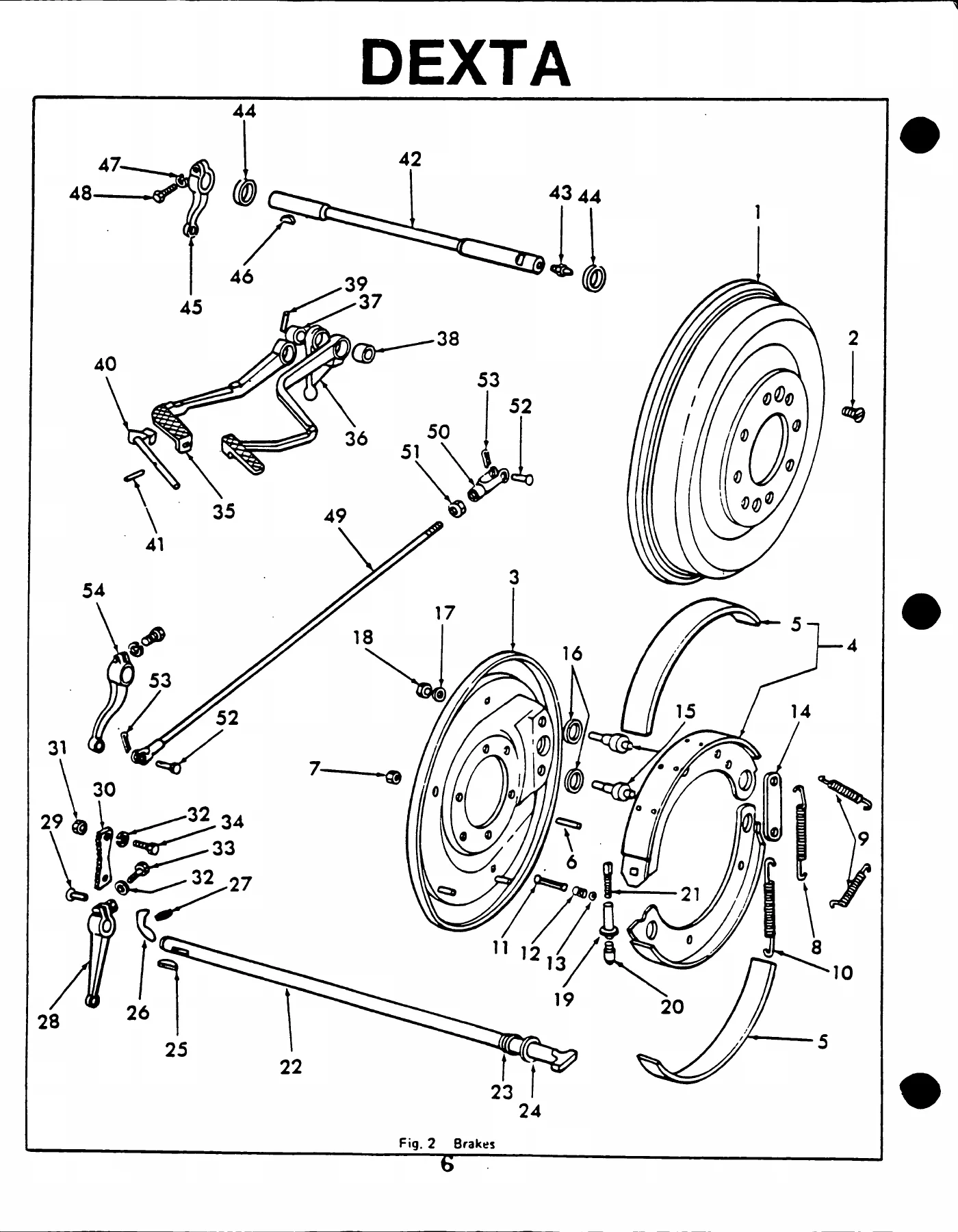

This is the illustrated parts catalog covering the Fordson Dexta and Super Dexta tractors produced from 1957 through 1964. It is the reference a parts counter, restorer or working owner reaches for when a component has to be identified, matched to a serial range, or replaced with the correct number the first time. The document is organised into figure groups, each one an exploded drawing with callout numbers keyed to a table of part numbers, names, quantities and year or serial applicability.

File Details

• Manual type: Illustrated Parts List / Parts Catalog
• Brand: Ford / Fordson
• Models covered: Fordson Dexta, Super Dexta
• Coverage years: 1957/64
• Language: English
• Page count: 174 pages
• File format: PDF
• Document number: FOO-1566-D
• Issued by: Ford Tractor Operations, Troy, Michigan 48084
• Printed in: U.S.A.

Chapters and Figure Groups Covered

• Cooling System – Radiator & Related Parts; Water Pump, Thermostats & Related Parts
• Fuel System – Fuel System; Engine & Fuel Oil Filters; Dual Fuel Oil Filters & Related Parts
• Fuel System & Throttle Linkage – Petrol/Gas; Throttle Controls, Pneumatic & Mechanical; Governor
• Fuel Injection Pump with Pneumatic Governor; Fuel Injection Pump with Mechanical Governor
• Fuel Injector Assembly; Fuel Pump Assembly

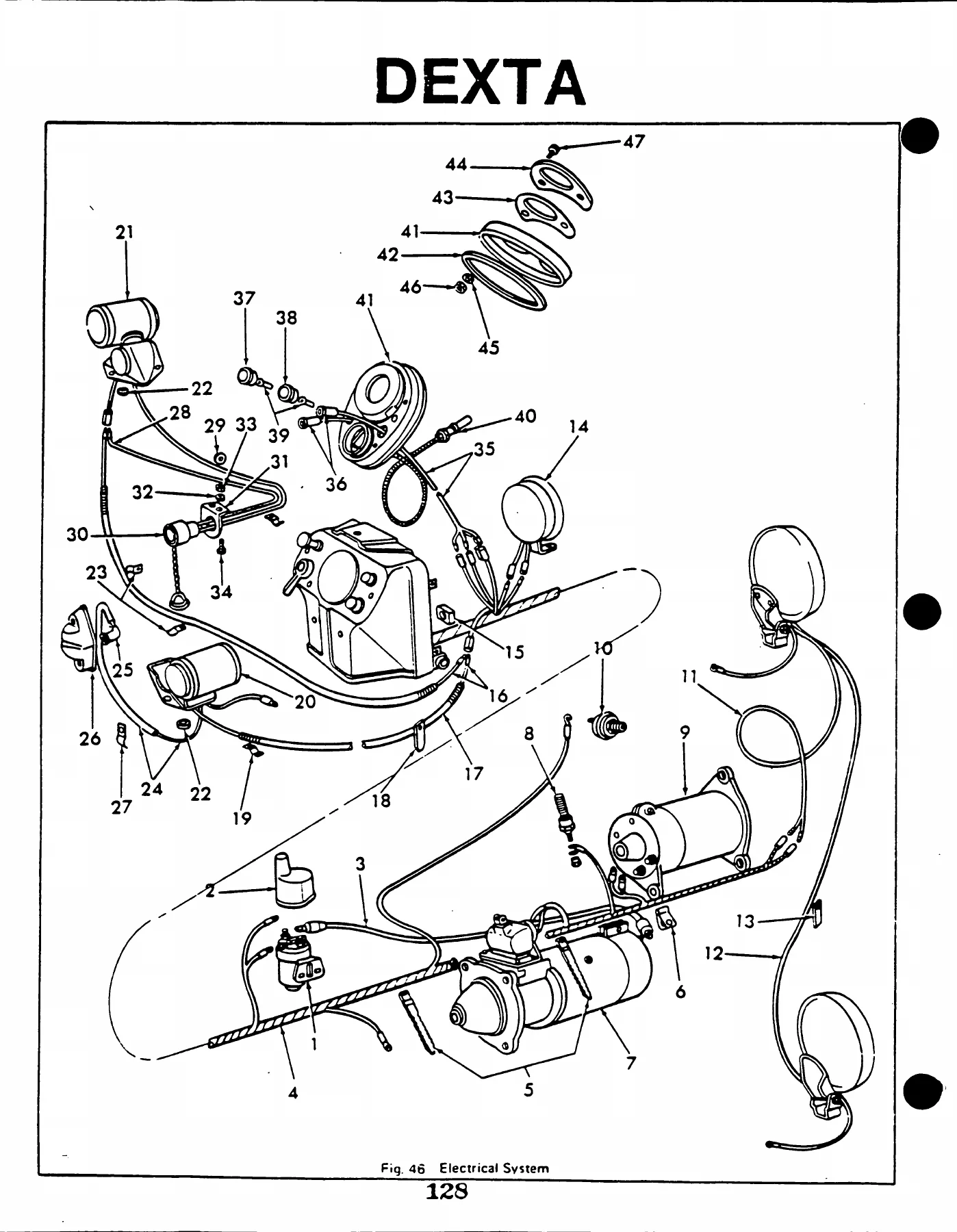

• Electrical System; Head & Rear Lamps; Battery & Tray
• Starting Motor & Related Parts; Generator Assembly & Regulator
• Instrument Panel – Instrument Box; Tachometer
• Seats – Seat Assemblies
• Sheet Metal – Fenders, Platforms & Related Parts; Engine Hood, Grille & Related Parts
• Brakes and Dual Rear Brakes
• Handbrake
• Front Axle
• Steering Gear
• Rear Axle & Differential
• Differential Lock
• Hydraulic Lift Cover, Shaft & Related Parts
• Hydraulic Lift, Ram Cylinder & Related Parts
• Hydraulic Lift Linkage
• Hydraulic Power Lift Pump
• Double Acting Ram Valve
• H.P.L. Link Stabilizer
• Swinging Drawbar
• Dual Auxiliary Valve
• Auto Hitch
• Cylinder Block, Head & Related Parts
• Camshaft, Rocker Arm, Valves & Related Parts
• Oil Pan (Sump)
• Oil Pump
• Inlet and Exhaust Manifold; Muffler
• Transmission & Clutch Housing
• Front Transmission Interior
• Live Power Take-Off & Clutch; Clutch & Linkage
• Pulley Assembly; Pulley Guard
• Wheels and Weights
• Miscellaneous – Drawbar Bracket & Towing Hitch Assembly; Tool Box & Tools; Kits; Accessories
• Standard Hardware; Numerical Index

Across these groups the catalog breaks the tractor down to individual studs, shims, seals, bearings, springs, gaskets, cotter pins and retaining rings, not just the headline assemblies. Each figure is drawn so that the callouts match the numbered line entries directly beneath or beside it, which means a washer or a Woodruff key can be traced from the drawing to its part number without guesswork. Because the same assemblies were revised over the production run, the year column flags which item applies to which build period – for example the brake drum and shoe assemblies carry different numbers either side of a 1962 change, and the fuel injection pump is split between the earlier pneumatic governor version and the later mechanical governor version from April 1962. The catalog also notes where a component was replaced in service, and where a part was withdrawn and is no longer serviced.

Why This Catalog Matters for a Dexta or Super Dexta

Fordson Dexta and Super Dexta tractors are now well past their sixtieth year, and the parts that fail first are rarely the ones with an obvious name on them. It is the shim behind the differential case, the specific tappet spacer thickness, the correct steady post for the brake shoe, the numbered unload valve plug size. Getting one of those wrong means a rebuild that has to come apart again. This parts list gives you the number and the description exactly as the factory recorded it, together with the quantity and the serial break, so the order is placed once.

The same applies to electrical and hydraulic work. Relay, switch, wiring assembly, warning light and generator variations are all listed with their changeover dates, which matters on a tractor that may have been through several service updates in its lifetime. The hydraulic section covers the lift cover, ram cylinder, cross shaft, control valve, unload valve, check valve and the complete linkage, with the colour-coded valve and bushing sizes called out so that a hydraulic fault can be matched to the exact replacement rather than a guessed equivalent.

Practical Uses

• Identifying a part number before ordering a replacement
• Confirming whether a component changed during the 1957-1964 production run
• Rebuilding brakes, including the dual rear brake and handbrake linkage layouts
• Servicing the front axle, steering gear, rear axle, differential and differential lock
• Overhauling the hydraulic lift, ram cylinder, pump and linkage
• Working through the fuel system, injection pump and injector assemblies
• Tracing electrical components, lamps and instrument panel fittings
• Checking sheet metal, fender, platform, hood and grille fixings
• Locating drawbar, towing hitch, tool box and accessory part numbers

IMAGES PREVIEW

Instant PDF Delivery

The Fordson Dexta & Super Dexta 1957-1964 Parts List is supplied as a PDF that is available for download the moment payment clears. There is no shipping and nothing to wait for. Open it on a workshop laptop, a tablet on the bench, or a phone at the parts counter, and print whichever figure pages you need so the exploded drawings can sit beside the tractor while the work is done. Whether the job is a single seal or a complete hydraulic and brake overhaul, this is the parts reference that keeps the numbers right.
