New Holland TD90 Straddle Mount Tractor Parts Catalog Manual

Description

Ensure precision maintenance, equipment overhauls, and accurate component sourcing with this complete New Holland TD90 Straddle Mount Tractor Parts Catalog Manual. Built specifically for the New Holland TD90 Straddle Mount Tractor (1/06-) as well as companion models across the TD series, this comprehensive catalog delivers full technical schematics and complete parts lists directly from the manufacturer build data.

Document Details

• Document Type: Parts Catalog / Illustrated Parts Manual
• Brand: New Holland
• Model Covered: TD90 Straddle Mount Tractor (1/06-) (with cross-coverage for TD60, TD70, TD80, TD95)
• Language: English
• Page Count: 747 pages
• File Format: PDF
• Applicable Series Production: From 01/2006 onwards

Comprehensive Section Breakdown

This parts manual is organized according to original factory functional groups, providing detailed schematic breakdowns and part-number listings for every mechanical and electrical assembly:

• SEC. 01 ENGINE: Complete engine assemblies (Tier 1 and Tier 2 TTF/FPT engines for North America and ISO markets), cylinder block, crankcase and cylinders, oil sump and pan gaskets, front and rear covers, cylinder head, intake and exhaust valves, rocker arms, intake manifold, exhaust manifold, crankshaft and bearings, connecting rods, pistons and rings, flywheel and ring gear, pulleys and hubs, camshaft, dynamic balancer, fuel injection pump, fuel injectors, lines, filters, fuel feed pump, supercharging/turbocharger assemblies and oil lines, oil pump, engine oil filter, lubrication pipes, oil cooler, water pump, thermostat housing, cooling fan, alternator mounting, and tachometer drive.
• SEC. 02 ENGINE EQUIPMENT: Accelerator control, pedal linkage, fuel tank and mounting brackets, fuel pipes, muffler, vertical exhaust pipes and guard shields (VAR.134, VAR.136), radiator assembly, cap, expansion tank, cooling lines, conveyor/fan cowl, dry air filter system, dust ejector (VAR.199), air intake sleeves, auxiliary cold starter thermostart (VAR.203), and engine fan shield guards (VAR.836).
• SEC. 03 TRANSMISSION: Tractor body housings and spacers, transmission cases, front axle transmission supports, clutch assemblies, clutch discs, PTO transmission coupling, clutch pedal controls, shifter forks, levers and tie-rods, PTO control cable, 12+4 synchro gearbox and shafts (VAR.116), 20+12 synchro shuttle with creeper reduction gearing (VAR.113), inner shift rails, forks and pawls, outer selector controls, central reducer bevel gear pairs (9/43, 11/43), range shift controls, differential housing and planetary gearing, differential lock control linkage, and transmission brake discs.
• SEC. 04 FRONT AXLE: Front axle center housing (2WD and 4WD), drop box transfer unit, steering pivot pins, stub axle spindles, steering knuckles, wheel hubs, track rods and tie-rod ends, axle pivot supports, front bevel gear pairs, standard differential, limited-slip differential (VAR.325, VAR.539), articulated half-shafts, universal joints, planetary epicyclic reduction hubs, and power steering hydraulic cylinders and lines.
• SEC. 05 REAR AXLE: Rear axle side reduction boxes and covers, reinforced side reduction gears (VAR.450), drive wheel half-shafts, final drive pinions and bull gears, wheel hubs, brake disc packages, service brake pedal linkage, equalizer rods, hand brake lever assembly, and rear wheel counterweights (VAR.471).
• SEC. 06 ELECTRICAL SYSTEM: Battery mounting brackets, battery cables, starter motor (Bosch and standard OEM), alternator assembly, main instrument cluster, tractor-meter drive cable, lighting controls, safety push switches, ignition switch, horn, flasher relays, wiring harnesses (chassis, engine, fenders, lighting), work lamps (VAR.767), headlights (VAR.760), and license plate lighting.
• SEC. 07 HYDRAULICS: Hydraulic lift housing and rockshaft, hydraulic suction and delivery pipes, main hydraulic pump options (standard 10.8 GPM / 40.1 L/min and high-flow VAR.823 13.6 GPM / 51.7 L/min), hydraulic lift control valve spool assemblies, internal lift cylinder and piston, external auxiliary control valves (single/double acting, kick-out, float configurations VAR.054, VAR.103, VAR.306, VAR.366, VAR.368, VAR.412, VAR.413/1, VAR.417, VAR.827), quick-release couplers, and quadrant control levers.
• SEC. 08 SHEET METAL & DRIVER COMPARTMENT: Engine hood, front grille, side panels, gas struts, instrument panel cowl, footboards, operator platform, floor mats, ROPS rollbar frame and supports, folding ROPS canopy (VAR.857), rearview mirrors (VAR.613, VAR.614), and rear fender rubber extensions (VAR.869).
• SEC. 09 LINKAGE & DRAWBARS: Front hitch (VAR.892), swinging drawbar, swinging pick-up hitch (VAR.929), fixed drawbars (VAR.905, VAR.912, VAR.953, VAR.954, VAR.955), three-point hitch lift arms, top links, leveling rods, and stabilizer sprags.
• SEC. 10 & 13 DRIVER ACCESSORIES & DECALS: Operator suspension seats (standard mechanical and VAR.190 deluxe vinyl), onboard tool box, service wrenches, grease gun, and safety/model identification decals.
• SEC. 11 TRACTION: Comprehensive wheel, tire, and rim configurations for 2WD front wheels, 4WD front driving wheels, and rear drive wheels across all agricultural tire specifications.

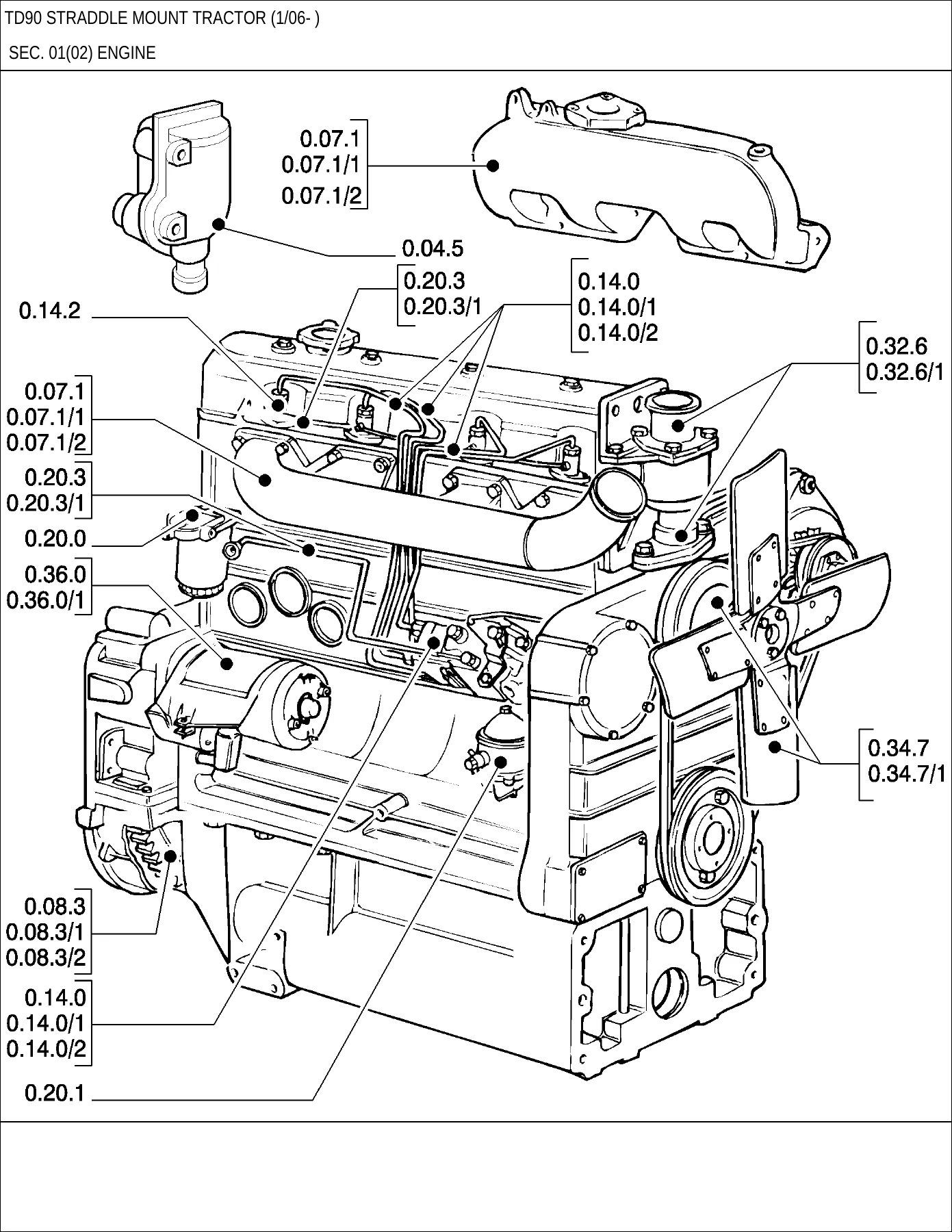

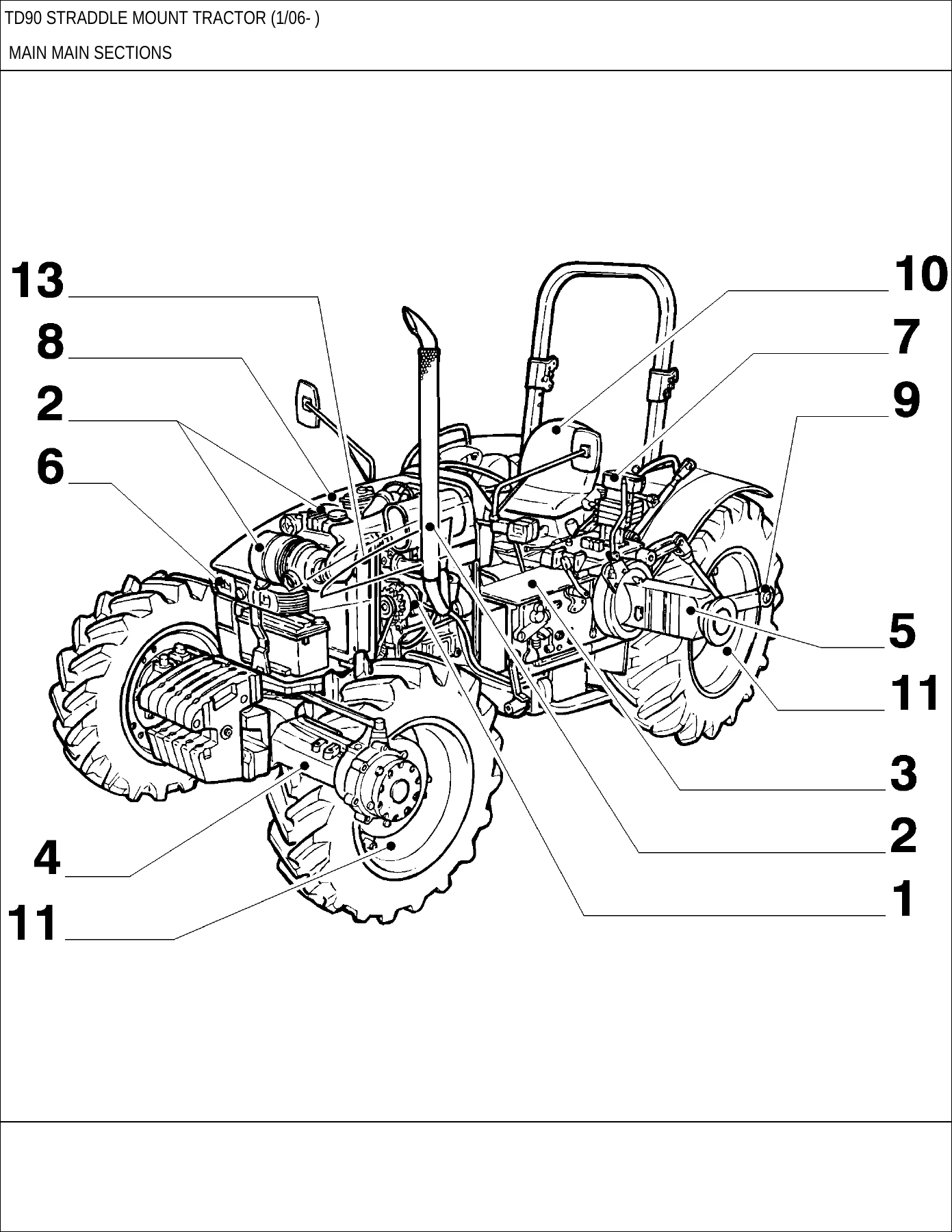

IMAGES PREVIEW

Whether you are performing routine maintenance, replacing damaged wear components, or rebuilding major drivetrain units, the exploded views in this catalog allow you to understand assembly sequence, verify hardware sizes, and order exact replacement parts without guesswork.

Professional Workshop Utility & Instant Delivery

The New Holland TD90 Straddle Mount Tractor Parts Catalog Manual gives owners, mechanics, and parts specialists an essential shop companion. Every illustration isolates individual fasteners, seals, O-rings, bearings, gears, and structural housings alongside genuine New Holland part numbers, quantities, and technical notes. Delivered as an instant PDF download, this manual is completely portable for use in the field or workshop on any laptop, tablet, or smartphone, and can be printed on demand.
