Sparex Case IH Replacement Parts Catalogue S.73932

The Sparex Replacement Parts Catalogue S.73932 is the complete parts reference for Case IH tractors, loaders and industrial equipment. It covers everything Sparex supplies for these machines – from water pumps and thermostats through pistons, liners and gasket sets, clutches, brake discs, hydraulic pumps, rear axle components, cab glass, body panels and electrical parts. Each listing gives the Sparex number, the original equipment reference, and a clear note of which Case IH models the part fits, so you can identify the right component without guesswork.

File Details

• Manual type: Replacement Parts Catalogue
• Brand: Case IH / Sparex
• Language: English
• Page count: 204
• File format: PDF
• Publication No.: S.73932

Chapters Covered

• IH01 Cooling
• IH02 Front Axle
• IH03 Engine
• IH04 Clutch
• IH05 Transmission & PTO
• IH06 Brakes
• IH07 Hydraulic Pumps
• IH08 Rear Axle
• IH09 Rear Linkage
• IH10 Electrics & Instruments
• IH11 Tractor Cabin & Cab Glass
• IH12 Body Panels, Decals & Paint
• IH13 Industrial Models – Poclain 580
• IH15 Compact Tractor Parts
• IH16 Index (OE to Sparex)

IH01 Cooling

Water pumps, water pump repair kits, radiators, radiator caps, thermostats, fan blades, hoses (top, bottom and inlet) and fan belts for the full Case IH range. Applications are listed by model and engine, and cross-referenced to original equipment numbers, so you can match a pump or belt to a B275, 385, 885XL, Maxxum or Magnum without relying on a dealer.

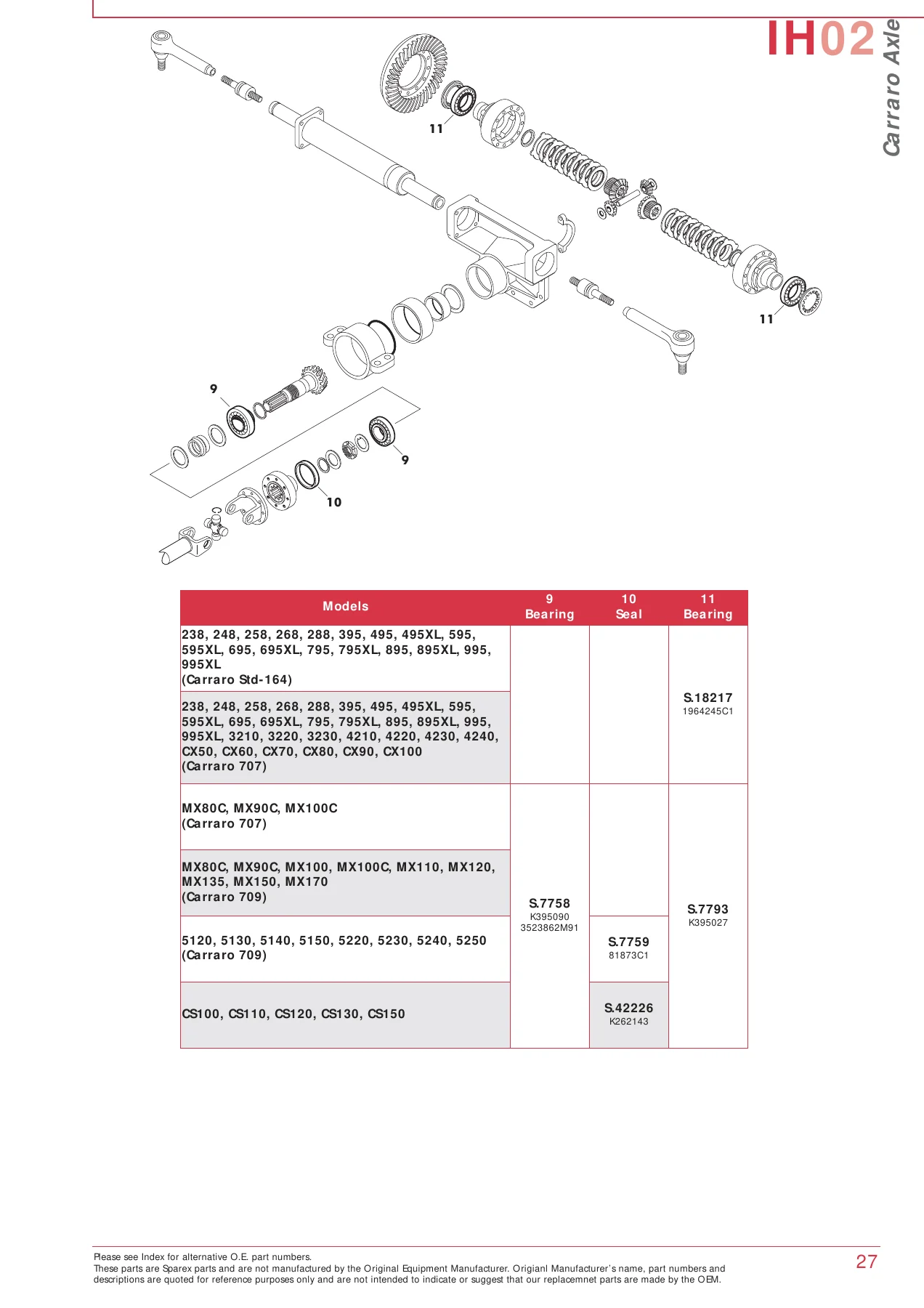

IH02 Front Axle

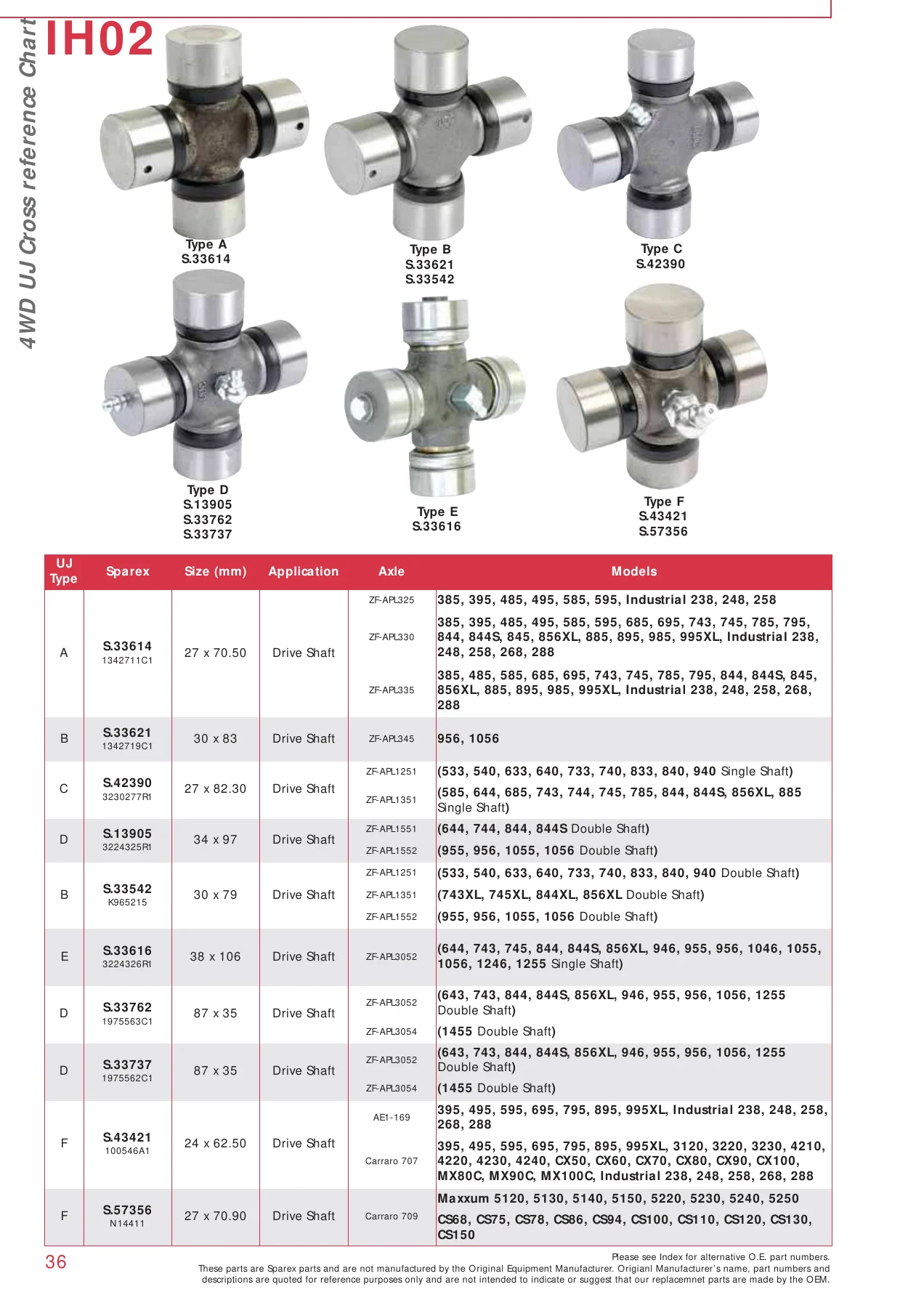

Front wheel hubs (2WD), front and rear wheels, complete front axle assemblies, steering boxes, power steering components, Carraro axle sections, ZF axle sections, 4WD universal joints, couplers and tie rods. The axle section includes bearing and seal kits, spindles, hubs and repair kits for both swept-back and straight axles, with thread sizes and shaft lengths noted.

IH03 Engine

The largest section of the catalogue. Cylinder heads, combustion chambers, valves, springs, camshafts, bush kits, rocker arms, push rods, tappets, timing gears, pistons, ring sets, liners, gasket sets, engine overhaul kits, oil pumps, crankshafts, main bearings, con rods and bearings, fuel pumps, injector nozzles, cables, manifolds, silencers and filters. Piston and liner dimension charts are included so you can confirm bore size, ring groove type, compression height and pin diameter before ordering. The charts cover D155, D179, D206, D239, D246, D268, D310, D358, DT358, DT402, 4BT-390 and 6BT-590 engines among others.

IH04 Clutch

Complete clutch assemblies for dual and single-plate applications, clutch covers, drive and PTO plates, release bearings, pilot bearings, damper assemblies and miscellaneous clutch components. Fits Case IH models from the B250 and B414 right through to Maxxum, MX and CS series tractors. Dimensions (diameter x thickness x spline count) are given where applicable.

IH05 Transmission & PTO

Independent PTO shafts, seals, bearings, O-rings and seal kits. Torque amplifier and clutch pack kits, friction and steel plates, and PTO clutch pack kits for the 385, 395, 454, 474, 484, 485, 495, 574, 584, 585, 595, 674, 684, 685, 695, 784, 785, 795, 884, 885, 895 and 995XL, plus 3210 through 4240 and the CX range.

IH06 Brakes

Brake master cylinders, seal kits, bushes, return springs, brake discs (standard and intermediate), O-ring kits, pistons and brake bands. Foot brake, differential brake and parking brake components are listed separately, with handbrake cables in a range of lengths for different cab configurations.

IH07 Hydraulic Pumps

Hydraulic pumps (single and tandem), pump gears, O-rings, seal kits, gaskets, hydraulic couplings and lift arms. Applications span the B275, 385, 454, 474, 484, 485, 574, 584, 585, 674, 684, 685, 784, 785, 884, 885, 895, 995XL, 3210 through 4240, CX range, Maxxum and more.

IH08 Rear Axle

Rear axle seals, sleeves, bearings, gaskets, studs, washers and nuts. Suits the B275/276/354/374/384/B414/434/444 as well as 385, 395, 454, 474, 484, 485, 495, 574, 584, 585, 595, 674, 684, 685, 695, 784, 785, 795, 884, 885, 895, 995XL, 3210-4240, CX and Maxxum.

IH09 Rear Linkage

Top links (standard duty and heavy duty, Cat 1/2 and Cat 2/3), levelling boxes, levelling yokes, forks, boots, stabilisers, auto hitch components and lower link ends. Tube lengths and min/max working ranges are listed so you can match the correct top link or levelling box to your machine.

IH10 Electrics & Instruments

Starter motors, starter motor components (solenoids, armatures, field coils, pinions, brush sets), dynamos, alternators, ignition switches, lighting switches, horn switches, brake light switches, relays, flasher units, 3-pin sockets and plugs, fuel senders, gauges, cables, head lamps, front/side lamps, rear lamps, work lamps and batteries. Voltage and amperage ratings are given for the electrical components.

IH11 Tractor Cabin & Cab Glass

Cab glass for L Series, XL Series, XLN Series, LP Series, Maxxum Series, Maxxum Pro Series, CS & CVX Series, CX/MX/MXC/MTX/XTX Series, JXC Series, JXU Series, MXM Series and MXU Series. Each glass panel is described (windscreen, door, side, rear upper, rear lower) and given its OEM reference and fixing/handle part numbers. Also covers glazing rubber, gas struts, cab handles and cab trim.

IH12 Body Panels, Decals & Paint

Fenders, front grilles, headlamp mountings, emblems, seats, paint colours (Case IH Red, Maxxum Red, Power Yellow, Silver Grey, White Aluminium, plus David Brown and McCormick colours) and a list of tractor manuals. Includes the correct paint codes for Case IH, Case-David Brown, McCormick and Industrial models.

IH13 Industrial Models – Poclain 580

Parts for the Case/Poclain 580F, 580G, 580K, 580L, 580SE, 580SK, 580SL, 590Turbo, 590SL, 680L and 780D. Includes 4WD axle components, tie rods, engine valves, springs, collets, gaskets, manifolds, thermostats, oil seals, gasket sets, crankshafts, con rod bearings, main bearings, fuel pumps, oil pumps and electrical parts.

IH15 Compact Tractor Parts

Steering boxes, steering shafts, steering sector gears, bearings, shim packs, steering ball and tube kits, glow plugs, pressure plates and clutch kits for Case IH compact tractors including the 234, 235, 244, 245, 254, 255, 265, 274, 275, D25, DX25, D29, DX29, D33, DX33, D35, D40, DX40, D45 and DX45. A separate section covers compact tractor filters (oil, fuel, air, hydraulic).

IH16 Index (OE to Sparex)

A complete cross-reference index mapping original equipment part numbers to their corresponding Sparex numbers and page references. This is the fastest way to convert a Case IH part number into a Sparex order number.

Model Coverage

The catalogue covers Case IH models including the B250, B275, B276, B354, 385, 395, 454, 474, 475, 484, 485, 495, 574, 584, 585, 595, 674, 684, 685, 695, 784, 785, 795, 884, 885, 895 and 995XL; the 3210, 3220, 3230, 4210, 4220, 4230 and 4240; the CX50, CX60, CX70, CX80, CX90 and CX100; the Maxxum 5120, 5130, 5140, 5150, 5220, 5230, 5240 and 5250; the MX80C, MX90C, MX100C, MX100, MX110, MX120, MX135, MX150 and MX170; the Magnum 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240 and 7250; and the JX, MXM, MXU, Puma, STX, CS and CVX ranges. Industrial models include the Poclain 580F, 580G, 580K, 580L, 580SE, 580SK, 580SL, 590Turbo, 590SL, 680L and 780D, plus compact tractors from the 234 through DX45.

Why This Catalogue Matters

Buying the wrong part costs time and money. This catalogue removes the guesswork by listing the Sparex number, the OE reference and the exact model applications side by side. Whether you are servicing a single B275 or running a fleet that includes Maxxum, Magnum, MX, MXM, MXU, Puma, CS, CVX, JX and CX models, the correct replacement part is indexed and described. It covers cooling, engine, clutch, transmission, brakes, hydraulics, rear axle, linkage, electrics, cab, body panels and the complete Poclain 580 industrial range.

IMAGES PREVIEW

Instant PDF Delivery

This is a digital PDF download – no shipping, no waiting. You can open it on any phone, tablet, laptop or desktop, print the pages you need for the workshop, and search for a part number or model instantly. Keep a copy on the workshop computer, a copy on your phone, and a printed copy in the toolbox. It’s the reference Sparex users, independent mechanics and Case IH owners rely on to get the right part the first time.
