Ford 7610 4 Cyl AG Tractor Parts Catalogue 1981-1991

This is the complete illustrated parts catalogue for the Ford 7610 4 Cyl AG Tractor and related four-cylinder models built from January 1981 through October 1991. Every exploded view, part number, quantity and description for the 7610 and its stablemates has been preserved in this 850-page PDF. Whether you are ordering a single bearing or rebuilding an entire hydraulic lift cover, this Ford 7610 parts catalogue gives you the exact reference numbers to get the right component the first time.

File Details

• Manual type: Illustrated Parts Catalogue
• Brand: Ford / New Holland
• Primary model: 7610 4 Cyl AG Tractor
• Coverage years: 01/01/1981 – 10/31/1991
• Language: English
• Page count: 850 pages
• File format: PDF

Chapters Covered

Every section of the Ford 7610 4 Cyl AG Tractor parts catalogue is organised by assembly group, so you can jump straight to the system you are working on. The main chapters include:

• Wheels & Weights – front wheel assemblies, rear wheels, rims, discs, wheel weights and front end wafer weights
• Brakes – brake housings, discs, brake controls, pedals, linkage, transmission handbrake, hydraulic trailer brakes and twin cable handbrake
• Front Axle & Steering – steering gear, power steering pumps, steering motors, front axle assemblies, heavy duty axles, FWD differentials, spindles, hubs, planet carriers, transfer cases, drive shafts and reduction gears
• Rear Axle – differential, crown wheel and pinion, rear axle housings, trumpet housings, shafts, bearings, differential lock controls, centre housing and drop trumpet rear axle assemblies
• Hydraulic – hydraulic lift cover, lift controls, lift shaft, lift cylinder, load monitor, lift linkage, check chains, stabiliser kits, swinging drawbars, drawbar stays, remote control valves, unload valves, quick hitch linkage, assistor ram kits, pick-up hitches and in-cab levelling
• Engine – cylinder block, cylinder head, crankshaft, flywheel, camshaft, rocker arms, valves, oil pump, oil pan, manifolds, exhaust system, turbocharger, pistons, connecting rods and engine gasket kits
• Transmission – 8-speed and 16-speed transmissions, gearshift covers, shift levers, transmission gears, synchronised transmission case and gears, dual power, reduction gear boxes, oil cooling system, PTO assemblies, PTO controls, PTO guards and clutch assemblies
• Cooling – radiators, oil coolers, water pumps, coolant filters, coolant reservoirs and related hoses
• Fuel – fuel tanks, auxiliary fuel tanks, fuel filters, fuel injection pumps, fuel injectors, cold start systems, air cleaners and throttle controls
• Electrical – main harnesses, alternators, starting motors, batteries, headlamps, rear lamps, flasher lamps, trailer sockets, buzzers and related electrical components
• Instrument – instrument cluster assemblies, field monitors, performance monitors, hourmeters, cigar lighters and voltmeters
• Seat – super comfort seats, custom deluxe seats, Bostrom seats, Grammer seats and suspension assemblies
• Sheet Metal – flat top fenders, platforms, tool boxes, mud fenders, engine hood, grille, front fenders, covers, boots and panels
• Cab – cab body, doors, roof, front and side glass, rear windows, interior trim, cab underbody, cab electrical system, air conditioning and heater hoses, heaters, windshield washer, roll bars, ROPS, soft side cabs and LP cab frames
• Decal – identification decals, instruction decals, safety decals and shift pattern decals
• Misc – paints, lubricants, tool kits, hydraulic remote control cylinders, rear tow hooks, mirrors, safety equipment and radio accessories

This Ford 7610 4 Cyl AG Tractor parts catalogue is arranged so that every assembly is broken down into its individual components with reference numbers that cross-reference the exploded illustrations. That means you can identify a part visually on the diagram, find its reference number, then locate the exact Ford part number and quantity required. The catalogue also includes coverage for many companion models – 5110, 5610, 5900, 6410, 6610, 6610-O, 6710, 6810, 7410, 7610 Mudder and 7710 – making it a practical reference not just for the 7610 but for the wider four-cylinder tractor family of that era.

What This Ford 7610 Parts Catalogue Enables You To Do

With this Ford 7610 parts catalogue in hand, you can accurately identify and order parts for virtually any system on the tractor. That includes routine service items like filters, gaskets and seals, as well as major components such as hydraulic pumps, steering motors, transmission gears and differential assemblies. Having the correct exploded diagrams and part numbers prevents the expensive mistakes that come from ordering the wrong component – especially on a machine that was built in multiple configurations for different markets over a ten-year production run.

Because the catalogue covers the entire 7610 4 Cyl AG Tractor and related models from 1981 to 1991, you can use it to check part numbers across different build dates, confirm supersessions and understand how assemblies fit together. The diagrams are clear enough to guide disassembly and reassembly, and the part number listings give you the confidence to buy from any supplier knowing you have the correct reference.

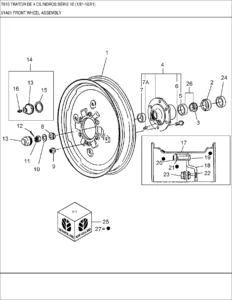

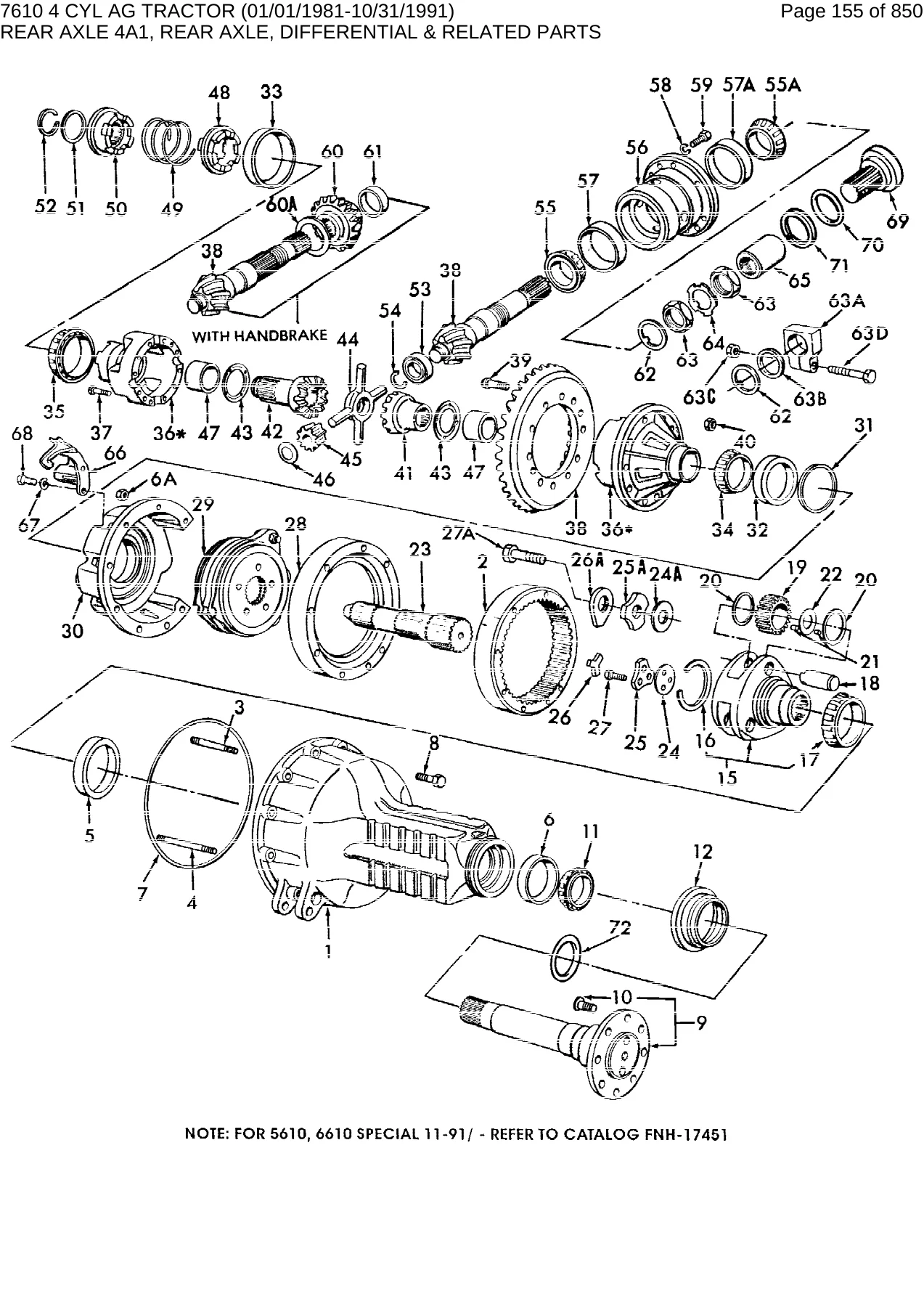

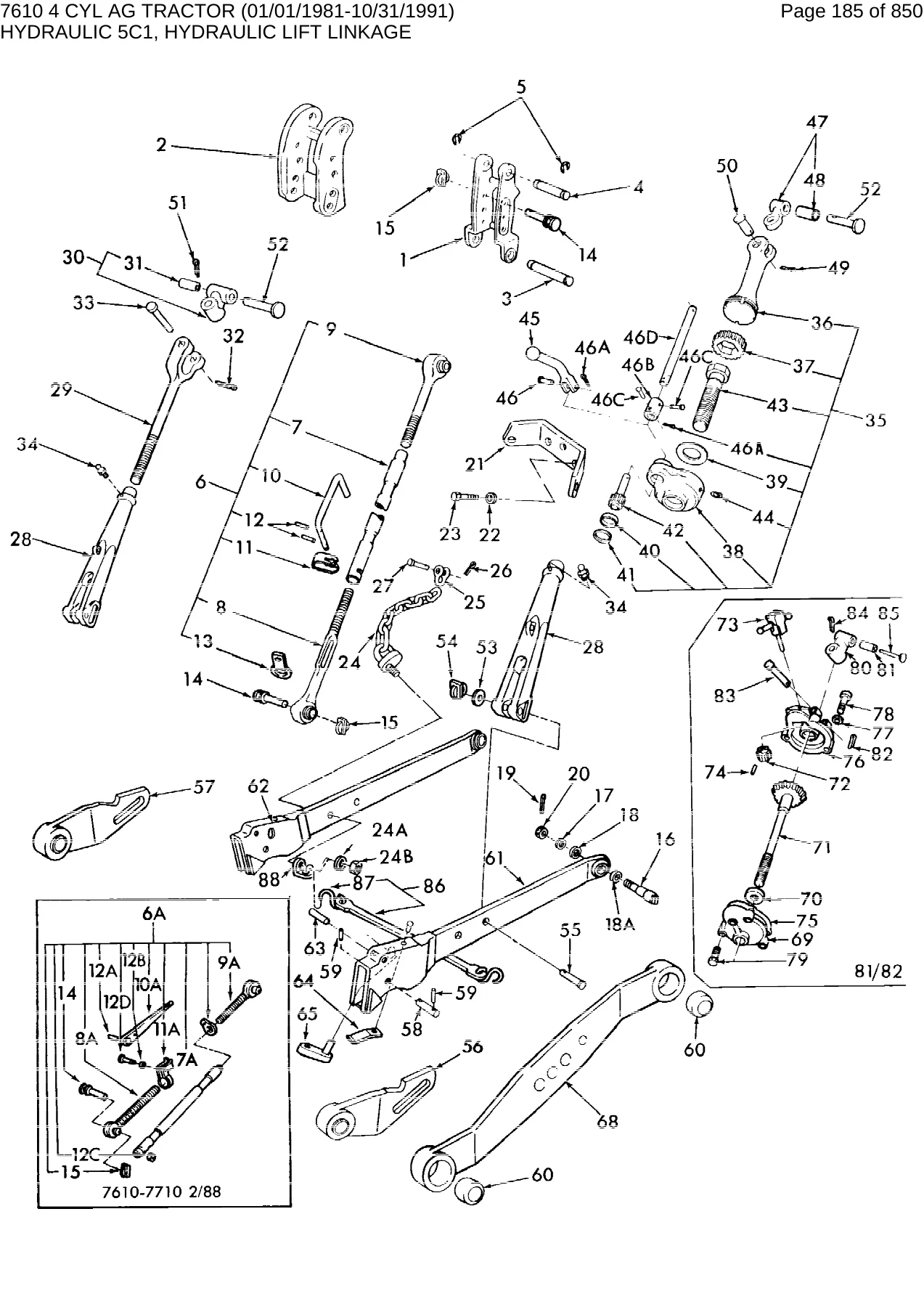

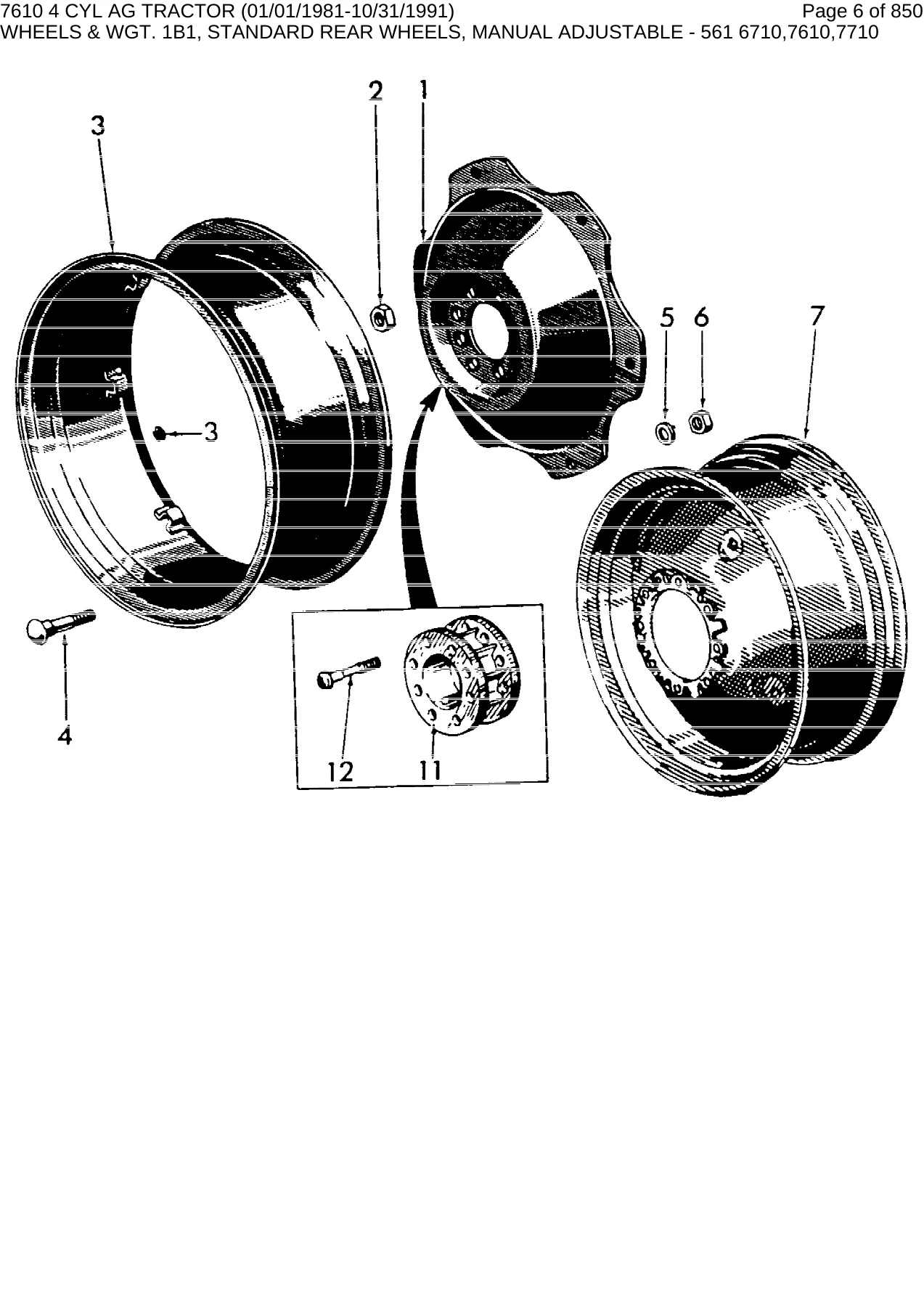

IMAGES PREVIEW

This is a digital PDF download, so there is no waiting for a physical book to arrive and no shipping cost. You can open the Ford 7610 4 Cyl AG Tractor parts catalogue on any computer, tablet or smartphone, zoom in on the exploded views, and print only the pages you need for the workshop. Whether you are a professional technician, a farmer maintaining your own equipment, or restoring a 7610, this parts catalogue is an essential reference that pays for itself the first time it saves you from ordering the wrong part.
