Gehl R165 Skid-Steer Loader Parts Manual 50940205 2014 – PDF Download

Description

Gehl R165 Skid-Steer Loader Parts Manual — 2014 Edition

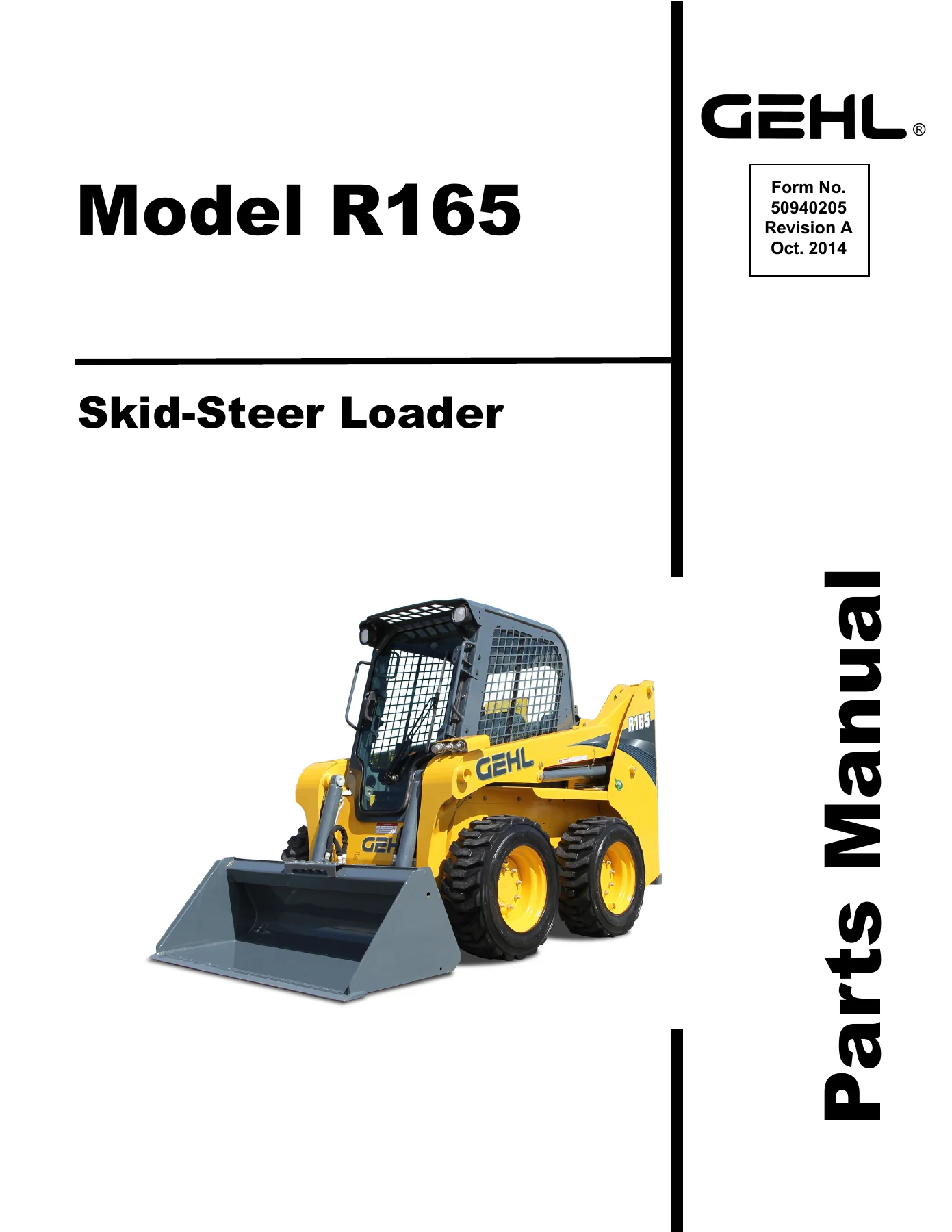

This is the complete illustrated Gehl R165 Skid-Steer Loader Parts Manual, document number 50940205/AP1014, published in 2014 by Manitou Americas. It covers the R165 model in full detail with exploded-view illustrations and part numbers for every major assembly on the machine. Whether you are ordering a replacement hydraulic cylinder, tracking down a seal kit for a drive motor, confirming the correct latch assembly for the rear door, or sourcing a new fuel sender, this Gehl R165 parts manual gives you the reference numbers and assembly relationships you need to get the right component the first time.

File Details

• Manual Type: Illustrated Parts Manual (Parts Catalog)
• Brand: Gehl
• Model: R165 Skid-Steer Loader
• Document Number: 50940205/AP1014
• Edition / Date: 2014
• Publisher: Manitou Americas, Inc.
• Language: English
• Page Count: 204
• File Format: PDF

Chapters Covered

• Special Tools, Paint & Analysis Kits
• Chassis
• Fenders
• Bumper & Counterweight (Bumper Only Group / Counterweight Group)
• Lift Arm
• ROPS/FOPS
• Side Windows (Option)
• Glass Door (Option) & Glass Door Components
• Single Pump Washer Bottle (Option)
• Double Pump Washer Bottle (Option)
• Rear Wiper (Option)
• Heater Components (Option)
• Restraint Bar
• Non-Suspension Seat
• Mechanical & Air Suspension Seats
• Seat Belt Options
• Three-Point Restraint Options
• T-Bar Controls (1 of 2 / 2 of 2)
• Hand-Foot Controls (1 of 2 / 2 of 2)
• Foot Throttle — Electrical
• Joystick Controls (1 of 2 / 2 of 2)
• Solenoid Valve 50305164
• Hydrostatics w/ Drive Motors — 1-Speed & 2-Speed (T-B/H-F and Joystick Controls)
• Tandem Pump 186913 — Engine End / Gear Pump End
• Tandem Drive Pump 50351006
• Two-Speed Drive Motors 193672-193673
• One Speed Drive Motors 50303002
• Gear Pump (T-B/H-F Controls)
• Gear Pump (Joystick Controls)
• Control Valve (Joystick Controls)
• 3-Spool Control Valve (T-B/H-F Controls)
• Manifold Valve 183978
• Hydraulic Filter
• Lift Arm Hydraulics
• Lift Cylinder
• Tilt Cylinder
• Coupler Block
• Hydraulics, Self-Leveling
• Solenoid Valve 184101
• Hydraulics, Hydraglide — No Hydraglide
• Manifold Assy 184363
• Hydraulics, No Power-A-Tach
• Power-A-Tach Actuator
• Power-A-Tach Cylinder
• Power-A-Tach Hydraulics
• Power-A-Tach Valve
• Engine
• Intake
• Radiator — Cooler
• Block Heater (Option)
• Chassis Electrical
• Engine Electrical
• ROPS Electrical
• Fuses — Relays
• AM/FM Radio (Option)
• 14-Pin Connector (Option)
• Wheel Drives
• Wheels & Tires
• Decals
• Fittings / O-Rings / Seal Rings

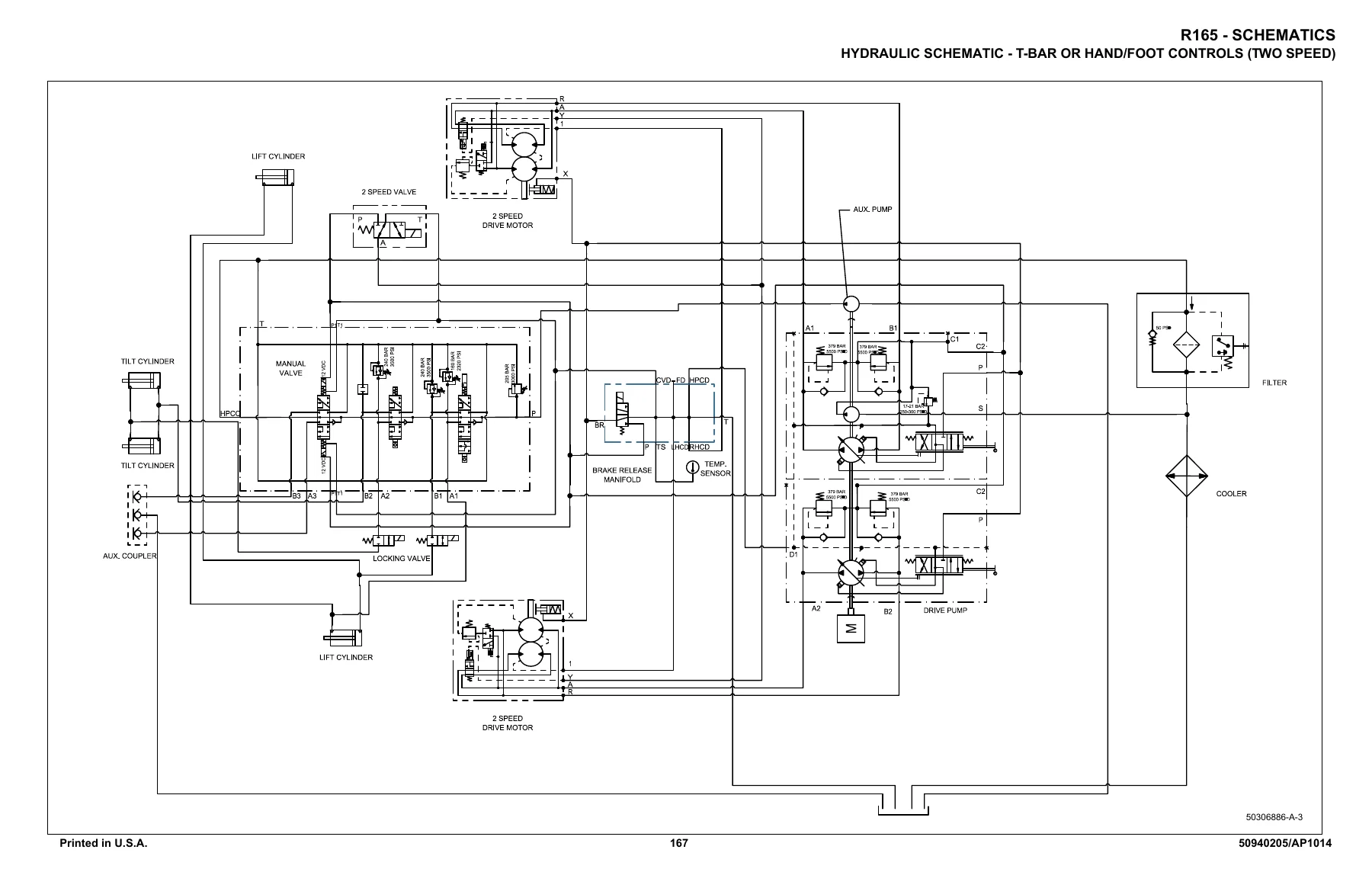

• Hydraulic Schematics (T-Bar, Hand/Foot, Joystick — Single & Two-Speed, with Power-A-Tach, Hydraglide and Self-Level options)
• Electrical Schematics (ROPS, Chassis, Engine)
• Numerical Index

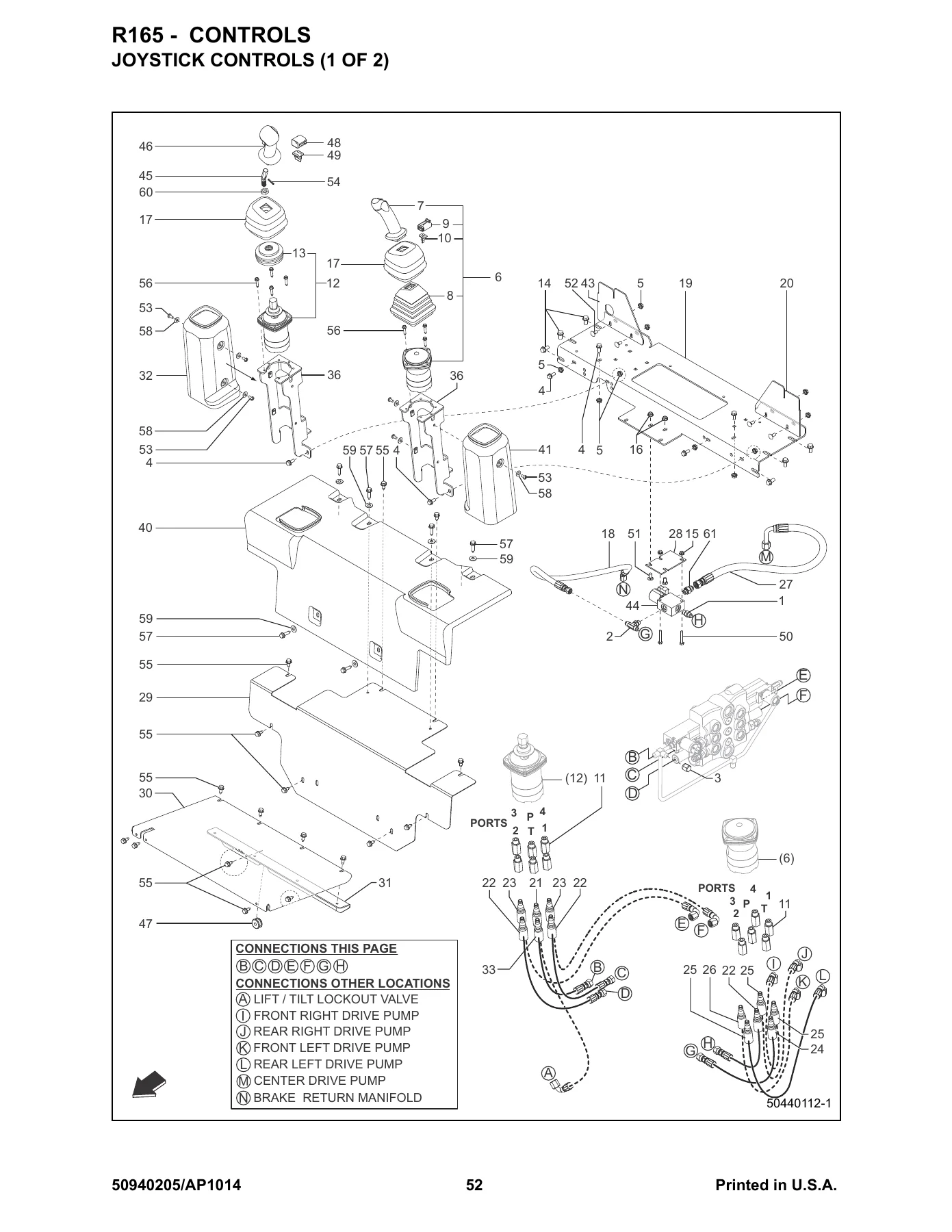

This Gehl R165 parts manual PDF is built for anyone who needs to identify, order, or replace components on the R165 skid-steer loader. Every section presents clean exploded-view drawings with reference numbers keyed directly to part numbers, descriptions, and quantities. The hydraulic schematics (covering both T-bar/hand-foot and joystick control configurations, single-speed and two-speed, with or without Power-A-Tach, Hydraglide, and self-leveling) are included as fold-out style reference pages. The electrical schematics break down the ROPS, chassis, and engine harnesses so you can trace circuits without guesswork. A full numerical index at the back lets you look up any part number and jump straight to the page where it appears.

What This Manual Helps You Do

• Order the correct part the first time using verified Gehl part numbers
• Identify assemblies by exploded view — ideal for teardown and reassembly reference
• Trace hydraulic circuits through the complete machine schematics
• Follow electrical wiring across ROPS, chassis, and engine harnesses
• Reference seal kits, O-rings, fittings, and hardware with compatibility data
• Confirm decal placement and part numbers for restoration or repaint
• Look up any part quickly using the numerical index

Why Buy the Gehl R165 Parts Manual PDF

Parts manuals are the fastest way to avoid ordering the wrong component. Unlike generic aftermarket catalogs, the Gehl R165 Skid-Steer Loader Parts Manual 50940205 was written specifically for this machine — every illustration, part number, and quantity reflects the R165 as built. The document covers the complete machine across engine, drivetrain, hydraulics, electrical, operator station, and attachments, with options for glass doors, side windows, rear wipers, heaters, radios, and more. Whether you run a fleet, operate a single machine on a farm, or work in a repair shop, having the factory parts reference on hand reduces downtime and eliminates the back-and-forth of ordering the wrong seal or hose.

IMAGES PREVIEW

Instant PDF Delivery

The Gehl R165 parts manual is delivered as a high-quality PDF download immediately after purchase. There is no shipping, no waiting, and no physical book to lose. The file works on any device — desktop, laptop, tablet, or smartphone — and every page is printable, so you can print just the section you need for the shop floor or keep the full manual on a tablet for quick reference. This is the same document used by professional technicians and parts departments, now available as an instant download for owners and operators who want to keep their R165 running with the correct components.
