Gottwald Mobile Harbour Crane G HMK 6407 Maintenance Manual

Description

Gottwald Mobile Harbour Crane G HMK 6407 Maintenance Manual Overview

Ensure reliable, safe, and cost-effective port operations with the complete Gottwald Mobile Harbour Crane G HMK 6407 Maintenance Manual. Designed specifically for harbour crane technicians, plant engineers, and maintenance crews, this comprehensive technical document serves as Part 2 of the official User’s Manual for the heavy-duty G HMK 6407 mobile harbour crane. From scheduled 500-hour diesel engine checkups to major 20,000-hour mechanical and hydraulic overhauls, this guide details every preventive maintenance protocol, system inspection, functional test, and replacement procedure necessary to maximize crane availability and extend machine service life.

File Details

• Manual Type: Maintenance Manual (User’s Manual – Part 2)
• Brand: Gottwald Port Technology GmbH
• Model: G HMK 6407 Mobile Harbour Crane
• Document / Serial Number: 36 1202 00
• Language: English
• Page Count: 173 pages
• File Format: Portable Document Format (PDF)

Chapters Covered

• 1. How to Use this Manual – Systematic navigation, safety notices, tool symbols, and interval mapping
• 2. General Notes – Documentation structure, general safety instructions, personnel qualifications, warranty terms, and prohibition symbol legends
• 3. Machine Specifications – Technical data, operating limits, working radiuses (11 m to 51 m), hoisting height charts, wind limits (up to Beaufort 14 out of operation), and general dimensional parameters
• 4. Maintenance Checklists – Master switch operating hour intervals (1,000 to 20,000 Std HS), 500-hour engine intervals, visual inspection schedules, and conservation procedures
• 5.1 Electrical System – Chassis electrics cabinets, mains/generator changeover switch, 24V battery systems, Marelli MJB 400 LA/4 generator, stabiliser limit switches, slip ring assembly, superstructure electrics room, drive motors, safe load indicator (SLI), anemometer, and anti-condensation heaters
• 5.2 Hydraulic System – 2,600-liter superstructure hydraulic tank, filtration and clogging monitors, axial piston pumps, luffing cylinder and valve blocks, steering cylinders, jack and extension cylinders, diaphragm accumulators, and travel gear drive motors
• 5.3 Diesel Engine System – Cummins QST 30 G2 water-cooled V12 engine, turbochargers, two-circuit radiator, dual dry air filters, and multi-tank 7,000-liter fuel distribution network
• 5.4 Travel Gear – 28 special 14.00-R24 tyres, axle suspension equaliser beams, steering knuckles, differentials, planetary wheel hub gearboxes, and wet multi-disc brakes
• 5.5 Stabilisers – Horizontal stabiliser beams, nylatron sliding pads, vertical jack cylinders, and heavy load propping pads
• 5.6 Slewing Gear – Planetary slewing reduction unit, spring-loaded hydraulic release slewing brakes, drive pinions, gear ring, and three-row roller bearing slew ring
• 5.7 Hoist – Two-stage spur reduction gear unit, hoist caliper brakes, rope drum, flexible bolt coupling, and protective rope exit seals
• 5.8 Tower / Boom System – Tower/boom pivot geometry, four-pulley head sets, rigid 58-bolt tower mounting flange, and bolted boom flange connections
• 5.9 Central Lubrication System – Multiline progressive dual grease supply tanks, pump networks, and slew ring lubrication pinions
• 5.10 Basic Structure – Paintwork touch-up (epoxy/acrylic-polyurethane), structural steel inspection, housings, stairways, and safety ladders
• 5.11 Driver Cab & 5.12 Tower Cab – Ergonomic operator seats, windscreen wiper/washers, electric heaters, climate systems, and Visumatic PLC maintenance data configuration
• 5.13 Ropes and Lifting Gear – 8-strand compacted hoist ropes, DIN 15020 discard criteria, lubrication, and running-in procedures
• 5.14 Rigging – Radio remote control operation for boom lowering and raising
• 6. General Diagrams & Service Tables – Comprehensive Service Fluids Table, filling quantities, gear oil analysis diagnostics (ISO 4406 / DIN 51592), and standard metric bolt torque tables (8.8, 10.9, 12.9)

IMAGES PREVIEW

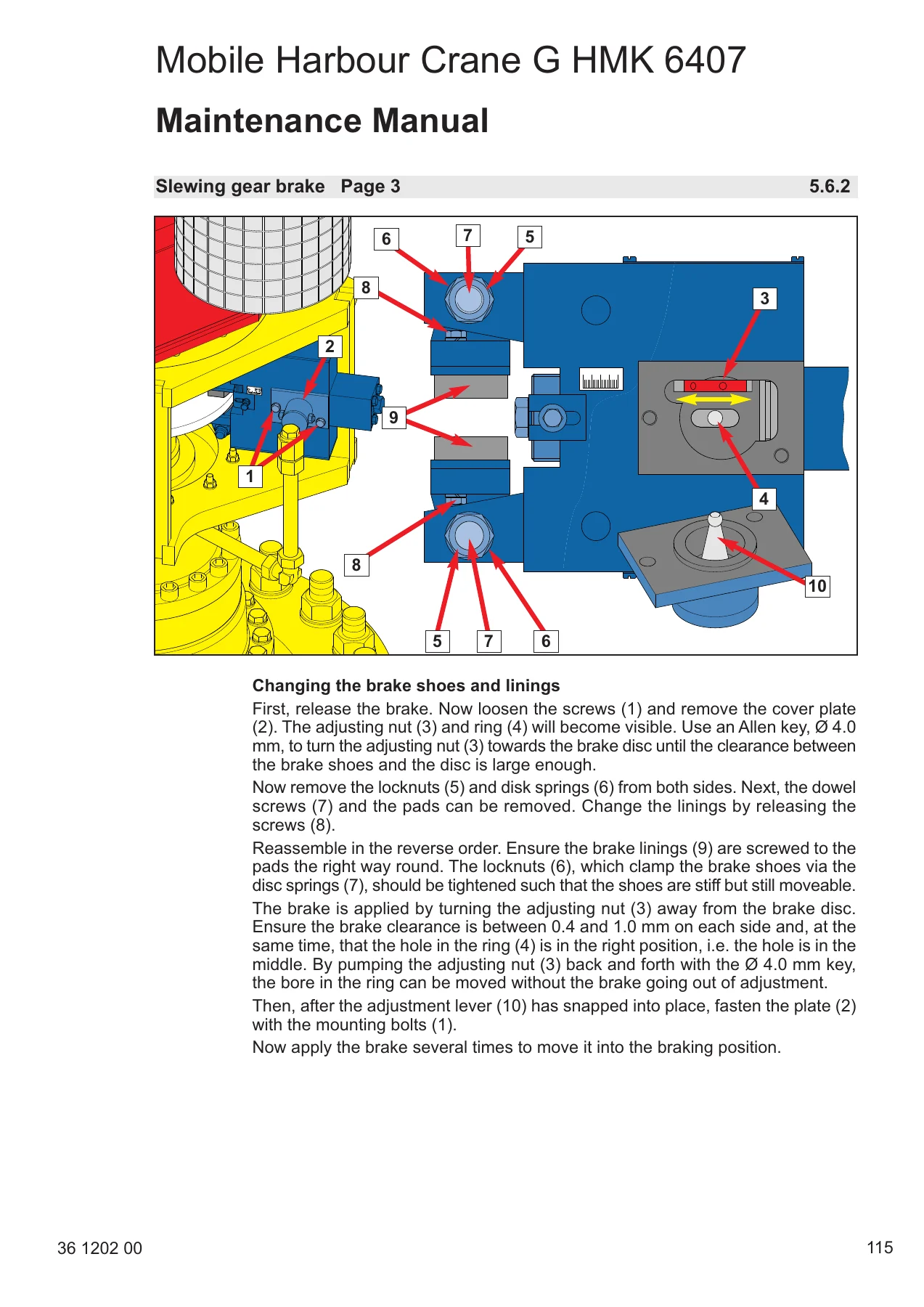

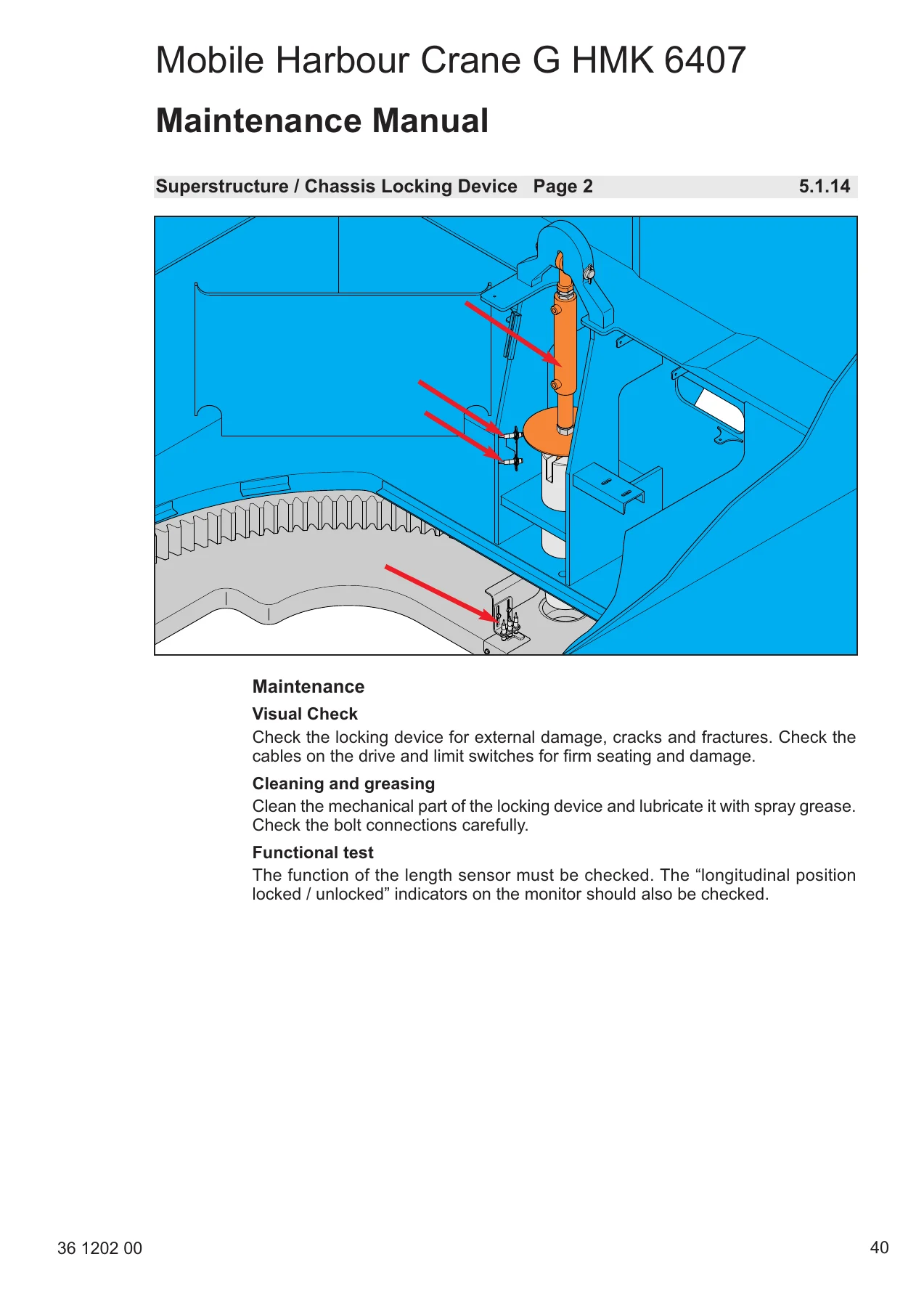

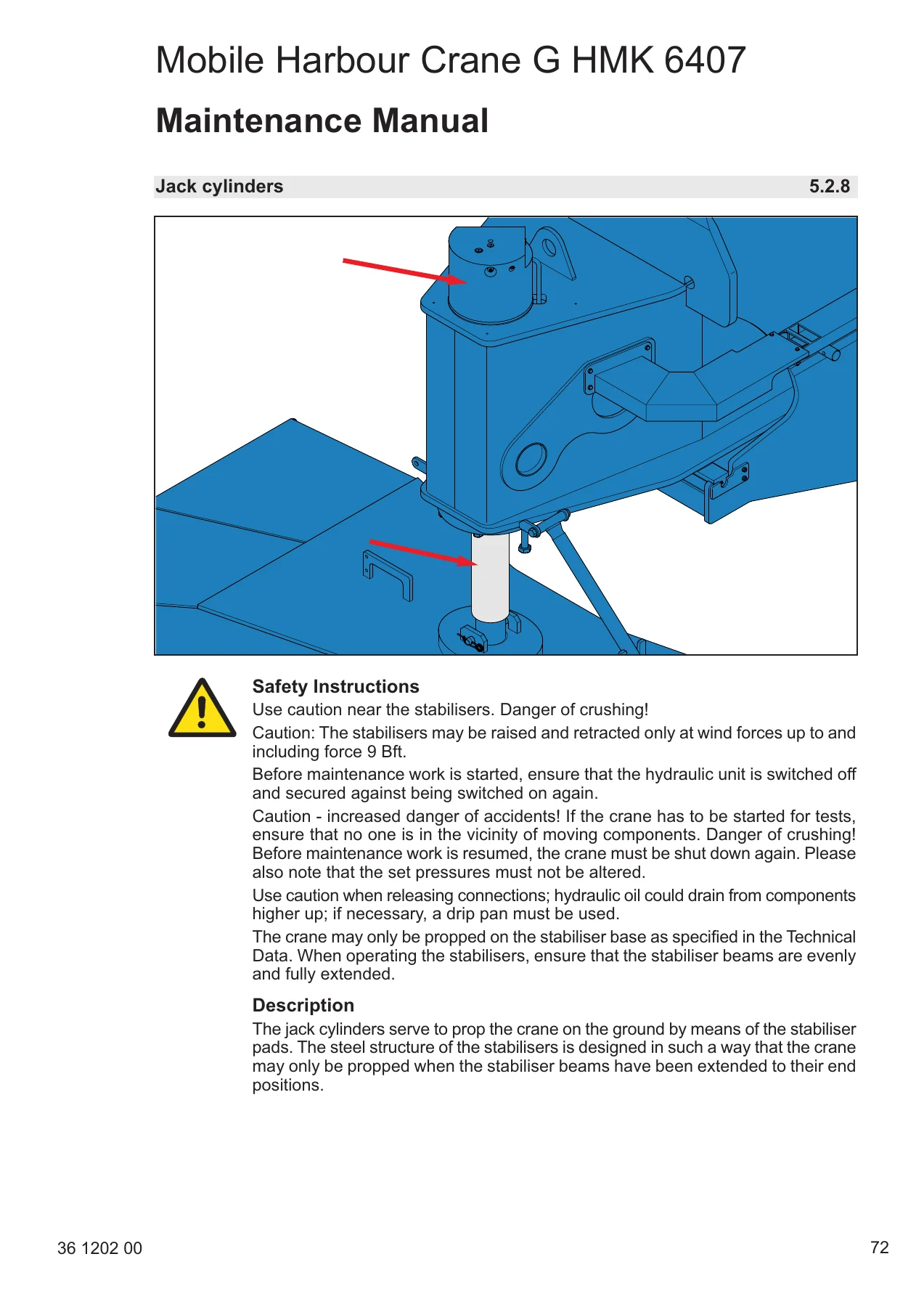

Together, these sections equip maintenance personnel with precise diagnostic criteria, exact replacement tolerances, and step-by-step disassembly/assembly instructions. Whether testing nitrogen precharge in brake accumulators, resetting PLC maintenance intervals via the Visumatic service screen 7860, or measuring disc wear on the travel gear wet multi-disc brakes, this manual provides direct OEM procedures to maintain full operational integrity.

In-Depth Mechanical, Hydraulic, and Powertrain Systems

The Gottwald Mobile Harbour Crane G HMK 6407 Maintenance Manual leaves no operational system uncovered. Technicians are provided with complete maintenance procedures for the Cummins QST 30 G2 engine (895 kW at 1,800 rpm), including full-flow/bypass oil changes, water separator servicing, fuel transfer pump operation, and coolant inhibitor ratios. The hydraulic section details circuit maintenance for the three variable-displacement axial piston pumps, the massive 2,600-liter fluid reservoir, and specialized high-pressure line filters (3µ to 10µ ratings) equipped with differential pressure clogging transmitters.

For the undercarriage and travel gear, the document covers torque requirements for the 28-wheel assemblies (700 Nm), monthly differential and planetary hub gearbox level checks, oil flushing intervals, and brake piston clearance limits. Upper superstructure documentation covers detailed adjustments for the hoist caliper brakes (maximum 1.0 mm air gap), sintered metal lining replacement thresholds, hydraulic bolt pretensioning requirements (630 kN for slew gear fasteners and 900 kN for the 58 tower mounting bolts), and DIN 15020 wire rope discard thresholds.

Master Maintenance Checklists & Electrical Architecture

Structured according to crane master switch operating hours (Std HS), the manual enables teams to maintain rigid compliance with factory service intervals from 1,000 up to 20,000 hours. The electrical maintenance sections guide technicians through high-voltage chassis electrics cabinets, slip ring assemblies, PLC bus transmission checks, and anti-condensation heating circuits across all major motors. Utilizing the on-board Visumatic screen navigation (access screens 1000, 7000, 7800, and 7860), your maintenance crew can rapidly verify operating hours, evaluate warning indicators, and clear scheduled maintenance data directly from the tower cab.

Professional Capability, Factory Precision, and Instant Digital Delivery

Working on a heavy-duty harbour crane requires total adherence to exact engineering tolerances. Utilizing the Gottwald Mobile Harbour Crane G HMK 6407 Maintenance Manual protects high-value port machinery from catastrophic mechanical failure, unapproved lubricant substitutions, and costly downtime. It provides workshop managers and crane mechanics with the confidence to conduct complete in-house inspections, safety certifications, and precision component overhauls in exact accordance with manufacturer standards.

This manual is delivered as an instant high-resolution PDF download immediately upon checkout. With no shipping delays or physical book handling, you can access technical diagrams, fluid tables, and service routines on your desktop, laptop, tablet, or smartphone right at the berth or in the workshop. You can also print specific maintenance checklists, torque reference tables, or full sections for easy on-site field reference.
