Grove TMS540 Serial 83539 Parts Manual June 2006 – PDF Download

Description

Grove TMS540 Parts Manual – Serial 83539 – Rev 26 (June 2006)

This is the full Grove TMS540 parts manual published by Manitowoc Crane Group for serial number 83539, revision 26, dated June 23, 2006. It covers the complete crane – superstructure and carrier – with part numbers, quantities and exploded-view illustrations for every major assembly. Whether you are ordering a replacement wear pad, rebuilding a hoist, or tracing a hydraulic fitting, this manual gives you the correct part number and the visual reference to match.

File Details

• Manual type: Parts Manual
• Brand: Grove
• Model: TMS540
• Serial number: 83539
• Revision: 26
• Date: June 23, 2006
• Publisher: Manitowoc Crane Group
• Language: English
• Format: PDF
• Page count: Approximately 1,170 pages

Chapters Covered

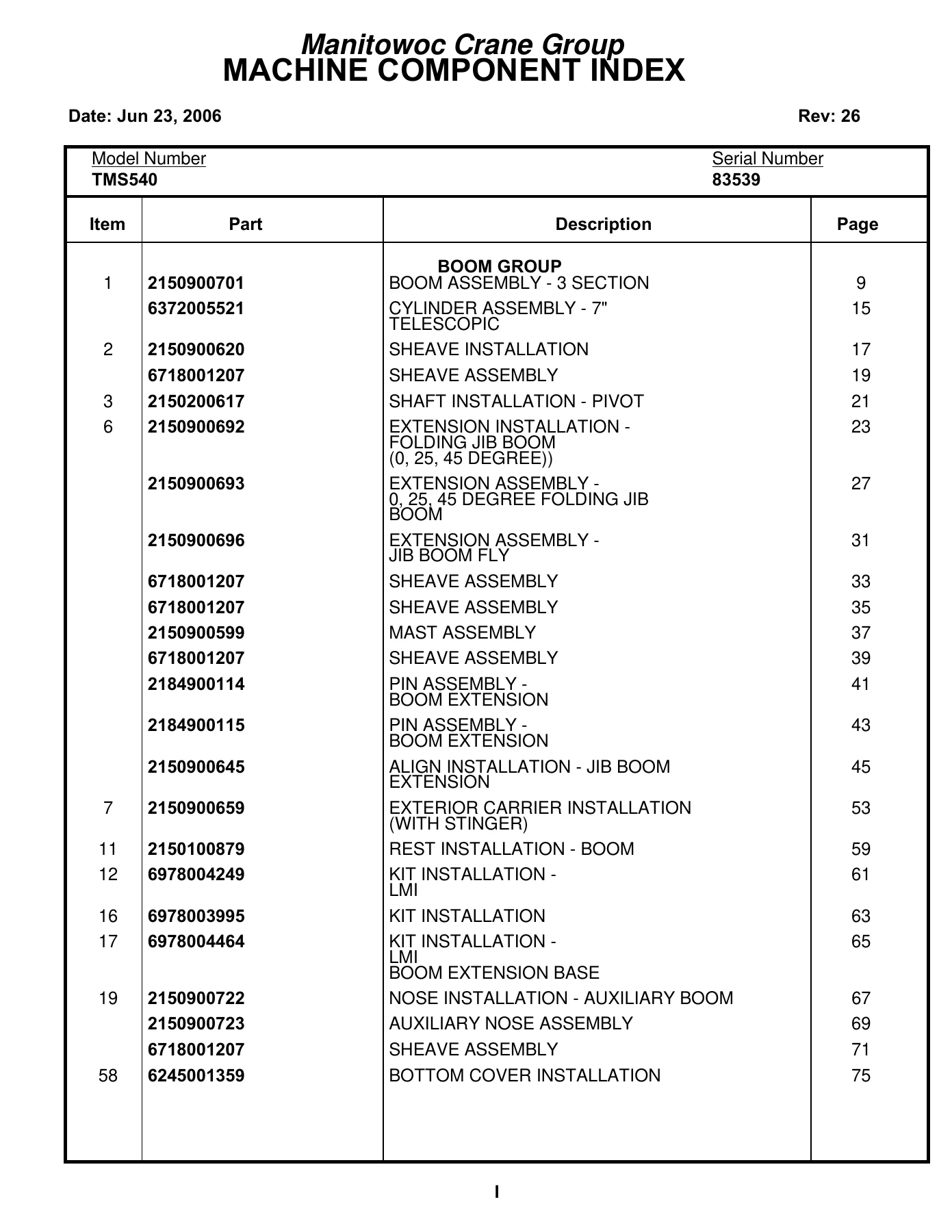

• Boom Group – 3-section boom assembly, 7″ telescopic cylinder, sheave installation, pivot shaft, folding jib boom (0, 25, 45 degree), jib boom fly, mast assembly, auxiliary boom nose, LMI kit
• Cab Group – Superstructure electrical system, harness assembly, windshield washer, cab installation and sections, windows (rear, right hand, front), sliding skylight, wiper motor, throttle pedal, electronic foot throttle, door assembly, bonded door, latch kit, work lights
• Turntable Group – Turntable bearing drive installation, swing box assembly, swing motor, swing drive, swing lock, lift cylinder installation, 9″ lift cylinder, fixed pilot 3/4 holding valve, grease lines, valve cover, 6000 lb removable counterweight, counterweight cylinders, pin assemblies, turntable lock pin installation, positive swing lock, electric/water/hydraulic swivel, water swivel, slip ring assembly (42 conductor), counterweight control box
• Drive Train Group – Driveline installation, driveshafts with center bearing, 82N slip driveline assembly
• Axle Group – Front axle and steering installation, front axle assembly, torque arm assembly, rear axle installation with differential lock, rear axle assembly, front rear axle, rear rear axle, suspension assembly, drive line assembly, torque rod assembly
• Outrigger Group – Beam installation and assembly, 4″ outrigger jack cylinder, 2 1/2″ outrigger extension cylinder, fifth outrigger jack installation, 3 1/2″ outrigger jack cylinder, pad assembly, outrigger float stowage (24″ aluminum), float
• Frame Group – Decal installation for TMS/TTS540, sling box installation and assembly, access ladder installation, hook block stowage installation
• Carrier Lights, Horn and Windshield Washer – Dual hi/low lamps, park and turn signal lights, turn and clearance lights, back-up light, stop/turn/tail light, identification lights, license plate light, mirror installation (electric/heated right hand), back-up alarm, air tank and valve installation
• Carrier Cab Group – Mirror installation (left hand electric/heated), heated left hand mirror, front console installation, center front panel, right hand front panel, acoustical installation, floor mat, circulating fan
• Engine Carrier Group – Fan assembly, harness installation, power panel harness, power carrier harness, door harness (carrier cab), tilt cutout harness, seat and seat belt installation, windshield washer, heater and defroster, interior light, air line installation, battery installation, engine installation (reference), engine assembly, transmission assembly (refer to Allison catalog), power take off hot shift (left hand and right hand)
• Hoist Group – Hoist installation without 3rd wrap, complete hoist assembly, HO20A-23G hoist assembly, bearing support assembly, hoist drive assembly, hydraulic hoist motor assembly, control valve assembly, cable follower and idler drum installation, hoist rotation indicator installation, rotation sensor harness, 22.5 ohm resistor assembly
• Hydraulic System – Control valve group (upper valve installation), directional control valves, pressure reducing valve, 2-position 4-way valve, solenoid valve, counterweight removal hydraulic valve, supply valve, shuttle valve, hydraulic lines installation (supply, pressure and return), residual check valve, hoist hydraulic lines (main and auxiliary), swing hydraulic lines, lift hydraulic lines, superstructure hydraulic lines (3 section boom), counterweight removal hydraulic lines, LMI hydraulic lines
• Electrical System – Power distributor installation, power panel (superstructure), power distribution box harness, circuit breaker harness, power/cab link harness, LMI interface harness, switch panel harness, switch panel assembly, front console harnesses, front console panel assembly, gauge cluster assembly, modified electric throttle controller, acoustical installation, superstructure cab harness installation, superstructure cab harness assembly, superstructure seat harness assembly, fire extinguisher installation, sunscreen installation, skylight wiper/washer installation, swing brake pedal installation, hydraulic throttle control assembly, hot water heater installation, load moment indicator system kit

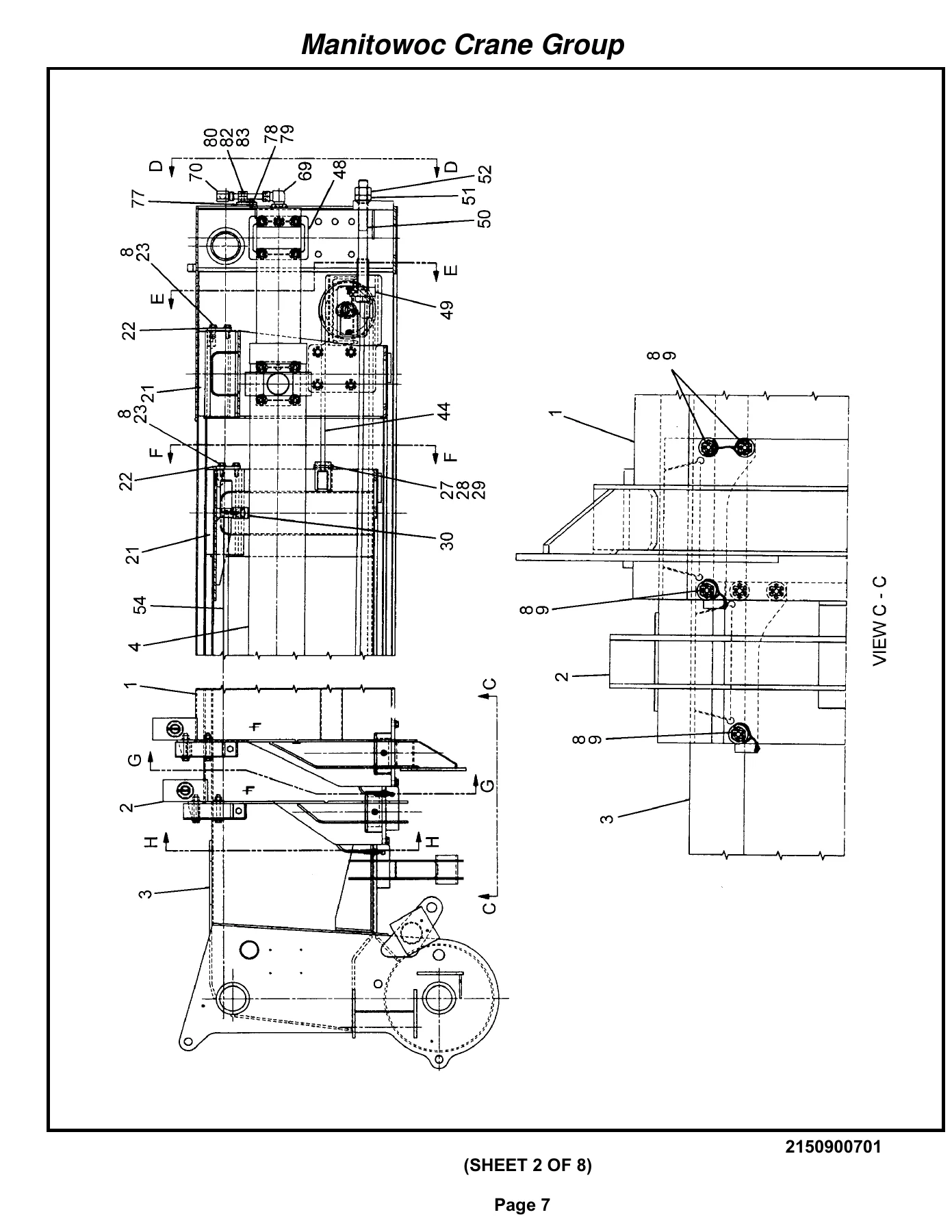

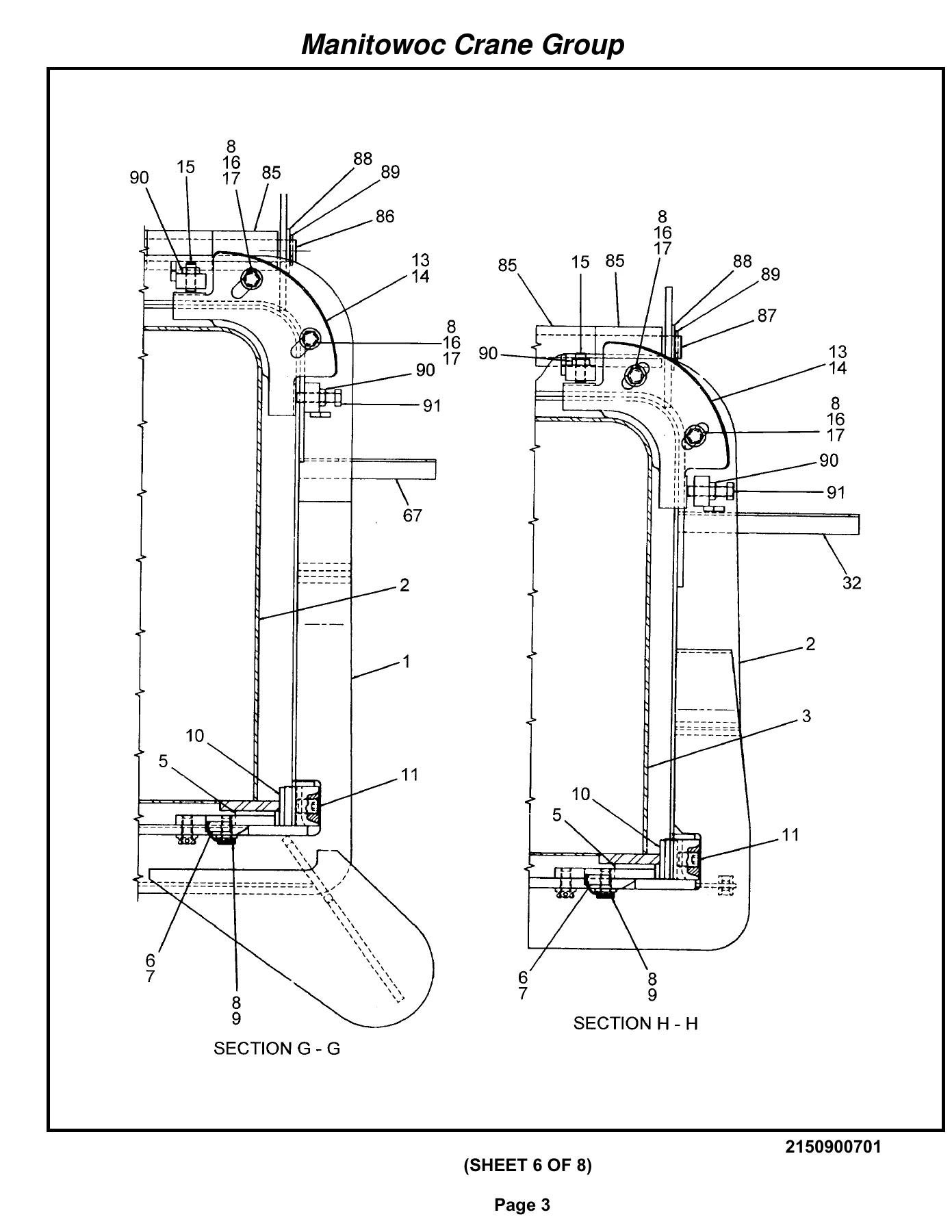

Beyond the parts lists themselves, this manual provides the complete exploded-view illustrations that make identification straightforward – every assembly is broken down visually so you can see how components fit together and confirm you are ordering the right piece before you commit. The alphabetical and numerical indexes at the back let you look up any part number directly and jump straight to the page where it appears.

What This Grove TMS540 Parts Manual Gives You

With this manual on hand you can order replacement parts with confidence for every major system on the TMS540 – boom sections and wear pads, telescopic cylinder seals, sheaves and bearings, swing drives and turntable bearings, outrigger cylinders and beams, hoist assemblies and motors, hydraulic valves and lines, electrical harnesses and switches, cab components and windows, axle assemblies and brake parts, and much more. Each item is listed with its part number, description and quantity, and the corresponding illustration shows exactly where it fits.

Getting the right part the first time saves money and downtime. This manual removes the guesswork: you see the exploded view, you find the item number, you read the part number and description, and you order. It is equally useful for planning a rebuild, identifying a worn component during inspection, or building a spares kit for a machine that needs to stay in service.

IMAGES PREVIEW

Delivered as an instant PDF download, the manual arrives immediately after payment – no shipping, no waiting. Open it on a laptop, tablet or phone, or print the pages you need for the workshop. The clear diagrams and complete part listings make it a practical tool for any TMS540 owner, fleet manager or service technician working on serial number 83539.
