Hamm HD 90 H245 Spare Parts Catalogue 2701777 Serial 1-9999 (2023)

Description

Hamm HD 90 H245 Spare Parts Catalogue 2701777

The Hamm HD 90 H245 Spare Parts Catalogue 2701777 Serial 1-9999 (2023) is the illustrated parts list published by HAMM AG for the HD 90 tandem roller family on series H245. Document name and order number 2701777, date of issue 03.02.2023, cover the machine type HD 90 with serial numbers 1-9999. Each illustrated plate carries position numbers that map to the facing parts list: Hamm material number, validity range, quantity, unit and the designation in German, English, Spanish and French.

This file is a spare-parts catalogue, not a workshop repair book. It tells you which part number belongs on which assembly and how many pieces are fitted. The opening remarks state that the catalogue shows the full delivery scope of the machine type, so more items may appear than are fitted on one particular roller. Identification is by the serial number on the type plate and chassis. A direction arrow on each plate shows travel or working direction.

File Details

• Manual type: Spare parts catalogue / Ersatzteilkatalog / catálogo de repuestos / liste de pièces de rechange
• Brand / model: HAMM HD 90 (series H245)
• Document / order number: 2701777
• Date of issue: 03.02.2023
• Serial range: 1-9999
• Languages: German, English, Spanish, French
• Page count: 381
• File format: PDF
• Publisher: HAMM AG, Tirschenreuth, Germany

How plates and lists work

Group numbers such as 01.01.00, 04.01.01 or 26.05.10 appear in the plate footer together with an internal group drawing number (for example 2701895 for the main frame). Cross-references on the drawing send you to another group when a sub-assembly is documented elsewhere. The parts table columns are Position, Part No., Valid for, Quantity, Unit and Designation. Most lines in this issue are valid for 1-9999. Quantities are given in pieces (PC).

Ordering notes in the general remarks ask for machine type, year of manufacture and serial number, the part number and quantity, a delivery address and the required shipment method. The same section warns that parts and extra equipment not supplied by HAMM are not tested or released by the manufacturer, and that unauthorised conversions void manufacturer responsibility for resulting damage.

Chapters Covered

• 01 Chassis / safety devices — main frame and assemblies; canopies and covers; sticker arrangement; sound insulation
• 02 Operator’s stand — operator’s platform; tilting hydraulic; operator’s seat with adjustment; sun canopy; instrument panel covering; driver’s cabin; cabin heating; air conditioner
• 04 Engine / motor group — pump drive and engine assembly; fuel system; fuel filter; engine control; air filter system; exhaust system; cooling (engine / hydraulic oil)
• 05 Hydraulic equipment — variable displacement pump (drive); variable displacement pump (vibration); constant motor (vibration drive); gear hub motor; valve block; control block; valve block (parking brake); hydraulic-oil filter; steering-system filter; tandem pump; collective block; gear motor; hydraulic oil tank
• 06 Electrical system — instrument panel (including HD 90 VV / HD 90 VO and HD 90 VT panels); electrical system plates; rotary beacon
• 08 Advance drive — tyre equipment; advance drive assemblies; drive shifting; parking brake; gear shifting
• 09 Steering system — centre pivot assembly; steering fork bearing; steering; steering column
• 12 Water system — sprinkling; additive sprinkling; water pump; water filter
• 15 Additional hydraulic equipment — Vibro Automatic
• 26 Vibration / oscillation / scraper — scraper for smooth roller drum; scraper; smooth roller drum; vibration drive; oscillation
• 40 Special equipment — back-up alarm; display rod; speedometer; asphalt thermometer; frequency regulator; homologation Brazil
• 41 Service sets — maintenance kits and repair kits (50-hour / 500-hour kit, 2000-hour kit, water-sprinkling service kit)

IMAGES PREVIEW

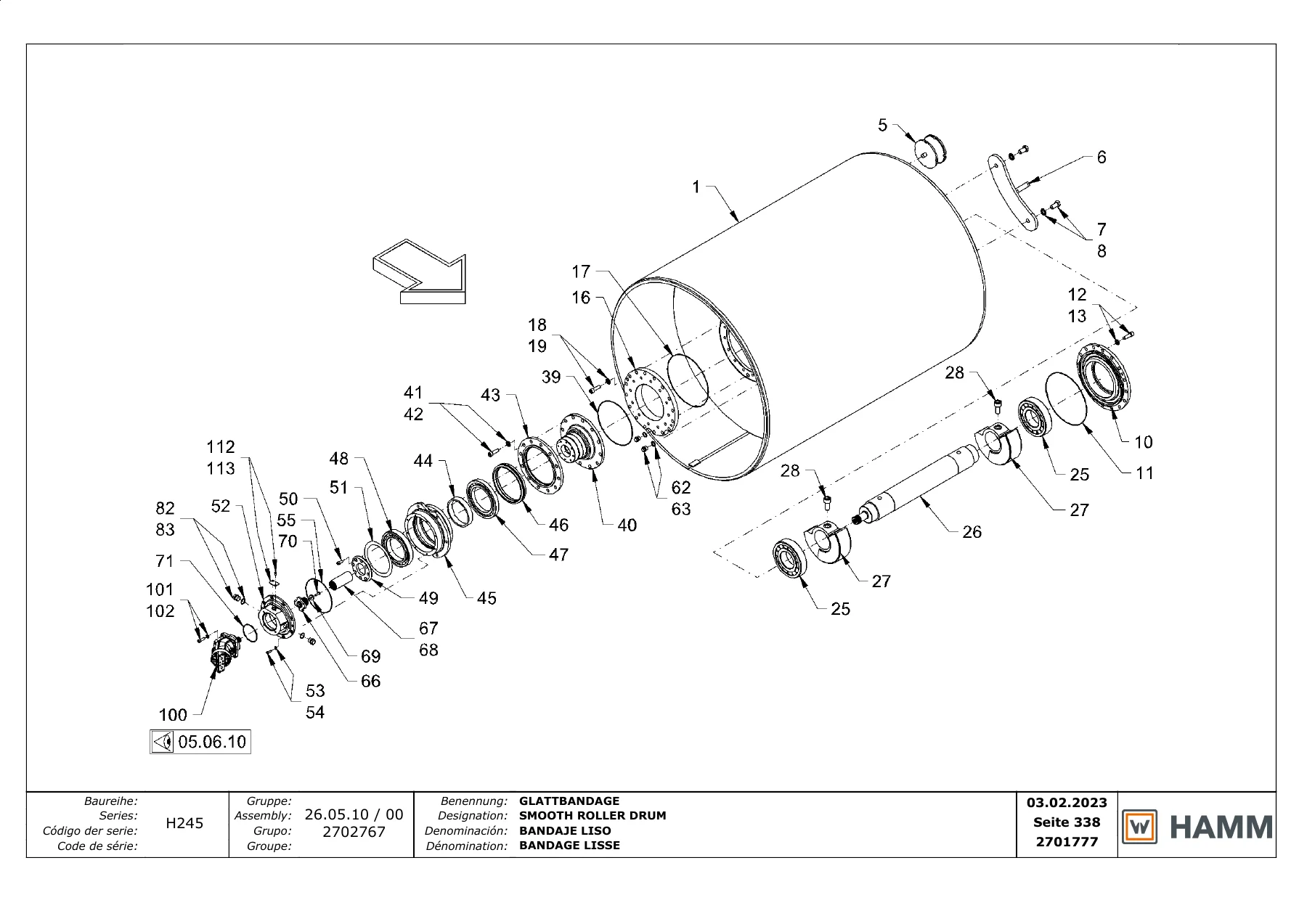

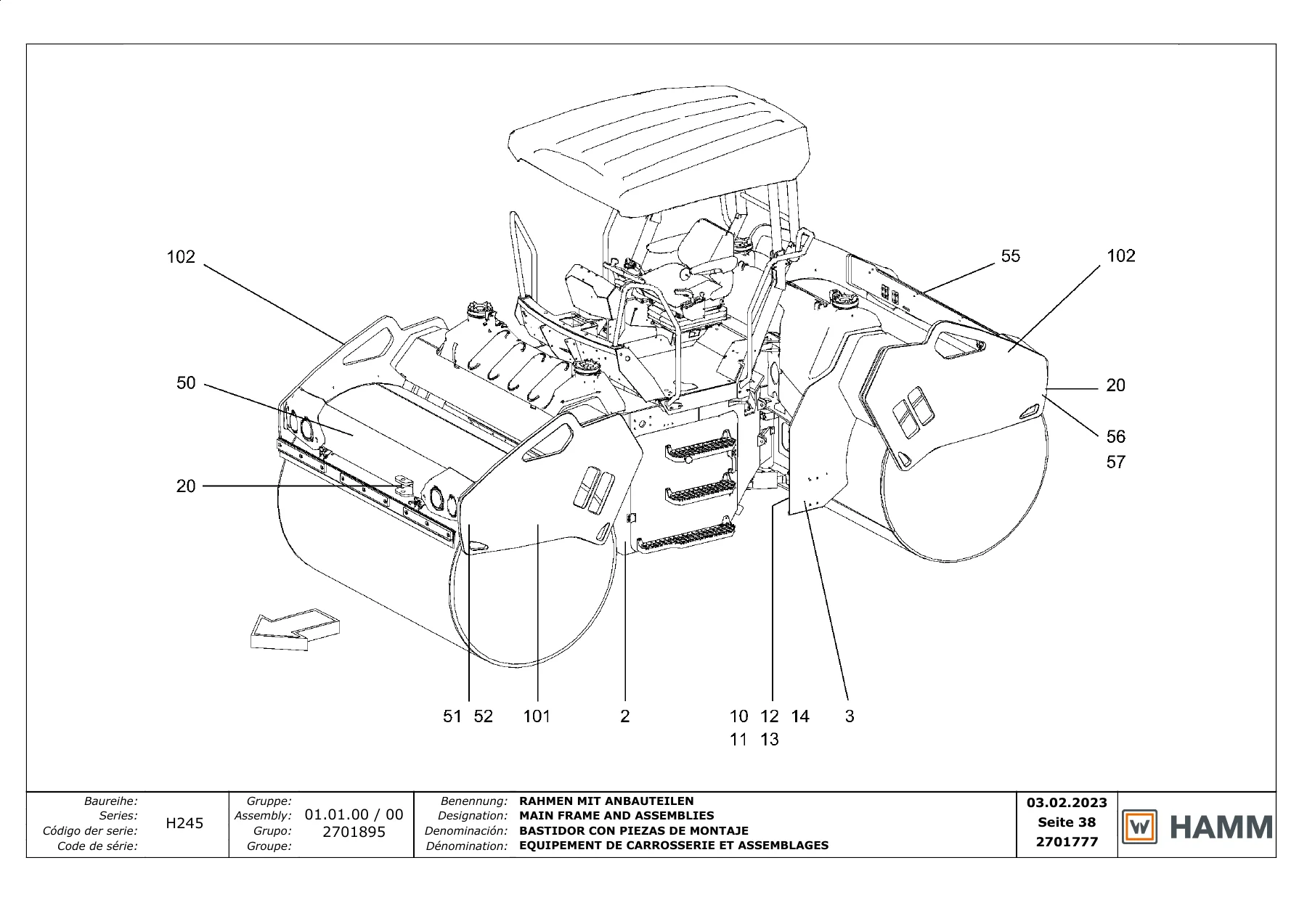

Taken together, those groups give a technician a map of the roller from the front and rear frame halves through the diesel-engine and tandem-pump package, the travel and vibration hydraulics, the electrical harnesses and instrument panels, the articulated centre pivot, the water spray circuit, and the smooth drums with scrapers, vibration and oscillation hardware. Front frame part 2393267 and rear frame part 2393262 sit on plate 01.01.00. The engine group lists diesel engine 2043454, CENTA coupling 1205838 with elastic element and hub, and tandem pump 2057225. Drum plate 26.05.10 breaks the smooth roller into shell, bearings, shaft and drive interfaces and points onward to the constant motor group.

Machine variants visible in the lists

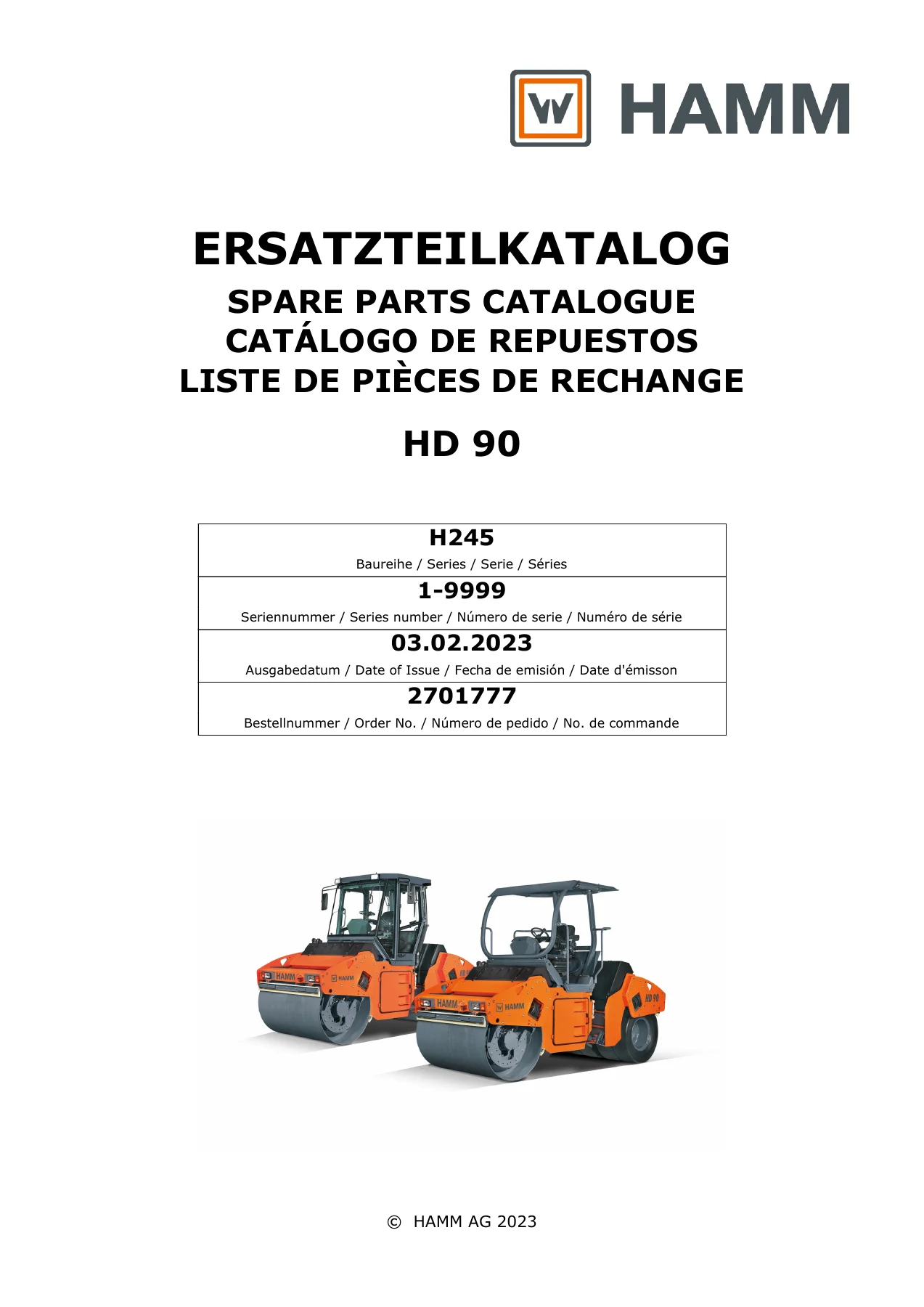

The cover and title block name the machine HD 90 on series H245. Inside the electrical group the instrument-panel lines distinguish HD 90 VV / HD 90 VO (complete panel 2441792) from HD 90 VT (panel 2590317). Use those designations when the roller on the yard is a VV, VO or VT configuration so the correct dash and related electrics are ordered. Other assemblies remain common across the 1-9999 range unless a line shows a narrower validity, such as a gear hub motor listed for 1-59 on one drum plate.

Liquid plastics, greases and tightening torques

Before the illustrated groups, the catalogue prints a processing guideline for liquid plastics and related compounds. Numbered markers on some plates (1 through 18) point to Hamm material numbers and pack sizes. Examples include medium-strength threadlocker 00 382 620 / 00 263 397 for non-galvanised screws, galvanised-screw locker 00 393 037 / 00 393 029, high-strength locker 02 183 747 / 02 183 750 (Loctite 2701 called out for zinc-flake coating and drum construction), retaining compound 00 382 639 / 00 263 419 for 0.05–0.2 mm gaps, surface sealant 00 382 604 / 00 323 705, vibrator/oscillator grease 01 205 757 / 01 204 025, travel-bearing grease 01 227 114 / 00 347 620, pipe-thread seal 00 392 693, polyurethane glazing sealant 01 215 809, universal flange seal 02 329 280, anti-seize paste 02 696 157, and two-component metal and plastics adhesives 02 188 079 and 02 375 945. Cleaner 306371 is specified before application. Surfaces must be above 15 °C; hand strength is given at about 30 minutes and final strength at about 12 hours.

Two torque tables follow. Values valid for spare parts supplied up to 31.08.2016 use DIN 934 nuts and DIN 931 screws at μges = 0.12. Values valid from 01.09.2016 use ISO 4014 / 4032 / 4762 head styles at μges = 0.095. Both sets cover regular and fine threads from M4 to M30 for property classes 8.8, 10.9 and 12.9. The later table also prints jaw widths (for example M16 SW24 at 175 / 255 / 300 Nm). The notes tell the fitter to check fasteners for tight seat and retighten if required.

Maintenance kits at the back of the book

Group 41.01.00 lists packaged service sets rather than loose hardware: 2444592 service kit at 50 hours / every 500 hours, 2445688 service kit every 2000 hours, and 2445689 service kit for water sprinkling. Those kit numbers sit on the last illustrated plate so a workshop can order interval packages instead of picking every filter and seal from earlier groups.

Using the Hamm HD 90 H245 Spare Parts Catalogue 2701777 Serial 1-9999 (2023) on the job

A parts person starts from the type plate serial, opens the matching group in this Hamm HD 90 parts catalogue, reads the position on the exploded view, then copies the Teilenummer and quantity from the list. That workflow covers frame and canopy panels, cabin glass and wiper motor, fuel and air filtration, cooling packs shared with hydraulic oil, travel and vibration pumps and motors, parking-brake valve block, hydraulic and steering filters, instrument clusters for VV/VO versus VT, tyre equipment, centre-pivot pins and bearings, steering column, spray bars and additive circuits, drum scrapers, oscillation hardware, and optional items such as the back-up alarm, speedometer, asphalt thermometer and frequency regulator. Because every line already carries the 1-9999 validity (or a tighter band when a running change exists), you can confirm a number against the machine before the order leaves the desk.

Get the parts list and start identifying numbers

With the Hamm HD 90 H245 Spare Parts Catalogue 2701777 Serial 1-9999 (2023) on hand you can match exploded-view positions to Hamm part numbers, quantities and language designations, apply the printed liquid-plastic and torque tables when you refit hardware, and order the 50/500-hour, 2000-hour or sprinkling service kits by their catalogue numbers. Correct numbers and the stated tightening values reduce mix-ups between VV/VO and VT electrics, between travel and vibration pumps, and between drum, scraper and oscillation pieces that look similar on the floor. After payment the PDF is delivered immediately — no shipping wait — and you can open it on a phone, tablet or workshop PC and print the plates you need at the bench.
