Haulotte Bil-Jax 4527A / HTA 16 P Aerial Work Platform Operator and Maintenance Manual

Description

Haulotte Bil-Jax 4527A / HTA 16 P Operator and Maintenance Manual

This 144-page Haulotte Bil-Jax operator and maintenance manual covers the 4527A and HTA 16 P articulating boom lifts, the Summit Series trailer-mounted aerial work platforms rated at a 51 ft (15.7 m) maximum working height. It is the whole document rather than a condensed extract: safe operating procedure, the complete scheduled maintenance program, onboard control system diagnostics, hydraulic cylinder replacement, decal layouts, and the reprinted axle and brake service material for the trailer running gear all sit in one file.

Written for the machine rather than a family of machines, the 4527A / HTA 16 P manual keeps every specification, torque value, and fault-code definition attached to the exact unit in front of you. That makes it useful both as a first-read for a new operator and as a long-term shop reference for the person who has to keep the lift in service.

File Details

• Manual type: Operator and Maintenance Manual
• Brand: Haulotte Bil-Jax
• Models covered: 4527A / HTA 16 P Articulating Boom Lift
• Document number: B33-01-0095
• Language: English
• Page count: 144 pages
• File format: PDF
• Structure: Nine chapters — Safety, Specifications, Operation, Equipment Maintenance, Cylinder Replacement, Decal Replacement, Optional Equipment, Material Safety, and Axle and Related Components

The Machine This Manual Covers

The 4527A / HTA 16 P is a battery-powered, trailer-mounted articulating boom lift supported during operation by four extended outriggers. It uses electronic pushbutton controls at both a ground (lower) control panel and a platform (upper) control panel, a hydraulic power unit with a 24-Volt DC motor driving a hydraulic pump, and a hydraulic gear motor for turntable rotation. The hydraulic power unit runs on four 6-Volt, 245 amp-hour deep-cycle batteries in series with an onboard automatic charger.

Key figures documented in the manual include a 45 ft (13.7 m) maximum platform height, a 20 ft 9 in (6.3 m) up-and-over height, 27 ft (8.2 m) maximum horizontal outreach from centerline, a 500 lb (227 kg) platform capacity without platform rotation (440 lb / 200 kg with rotation), a two-person occupant limit, and 700° non-continuous turntable rotation. The trailer carries a single axle with a two-inch ball hitch, hydraulic surge brakes, a mechanical parking brake, safety chains, brake lights and side marker lights, and a rated towing speed of 65 mph (105 km/h).

Chapters Covered

• 1. Safety — Safety Advisory Legend; Before Operation; During Operation; Fall Protection; Manual Force; Wind Loading; Explosion Hazard; Maintenance (General and Battery)
• 2. Specifications — Range of Motion; Specifications; Warranty — New Product, Haulotte North America; Warranty Claims Procedure; Damaged Equipment Policy
• 3. Operation — Ground (Lower) Control Panel; Platform (Upper) Control Panel; Normal Operating Procedure; Manual Boom Operation; Towing the Aerial Work Platform; Lifting the Aerial Work Platform; Transporting the Aerial Work Platform on a Truck Bed
• 4. Equipment Maintenance — Battery Recharge; Battery Fault Codes; Daily Service Checks; Weekly Service Checks; Monthly Service Checks; Annual Service Checks; Structural Inspection; Motor Drying Instructions; Leveling System Calibration Procedure; Overload Protection Calibration Procedure; Additional Service Information; Manual Outrigger Retraction; Hydraulic Pressure Gauge; Troubleshooting; Error Code Definitions — Controls; Error Code Definitions — Motor Controller
• 5. Cylinder Replacement — Master / Slave Cylinder Replacement; Lift Cylinder Replacement; Outrigger Cylinder Replacement
• 6. Decal Replacement — Decal Kit — ANSI; Identification Plates & Optional Equipment — ANSI; Decals — ANSI; Decal Kit — CE; Identification Plates & Optional Equipment — CE; Decal Kit — AU
• 7. Optional Equipment — Drive and Set; Material Lift Hook; Manual Platform Rotator
• 8. Material Safety — Lead Acid Batteries, Wet, Filled with Acid (UN 2794); Powerflow AW HVI Hydraulic Oil
• 9. Axle and Related Components — 9A Dexter Axle and Related Components; 9B Bradley Brake Adjustment

Read together, these chapters turn the manual into a complete service document for the trailer-mounted lift. Chapter 4 alone walks the technician through daily, weekly, monthly and annual service checks, then hands over the calibration routines for the level sensor and the overload protection system, the manual outrigger retraction kit procedure, and the hydraulic pressure gauge hookup at the TP1 port. Chapter 5 gives the pin-by-pin removal sequence for the master, slave, lift and outrigger cylinders, including the bleeding procedure that clears trapped air after the system has been opened. Chapter 6 prints the full decal layout for ANSI, CE and AU configurations so a damaged safety decal can be identified and ordered by part number. Chapters 8 and 9 add the material safety data sheets for the battery electrolyte and hydraulic oil, plus the reprinted Dexter axle operation and maintenance material and the Bradley brake adjustment procedure used on the standard and Drive-and-Set running gear.

Error Codes and Diagnostic Tables

One of the strongest parts of this manual is the diagnostics coverage. The ground (lower) control panel display reports operating status and fault conditions, and Chapter 4 carries the full error-code table with the message text, the definition, how to simulate the fault, how to clear it, and which machine options the code applies to. The list runs from simple status conditions such as machine-in-down-only mode, loss of platform or drive communication, and stuck-key errors, through level sensor and angle sensor faults, boom function disabled and overload conditions, all the way to the open-circuit and shorted-circuit codes for the primary, secondary and jib boom coils, the platform level and rotate coils, the turntable coils, the four outrigger coils, the engine circuits and the Drive-and-Set outputs.

A second table covers the Sevcon motor controller, matching each flash code to the fault description and the recommended solution — configuration range and CRC errors, sequence and accelerator faults, MOSFET short circuit, line contactor welded or failing to close, motor open circuit, low and high battery, thermal cutback, pump current limit cutback, and the internal hardware faults. Between the two tables, a flashing indicator light or a text message on the display becomes an actionable repair step rather than a guess.

Optional Equipment

The manual also documents the factory options so the procedures stay accurate on a fully equipped machine. The Drive and Set option adds platform-level controls for short-distance driving on level ground plus outrigger deploy and retract from the upper panel, with its own diagnostic indicators, machine level indicator, platform position LED and drive-enable logic. The Material Lift Hook option covers the swap from platform to lifting hook, including the load sense module plug and loopback plug handling and the required recalibration. The Manual Platform Rotator section describes the 120° manual rotation handle and the reduced load rating that comes with it.

Who This Manual Is Written For

This 4527A / HTA 16 P manual suits rental fleet managers, shop technicians, field service mechanics, safety officers and owner-operators who need the manufacturer’s own instructions on hand. The safety chapter is written for the person about to operate the lift; the maintenance and cylinder chapters are written for the person repairing it; the decal and material safety chapters support inspection, compliance and handling requirements. Because the document also reprints the Dexter axle and Bradley brake material, the trailer side of the machine is covered as thoroughly as the boom.

Get the Complete 4527A / HTA 16 P Manual

With this manual in hand you can set up and level the outriggers correctly, run every boom, jib, extension and rotation function from either control panel, work through the daily through annual service schedule, interpret and clear control panel and motor controller error codes, replace the master, slave, lift and outrigger cylinders, recalibrate the level sensor and overload protection, service the trailer axle, brakes, hubs and bearings, and identify any safety decal by part number. Following the manufacturer’s own torque values, pressures and clearances is what keeps an aerial work platform stable and safe — improvising on a machine that lifts people is never the cheaper option.

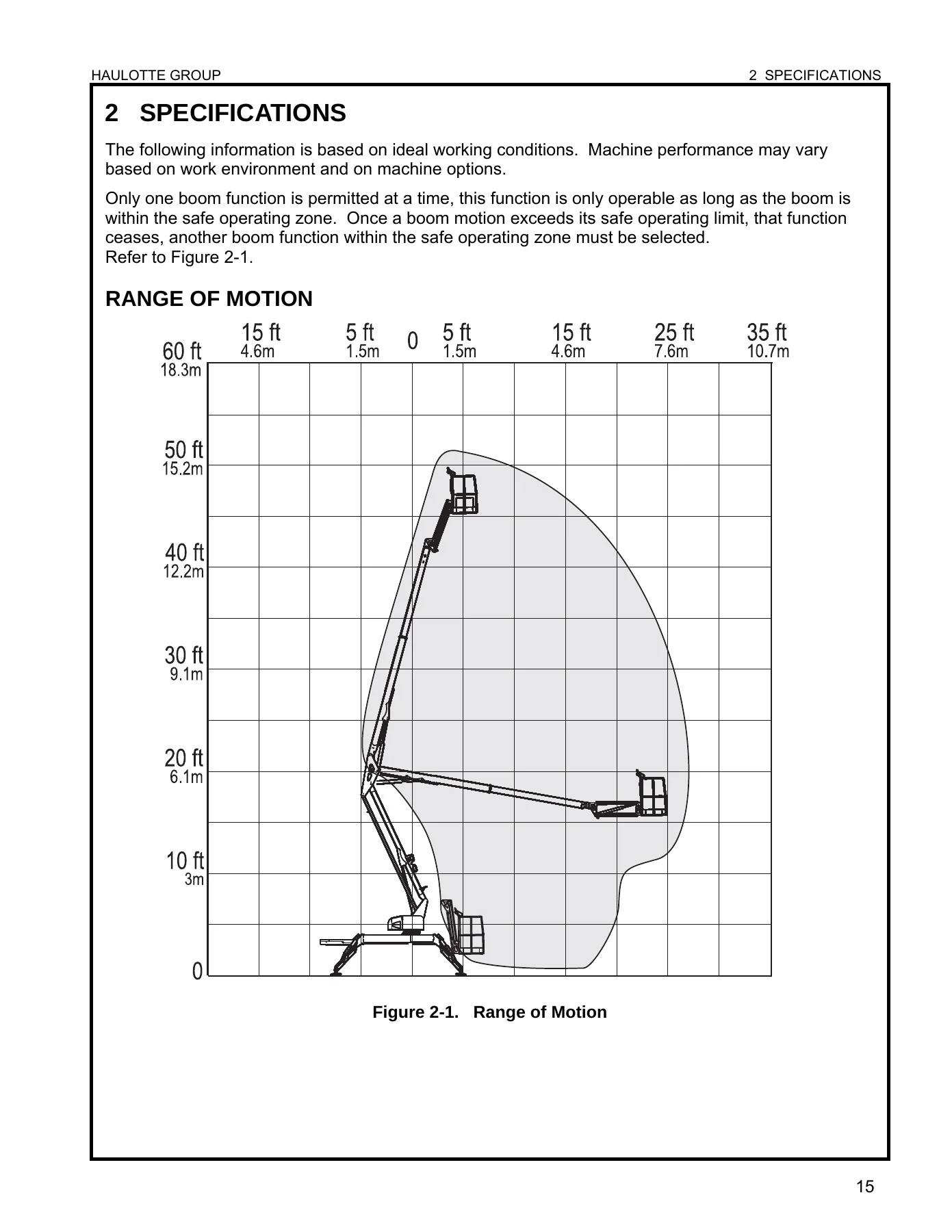

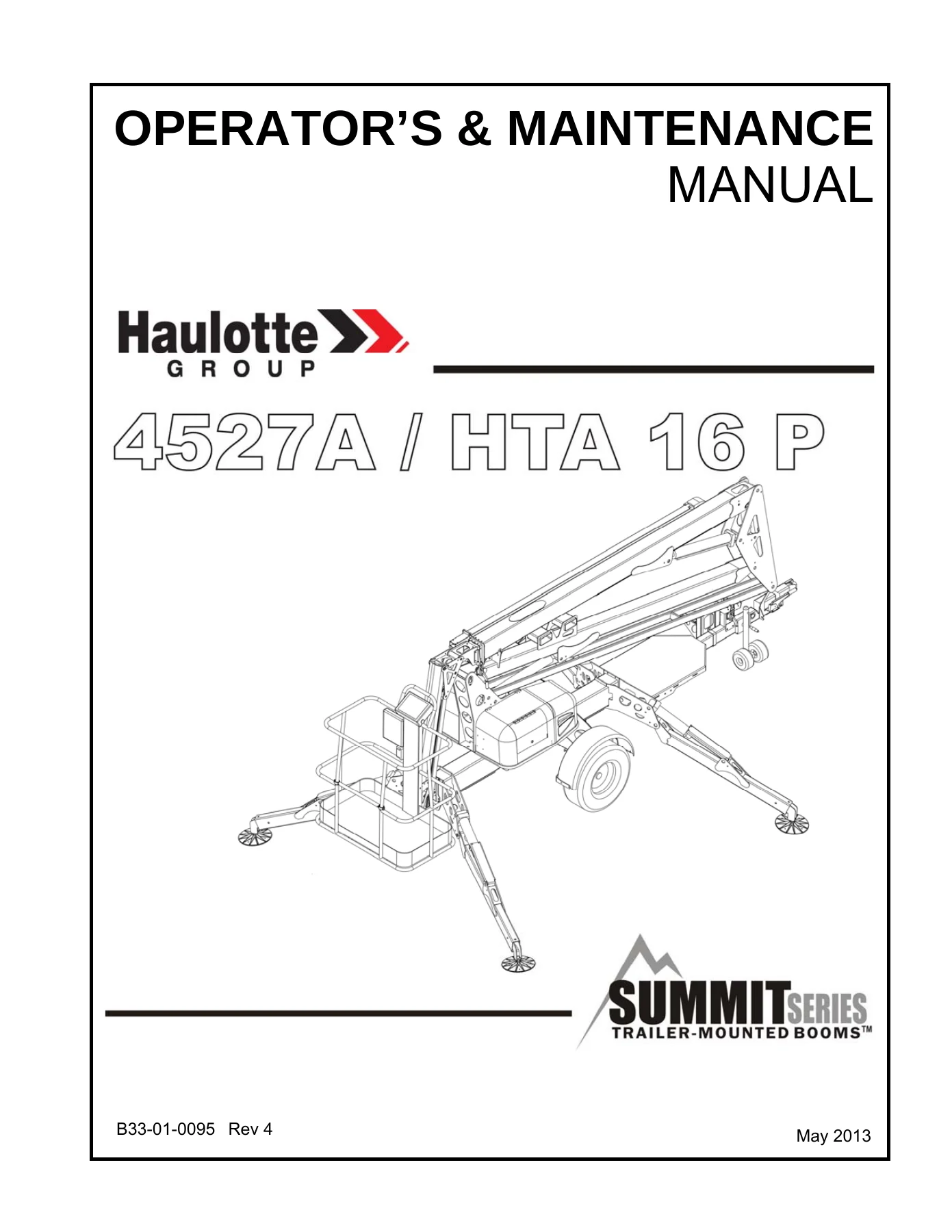

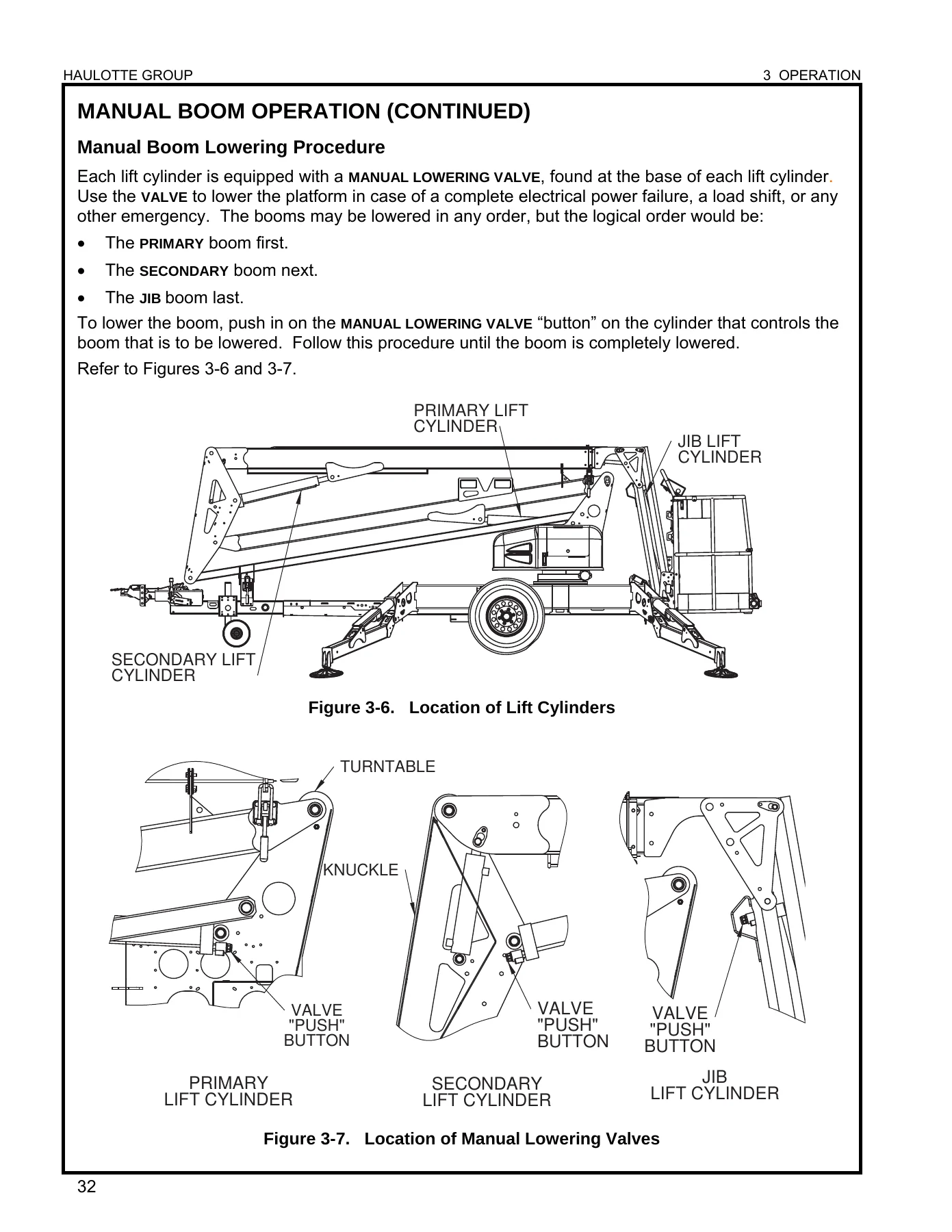

IMAGES PREVIEW

This Haulotte Bil-Jax 4527A / HTA 16 P operator and maintenance manual is delivered as an instant PDF download after payment. There is no shipping and no waiting for a physical book — the file opens on a laptop, tablet or phone in the shop or on site, and any page or section can be printed for the job at hand.
