Heli H2000 Series 5-10 Ton Forklift Operation & Service Manual – PDF Download

Description

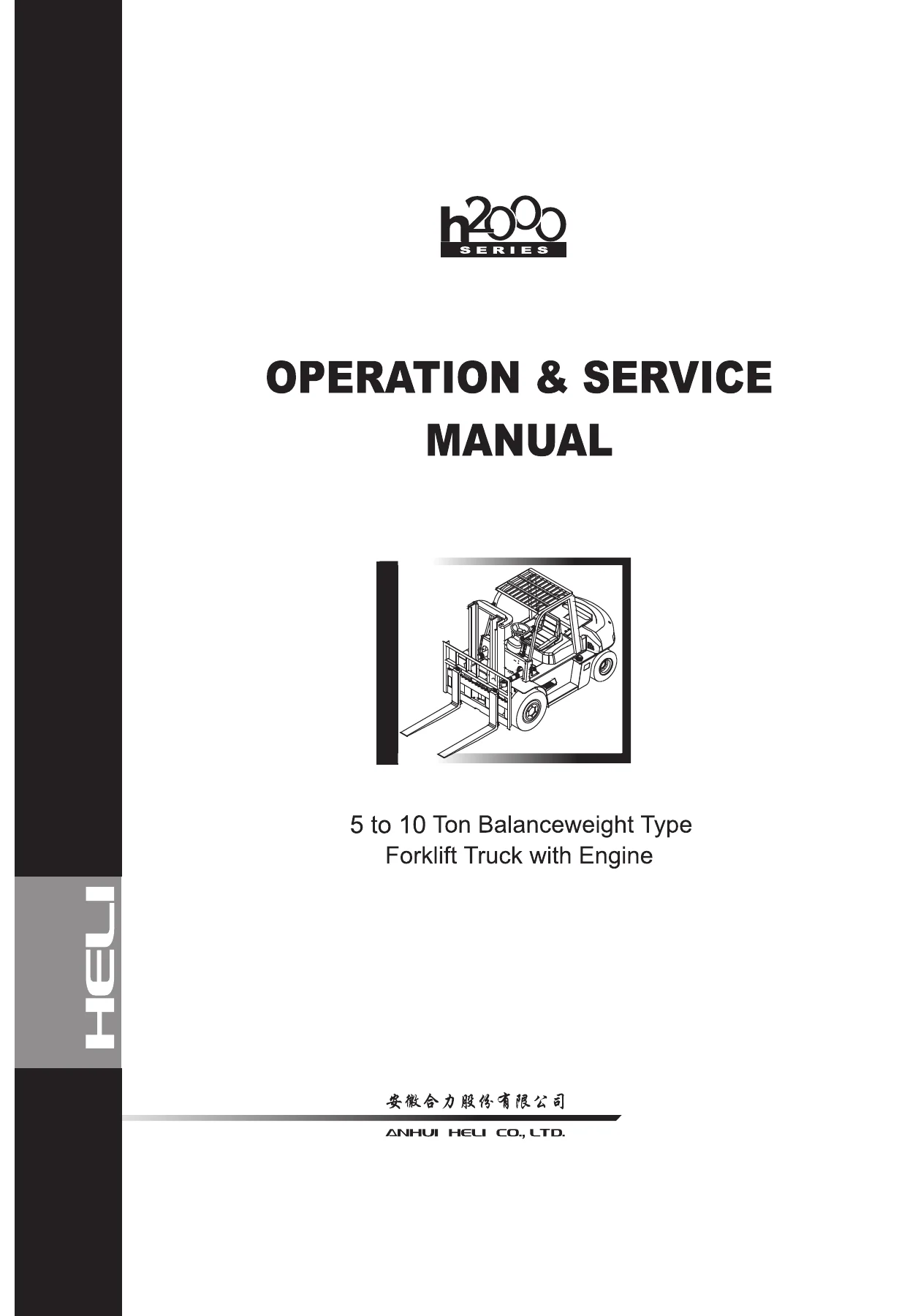

Heli H2000 Series 5-10 Ton Forklift Operation & Service Manual

This comprehensive Operation & Service Manual covers the HELI H2000 series balanceweight type forklift trucks from 5 to 10 tons. It provides complete guidance for operators, mechanics and supervisors to correctly operate, maintain and repair these heavy-duty forklifts. The manual spans 142 pages covering everything from safety rules and daily maintenance through to major component overhaul.

File Details

• Manual Type: Operation & Service Manual
• Brand: HELI (安徽合力股份有限公司 / Anhui Heli Co., Ltd.)
• Series: H2000 Series
• Models Covered: CPCD50, CPCD60, CPCD70, CPCD80, CPCD100, CPT050, CPT060, CPT070, CPT080, CPT100, CPD50, CPD60, CP(0)/YD50, CP(0)/YD60, CP(0)/YD70 and related configurations
• Capacity Range: 5 to 10 tons
• Language: English
• Page Count: 142
• File Format: PDF

Chapters Covered

The manual is organized into major sections that cover the complete forklift from top to bottom:

• Safety Rules for Operation and Daily Maintenance — delivery, storage, precautions before operation, and complete operating rules including load handling, slope travel, parking and pedestrian safety

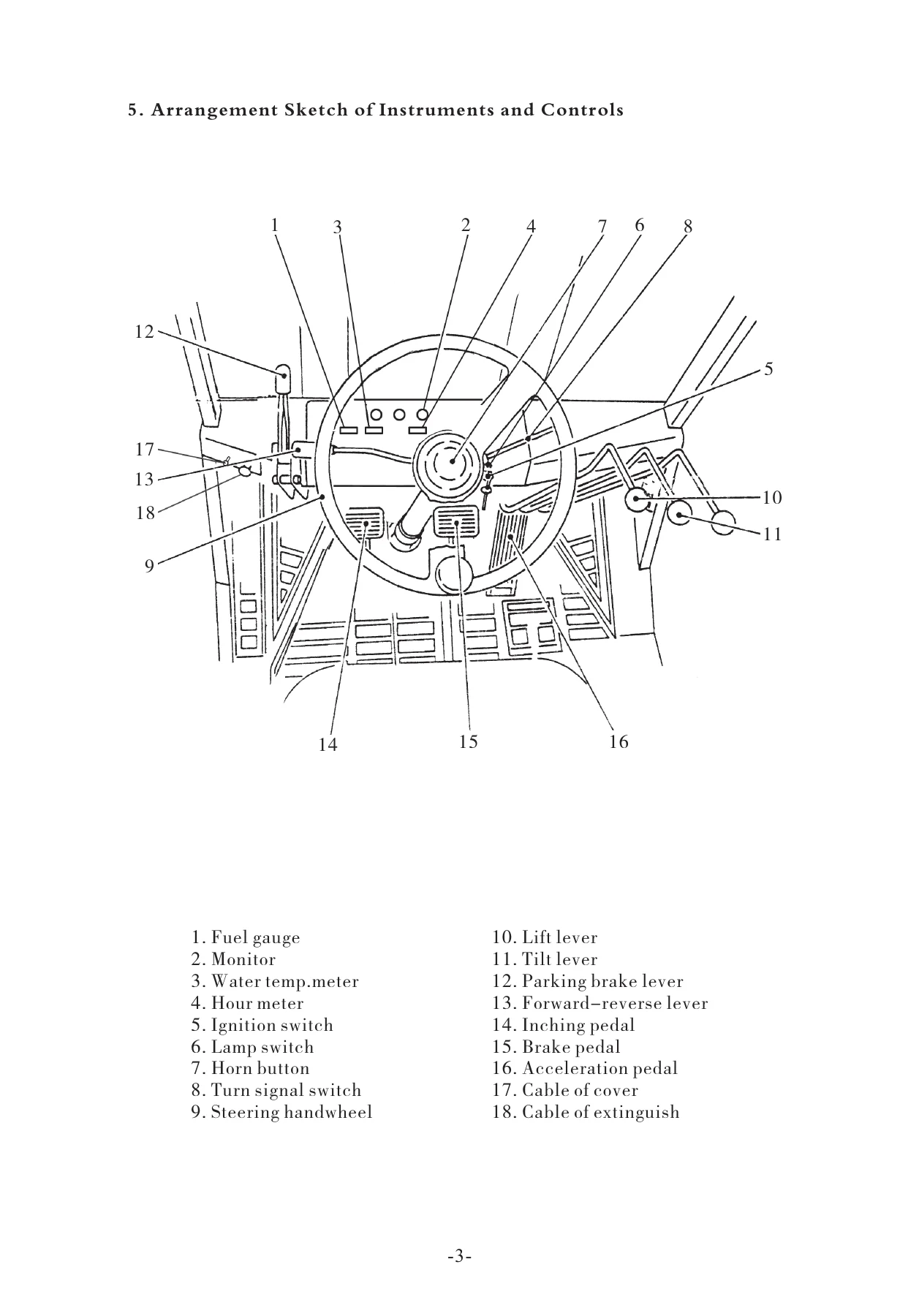

• Instrument and Control Arrangement — layout of gauges, levers, pedals and switches with numbered diagram
• Daily Maintenance — starting checks, fuel and lubrication recommendations, cooling system care, and a full lubrication schedule with interval chart
• Primary Technical Parameters — comprehensive specification tables for all covered models including CPCD50-WX through CPCD100-WX, CPCD50-WX3 through CPCD70-WX3, CPCD50-C8 through CPCD70-C8, CPCD50-W2 through CPCD100-W5, CPT050-C6 through CPT100-C3, CPD50-C10 through CPD60-WF2, CPCD50-CU13 through CPCD100-CU11, CPCD50-PI through CPCD100-PI, CPCD50-MI through CPCD70-MI, and CP(0)/YD50-TY1 through CP(0)/YD70-TY1
• Primary Assembly Introduction — engine system, transmission system, drive axle, steering system, steering axle, hoist system, frame system, operation system, hydraulic system, electric system and overhead guard
• Dynamic System — fuel tank, fuel sender, fuel filter, cooling system, air cleaner, oil filters, cylinder head bolt tightening, air gate clearance adjustment, ignition timing confirmation and adjustment, compression pressure measurement, and oil injection pump air exhaust
• Electric System — charging devices, start system, stop system, instruments, lighting and signal instruments, key switch operation, lamp switch functions, battery care, wire harness colour codes and current ratings, and Operator Presence System (OPS)
• Transmission System — torque converter operation, charging pump, hydraulic clutch group, control valve and inching valve, hydraulic circulation system, cautions for dragging the machine, and complete troubleshooting guide
• Drive Axle — main reduction and differential, hub reduction, troubleshooting, and service data specifications
• Brake System — power brake components (brake pedal device, brake valve, accumulator), vacuum servo brake (vacuum booster and main brake cylinder), travel brake for 5-7t and 8-10t trucks, stop brake, and troubleshooting guide
• Steering System — steering unit, checking after mounting, troubleshooting guide, steering axle body, steering knuckle assembly, wheel hub, and steering oil cylinder

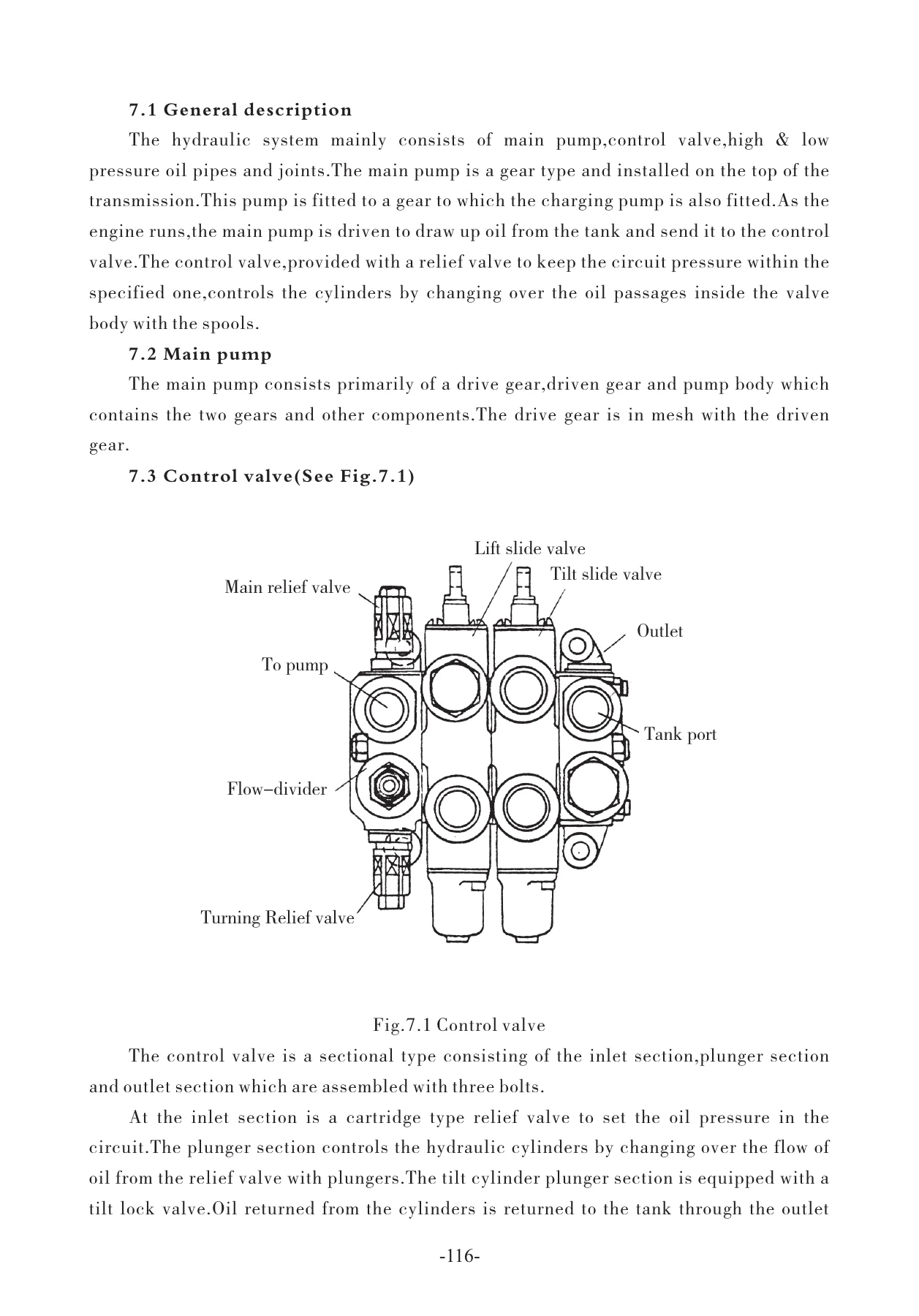

• Hydraulic System — main pump, control valve, relief valve operation, tilt lock valve, control valve operation unit, oil tank, hydraulic circulation system, and maintenance including disassembly and reassembly
• Lift Cylinder & Tilt Cylinder — lift cylinder construction, cut-off valve, flow regulator, and tilt cylinder
• Hoist System — outer and inner mast, lift bracket, lift cylinder adjustment, carriage adjustment, and roller disposal with mounting positions

This Heli H2000 series forklift service manual goes well beyond basic operator instructions. It contains the actual service procedures, adjustment values, torque specifications and troubleshooting logic that a technician needs to keep these 5-10 ton trucks running correctly. The engine section alone covers valve clearance adjustment, injection timing, compression testing and cylinder head torque sequences. The transmission chapter explains the torque converter and clutch operation in detail with disassembly and reassembly guidance. The brake and steering chapters provide the kind of component-level information that lets you diagnose hydraulic and vacuum brake problems accurately. Wire harness diagrams for multiple configurations are included, along with complete hydraulic circuit diagrams for 5-8t and 10t trucks.

What This Manual Enables You to Do

With this HELI H2000 series operation and service manual, you can perform routine maintenance confidently, diagnose and repair hydraulic brake and steering faults, service the torque converter transmission, adjust the hoist system and carriage, troubleshoot electrical problems using the wiring diagrams, and rebuild lift and tilt cylinders. The detailed specifications tables give you the exact values needed for everything from tire pressures and oil capacities to torque settings and clearance adjustments.

Correct procedures and accurate specifications matter on equipment of this size. A 5-10 ton forklift is a significant investment, and using the wrong torque value, incorrect fluid, or an improper adjustment can lead to premature failure or unsafe operation. This manual provides the manufacturer’s guidance directly from the source, so you are not guessing or relying on generic information.

IMAGES PREVIEW

As a PDF download, this Heli H2000 forklift service manual is available instantly after purchase. There is no shipping, no waiting for a physical book to arrive, and no risk of a damaged or lost package. You can view it on any device — laptop, tablet or smartphone — and print whichever pages you need for the workshop. Whether you are servicing one truck or managing a fleet, having the complete manual on hand makes every job faster and more accurate.
