Hino J08C-T Industrial Engine Workshop Manual – 6-Cylinder Turbo Diesel Service & Repair PDF

Description

This Hino J08C-T Industrial Engine Workshop Manual is the complete service and repair guide for the J08C-T series turbocharged diesel engine, covering the J08CTN-EABA model. Prepared by Hino Motors, Ltd. for professional technicians and industrial engine mechanics, this workshop manual spans 110 pages of overhaul procedures, inspection criteria, torque specifications, and troubleshooting diagnostics for the 7.961-liter, 6-cylinder, water-cooled turbocharged engine.

File Details

• Manual Type: Workshop Manual (Service & Repair)
• Brand: Hino Motors, Ltd.
• Model: J08C-T (J08CTN-EABA)
• Language: English
• Page Count: 110
• File Format: PDF
• Manual No.: S6-Y008E-01

Chapters Covered

• General Introduction
• Engine
• Turbocharger
• Injection Pump
• Injection Pump Governor
• Generator
• Starter
• Electrical Equipment

General Introduction (GI)

The opening chapter establishes the safety framework for working on the J08C-T engine, including general precautions for preventing injury and equipment damage. It explains how to use the workshop manual effectively, covers engine identification and serial number locations, and provides the full engine specifications. A dedicated section lists specified torque values for standard bolts, flange bolts, and bolts with washers across all thread sizes. Procedures for installing joints and gaskets on engine pipes are detailed with tightening torque charts for gasket seal, metal seal flare connector, and nipple connector types. The chapter closes with recommended lubricants for all Hino engines.

Engine (EN)

This is the largest chapter and covers the complete mechanical overhaul of the J08C-T engine. It opens with data and specifications, followed by a comprehensive troubleshooting section organized by symptom — engine overheating, excessive oil consumption, piston seizure, lack of power, difficult starting, rough idling, and exhaust leakage — with possible causes and remedies. Engine tune-up procedures include valve clearance checking and adjustment using the cross head and rocker arm method, injection timing inspection and adjustment, and rocker arm lubrication checks. The engine overhaul criteria section covers compression pressure measurement with special tools, oil pressure testing, and other factors determining when an overhaul is needed. Liquid gasket application points and procedures are documented with application widths and patterns.

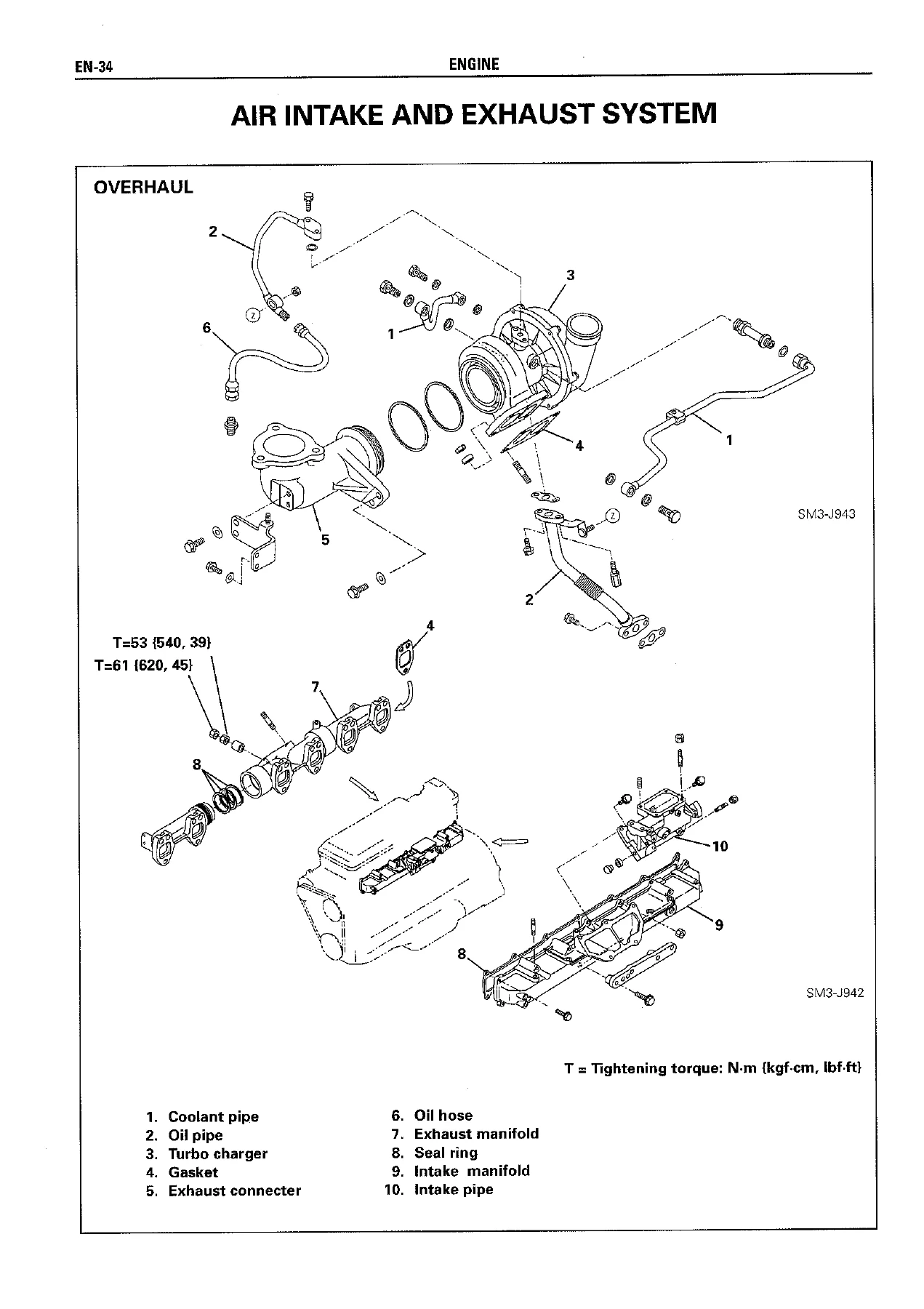

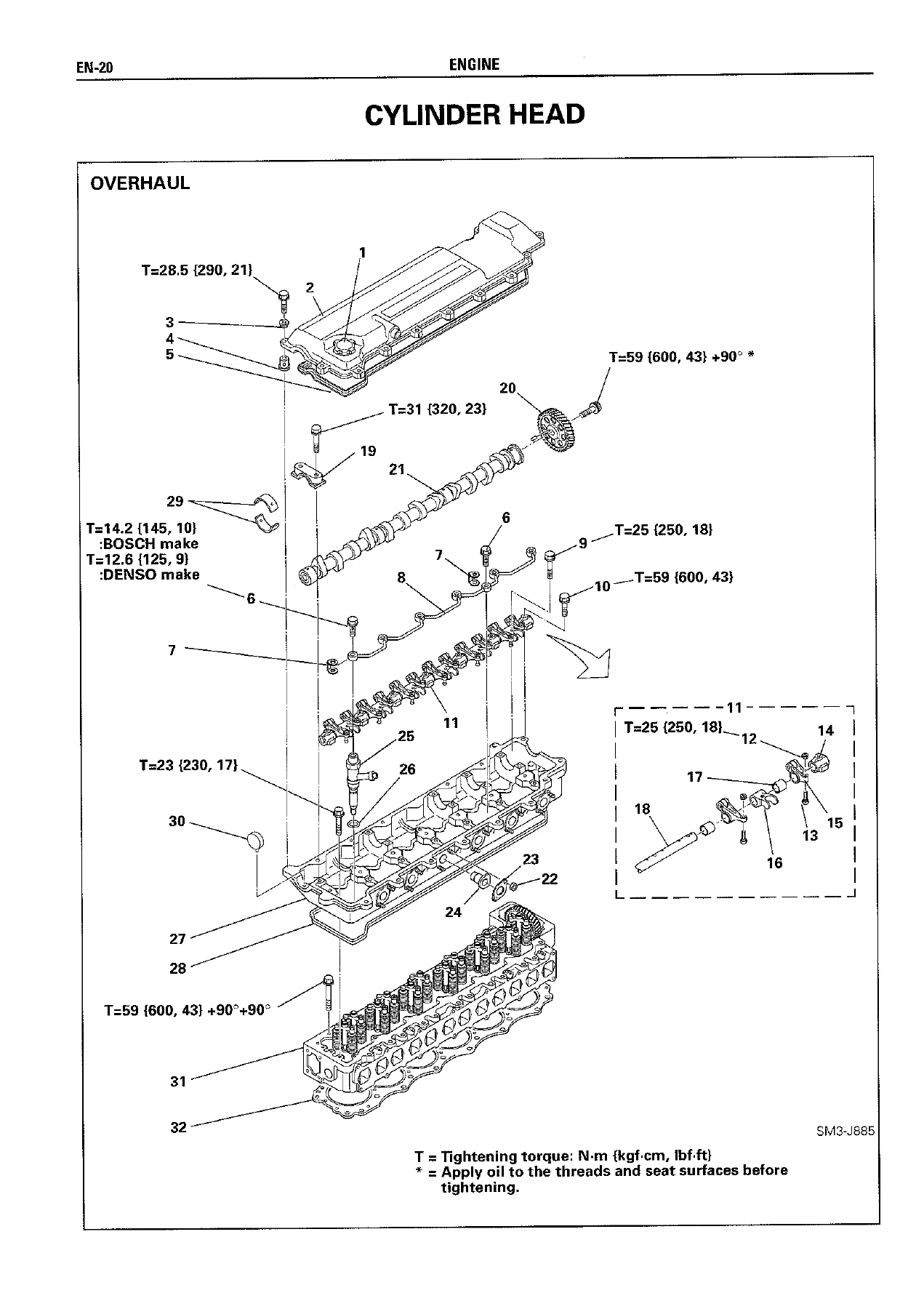

Component-level coverage includes cylinder head removal and installation with valve guide and valve seat replacement, valve spring and stem seal service, nozzle seat replacement, and camshaft assembly. The air intake and exhaust system section covers intake and exhaust manifold gasket installation and turbocharger mounting. Oil pan service, crankshaft front end, flywheel, and flywheel housing procedures are detailed with oil seal removal and installation using special tools and ring gear replacement. The timing gear chapter provides the complete exploded view of the gear train — camshaft gear, camshaft idler gear, sub-idler gear, oil pump gear, main idler gear, crankshaft gear, and injection pump drive gear — with backlash specifications and idler gear shaft service. Injection pump drive removal and installation includes drive gear, drive shaft, oil seal sleeve, and ball bearing service with end play measurement.

Main moving parts and cylinder block coverage spans cylinder liner removal and installation with protrusion measurement, piston and connecting rod disassembly and assembly, piston ring installation, connecting rod bushing replacement, and crankshaft main bearing and connecting rod bearing service with tightening sequences and angular torque specifications. The lubricating system chapter covers oil pump and oil strainer service with tip clearance and end play inspection, oil filter and oil cooler mounting with O-ring and liquid gasket application, and regulator valve, safety valve, and check valve inspection. Fuel system coverage includes injection nozzle removal, disassembly, injection pressure testing, spray profile testing, fuel leakage testing, and nozzle sinking inspection, plus fuel injection pump and fuel filter removal and installation with air bleeding procedures. Cooling system chapters cover coolant pump disassembly and assembly with vane, shaft, ball bearing, and coolant seal service, plus thermostat function testing with valve opening temperature and lift specifications.

Turbocharger (TU), Injection Pump (IP), and Injection Pump Governor (GV)

These chapters cover the turbocharger, the DENSO NB type in-line rack injection pump, and the DENSO RSV mechanical all-speed control governor. The workshop manual provides removal, installation, and service procedures for these fuel and air delivery components as they apply to the J08C-T industrial engine.

Generator (GE), Starter (ST), and Electrical Equipment (EE)

The electrical chapters cover the 24V, 35A, 3-phase alternator with built-in rectifier and IC voltage regulator, the 24V 4.5 kW electric starter motor, and the engine revolution sensor. Generator mounting and V-belt adjustment procedures include deflection measurement and through bolt torque. Starter removal and installation, engine revolution sensor mounting, and wiring clip installation are covered with alignment mark procedures.

Why This Workshop Manual Matters for J08C-T Owners and Technicians

Industrial diesel engines live or die by correct procedures. The Hino J08C-T is a 7.961-liter, 6-cylinder turbocharged workhorse rated at 278 kW (333 HP) at 1,800 r/min for 60Hz stand-by generator use. When a customer is losing power, overheating, consuming oil, or failing to start, the troubleshooting section in this manual gives a structured diagnostic path rather than guesswork. When an overhaul is due, the engine overhaul criteria section helps determine whether the engine actually needs to come apart — and the compression pressure standard of 2.71–3.01 MPa with a maximum 0.3 MPa difference between cylinders provides a concrete go/no-go threshold.

The torque specifications alone justify having this manual on the shop floor. The cylinder head requires a three-stage tightening sequence with 90° + 90° angular torque after an initial 59 N·m (600 kgf·cm) for M12 bolts, and the connecting rod nuts and main bearing cap bolts follow similar torque-plus-angle procedures. The main bearing cap bolts are tightened to 69 N·m, then 90°, then 45°. Without the correct sequence and angular values, head gasket failure, bearing distortion, or fastener fatigue become likely. The manual provides the exact sequences with paint-mark verification for every critical joint.

Valve clearance adjustment on the J08C-T uses a cross head system rather than a simple rocker-to-valve arrangement. The procedure requires positioning the No. 1 or No. 6 piston at TDC of the compression stroke, confirming camshaft arrow orientation, and adjusting both the rocker arm adjusting screw and the cross head adjusting screw in a specific order — with a feeler gauge check at each stage. The intake valve clearance is 0.30 mm and exhaust is 0.45 mm when cold. Getting this wrong causes rough running, burnt valves, or power loss.

Injection timing is set to 15° before top dead center for No. 1 cylinder, and the manual walks through the alignment of the flywheel timing marks and the injection pump coupling adjustment with the special coupling wrench. The injection nozzle opening pressure is 23.5 MPa (240 kgf/cm²), and the nozzle testing procedures — spray profile, fuel leakage, and needle sinking — are all documented with pass/fail criteria.
