Hino H07C-T & H07D Industrial Diesel Engine Workshop Manual

This Hino H07C-T and H07D industrial diesel engine workshop manual is the complete repair and overhaul guide for these 6-cylinder water-cooled engines used in industrial and generator applications. Whether you are rebuilding a worn H07D naturally aspirated engine or servicing a turbocharged H07C-T, this PDF gives you the specifications, procedures and tightening torques needed to do the job correctly.

File Details

• Manual type: Workshop Manual
• Brand: Hino Motors, Ltd.
• Models covered: H07C-T, H07D
• Engine type: Diesel, 4-cycle, 6-cylinder, in-line, overhead valve, water-cooled
• Aspiration: Natural (H07D) / Turbocharged (H07C-T)
• Language: English
• File format: PDF
• Page count: 117

Chapters Covered

• General
• Introduction
• Engine
• Electrical Equipment
• Turbocharger
• Injection Pump
• Injection Pump Governor
• Generator
• Starter
• Air Compressor
• Injection Pump Calibration

General and Introduction

The opening sections lay out the full specification picture for both engine variants. You get performance ratings for general use and generator use, ambient test conditions, engine description tables, and a complete rundown of standard and optional equipment. For the H07D you will find the 7.412-litre displacement, 110 x 130 mm bore and stroke, 19.7 compression ratio, 107 kW (144 HP) intermittent rating at 2,400 rpm and 466 N-m (344 lbf-ft) maximum torque at 1,400 rpm. The H07C-T data covers the 6.728-litre turbocharged engine with 110 x 118 mm bore and stroke, 18.5 compression ratio and 143 kW (192 HP) intermittent output at 2,000 rpm. The data and specifications pages for each model include injection pump numbers, injection timing, idling speeds, injection pressures and valve clearance values for every engine code variant. Special tools are illustrated and listed so you know exactly what is needed before starting an overhaul.

Engine

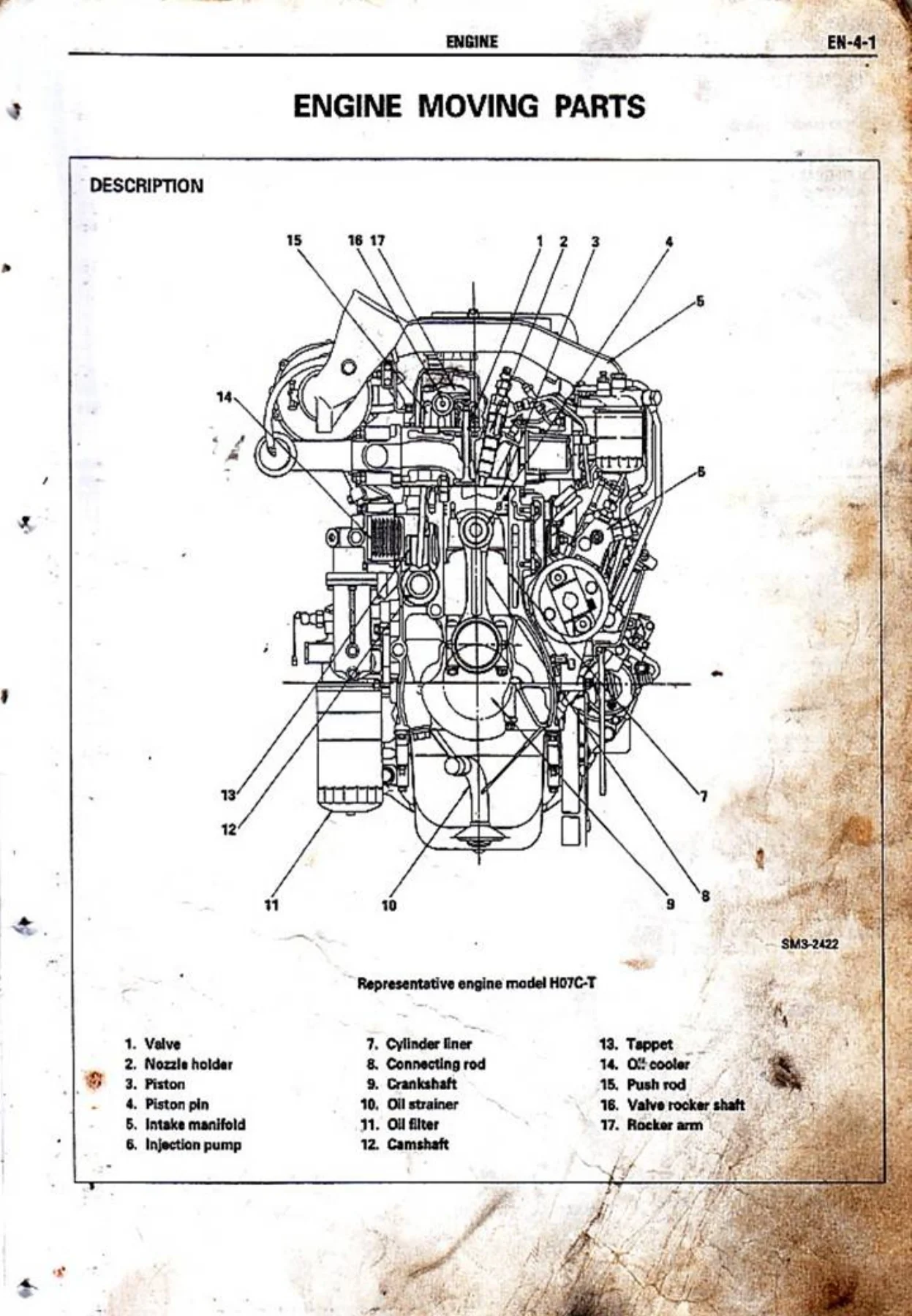

This is the heart of the manual and covers the complete engine overhaul for both the H07C-T and H07D. It opens with engine assembly removal and mounting procedures, then works through the cylinder head in detail: valve spring removal, valve and valve seat inspection and replacement, valve guide service, valve stem seal replacement, nozzle sleeve removal and installation, and cylinder head assembly. Torque values are given throughout, including cylinder head bolt tightening in three stages and rocker arm support bolt sequences.

The cylinder block chapter covers camshaft removal and installation with thrust plate service, injection pump drive gear and camshaft gear replacement including heating temperatures for installation, idler gear shaft removal with the sliding hammer, front and rear oil seal sleeve replacement with special tools, crankshaft bearing installation and cap bolt tightening in two stages, and crankshaft end play inspection. The piston and connecting rod section covers piston pin bushing removal and installation using a hydraulic press and special tooling, piston ring installation with correct ring orientation, connecting rod cap bolt tightening procedures for both H07D and H07C-T, and cylinder liner insertion with selective fitting marks W, X, Y and Z. Piston cooling jet inspection and spray pattern testing are also covered.

Lubrication System

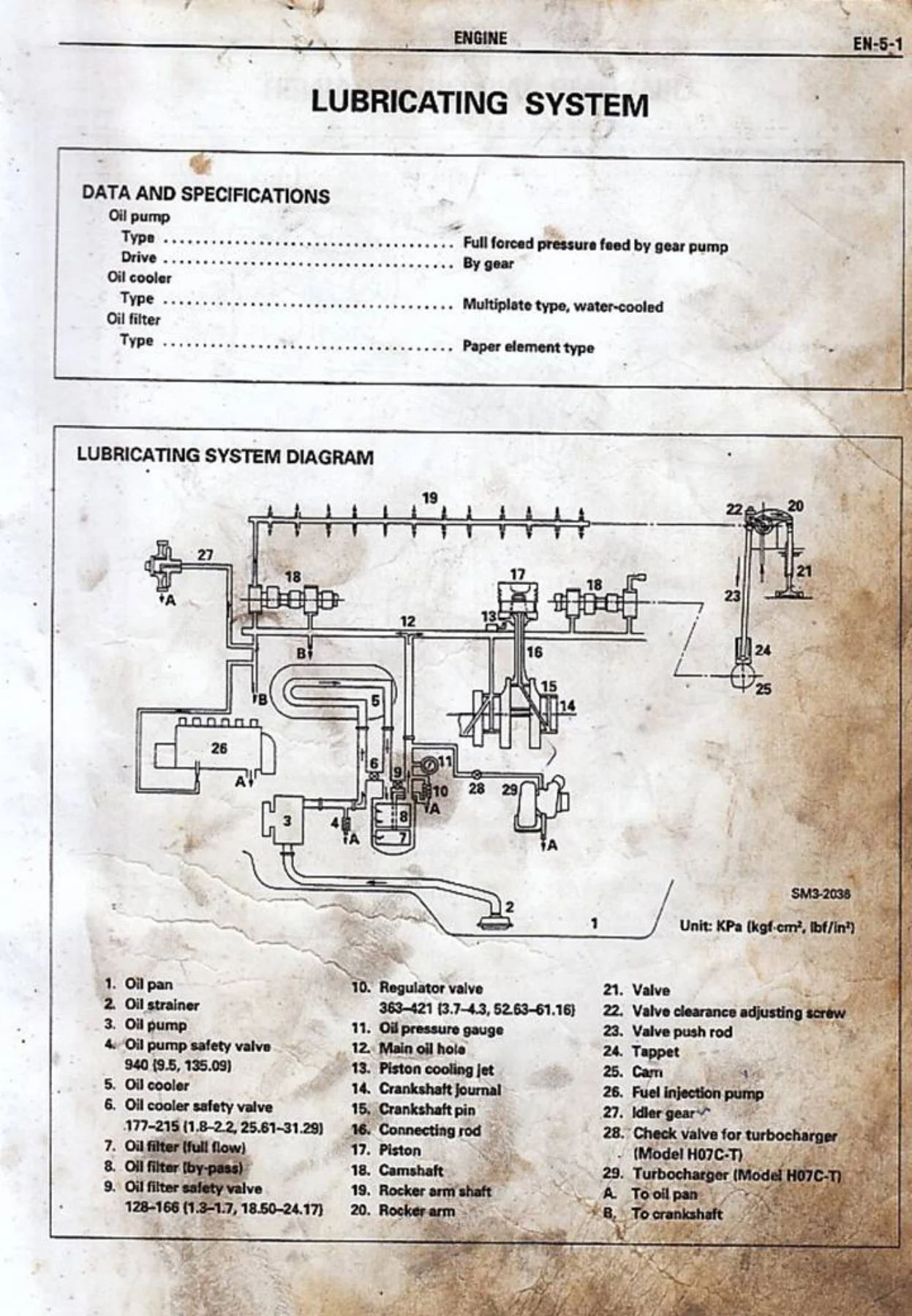

The lubrication chapter includes a complete lubricating system diagram and covers the oil pump and oil strainer, oil pump safety valve, oil cooler with safety valve, and full-flow and by-pass oil filters. Inspection and repair data covers gear-to-case clearance, gear end play, gear backlash and driven gear-to-shaft clearance with standard and limit values. The oil pump safety valve opening pressure is specified at 940 kPa (9.5 kgf/cm²).

Cooling System

The cooling system chapter covers the coolant pump with two types (Type-A and Type-B), thermostat function testing with valve opening temperature and lift specifications, radiator inspection including cap valve opening pressure, and cooling fan service with blade types and fan clutch information. Thermostat opening temperatures are given for both 76.5°C and 82°C units, with valve lift measured at 10 mm or more.

Air Intake and Exhaust System

This section covers the intake manifold, exhaust manifold, spacers and related gaskets for both models. The H07C-T turbocharger system is detailed with oil inlet and outlet pipes, intake pipe, connector, bracket and safety valve. Exhaust manifold flatness limits and resurfacing limits are provided, along with the correct spacer thickness for each cylinder group on both engine models.

Electrical Equipment

The electrical section covers the generator (alternator with integral regulator, 24V, 20A), starter (24V, 4.5 kW for H07D and 24V, 5.5 kW for H07C-T), safety relay, and connectors. Starter mounting and dismounting procedures are given, along with V-belt tension adjustment specifications for Type-I and Type-II belt layouts. Belt deflection values and tightening torques are included.

Fuel System: Injection Pump, Governor, and Nozzle

The fuel system chapters cover the injection pump, governor, injection nozzle and injection pump calibration. The nozzle section includes nozzle holder assembly and disassembly, nozzle sinking testing, injection pressure adjustment for both H07D (18.15–18.92 MPa first opening pressure, 26.88–27.45 MPa second opening pressure) and H07C-T (20.1–20.6 MPa injection pressure except certain codes), spray profile testing, and fuel leakage testing. The injection pump mounting and timing chapter covers injection timing adjustment, pump installation with staged bolt tightening, and coupling bolt torque values.

Engine Component Parts

The final chapter covers dismounting and mounting of engine component parts including the injection pump and related connections, along with a comprehensive tightening torque chart for gasket seal, metal seal and nipple connector types. Liquid gasket application points and coating widths are specified for the timing gear cover, flywheel housing and intake manifold. Torque values for the flywheel, starter, and V-belt adjustment are also included.

Why This Manual Matters for H07C-T and H07D Owners

These Hino industrial engines are built for continuous duty in generator sets, compressors, and other industrial applications where downtime is expensive. The difference between a repair that lasts and one that fails early often comes down to having the right specifications: the correct cylinder head bolt tightening sequence, the proper piston ring orientation, the exact injection timing setting, or the specified valve clearance. This workshop manual provides all of that, drawn from the manufacturer’s service documentation.

The manual covers both the naturally aspirated H07D and the turbocharged H07C-T, with model-specific data tables for each engine code variant so you can match the specifications to the exact engine you are working on. Whether you are a maintenance technician in a generator room, a mechanic in a rebuild shop, or an owner-operator who does your own servicing, having the procedures and torque values on hand makes the job faster and more accurate.
