Isuzu AH-6UZ1 Industrial Diesel Engine Workshop Manual

The Isuzu AH-6UZ1 Industrial Diesel Engine Workshop Manual is the complete service documentation for the AH-6UZ1X model — a water-cooled, 4-cycle, in-line 6-cylinder, 24-valve OHC direct injection diesel engine. This Isuzu AH-6UZ1 workshop manual covers every major system on the engine: mechanical, cooling, fuel, electrical, lubrication, intake, and preheating. Whether you are performing a routine valve clearance adjustment or a full engine overhaul, this manual walks you through each procedure with Isuzu’s own specifications, tightening torques, and measurement standards.

Published by Isuzu Motors Limited in March 2009 under document number IDE-2440 (version 6UZ1-WE-0991), this AH-6UZ1 engine manual is the reference used by professional diesel technicians working on AH-6UZ1 engines in industrial applications. Every procedure, from compression pressure testing to crankshaft bearing selection, is documented with step-by-step instructions and the exact tolerances you need to keep the engine within factory specification.

File Details

• Manual Type: Engine Workshop Manual
• Brand: Isuzu
• Model: AH-6UZ1 (AH-6UZ1X)
• Engine: 6UZ1 — 6-cylinder, 24-valve OHC direct injection diesel
• Language: English
• Page Count: 229 pages
• File Format: PDF
• Document Number: IDE-2440
• Date: March 2009
• Revision: Ver. 6UZ1-WE-0991

Chapters Covered

• General Information
  • Service Precautions
  • Terminology and Abbreviations
  • SI Unit Conversions
  • Isuzu Standard Tightening Torque Tables
  • Liquid Gasket Application
  • Plastigauge Measurement Procedure
• 6UZ1 Engine Mechanical (Section 1A)
  • Engine Accessories — Removal and Installation
  • Engine Exterior Equipment — Components and Removal

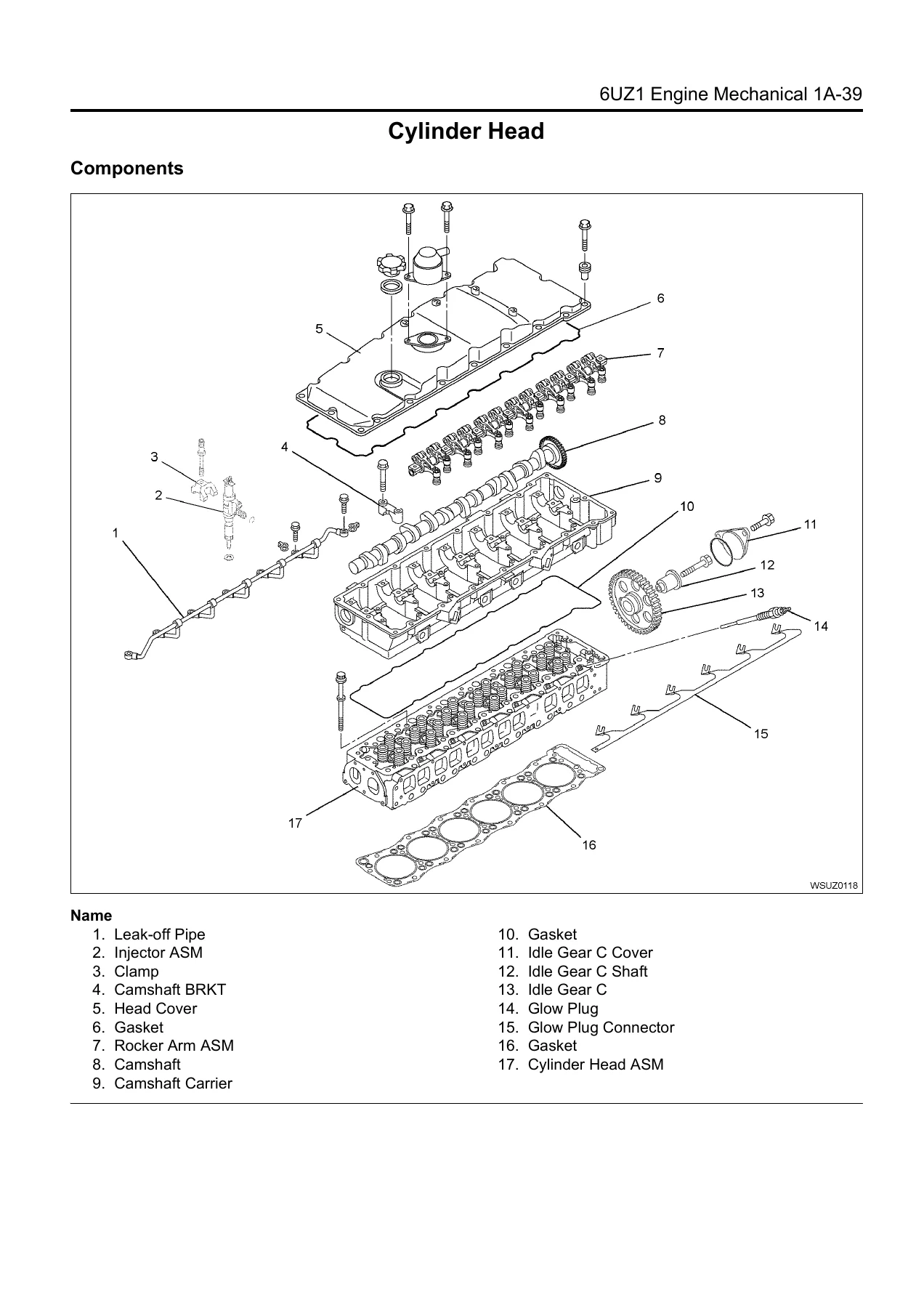

  • Cylinder Head — Removal, Disassembly, Inspection, Reassembly
  • Rocker Arm — Disassembly and Inspection
  • Camshaft — Inspection and Reassembly
  • Flywheel, Flywheel Housing and Timing Gear
  • Front Cover and Crankshaft

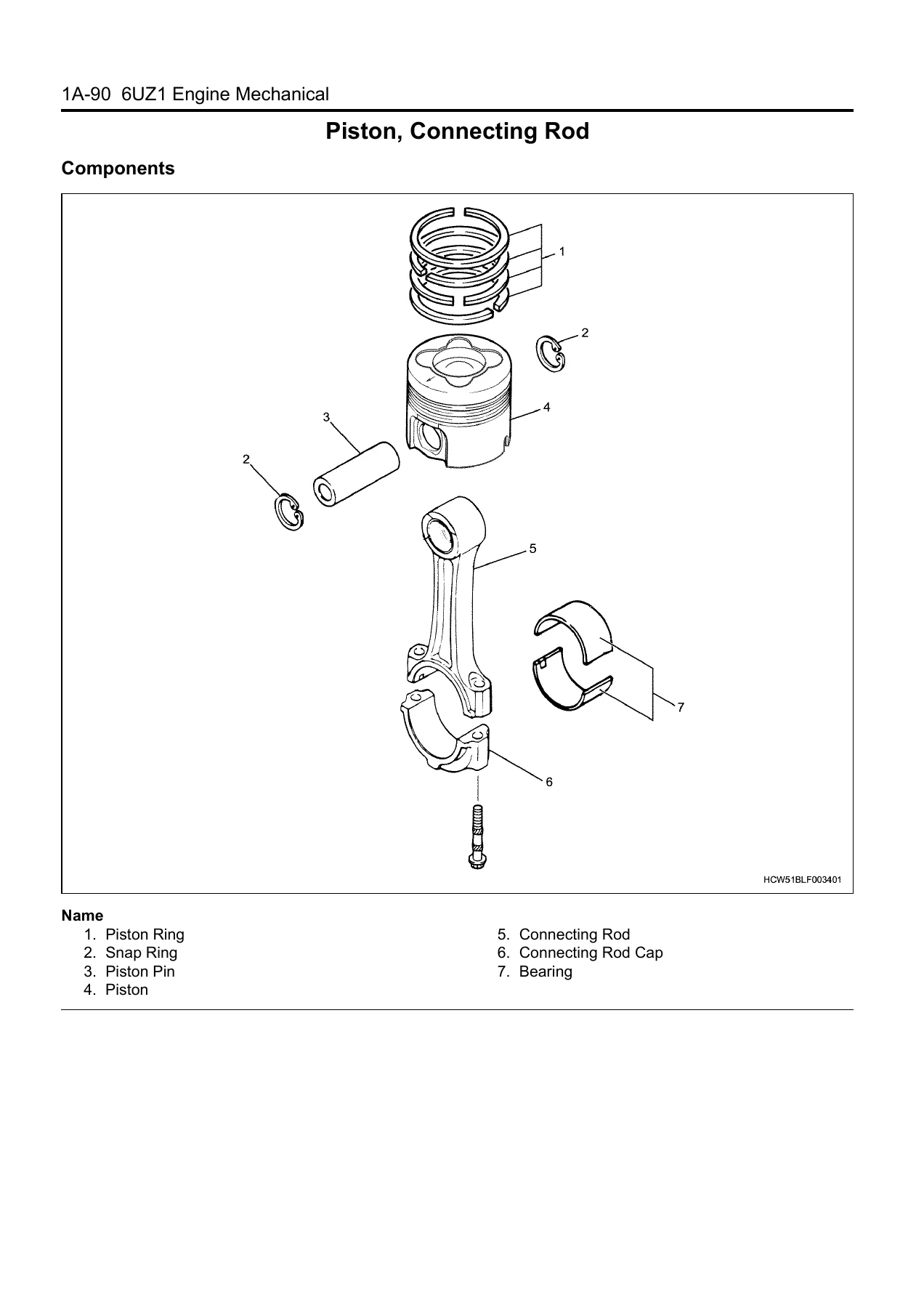

  • Piston and Connecting Rod
  • Cylinder Block
  • Special Tool List
• 6UZ1 Cooling System (Section 1B)
  • Water Pump — Removal, Disassembly, Inspection, Reassembly
  • Thermostat — Inspection and Installation
  • Coolant System Troubleshooting
• 6UZ1 Fuel System (Section 1C)
  • Fuel System Diagram
  • Common Rail Components
  • Supply Pump (Electronic Control)
  • Injector Specifications
  • Fuel Filter — Disassembly and Reassembly
  • Air Bleeding Procedure
• 6UZ1 Electrical System (Section 1D)
  • Starting System — Starter Disassembly, Inspection, Reassembly, No Load Test
  • Charging System — Generator Components, Inspection, Bench Test
  • Maintenance Standards
• 6UZ1 Lubricating System (Section 1H)
  • Oil Filter — Disassembly and Reassembly
  • Oil Cooler — Inspection and Reassembly
  • Oil Jet — Removal and Installation
  • Oil Pump — Disassembly, Inspection, Reassembly
  • Oil Pan — Removal and Installation
• 6UZ1 Intake System (Section 1J)
  • Turbocharger — Structure, Disassembly, Inspection, Reassembly
  • Maintenance Standards and Service Limits
• 6UZ1 Preheating System (Section 1K)
  • QOS-II Preheating System
  • Glow Relay, Thermo-Sensor, and Glow Plug Checks
  • Specifications and Troubleshooting

This Isuzu AH-6UZ1 engine manual goes far beyond a simple service guide. It includes complete overhaul procedures for the engine mechanical section — cylinder head removal and disassembly, valve guide replacement, valve seat insert installation, camshaft and rocker arm inspection, piston ring end gap measurement, crankshaft journal measurement, and cylinder liner grade selection. The cooling section covers water pump rebuild with bearing and seal replacement, thermostat operation testing, and coolant replacement procedure. The fuel section documents the common rail system layout, supply pump removal and installation, injector specifications, and the air bleeding sequence required after fuel system service.

For electrical work, the manual provides starter and generator disassembly with component-level inspection — armature testing, brush length measurement, rectifier diode checks, and IC regulator diagnosis. The lubrication section covers the oil pump rebuild, oil cooler element cleaning, and oil thermostat operation. The intake section dives into the RHG6 turbocharger with detailed inspection criteria including turbine shaft axial and radial play measurement, journal wear limits, and seal ring groove specifications.

Specifications You Will Find Inside

The AH-6UZ1 workshop manual is packed with the measurement data you need for accurate engine work. The general information section includes Isuzu standard tightening torque tables covering bolt strength classifications from 4.8 through 9.8 and 9T, plus flare nut torque values, taper screw specifications, and liquid gasket product references. The engine mechanical section provides assembly specifications and service limits for every major component:

• Camshaft axial clearance: 0.085–0.170 mm assembly, 0.25 mm service limit
• Valve guide clearance: 0.039–0.071 mm intake, 0.064–0.096 mm exhaust
• Valve spring squareness and free length tolerances
• Piston ring end gap: top ring 0.36–0.59 mm, second 0.45–0.73 mm, oil ring 0.35–0.68 mm
• Crankshaft journal outside diameter: 89.909–89.929 mm service limit
• Connecting rod bearing clearance: 0.044–0.104 mm assembly, 0.16 mm limit
• Cylinder liner bore: 120.0 mm nominal, 120.3 mm service limit

The cooling section lists thermostat opening temperature (80–84°C) and full-open temperature (95°C), along with coolant capacity and LLC concentration tables. The fuel section includes supply pump model SP180-6HD, injector model DLL-P, and fuel system specifications. The electrical section covers the 24V starter (5.5 kW) and 24V generator (50A) with no-load test values, commutator wear limits, brush length limits, and pinion engagement measurements. The turbocharger section provides turbine shaft axial play (0.06–0.09 mm), radial play (0.10–0.17 mm), and bearing housing inside diameter limits.

Every torque value in the manual is printed in N·m with kg·m and lb·ft conversions. The manual also includes the complete Isuzu standard tightening torque table for bolts and nuts, which applies across all systems unless a special torque is specified.

Who This Manual Is For

This Isuzu AH-6UZ1 engine workshop manual is written for professional diesel technicians, fleet maintenance shops, and industrial equipment operators who service AH-6UZ1 engines. The procedures assume access to standard hand tools, a torque wrench, precision measuring instruments (micrometer, dial gauge, cylinder gauge), and the special tools listed in the manual — including the compression gauge adapter (1-8531-7019-0), valve spring remover (5-8840-2546-0), injector remover (5-8840-2826-0), and cylinder liner installer (1-8522-1073-0).

Because this is an engine-specific workshop manual, it covers the complete engine rather than installation in a specific machine. The AH-6UZ1 is used across various industrial applications, so the manual focuses on the engine itself — not the surrounding equipment. This makes it suitable for any application where the 6UZ1 engine is found, provided the technician references the correct machine-specific documentation for installation and interface details.

What You Can Do With This Manual

With this Isuzu AH-6UZ1 manual on hand, you can:

• Perform a complete engine overhaul — cylinder head, pistons, connecting rods, crankshaft, cylinder block, and all related components
• Diagnose and repair cooling system issues including water pump failure, thermostat malfunction, and coolant leaks
• Service the common rail fuel system — supply pump, injectors, common rail, and fuel filter
• Test and rebuild the starter and generator with component-level inspection
• Rebuild the oil pump, service the oil cooler, and replace the oil filter
• Diagnose and rebuild the RHG6 turbocharger, measuring shaft play and component wear against factory limits
• Test the preheating system including glow relay, thermo-sensor, and glow plugs
• Adjust valve clearance to the exact cold specification
• Measure compression pressure and judge when an overhaul is necessary

Each procedure includes the assembly specifications, service limits, and tightening torques you need to work confidently. The manual also includes a Judgment of Time to Overhaul section that helps you determine when the engine has reached the point where overhaul is required — based on compression pressure drop, oil consumption increase, fuel consumption increase, and internal noise.

Why This Manual Matters

Working on a modern common rail diesel engine without the correct specifications is a recipe for expensive mistakes. A valve clearance set to the wrong value can cause poor performance or valve damage. A bearing clearance that is too tight can seize; too loose can cause oil pressure loss. The Isuzu AH-6UZ1 workshop manual gives you the exact numbers — assembly specifications, service limits, and torque values — that Isuzu engineering specifies for this engine. It also documents the correct procedures for critical operations like liquid gasket application (with specific products and cure times), plastigauge measurement, and the sequence for tightening cylinder head bolts and crankcase bolts.

The manual includes Isuzu’s own liquid gasket product table, specifying which sealant to use at each joint — ThreeBond 1207B, 1201, 1208, Loctite FMD-127, LT290, and others. This level of detail matters when you are resealing an engine and want to avoid leaks.

Delivery

IMAGES PREVIEW

This Isuzu AH-6UZ1 Industrial Diesel Engine Workshop Manual is delivered as an instant PDF download after payment. No shipping, no waiting for a physical book. The PDF works on any device — desktop, laptop, tablet, or smartphone — and you can print individual pages or the entire manual for use in the workshop. Whether you are working in a fully equipped diesel shop or a field service truck, you can have the manual open on a screen or printed on paper, right where you need it.

Stop guessing at specifications and start working with the same documentation Isuzu provides for the AH-6UZ1 engine. Get your PDF copy today and have the complete workshop manual ready for your next service job.
