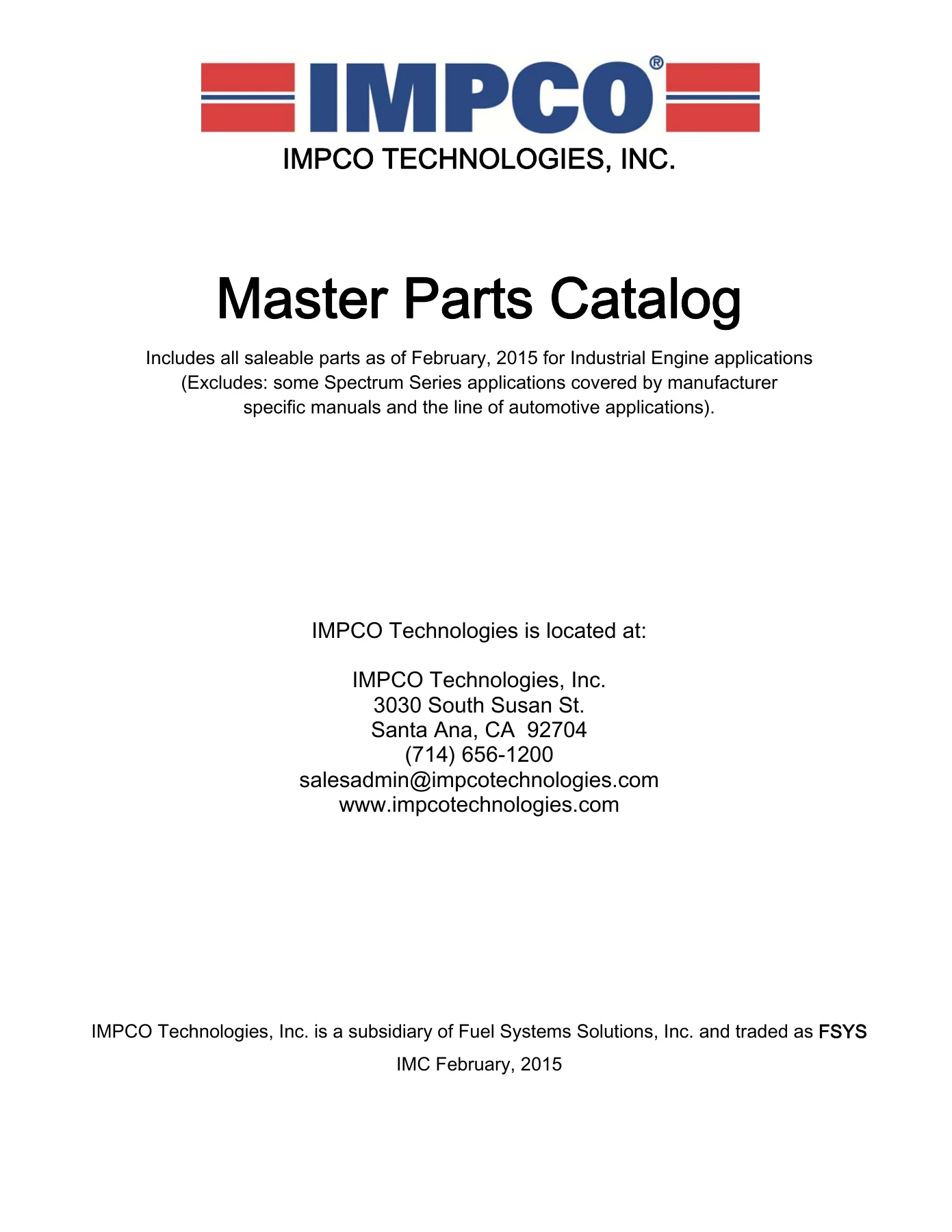

IMPCO Industrial Engine Master Parts Catalog February 2015 – Complete LPG & Natural Gas Fuel System Components Guide

Description

File Details

• Manual type: Master Parts Catalog
• Brand: IMPCO Technologies, Inc. (including Beam, Garretson, and Algas brand components)
• Model coverage: Industrial engine applications (excludes some Spectrum Series applications covered by manufacturer-specific manuals and the line of automotive applications)
• Language: English
• Page count: 618
• File format: PDF
• Edition/Date: February 2015

Chapters Covered

• Carburetors & Mixers
• Fuel Metering
• Regulators
• Fuel Shut-Off/Lockoffs
• Adapters
• GFI Components
• Accessories
• Spectrum Series II (2004-2006)
• Spectrum Series III (2007-2008)

Carburetors & Mixers

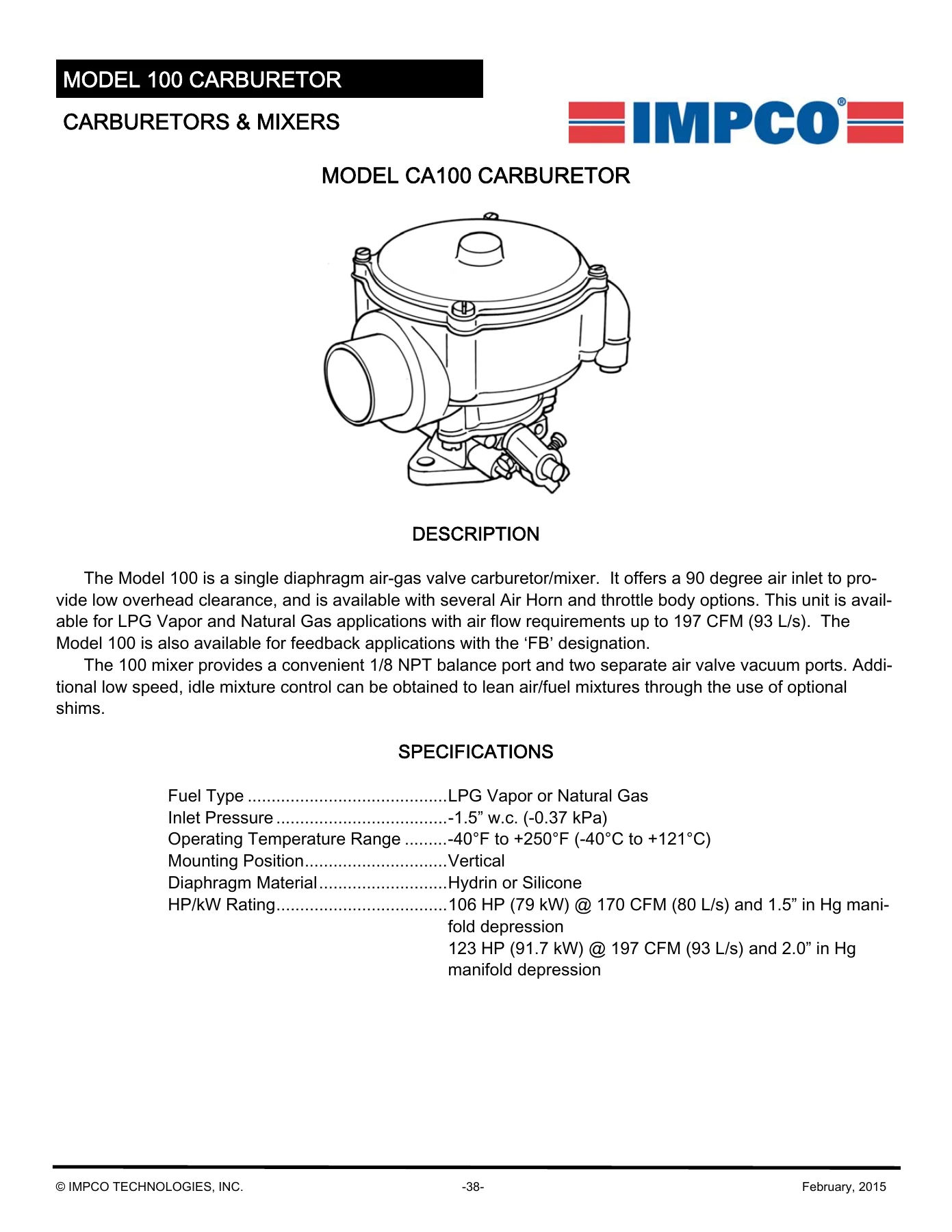

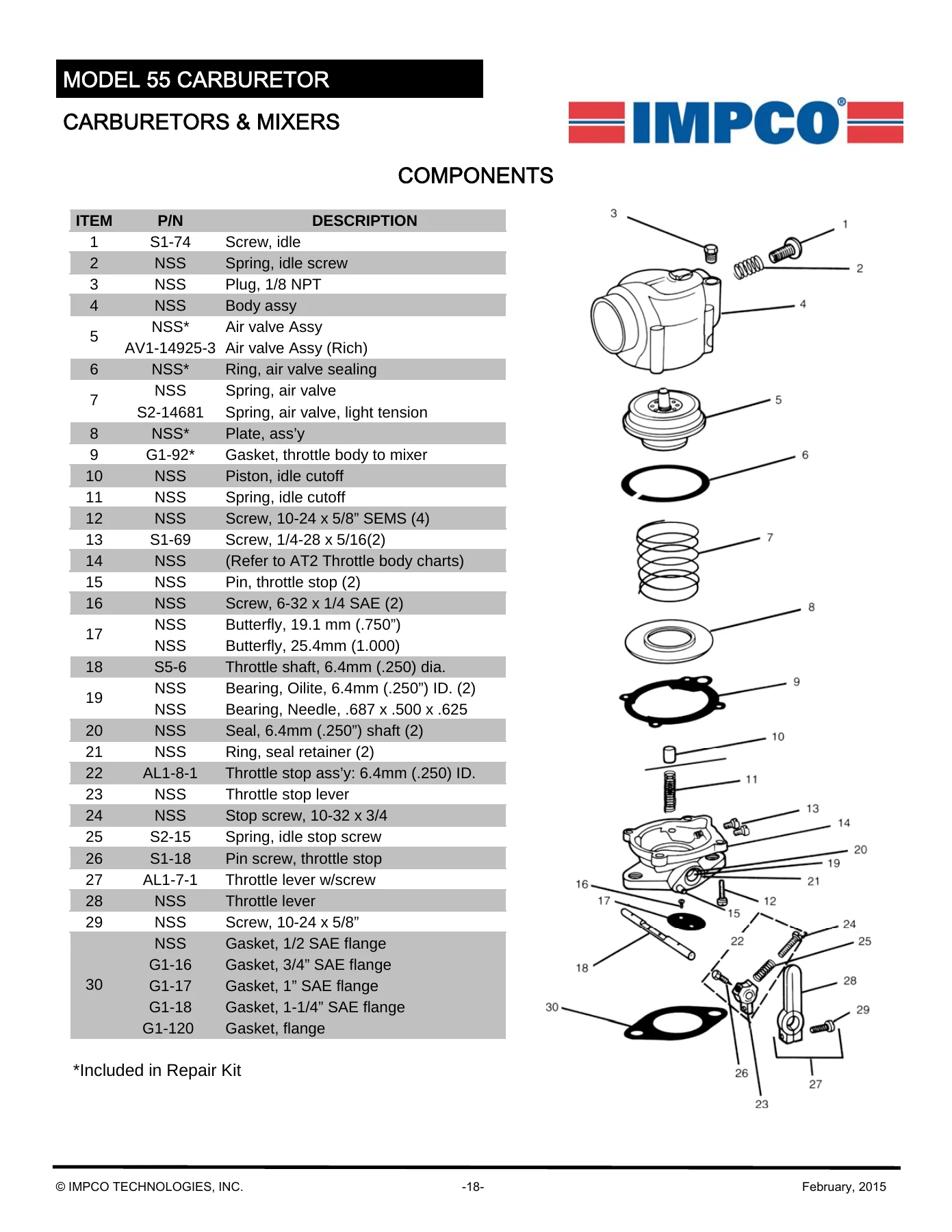

This section covers the full range of IMPCO carburetors and mixers from the Model 55 through the 600DVF, with detailed exploded-view illustrations, dimensions, part numbers, and component lists for each model. Includes the 55, 55-250L, 55-500L, 55-750L, 60, 100, 110, 125, 125M-10, 200, 200D, 200T, 210, 225, 300A, 400VF, 425, 600, 600D, 600VF, and 600DVF. Each model entry provides fuel type ratings, inlet pressure requirements, operating temperature ranges, mounting positions, diaphragm materials, and horsepower/kW ratings at specified manifold depression values.

Fuel Metering

Covers carburetor adapters, venturis, Choice Fuel custom outlet fittings, 130 series load blocks, power adjustment elbows, 100 series fuel tubes, 2F series spud in tubes, the Commander OZ air/fuel control unit, fuel control parts, in-line power valves, FCV solenoid kits, vacuum switches, fuel control valves, and regulator control valves. This section provides the small components and tuning hardware needed to complete and calibrate an IMPCO fuel system installation.

Regulators

The regulator section spans every IMPCO regulator model including the AHR50-D, 11A17, T52, KN, 202A, T60, J, PJ, Cobra, P-Cobra, C250A, 120A, L, E & PE, EV & PEV, HPR-3600, and IMP series. Each entry includes specifications, dimensions, component breakdowns, and repair kit part numbers. Both liquid and vapor fuel types are addressed, with inlet and outlet pressure data, horsepower ratings, and heating source requirements.

Fuel Shut-Off/Lockoffs

Covers the VFF30 vacuum fuel lock/filter, ET98 shutoff/lockoff (with and without integral filter), and the FL-206, FL-218-12V, FL-221, FL-418-12V, FL-50046/FL-52826, FL-306, and FL-51767 models with their electrical specifications, flow ratings, dimensional data, and available inlet/outlet configurations.

Adapters

Includes the A2 model air horn adapters, A3 model adapters, S3 spacers, 5-1/8″ air horn adapters, Unidapt adapter system components, and Carter Thermo Quad adapter. These parts allow IMPCO mixers and carburetors to be fitted to a wide variety of intake manifolds and throttle bodies.

GFI Components

Covers GFI regulators (P1 and P2 series), CNG solenoid valves, fuel rails, fuel injectors, vaporizers, filters, isolation valves, pressure relief devices, and miscellaneous GFI components. These parts support compressed natural gas and LPG fuel injection systems on industrial and automotive engines.

Accessories

Includes repair kits, levers (AL1 series), throttle stop levers, return spring kits, bracket assemblies, air filters, fuel filters, tools and test equipment, engine kits and modules, turbocharger pressure control valve, quick connect fittings, ball check fittings, needle bearings, filter repair kits, relay and bracket, ADP assemblies, fittings and hoses, and port fittings and hardware. This section consolidates the supporting components that complete an installation or repair.

Spectrum Series II (2004-2006)

Covers factory replacement fuel system components for Spectrum Series II certified engine systems including the 2.0/2.4L Mitsubishi engine (LPG DBW), 3.0L LPG lift trucks, 3.0L gasoline lift trucks, 4.3L LPG and gasoline lift trucks, and 4.3L dual fuel lift trucks. Each application section provides mixer and throttle body assemblies, regulator assemblies, hose assemblies, sensors, ignition components, and engine control modules with part numbers.

Spectrum Series III (2007-2008)

Covers the 4.3L Toyota lift trucks, 4.3L MCFA lift trucks, NMHG 2.0 & 2.2L lift trucks, 4.3L Generic lift trucks, and 3.0L Generic lift trucks with full component breakdowns for mixers, throttle bodies, EPR assemblies, sensors, ignition modules, wire harnesses, fuse boxes, exhaust systems, and service blocks. The section is organized by application year and engine platform, with itemized part numbers for each assembly.

Your Complete IMPCO Parts Reference

This IMPCO Industrial Engine Master Parts Catalog is the reference you need when identifying, ordering, or replacing components on LPG and natural gas industrial engines. With 618 pages covering carburetors, mixers, regulators, lockoffs, adapters, GFI components, and the Spectrum Series II and III certified engine systems, it provides part numbers, exploded-view illustrations, dimensional data, and component breakdowns for the full IMPCO, Beam, Garretson, and Algas product lines.

Whether you are servicing a forklift, stationary engine, or off-highway application, having the correct part number and assembly detail on hand saves time and prevents mis-orders. The catalog includes specifications for fuel type, inlet pressure, operating temperature, horsepower ratings, and diaphragm materials, so you can confirm compatibility before installation. Repair kits, levers, brackets, and small hardware are listed alongside major assemblies, making this a single-source reference for both routine maintenance and full rebuilds.

IMAGES PREVIEW

Delivered as an instant PDF download, this IMPCO master parts catalog is ready to use on any device. No shipping, no waiting — simply download, print if needed, and keep it in the shop or office for quick lookups. Whether you are a technician, parts counter specialist, or fleet maintenance manager, this catalog supports accurate parts identification and efficient repair work on IMPCO-equipped industrial engines.
