Perkins 402J 403J 404J Industrial Engines Operation and Maintenance Manual M0087369

Description

Perkins 402J, 403J and 404J Industrial Engines Operation and Maintenance Manual — M0087369

The Perkins 402J, 403J and 404J Industrial Engines Operation and Maintenance Manual, document number M0087369, is the day-to-day reference for the complete 400J Series diesel engine family: the 402J-05, 403J-07, 403J-11, 403J-11T, 403J-15, 403J-17, 403J-17T and 404J-22. Rather than a workshop teardown guide, this is the manual that keeps the engine in service — the safety rules, starting and stopping procedures, cold-weather practice, fluid specifications and the full maintenance interval schedule gathered into one English-language PDF.

File Details

• Manual type: Operation and Maintenance Manual
• Brand: Perkins
• Series: 400J Industrial Engines
• Models covered: 402J-05, 403J-07, 403J-11, 403J-11T, 403J-15, 403J-17, 403J-17T, 404J-22
• Language: English
• Page count: 112 pages
• File format: PDF
• Document number: M0087369
• Publication date: October 2020

Chapters Covered

• Safety Section — Safety Messages, General Hazard Information, Burn Prevention, Fire Prevention and Explosion Prevention, Crushing Prevention and Cutting Prevention, Mounting and Dismounting, Before Starting Engine, Engine Starting, Engine Stopping, Electrical System

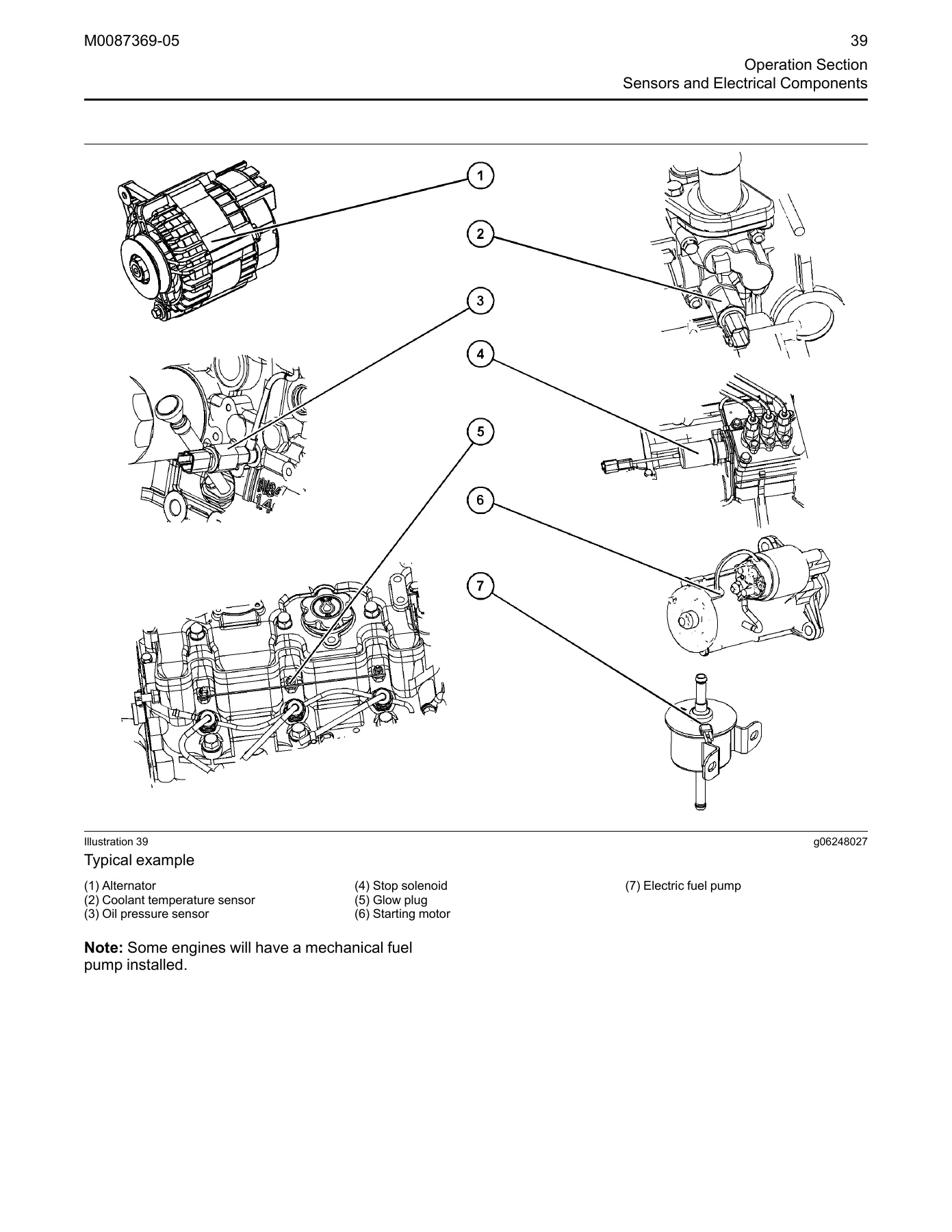

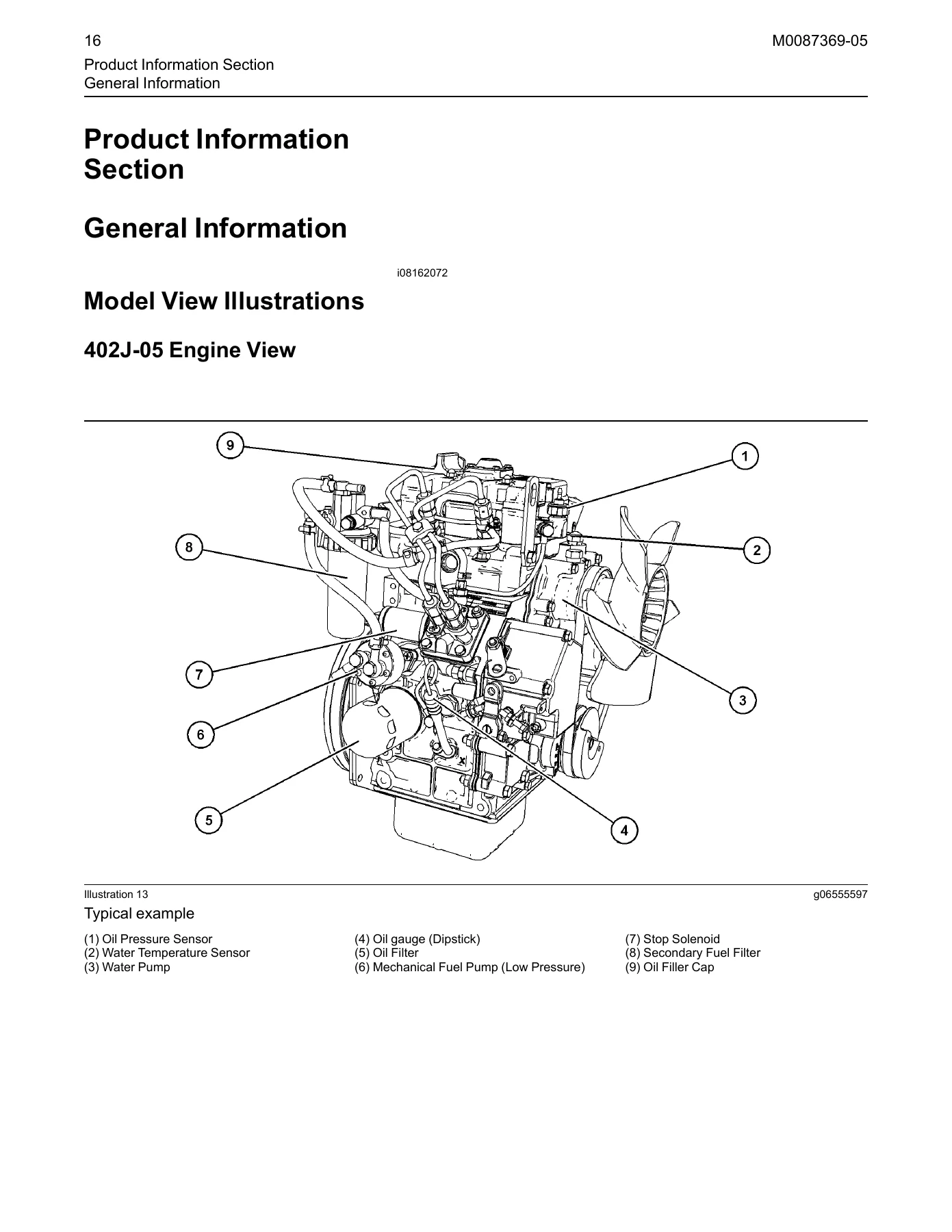

• Product Information Section — General Information (model view illustrations for each engine), Product Identification Information (plate and film locations, emissions certification film)
• Operation Section — Lifting and Storage, Features and Controls (gauges, indicators, sensors), Engine Starting, Engine Operation, Cold Weather Operation, Engine Stopping
• Maintenance Section — Refill Capacities (lubrication and cooling system), Maintenance Recommendations, Maintenance Interval Schedule
• Warranty Section — Warranty Information, Emissions Warranty Information
• Reference Information Section — Reference Materials, Maintenance Log
• Index Section — full alphabetical index

Across those sections the manual walks a technician through the whole maintenance lifecycle of a 400J engine. The safety section is unusually thorough for a document of this size — it covers fluid penetration, pressure air and water limits (205 kPa / 30 psi air, 275 kPa / 40 psi water), static electricity when fuelling with ultra-low sulfur diesel, asbestos handling, and jump-start cable sequencing before a single maintenance procedure is described. The product information section gives a labelled component view for each engine variant so the location of the oil pressure sensor, water temperature sensor, fuel injection pump, stop solenoid and glow plugs is unambiguous. From there the operation section carries the starting sequence (including the glow plug pre-heat chart that varies the hold time from 12 seconds at -15 C down to 3 seconds at +15 C), the jump-start procedure, the after-starting check, and the cold-weather recommendations for warm-up and idling.

Maintenance Content in Detail

The maintenance half of the PDF is where most of the value sits. The refill capacities section lists crankcase oil sump and cooling system volumes for every covered engine — from 1.61-2.01 L of sump oil on the 402J-05 up to 8.9-10.6 L on the 404J-22. Fluid recommendations then cover coolant chemistry (Perkins ELC and ASTM D6210 heavy-duty antifreeze, water quality limits, glycol concentration tables), engine oil specifications (API CK-4, ACEA E9, ECF-3 with chemical limits for sulfated ash, phosphorous and sulfur), oil viscosity selection by ambient temperature, and a full diesel fuel specification table including cetane number, sulfur, lubricity, distillation, density and cleanliness requirements. Biodiesel and B20 use, renewable and paraffin fuels (BTL, GTL, HVO), and contamination control for fuel are each treated in their own sub-section.

The maintenance interval schedule then organises the actual work. It runs from daily checks (coolant level, engine oil level, air cleaner service indicator, water separator drain, walk-around inspection) through every 250 service hours or 6 months for belt inspection, every 500 service hours for oil and filter change, every 500 hours or 1 year for fuel filters and hoses, every 1000 hours for valve lash, every 2000 hours for engine mounts and breather, and up to 6000 service hours or 3 years for ELC coolant change. Each interval item references the detailed procedure that follows it, with the illustrations needed to identify drain plugs, filter housings, vent screws and belt tension points.

What This Manual Lets You Do

With this PDF open, an owner or technician can carry out a scheduled service from start to finish without outside help: check and top up engine oil and coolant to the correct marks, drain and replace primary and secondary fuel filters and bleed the system with the hand priming pump, change the engine oil and filter, replace the crankcase breather diaphragm and gauze, test and add supplemental coolant additive, inspect and adjust the alternator belt to the correct frequency or tension, check fan tip clearance, inspect the starting motor, replace a battery, and work through the entire cold-weather operating checklist. The engine-specific specification tables give the correct valve lash setting (0.20 mm inlet and exhaust across the range), firing order, compression ratio, bore, stroke and displacement for each variant, so nothing has to be assumed from a similar model.

Because the manual distinguishes clearly between naturally aspirated and turbocharged variants — the 403J-11T and 403J-17T have different compression ratios and their own crankcase breather design — it avoids the common mistake of applying a naturally aspirated procedure to a turbo engine. The CO2 emissions values per engine are also listed, which matters for operators reporting against EU type approval.

IMAGES PREVIEW

Instant PDF Delivery

The Perkins 402J, 403J and 404J Industrial Engines Operation and Maintenance Manual arrives as a downloadable PDF the moment payment clears — no shipping, no waiting, no physical binder to lose. It opens on any laptop, tablet or phone, and every page can be printed for the workshop, so the maintenance interval schedule can be pinned near the engine and the fluid specification tables kept at the bench. Whether you are servicing a single 403J-15 or running a mixed fleet of 400J engines, having the manufacturer’s own procedures and capacities on hand is what turns a scheduled service into a predictable job instead of a diagnosis.
