FPT F5CE5454 3.2 Liter F32 Series Diesel Engine Technical and Repair Manual

Description

FPT F5CE5454 3.2 Liter F32 Series Technical and Repair Manual

This complete FPT F5CE5454 3.2 Liter F32 Series Technical and Repair Manual is the same service documentation used by professional technicians to maintain, diagnose, and overhaul FPT Industrial diesel engines. It covers the F5CE5454BA004, F5CE9454EA005, and F5CE9484DA002 engine variants — commercial codes F32 MNS.X and F32 MNT.X — with procedures for everything from routine maintenance to complete bench overhaul.

File Details

• Manual type: Technical and Repair Manual
• Brand: FPT Industrial (Fiat Powertrain Technologies)
• Engine models covered: F5CE5454BA004, F5CE9454EA005, F5CE9484DA002
• Commercial codes: F32 MNS.X, F32 MNT.X
• Language: English
• Page count: Approximately 158 pages
• File format: PDF (instant download)
• Document number: P2D32F005 E
• Edition date: April 2009 (base edition December 2006 / February 2007)

Chapters Covered

The manual is organised into five main sections plus an appendix:

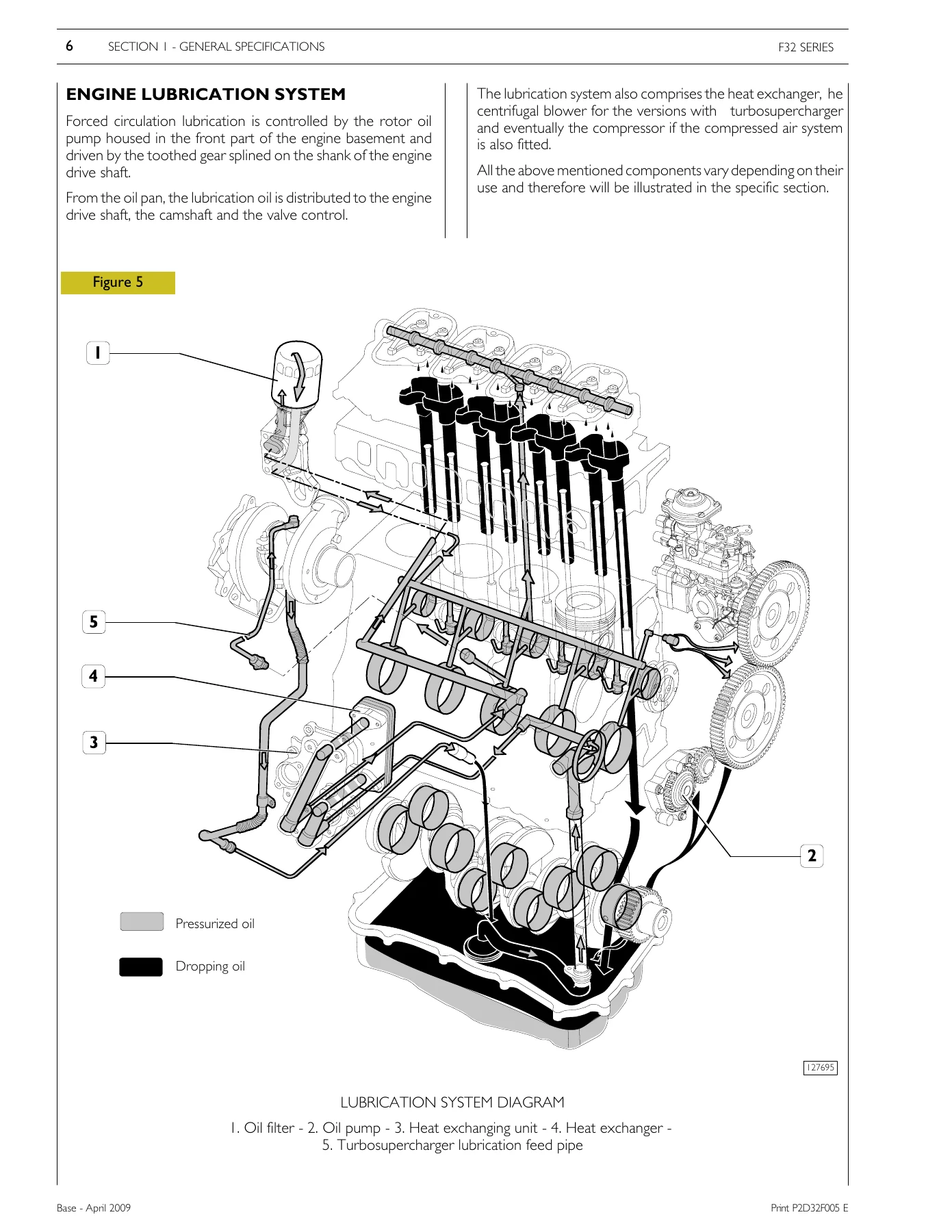

• Section 1 — General Specifications: Technical and commercial coding correspondence, engine views, lubrication system and oil pump, oil filter, oil vapour recirculation, cooling system, water pump, thermostat operation, heat exchanger, internal and external EGR systems, boosting system with turbocharger

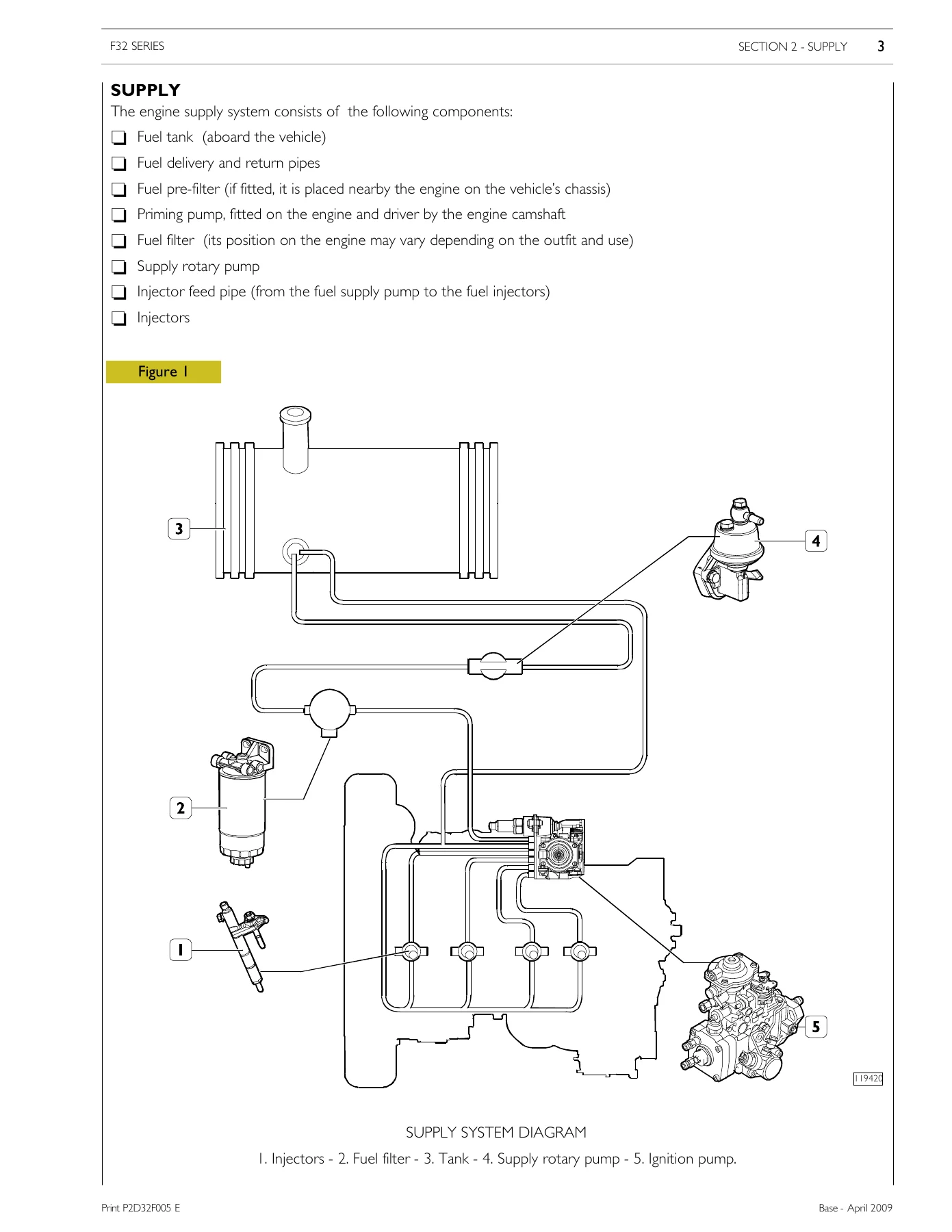

• Section 2 — Supply: Fuel pipe layout, supply system description, rotary supply pump identification and operation, supply phase, delivery phase, end of delivery, engine stop, L.D.A. load delivery adjustment, priming pump, fuel filter
• Section 3 — Industrial Application: Engine disassembly on bench, cylinder I TDC search, BOSCH VE 4/12F pump, timing gearcase, rear side component assembly, flywheel assembly, front side component installation, timing procedures, piston projection measurement, checks and inspections, rocker cover blow-by removal, rotary feed pump procedure, injection pump static advance control, power takeoff, electrical equipment including external EGR ECU layout and pin-out, sensors, starter, alternator, troubleshooting by failure, maintenance planning and scheduled servicing
• Section 4 — Mechanical Overhaul: General specifications, data and assembly slacks, engine disassembly on bench, cylinder unit checks and measurements, head base surface checking, timing system including camshaft inspection and bush replacement, tappets, engine drive shaft measurement and assembly, crankshaft bearing assembly, connecting rod and piston assembly, piston pins, split rings, connecting rods
• Section 5 — Tools: Complete special tool listing with part numbers and illustrations for engine overhaul
• Appendix — Safety Prescriptions: Standard safety procedures, injury prevention, maintenance precautions, environmental compliance

IMAGES PREVIEW

This FPT F5CE5454 repair manual goes well beyond routine maintenance. It provides the technician with the manufacturer’s procedures, specifications, and tightening sequences needed to carry out major engine work on the F32 series 3.2-liter diesel powerplant. Whether you are diagnosing an external EGR fault on an F5CE5454 engine, setting the injection pump static advance, measuring piston projection, or completely stripping the engine for a bench overhaul, the step-by-step instructions and precise torque values are all here.

Technical Specifications Included

The manual contains detailed specification tables for all three engine variants, including:

• General engine data: 4-cylinder inline diesel, 99 mm bore, 104 mm stroke, 3200 cm³ displacement, 55/61/65 kW (75/83/88 HP) outputs at 2500 rpm, 281/310/340 Nm torque ratings, 750 rpm idle, 3000 rpm peak
• Cylinder unit and crankshaft: Cylinder barrel bores, piston diameters and clearances, piston pin dimensions, split ring slots and thicknesses, crankshaft bearing bush seats and diameters, big end bearing data, oversize options
• Cylinder head and timing: Valve guide seats, valve stem and guide clearances, valve seat dimensions and angles, valve spring heights, camshaft housing and bush dimensions, cam lift, tappet and rocker clearances
• Tightening torque values: Complete table for head bolts, main bearing caps, connecting rod bolts, flywheel, timing gearcase, intake and exhaust manifolds, injectors, supply pump, sensors, and more
• Electrical specifications: Sensor resistance values, pin-out details for EGR ECU, KSB temperature sensor calibration, alternator output, starter specifications

What This Manual Enables You to Do

With this FPT F5CE5454 3.2 Liter F32 Series Technical and Repair Manual, you can confidently handle:

• Complete engine removal and installation from the vehicle or machine
• Full bench overhaul of the F5CE5454, F5CE9454, and F5CE9484 engines
• Cylinder head removal, valve work, and cylinder head reconditioning
• Piston and connecting rod disassembly, inspection, and reassembly with correct clearances
• Crankshaft measurement, undersize determination, and bearing selection
• Camshaft and tappet inspection, bush replacement, and timing setup
• Injection pump static advance control and timing procedures
• External EGR system diagnosis and repair on F5CE5454 engines
• Fuel system priming, bleeding, and filter servicing
• Electrical diagnostics: sensor testing, EGR ECU pin-out checks, alternator and starter service
• Troubleshooting by failure symptoms to pinpoint root causes
• Scheduled maintenance planning and daily/preventive checks

Using the correct procedures, torque values, and assembly clearances from this manual is critical. Incorrect tightening sequences or out-of-spec clearances on a diesel engine can lead to premature bearing wear, head gasket failure, or catastrophic engine damage. The manufacturer’s data in this document removes the guesswork.

Instant PDF Delivery

This FPT F5CE5454 3.2 Liter F32 Series Technical and Repair Manual is delivered as an instant PDF download — no shipping, no waiting. Access it immediately after purchase on any device: workshop computer, laptop, tablet, or smartphone. Print individual pages or the entire manual for use in the workshop. The PDF format keeps all specification tables, diagrams, and step-by-step procedures exactly as originally published.
