Hitachi Zaxis 210W-3 220W-3 Wheeled Excavator Technical Manual Troubleshooting PDF
$34.95 Original price was: $34.95.$20.95Current price is: $20.95.
Official-format Technical Manual (Troubleshooting) for the Hitachi Zaxis 210W-3 and 220W-3 wheeled excavators, covering operational performance testing, monitor/Dr. ZX diagnostics, fault codes, and full electrical/hydraulic troubleshooting. Instant PDF download.
Description
Hitachi Zaxis 210W-3 220W-3 Wheeled Excavator Technical Manual Troubleshooting PDF
This is the Technical Manual (Troubleshooting) volume, Part No. TTCJB-E-00, for the Hitachi Zaxis 210W-3 and Zaxis 220W-3 wheeled excavators, including the 210W-3-AMS, 220W-3M, and 220W-3DH variants. It is the diagnostic and testing companion to the Technical Manual (Operational Principle) and Workshop Manual, and it is built for the technician who needs to test machine performance, read the monitor and Dr. ZX diagnostic tools, and trace a fault down to the failed component. If you work on the Zaxis 210W-3 220W-3 platform, this Technical Manual Troubleshooting PDF puts every relevant test procedure and fault code table in one searchable file.
File Details
- Manual type: Technical Manual (Troubleshooting)
- Brand: Hitachi Construction Machinery
- Models: Zaxis 210W-3, Zaxis 210W-3-AMS, Zaxis 220W-3M, Zaxis 220W-3DH
- Machine type: Wheeled excavator
- Language: English
- Page count: 632 pages
- File format: PDF
- Part No.: TTCJB-E-00
- Revision information current to: 30 April 2009
- Copyright: Hitachi Construction Machinery Co., Ltd., 2007
IMAGES PREVIEW
Chapters Covered
- Introduction & Safety β manual composition, page numbering, safety alert symbols and signal words, general precautions
- Section 4 β Operational Performance Test
- Group 1 Introduction β operational performance tests, preparation for performance tests
- Group 2 Standard β performance standard, main pump P-Q diagram, sensor activating range
- Group 3 Engine Test β engine speed, engine compression pressure, valve clearance, lubricant consumption
- Group 4 Excavator Test β travel speed, brake control function, swing speed/drift/leakage, swing bearing play, hydraulic cylinder cycle time and drift check, control lever operating force and stroke
- Group 5 Component Test β primary/secondary pilot pressure, solenoid valve set pressure, main pump delivery pressure, main relief set pressure, swing relief pressure, overload relief valve set pressure, main pump flow rate measurement, swing motor drainage, steering valve relief pressure, brake pressures and warning set pressures
- Section 5 β Troubleshooting
- Group 1 Diagnosing Procedure
- Group 2 Monitor Unit β screen operation, alarm display, time setting, attachment adjustment, maintenance settings, work mode selection, mail, meter and language settings, built-in diagnosing system, monitor unit fault codes
- Group 3 Dr. ZX β MC/ECM/monitor unit monitoring lists, MC and ICF adjustment lists, Dr. ZX operation procedure
- Group 4 ICF β daily report data, frequency distribution data, total operating hours, data download/upload, satellite communication setup and fault codes

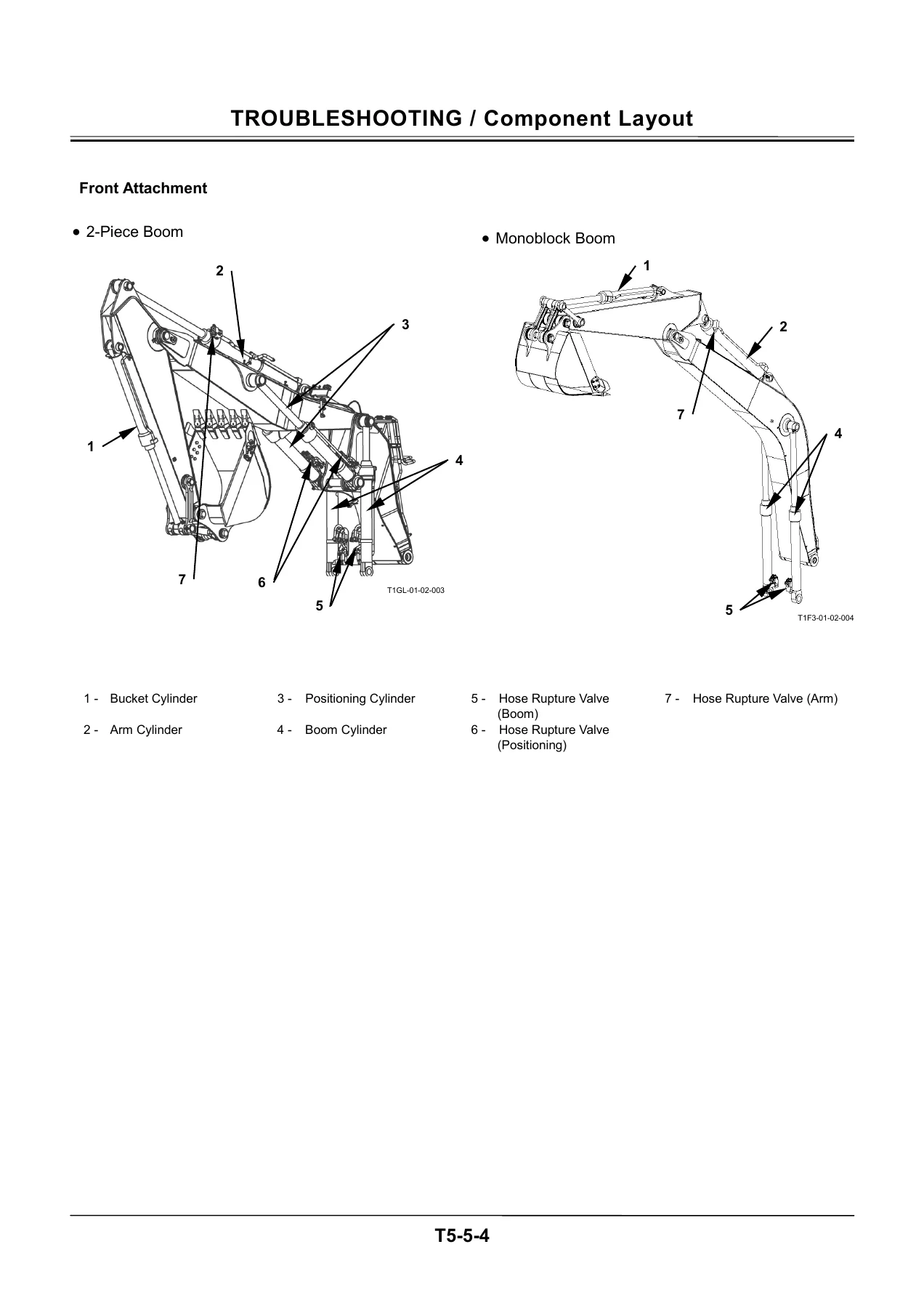

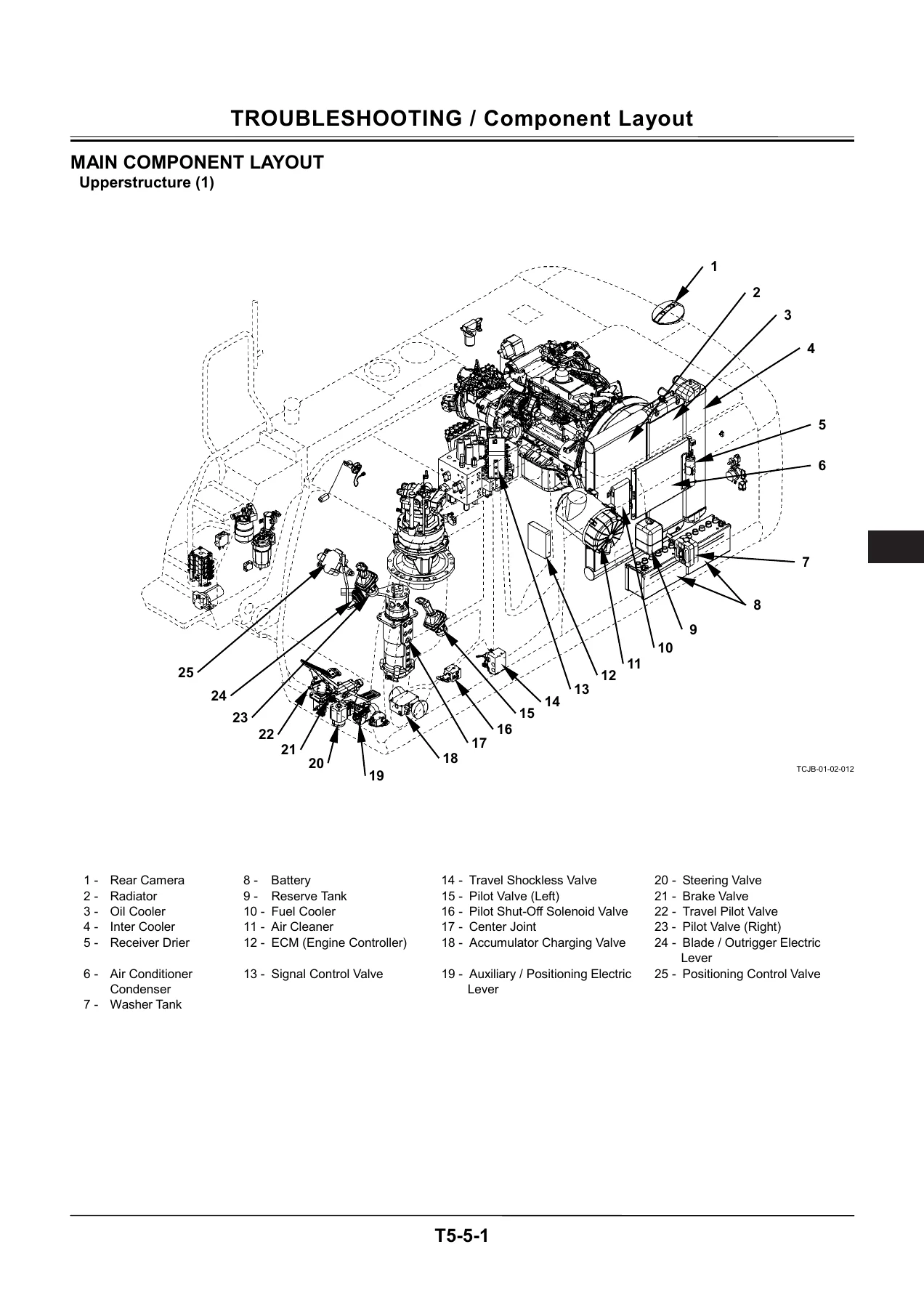

- Group 5 Component Layout β main component layout, electrical component layout (monitors/switches, controllers/relays), engine, pump device, swing device, signal control valve, control valve, brake valve, solenoid valve units, travel shockless valve, transmission changeover solenoid valve, travel device, filter, pilot port
- Group 6 Troubleshooting A β MC fault code list, ECM fault code list, ICF fault code list, satellite terminal fault codes, option controller fault codes, steering column monitor fault codes, and individual fault-code diagnostic procedures (MC codes 11000-series through 11900-series, ECM codes 100-1485 and 10001-10013, ICF codes 14000-series)
- Group 7 Troubleshooting B β relationship between machine trouble symptoms and related parts, correlation between trouble symptoms and part failures, engine system troubleshooting, all actuator system troubleshooting, front attachment system troubleshooting, swing/travel/brake/steering system troubleshooting, exchange inspection, air bleeding procedures, emergency boom lowering procedure, attachment circuit pressure release
- Group 8 Electrical System Inspection β precautions for inspection and maintenance, disconnecting connectors, fuse and fusible link inspection, battery voltage check, alternator check, continuity check, voltage/current measurement, check by false signal, test harness
Complete PDF Bookmark TreeComplete Bookmarks
The complete bookmarks in the βHitachi Zaxis 210W-3 220W-3 Wheeled Excavator Technical Manual Troubleshooting PDFβ are as follows:
+Technical Manual (Troubleshooting)p. 1
INTRODUCTIONp. 3SAFETYp. 5SECTION AND GROUP CONTENTSp. 35+SECTION 4 OPERATIONAL PERFORMANCE TESTp. 37
+Group 1 Introductionp. 39
Operational Performance Testsp. 39Preparation for Performance Testsp. 40+Group 2 Standardp. 41
Performance Standardp. 41Main Pump P-Q Diagramp. 46Sensor Activating Rangep. 48+Group 3 Engine Testp. 49
Engine Speedp. 49Engine Compression Pressurep. 52Valve Clearancep. 54Lubricant Consumptionp. 57+Group 4 Excavator Testp. 59
Travel Speedp. 59Brake Control Functionp. 61Parking Brake Control Functionp. 62Swing Speedp. 63Swing Function Drift Checkp. 64Swing Motor Leakagep. 66Maximum Swingable Slant Anglep. 67Swing Bearing Playp. 68Hydraulic Cylinder Cycle Timep. 70Hydraulic Cylinder Drift Checkp. 72Control Lever Operating Control Forcep. 73Control Lever Strokep. 74Combined Operation of Boom Raise/ Swing Function Checkp. 75+Group 5 Component Testp. 77
Primary Pilot Pressurep. 77Secondary Pilot Pressurep. 79Solenoid Valve Set Pressurep. 80Main Pump Delivery Pressurep. 82Main Relief Set Pressurep. 84Relief Pressure (When relieving Swing)p. 86Overload Relief Valve Set Pressurep. 88Main Pump Flow Rate Measurementp. 90Swing Motor Drainagep. 100Steering Valve Relief Pressurep. 102Brake Pressure (Front and Rear)p. 104Brake Accumulated Pressurep. 106Brake Warning Set Pressure (Decrease)p. 108Brake Warning Set Pressure (Increase)p. 110+SECTION 5 TROUBLESHOOTINGp. 115
+Group 1 Diagnosing Procedurep. 119
Introductionp. 119Diagnosing Procedurep. 120+Group 2 Monitor Unitp. 125
Outlinep. 125How to Use Screensp. 141Screen Display When An Alarm is Issuedp. 148Contents of Alarmsp. 150Time Settingp. 153Attachment Adjustment (Pump 2 Flow Rate Adjustment)p. 154Displaying Operating Conditionsp. 156Maintenance Settingsp. 158Work Mode (Attachment Selection)p. 164Mail (Optional)p. 168Meter Display Selectionp. 170Password Change (Optional)p. 172Back Monitor Settingsp. 176Language Settingsp. 180Meter Combination Settingsp. 182Unit Settingsp. 184Service Menu (Built-In Diagnosing System) Operationp. 187Troubleshootingp. 188Monitoringp. 190Controller Versionp. 194Blade/Outrigger Settingsp. 196Keyless Hour Meterp. 198List of Monitor Unit Sitting Functionp. 199+Group 3 Dr. ZXp. 203
Outlinep. 203MC Monitoring Listp. 204ECM Monitoring Listp. 207Monitor Unit Monitoring Listp. 208Steering Column Monitor Monitoring Listp. 209Option Controller Monitoring Listp. 210MC Adjustment Listp. 212MC Attachment Adjustment Listp. 214ICF Adjustment Item Listp. 218Option Controller Adjustment Listp. 220Dr. ZX Operation Procedurep. 222+Group 4 ICFp. 225
Outlinep. 225List of Daily Report Datap. 226List of Frequency Distribution Datap. 229List of Total Operating Hoursp. 230How to Download and Upload Data of ICFp. 232Various Setup of ICF and Satellite Communication Terminal by Using Dr. ZXp. 235List of Fault Codep. 247Satellite Communication Systemp. 248+Group 5 Component Layoutp. 251
Main Component Layoutp. 251Electrical Component Layout (Overview)p. 255Electrical Component Layout (Monitors and Switches)p. 257Electrical Component Layout (Controllers and Relays)p. 260Enginep. 262Pump Devicep. 263Swing Devicep. 263Signal Control Valvep. 263Control Valvep. 264Brake Valvep. 2644-Spool Solenoid Valve Unitp. 264Solenoid Valve Unit (for Electric Lever)p. 264Travel Shockless Valvep. 265Transmission Changeover Solenoid Valvep. 265Travel Devicep. 265Filterp. 265Components in Control Valvep. 266Pilot Portp. 282+Group 6 Troubleshooting Ap. 285
Troubleshooting A Procedurep. 285MC Fault Code Listp. 286ECM Fault Code Listp. 308ICF Fault Code Listp. 332Satellite Terminal Fault Code Listp. 333Monitor Unit Fault Code Listp. 333Option Controller Fault Code Listp. 334Steering Column Monitor Fault Codep. 352MC Fault Codes 11000 to 11002p. 354MC Fault Code 11003p. 355MC Fault Code 11004p. 356CAN Harness Checkp. 357MC Fault Code 11100p. 389MC Fault Code 11101p. 390MC Fault Code 11200p. 391MC Fault Code 11202p. 392MC Fault Code 11203p. 393MC Fault Code 11206p. 394MC Fault Code 11208p. 395MC Fault Code 11301p. 396MC Fault Code 11302p. 397MC Fault Code 11303p. 398MC Fault Code 11305p. 399MC Fault Code 11306p. 400MC Fault Code 11307p. 401MC Fault Code 11310p. 402MC Fault Code 11311p. 403MC Fault Code 11400p. 404MC Fault Code 11401p. 405MC Fault Code 11403p. 406MC Fault Code 11404p. 407MC Fault Code 11410p. 408MC Fault Code 11422p. 409MC Fault Code 11424p. 410MC Fault Code 11425p. 411MC Fault Codes 11910 to 11920p. 412MC Fault Code 11901p. 413ECM Fault Codes 100 to 190p. 414ECM Fault Codes 628 to 1485p. 415ECM Fault Codes 10001 to 10013p. 416ICF Fault Codes 14000 to 14003p. 417Information C/U: Intializep. 418Control Data: Intializep. 419Enter Model and Serial Nop. 420ICF Fault Codes 14006, 14008p. 421Satellite Terminal Fault Codes 14100 to 14106p. 422Monitor Unit Fault Code 13303p. 423Monitor Unit Fault Code 13304p. 424Monitor Unit Fault Codes 13306 and 13308p. 425Monitor Unit Fault Code 13310p. 426Monitor Unit Fault Code 13311p. 427Pilot Shut-Off Lever Alarmp. 428Option Controller Fault Codes 15500 to 15504p. 429Option Controller Fault Code 15505p. 430Option Controller Fault Code 15506p. 431Option Controller Fault Code 15510p. 432Option Controller Fault Code 15511p. 433Option Controller Fault Code 15514p. 434Option Controller Fault Code 15515p. 435Option Controller Fault Code 15516p. 436Option Controller Fault Code 15517p. 437Option Controller Fault Code 15518p. 438Option Controller Fault Code 15519p. 439Option Controller Fault Code 15570p. 440Option Controller Fault Code 15571p. 441Option Controller Fault Code 15572p. 442Option Controller Fault Code 15573p. 443Option Controller Fault Codes 15574-3 and 15578-3p. 444Option Controller Fault Codes 15574-4 and 15578-4p. 445Option Controller Fault Codes 15575-3 and 15579-3p. 446Option Controller Fault Codes 15575-4 and 15579-4p. 447Option Controller Fault Codes 20300 to 20303p. 448Option Controller Fault Code 15520p. 449Option Controller Fault Code 15521p. 450Option Controller Fault Code 15522p. 451Option Controller Fault Code 15523p. 452Option Controller Fault Code 15524p. 453Option Controller Fault Code 15525p. 454Option Controller Fault Code 15526p. 455Option Controller Fault Code 15527p. 456Option Controller Fault Code 15528p. 457Option Controller Fault Code 15529p. 458Option Controller Fault Code 15530p. 459Option Controller Fault Codes 15565 to 15577p. 460Steering Column Monitor Fault Code 16000p. 461+Group 7 Troubleshooting Bp. 463
Troubleshooting B Procedurep. 463Relationship between Machine Trouble Symptoms and Related Partsp. 464Correlation between Trouble Symptoms and Part Failuresp. 486Engine System Troubleshootingp. 504All Actuator System Troubleshootingp. 532Front Attachment System Troubleshootingp. 541Swing System Troubleshootingp. 560Travel System Troubleshootingp. 564Brake System Troubleshootingp. 576Steering System Troubleshootingp. 579Other System Troubleshootingp. 580Exchange Inspectionp. 600Bleeding Air from Transmissionp. 604Bleeding Air from Brake (Axle)p. 605Emergency Boom Lowering Procedure (without Hose Rupture Valve)p. 606Attachment Circuit Pressure Release Procedurep. 607+Group 8 Electrical System Inspectionp. 609
Precautions for Inspection and Maintenancep. 609Instructions for Disconnecting Connectorsp. 611Fuse Inspectionp. 612Fusible Link Inspectionp. 614Battery Voltage Checkp. 615How to Check Alternatorp. 616Continuity Checkp. 617Voltage and Current Measurementp. 618Check by False Signalp. 625Test Harnessp. 626SERVICE MANUAL REVISION REQUEST FORMp. 629THE ATTACHED DIAGRAM LISTp. 630
Taken together, this Technical Manual Troubleshooting file gives a technician everything needed to run a full acceptance or performance test on a Zaxis 210W-3 or 220W-3, then work systematically from a reported symptom or displayed fault code through to the failed sensor, valve, controller, or wiring connection.
Why This Manual Matters
Wheeled excavators like the Zaxis 210W-3 and 220W-3 combine hydraulic excavator systems with axle, transmission, steering, and brake systems that don’t appear on crawler machines, and this manual is written specifically around that combination. Instead of guessing at a swing drift, a brake warning light, or an ICF communication fault, you can pull the exact pressure spec, the exact MC/ECM/ICF fault code procedure, or the exact wiring check called out for these Zaxis 210W-3 220W-3 models β with the pilot, relief, and pump pressures, monitor screen sequences, and fault code numbering preserved exactly as printed.
Get Your Hitachi Zaxis 210W-3 220W-3 Technical Manual Troubleshooting PDF Instantly
This Zaxis 210W-3 220W-3 Technical Manual Troubleshooting PDF is delivered instantly after purchase β no shipping, no waiting. Download it straight to your PC, tablet, or phone, keep it on the shop laptop for quick fault-code lookups, or print out only the pages you need for a specific job. Once you have this Technical Manual Troubleshooting file, it’s yours to keep and reuse on every future Zaxis 210W-3 or 220W-3 service call.
