Hitachi ZW220-5A Wheel Loader Technical Manual (Troubleshooting) PDF Download

Description

Hitachi ZW220-5A Wheel Loader Technical Manual (Troubleshooting)

This Hitachi ZW220-5A Wheel Loader Technical Manual (Troubleshooting) is the diagnostic companion volume to the workshop manual, delivering the test procedures, standard values, and fault-code-driven troubleshooting logic needed to evaluate and restore machine performance. Written for the experienced technician, it combines operational performance test methodology with structured diagnostic routines so that symptoms can be traced to their root cause rather than guessed at.

The manual is organised into two major sections: Section 4 — Operational Performance Test and Section 5 — Troubleshooting. Every procedure is tied to a performance standard or fault code, giving the technician a measurable benchmark against which to judge whether a component, circuit, or system is functioning correctly.

File Details

• Manual type: Technical Manual (Troubleshooting)
• Brand: Hitachi Construction Machinery
• Model: ZW220-5A Wheel Loader
• Language: English
• File format: PDF
• Page count: 436 pages
• Document reference: TTNEJ-En-00
• Publication: Hitachi Construction Machinery Co., Ltd.

Chapters Covered

The manual is divided into two sections, each with clearly defined groups:

Section 4 — Operational Performance Test

• Group 1 — Introduction: Purpose of performance tests, kinds of tests, performance standards, precautions for evaluation of test data, test area and tool, safety precautions, precise measurement
• Group 2 — Standard: Operational performance standard table, Main Pump P-Q Diagram (torque control and pilot pressure characteristics), Sensor Activating Range
• Group 3 — Engine Test: Engine Speed measurement, Lubricant Consumption
• Group 4 — Machine Performance Test: Travel Speed, Service Brake Function Check, Service Brake Wear Amount, Parking Brake Function Check, Bucket Stopper and Bell Crank Stopper Clearance, Hydraulic Cylinder Cycle Time, Dig Function Drift Check, Bucket Levelness, Control Lever Operating Force, Control Lever Stroke
• Group 5 — Component Test: Primary Pilot Pressure (including brake circuit), Secondary Pilot Pressure, Main Pump Delivery Pressure, Main Relief Set Pressure, Steering Relief Pressure, Overload Relief Valve Set Pressure, Main Pump Flow Rate Measurement (P-Q Control and Pilot Characteristics), Service Brake Pressure (front and rear), Parking Brake Pressure, Brake Accumulator Pressure, Brake Warning Pressure (pressure-decreasing and pressure-increasing), Transmission Clutch Pressure, Torque Converter Pressure (inlet and outlet)
• Group 6 — Adjustment: Transmission Learning, Lift Arm Angle Sensor Learning, Digging Position Adjustment

Section 5 — Troubleshooting

• Group 1 — Diagnosing Procedure: Electric system inspection, precautions for inspection and maintenance, instructions for disconnecting connectors, fuse inspection, fusible link inspection, battery voltage check, alternator check, continuity check, voltage and current measurement, check by false signal, test harness
• Group 2 — Monitor: Outline, operating procedures of service menu, coolant temperature gauge and transmission oil temperature gauge, fuel gauge
• Group 3 — e-Service: Outline, list of operation data, snapshot data, communication system

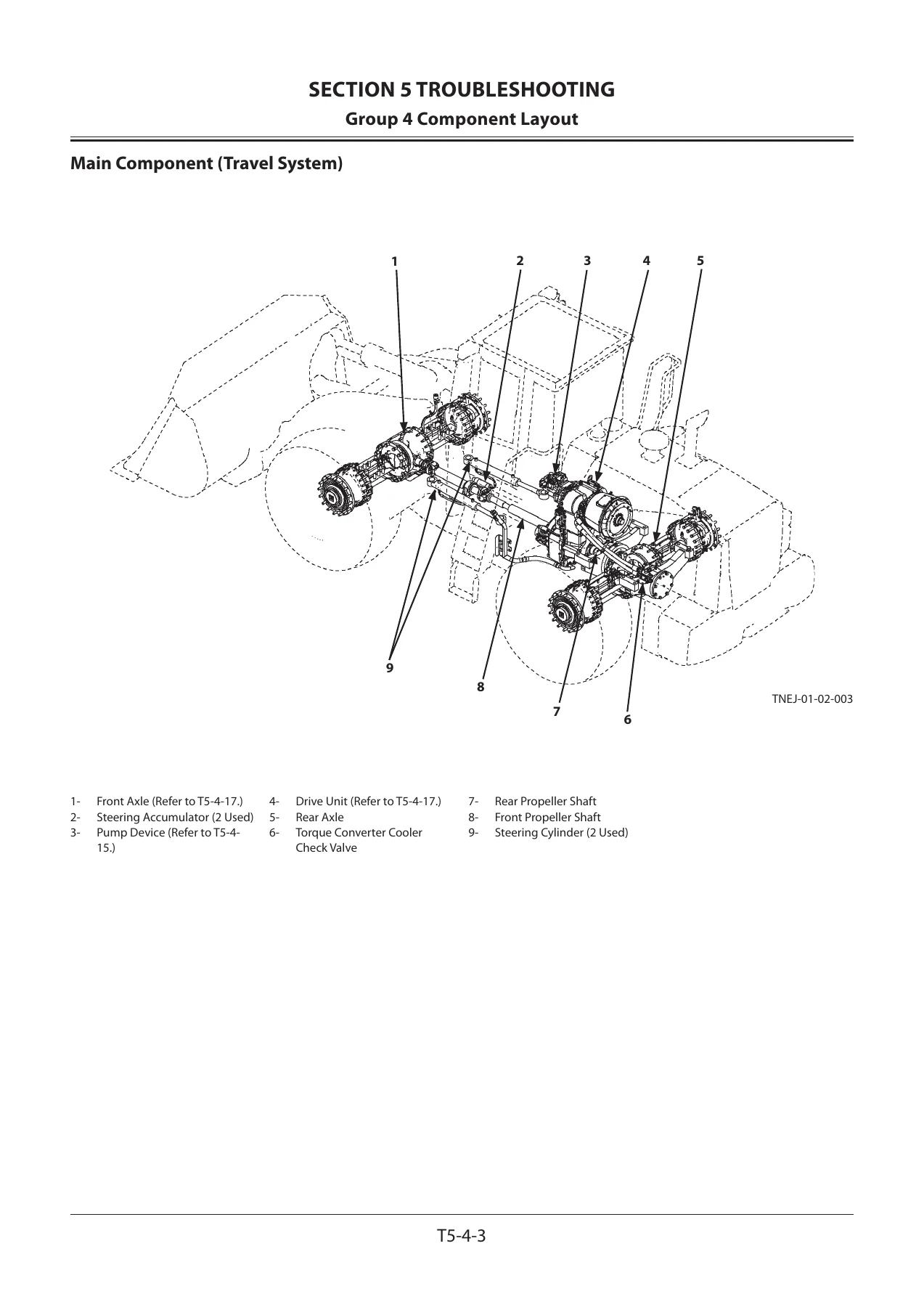

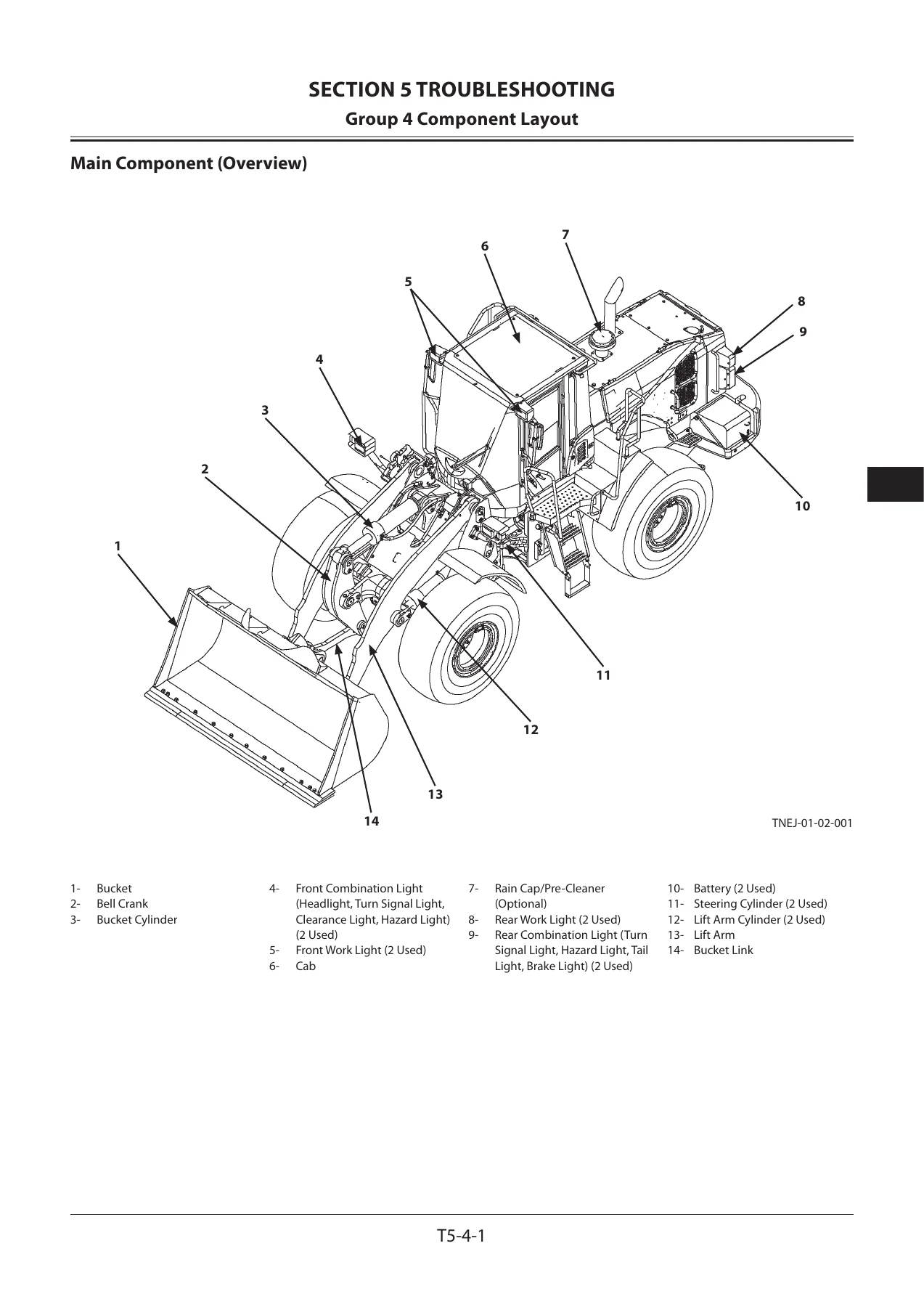

• Group 4 — Component Layout: Main component overview, travel system, electrical system (overview, cab), engine and fan pump, pump device, control valve, fan valve, priority valve, drive unit, front axle, manifold valve, parking brake solenoid valve block, brake charge valve, steering valve, emergency steering valve and pump, ride control valve
• Group 5 — Troubleshooting A (Base Machine Diagnosis by Using Fault Codes): Procedure, MC fault code list, column display controller fault code list, air conditioner controller fault code list, ECM fault code contrast list, TCU fault code list, individual fault code diagnosis from 111000 through 120518 including CAN1 harness check
• Group 6 — Troubleshooting B (Machine Diagnosis by Using Trouble Symptom): Procedure, relationship between machine trouble symptoms and related parts, correlation between trouble symptoms and part failures, engine system troubleshooting, all actuator system troubleshooting, front attachment system troubleshooting, steering system troubleshooting, travel system troubleshooting, brake system troubleshooting, other system troubleshooting, exchange inspection, air bleeding procedures for brake (axle)
• Group 7 — Air Conditioner: Outline, functions of main parts, troubleshooting, air conditioner controller fault code list, fault codes E11 to E22 and E43 to E92, work after replacing components, refill compressor oil, charge air conditioner with refrigerant, hose and pipe tightening torque

Beyond the chapter list, this ZW220-5A Technical Manual provides a complete diagnostic ecosystem. Section 4 gives you the performance test procedures and standard values to quantify machine condition — from engine speed and travel speed to hydraulic cylinder cycle times, dig function drift, brake pressures, and pump flow rates. Section 5 then takes those measurements and pairs them with an extensive fault-code-driven diagnostic structure covering the Main Controller (MC), Engine Control Module (ECM), Transmission Control Unit (TCU), column display controller, and air conditioner controller. The troubleshooting B section works from the opposite direction, starting with a machine symptom and leading the technician through the likely causes in a logical inspection order.

What This Manual Enables You to Do

With this Hitachi ZW220-5A troubleshooting manual, a technician can:

• Run the full operational performance test sequence and compare results against the factory standard table
• Measure and evaluate engine speed, travel speed, brake performance, hydraulic cycle times, dig function drift, and bucket levelness
• Test primary and secondary pilot pressures, main pump delivery pressure, relief pressures, brake pressures, transmission clutch pressures, and torque converter pressures
• Diagnose fault codes displayed by MPDr. or the monitor service menu across MC, ECM, TCU, column display, and air conditioner controllers
• Trace no-fault-code problems using the symptom-based troubleshooting tables
• Perform transmission learning, lift arm angle sensor learning, and digging position adjustment
• Service the air conditioner system including fault code diagnosis, refrigerant charging, and compressor oil refill
• Use the CAN1 harness check procedures to verify communication between controllers

The value of this manual lies in its specificity. Rather than generic advice, it gives the exact pressure values, cycle times, voltage ranges, resistance values, and fault code thresholds for the ZW220-5A. That means faster diagnosis, fewer replaced parts that were not actually faulty, and confidence that the machine is returned to its correct operating specification.

IMAGES PREVIEW

Delivered as an instant PDF download, this manual is available immediately after purchase. There is no shipping, no waiting for a physical book, and no restriction on where you use it. Open it on a laptop in the workshop, a tablet in the cab, or print the pages you need for the job at hand. The PDF format means you can search, zoom, and navigate the document on any device that reads PDFs.

Whether you are diagnosing an intermittent fault code, verifying a repair with a performance test, or setting up a maintenance schedule based on measured values, this Hitachi ZW220-5A Wheel Loader Technical Manual (Troubleshooting) gives you the diagnostic framework the machine was designed around.
