Hitachi ZX400R-3 & ZX400LCH-3 Technical Manual Troubleshooting PDF Download

Description

Hitachi ZX400R-3 & ZX400LCH-3 Technical Manual Troubleshooting

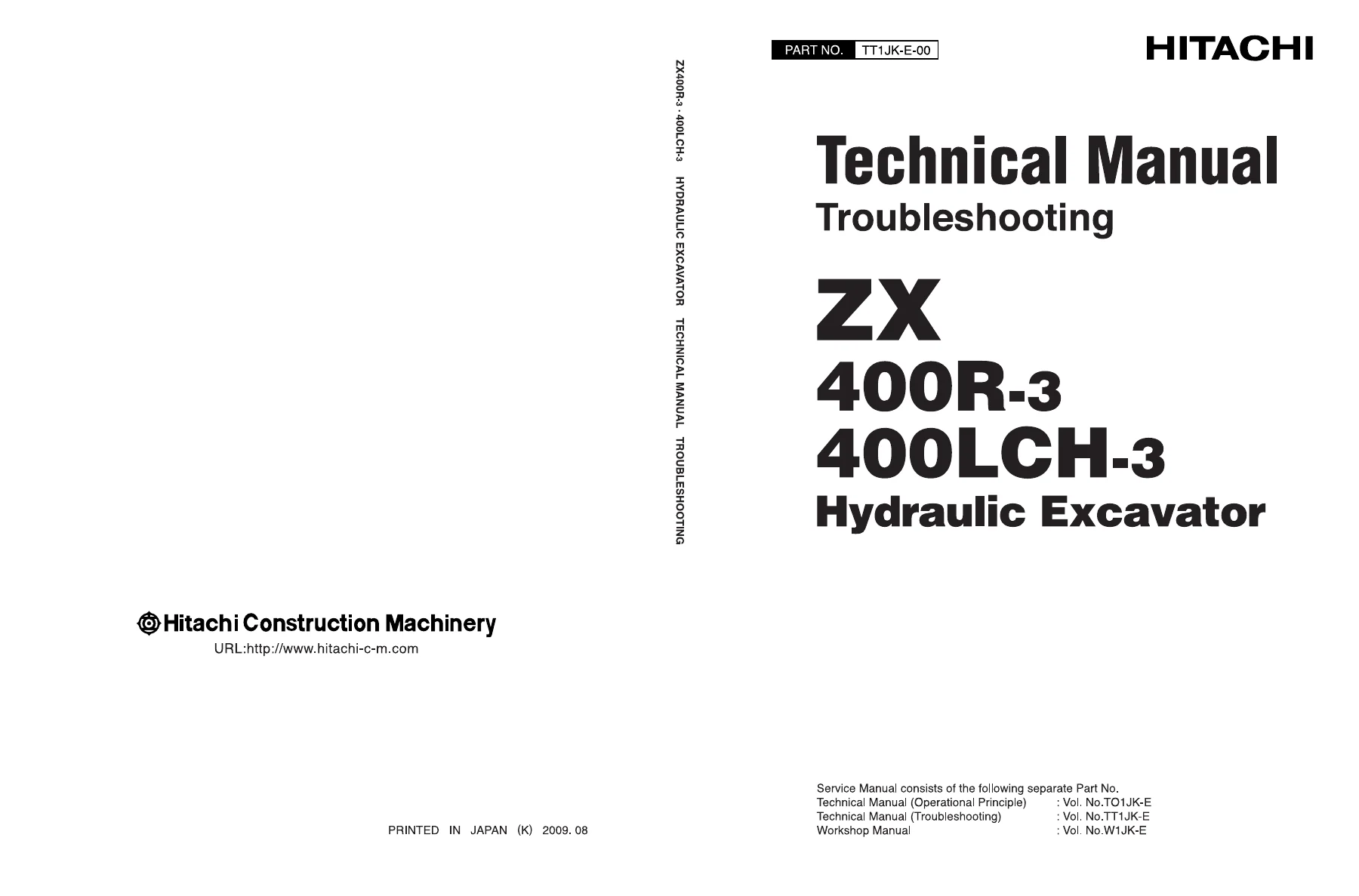

This is the Hitachi ZX400R-3 & ZX400LCH-3 Technical Manual Troubleshooting, Part No. TT1JK-E-00, the dedicated troubleshooting volume from Hitachi’s three-part ZX400R-3 / ZX400LCH-3 hydraulic excavator service manual set. Where the Operational Principle volume explains how the systems work and the Workshop Manual covers disassembly, this Technical Manual Troubleshooting document is built specifically for finding and fixing faults: operational performance testing, monitor and controller diagnostics, and a complete fault-code library for the machine’s electronic control system.

File Details

• Manual type: Technical Manual – Troubleshooting (companion volume to the ZX400R-3/ZX400LCH-3 Operational Principle and Workshop Manuals)
• Brand & model: Hitachi ZX400R-3 / ZX400LCH-3 Hydraulic Excavator
• Language: English
• Page count: 626 pages
• File format: PDF
• Document / Part No.: TT1JK-E-00 (Vol. No. TT1JK-E)
• Publication date: August 2009

Chapters Covered

• Section 4, Operational Performance Test – Introduction
• Section 4, Standard: operational performance standard table, main pump P-Q diagram, sensor activating range
• Section 4, Engine Test: engine speed, engine compression pressure, valve clearance, lubricant consumption
• Section 4, Excavator Test: travel speed, track revolution speed, mistrack check, travel parking leakage, swing speed, swing function drift check, swing motor leakage, maximum swingable slant angle, swing bearing play, hydraulic cylinder cycle time, dig function drift check, control lever operating force and stroke, combined boom/swing and boom/arm operation checks
• Section 4, Component Test: primary and secondary pilot pressure, solenoid valve set pressure, main pump delivery pressure, main relief set pressure, relief pressure when relieving swing, overload relief valve set pressure, main pump flow rate measurement, swing and travel motor drainage
• Section 5, Diagnosing Procedure
• Section 5, Monitor Unit: screen operation, alarm display, controller version, monitoring, pump 2 flow rate adjustment, attachment selection, time setting, maintenance settings, language settings, mail function, keyless hour meter
• Section 5, Dr. ZX: self-diagnostic results, select and main controller menus, special function, setting, machine and attachment adjustment data lists, recorded data display, engine controller, ICF controller
• Section 5, e-Shovel: daily report data, frequency distribution data, total operating hours, ICF data download/upload, satellite communication system, fault code list

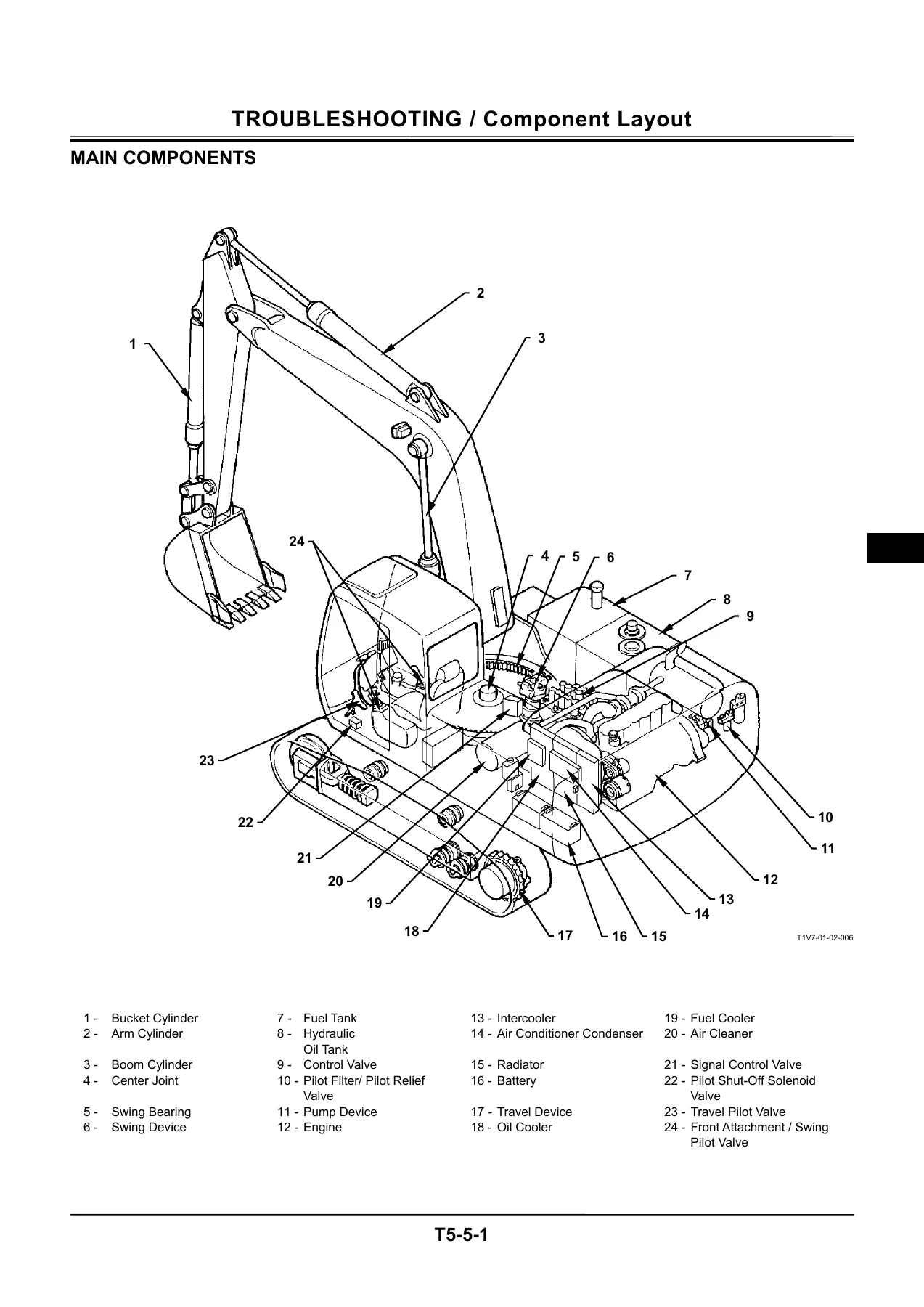

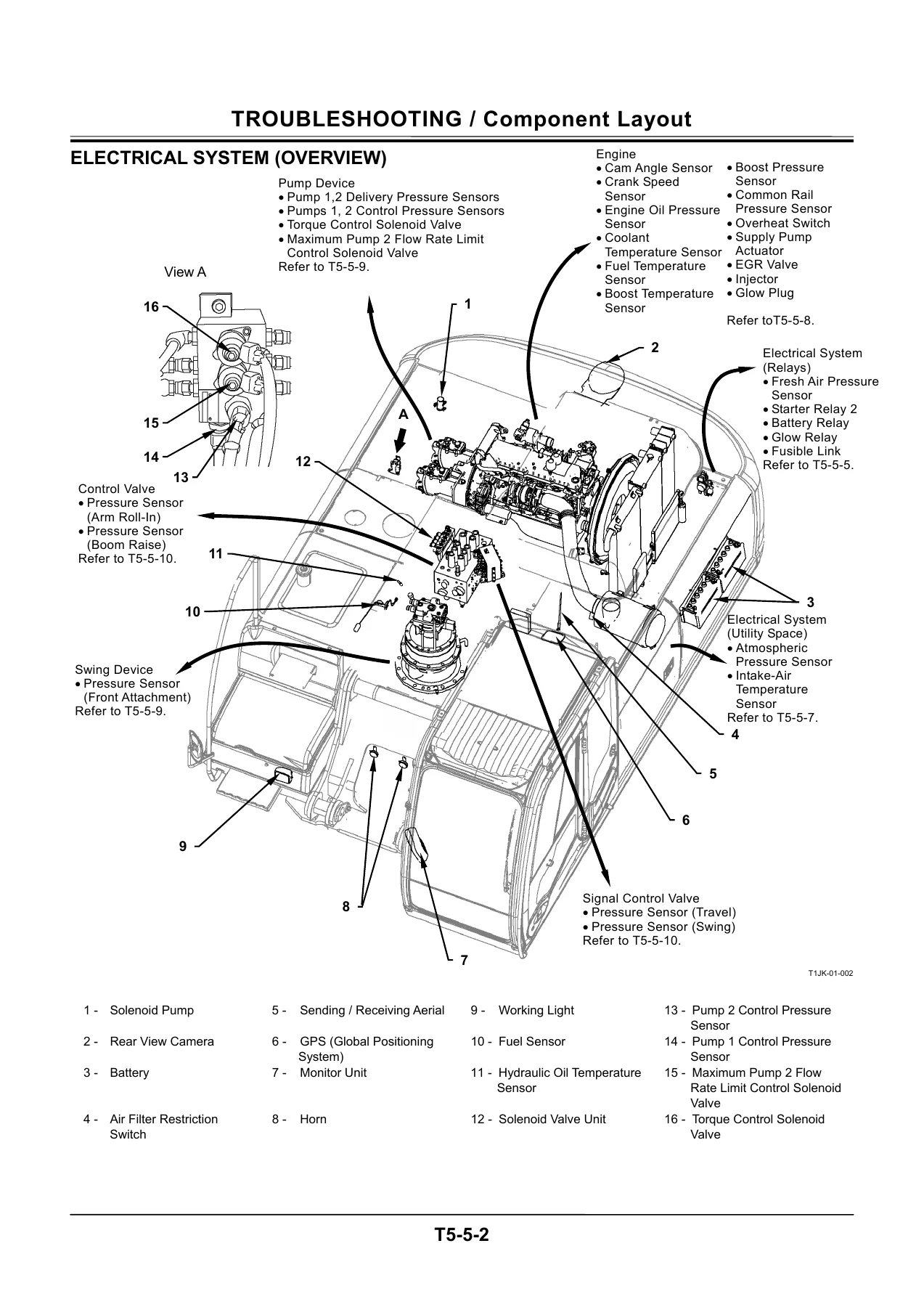

• Section 5, Component Layout: main components, electrical system overview, in-cab, rear tray, switch panel, utility space, relays, engine, pump device, control valve, signal control valve, solenoid valve unit, travel device
• Section 5, Troubleshooting A: MCF, ECM and ICF fault code lists, controller hardware failure, CAN harness checks, pump, pilot and proportional solenoid valve failures
• Section 5, Troubleshooting B: trouble symptoms vs. related parts, engine system, all-actuator system, front attachment, swing and travel system troubleshooting, exchange inspection, emergency boom lowering procedure
• Section 5, Electrical System Inspection: precautions, connector disconnection, fuse and fusible link inspection, battery voltage check, alternator check, continuity and voltage checks, test harness use

Taken together, this Hitachi ZX400R-3 ZX400LCH-3 Technical Manual Troubleshooting document gives a technician everything needed to verify that the excavator’s engine, hydraulics, travel, swing and attachment systems are performing to factory standard, then trace any deviation back through the monitor unit, Dr. ZX diagnostic tool, and controller fault codes to the exact failed component.

Diagnose Hitachi ZX400 Fault Codes with Confidence

The fault-code section of this ZX400R-3 / ZX400LCH-3 troubleshooting manual is organized by controller – MCF, ECM and ICF – so a code read off the monitor or Dr. ZX can be looked up directly and worked through step by step, from CAN harness checks and controller hardware failures to pump, pilot and proportional solenoid valve faults. Troubleshooting B then works the other way, starting from an observed symptom (an actuator that won’t move correctly, a travel or swing system that underperforms) and walking back to the likely cause, which is useful whenever the electronics aren’t reporting a code but something is still clearly wrong.

Why Technicians Need This Manual

With this Hitachi ZX400R-3 & ZX400LCH-3 Technical Manual Troubleshooting on hand, a technician can run the full operational performance test sequence to confirm the machine meets spec, use the monitor unit and Dr. ZX procedures exactly as Hitachi documents them, and resolve MCF/ECM/ICF fault codes using the correct pressure values, drainage limits and inspection steps rather than guesswork. Working from the manufacturer’s own troubleshooting logic protects against comebacks, wasted parts, and further damage from misdiagnosis. The file downloads instantly after purchase as a PDF, needs no shipping, and can be read, searched, and printed from a phone, tablet, laptop or shop PC whenever it’s needed.
