Hitachi ZX70-5G ZX70LC-5G Hydraulic Excavator Operator’s Manual – 2015 Edition

Description

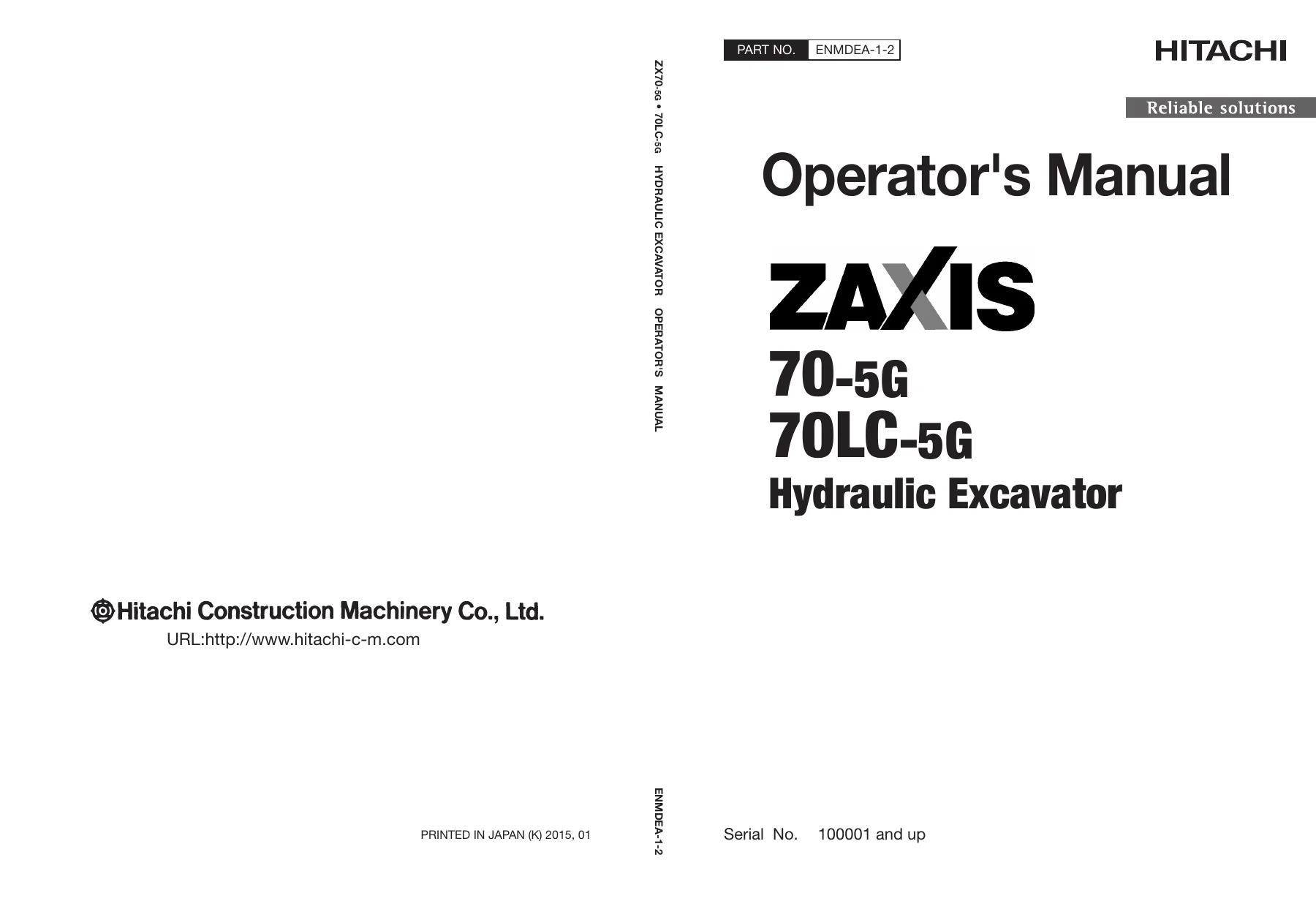

Hitachi ZX70-5G and ZX70LC-5G Hydraulic Excavator Operator’s Manual

This is the complete operator’s manual for the Hitachi ZAXIS ZX70-5G and ZX70LC-5G hydraulic excavators, document number ENMDEA-1-2, published January 2015 and covering machines from serial number 100001 and up. It is the same guide that ships with the machine and is meant to stay with it — the manual itself states it should be considered a permanent part of the machine and remain with it if sold. Every procedure, warning and specification in this PDF is written specifically for these two excavator models, so you are not guessing which general-purpose advice applies to your machine.

File Details

• Manual type: Operator’s Manual
• Brand: Hitachi Construction Machinery Co., Ltd.
• Models: ZX70-5G, ZX70LC-5G (ZAXIS series)
• Document number: ENMDEA-1-2
• Edition/date: Printed in Japan (K), 2015.01
• Serial number coverage: 100001 and up
• Language: English
• Page count: Approximately 288 pages
• File format: PDF

Chapters Covered

• Machine Numbers — recording product identification numbers, engine, travel motor, swing motor and hydraulic pump serials
• Safety — signal words, protective clothing, cab precautions, handrails and steps, seat belt, jump starting, working around power lines, high-pressure fluids, battery explosions, fire prevention, welding and grinding precautions
• Safety Signs — locations and meanings of every safety decal fitted to the machine

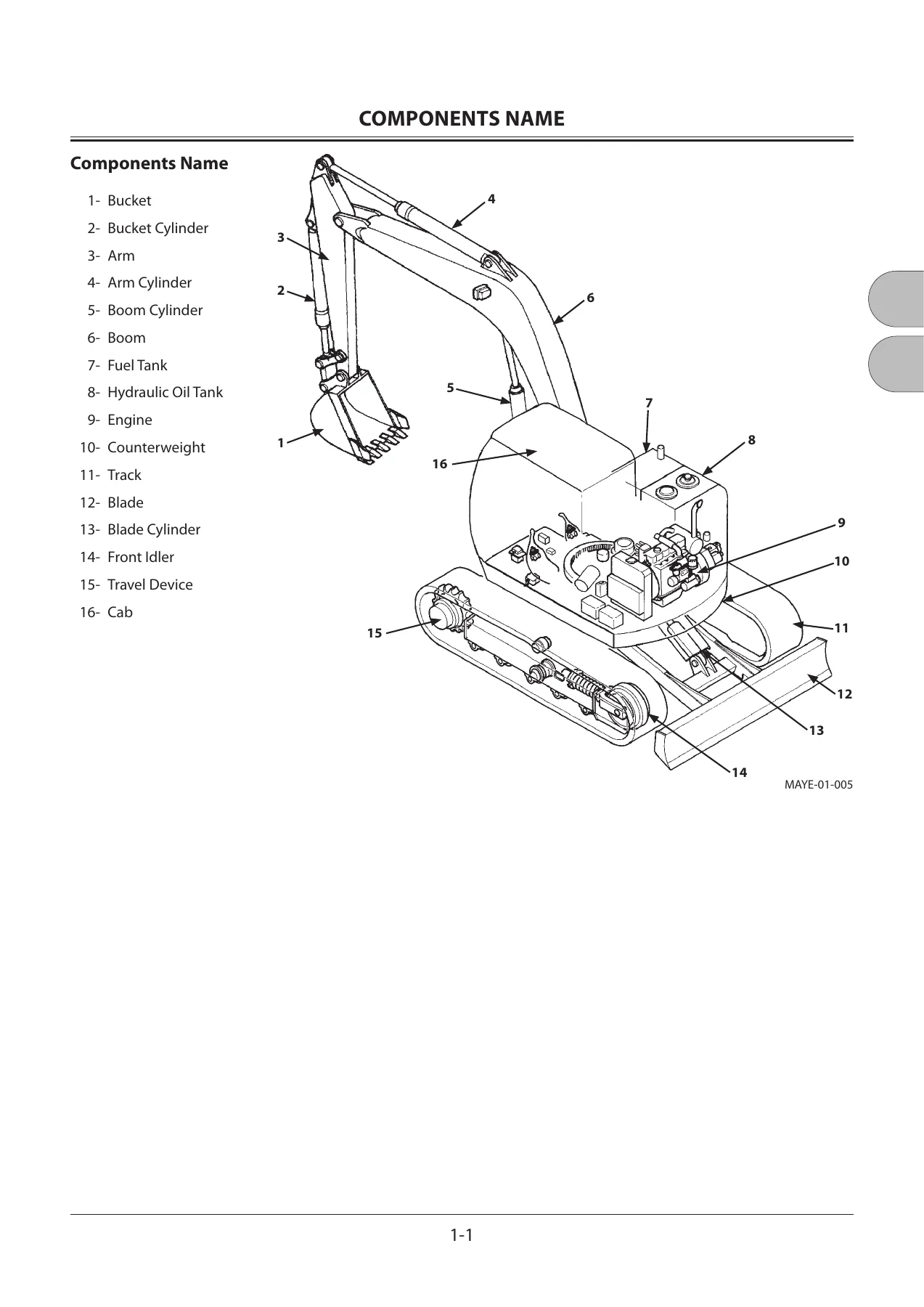

• Components Name — labeled overview of the major assemblies
• Getting On/Off the Machine — safe entry and exit using footholds and handrails
• Operator’s Station — monitor panel, gauges, LCD hour and trip meters, switch panel, engine control dial, auto-idle and power mode switches, travel mode, work lights, wiper, key switch, cab features, air conditioning and heater controls, radio, cab windows, seat adjustment, seat belt, battery disconnect switch, mirrors
• Break-In — first 50 and first 100 hour procedures
• Operating the Engine — daily pre-start inspection, starting in normal and cold weather, checking instruments after start, using booster batteries, stopping the engine
• Driving the Machine — travel pedals and levers, steering, travel speed modes, operating on soft ground, towing, operating in water or mud, parking
• Operating the Machine — control lever patterns (ISO and Hitachi), pilot control shut-off lever, warming up, engine speed control, auto-idle, power mode, backhoe operation, face shovel operation, grading, attachment pedal for breaker and crusher
• Transporting — loading and unloading on a trailer, fastening the machine for transport, lifting procedure

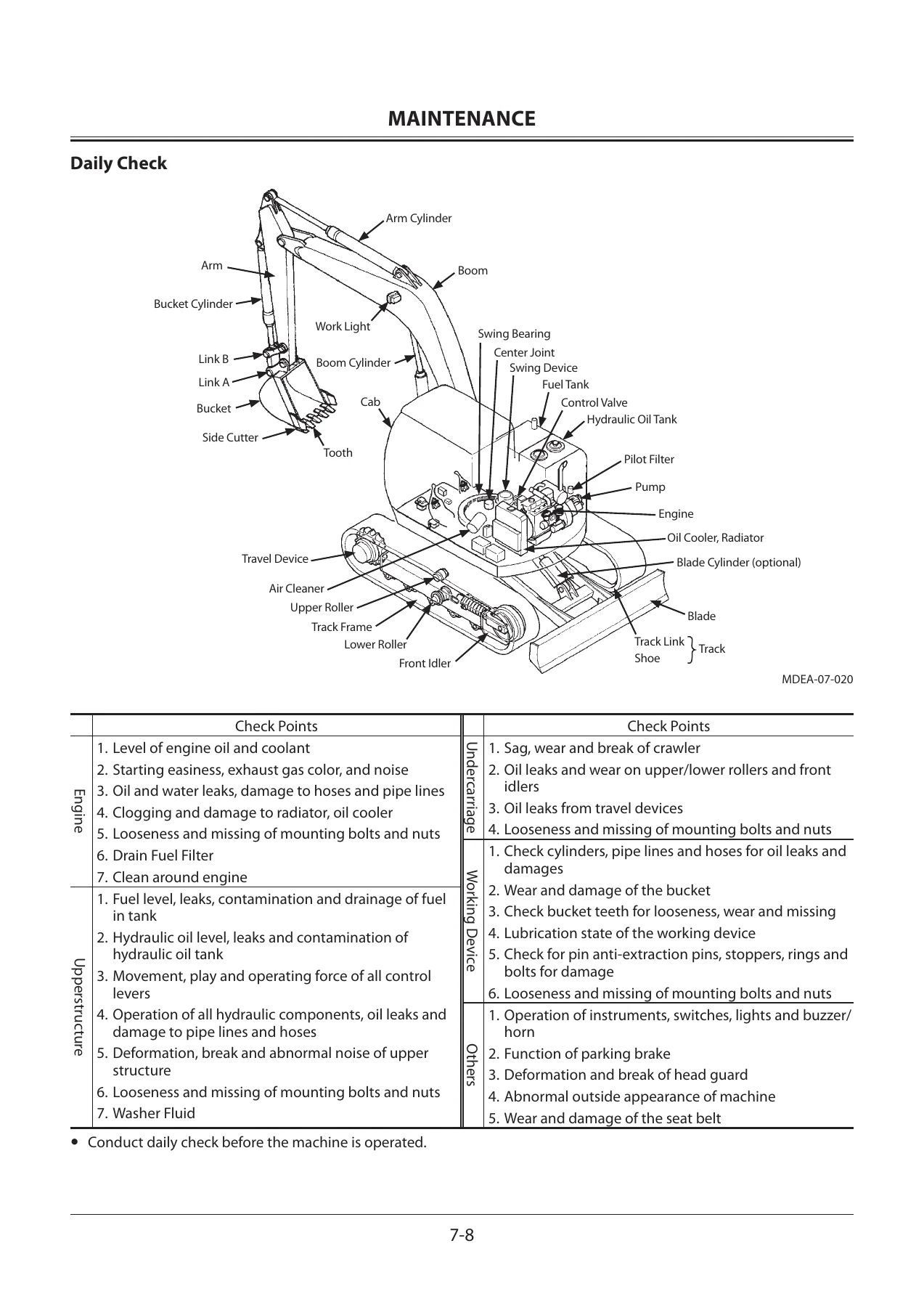

• Maintenance — preparation, hood and access covers, full periodic service tables (greasing, engine, transmission, hydraulic system, fuel system, air cleaner, cooling system, electrical system, miscellaneous), oil and fluid specifications, torque charts, track sag adjustment, air conditioner filter service
• Maintenance Under Special Environmental Conditions — mud, rain, snow, ocean exposure, dusty atmosphere, rocky ground, falling stones, freezing weather
• Storage — long-term storage preparation
• Troubleshooting — engine, electrical system, mode selection, control levers and hydraulic system fault tables
• Specifications — operating weights, dimensions, working ranges, shoe types, bucket types
• Optional Attachments and Devices — blade operation and specifications
• Index

What This Manual Gives You

The ZX70-5G and ZX70LC-5G are compact excavators that use the Yanmar 4TNV98 engine rated at 42.4 kW (57.6 PS) at 2100 min-1. This manual covers both the standard undercarriage and the long-crawler (LC) version, plus the optional dozer blade and the optional hydraulic breaker and crusher circuits. Rather than a generic service book, this is the machine-specific operating document: it lists the exact intervals at which the hydraulic oil, engine oil, coolant, gear oil and filter elements must be changed, the correct fluid capacities, the tightening torque figures for fittings and mounting bolts, and the track sag specification of 210 to 235 mm. Those numbers matter — using a guessed interval or the wrong grade of hydraulic oil is how pumps and final drives fail early.

The manual also carries the full safety chapter. That includes the signal word system (Danger, Warning, Caution, Important, Note), the warnings about working near electric lines, the instructions for jump starting from booster batteries in the correct cable order, the procedure for releasing pressure before opening the hydraulic tank or radiator, and the emergency boom lowering procedure if the engine stops and will not restart. For anyone running this machine on a commercial site, those sections are the difference between a minor incident and a serious one.

Jobs and Repairs This Manual Supports

Anyone who operates or maintains a ZX70-5G or ZX70LC-5G can use this book to handle routine servicing, understand the monitor panel warnings, and diagnose common faults without calling a dealer. The troubleshooting chapter alone covers engine cranking and starting problems, overheating, low oil pressure, excessive fuel or oil consumption, white and black exhaust smoke, charging system faults, auto-idle and travel speed mode failures, slow hydraulic functions, foaming oil and travel or swing issues, each with a cause and a remedy listed against it. The maintenance section walks through every periodic task, from greasing the front joint pins to replacing the pilot oil filter, swing drain filter and air breather element. The specifications chapter gives operating weight, overall dimensions, digging reach, digging depth, cutting height, dumping height and transport height for both arm lengths and both backhoe and shovel configurations.

Why the Right Manual Matters

Hitachi builds these machines to metric specifications, and the manual says so explicitly — use only metric hardware and tools. Torque values, clearances and fluid capacities are all given in metric units with imperial equivalents where relevant. Working without the correct figures, or with a manual for a different model or serial range, risks stripped threads, overfilled or underfilled systems, and premature component wear. The document also states clearly that unauthorised modifications and non-Hitachi attachments can void the warranty, so having the correct reference on hand protects the machine’s coverage as well as its service life.

IMAGES PREVIEW

Instant PDF Delivery

This is a digital PDF download, not a physical book. The file is available immediately after payment and can be read on any device — phone, tablet, laptop or desktop. Print individual pages or the whole manual and keep a copy in the cab. Because it is a permanent PDF, it stays on your device and can be re-downloaded if needed, so the manual remains with the machine as Hitachi intends.
