The Honda TRX300 TRX300FW FourTrax Service Manual 1988-1994 is the full workshop reference for Honda’s 300-class FourTrax ATVs, covering seven model years of the TRX300 and the TRX300FW 4×4. Every section is written around the machine itself, from the air-cooled four-stroke top end down to the rear final drive and the TRX300FW front differential. If you own, service or rebuild one of these ATVs, this is the document that tells you what to loosen, in what order, to what torque, and how to diagnose it when it will not run right.

File Details

• Manual type: Honda Service Manual (workshop / repair manual)
• Brand: Honda
• Models covered: TRX300 FourTrax (1988-1994), TRX300FW FourTrax 4×4 (1988, 1990-1994)
• Engine type: Gasoline, air-cooled 4-stroke
• Language: English
• Page count: 370 pages
• File format: PDF
• Coverage period: 1988 through 1994

Chapters Covered

• 1. General Information — general safety, service rules, model identification, specifications, torque values, special tools, cable and harness routing
• 2. Lubrication — engine oil level, engine oil and filter change, oil filter screen, front differential / rear final drive oil, front gear case oil, lubrication points
• 3. Maintenance — maintenance schedule, fuel line and strainer screen, throttle operation, carburetor choke, air cleaner element and drain tube, spark plug, valve clearance, idle speed, cylinder compression, brake fluid, brake shoe wear, brake system, reverse lock system, skid plates, clutch system, suspension, spark arrester cleaning, wheels and tires, steering shaft holder bearing, steering system, headlight aim, nuts bolts and fasteners
• 4. Fuel System — fuel tank, air cleaner housing, carburetor removal, carburetor disassembly, carburetor assembly, carburetor installation, pilot screw adjustment, high altitude adjustment
• 5. Engine Removal / Installation — removal procedure, installation procedure, torque values
• 6. Cylinder Head / Valves — cylinder head cover removal and assembly, camshaft and cam chain tensioner lifter removal and installation, cylinder head removal and installation, valve guide replacement, valve seat inspection and refacing, rocker arm inspection
• 7. Cylinder / Piston — cylinder inspection and measurement, piston removal and inspection, piston ring end gap and groove clearance, piston and cylinder installation

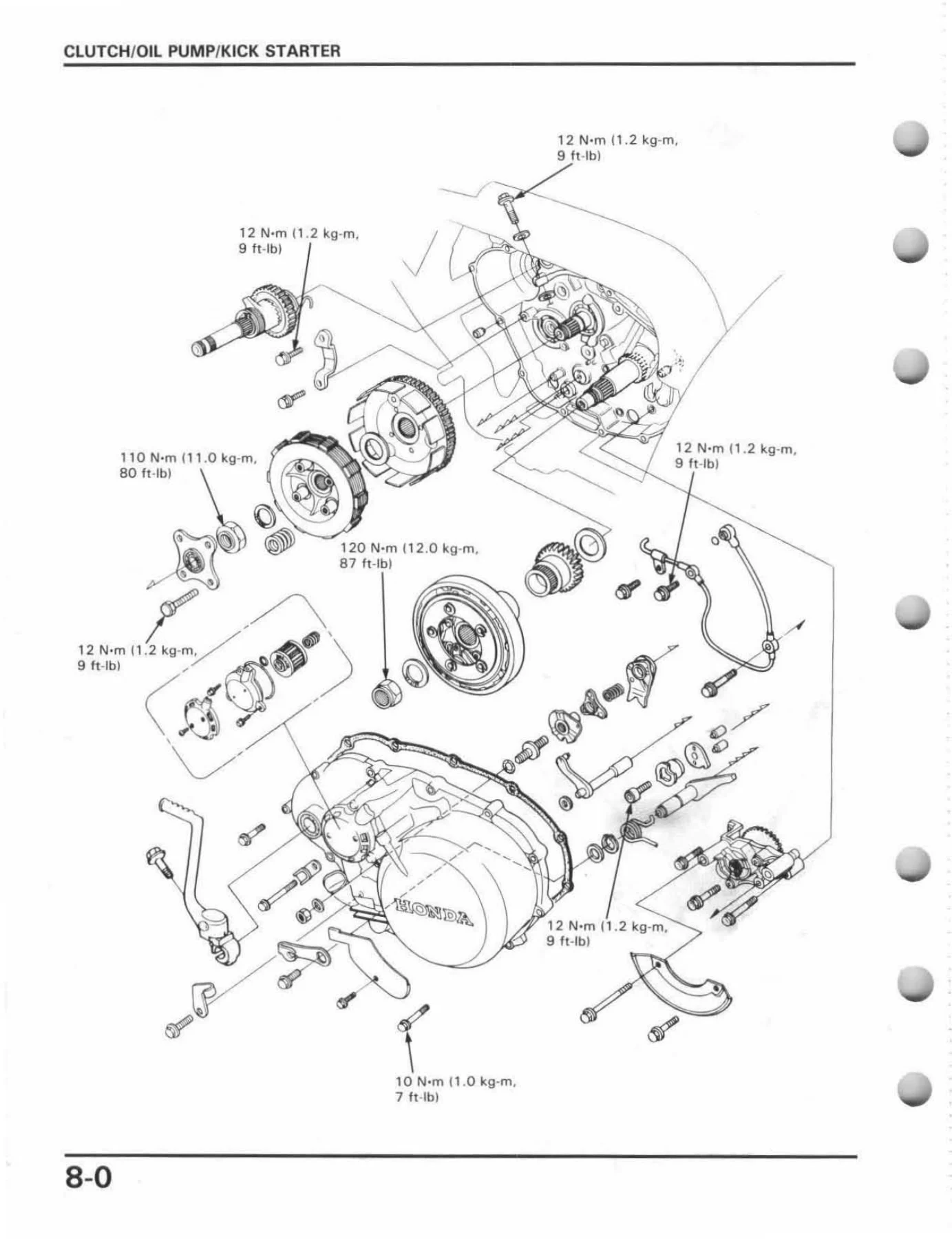

• 8. Clutch / Oil Pump / Kick Starter — right crankcase cover removal and installation, centrifugal clutch and primary drive gear, change clutch, reverse lock mechanism, oil pump, kick starter
• 9. Alternator / Starter Clutch / Gearshift Linkage — starter reduction gear, left crankcase cover removal and installation, flywheel and starter clutch, gearshift linkage
• 10. Crankcase / Crankshaft / Transmission — crankcase separation and assembly, transmission inspection and reassembly, crankshaft and balancer, output gear, bearing replacement, backlash and tooth contact pattern checks

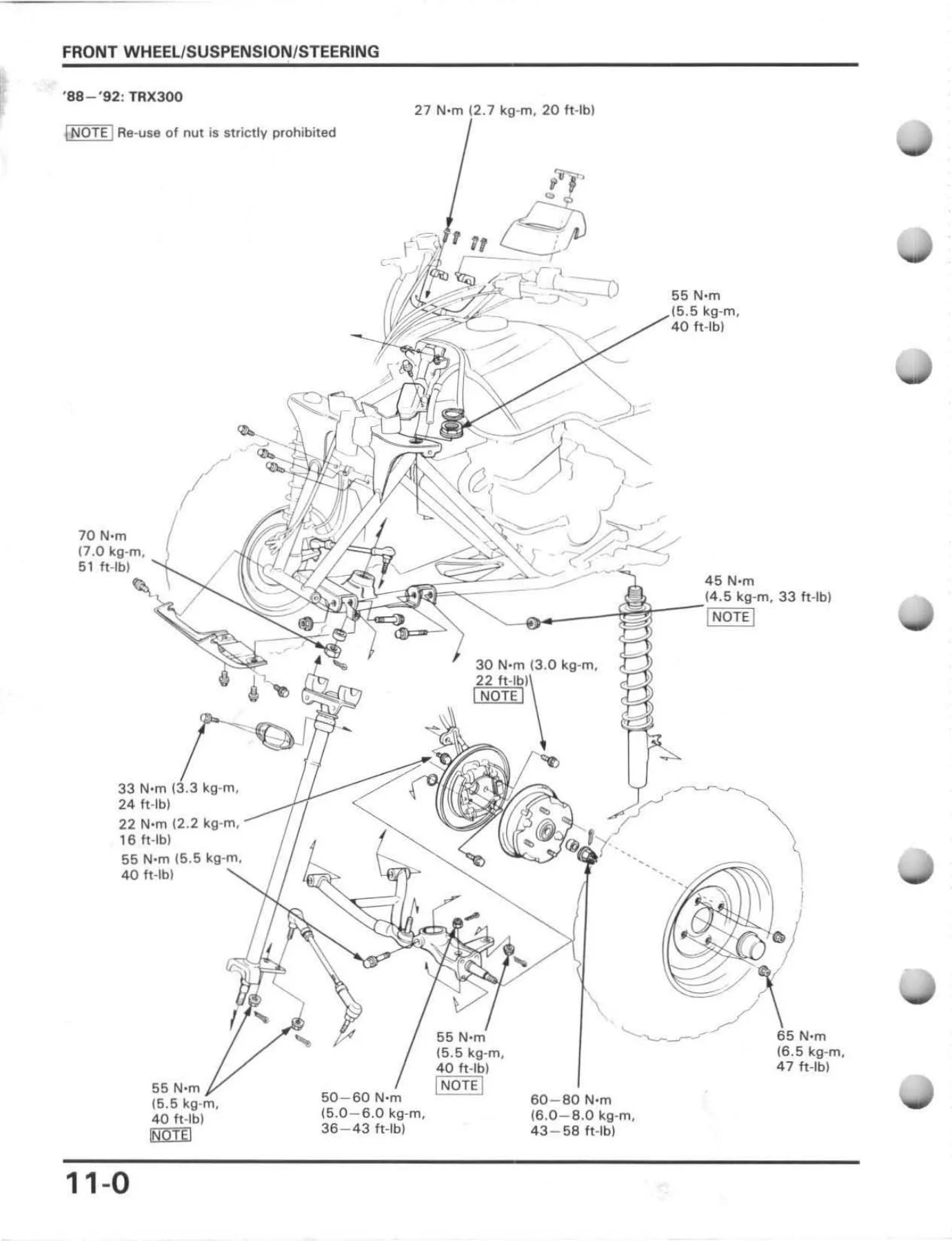

• 11. Front Wheel / Suspension / Steering — handlebar, throttle housing, front wheel, tie-rod and knuckle removal and installation, front arm, steering shaft, front shock absorber
• 12. Brakes — brake fluid replacement and air bleeding, master cylinder, brake shoes, wheel cylinder and adjuster, rear brake, rear brake pedal
• 13. Rear Wheel / Suspension — tires (removal, repair, assembly), rear wheel, rear shock absorber, swing arm and pivot bearings
• 14. Front Driving Mechanism (TRX300FW) — front drive shaft removal and installation, front differential, front gear case, front drive side shaft removal and installation
• 15. Rear Driving Mechanism — rear axle removal and installation, rear final drive removal and installation, rear drive shaft, backlash and tooth contact pattern checks
• 16. Carriers / Fenders / Muffler — front carrier and front fender, rear carrier and rear fender, exhaust muffler
• 17. Ignition System — system diagram, ignition control module (ICM) system inspection, ignition coil, ignition pulse generator, alternator, ignition timing
• 18. Battery / Charging System — system diagram, battery removal and charging, charging system leakage and regulated voltage/amperage inspection, alternator charging coil, regulator/rectifier
• 19. Starter System — system diagram, starter motor disassembly and assembly, starter relay switch, diode
• 20. Lights / Switches — headlight and aim, taillight, indicator lamps, ignition switch, handlebar switches, neutral switch, reverse switch, oil temperature sensor, alarm unit and oil warning system
• 21. Wiring Diagrams — full wiring diagrams for 1988, 1989, 1993 and after-1993 models
• 22. Troubleshooting — engine does not start or is hard to start, engine lacks power, poor performance at low and idle speeds, poor performance at high speeds, poor handling
• 23. Index

What makes this manual worth having on the bench is the way it is layered. Each major section opens with an assembly or system illustration, then service information and a troubleshooting block for that system, and only after that does it move into step-by-step procedures. That structure means you can walk into a job cold, read the troubleshooting flow for the symptom you actually have, and go straight to the page that fixes it. The engine chapters cover the full tear-down sequence — camshaft and cam chain tensioner lifter, cylinder head, valves, valve guide replacement, valve seat refacing, cylinder and piston measurement — with the service limits printed next to each measurement. The driveline chapters take the same approach for the transmission, output gear, front differential and rear final drive, including backlash inspection, tooth contact pattern checks and shim selection.

Models, Years and Identification

Coverage splits cleanly by model year. The TRX300 FourTrax is covered for 1988 through 1994. The TRX300FW FourTrax 4×4 is covered for 1988 and then 1990 through 1994. Because the two machines diverge on the front end — the FW carries a front differential, front gear case and front drive shafts — the manual keeps a dedicated front driving mechanism chapter that applies only to the 4×4, while steering, brakes, rear suspension and the powerplant remain shared material.

Model identification is covered early. The frame serial number is stamped on the front of the frame, the engine serial number is stamped on the upper side of the right crankcase, and the carburetor identification number sits on the left side of the carburetor body. Carburetor identification codes are listed by year — VE90A for 1988 through 1990, VE90C for 1991, VE90D for 1992, VE90E for 1993 and VE91A after 1993 — which matters when you are ordering jets or setting float level on a machine whose carburetor has been swapped at some point in its life.

Specifications and Service Data Inside

The general information chapter carries the full dimensional and mechanical specification table, and the individual chapters repeat the values that apply to the job in front of you. You will find the 5-speed constant mesh transmission with reverse and its individual gear ratios, the primary reduction figure, the DC-CDI ignition with its initial and full-advance timing, alternator output, battery rating, recommended spark plugs for standard, extended high-speed and cold-climate use, spark plug gap, valve clearance, idle speed, cylinder compression, fuel tank and reserve capacity, tire pressures for every model year and load condition, toe-in, caster and camber angles, front and rear brake specifications, and a full torque value listing organized by assembly. Standard torque values for metric fasteners are also tabulated, so you are never guessing on a bolt the manual does not call out directly.

Diagnostics, Wiring and Tools

Troubleshooting is not an afterthought here. Section 22 is a standalone troubleshooting chapter that works through the classic FourTrax complaints — no-start or hard starting, lack of power, poor running at idle and low speed, poor running at high speed, and poor handling — with probable causes listed against each branch of the diagnostic flow. Behind it, Section 17 walks the ignition system through a numbered troubleshooting sequence and a wire-harness-side terminal inspection table, so an electrical fault can be traced rather than swapped at with parts. The wiring diagram section supplies complete diagrams for the 1988, 1989, 1993 and after-1993 model years.

IMAGES PREVIEW

Special tools are called out throughout, with Honda tool numbers and, where applicable, alternate or commercially available equivalents, so you know when a job genuinely needs a factory tool and when a general-purpose puller or driver will do. Safety content runs across the manual rather than sitting in a single block — warnings on fuel handling, battery electrolyte and hydrogen gas, asbestos brake dust, exhaust carbon monoxide, and heated components during bearing and gear case work all appear at the point in the procedure where they matter.

Who This Manual Suits

Independent ATV shops working on older FourTrax machines will find the torque tables, backlash checks, shim selection charts and tooth contact pattern procedures are what make a differential or final drive rebuild repeatable rather than experimental. Owners doing their own maintenance get the service schedule, valve clearance, oil and filter change capacities, brake adjustment and cable lubrication laid out plainly. Anyone rebuilding a tired TRX300 engine gets the measurement limits for the cylinder bore, piston, piston pin, ring end gap, valve stem and guide, cam lobe height and journal clearance in one place. And anyone chasing an electrical gremlin gets the ignition system inspection tables and the year-correct wiring diagram.

Get the Full Honda FourTrax Service Manual

This Honda TRX300 TRX300FW FourTrax Service Manual 1988-1994 covers jobs that range from a twenty-minute valve clearance check to a complete crankcase split, transmission rebuild or front differential overhaul. Having the correct torque values, service limits, adjustment procedures and troubleshooting sequences on hand is the difference between a repair that holds and a repair you repeat — a differential assembled without a backlash check, a clutch adjusted by feel, or a valve set without the right clearance figure will all come back to you. Every procedure in this manual exists because Honda documented the correct sequence and the correct number, and that is what keeps these machines running straight.

Delivery is instant. The manual is supplied as a PDF download — no shipping, no waiting on a parcel, no physical book to keep clean in the workshop. Open it on a laptop, tablet or phone at the bench, print the pages you need for the job in front of you and toss them when they get oily, and keep the full file for the next repair. One download, every section, every model year covered by this edition.
