Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download

Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download

Name: Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download
SKU: HYST-FORTIS-H40-70-PARTS-2014-HD
Availability: InStock

Original price was: $44.95.Current price is: $24.95.

Complete Hyster Fortis H40FT, H50FT, H60FT and H70FT (L177) parts manual for 2014. Covers GM, Mazda and Yanmar engines, all major systems, masts, options and field conversion kits. Instant PDF download.

SKU: HYST-FORTIS-H40-70-PARTS-2014-HD Category: Forklift Parts Manuals Tags: Fortis forklift parts manual, H40FT H70FT parts catalog, Hyster Fortis parts manual, Hyster L177 parts PDF Vendor: Gearbox Manuals

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description
Reviews (0)

Description

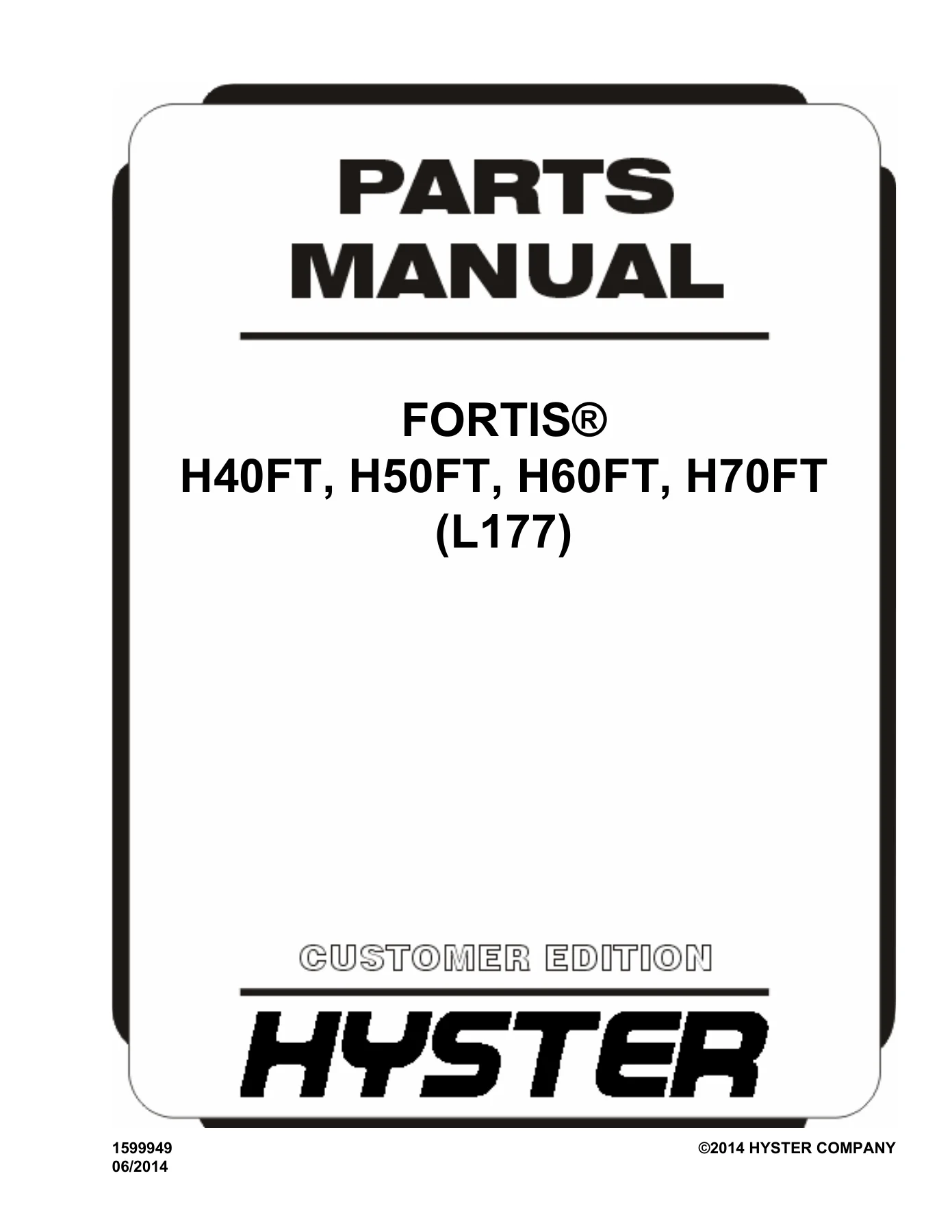

Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014

This Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 is the complete parts identification guide for the L177 series lift trucks. Published by Hyster Company in 2014, it covers the H40FT, H50FT, H60FT and H70FT models across GM, Mazda and Yanmar engine platforms. Whether you are ordering replacement parts, identifying a component on a specific assembly breakdown, or cross-referencing a part number, this manual provides the exploded views, part numbers, descriptions and quantities you need.

File Details

Manual Type: Parts Manual
Brand: Hyster
Models Covered: H40FT, H50FT, H60FT, H70FT
Series: Fortis (L177)
Publication Number: 1599949
Year: 2014
Language: English
File Format: PDF
Page Count: Approximately 1,490 pages

Chapters Covered

The manual is organised into 18 major sections, each with its own table of contents and exploded assembly breakdowns:

What This Parts Manual Gives You

Every assembly breakdown in this Hyster Fortis parts manual includes exploded illustrations with item numbers, part numbers, descriptions and quantities required. The manual covers the complete L177 series across H40FT, H50FT, H60FT and H70FT models, with engine-specific sections for GM 2.4L, Mazda 2.0L/2.2L and Yanmar 2.6L/3.3L powerplants. Serial number breaks and date breaks are clearly marked throughout, so you can identify the correct parts for your specific truck regardless of production date. The numerical index at the back lets you start with a part number and find exactly where it fits on the assembly.

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the “Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download” are as follows:

Framep. 33

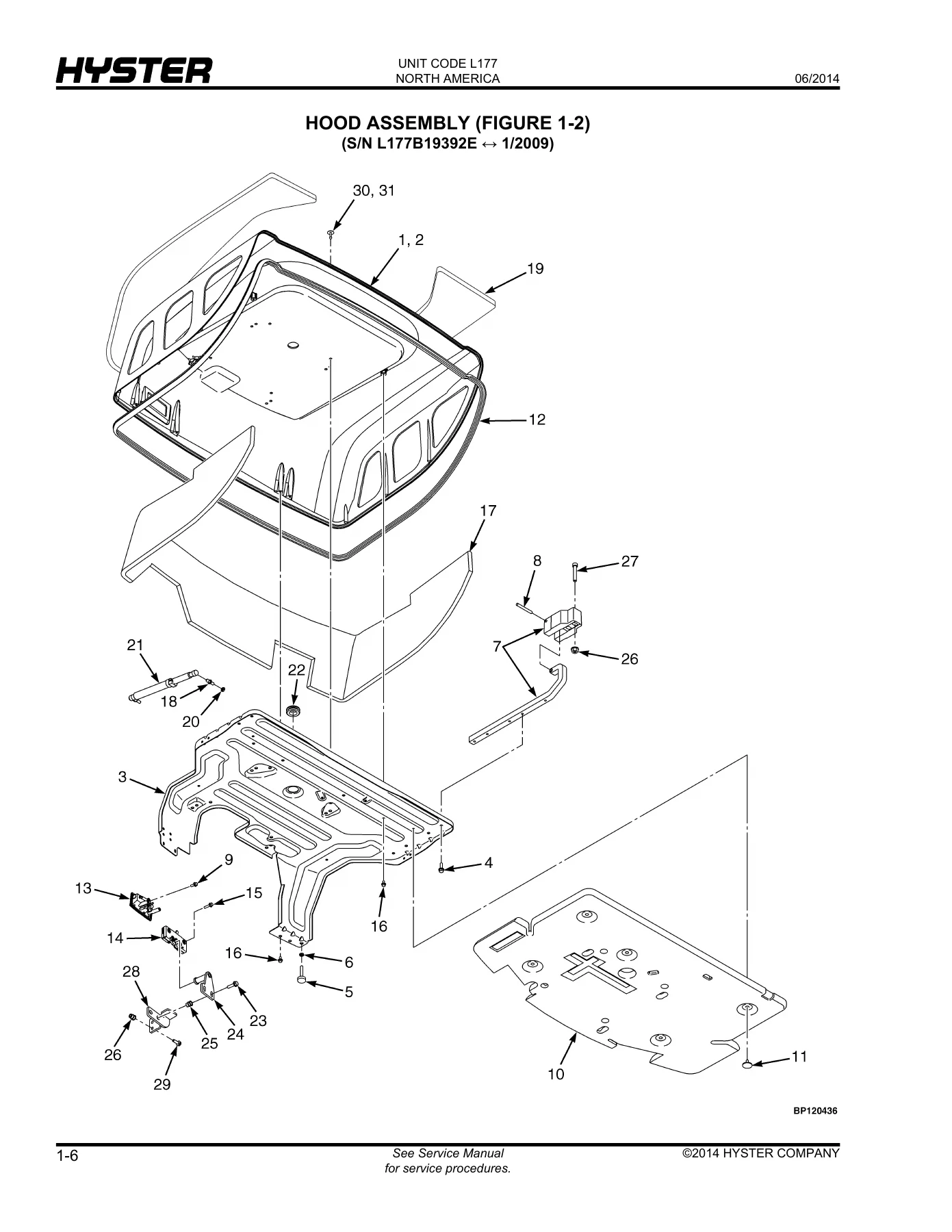

HOOD ASSEMBLYp. 38

HOOD ASSEMBLYp. 40

HOOD ASSEMBLYp. 42

FLOORPLATES AND COVERSp. 46

FLOORPLATES AND COVERSp. 50

DASH PANEL AND STEERING COLUMN COVERp. 54

FENDER EXTENSIONSp. 56

COWL MOUNTp. 58

COUNTERWEIGHTp. 60

COUNTERWEIGHTp. 62

OVERHEAD GUARDp. 64

CABp. 66

CABp. 68

CAB WITH A/Cp. 70

CAB ATTACHING PARTS WITH A/Cp. 72

CAB LH DOOR (→ S/N L177B11272D)p. 74

CAB LH DOOR (S/N L177B11273D →)p. 76

CAB RH DOOR AND HEATER ASSEMBLY (→ S/N L177B11272D)p. 80

CAB RH DOOR AND HEATER ASSEMBLY (S/N L177B11273D →)p. 82

CAB WITH STEEL DOORS HEATER – WITHOUT AIR CONDITIONINGp. 85

CAB AIR CONDITIONERp. 86

CAB HEATERp. 88

CAB DOORS PVCp. 90

CAB WINDOWS AND WINDOW WIPER SYSTEM (→ S/N L177B11272D)p. 92

CAB WINDOWS AND WINDOW WIPER SYSTEM (S/N L177B11273D →)p. 94

CAB SLIDING REAR WINDOWp. 98

CAB INTERIOR PANELS (→ S/N L177B11272D)p. 100

CAB INTERIOR PANELS (S/N L177B11273D →)p. 102

CAB CONDENSER ASSEMBLY – CAB (WITH A/C)p. 104

CAB FRAME AND ATTACHING PARTS (→ S/N L177B11272D)p. 106

CAB FRAME AND ATTACHING PARTS (S/N L177B11273D →)p. 108

CAB FRAME AND ATTACHING PARTS – CAB WITH A/Cp. 110

NON-SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS (S/N L177B01401 ↔ S/N L177B01501)p. 112

NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS (S/N L177B01501 ↔ S/N L177V04457H EXC. 04450)p. 114

NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS (S/N L177V04458H → INC. 04450)p. 116

NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS – OPTIONALp. 118

SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177B01401 ↔ S/N L177B01501)p. 120

SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177B01501 ↔ 7/2006)p. 122

SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (7/2006 ↔ S/N L177V04457H)p. 124

SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177V04458H → INC. 04450)p. 128

FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177B01401 ↔ S/N L177B01501)p. 130

FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N L177B01501 ↔ S/N L177B008481D)p. 132

FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS – WITH LIMITED BACK TILT (S/N L177B08482D ↔ S/N L177V04457H)p. 134

FULL SUSPENSION SWIVEL SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (→ 7/2006)p. 136

FULL SUSPENSION SWIVEL SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (7/2006 ↔ S/N L177V04457H)p. 138

FULL SUSPENSION SEAT MANUAL AND ELECTRO-HYDRAULIC — SWIVEL AND NON SWIVEL – SHEET 1 OF 4 (S/N L177V04458H → INC. 04450)p. 140

FULL SUSPENSION SEAT SERVICE KITS FOR NON SWIVEL AND SWIVEL – SHEET 2 OF 4 (S/N L177V04458H → INC. 04450)p. 142

FULL SUSPENSION SEAT RECLINER AND DAMPER KITS – SHEET 3 OF 4 (S/N L177V04458H → INC. 04450)p. 144

SEAT ATTACHING PARTS NOT INCLUDED WITH SEAT – SHEET 4 OF 4 (S/N L177V04458H → INC. 04450)p. 146

ARMREST ASSEMBLY MINI-LEVER MODULES – SEMI-SUSPENSION SEAT WITH HIP RESTRAINTS (S/N L177V04458H → INC. 04450)p. 148

ARMREST ASSEMBLY MINI-LEVER MODULES – FULL SUSPENSION SEAT (S/N L177V04458H → INC. 04450)p. 150

MINI LEVER MODULE LABELS HYDRAULIC CONTROL FUNCTIONSp. 152

LABELS EXTERIORp. 154

LABELS INTERIORp. 156

ELECTRONIC LEVER LABELS AUXILIARY SINGLE FUNCTIONp. 158

ELECTRONIC LEVER LABELS AUXILIARY DUAL FUNCTIONp. 160

FORKSp. 162

FORKS OPTIONALp. 164

FORKS OPTIONALp. 166

LOAD BACKREST EXTENSIONp. 168

HEATER HOSES MAZDA, GASOLINEp. 170

HEATER HOSES MAZDA, LPGp. 171

HEATER HOSES GM, GASOLINEp. 172

HEATER HOSES GM, LPGp. 173

HEATER HOSES YANMAR DIESELp. 174

LABELS HYDRAULIC CONTROL LABELS – CONTROL LEVERp. 176

RAIN TOPp. 178

ENGINE ASSEMBLY – GMp. 179

COOLING SYSTEM GM 2.4L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – WITH INTERNAL OIL COOLER (→ S/N L177B14568E)p. 182

COOLING SYSTEM GM 2.4L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – WITH INTERNAL OIL COOLER (S/N L177B14569E →) (S/N L177V01501F →)p. 184

COOLING SYSTEM GM 2.4L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – WITH EXTERNAL OIL COOLER (→ S/N L177B14568E)p. 188

COOLING SYSTEM GM 2.4L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – WITH EXTERNAL OIL COOLER (S/N L177B14569E →) (S/N L177V01501F →)p. 190

EXHAUST SYSTEM GM 2.4L GASOLINE AND LPGp. 192

EXHAUST SYSTEM GM 2.4L GASOLINE AND LPG – 2010 SERIESp. 196

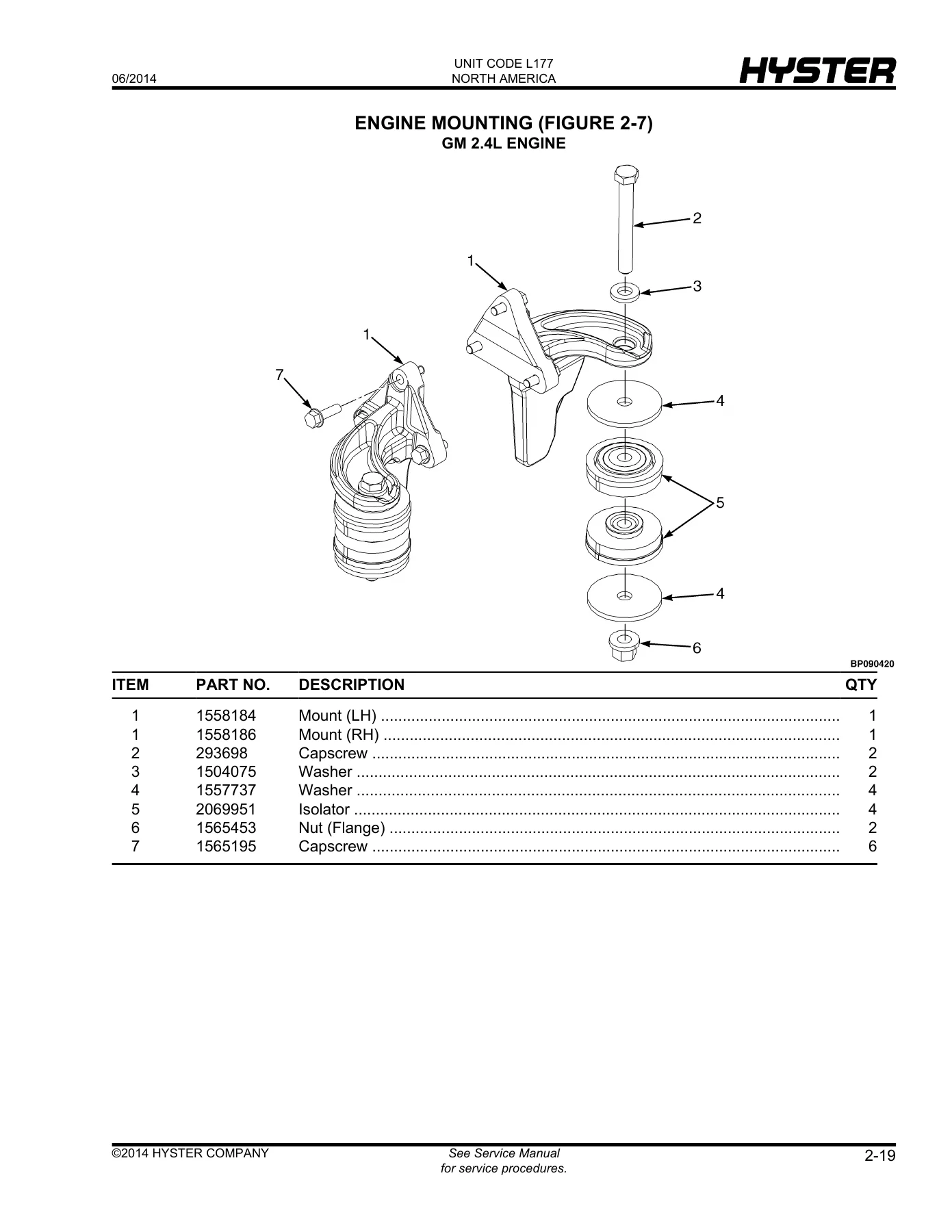

ENGINE MOUNTING GM 2.4L ENGINEp. 199

ASSEMBLED ENGINE GM 2.4L, GASOLINE AND LPG – SHEET 1 OF 4p. 200

ASSEMBLED ENGINE GASOLINE AND LPG – GM 2.4L (SHEET 2 OF 4)p. 204

ASSEMBLED ENGINE GM 2.4L, GASOLINE AND LPG – SHEET 3 OF 4p. 206

ASSEMBLED ENGINE GM 2.4L, GASOLINE AND LPG – SHEET 4 OF 4p. 208

FAN ASSEMBLY GM 2.4L ENGINEp. 210

COOLING MANIFOLD AND ATTACHING PARTS GM 2.4L – GASOLINE AND LPGp. 212

ALTERNATOR AND MOUNTING GM 2.4L – GASOLINE AND LPGp. 213

FLYWHEEL AND HOUSING GM 2.4L – GASOLINE AND LPG (→ S/N L177V02181F)p. 214

FLYWHEEL AND HOUSING GM 2.4L GASOLINE AND LPG (S/N L177V02182F →)p. 216

CAMSHAFT, CYLINDER HEAD AND MANIFOLDS GM 2.4L (→ S/N L177B05989D (LPG)) (→ S/N L177B06541D GAS)p. 218

CAMSHAFT, CYLINDER HEAD AND MANIFOLDS GM 2.4L ENGINE (S/N L177B05990D → (LPG)) (S/N L177B06542D → GAS)p. 222

CRANKSHAFT, PISTONS AND OIL PAN GM 2.4L – GASOLINE AND LPGp. 226

CAM POSITION SENSOR GM 2.4L GASOLINE AND LPG – 2010 SERIESp. 229

ENGINE ASSEMBLY – MAZDAp. 231

COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SERPENTINE RADIATOR – BASIC POWERSHIFT TRANSMISSION (→ S/N L177B14568E)p. 236

COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SERPENTINE RADIATOR – BASIC POWERSHIFT TRANSMISSION (S/N L177B14569E →) (S/N L177V01501F →)p. 238

COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – ELECTRONIC CONTROL TRANSMISSION, WITH INTERNAL OIL COOLER (→ S/N L177B14568E)p. 240

COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – BASIC POWERSHIFT TRANSMISSION (→ S/N L177B14568E)p. 242

COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – BASIC POWERSHIFT TRANSMISSION (S/N L177B14569E →) (S/N L177V01501F →)p. 244

COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – ELECTRONIC TRANSMISSION, WITH EXTERNAL OIL COOLER (→ S/N L177B14568E)p. 246

COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SQUARE WAVE RADIATOR – ELECTRONIC TRANSMISSION, EXTERNAL OIL COOLER, OR WET BRAKE (S/N L177B14569E →) (S/N L177V01501F →)p. 248

EXHAUST SYSTEM WITH CATALYTIC CONVERTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E)p. 252

EXHAUST SYSTEM WITH CATALYTIC CONVERTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177V01501F →)p. 254

FAN ASSEMBLY MAZDA 2.0Lp. 257

ENGINE MOUNTINGp. 258

FLYWHEEL AND HOUSING MAZDA 2.0L AND 2.2L – GASOLINE AND LPG (→ S/N L177B11107D)p. 260

FLYWHEEL AND HOUSING MAZDA 2.0 L AND 2.2 L – GASOLINE AND LPG (S/N L177B11118D →) (S/N L177V01501F →)p. 262

CYLINDER HEAD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E 2.2L GAS) (→ S/N L177B16206E 2.2L LPG) (S/N L177B15512E → 2.0L GAS AND LPG)p. 264

CYLINDER BLOCK MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E 2.2L Gas) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG)p. 266

CAMSHAFT AND VALVES MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG)p. 268

CRANKSHAFT AND PISTONS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG)p. 270

ENGINE COOLING MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG)p. 274

EXHAUST MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B15511E (2.0 Gas and LPG)) (→ S/N L177B16206E (2.2L LPG))p. 277

ENGINE FUEL SYSTEM AND INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E 2.2L Gas) (→ S/N L177B15511E 2.0L Gas)p. 278

INTAKE MANIFOLD MAZDA 2.0L AND 2.2L LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0L LPG) (→ S/N L177B16205E (2.2L LPG))p. 280

EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0L LPG) (→ S/N L177B16206E (2.2L LPG))p. 282

TIMING GEAR COVER AND OIL PAN MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0L GAS AND LPG)p. 284

OIL PUMP AND FILTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B16206E (2.2L LPG)) (S/N L177B15512E → 2.0 GAS AND LPG)p. 286

EMISSIONS LINES MAZDA 2.0L AND 2.2L, GASOLINE – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B15511E 2.0 Gas)p. 288

CARBURETOR MAZDA 2.0L AND 2.2L LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0 LPG) (→ S/N L177B16206E (2.2L LPG))p. 290

DELAY VALVE MAZDA 2.0L AND 2.2L LPG (→ S/N L177B11511E (2.0L LPG)) (S/N L177B11108D ↔ S/N L177B16206E 2.2L LPG)p. 292

ASSEMBLED ENGINE MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → 2.0L GAS AND LPG) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →)p. 294

CYLINDER HEAD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (→ S/N L177B15327E 2.2L GAS) (S/N L177B15512E → 2.0L GAS AND LPG) (S/N L177B16207E → 2.2L LPG) (S/N L177V01501F →)p. 296

CYLINDER BLOCK MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →)p. 298

CAMSHAFT AND VALVES MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → 2.2L GAS) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →)p. 300

EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15512E → (2.0L Gas)) (S/N L177B15327E → (2.2L Gas)) (S/N L177V01501F →)p. 302

MAP SENSOR MAZDA 2.0L AND 2.2L, LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15512E → 2.0L LPG) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →)p. 304

ENGINE FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →)p. 306

CRANKSHAFT AND PISTONS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →)p. 308

EXHAUST MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0 Gas and LPG)) (S/N L177B16207E → 2.2L LPG) (S/N L177V01501F →)p. 310

INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → 2.2L Gas) (S/N L177B15512E → 2.0L Gas) (S/N L177V01501F →)p. 312

INTAKE MANIFOLD MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15512E → 2.0L LPG) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →)p. 314

TIMING GEAR COVER AND OIL PAN MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0 Gas and LPG)) (S/N L177B16207E → (2.2L LPG)) (S/N L177V01501F →)p. 316

OIL PUMP AND FILTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → 2.0 GAS AND LPG) (S/N L177B16207E → (2.2L Lpg)) (S/N L177V01501F →)p. 318

ENGINE COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, (2007-2010 SERIES) (S/N L177B15327E → (2.2L Gas)) (S/N L177B15512E → (2.0L Gas and LPG)) (S/N L177B16207E → 2.2L LPG) (S/N L177V01501F →)p. 320

ENGINE ASSEMBLY – YANMARp. 323

COOLING SYSTEM YANMAR 2.6L AND 3.3L, DIESEL, SQUARE WAVE RADIATOR – WITH INTERNAL OIL COOLER (→ S/N L177B14568E)p. 326

COOLING SYSTEM YANMAR 2.6L AND 3.3L, DIESEL, SQUARE WAVE RADIATOR – WITH INTERNAL OIL COOLER (S/N L177B14569E →) (S/N L177V01501F →)p. 328

COOLING SYSTEM YANMAR 2.6L AND 3.3L, DIESEL, SQUARE WAVE RADIATOR – WITH EXTERNAL OIL COOLER (→ S/N L177B14568E)p. 330

COOLING SYSTEM YANMAR 2.6L AND 3.3L, DIESEL, SQUARE WAVE RADIATOR – WITH EXTERNAL OIL COOLER (S/N L177B14569E →) (S/N L177V01501F →)p. 332

EXHAUST SYSTEM YANMAR 2.6L AND 3.3L – DIESELp. 336

ENGINE MOUNTING YANMAR 2.6 AND 3.3Lp. 338

FAN ASSEMBLY YANMAR 2.6 AND 3.3Lp. 339

INTAKE AND EXHAUST MANIFOLD YANMAR 2.6L AND 3.3L – DIESELp. 340

FLYWHEEL AND HOUSING YANMAR 2.6L AND 3.3L – DIESELp. 342

GEAR HOUSING YANMAR 2.6L AND 3.3L – DIESELp. 344

OIL PAN YANMAR 2.6L AND 3.3L – DIESELp. 346

CYLINDER HEAD YANMAR 2.6L AND 3.3L – DIESELp. 348

CAMSHAFT AND DRIVE GEAR YANMAR 2.6L AND 3.3L – DIESELp. 352

CRANKSHAFT AND PISTONS YANMAR 2.6L AND 3.3L – DIESELp. 354

CYLINDER BLOCK YANMAR 2.6 AND 3.3L – DIESELp. 356

ENGINE COOLING YANMAR 2.6L AND 3.3L – DIESELp. 358

LUBRICATION SYSTEM YANMAR 2.6L AND 3.3L – DIESELp. 360

FUEL SYSTEM – DIESELp. 363

AIR INTAKE SYSTEM DIESEL – YANMAR 2.6L AND 3.3L (→ S/N L177B14427E)p. 366

AIR INTAKE SYSTEM DIESEL – YANMAR 2.6L AND 3.3L (S/N L177B14428E →)p. 368

AIR FILTER ASSEMBLY YANMAR 2.6L AND 3.3L DIESELp. 370

FUEL SYSTEM YANMAR 2.6L AND 3.3L – DIESELp. 372

FUEL INJECTION SYSTEM YANMAR 2.6L AND 3.3L – DIESELp. 374

FUEL FILTER AND WATER SEPARATOR YANMAR 2.6L AND 3.3L – DIESELp. 376

THROTTLE CABLE ASSEMBLY YANMAR 2.6L AND 3.3L – DIESELp. 378

THROTTLE POSITION SENSOR AND ATTACHING PARTS YANMAR 2.6L AND 3.3L DIESEL (→ S/N L177V05112H)p. 380

THROTTLE POSITION SENSOR AND ATTACHING PARTS YANMAR 2.6L AND 3.3L DIESEL (S/N L177V05113H →)p. 382

MONOTROL PEDAL ASSEMBLY YANMAR 2.6L AND 3.3L DIESEL (→ S/N L177V11233K)p. 384

THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS STANDARD PEDALp. 386

THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS MONOTROL (S/N L177V11234K →)p. 388

FUEL SYSTEM – GAS/LPGp. 391

AIR INTAKE SYSTEM GASOLINE AND LPG – GM 2.4L (→ S/N L177B15327E)p. 396

AIR INTAKE SYSTEM GASOLINE AND LPG – GM 2.4L (S/N L177B19203E →)p. 398

AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E)p. 400

AIR INTAKE SYSTEM PRE-CLEANER AND DUCT – MAZDA 2.0L AND 2.2Lp. 402

AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15512E)p. 404

AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B16207E →)p. 406

AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15326E →)p. 408

AIR FILTER ASSEMBLY GASOLINE AND LPGp. 410

FUEL SYSTEM GM 2.4L – GASOLINEp. 412

FUEL SYSTEM GM 2.4L – LPG (→ S/N L177V02219F)p. 414

FUEL SYSTEM GM 2.4L – LPG (S/N L177V02202F ↔ S/N L177V04793H EXC. 04777, 04792)p. 416

FUEL SYSTEM GM 2.4L – LPG (S/N L177V04794H → EXC. 04804, 04821)p. 418

THROTTLE BODY AND ATTACHING PARTS GM 2.4L – GASOLINEp. 422

THROTTLE BODY AND ATTACHING PARTS GM 2.4L – LPGp. 424

THROTTLE BODY AND ATTACHING PARTS GM 2.4L GASOLINE AND LPG – 2010 SERIESp. 426

FUEL REGULATOR LPG – GM 2.4Lp. 428

ENGINE FUEL SYSTEM AND INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE, 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E 2.2L Gas) (→ S/N L177B15511E 2.0L Gas)p. 430

EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0L LPG) (→ S/N L177B16206E (2.2L LPG))p. 432

EMISSIONS LINES MAZDA 2.0L AND 2.2L, GASOLINE – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15326E (2.2L Gas)) (→ S/N L177B15511E 2.0 Gas)p. 434

CARBURETOR MAZDA 2.0L AND 2.2L LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B15511E 2.0 LPG) (→ S/N L177B16206E (2.2L LPG))p. 436

DELAY VALVE MAZDA 2.0L AND 2.2L LPG (→ S/N L177B11511E (2.0L LPG)) (S/N L177B11108D ↔ S/N L177B16206E 2.2L LPG)p. 438

FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B16206E)p. 440

FUEL SYSTEM MAZDA 2.0L AND 2.2L LPG – 2006 EMISSION COMPLIANT ENGINES (→ S/N L177B16207E)p. 442

FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15511E →)p. 445

FUEL SYSTEM MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15512E →)p. 446

FUEL SUPPLY SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE – 2007 EMISSION COMPLIANT ENGINES (S/N L177B15326E ↔ S/N L177B15511E (2.0L Engine)) (S/N L177B15326E ↔ S/N L177B16206E (2.2L Engine))p. 448

FUEL SUPPLY SYSTEM MAZDA 2.0L AND 2.2L LPG – 2007 EMISSION COMPLIANT ENGINES (S/N L177B15512E ↔ S/N L177V04793H (2.0L Engine)) (S/N L177B16207E ↔ S/N L177V04794H (2.2L Engine))p. 450

FUEL SUPPLY SYSTEM MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177V04794H → EXC. 04821, 04804)p. 452

FUEL SYSTEM HOSES AND ATTACHING PARTS MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINESp. 454

FUEL PUMP AND ATTACHING PARTS MAZDA 2.0L AND 2.2L/GM 2.4L – GASOLINEp. 456

FUEL PUMP AND SENDER MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B16207E →)p. 458

THROTTLE BODY AND ATTACHING PARTS MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2010 EMISSION COMPLIANT ENGINESp. 460

MIXER AND THROTTLE BODY ASSEMBLY MAZDA 2.0L AND 2.2L LPG – 2007 EMISSION COMPLIANT ENGINES (S/N L177B15327E ↔ 2/2008)p. 462

MIXER AND THROTTLE BODY ASSEMBLY MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (2/2008 →)p. 464

ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG – 2007 EMISSION COMPLIANT ENGINES (S/N L177B15327E ↔ 2/2008 (Engine Assy Mazda 2.2L EGI w/ECES))p. 466

ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (2/2008 ↔ 2/2012)p. 468

ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG (2/2012 →)p. 470

ELECTRONIC PRESSURE REGULATOR KIT MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B16207E → (Engine Assy Mazda 2.2L LPG w/ECES))p. 472

LPG BRACKET ASSEMBLY SWING OUT BRACKETp. 474

LPG BRACKET ASSEMBLY SWING OUT BRACKET – (ALTERNATE ASSEMBLY)p. 476

LPG TANK BRACKET SWING OUT LONG – (ALTERNATE ASSEMBLY)p. 480

LPG BRACKET ASSEMBLY EZXCHANGE (→ 4/2007)p. 482

LPG BRACKET ASSEMBLY EZXCHANGE (4/2007 →)p. 486

THROTTLE CABLE ASSEMBLY MAZDA 2.0L AND 2.2L – GASOLINEp. 490

THROTTLE CABLE ASSEMBLY MAZDA 2.0L AND 2.2L – LPGp. 492

MONOTROL PEDAL ASSEMBLYp. 494

THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS STANDARD PEDALp. 496

THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS MONOTROLp. 498

ELECTRICAL SYSTEMp. 501

ELECTRICAL SYSTEM CHASSISp. 506

COWL ELECTRICAL ELECTRO-HYDRAULICp. 510

COWL ELECTRICAL MANUAL HYDRAULIC – WITH OPERATOR PRESENCE SYSTEMp. 512

IMPACT SENSORp. 514

POWER DISTRIBUTION MODULEp. 516

POWER DISTRIBUTION MODULEp. 518

ENGINE ELECTRICAL COMPONENTS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – 2006 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →)p. 520

DISTRIBUTOR MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – 2006 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →)p. 523

ENGINE ELECTRICAL COMPONENTS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →)p. 524

ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE – SHEET 1 OF 2p. 526

ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L LPG – SHEET 1 OF 2p. 530

ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SHEET 2 OF 2 – 2007 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →)p. 534

ENGINE CONTROL MODULE MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L17715512E →)p. 537

ENGINE CONTROL MODULE MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →)p. 538

FUEL SYSTEM SENSORS MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →)p. 539

FUEL SYSTEM SENSORS MAZDA 2.0L AND 2.2L LPG – 2007-2010 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →)p. 540

ALTERNATOR AND MOUNTING YANMAR 2.6L AND 3.3L – DIESELp. 541

SEALED ALTERNATOR AND MOUNTING YANMAR 2.6 AND 3.3Lp. 542

BATTERY CABLES GM 2.4L – GASOLINE AND LPGp. 544

ENGINE ELECTRICAL SYSTEM YANMAR DIESELp. 546

ENGINE SAFETY ELECTRICAL SYSTEM WITH SEALED ALTERNATOR WIRE HARNESS – MAZDA – GASOLINE AND LPGp. 550

ENGINE SAFETY ELECTRICAL SYSTEM GM 2.4L – GASOLINE AND LPGp. 554

INSTRUMENT CLUSTERp. 557

ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES – DATE CODE 0724p. 560

ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES (THREE FUNCTION) – DATE CODE 0725 THRU 0743p. 562

ELECTRONIC CONTROL LEVERS MINI-LEVER MODULE (FOUR FUNCTION) – DATE CODE 0725 THRU 0743p. 564

ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES (THREE FUNCTION) – DATE CODE 0744p. 566

ELECTRONIC CONTROL LEVERS MINI-LEVER MODULE (FOUR FUNCTION) – DATE CODE 0744p. 570

MINI-LEVER CONTROLS WITH ARMREST – THREE FUNCTION (S/N L177V04458H → INC. 04450)p. 572

MINI-LEVER CONTROLS WITH ARMREST – FOUR FUNCTION (S/N L177V04458H → INC. 04450)p. 574

LIGHTS STOP, TAIL, TURN, BACKUP, AND STROBE – WITH CABp. 576

LIGHTS STOP, TAIL, TURN, BACKUP, AND STROBE – WITH OVERHEAD GUARDp. 578

TRANSMISSION ELECTRICAL SYSTEMp. 580

MAST ELECTRICALp. 582

LOAD WEIGH ELECTRICALp. 584

WIRE HARNESS RH CHASSIS – MAZDA 2.0L AND 2.2L, GASOLINE AND LPG (→ 1/2006)p. 586

WIRE HARNESS RH CHASSIS – MAZDA 2.0L AND 2.2L (→ S/N L177B11117D)p. 590

WIRE HARNESS RH CHASSIS – MAZDA 2.0L AND 2.2L (S/N L177B11118D ↔ S/N L177B15327E 2.2L Gasoline Engine) (→ S/N L177B15512E 2.0L LPG Engine) (→ S/N L177B16207E 2.2L LPG Engine)p. 596

WIRE HARNESS RH CHASSIS – MAZDA 2.0L AND 2.2L (S/N L177B15327E ↔ 10/2008 (2.2L Gasoline Engine)) (S/N L177B16207E ↔ 10/2008 (2.2L LPG Engine)) (S/N L177B15512E ↔ 10/2008 (2.0L LPG Engine))p. 602

WIRE HARNESS RH CHASSIS – MAZDA 2.0L AND 2.2L (10/2008 ↔ S/N L177V05175H)p. 608

WIRE HARNESS RH CHASSIS – MAZDA 2.0L AND 2.2L (S/N L177V05176H →)p. 614

WIRE HARNESS RH CHASSIS – MAZDA 2.0L AND 2.2L (1/2013 →)p. 620

WIRE HARNESS RH CHASSIS WITH SEAT BELT SEQUENCE MODULE – MAZDA 2.0L AND 2.2Lp. 626

WIRE HARNESS RH CHASSIS – GM 2.4L, GASOLINE AND LPG (→ 12/2005)p. 632

WIRE HARNESS RH CHASSIS – GM 2.4L (→ S/N L177B11117D)p. 636

WIRE HARNESS RH CHASSIS – GM 2.4L (S/N L177B11118D ↔ 1/2007)p. 642

WIRE HARNESS RH CHASSIS – GM 2,4L (1/2007 ↔ 10/2008)p. 648

WIRE HARNESS RH CHASSIS – GM 2.4L (10/2008 ↔ S/N L177V05175H)p. 654

WIRE HARNESS RH CHASSIS – GM 2.4L (S/N L177V05176H →)p. 660

WIRE HARNESS RH CHASSIS – GM 2.4L (1/2013 →)p. 666

WIRE HARNESS RH CHASSIS WITH SEAT BELT SEQUENCE MODULE – GM 2.4Lp. 672

WIRE HARNESS RH CHASSIS – YANMAR 2.6L AND 3.3L, DIESEL (→ 2/2006)p. 678

WIRE HARNESS RH CHASSIS – YANMAR 2.6L AND 3.3L, DIESEL (→ 8/2006)p. 682

WIRE HARNESS RH CHASSIS – YANMAR 2.6L AND 3.3L, DIESEL (8/2006 ↔ S/N L177B31165H)p. 688

WIRE HARNESS RH CHASSIS – YANMAR 2.6L AND 3.3L, DIESEL (S/N L177B31166H →)p. 694

WIRE HARNESS RH CHASSIS – YANMAR 2.6L AND 3.3L, DIESEL (1/2013 →)p. 700

WIRE HARNESS RH CHASSIS WITH SEAT BELT SEQUENCE MODULE – YANMAR 2.6L AND 3.3L, DIESELp. 706

WIRE HARNESS SEAT JUMPER (→ S/N L177V04457H EXC. 04450)p. 712

WIRE HARNESS GASOLINE ENGINE – MAZDA 2.0L AND 2.2L (→ S/N L177B11117D)p. 714

WIRE HARNESS GASOLINE ENGINE – MAZDA 2.0L AND 2.2L (S/N L177B11118D ↔ S/N L177B15326E)p. 716

WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L, GASOLINE – 2007-2009 EMISSION COMPLIANT ENGINES (S/N L177B15327E →)p. 720

WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L, GASOLINE – 2010 SERIESp. 726

WIRE HARNESS LPG ENGINE – MAZDA 2.0L AND 2.2L (→ S/N L177B11117D)p. 730

WIRE HARNESS LPG ENGINE – MAZDA 2.0L AND 2.2L (S/N L177B11118D ↔ S/N L177B16207E 2.2L) (S/N L177B11118D ↔ S/N L177B15512E 2.0L)p. 732

WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L LPG – 2007-2009 EMISSION COMPLIANT ENGINES (S/N L177B16207E → 2.2L LPG) (S/N L177B15512E → 2.0L LPG)p. 734

WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L LPG – 2010 SERIESp. 740

WIRE HARNESS ENGINE – GM 2.4L, GASOLINE (→ S/N L177B14822E)p. 746

WIRE HARNESS ENGINE – GM 2.4L, GASOLINE (S/N L177B14823E ↔ S/N L177V04179H)p. 750

WIRE HARNESS (ENGINE) GM 2.4L GASOLINE (S/N L177V04180H →)p. 754

WIRE HARNESS ENGINE – GM 2.4L, LPG (→ S/N L177B14822E)p. 758

WIRE HARNESS ENGINE – GM 2.4L, LPG (S/N L177B14823E ↔ S/N L177B23560F)p. 762

WIRE HARNESS GM 2.4L ENGINE, LPG – WITH LOW FUEL SENSOR (S/N L177B23561F ↔ S/N L177V04385H)p. 766

WIRE HARNESS (ENGINE) GM 2.4L, LPG (S/N L177V04386H →)p. 770

WIRE HARNESS ENGINE – YANMAR 2.6L AND 3.3L, DIESEL (S/N L177B11118D →)p. 774

WIRE HARNESS ENGINE – YANMAR 2.6L AND 3.3L, DIESEL (→ S/N L177B11117D)p. 778

WIRE HARNESS SEALED ALTERNATOR – GM 2.4L, GASOLINE AND LPGp. 781

WIRE HARNESS SEALED ALTERNATOR – YANMAR 2.6L AND 3.3L, DIESELp. 784

WIRE HARNESS (SEALED ALTERNATOR) MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – 2007 EMISSION COMPLIANT ENGINES (S/N L177B15327E →) (S/N L177B16207E →) (S/N L177B15512E →)p. 786

WIRE HARNESS FUSED STARTER – GM 2.4L 2010 SERIESp. 787

WIRE HARNESS ELECTRONIC CONTROL VALVE – THREE FUNCTIONp. 788

WIRE HARNESS ELECTRONIC CONTROL VALVE – FOUR FUNCTIONp. 790

WIRE HARNESS LIGHTS – WITH OVERHEAD GUARD (→ S/N L177B11224D)p. 792

WIRE HARNESS LIGHTS – WITH OVERHEAD GUARD (S/N L177B11225D →)p. 794

WIRE HARNESS LIGHTS (6/2007 →)p. 796

WIRE HARNESS TRANSMISSION – SINGLE SPEED (→ S/N L177B11117D)p. 798

WIRE HARNESS TRANSMISSION – SINGLE SPEED (S/N L177B11118D ↔ S/N L177B29535G)p. 800

WIRE HARNESS TRANSMISSION – SINGLE SPEED (S/N L177B29535G →)p. 802

WIRE HARNESS TRANSMISSION – DUAL SPEED (→ S/N L177B11117D)p. 804

WIRE HARNESS TRANSMISSION – DUAL SPEED (S/N L177B11118D →)p. 808

WIRE HARNESS HYDRAULIC COOLERp. 810

WIRE HARNESS COWL WITH MONOTROL PEDAL – WITH RETURN TO SET TILT (→ S/N L177V04756H)p. 812

WIRE HARNESS COWL WITH MONOTROL PEDAL – WITH RETURN TO SET TILT (S/N L177V04757H →)p. 816

WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER – WITHOUT RETURN TO SET TILT (S/N L177V04757H →)p. 820

WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER – WITHOUT RETURN TO SET TILT (→ S/N L177V04756H)p. 824

WIRE HARNESS COWL WITH FORWARD/REVERSE – WITH HYDRAULIC PUMP SOLENOID (S/N L117B28589G →) (→ S/N L177V04756H)p. 828

WIRE HARNESS COWL WITH MONOTROL PEDAL – WITH HYDRAULIC PUMP SOLENOID (S/N L117B28589G →) (→ S/N L177V04756H)p. 832

WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER – WITH HYDRAULIC PUMP SOLENOID (S/N L177V04757H →)p. 836

WIRE HARNESS COWL WITH MONOTROL PEDAL – WITH HYDRAULIC PUMP SOLENOID (S/N L177V04757H →)p. 840

WIRE HARNESS ADAPTER LOW FUEL PRESSUREp. 843

WIRE HARNESS ALTERNATOR – DIESELp. 844

TRANSMISSIONp. 845

TRANSMISSION MOUNT SINGLE SPEED – THREE PIECE HOUSINGp. 850

TRANSMISSION MOUNT SINGLE SPEED – TWO PIECE HOUSING (S/N T133M001501 →) (S/N T134M001501 →)p. 852

TRANSMISSION MOUNT SINGLE SPEED (S/N T141M001501 →)p. 854

TRANSMISSION MOUNT SINGLE SPEED – ALUMINUM CHAIN DRIVE (2/2011 →)p. 856

TORQUE CONVERTERp. 857

TRANSMISSION COOLING MAZDA 2.0L AND 2.2L/GM 2.4L, GASOLINE AND LPG – SQUARE WAVE WITH EXTERNAL OIL COOLER (→ S/N L177V02742F)p. 858

TRANSMISSION COOLING MAZDA 2.0L AND 2.2L, GASOLINE AND LPG – SERPENTINE AND SQUARE WAVE WITH INTERNAL OIL COOLER (→ S/N L177V02742F)p. 860

TRANSMISSION COOLING MAZDA 2.0L AND 2.2L, LPG – SERPENTINE AND SQUARE WAVE (S/N L177V02743F →)p. 862

TRANSMISSION COOLING MAZDA 2.0L AND 2.2L, LPG – WITH AIR COOLER (S/N L177V02743F →)p. 864

TRANSMISSION COOLING YANMAR 2.6L AND 3.3L DIESEL AND GM 2.4L GASOLINE AND LPG – SQUARE WAVE WITH INTERNAL OIL COOLER (→ S/N L177V02742F)p. 866

TRANSMISSION COOLING YANMAR 2.6L AND 3.3L DIESEL AND GM 2.4L LPG – SQUARE WAVE WITH INTERNAL OIL COOLER (S/N L177B29084G →)p. 868

TRANSMISSION COOLING YANMAR 2.6L AND 3.3L DIESEL AND GM 2.4L LPG – SQUARE WAVE WITHOUT AIR COOLER (S/N L177V02743F ↔ S/N L177B31603H)p. 870

TRANSMISSION COOLING YANMAR 2.6L AND 3.3L DIESEL AND GM 2.4L LPG – SQUARE WAVE WITHOUT AIR COOLER (S/N L177B31604H →)p. 874

TRANSMISSION SINGLE SPEED, THREE PIECE HOUSING, WET AND DRY BRAKE – SHEET 1 0F 2 (→ S/N L177B10029D (DRY BRAKE)) (→ S/N L177B15745E (WET BRAKE))p. 876

TRANSMISSION SINGLE SPEED, THREE PIECE HOUSING, WET AND DRY BRAKE – SHEET 2 OF 2 (→ S/N L177B10029D (Dry Brake)) (→ L177B15745E Wet Brake)p. 880

TRANSMISSION SINGLE SPEED, THREE PIECE HOUSING, DRY BRAKE – SHEET 1 OF 2 (S/N L177B10030D ↔ S/N L177B15791E)p. 882

TRANSMISSION SINGLE SPEED, THREE PIECE HOUSING, DRY BRAKE – SHEET 2 OF 2 (S/N L177B10030D ↔ S/N L177B15791E)p. 886

TRANSMISSION SINGLE SPEED, WET AND DRY BRAKE – SHEET 1 OF 2 (S/N L177B15792E → (T133M0001501, Dry Brake)) (S/N L177B15746E → (T134M0001501, Wet Brake))p. 888

TRANSMISSION SINGLE SPEED, WET AND DRY BRAKE – SHEET 2 OF 2 (S/N L177B15792E → (Dry Brake)) (S/N L177B15746E → (Wet Brake))p. 890

TRANSMISSION HOUSING AND ASSEMBLY SINGLE SPEED (S/N T141M001501 →)p. 894

TORQUE CONVERTER HOUSING AND ATTACHING PARTS SINGLE SPEED (S/N T141M001501 →)p. 898

TRANSMISSION HOUSING AND ASSEMBLY SINGLE SPEED – ALUMINUM CHAIN DRIVE (2/2011 →)p. 900

TORQUE CONVERTER HOUSING AND ATTACHING PARTS SINGLE SPEED – ALUMINUM CHAIN DRIVE (2/2011 →)p. 904

STATOR SUPPORT HOUSINGp. 906

INPUT/FORWARD CLUTCH SINGLE SPEED TRANSMISSION (→ S/N L177B134120E)p. 908

INPUT/FORWARD CLUTCH SINGLE SPEED TRANSMISSION (S/N L177B13421E →)p. 910

INPUT/FORWARD CLUTCH SINGLE SPEED TRANSMISSION (S/N T141M001501 →) (S/N T148M001501 →)p. 912

COUNTER/REVERSE CLUTCH SINGLE SPEED TRANSMISSION (→ S/N L177B13245E)p. 914

COUNTER/REVERSE CLUTCH SINGLE SPEED TRANSMISSION (S/N L177B13246E →)p. 916

COUNTER/REVERSE CLUTCH SINGLE SPEED TRANSMISSION (S/N T141M001501 →) (S/N T148M001501 →)p. 918

CONTROL VALVE TRANSMISSION (→ S/N L177B19874E (High Pressure Idle)) (→ S/N L177B19274E (Low Pressure Idle))p. 920

CONTROL VALVE ASSEMBLYp. 922

Drive Axlep. 923

DRIVE AXLE AND ATTACHING PARTS WET BRAKE (→ 4/2014)p. 926

AXLE HOUSING WET BRAKE (→ 4/2014)p. 928

BEVEL GEAR WET BRAKE (→ 4/2014)p. 930

DIFFERENTIAL WET BRAKE (→ 4/2014)p. 932

PARKING BRAKE WET BRAKE (→ 4/2014)p. 934

WET BRAKESp. 936

WHEEL HUB WET BRAKE (→ 4/2014)p. 938

DRIVE AXLE AND ATTACHING PARTS WET BRAKE (4/2014 →)p. 940

AXLE HOUSING WET BRAKE (4/2014 →)p. 942

BEVEL GEAR WET BRAKE (4/2014 →)p. 944

DIFFERENTIAL WET BRAKE (4/2014 →)p. 946

PARKING BRAKE WET BRAKE (4/2014 →)p. 948

WET BRAKESp. 949

WHEEL HUB WET BRAKE (4/2014 →)p. 950

DRIVE AXLE AND ATTACHING PARTS DRY BRAKEp. 952

DRIVE AXLE DRY BRAKE – SHEET 1 OF 3 (→ 10/2013)p. 954

DRIVE AXLE DRY BRAKE – SHEET 2 OF 3 (→ 10/2013)p. 956

DRIVE AXLE DRY BRAKE – SHEET 3 OF 3 (→ 10/2013)p. 958

DRIVE AXLE DRY BRAKE – SHEET 1 OF 3 (10/2013 →)p. 960

DRIVE AXLE DRY BRAKE – SHEET 2 OF 3 (10/2013 →)p. 962

DRIVE AXLE DRY BRAKE – SHEET 3 OF 3 (10/2013 →)p. 964

DIFFERENTIAL DRY BRAKESp. 966

DRIVE TIRE AND WHEEL SINGLEp. 968

DRIVE TIRE AND WHEEL WIDE TREADp. 969

DRIVE TIRE AND WHEEL PNEUMATIC RADIALp. 970

DUAL DRIVE WHEELS AND TIRESp. 972

STEERING SYSTEMp. 975

STEERING COLUMN AND ATTACHING PARTS GASOLINE AND LPGp. 978

STEERING COLUMN AND ATTACHING PARTS DIESELp. 979

STEERING COLUMN ASSEMBLY GASOLINE AND LPGp. 980

STEERING COLUMN ASSEMBLY ISOLATED, DIESELp. 982

STEERING CONTROL UNITp. 984

STEERING LINESp. 986

STEER AXLEp. 988

STEER CYLINDERp. 990

STEER TIRES AND WHEELS H40-50FTp. 992

STEER TIRES AND WHEELS H40-70FTp. 994

BRAKE SYSTEMp. 997

BRAKE LINKAGE SINGLE PEDAL – DRY BRAKE (→ S/N L177V04756H)p. 1000

BRAKE LINKAGE SINGLE PEDAL – DRY BRAKE (S/N L177V04757H →)p. 1002

BRAKE LINKAGE DUAL PEDAL – DRY BRAKE (→ S/N L177V04756H)p. 1004

BRAKE LINKAGE DUAL PEDAL – DRY BRAKE (S/N L177V04757H →)p. 1006

BRAKE ASSEMBLY DRY BRAKEp. 1008

BRAKE MASTER CYLINDER ASSEMBLY DRY BRAKEp. 1011

BRAKE COOLING SYSTEM SINGLE AND DUAL PEDAL – WET BRAKE (→ S/N L177B15745E)p. 1012

BRAKE COOLING SYSTEM SINGLE AND DUAL PEDAL – WET BRAKE (S/N L177B15746E ↔ S/N L177V03122G)p. 1014

BRAKE COOLING SYSTEM SINGLE AND DUAL PEDAL WET BRAKE – WITH ALUMINUM TRANSMISSION (S/N L177V03123G →)p. 1016

BRAKE LINKAGE SINGLE PEDAL – WET BRAKE (→ S/N L177V03122G)p. 1018

BRAKE LINKAGE SINGLE PEDAL – WET BRAKE (S/N L177V03123G →)p. 1022

BRAKE LINKAGE DUAL PEDAL – WET BRAKE (→ S/N L177V03122G)p. 1024

BRAKE LINKAGE DUAL PEDAL – WET BRAKE (S/N L177V03123G →)p. 1028

BRAKE MASTER CYLINDER ASSEMBLY WET BRAKE (→ S/N L177V03122G)p. 1030

BRAKE MASTER CYLINDER ASSEMBLY WET BRAKE (S/N L177V04757H →)p. 1032

PARK BRAKE ASSEMBLYp. 1034

PARK BRAKE ASSEMBLYp. 1036

HYDRAULIC SYSTEMp. 1039

HYDRAULIC SUPPLY AND RETURN WITH IRON TRANSMISSIONp. 1044

HYDRAULIC SUPPLY AND RETURN WITH ALUMINUM TRANSMISSION – WITH GEAR DRIVEp. 1046

HYDRAULIC SUPPLY AND RETURN WITH ALUMINUM TRANSMISSION – WITH CHAIN DRIVEp. 1048

GEAR PUMP ASSEMBLY LOW PRESSURE – GEAR DRIVE OPTIONp. 1050

GEAR PUMP ASSEMBLY LOW PRESSURE – CHAIN DRIVE OPTIONp. 1052

GEAR PUMP ASSEMBLY HIGH PRESSUREp. 1054

HYDRAULIC FILTERp. 1056

HYDRAULIC FILTERp. 1058

HYDRAULIC HOSES LIFT, TILT, AND AUXILIARYp. 1060

AUXILLIARY HOSES THREE STAGE FULL FREE LIFT – TWO STAGE LIMITED FREE-LIFTp. 1063

HAND LEVERS THREE FUNCTION – WITH DETENTED LEVERSp. 1066

HAND LEVERS THREE FUNCTION – WITHOUT DETENTED LEVERSp. 1068

HAND LEVERS FOUR FUNCTION – WITH DETENTED LEVERSp. 1070

HAND LEVERS FOUR FUNCTION – WITHOUT DETENTED LEVERSp. 1074

CONTROL VALVE ASSEMBLY MANUAL CONTROL – THREE AND FOUR FUNCTIONp. 1076

CONTROL VALVE LOCKOUT GROUP MANUAL CONTROL VALVE (S/N L177V03025G →)p. 1080

VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE – THREE AND FOUR FUNCTION (→ S/N L177B18729E (3 Function High Relief)) (→ S/N L177B17862E (3 Function Low Relief)) (→ S/N L177B18169E (4 Function Low Relief)) (→ S/N L177B18808E (4 Function High Relief))p. 1082

VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE – THREE AND FOUR FUNCTION (S/N L177B17862E ↔ S/N L177V03752G (3 function Low Relief)) (S/N L177B18730E ↔ S/N L177V03752G (3 Function High Relief)) (S/N L177B18170E ↔ S/N L177V03752G (4 Function Low Relief)) (S/N L177B18809E ↔ S/N L177V03752G (4 Function High Relief))p. 1084

VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE – THREE AND FOUR FUNCTION (S/N L177V03752G →)p. 1086

AUXILIARY ONE AND TWO MANUAL CONTROL VALVE – THREE AND FOUR FUNCTION (→ S/N L177B17861E (3 Function Low Relief)) (→ S/N L177B18169E (4 Function Low Relief)) (→ S/N L177B18729E (3 Function High Relief)) (→ S/N L177B18808E (4 Function High Relief))p. 1088

AUXILIARY ONE AND TWO MANUAL CONTROL VALVE – THREE AND FOUR FUNCTION (S/N L177B17862E → (3 Function Low Relief)) (S/N L177B18170E → (4 Function Low Relief)) (S/N L177B18730E → (3 Function High Relief)) (S/N L177B18809E → (4 Function High Relief))p. 1090

OUTLET SECTION MANUAL CONTROL VALVE – THREE AND FOUR FUNCTIONp. 1092

HYDRAULIC CONTROL VALVE ELECTRONIC CONTROL – THREE AND FOUR FUNCTION (→ S/N L177B18806E)p. 1094

HYDRAULIC CONTROL VALVE ELECTRONIC VALVE ASSEMBLY – THREE AND FOUR FUNCTION (S/N L177B18807E ↔ 7/2009)p. 1096

HYDRAULIC CONTROL VALVE ELECTRONIC VALVE ASSEMBLY – THREE AND FOUR FUNCTION (7/2009 →)p. 1098

VALVE ASSEMBLY, LIFT AND LOWER ELECTRONIC CONTROL VALVE – THREE AND FOUR FUNCTION (→ S/N L177B18806E EXC. 08807, 09603, 08238, 08262)p. 1100

HYDRAULIC CONTROL VALVE ELECTRONIC VALVE INLET SECTION – THREE AND FOUR FUNCTION (S/N L177B18807E → INC. 08807, 09603, 08238, 08262)p. 1102

HYDRAULIC CONTROL VALVE (ELECTRO-HYDRAULIC) THREE, FOUR AND FIVE FUNCTION – POPPET VALVESp. 1104

HYDRAULIC CONTROL VALVE ELECTRONIC VALVE TILT SECTION – THREE AND FOUR FUNCTIONp. 1106

HYDRAULIC CONTROL VALVE ELECTRONIC VALVE AUXILIARY ONE SECTION – THREE AND FOUR FUNCTIONp. 1108

HYDRAULIC CONTROL VALVE ELECTRONIC VALVE AUXILIARY TWO SECTION – FOUR FUNCTIONp. 1110

HYDRAULIC CONTROL VALVE ELECTRONIC VALVE OUTLET SECTION – THREE AND FOUR FUNCTION (→ 7/2009)p. 1112

OUTLET SECTION ELECTRONIC CONTROL VALVE – THREE AND FOUR FUNCTION (7/2009 →)p. 1114

TILT CYLINDER AND MAST INSTALLATIONp. 1116

TILT CYLINDERS H40-50FTp. 1118

TILT CYLINDERS H60-70FTp. 1120

Mast-Two Stage Limited Free-Liftp. 1123

OUTER MAST TWO STAGE LIMITED FREE-LIFT – D507/D562p. 1126

INNER MAST TWO STAGE LIMITED FREE-LIFT – D507/D562p. 1128

MAIN LIFT TWO STAGE LIMITED FREE-LIFT – D507/D562p. 1130

MAIN LIFT CYLINDERS TWO STAGE LIMITED FREE-LIFT – D507/D562p. 1134

HEADER HOSES TWO STAGE LIMITED FREE-LIFT – D507/D562p. 1138

CARRIAGE TWO STAGE LIMITED FREE-LIFT – D507/D562p. 1142

OUTER MAST TWO STAGE LIMITED FREE-LIFT – F507-F562p. 1144

INNER MAST TWO STAGE LIMITED FREE LIFT – F507-F562p. 1146

MAIN LIFT TWO STAGE LIMITED FREE LIFT – F507-F562p. 1148

MAIN LIFT CYLINDER TWO STAGE LIMITED FREE LIFT – F507-F562p. 1150

HEADER HOSE AND ATTACHING PARTS TWO STAGE LIMITED FREE-LIFT – F507-F562p. 1154

CARRIAGE TWO STAGE LIMITED FREE-LIFT – F507-F562p. 1158

Mast-Two Stage Full Free-Liftp. 1161

OUTER MAST TWO STAGE FULL FREE-LIFT – D509-D564p. 1164

INNER MAST TWO STAGE FULL FREE-LIFT – D509-D564p. 1166

MAIN LIFT TWO STAGE FULL FREE-LIFT – D509-D564p. 1168

MAIN LIFT CYLINDER RIGHT HAND – TWO STAGE FULL FREE-LIFT (D509-D564)p. 1170

MAIN LIFT CYLINDER LEFT HAND – TWO STAGE FULL FREE-LIFT (D509-D564)p. 1172

FREE-LIFT TWO STAGE FULL FREE-LIFT – D509-D564p. 1176

FREE-LIFT CYLINDER TWO STAGE FULL FREE-LIFT – D509-D564p. 1179

HEADER HOSES TWO STAGE FULL FREE-LIFT – D509-D564p. 1182

OUTER MAST TWO STAGE FULL FREE LIFT – E509-E564p. 1186

INNER MAST TWO STAGE FULL FREE- LIFT – E509-E564p. 1188

MAIN LIFT TWO STAGE FULL FREE- LIFT – E509-E564p. 1190

MAIN LIFT CYLINDER – RH TWO STAGE FULL FREE- LIFT – E509-E564p. 1192

MAIN LIFT CYLINDER – LH TWO STAGE FULL FREE- LIFT – E509-E564p. 1196

FREE-LIFT TWO STAGE FULL FREE- LIFT – E509-E564p. 1200

FREE-LIFT CYLINDER TWO STAGE FULL FREE- LIFT – E509-E564p. 1204

HEADER HOSES TWO STAGE FULL FREE-LIFT – E509-E564p. 1208

CARRIAGE TWO STAGE FULL FREE-LIFTp. 1212

Mast-Three Stage Full Free-Liftp. 1215

OUTER MAST THREE STAGE FULL FREE-LIFT – D508/D563p. 1218

INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT – D508/D563p. 1220

INNER MAST THREE STAGE FULL FREE-LIFT – D508/D563p. 1224

MAIN LIFT THREE STAGE FULL FREE-LIFT – D508/D563p. 1226

MAIN LIFT CYLINDERS THREE STAGE FULL FREE-LIFT – D508/D563p. 1230

FREE-LIFT THREE STAGE FULL FREE-LIFT – D508/D563p. 1234

FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT – D508/D563p. 1238

HEADER HOSES THREE STAGE FULL FREE-LIFT – D508/D563 (→ S/N D508V27872H) (→ S/N D563V11658H)p. 1240

HEADER HOSES THREE STAGE FULL FREE-LIFT – D508/D563 (S/N D508V27873H →) (S/N D563V11659H →)p. 1244

CARRIAGE THREE STAGE FULL FREE-LIFT – D508/D563p. 1248

OUTER MAST THREE STAGE FULL FREE LIFT – F508-F563p. 1250

INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT – F508-F563p. 1254

INNER MAST THREE STAGE FULL FREE-LIFT – F508-F563p. 1256

FREE-LIFT CYLINDER AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT – F508-F563p. 1258

MAIN LIFT CYLINDER AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT – F508-F563p. 1262

MAIN LIFT CYLINDER THREE STAGE FULL FREE-LIFT – F508-F563p. 1266

FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT – F508-F563p. 1270

HEADER HOSES AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT – F508/F563p. 1274

CARRIAGE THREE STAGE FULL FREE-LIFT – F508/F563p. 1278

ACCUMULATOR THREE STAGE FULL FREE LIFTp. 1280

OPTIONSp. 1281

STROBE LIGHTp. 1286

STROBE LIGHT LED (S/N L177B18989E →)p. 1288

BACK-UP ALARMp. 1290

MIRRORS WITH CABp. 1292

MIRRORS WITH OVERHEAD GUARDp. 1293

FIRE EXTINGUISHERp. 1294

ACCUMULATOR AND ATTACHING PARTSp. 1296

INTEGRAL SIDE-SHIFT ASSEMBLY TWO STAGE LIMITED FREE-LIFT – D507/D562p. 1298

INTEGRAL SIDE-SHIFT ASSEMBLY TWO STAGE LIMITED FREE-LIFT – F507/F562p. 1302

INTEGRAL SIDE-SHIFT ASSEMBLY THREE STAGE FULL FREE-LIFT – D508/D563p. 1306

INTEGRAL SIDE-SHIFT ASSEMBLY THREE STAGE FULL FREE-LIFT – F508/F563p. 1310

INTEGRAL SIDE-SHIFT ASSEMBLY TWO STAGE FULL FREE-LIFT – D509/E509 and D564/E564p. 1314

INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO AND THREE STAGE FULL FREE-LIFT – D508/D563 and D509/D564p. 1316

INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE FULL FREE- LIFT – E509-E564p. 1317

INTEGRAL SIDE-SHIFT HYDRAULIC HOSES THREE STAGE FULL FREE LIFT – F508/F563p. 1318

INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE LIMITED FREE-LIFT – D507/D562p. 1319

INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE LIMITED FREE-LIFT – F507/F562p. 1320

INTEGRAL SIDE-SHIFT FORK POSITIONER – THREE STAGE FULL FREE-LIFT (D508/D563)p. 1322

INTEGRAL SIDE-SHIFT FORK POSITIONER (F507-F562) – TWO STAGE LIMITED FREE-LIFTp. 1324

INTEGRAL SIDE-SHIFT FORK POSITIONER (F508-F563) – THREE STAGE FULL FREE-LIFTp. 1326

FORK POSITIONER ASSEMBLYp. 1328

INTEGRAL SIDE-SHIFT CYLINDERp. 1330

GM LPG REGULATOR DRAIN KITp. 1332

AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT (→ S/N D507V02972H) (→ S/N D562V02053H)p. 1334

AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT – WITHOUT QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →)p. 1336

AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT – MANUAL HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →)p. 1338

AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT – E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D508V27243H →) (S/N D509V02104H →) (S/N D563V11351H →) (S/N D564V02122H →)p. 1340

AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT – E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →)p. 1344

AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT – WITH ISS CARRIAGE AND WITHOUT QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →)p. 1346

AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT – WITH ISS CARRIAGE AND MANUAL HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →)p. 1348

AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT – WITH ISS CARRIAGE AND E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →)p. 1350

AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT (→ S/N D508V27242H) (→ S/N D509V02103H) (→ S/N D563V11350H) (→ S/N D564V02121H)p. 1352

AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT (S/N D508V27243H →) (S/N D509V02104H →) (S/N D563V11351H →) (S/N D564V02122H →)p. 1356

AUXILIARY TUBES TWO STAGE LIMITED FREE LIFT (F507/F562 Series Mast – WITH MANUAL AND E-HYDRAULICS VALVE WITHOUT QUICK DISCONNECTp. 1358

AUXILIARY TUBES TWO STAGE LIMITED FREE LIFT (F507/F562 Series Mast – MANUAL AND E-HYDRAULIC VALVE WITH QUICK DISCONNECTp. 1360

AUXILIARY TUBES THREE STAGE FULL FREE-LIFT (F508/F563 Series Mast) – MANUAL AND E-HYDRAULICS VALVE WITH QUICK DISCONNECTp. 1362

AUXILIARY TUBES THREE STAGE FULL FREE-LIFT (F508/F563 Series Mast) – MANUAL AND E-HYDRAULICS VALVE WITHOUT QUICK DISCONNECTp. 1364

AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES TWO STAGE LIMITED FREE-LIFT (SINGLE AUXILIARY WITH E-HYDRAULICS) – F507/F562 (THREE FUNCTION)p. 1366

AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES TWO STAGE LIMITED FREE-LIFT (SINGLE AUXILIARY WITH INTEGRAL SIDE-SHIFT AND E-HYDRAULICS) – F507/F562 (FOUR FUNCTION)p. 1368

AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES TWO STAGE LIMITED FREE-LIFT (DUAL AUXILIARY WITH E-HYDRAULICS) – F507/F562 (THREE AND FOUR FUNCTION)p. 1370

AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (SINGLE AUXILIARY WITH E-HYDRAULICS – F508/F563 (THREE FUNCTION)p. 1372

AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (SINGLE AUXILIARY WITH INTEGRAL SIDE-SHIFT AND E-HYDRAULICS) – F508/F563 (FOUR FUNCTION)p. 1374

AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (DUAL AUXILIARY WITH E-HYDRAULICS – F508/F563 (THREE AND FOUR FUNCTION)p. 1376

FIELD CONVERSION KITSp. 1379

SEAT CONVERSION KITSp. 1382

WEATHER PROTECTION KITSp. 1382

COOLING REPAIR KITSp. 1382

BRAKE PEDAL CONVERSION KITSp. 1382

DIRECTIONAL CONTROL CONVERSIONp. 1383

RETURN TO SET TILT KITSp. 1383

E-HYDRAULIC CONTROL CONVERSION KITSp. 1383

HYDRAULIC CONTROL CONVERSIONSp. 1384

HEADER HOSE CONVERSION KITS TWO STAGE LIMITED FREE-LIFT – D507/D562 SERIES MASTp. 1385

HEADER HOSE CONVERSION KITS TWO STAGE FULL FREE-LIFT – D509/D564 SERIES MASTp. 1386

HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT – H40-50FT (→ S/N D508V27872H)p. 1387

HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE LIFT – H40-50FT (S/N D508V27873H →)p. 1388

HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT – H60-70FT (→ S/N D563V11658H)p. 1389

HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT – H60-70FT (S/N D563V11659H →)p. 1390

HEADER HOSE CONVERSION KITS TWO STAGE FULL FREE- LIFT – F507/F562 SERIES MASTp. 1391

HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT – F508 SERIES MASTp. 1392

HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE LIFT – F563 SERIES MASTp. 1393

HEADER HOSE CONVERSION KITS TWO STAGE FULL FREE- LIFT – E509/E564 SERIES MASTp. 1394

MAST CONVERSION KITS D SERIES MAST TO F SERIES – TRUCKS BUILT BEFORE JANUARY 6 2014p. 1394

MAST CONVERSION KITS D SERIES MASTS TO F SERIES MAST – TRUCKS BUILT AFTER JANUARY 5 2014p. 1396

MAST CONVERSION KITS F SERIES MAST TO D SERIES MASTp. 1397

MAST CONVERSION KITS TWO STAGE FULL FREE- LIFTp. 1398

AUXILIARY TUBE EXTENSION KITSp. 1398

LIGHT KITSp. 1399

TREAD CONVERSION KITSp. 1399

ADD ON OPTION KITSp. 1399

ADD ON OPTIONS FORK POSITIONERp. 1400

HYDRAULIC OIL COOLER KITSp. 1400

FORK ASSEMBLY KITSp. 1401

MISCELLANEOUS CONVERSION KITSp. 1401

ADD ON TELEMETRY KITSp. 1401

NUMERICAL INDEXp. 1403

Who This Manual Is For

This Hyster Fortis parts manual is for anyone who needs to identify, order or replace parts on an H40FT, H50FT, H60FT or H70FT lift truck. Technicians, parts departments, fleet managers and owners will all find the exploded views and part number listings essential for keeping these machines running. The manual covers every major system — engine, fuel, electrical, transmission, drive axle, steering, brakes, hydraulics, masts and attachments — plus all factory options and field conversion kits.

Get Your Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014

IMAGES PREVIEW

Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download — PDF page 1 preview

Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download — PDF page 40 preview

Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download — PDF page 199 preview

This Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 is available as an instant PDF download. No waiting for shipping, no CD to install, no bulky paper manual to store. After checkout you can download the file immediately and access it on any device — laptop, tablet or phone. Print the pages you need for the workshop, or keep the entire manual on your computer for quick reference. With approximately 1,490 pages of exploded views, part numbers and assembly breakdowns, this is the most comprehensive parts reference available for the Hyster Fortis L177 series.

Reviews

There are no reviews yet.

Be the first to review “Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download”

Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014 PDF Download

Description

Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014

File Details

Chapters Covered

What This Parts Manual Gives You

Complete Bookmarks

Who This Manual Is For

Get Your Hyster Fortis H40FT H50FT H60FT H70FT Parts Manual 2014

IMAGES PREVIEW

Reviews

What Our Customers Say

🌟 Related Products

Yale GDP170-280DB B876 Illustrated Parts Manual 524149352 - 2005

Hyster H2.0-H3.5TX Japan Models Parts Manual - PDF

Yale GP/GLP/GDP20-35UX A7S1 Forklift Parts Manual 550216367 - Instant PDF Download

Raymond 7730 Reach-Fork Truck Parts Manual 1309711-001
