HOW TO USE THE ILLUSTRATED PARTS MANUAL:
- This parts manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Tum to the illustrated index page immediately behind the front cover. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEX.T HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Tum to the Master Index immediately following the Illustrated Index.
WHEN THE PART NUMBER IS KNOWN:
5. Use the numerical index at the back of the manual to find the part number. Tum to the figure listed and locate the part as indicated by the reference number.
GENERAL:
The assembly breakdowns include part numbers, description, quantities required, keys and footnotes to help in selecting the correct parts.
6. Keys are used to show effective serial numbers for two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C” or “D” and the corresponding quantity column to find the required parts.
TABLE OF CONTENTS:
Hyster S25-30-35XL (S1.25-1.50-1.75XL) (B010) SpaceSaver Parts Manual – PDF DOWNLOAD
Frame And Body 4
Engine 15
Fuel 49
Electrical 71
Transmission 95
Steering 123
Brake 131
Hydraulic 141
Mast-Vista Two-Stage LFL 163
Mast-Vista Three Stage FFL 173
Mast-Two Stage FFL 187
Optional 199
Numerical Index 221
A
AIR FILTER (Figure 38) Page 60
ALTERNATOR (Figure 61)
TYPES GS, lPS & DS
FIRST USED ON SIN 8108-5355 Page 92
ALTERNATOR (Figure 57)
GASOLINE LPG
LAST USED ON SIN 81 0B-6497 (GAS)
LAST USED ON SIN 8108-6413 (LPG) Page 87
ALTERNATOR (Figure 58)
GASOLINE LPG
FIRST USED ON SIN B1 0B-6498 (GAS)
FIRST USED ON SIN 810B-6414 (LPG) Page 88
ALTERNATOR (Figure 59)
DIESEL Page 89
ALTERNATOR (Figure 60)
TYPES GS, LPS & DS
LAST USED ON SIN B1 0B-5354 Page 90
B
BACKUP ALARM (Figure 135) Page 220
BRAKE (Figure 84) Page 136
BRAKE LINKAGE (Figure 82) Page 132
C
CAMSHAFT & VALVES (Figure 18)
DIESEL Page 30
CAMSHAFT & VALVES (Figure 27)
GASOLINE LPG Page 41
CARBURETOR (Figure 35)
GASOLINE Page 56
C (CONTINUED)
CARBURETOR (Rgure 33)
LPG Page52
CARRIAGE (Figure 103) Page 171
CARRIAGE (Figure 111) Page 186
CARRIAGE (Figure 118) Page 198
COOLING (Figure 13) Page 20
COUNTERWEIGHT (Figure 9) Page 15
CRANKCASE & OIL PAN (Figure 16)
DIESEL Page 26
CRANKCASE & OIL PAN (Rgure 28)
GASOLINE LPG Page 42
CRANKSHAFT, PISTON & FL YWHEEL (Figure 26)
GASOLINE LPG Page 38
CRANKSHAFT, PISTON & FL YWHEEL (Figure 17)
DIESEL Page 28
CYLINDER BLOCK (Figure 14)
DIESEL Page 22
CYLINDER BLOCK (Figure 24)
GASOLINE LPG Page 36
CYLINDER HEAD (Rgure 15)
DIESEL Page 24
D
DIFFERENTIAL (Figure 69)
LAST USED ON SIN B1 0B-3065 Page 108
DIFFERENTIAL (Figure 70)
FIRST USED ON SIN B10B-3066 Page 110
DISTRIBUTOR (Figure 54) Page 84
DRIVE AXLE (Figure 71)
LAST USED ON SIN B10B-3065 Page 112
DRIVE AXLE (Figure 72)
FIRST USED ON SIN B10B-3066 Page 114
DRIVE TIRE & WHEEL (Figure 132) Page 217
E
ELECTRICAL (Figure 48)
GASOLINE LPG Page 72
ELECTRICAL (Figure 49)
DIESEL Page 74
ELECTRICAL (Figure 51)
TYPE DS Page 78
ENGINE MOUNT (Figure 11) Page 17
EXHAUST (Rgure 12) Page 18
F
FIRE EXTINGUISHER (Rgure 133) Page 217
FLOOR COWL & PLATES (Figure 4) Page 8
FORK (Figure 134)
IDENTIFICATION BY PART NUMBER Page 218
V
SERIAL CODE B010-North America HYSTEA
TABLE OF CONTENTS
DESCRIPTION PAGE NO
F (CONTINUED)
FORWARD & REVERSE CLUTCH (Figure 67)
LAST USED ON SIN B1 0B-3065 Page 104
FORWARD & REVERSE CLUTCH (Figure 68)
FIRST USED ON SIN B1 0B-3066 Page 106
FORWARD & REVERSE LINKAGE (Figure 62) Page 96
FORWARD & REVERSE SWITCH (Figure 63) Page 97
FREE LIFT (Figure 108) Page 182
FREE LIFT CYLINDER (Figure 110) Page 185
FREE LIFT CYLINDER (Figure 117) Page 197
FREE LIFT (Figure 115) Page 194
FUEtp[~~~~ ~~! Page 50
FUEL (Figure 34) Page 54
FUEL FILTER (Figure 40)
DIESEL Page 64
FUEL INJECTION (Figure 39)
DIESEL Page 62
FUEL PUMP (Figure 37)
GASOLINE Page 59
G
GOVERNOR (Figure 36)
GASOLINE LPG Page 58
H
HEADER HOSE (Figure 124)
TWO-STAGE
PAGE NO,
332000, 323000 AND 351 OOO SERIES MAST Page 204
HEADER HOSE (Figure 125)
TWO-STAGE
372000 AND 388000 SERIE$ MAST • Page 206
HEADER HOSE (Figure 126)
THREE-STAGE Page 208
HEADER HOSE (Figure 127)
FREE-LIFT Page 21 O
HOOD & LINKAGE (Figure 5) Page 1 O
HYDRAULIC (Figure 88)
DIESEL Page 142
HYDRAULIC PUMP (Figure 90) Page 146
INNER MAST (Figure 100) Page 166
INNER MAST (Figure 106) Page 178
INNER MAST (Figure 113) Page 190
INSTRUMENT PANEL (Figure 52) Page 80
INTERMEDIATE MAST (Figure 105) Page 176
©1995 HYSTER COMPANY See Service Manuał
for service procedures
12/15/95
vii
SERIAL CODE B010-North America HYSTER
TABLE OF CONTENTS
DESCRIPTION PAGE NO
L
LABELS & PAINT (Figure 3) Page 6
LIFT CYLINDER (Figure 102) Page 170
LIFT CYLINDER (Figure 109)
MAIN Page 184
LIFT EYE (Figure 130) Page 216
LIFT (Figure 101) Page 168
LIGHTS (Figure 128)
U S Page 212
LOAD BACKREST EXTENSION (Figure 1 O) Page 16
LOCK-OFF FILTER (Figura 45)
LPG Page69
LPG CONVERTER (Figure 46)
FIRST USED ON SIN B1 0B-809593 Page 69
LPG CONVERTER (Figure 47)
FIRST USED ON SIN B1 0B-809594 Page 70
M
MAIN LIFT (Figure 107) Page 180
MAIN LIFT (Figure 114) Page 192
MAIN LIFT CYLINDER (Figure 116) Page 196
MANIFOLD (Figure 20)
DIESEL Page 32
MANIFOLD (Figure 29) Page 44
MASTER CYLINDER (Figure 87) Page 140
MONOTROL PEDAL (Figure 44)
FIRST USED ON SIN B1 0B-4248 Page 68
N
NUMERICAL INDEX Page 221
o
OIL FILTER (Rgure 22)
DIESEL Page 34
OIL PUMP & OIL FILTER (Figure 30)
GASOLINE LPG Page 45
OIL PUMP (Figure 23)
DIESEL Page 35
OUTER MAST (Figure 104) Page 174
OUTER MAST (Figure 112) Page 188
OUTER MAST (Figure 99) Page 164
p
PARK BRAKE (Rgure 85) Page 138
PARK BRAKE LEVER (Figure 86) Page 139
PEDAL & LINKAGE (Rgure 83) Page 134
s
SEAT (Figure 6) Page 12
SERVICE REPAIR KITS (Figure 2) Page 3
SIDE SHIFT CARRIAGE (Figure 119) Page 200
SIDE SHIFT CARRIAGE (Figure 120) Page 201
SIDE SHIFT CYLINDER (Figure 123) Page 203
SIDE SHIFT CYLINDER (Figure 121) Page 202
SIDE SHIFT CYLINDER (Figure 122) Page 202
STANDARD SEAT (Rgure 7) Page 13
SERIAL CODE B010-North America HYSTER
TABLE OF CONTENTS
DESCRIPTION PAGE NO
S (CONTINUED)
STARTER (Figure 55)
GASOLINE LPG Page 85
STARTER (Figure 56)
DIESEL Page 86
STEERING AXLE (Figure 77) Page 125
STEERING COLUMN (Figure 76) Page 124
STEERING CYLINDER (Figure 80)
LAST USED ON SIN 8108-5701 Page 128
STEERING CYLINDER (Figure 81)
FIRST USED ON SIN 8108-5702 Page 129
STEERING PUMP (Figure 78)
LAST USED ON SIN 8108-5701 Page 126
STEERING PUMP (Figure 79)
FIRST USED ON SIN 8108-5702 Page 127
STRO8E LIGHT (Figure 131) Page 216
SUSPENSION SEAT (Figure 8) Page 14
T
THROTTLE LINKAGE (Figure 42)
FORWARD/REVERSE SHIFT LEVER
FIRST USED ON SIN 81 0B-4248 Page 66
THROTTLE LINKAGE (Figure 43)
MONOTROL
FIRST USED ON SIN B108-4248 Page 67
TILT CYLINDER (Figure 98) Page 160
TIMING GEAR (Rgure 19)
DIESEL Page 31
HYSTEA X
SERIAL CODE B010-North America
TABLE OF CONTENTS
DESCRIPTION PAGE NO
T (CONTINUED)
TRANSMISSION (Figure 65)
LAST USED ON SIN 8108-3065 Page 100
TRANSMISSION (Figure 66)
FIRST USED ON SIN 8108-3066 Page 102
V
VALVE & ATTACHING PARTS (Figure 92)
TWO-FUNCTION Page 148
VALVE & ATTACHING PARTS (Figure 94)
THREE-FUNCTION Page 152
VALVE & ATTACHING PARTS (Figure 96)
FOUR-FUNCTION Page 156
VALVE (Figure 73)
TRANSMISSION FORWARD & REVERSE SHIFT LEVER
LAST USED ON SIN 8108-3065 Page 116
VALVE (Figure 74)
TRANSMISSION FORWARD & REVERSE SHIFT LEVER
FIRST USED ON SIN 8108-3066 Page 118
VALVE (Figure 75)
TRANSMISSION MONOTROL PEDAL
FIRST USED ON SIN 8108-4248 Page 120
VALVE (Figure 95}
THREE-FUNCTION Page 154
VALVE (Figure 97)
FOUR-FUNCTION Page 158
VALVE-FLOW (Figure 91) Page 147
w
WATER PUMP (Figure 21)
DIESEL Page 33
WATER PUMP (Figure 31)
GASOLINE LPG Page 46

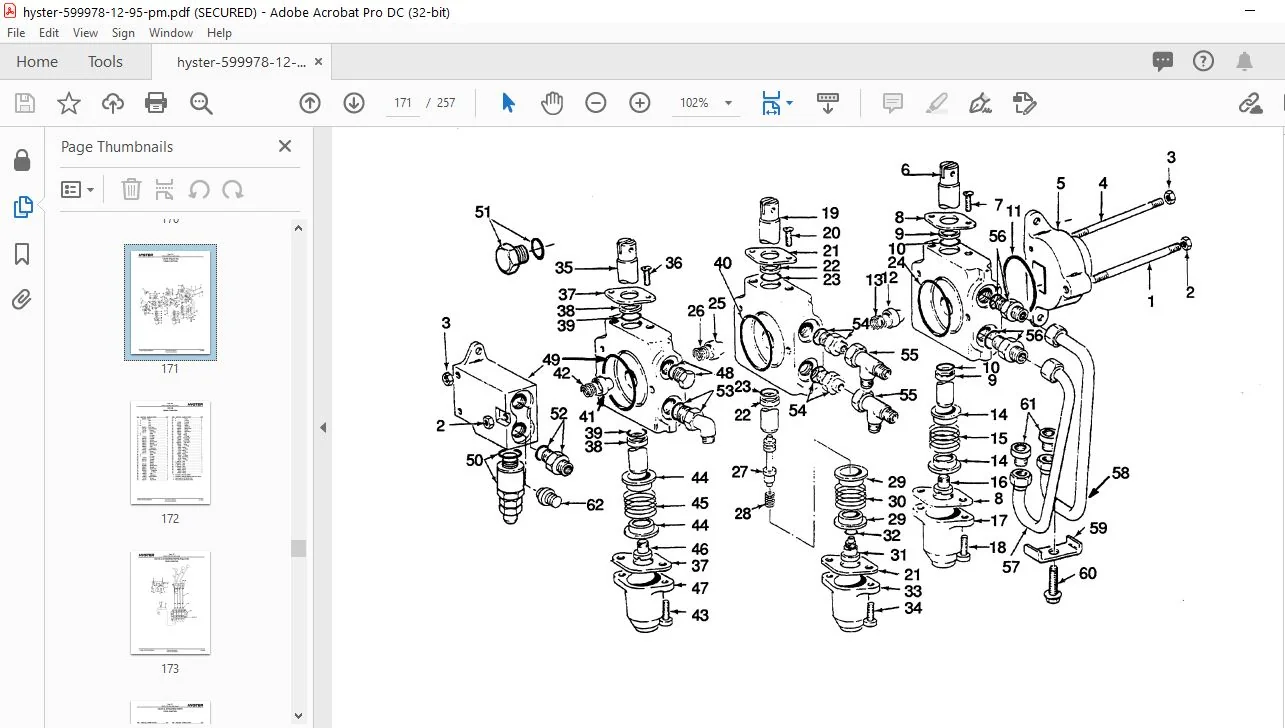

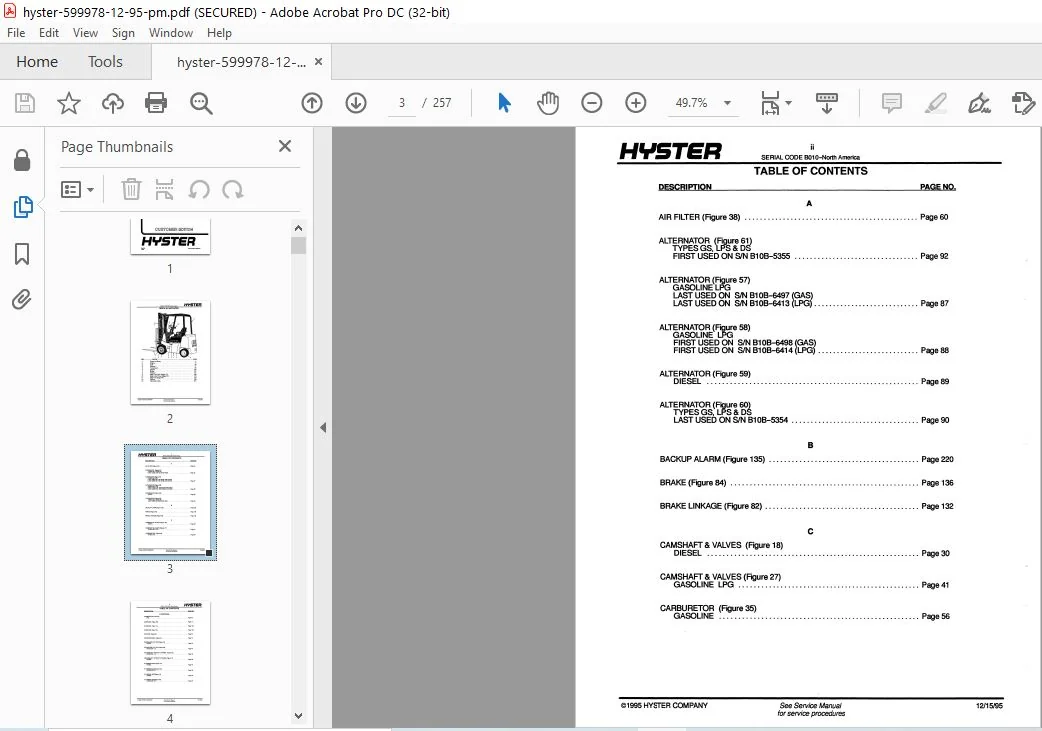

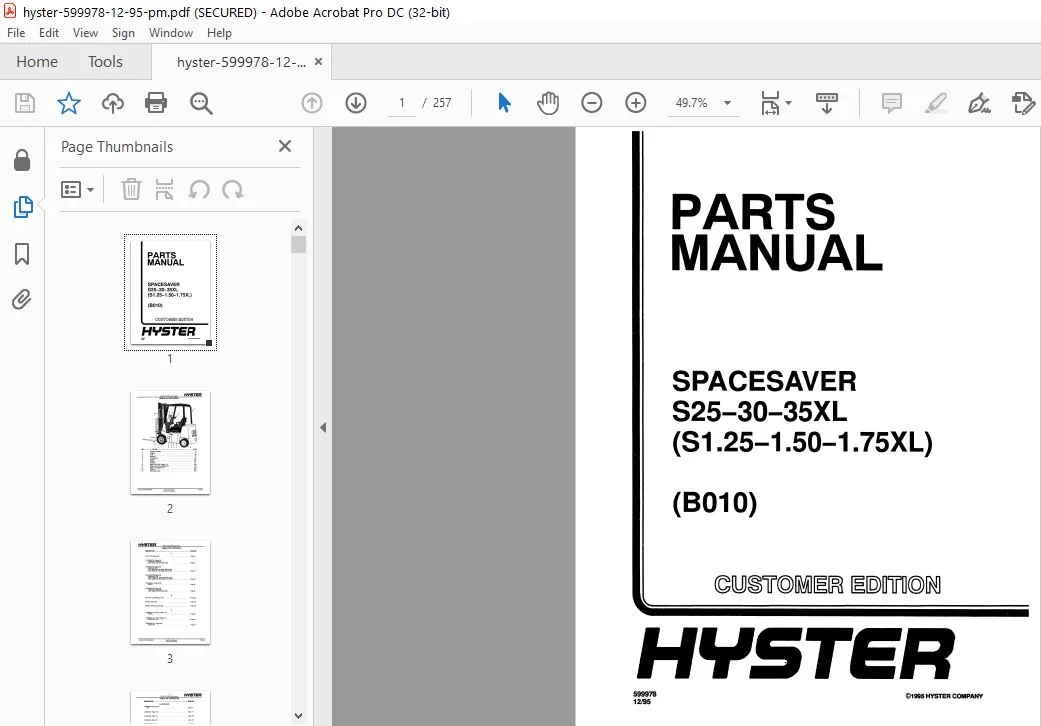

HYSTER S25-30-35XL (S1.25-1.50-1.75XL) (B010) SPACESAVER PARTS MANUAL – PDF DOWNLOAD:
