Hyundai 250D-7E Forklift Service Repair Shop Manual PDF

Description

The Hyundai 250D-7E Forklift Service Repair Shop Manual PDF is a 431-page workshop reference for the 250D-7E forklift. It brings together machine specifications, service checks, component removal and installation, system operation, troubleshooting, testing, adjustment, and detailed disassembly and assembly procedures. Coverage extends across the Cummins QSC engine installation, power train, brakes, steering, hydraulics, electrical equipment, and mast, giving technicians one focused source for the principal service systems on this model.

File Details

• Manual type: Service Manual / Shop Manual
• Brand and model: Hyundai 250D-7E
• Language: English
• Page count: 431 pages
• File format: PDF
• Engine identified in specifications: CUMMINS QSC

250D-7E Workshop Coverage

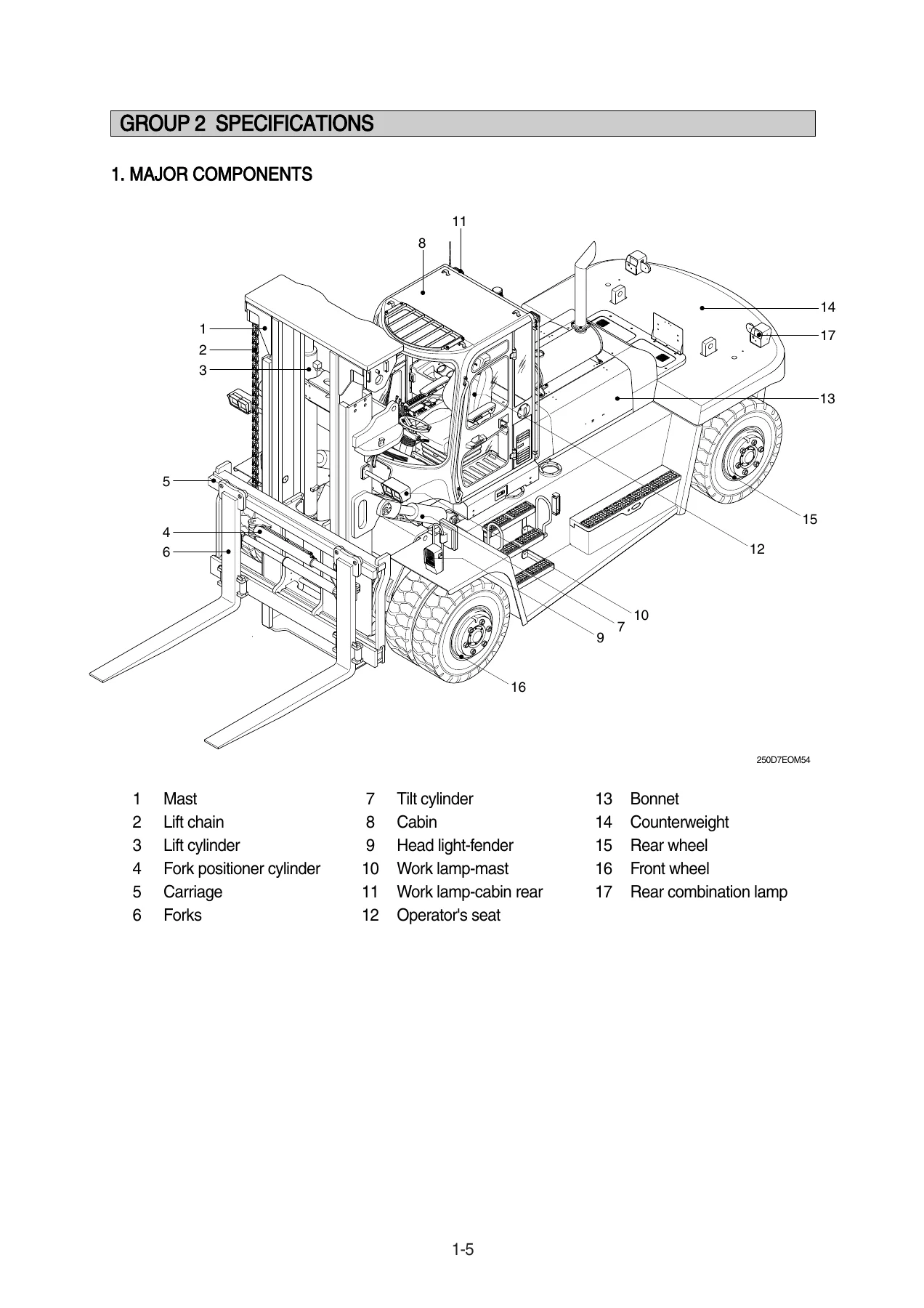

This Hyundai 250D-7E service manual is built around work performed in a service workshop. The opening material explains how the manual is structured, how revised pages and safety or caution symbols are used, and includes conversion tables before moving into machine-specific service information. The general section identifies major components, gives the 250D-7E specifications, lists major-component specifications and tightening torques, provides recommended lubricant information, and includes an operational checkout record sheet for systematic inspection before test equipment is installed.

The manual identifies the CUMMINS QSC as a 4-cycle turbocharged and intercooled, water-cooled, six-cylinder in-line direct-injection engine. The specifications also record 8300 cc displacement, 17.5:1 compression ratio, rated gross output of 264 PS at 2200 rpm, maximum gross torque of 120.4 kgf·m at 1500 rpm, and a 24 V electrical starting and charging arrangement. Alongside the engine data are specifications for the main hydraulic pump, main control valve, steering unit, torque converter, transmission, axle, wheels, brakes, and steering system.

Chapters Covered

• Section 1 – General
  • Safety hints
  • Specifications
  • Operational checkout record sheet
• Section 2 – Removal and Installation of Unit
  • Structure
  • Removal and installation of unit
• Section 3 – Power Train System
  • Structure and operation
  • Operation and maintenance
  • Disassembly and assembly
  • Adjustment
• Section 4 – Brake System
  • Structure and function
  • Operational checks and troubleshooting
  • Tests and adjustments
  • Disassembly and assembly
• Section 5 – Steering System
  • Structure and function
  • Operational checks and troubleshooting
  • Tests and adjustments
  • Disassembly and assembly
• Section 6 – Hydraulic System
  • Structure and function
  • Operational checks and troubleshooting
  • Disassembly and assembly
• Section 7 – Electrical System
  • Component location
  • Electrical circuit
  • Cluster
  • Transmission message indicator
  • Switches
  • Electrical component specification
  • Connectors
  • Troubleshooting
• Section 8 – Mast
  • Structure
  • Operational checks and troubleshooting
  • Adjustment
  • Removal and installation

Taken together, these chapters make the Hyundai 250D-7E Forklift Service Repair Shop Manual PDF much more than a specification sheet. The manual moves from machine identification and inspection through system theory, measurement points, fault diagnosis, component removal, internal repair work, reassembly, and adjustment. That progression is especially useful when a fault has to be traced from an operating symptom to a system check and then to a component-level repair.

Power Train, Transmission and Drive Axle Service

A large portion of the manual is devoted to the power train. It explains the torque converter and the three-speed forward/three-speed reverse power-shift transmission, including transmission layout, operating principles, electro-hydraulic shift control, gear selector information, transmission error display, fault codes, TCU-related checks, automatic calibration of shifting elements, inching operation, measuring points, oil pressure and temperature checks, delivery-rate connections, speed sensors, and filter contamination monitoring.

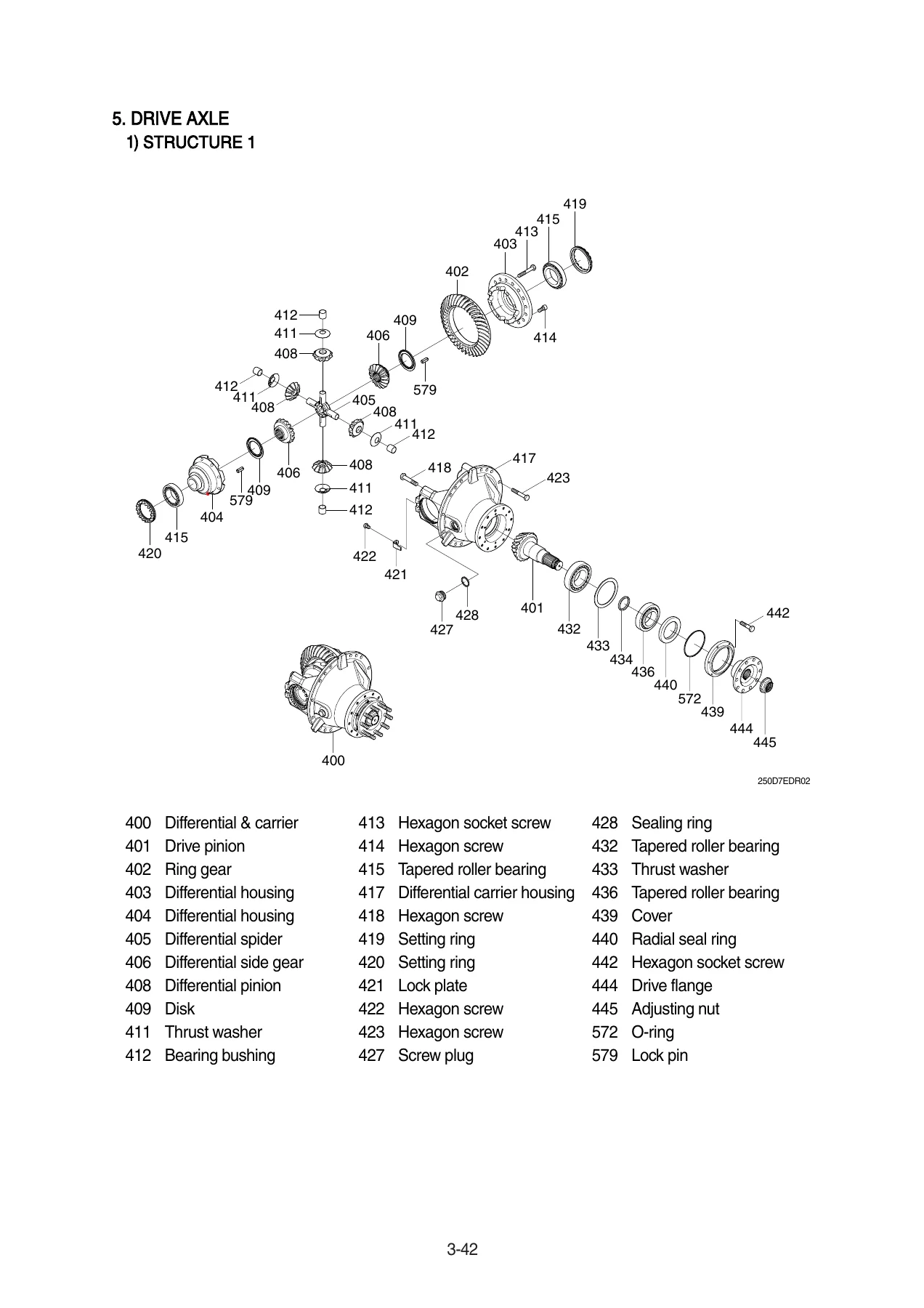

Maintenance information covers transmission oil-level checks, oil and filter replacement, operating temperatures, cold-start behavior, and oil filling. The repair sequence then goes deeply into transmission disassembly and assembly, with procedures for the electro-hydraulic control unit, filters, sensors, converter connection, oil pressure pump, PTO, input shaft, clutch assemblies, bearings, pistons, disc packs, clearances, and reinstallation. Drive-axle structure and exploded views are also included, followed by axle lubrication and brake-related troubleshooting such as actuation-fluid leaks, brake noise or vibration, overheating, failure to apply or release, and reduced braking performance.

Removal, Installation and Major Repair Work

The removal and installation section gives illustrated procedures for major assemblies rather than limiting the manual to theory. Mast work covers forks, carriage, chains, piping, lift cylinders, inner mast, support pins, tilt-cylinder pins, installation, and lift-cylinder adjustment. The same section also deals with power-train assembly removal, brake and cooling connections, drive axle handling, transmission separation, engine removal and installation, and rear axle removal. Safety cautions, lifting points, support methods, hose handling, and tightening information appear throughout these procedures.

For repair planning, this means the Hyundai 250D-7E shop manual can be used before dismantling to identify the sequence of work and again during assembly to check adjustments and tightening requirements. The manual includes dedicated tightening-torque information for major components and numerous procedure-specific torque values in the repair chapters.

Brake, Steering and Hydraulic Diagnosis

The brake section covers system structure and function, operating checks, troubleshooting, tests, adjustments, and disassembly/assembly. The manual describes the pressure-compensated closed-center brake hydraulic system and provides diagnostic routines that help move from an observed problem through checks and corrective work. The steering section follows a similar service pattern, with structure and function followed by operational checks, troubleshooting, tests, adjustments, and component overhaul procedures.

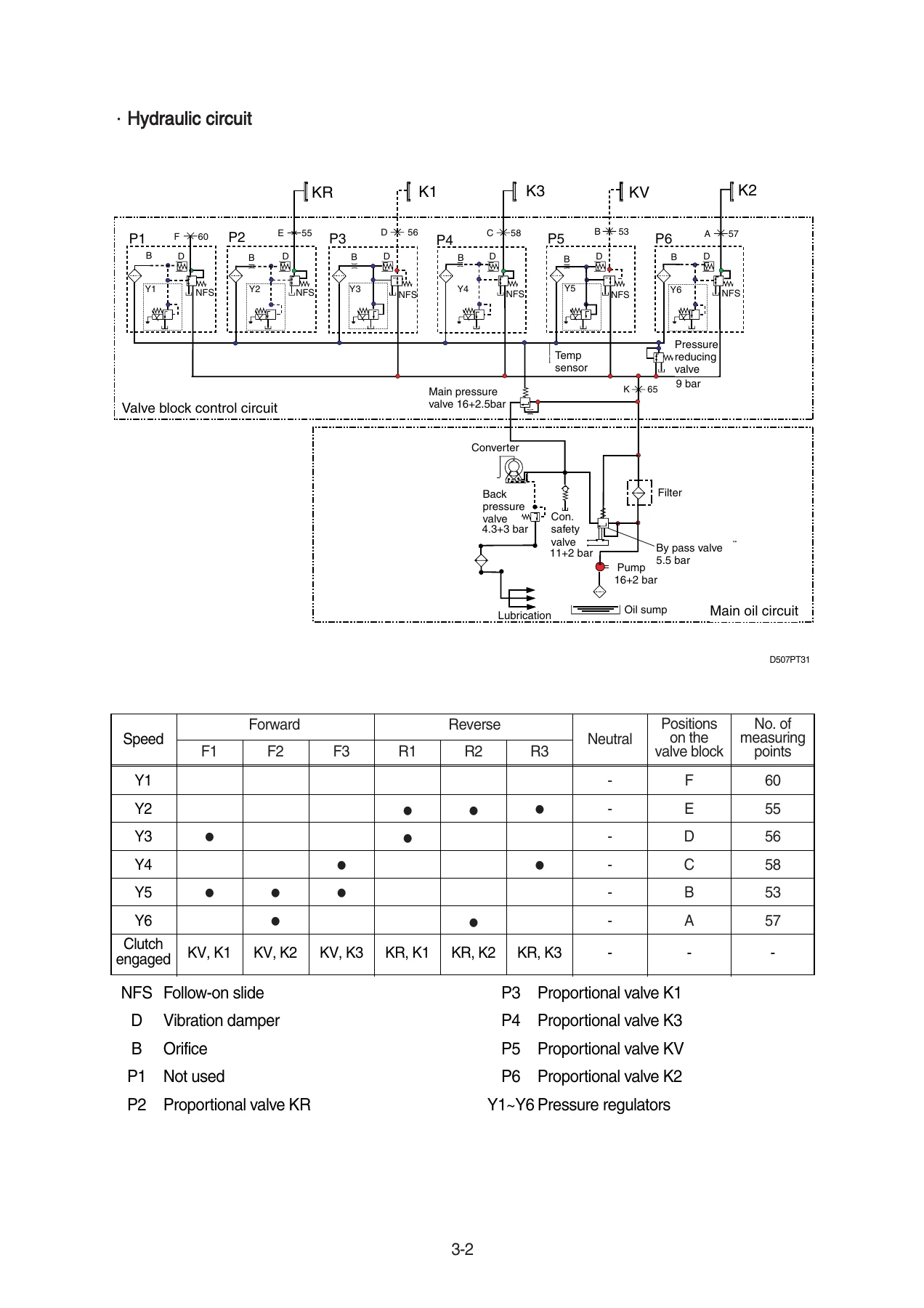

The hydraulic section explains the pilot-operated open-center work hydraulic system and its main components, then provides operational checks and troubleshooting before moving into disassembly and assembly. These chapters are supported by hydraulic circuit illustrations and component drawings, making it easier to relate pressure, flow, valve, cylinder, and control information to the physical machine.

Electrical Circuits and Troubleshooting

Electrical coverage is organized for diagnosis as well as component identification. It includes component locations, electrical circuits, the instrument cluster, transmission message indicator, switches, electrical component specifications, connector information, and troubleshooting. The transmission material also supplies extensive electronic fault-code tables with fault meanings, possible causes, TCU reactions, and repair checks. This is valuable when the complaint involves a warning display, direction or gear selection, speed-sensor input, clutch control, power supply, or communication-related fault.

Useful Machine Specifications Included

• Rated capacity: 25000 kg
• Load center: 1200 mm
• Unloaded weight: 37020 kg
• Lifting height: 4030 mm
• Travel speed, unload/load: 31.7/28.3 km/h
• Maximum hydraulic pressure: 210 kgf/cm2
• Hydraulic oil tank: 387 L
• Fuel tank: 531 L
• Overall length: 6362 mm
• Overall width: 3050 mm
• Cabin height: 3223 mm
• Wheel base: 4250 mm

The manual also includes lubricant selections and capacities, temperature guidance, transmission pressures, component specifications, service clearances, torque values, and adjustment data in the chapters where they are needed. Keeping those figures with the repair procedures helps technicians check the machine against the stated service data instead of relying on memory or generalized information from a different forklift.

Repair the 250D-7E with the Correct Procedures at Hand

The Hyundai 250D-7E Forklift Service Repair Shop Manual PDF supports jobs ranging from operational checkout and troubleshooting to removal of major units, transmission and axle work, brake and steering service, hydraulic repair, electrical diagnosis, and mast adjustment. Using the model-specific procedures, diagrams, specifications, pressures, clearances, and tightening values matters when a repair must be completed in the correct sequence and then checked against the intended service data.

IMAGES PREVIEW

After payment, the manual is delivered as an instant PDF download with no shipping to wait for. Open it on any device that can read PDF files and print the pages you want for workshop use. For owners, mechanics, and service technicians working on the Hyundai 250D-7E, this 431-page manual keeps the machine’s main repair and diagnostic information together in one practical reference.
