Hyundai R210W-9 MH Material Handler Operating Manual

This is the complete operating manual for the Hyundai R210W-9 MH wheeled material handler, the specialized material-handling variant of the ROBEX wheeled excavator platform equipped with a 6.5 m boom, 4.5 m arm, 0.70 m³ orange grapple, elevating cab, and four-point outrigger system. Whether you run a scrap yard, waste transfer station, port facility, or timber yard, this PDF gives you the manufacturer’s own operating procedures, safety requirements, maintenance schedules, and troubleshooting guidance in a single document you can keep on any device.

File Details

• Manual type: Operating Manual (Operation and Maintenance)
• Brand: Hyundai Heavy Industries Co., Ltd.
• Model: R210W-9 MH (Material Handler)
• Language: English
• Page count: 197 pages
• File format: PDF
• Document date: 2009-06-17 (EC Declaration of Conformity)
• Manufacturer address: 1000, Bangeojinsunhwan-doro, Dong-Ku, Ulsan 682-792, Korea

Chapters Covered

• Safety Hints
• Specifications
• Control Devices
• Operation
• Transportation
• Maintenance
• Troubleshooting Guide

Safety Hints

Covers every phase of machine use — before operating, during operation, during maintenance, and parking. Includes specific warnings for the R210W-9 MH material handler: never drive with the cabin in a high-rise position, never operate on a slope with the cab elevated, do not work underneath the cab when raised and unsecured, never align holes with fingers, and never allow the grab to be guided manually. Also covers mounting and dismounting, keeping riders off the machine, and the danger of walking over the lower frame.

Specifications

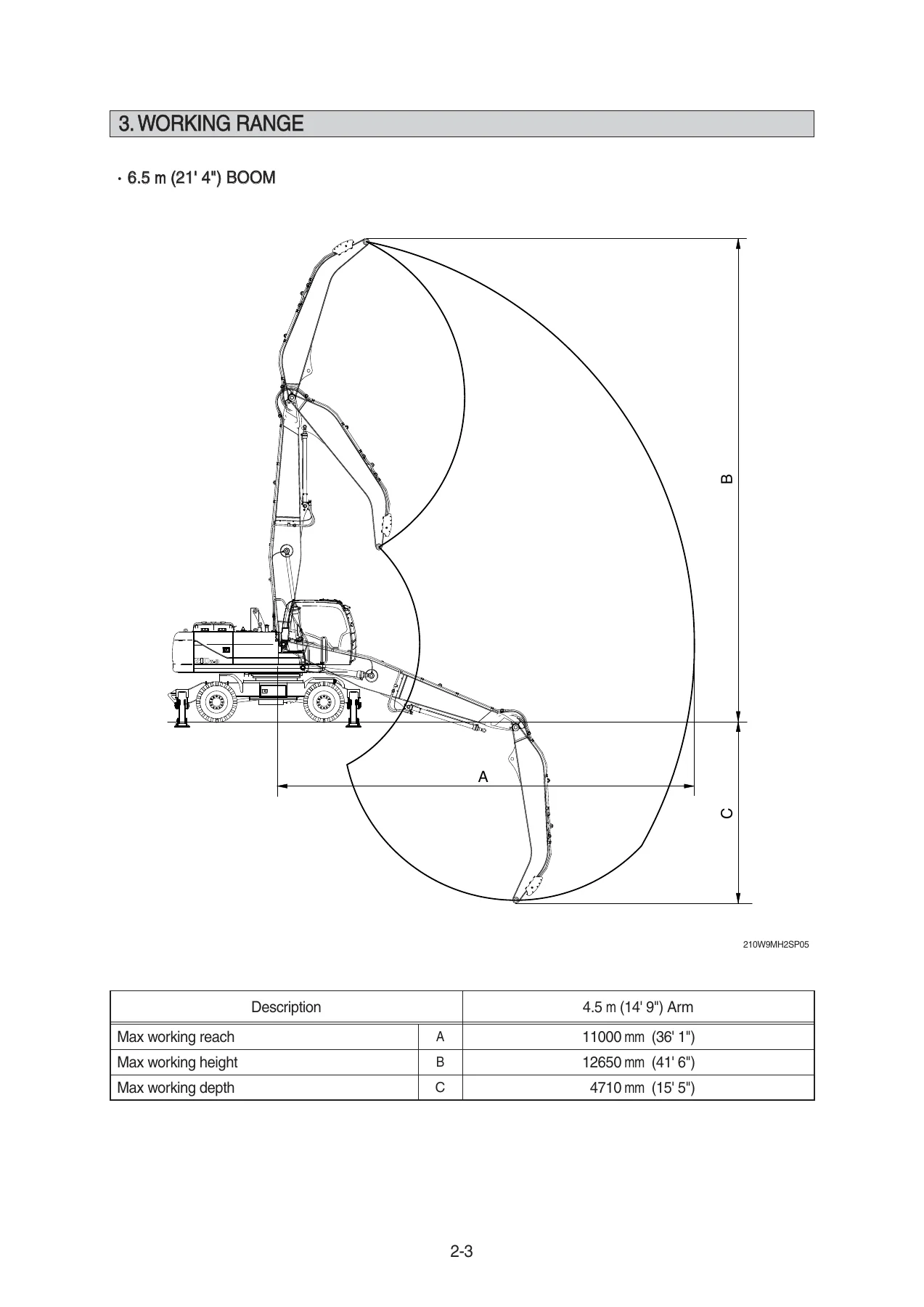

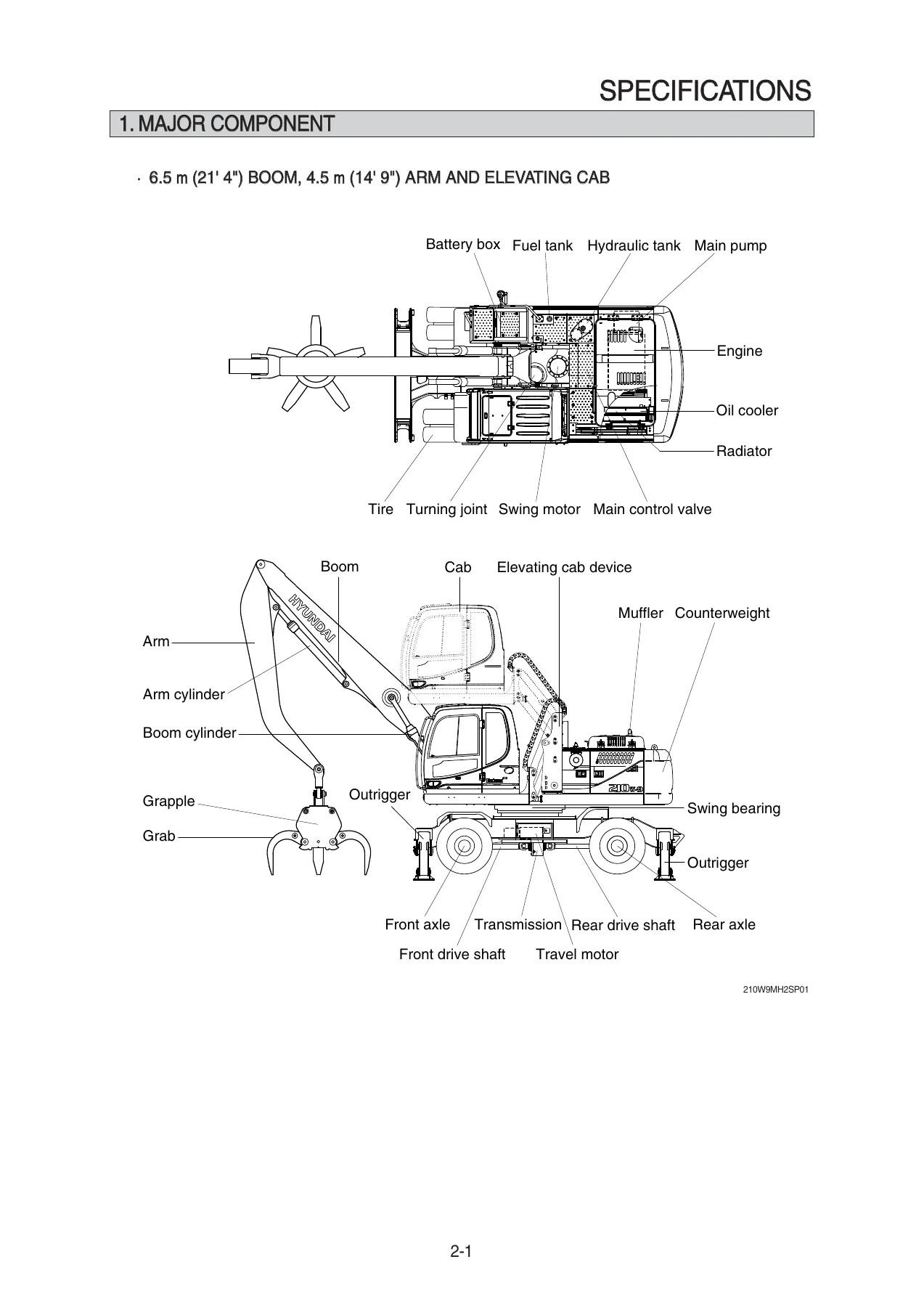

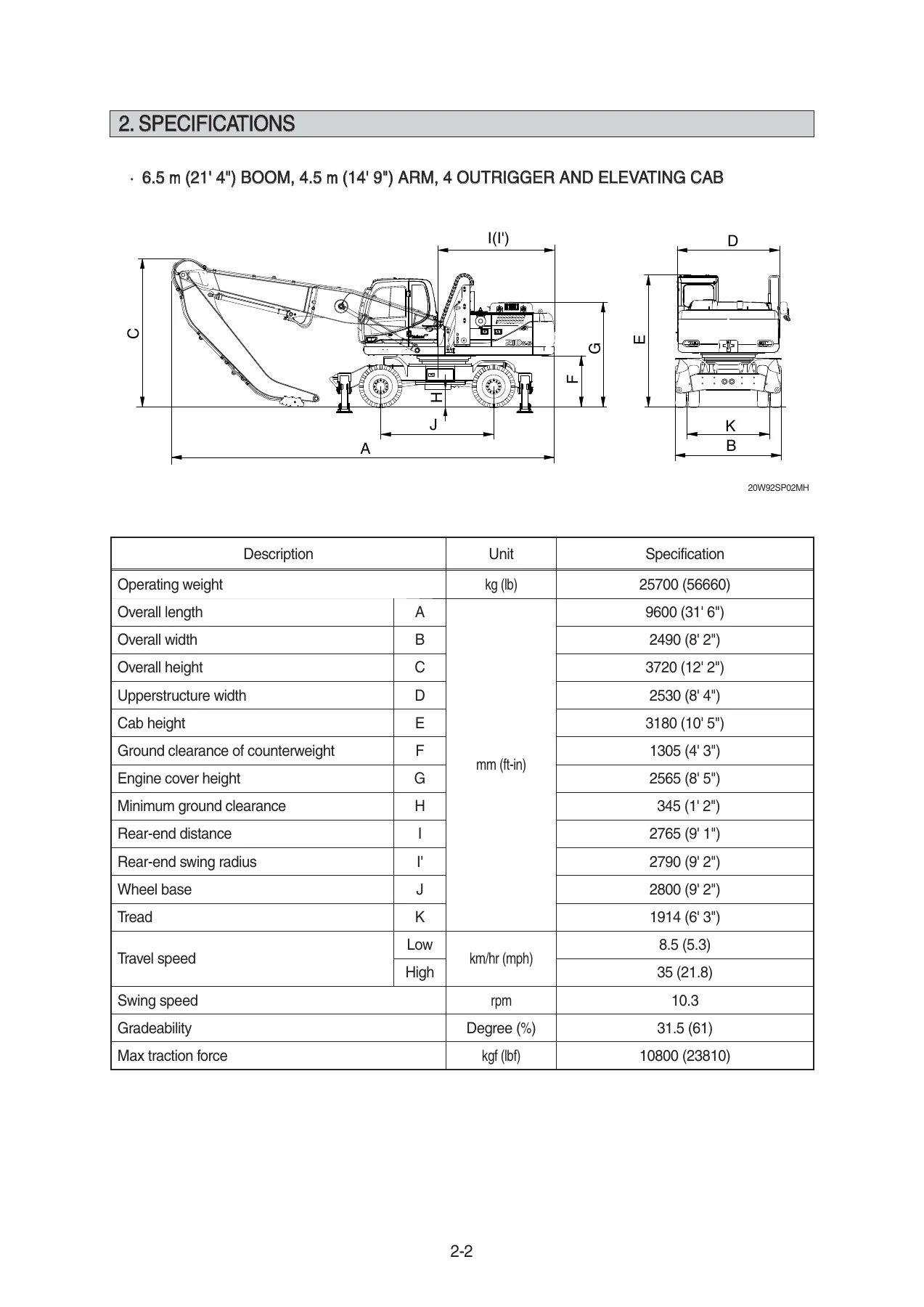

Full technical data for the R210W-9 MH with 6.5 m boom, 4.5 m arm, and 0.70 m³ grapple. Includes major components with callouts, working range diagrams, overall dimensions, weight breakdown by assembly (upper structure, lower frame, counterweight, front attachment, axles, outriggers, dozer blade), lifting capacities at various radii and heights, grapple specifications, detailed component specs (engine, main pump, gear pump, main control valve, swing motor, travel motor, transmission, axles, remote control valve, cylinders), and recommended oils with ambient temperature charts.

Control Devices

Everything in the cab: console layout, cluster (LCD display, gauges, warning lamps, pilot lamps), switches (power mode, work mode, user mode, select knob, auto idle/buzzer stop, escape/camera), main menu structure (mode, monitoring, management, display, utilities), levers and pedals (LH and RH control levers, safety lever, steering wheel, dozer/outrigger lever, adjust levers, accelerator pedal, 2-way pedal, brake pedal, swing lock lever), full-auto and semi-auto air conditioner/heater operation with self-diagnosis, cigar lighter, handsfree system, remote controller, radio and USB player functions, seat adjustments, fuse and relay box, MCU, emergency engine speed control connector, service meter, and RS232 & J1939 service sockets.

Operation

Suggestions for new machines (proper break-in during first 100 hours with load percentages), pre-start checks, starting and stopping the engine in normal and cold weather, warming-up procedure, mode selection system (CAPO — Computer Aided Power Optimization), operation of working device (grapple open/close/rotate, boom, arm, swing, and cab elevation controls), operation of the elevating cabin, traveling the machine (basic operation, changing speed, changing direction, turning, precautions, traveling on slopes), efficient working methods, operation in special work sites (cold weather, sandy/dusty, sea shore, mud/water/rain, rocky), normal operating phenomena (arm roll-in hesitation, boom lowering sound, relief valve noise, swing brake noise), attachment lowering using the accumulator, and storage procedures for over one month.

Transportation

Road traveling rules and precautions, preparation for transportation, dimension and weight data for the base machine, boom assembly, arm assembly, grapple assembly, boom cylinder, cab assembly, and counterweight, loading and unloading procedures with gangplank specifications, fixing the machine to the trailer with chain points, and loading/unloading by crane using wire rope and stay.

Maintenance

Complete maintenance program: interval philosophy, tightening torque tables for bolts and nuts (coarse and fine thread), pipe and hose torque (flare and ORFS types), fitting torque, major component tightening torques, fuel/coolant/lubricant specifications and capacities, maintenance check list by interval (daily, 50, 100, 200, 250, 500, 1000, 2000, 5000 hours, and when required), and detailed service instructions for every component — engine oil and filter, coolant, radiator flushing, charge air cooler, fan belt, cooling fan, air cleaner, fuel tank, prefilter, fuel filter, fuel system bleeding, belt tensioner, fuel leakage, hydraulic oil check/fill/change, suction strainer, return filter, breather element, drain filter, pilot line filter, swing reduction gear oil, swing bearing grease, RCV lever lubrication, drive shaft, axle, steering case, outrigger, dozer blade, tires, planetary gear oil, differential gear oil, transmission oil, grapple replacement, pin and bushing lubrication, electrical system, battery, booster cable starting, welding repair, air conditioner and heater filters.

Troubleshooting Guide

Engine troubleshooting (oil pressure lamp, steam from radiator, hard starting, exhaust color, combustion noise), electrical system troubleshooting (dim lamps, battery charging lamp, alternator noise, starting motor issues, preheat lamp, oil pressure lamp), and other issues (slow bucket/attachment operation, unusual pump noise, excessive hydraulic oil temperature).

Why This Hyundai R210W-9 MH Operating Manual Matters

The R210W-9 MH is not a standard excavator — it is a purpose-built material handler with an elevating cab, orange grapple, and four outriggers. Generic excavator knowledge will not cover the specific safety requirements for working with an elevated cab near power lines, the correct procedure for manually lowering the cab in an emergency, the proper method for replacing the grapple, or the correct way to load and secure this machine for transport. This manual gives you the manufacturer’s own procedures for all of it.

For owners and operators, this PDF is the difference between guessing and knowing. The maintenance schedules alone — with specific intervals for every filter, oil, grease point, and wear item — will save you from premature component failure and costly downtime. The lifting capacity tables are essential for safe material handling, and the troubleshooting guide helps you diagnose problems before they become breakdowns.

For technicians, the detailed specifications, tightening torques, and step-by-step service procedures make this an indispensable reference. The electrical system section, hydraulic system data, and component specifications give you the numbers you need to test, adjust, and repair with confidence.

IMAGES PREVIEW

This Hyundai R210W-9 MH operating manual is delivered as an instant PDF download — no shipping, no waiting. Access it on any device: laptop, tablet, or smartphone. Print the pages you need for the shop or the field. Keep the complete manual on your computer for quick reference. Whether you are performing routine maintenance, diagnosing a fault, preparing the machine for transport, or training a new operator, this manual gives you the complete picture.
