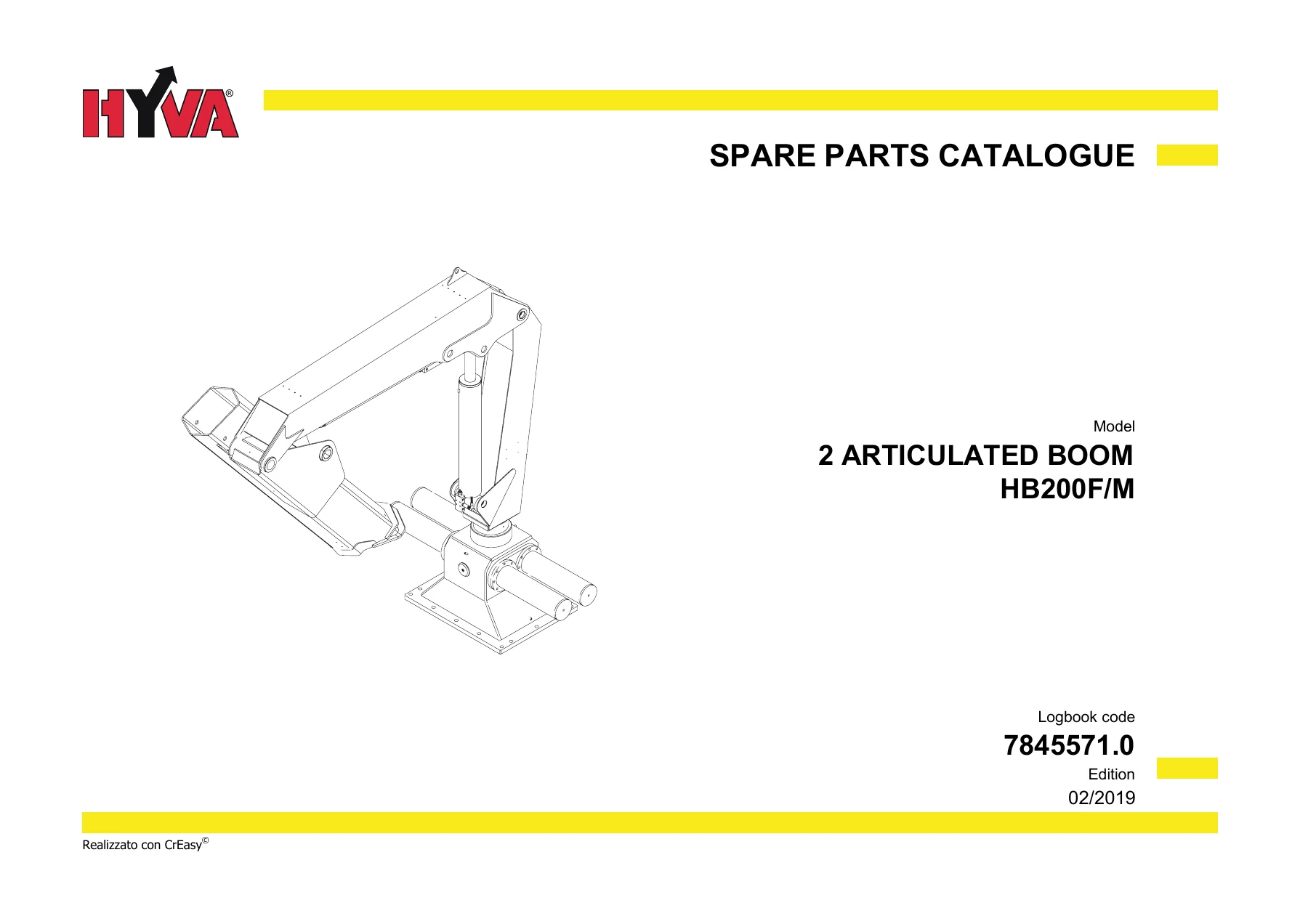

Hyva HB200F/M Articulated Boom Spare Parts Catalogue 7845571.0 – 2019 Edition PDF

Description

Hyva Articulated Boom HB200F/M Spare Parts Catalogue – Logbook 7845571.0

This is the full spare parts catalogue for the Hyva HB200F/M articulated boom, issued under logbook code 7845571.0 in the 02/2019 edition. The catalogue was produced specifically to let you research and order spare parts and to check the exact mounting position of each item before you commit to a purchase. The machine is broken down into functional groups, so instead of hunting through one giant list you go straight to the assembly you are working on and read the parts table that belongs to it. Every table pairs a numbered exploded illustration with a matching list showing the reference position, variant code, quantity and description.

File Details

• Manual type: Spare Parts Catalogue
• Brand: Hyva
• Machine: Articulated Boom HB200F/M
• Logbook code: 7845571.0
• Edition: 02/2019
• Language: English
• Page count: 114
• File format: PDF

Chapters, Groups and Assemblies Covered

• Load Indication System (RDC-AS3)
• Stabilizer Control (EN12999-A3)
• Rotation Control (EN12999-A3)
• Controls with Thermoforometric – RDC EBB-X TCU-ECM
• Wireless Control Kit (Hz-EU, Hz-USA, Hz-AUS)
• JB Arm and 820-55 JB-2S group
• 1st Extension and 1st Extension Hydraulic Jack
• 2nd Extension and 2nd Extension Hydraulic Jack
• 3rd Extension
• 4th Extension
• 5th Extension and 5th Extension Hydraulic Jack
• 6th Extension and 6th Extension Hydraulic Jack
• Hydraulic System for the extension jacks

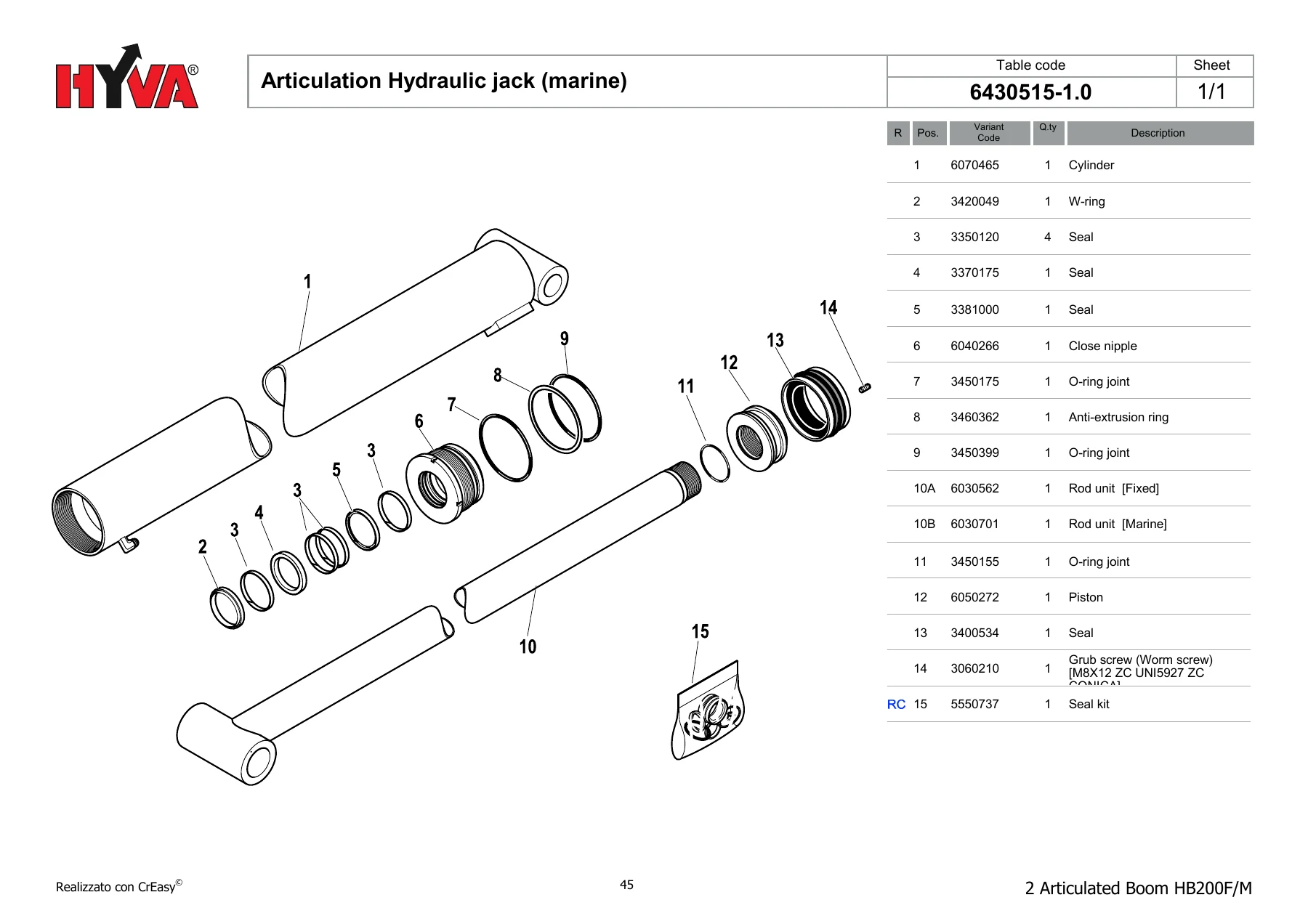

• Articulation Hydraulic Jack (Fixed and Marine)
• KIT Connecting Rod (JB)
• Coupling (Articulated Extension)
• Support (Articulated Extension)
• Control Station (CE) – table 5400370-1.0
• Moment Limiting Device (CE) – table 5430086-1.0
• Plate Kit (Generic Gru) – table 5502000-3.0
• Greasing Manifold, flexible hoses and greasing pipes
• Slewing System – cylinders, toothed racks, pistons, sliding blocks
• Base, upper and lower bushings, thrust bearing ring
• Column and pin assembly for the boom foot
• 1st Boom (F/M)
• 2nd Boom (F/M) – table 5480067-1.0
• Manual Extensions (1st through 6th, 1S to 6S versions)
• Attachment for Winch (1S to 6S) – tables 7900238 to 7900243
• Actuation for Winch (F/M) and wall-through pipe fitting variants
• Winch Kits, winch supports and winch hydraulic connections
• Box (Control Panel) – table 5402870-2.0
• Hook coupling, swivel hooks and shackles
• Seal kits for slewing, extension cylinders and control valves

Alongside the grouped parts tables the catalogue opens with a full Table Index that lists every group by page number, table code, quantity, heading, version and validity, so you can see at a glance which table applies to your build. The back of the document carries a recommended spare parts list built from the consumables that wear or get lost in service – O-rings, seal kits, washers, screws, buttons, slide shoes, pressure gauges, hydraulic filters and filter cartridges. Because each group is drawn as a clean exploded view with a numbered parts list sitting next to it, the catalogue doubles as an assembly reference as much as an ordering tool.

What This HB200F/M Parts Catalogue Lets You Do

With the Hyva HB200F/M Articulated Boom Spare Parts Catalogue open on the bench you can identify the exact variant code of any component on the boom before ordering, confirm how many of each item the assembly takes, and see how the parts sit relative to each other so the new component goes back in the right way round. The tables distinguish between Fixed and Marine variants where the same assembly has two versions, and between the different serial-driven releases of a group, which is exactly the kind of detail that stops you ordering the wrong hose, jack or fitting. The moment limiting device, the control station, the extension hydraulic jacks, the winch actuation and the slewing gear are all broken down to individual screws, seals and fittings, so even a small repair can be planned properly.

Why a Reliable Parts Reference Matters on an Articulated Boom

An articulated boom is a hydraulic machine, and hydraulic parts are unforgiving – a mismatched fitting, the wrong seal kit or a hose burst valve of the wrong size is not something you want to discover halfway through a lift. Having the parts catalogue on hand means the part number you write on the order form matches the part number the machine was built with, that the seal kit suits the exact cylinder bore and rod unit in front of you, and that the flexible hose you receive is the Fixed or Marine version that belongs on that circuit. It also saves the time and cost of returning wrongly ordered items and of chasing a supplier who cannot read your mind over the phone.

IMAGES PREVIEW

Instant PDF Delivery

The Hyva HB200F/M Spare Parts Catalogue is delivered as a PDF download the moment your order is confirmed – no shipping, no waiting for a parcel, no risk of a paper copy getting oil-soaked on the workshop floor. Open it on a laptop, tablet or phone at the machine, zoom into the exploded drawings, print just the pages for the group you are working on, and keep the rest clean for the next job.
