Hyva HC1151 Articulated Boom Crane Spare Parts Catalogue 7845591 Edition 02/2019

Description

Hyva HC1151 Articulated Boom Crane Spare Parts Catalogue — Edition 02/2019

This is the complete Hyva HC1151 articulated boom crane spare parts catalogue, published under logbook code 7845591.0 with the Edition 02/2019 revision. The document is written in five languages side-by-side (Italian, English, French, German, and Spanish) and organises the entire crane into twelve tabbed assemblies, from the base and stabiliser legs through to the slewing column, boom extensions, winch, and electrical installation. Every section pairs an exploded illustration with a numbered parts table giving the position number, Hyva part code, quantity, and description in all five languages — so you can identify a component visually and order it by its exact part number without guesswork.

File Details

• Manual type: Spare Parts Catalogue
• Brand: Hyva Crane
• Model: HC1151
• Logbook code: 7845591.0
• Edition: 02/2019
• Languages: Italian, English, French, German, Spanish
• Page count: 169 pages
• File format: PDF

Chapters Covered

The catalogue is divided into twelve top-level assemblies, each with its own sub-tables:

• A — Basamento / Base: A.1 Base, A.2 Delivery hydraulic system – electrical diverter, A.3 Under frame oil tank, A.4 Interchange
• B — Traversa stabilizzatrice / Stabilizer cross member: B.1 Stabilizer cross member STD, B.2 Extension cylinder, B.3 Control valve HC-M45/4, B.4 Stabilizer cross member hydraulic extension, B.5 Hydraulic extension – remote control, B.6 Stabilizer cylinders hydraulic system, B.7 Stabilizer cylinders remote control, B.8 Control valve (hydraulic system)
• C — Cilindro stabilizzatore / Stabilizer cylinder: C.1 Stabilizer cylinder, C.2 Cylinder (stabilizer lifting), C.3 Stabilizer cylinder hydraulic system
• D — Colonna rotante / Slewing mast: D.1 Rotating column, D.2 Hydraulic system (slewing with double motor)
• E — Cilindro principale / Main cylinder: E.1 Main cylinder, E.2 Main cylinder circuit
• F — Distributore su colonna / Column mounted control valve: F.1 Danfoss control valve, F.2 Hawe control valve, F.3 Hydraulic swivel – control station, F.4 Delivery-drainage hydraulic system (control valve), F.5 Hoses (machine base functions), F.6 Operator support and access ladder
• G — Braccio principale / Main boom: G.1 Main boom, G.2 Secondary cylinder, G.3 Secondary cylinder circuit
• H — Braccio secondario e sfili / Secondary boom and telescopic extensions: H.1 Secondary boom, H.2 Extra functions circuit (telescopic cylinder), H.3 through H.23 telescoping extensions and cylinders (1st through 10th), H.24 Sliding block kit
• I — Accessori / Optional: I.1 Extra function circuit JIB, I.2 Lifting accessories
• L — Verricello / Winch: L.1 Winch activations, L.2 Winch TC2 /6J-/8J, L.3 Multiple pulley block 2+2, L.4 Winch (hydraulic – electrical system)
• M — Attivazioni supplementari / Extra functions: M.1 Sliding guide /4, M.2 Sliding guide /6, M.3 Sliding guide /8
• N — Impianto elettrico / Electrical system: N.1 Electrical system (CE) 1/2, N.2 Electrical system (CE) 2/2, N.3 Electrical system (Extra CE), N.4 Electrical system – optional

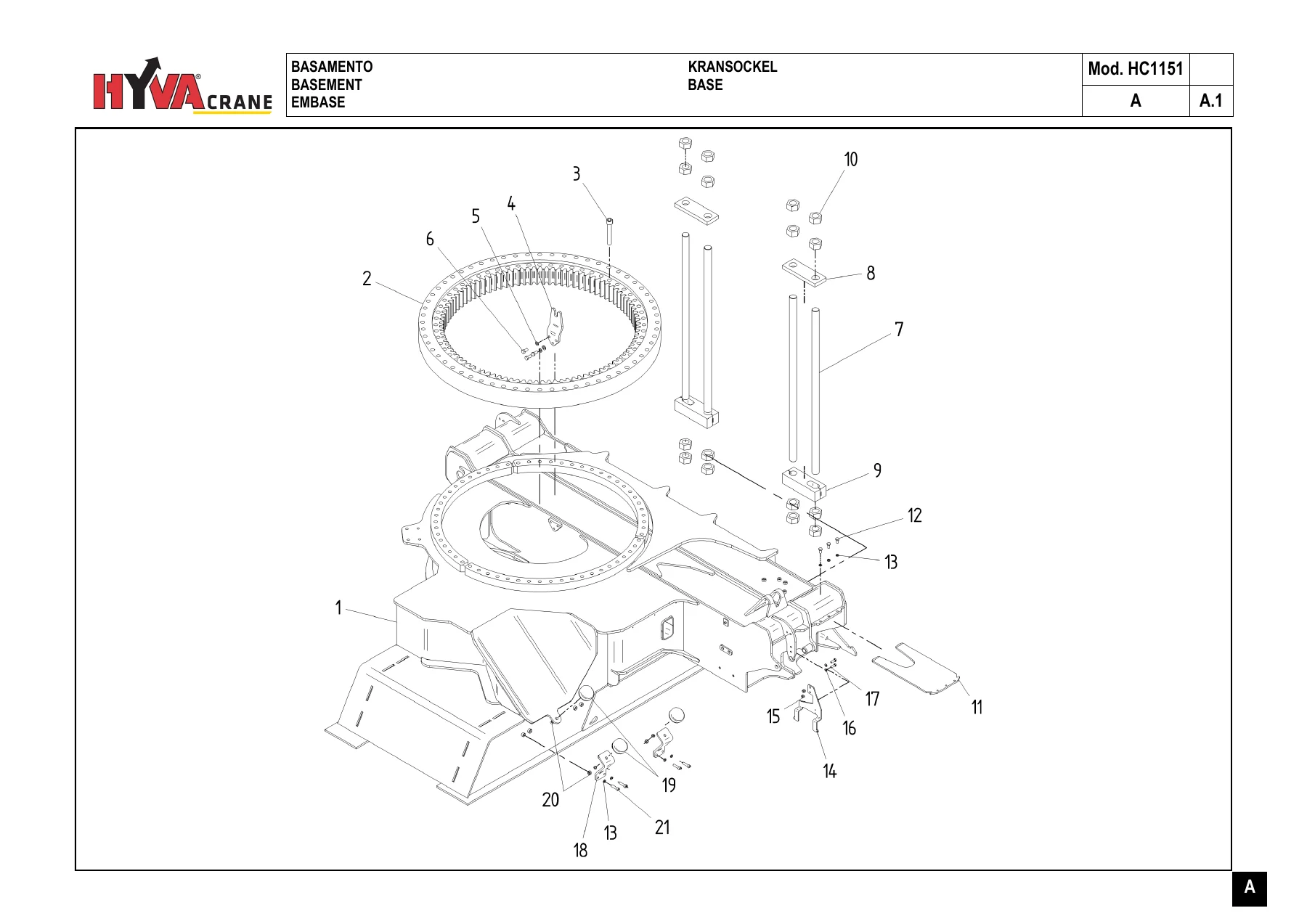

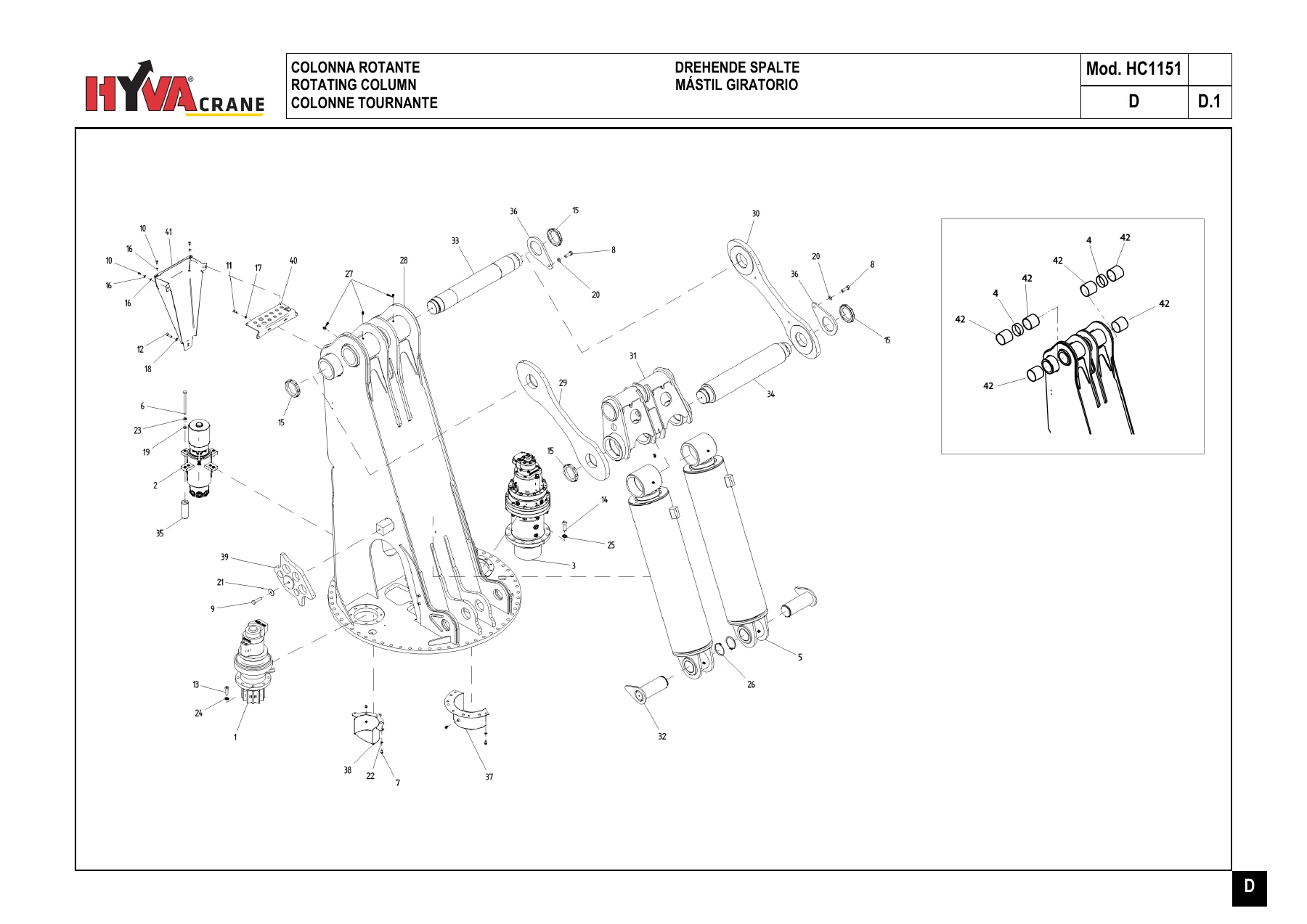

What makes this catalogue genuinely useful on the workshop floor is the way the parts data is laid out. Each of the twelve assemblies opens with a line drawing showing every component in its true position, then follows with a parts table that lists the position number on the drawing, the Hyva part code, the quantity required, and the description in five languages. That structure lets a technician trace a failed fitting, cylinder seal kit, valve element, hose, or wear pad directly from the drawing to an orderable part number — the exact number Hyva uses, not an aftermarket cross-reference. The catalogue also covers the hydraulic routing for each function (delivery and drainage, stabiliser circuit, main cylinder circuit, slewing with double motor, extra function circuits) and the electrical installation split into CE, Extra CE, and optional layouts, which means fault-finding on the machine can be supported by the same document that supplies the replacement parts. Two serial-number breakpoints are noted in the F.5 hoses table — versions valid up to machine serial number 33688 and versions valid from serial number 33689 — so buyers can confirm they are ordering the correct hose assembly for their crane’s build date.

Who This Catalogue Is For

This Hyva HC1151 spare parts catalogue is aimed at fleet workshops, crane service technicians, parts managers, and owner-operators who maintain an HC1151 articulated boom in service. Because the whole crane is broken down into modular sub-assemblies rather than a single flat parts list, it suits both planned overhaul work (cylinder reseals, control valve servicing, sliding block replacement) and reactive breakdown ordering. The bilingual five-language descriptions are particularly useful for workshops ordering from a supplier in a different country, or for confirming a part number against the original Hyva code when a machine has been through several owners.

Why It Matters

Ordering the wrong hydraulic fitting, seal kit, or valve element on a crane is expensive — not just in the cost of the part, but in the downtime while the wrong item is returned and the right one is sourced. This catalogue removes that risk by tying every part to its exact position in the assembly drawing and its exact Hyva part code. The stabiliser, slewing, boom extension, and winch sections are all covered with exploded views, and the electrical section documents the CE and Extra CE wiring arrangements, so a single document supports both mechanical and electrical parts identification across the whole machine.

IMAGES PREVIEW

Instant PDF Delivery

The Hyva HC1151 spare parts catalogue is delivered as an instant PDF download — no shipping, no waiting for a printed copy to arrive. Once payment is complete the file is available immediately and can be opened on a laptop, tablet, or phone in the workshop, or printed and kept in the service vehicle. The full 169-page document, including every exploded view and every multilingual parts table, is yours to keep and use on as many machines as you maintain.
