HYVA Telescopic 1 Boom HA50 HA50X Spare Parts Catalogue – Logbook 7845519.0 Edition 06/2022

Description

HYVA Telescopic 1 Boom HA50 HA50X Spare Parts Catalogue

This is the illustrated spare parts catalogue for the HYVA Telescopic 1 Boom HA50 HA50X loader crane, published under logbook code 7845519.0, Edition 06/2022. It has been compiled by HYVA to make spare parts research, ordering and mounting-position checks fast and reliable. The machine is broken down into functional groups, and every group has its own table code, exploded illustration, and a parts list giving position reference, variant code, quantity and description. If you own or service an HA50 F, HA50 M or HA50 X boom, this is the parts breakdown that lets you quote, order and reassemble correctly the first time.

File Details

• Manual type: Illustrated spare parts catalogue
• Brand: HYVA
• Model: Telescopic 1 Boom HA50 / HA50X
• Logbook code: 7845519.0
• Edition: 06/2022
• Language: English (bilingual Italian/English annotations in the illustrated tables)
• Page count: 210 pages
• File format: PDF

Chapters Covered

The catalogue is divided into functional groups, each with its own table page, exploded drawing and parts list. Groups visible in the table index include:

• Plate kit (generic Gru) and safety/instruction labels
• Base
• Slewing assembly – standard, retaining ring, double flange and high flange versions
• Slewing hydraulic jack and slewing hydraulic system
• Stabilizer connecting rods – standard, extra-extensible, super extra-extensible and revolving
• Stabilizer hydraulic jack and hydraulic system
• Stability control (standard, super extra-extensible and EN12999-AS variants)
• Control devices locking for outrigger legs
• Rod extension hydraulic cylinder (control valve side / double controls side)
• Double controls and control units
• Control valves – 5-section and 6-section
• Hydraulic system solenoid valve and holding valve
• Moment limiting device (CE, non-CE, LIG NO CE)
• Hydraulic system gauge and gauge kit
• Extra function kits – closed centre spool (1st and 2nd extra function)
• Electric controls and rotation limiting device
• Oil tank (CE and non-CE)
• 1st, 2nd, 3rd and 4th boom extensions and their hydraulic systems
• Extension hydraulic jacks and cylinder seal kits
• Hook kit
• Actuations for 2S, 3S and 4S
• Additional actuations
• Quick coupling kit
• Winch actuation and winch pulley support kits
• Manual extension assemblies
• Load indication system (LIS / RLC / RDC / EBB)
• Jib arm and jib extension
• Articulated extension (connecting rod kit, hydraulic jack, support and activation kits)
• Wireless control kits – EU, USA, AUS, RDC-EBB-FR
• HA50 F, HA50 M and HA50 X dedicated sections including lifting hydraulic cylinders and column
• HA50 X EN12999-A3 sections
• Recommended spare parts list

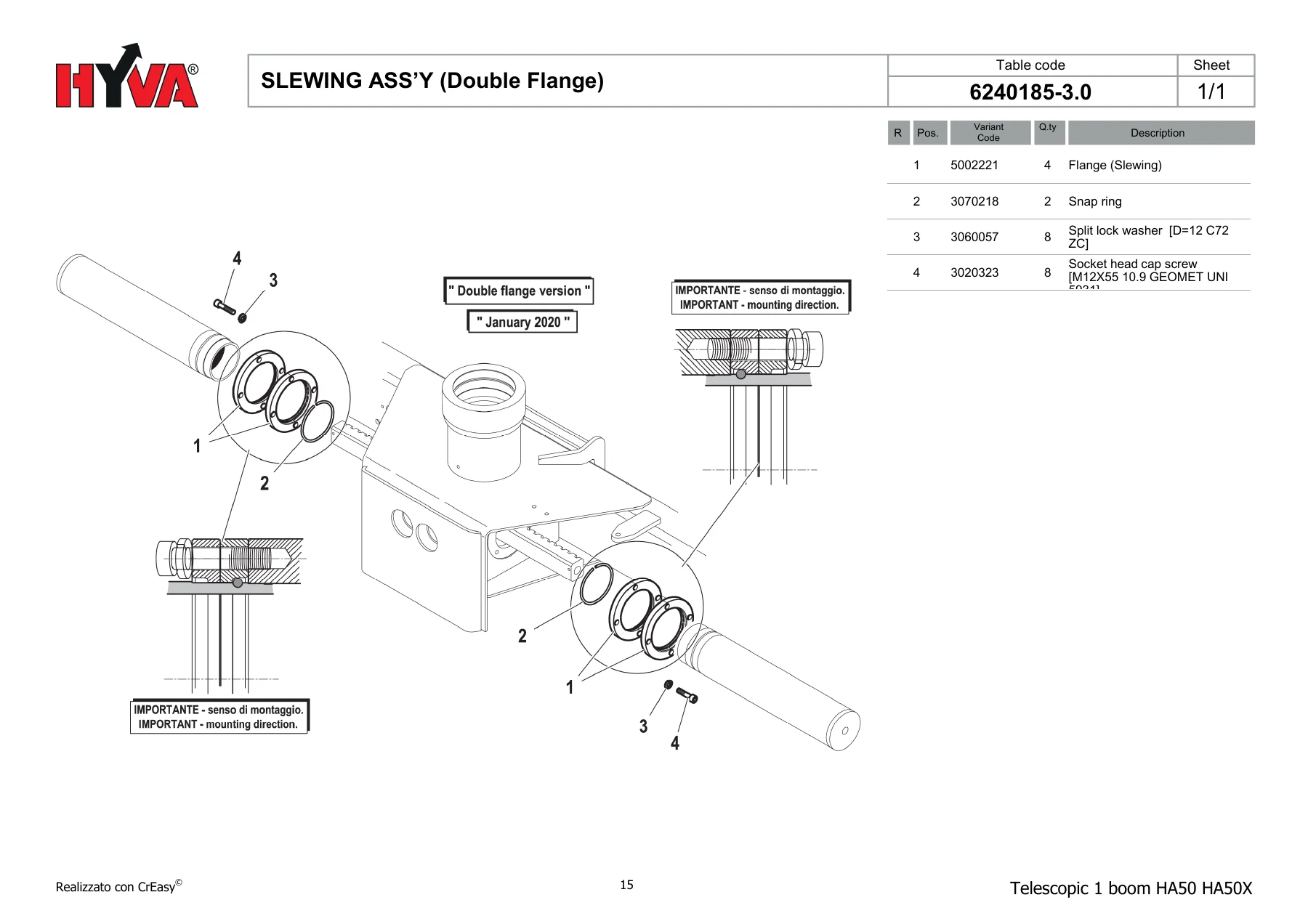

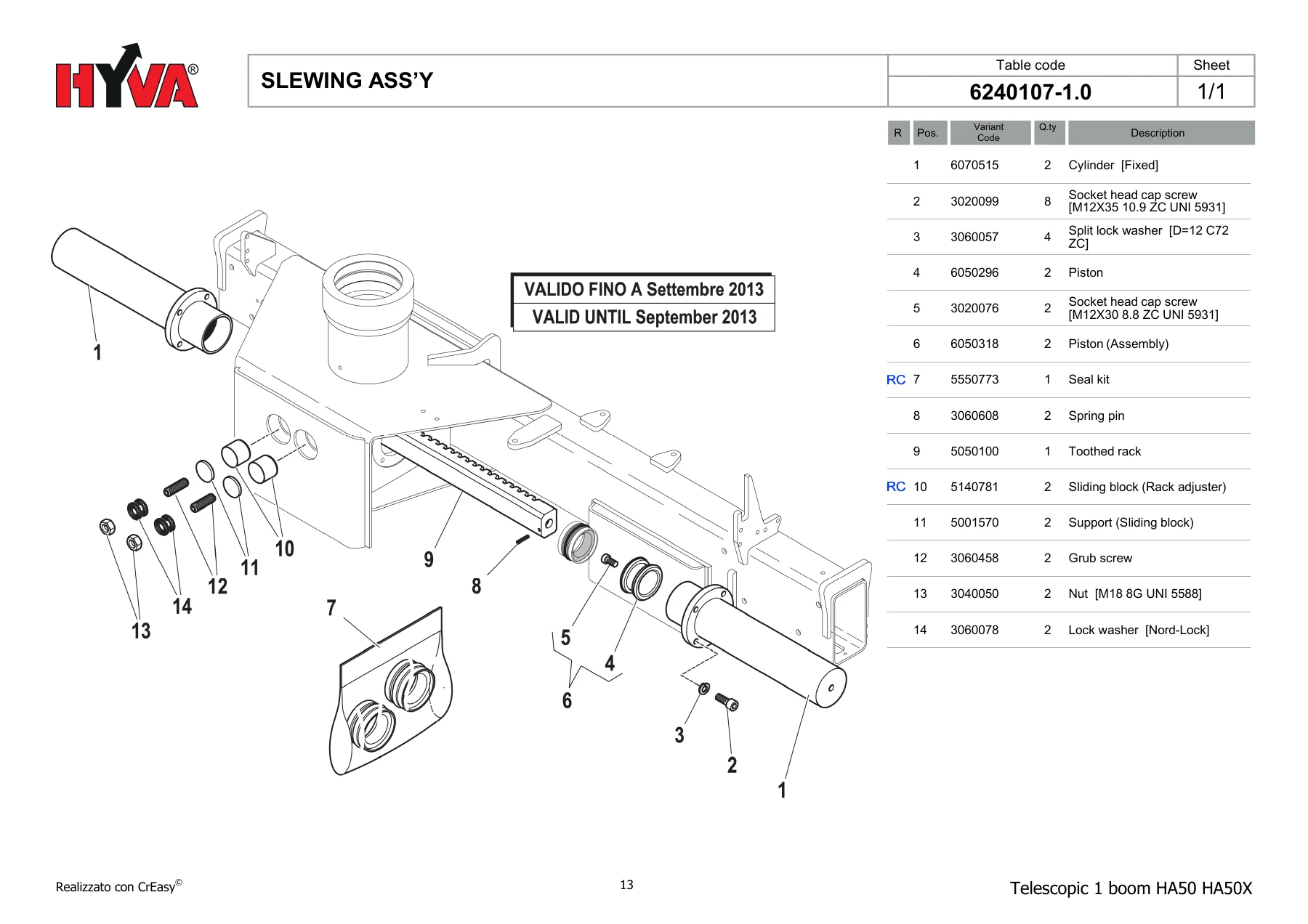

Each table opens with an exploded drawing with numbered callouts that link directly to the parts list underneath. The list gives the position reference, HYVA variant code, required quantity and a full description of the component – including thread sizes, material/standard references such as UNI 5737, 5739, 5931, 5933 and 6592, and cylinder/valve designations. Seal kits and RC (recommended component) rows are marked separately so you can order service kits without hunting through the drawing. Where a part changed over time, the catalogue states the validity window on the page itself – for example “Valid until September 2013”, “Valid from January 2011”, “Valid from October 2016”, or “Valid from January 2022” – so you can match your machine’s build date to the correct revision before ordering. The index at the front maps every table to a page number, table code and functional-group heading, with a separate column showing which model variant the table belongs to.

What This Catalogue Gives You

Working on a HYVA HA50 loader crane without the correct parts breakdown means guessing at O-rings, snap rings, seal kits and fitting threads – and a wrong guess stops the machine. This catalogue removes the guesswork. It shows the complete assembly order for the slewing gear, the stabilizer legs, the boom extensions, the lifting and extension cylinders, the distributor block and the entire hydraulic plumbing, with each fitting called out by its exact thread and standard.

Because the tables are grouped by function, you can go straight to the system you are repairing: outriggers and stability control, boom rotation, boom extension, lifting, load indication, or the wireless/electric control side. Seal kits and piston assemblies for the slewing cylinders, lifting cylinders and stabilizer jacks are listed as complete service kits, which is what you actually order when a cylinder starts weeping. The double-flange and high-flange slewing assembly variants are each shown, so you can identify which version is on your machine before you dismantle anything.

Who It Is For

Fleet mechanics, hydraulic fitters, parts managers and workshop owners running HYVA HA50 series booms. It is equally useful for preparing a parts quote from the drawing alone, for verifying that a delivered part matches the variant called out on your crane, and for reassembling a system in the correct sequence after a repair.

Delivery

The catalogue is supplied as a PDF that is available immediately after checkout – no shipping, no waiting for a courier. Open it on a laptop, tablet or phone in the workshop, and print the individual table pages you need for the job in front of you. One download, and the entire HA50 / HA50X spare parts breakdown is on hand for every future repair.
