Indian Railways Maintenance Manual for Wagons – Freight Stock Workshop & Depot Overhaul Guide

Description

The Indian Railways Maintenance Manual for Wagons – Freight Stock Workshop & Depot Overhaul Guide serves as the unified technical authority and definitive maintenance compendium issued by the Ministry of Railways (Railway Board), Government of India. Developed under the direction of the Railway Board committee comprising CAMTECH, RDSO, Western Railway, and Board freight directors, this comprehensive reference bridges the operational gap brought by the widespread induction of modern air-braked rolling stock across Indian Railways. Designed for carriage and wagon engineers, depot supervisors, workshop technical staff, and rolling stock inspectors, this manual consolidates all standard maintenance instructions, dimensional standards, condemning limits, inspection intervals, and rehabilitation procedures into a single master engineering volume.

Technical Document Specifications

• Manual Type: Freight Rolling Stock Maintenance, Overhaul & Inspection Manual
• Issuing Authority: Government of India, Ministry of Railways (Railway Board), Mechanical Department
• Applicable Stock: Broad Gauge (BG) and Metre Gauge (MG) Freight Wagons & Brake Vans
• Publication Date: March 2001 (Consolidating Unified Revision Orders)
• Committee Authorization: Railway Board Letter No. 70/M(N)/7/16(H.T.)-Pt.I dated 04.09.1998
• Total Extent: 511 Pages with Extensive Engineering Drawings, Clear Sketches & Tolerance Tables
• Language: English
• Format: Digital PDF (.pdf)

Document Chapters & System Index

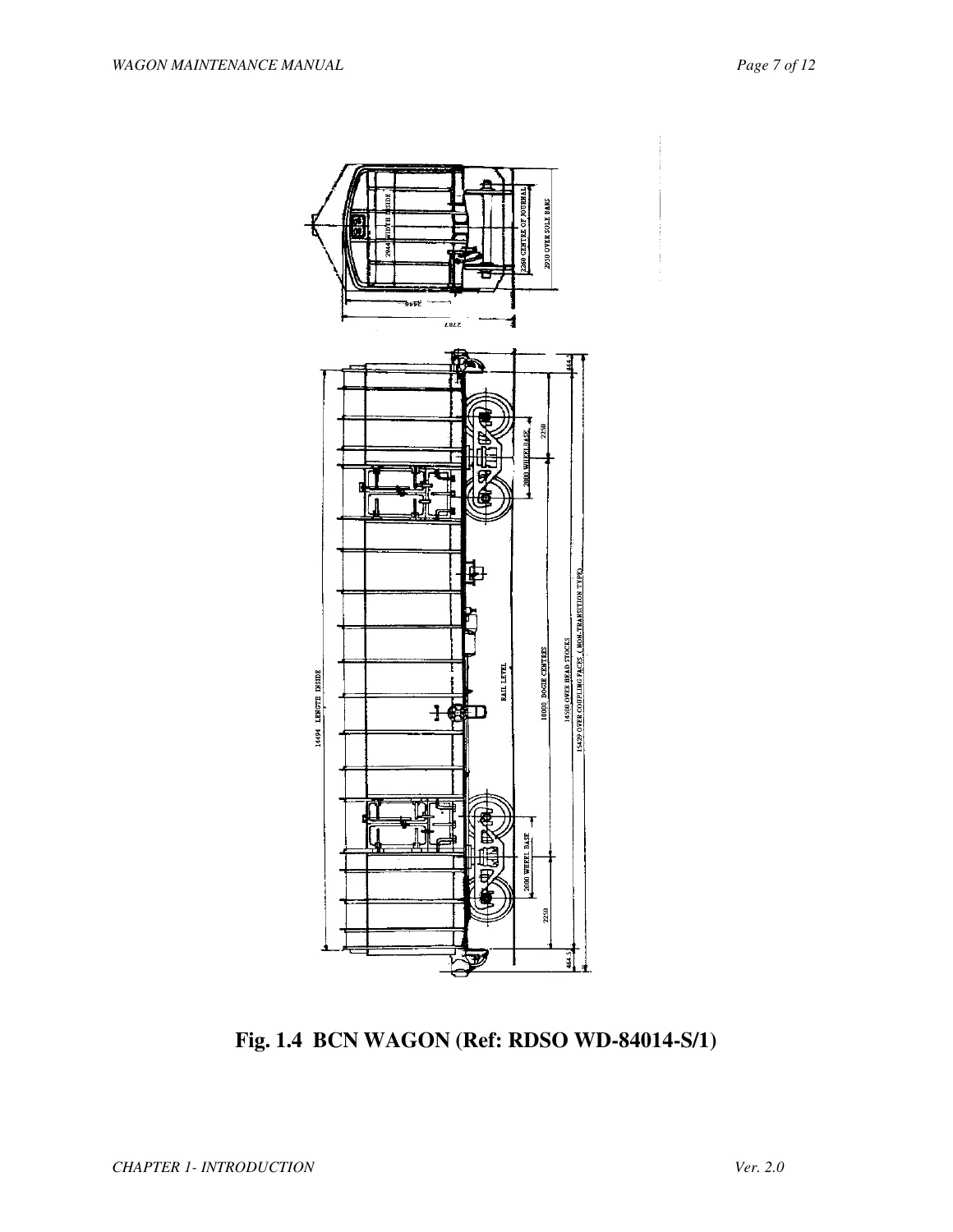

• Chapter 1 – Introduction: General maintenance philosophy, important dimensions of BG and MG wagons, statutory references including IRCA Part III (2000 Edition), existing wagon fleet breakdown, standardized depot infrastructure, and modification listings.
• Chapter 2 – Warranty Maintenance and Condemnation: Warranty inspection protocols for newly built wagons, 11-month manufacturer liability inspections, examination periodicity, Routine Overhaul (ROH) and Periodical Overhaul (POH) intervals, Non-POH (NPOH) categorization, work area classification, and condemnation rules for overage and underage rolling stock.
• Chapter 3 – Yard Maintenance: Freight train examination patterns, intensive examination of originating and terminating rakes, rolling-in inspection and axle box feeling techniques, air brake leakage testing, yard infrastructure standards, tool kits, labor man-hour norms, and the Railway Board Joint Procedure Order (JPO).

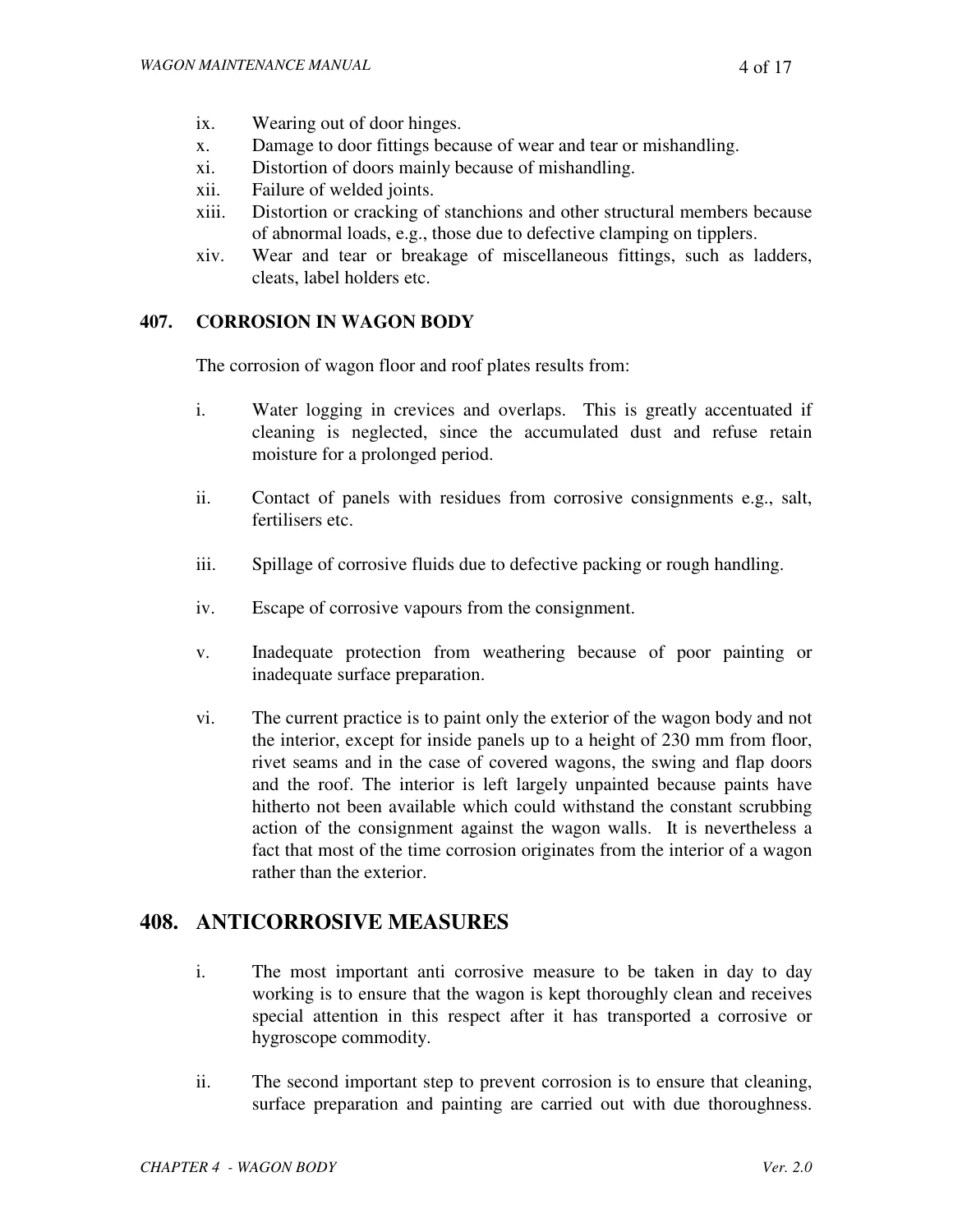

• Chapter 4 – Wagon Body: Structural design of open, covered, flat, well, and hopper wagons, corrosion causes and anti-corrosive measures, standardized panel patching procedures, door mechanism repairs, water tightness testing protocols, and workshop welding precautions.
• Chapter 5 – Underframe: Construction details of BG and MG underframes, alignment checks and manufacturing tolerances, sole bar patching and splicing, headstock straightening devices, bolster cross-bar repairs, floor plate welding, brake van underframe straightening, and MBTPX/MBTPZ tank stiffening modifications.
• Chapter 6 – Bogies and Suspensions: Extensive servicing coverage of CASNUB bogies (22W, 22W Retrofitted, 22WM, 22NL, 22NLB, 22HS), fabricated UIC BOX bogies, cast steel bogies, and diamond frame bogies; complete overhaul instructions for laminated and helical spring nests, cartridge tapered roller bearings (CTRB), cylindrical roller bearings, wheelsets, tyre turning profiles, and ultrasonic axle testing.
• Chapter 7 – Vacuum Brake System: Construction and overhaul of ‘F’ type vacuum cylinders, operating principles, release valves, piping assemblies, vacuum testing benches, storage of rubber fittings, and BOX wagon brake power calculations.
• Chapter 8 – Air Brake System: Single pipe graduated release air brake systems, common pipe bracket, intermediate sandwich piece, cut-off angle cocks, brake cylinders, dirt collectors, auxiliary and control reservoirs, IRSA 450 & 600 slack adjusters, in-depth maintenance and test bench procedures for C3W and KE distributor valves, Single Wagon Test Rigs (SWTR), Rake Test Rigs, and BOXN brake rigging calculations.
• Chapter 9 – Draw and Buffing Gear: Conventional buffing gear and drawbars, screw coupling reclamation, Centre Buffer Couplers (CBC), knuckles, lock lifters, uncoupling mechanisms, and overhaul procedures for heavy-duty draft gears including Cardwell Westinghouse HR-40-1, National Rubber MF-400-IR, Miner RF-361, and Cardwell Mark-50.
• Chapter 10 – Tank Wagons: Constructional details of barrel and running gear for petroleum, LPG, bitumen, and corrosive chemical tankers; testing pressures, internal/external barrel inspection, hydraulic testing, steam cleaning procedures, saddle mountings, and safety valve maintenance.
• Chapter 11 – Special Type of Wagons: Technical specifications and maintenance procedures for BOXNHA high-axle open wagons, BOXNCR stainless steel (IRS M-44/IRSM-41) wagons including specialized welding practices, and BLC container flat wagons.
• Appendices I – V: Wagon fleet strength tables, standardized infrastructural facilities for air brake ROH depots, list of mandatory freight stock modifications, repair rules for tank wagon pressure vessels, and directory of approved wagon builders and railway workshops.

IMAGES PREVIEW

By compiling detailed procedures from relevant RDSO technical pamphlets, IRCA codes, and Carriage & Wagon orders, this manual provides rolling stock maintenance units with a complete reference guide for open-line depots, sicklines, and central workshops.

Bogie Overhaul, Clearances & Suspension Guidelines

The Indian Railways Maintenance Manual for Wagons – Freight Stock Workshop & Depot Overhaul Guide provides comprehensive dimensional limits, wear allowances, and repair procedures for all freight bogie variants. For CASNUB bogies across all configurations (22W, 22WM, 22NL, 22NLB, and 22HS), the manual details critical wear thresholds: bolster pocket slope liners (35 degrees) must be replaced when worn from 8 mm down to 3 mm; rotation stop lugs and bolster column gibs must be restored when clearances exceed permissible limits; and side frame column friction plates must be replaced when thickness reduces from 10 mm to 6 mm. Complete tables define nominal and condemning dimensions for pedestal crown roofs, pedestal jaws, and side frame anti-rotation lugs. Friction shoe wedge blocks must be condemned when the vertical surface from the spigot center line wears from 61 mm to 54 mm (7 mm wear limit) or when slope surface gauge wear reaches 3 mm.

Suspension spring matching guidelines require that load and snubber helical springs be assembled in groups with no more than 3 mm variation in free height, prohibiting the intermixing of new and old springs. Condemning free heights are explicitly listed: outer springs at 245 mm (nominal 260 mm), inner springs at 247 mm (nominal 262 mm, or 228 mm on 22HS), and snubber springs at 279 mm (nominal 294 mm, or 278 mm on 22HS). For fabricated UIC BOX bogies, the text outlines the overhaul of 10-plate laminated bearing springs designed with reverse camber under gross load, defining the 12 mm maximum allowable camber variation between springs on the same bogie. Complete instructions govern the renewal of shackle pins, shackle stones (with corner radii standardized at 10 mm), horn cheeks, and axle box lugs, including the welding of manganese steel liners to restore floating axle box clearances.

Underframe Alignment, Structural Welding & Body Repairs

Structural integrity guidelines in this workshop manual address the heavy static, dynamic, and shunting impact loads encountered in rail freight traffic. Permitted manufacturing tolerances for underframes are cataloged, including squareness checks across diagonals (maximum 5 mm variation on underframes, 2.5 mm on four-wheeler stock) and strict alignment checks along longitudinal (‘L’), horizontal (‘H’), and perpendicular center planes. Standard repair methodologies cover sole bars formed from ISMC 250×9.0 web copper-bearing mild steel channels (or IRSM-41 corten steel on BOXNCR stock), specifying double-flanged U-shaped patches not less than 10 mm thick, complete with back plates and minimum 16 mm diameter rivets at pitches not exceeding 90 mm. A specialized screw-jack straightening fixture is illustrated for reforming bent headstocks without detaching structural assemblies.

Wagon body repair instructions govern panel patching on open and covered stock, including BOX, BOXN, and CRT wagons. Standardized patch plate tables outline exact plate lengths, widths, and thicknesses (ranging from 1.6 mm to 6.0 mm in IS:2062 and IRS M-41 materials) for skirting plates, side panels, and end walls. The manual enforces specific cutting procedures along crib angles and end floor angles, lap welding details, and corner rivet modifications. In addition, critical water tightness testing protocols for covered wagons are provided, establishing the inspection of roofs, swing and flap door anti-bleeding devices, and sealing compound application before seasonal rains, marked by standard ‘WT’ stenciling.

Graduated Release Air Brake & Vacuum Brake Systems

The manual provides an in-depth operational and maintenance treatise on the single-pipe graduated release air brake system. Detailed functional descriptions and sectional views illustrate the charging, application, and release stages of C3W and KE distributor valves, including auxiliary reservoir check valves, quick service valves, maximum and minimum pressure limiters, and double release valves. Explicit test rack and Single Wagon Test Rig (SWTR) test procedures establish pressure benchmarks: charging the system to 5.0 kg/cm2, verifying auxiliary reservoir charging to 5.0 kg/cm2, and measuring full service brake application cylinder pressure at 3.8 +/- 0.1 kg/cm2. In train formation, rake test rig standards require 5.0 kg/cm2 pressure on the locomotive with a minimum of 4.8 kg/cm2 on the brake van for rakes up to 56 wagons (4.7 kg/cm2 for rakes over 56 wagons), limiting total brake pipe leakage to 0.25 kg/cm2 per minute.

Brake rigging maintenance instructions cover piston stroke limits across all wagon categories (e.g., BOXN/BCN at 85 +/- 10 mm empty and 130 +/- 10 mm loaded; BTPN at 87 +/- 10 mm empty and 117 +/- 10 mm loaded). Complete setting guidelines govern IRSA 450 and 600 slack adjusters, detailing the control dimension ‘A’ (70 mm +2/-0 mm for CASNUB bogies, 27 mm +2/-0 mm for BOBRN hoppers, and 50 mm +2/-0 mm for UIC bogies). For vacuum-braked stock, the text details the overhaul, testing, and lubrication of 2-inch ‘F’ type cylinders, together with standard train pipe testing and balanced vacuum checks across falling gradients.

Freight Yard Operations, Depot Schedules & Overhaul Periodicity

Yard maintenance standards outline systematic incoming rolling-in examinations, requiring technical personnel to position themselves on both sides of the receiving line to inspect running gear for loose fittings, dangling components, and flat tyres. Axle box temperature feeling must be executed across all journals within 20 minutes of train arrival to detect warm boxes and prevent en-route hot box failures. Freight train examination patterns and Brake Power Certificate (BPC) issuance are defined in accordance with the Railway Board Joint Procedure Order (JPO), establishing validity criteria for End-to-End operations (valid to destination provided composition is not altered by 4 or more wagons) and Close Circuit rakes (valid for 4500 km or 15 days, requiring 100% originating brake power).

Complete overhaul periodicities are tabulated across all rolling stock types: Routine Overhaul (ROH) intervals are set at 18 months for BOXN, BCN, BRN, and BTPN wagons, and 24 months for BOBR, BOBRN, and BTPGLN stock. Periodical Overhaul (POH) intervals define initial overhauls at 6 years and subsequent overhauls at 4.5 or 6 years depending on stock classification. Defect classification structures divide open-line maintenance into Petty Repairs (under 8 man-hours), Medium Repairs (8 to 100 man-hours in sicklines), and Special Repairs (over 100 man-hours in major depots or workshops), ensuring structured asset utilization and safety compliance.

Professional Workshop Utility & Instant Download Delivery

This digital edition of the Indian Railways Maintenance Manual for Wagons – Freight Stock Workshop & Depot Overhaul Guide equips mechanical engineers, rolling stock contractors, railway training institutes, and depot technicians with complete, unabridged technical data required to execute routine maintenance, major overhauls, ultrasonic wheel testing, brake testing, and structural repairs. Adhering to the official specifications and condemning dimensions contained in this guide ensures full compliance with statutory railway standards, minimizes en-route wagon detachments, and maintains maximum rolling stock availability. Delivered as an instant high-resolution PDF download immediately upon checkout, this manual contains no physical shipping delays, is fully readable across desktops, tablets, and mobile devices, and can be printed for direct practical reference on the workshop floor and sickline inspection bays.
